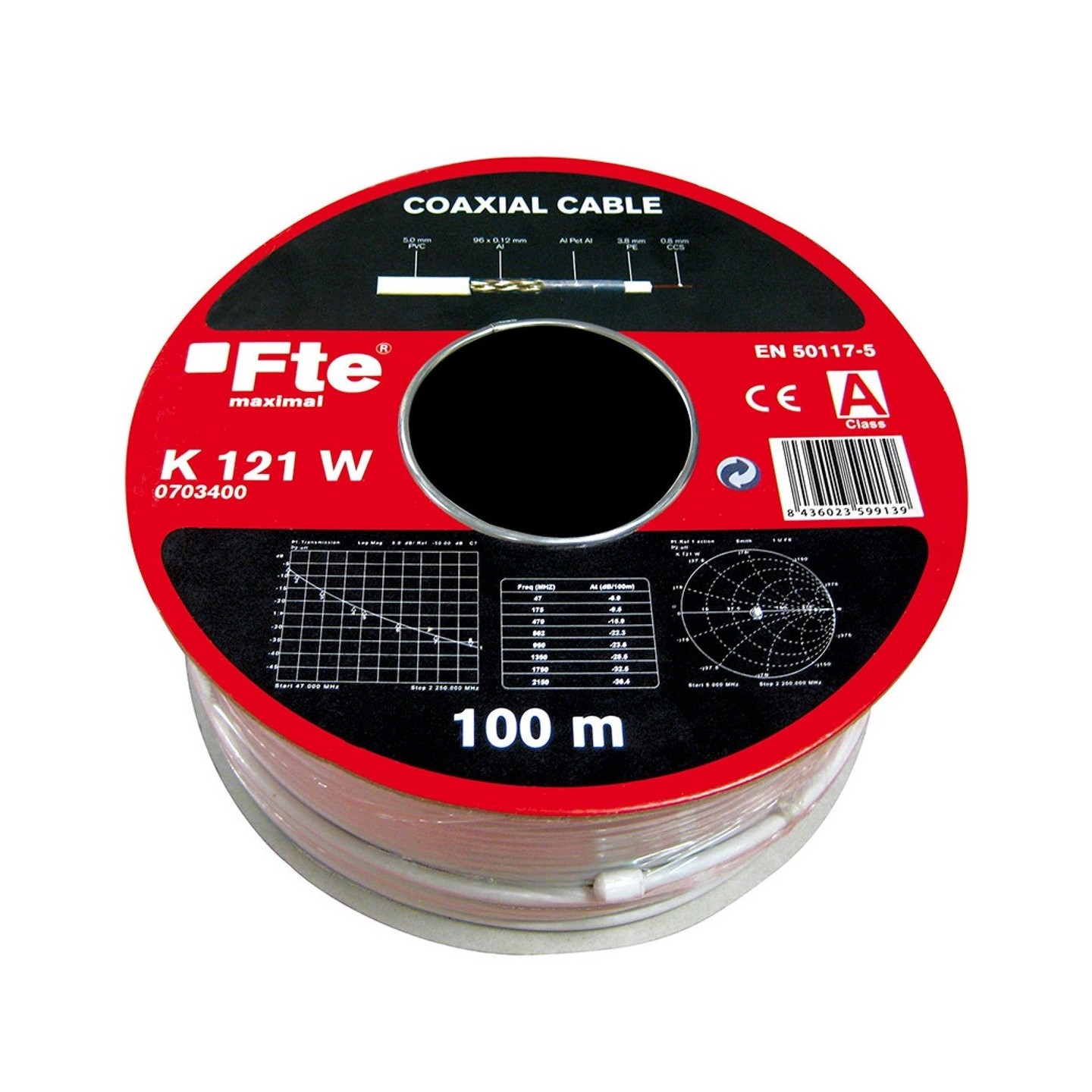

FTE Coaxial Cable - K121W - 5.0mm 100m

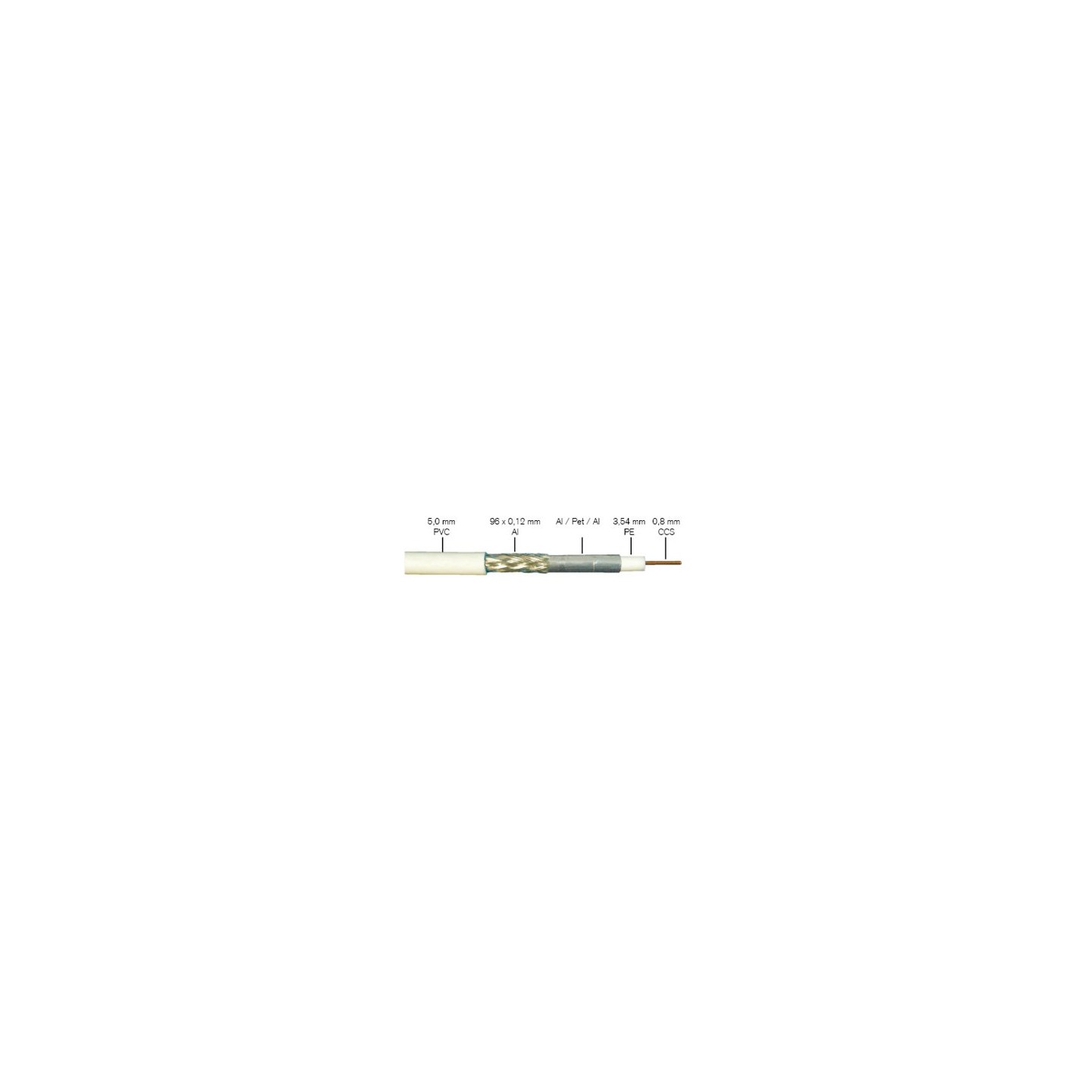

Coaxial RG58 cable, 75 Ω ±3, 0.8 mm CCS inner conductor, 3.54 mm PE foam dielectric, 5.0 mm diameter, 100 m length, 96 shielding wires.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
- Impedance (Ω) 75 +/- 3 Ohms
- Inner conductor (mm) ø : 0.8 CCS
- Dielectric meter (mm) ø : 3,54 PE physical foam
- Foil material: Al / Pet / Al
- Braiding material: Al
- Nº of wires(braiding): 96
- Braiding composition: 16 x 6 x 0,12 mm
- Braiding coverage: 80 %
- Outer jacket (mm) Ø: PVC white
- Jacket outer diameter (mm): 5 mm
- Screening factor (30 - 900 MHz): > 85 dB
- Presentation 100m / cardboard reel
- Reaction to fire: Fca
| Cable Type | RG58 |
| Material | CCS |
| Length | 100m |
| Cable Diameter | 5.0mm |
| Screening Wires | 96 |
