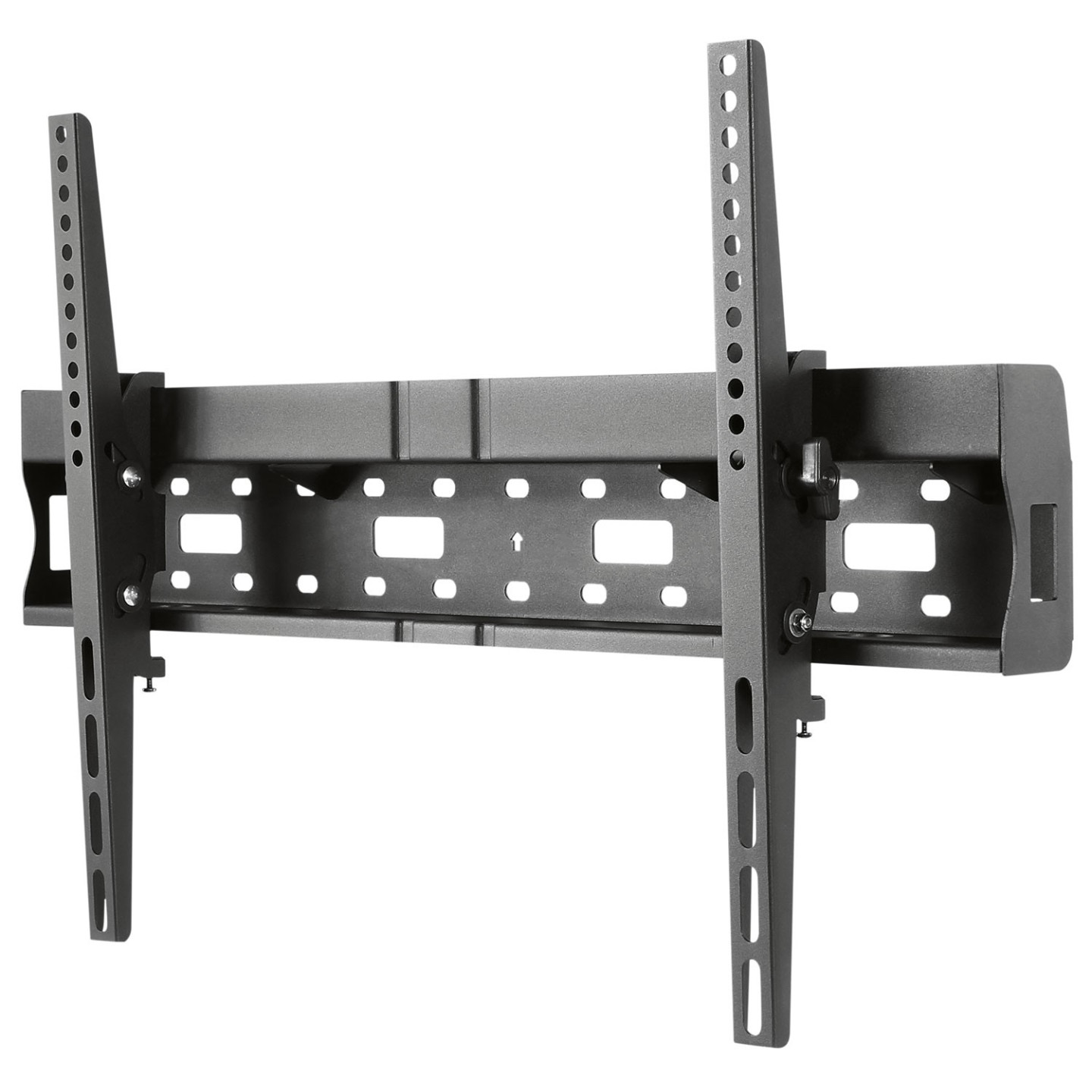

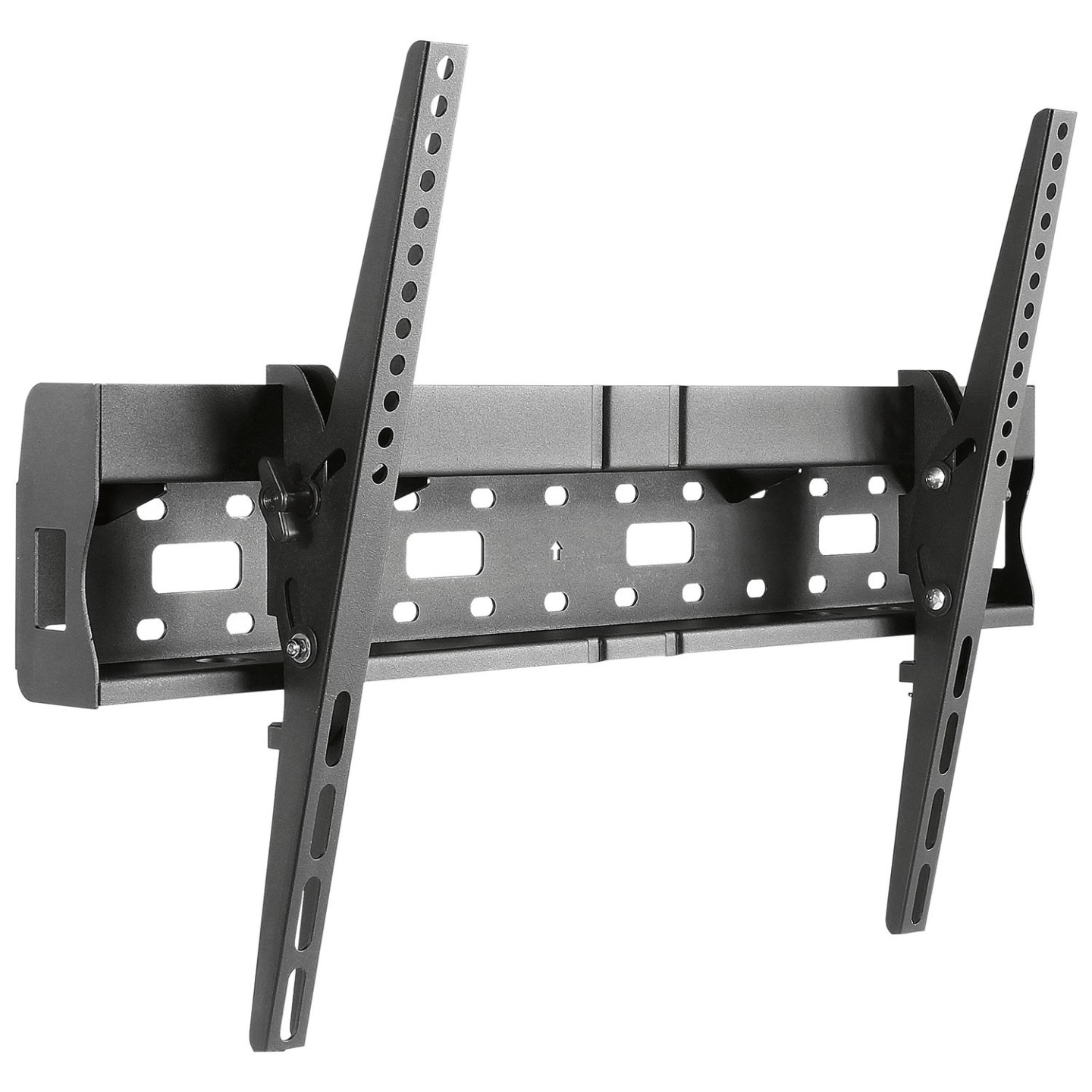

AV:Link TV Wall Bracket - 129.166UK - 600x400 Tilt with Media Shelf

SKU 39006 Brand Av:Link EAN13 5015972225769
Tilting TV wall bracket with 600x400 VESA support and a media shelf; supports TVs up to 35 kg.
TV Wall Mounts - Type Tilt
TV Wall Mounts - VESA 600x400
TV Wall Mounts - Max Load 35 kg

With streaming and storage devices for TVs becoming increasingly popular, the requirement for additional space behind the TV is paramount. This new tilting TV bracket features an innovative boxed design which provides space for stowing away media players, hard drives and TV streamers, as well effectively concealing any excessive cabling. The open architecture also provides additional ventilation and easy access to any awkward ports placed at the back of the unit.

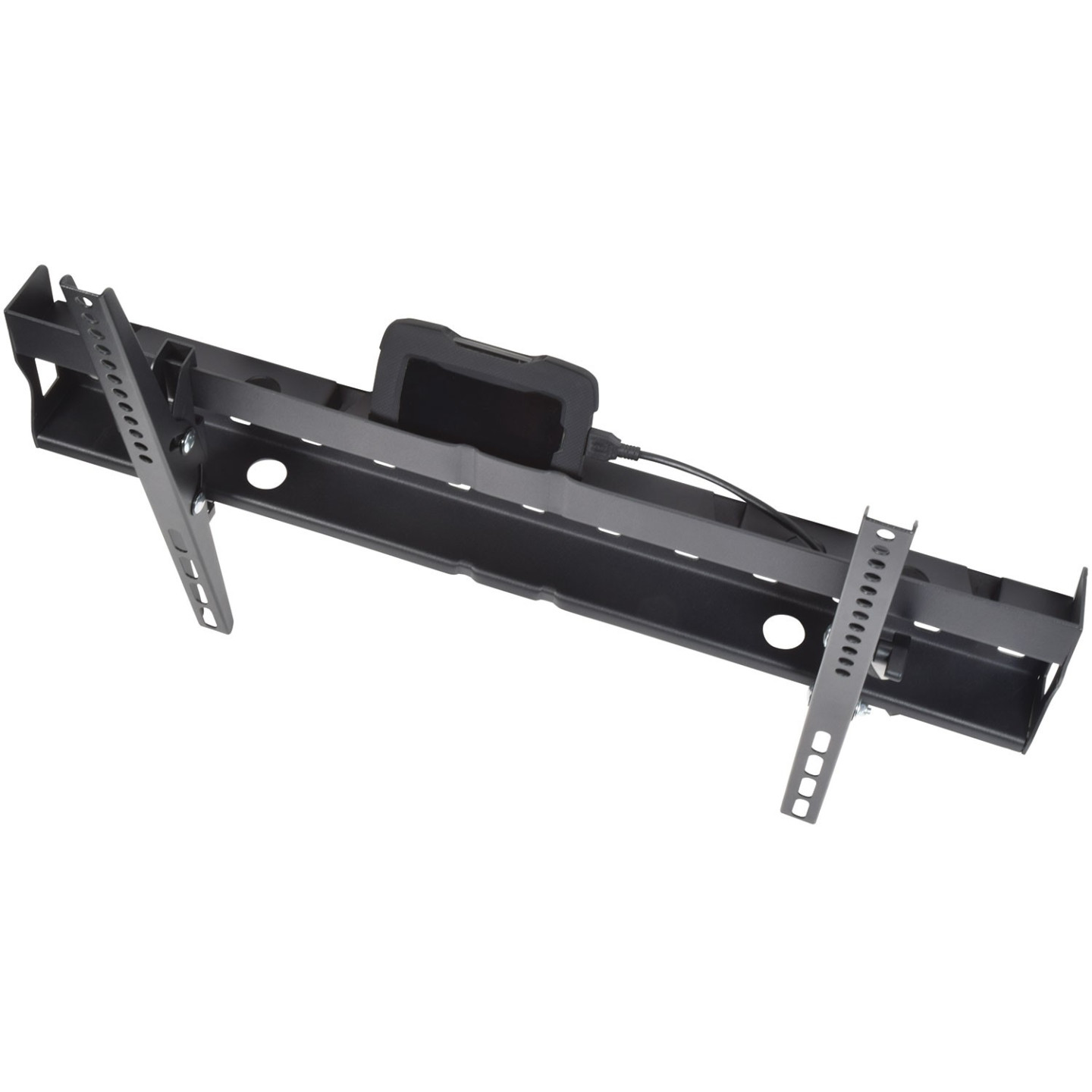

  • Innovative boxed design provides a free area behind the TV ideal for media players, streaming and storage devices and additional cabling (max. device depth 45mm)

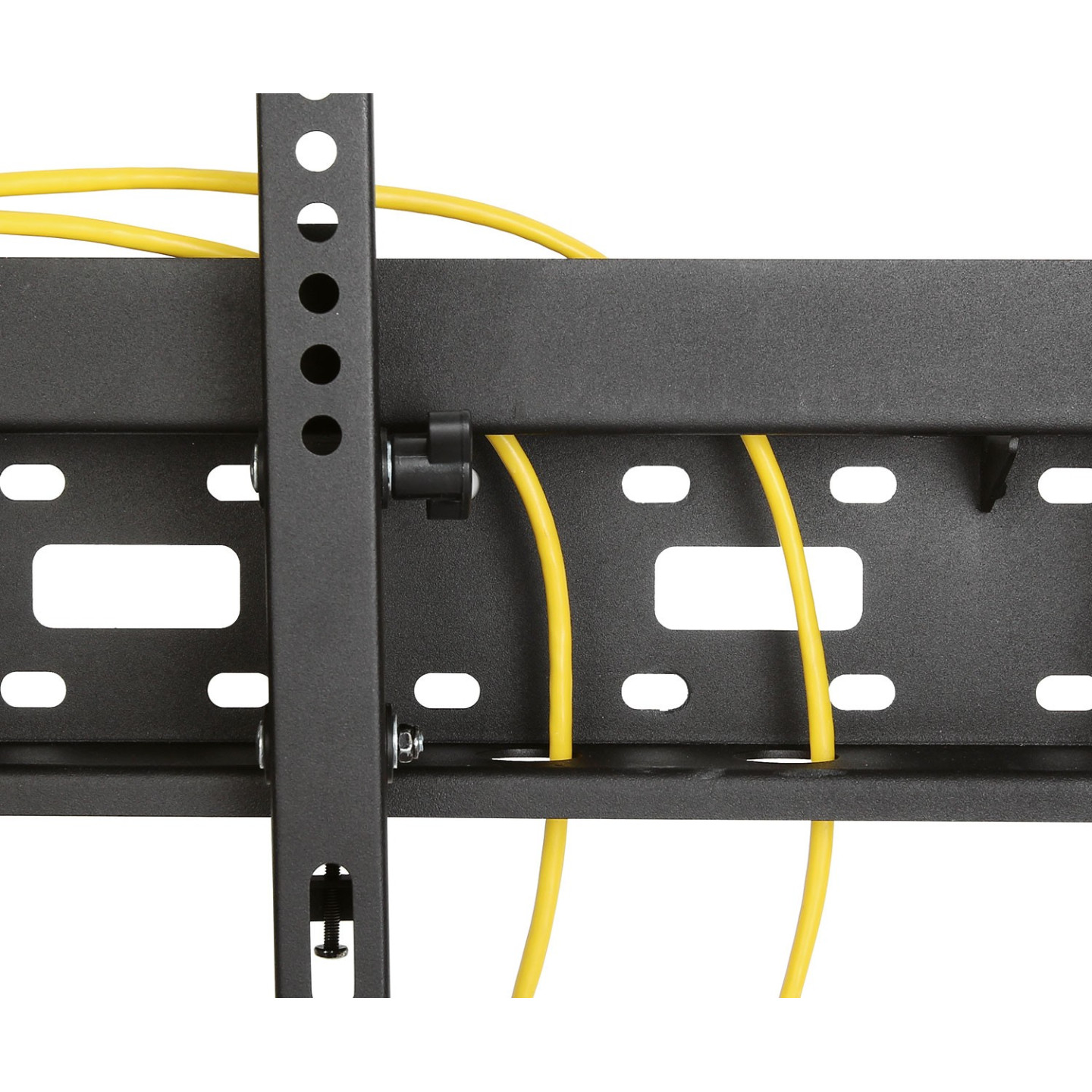

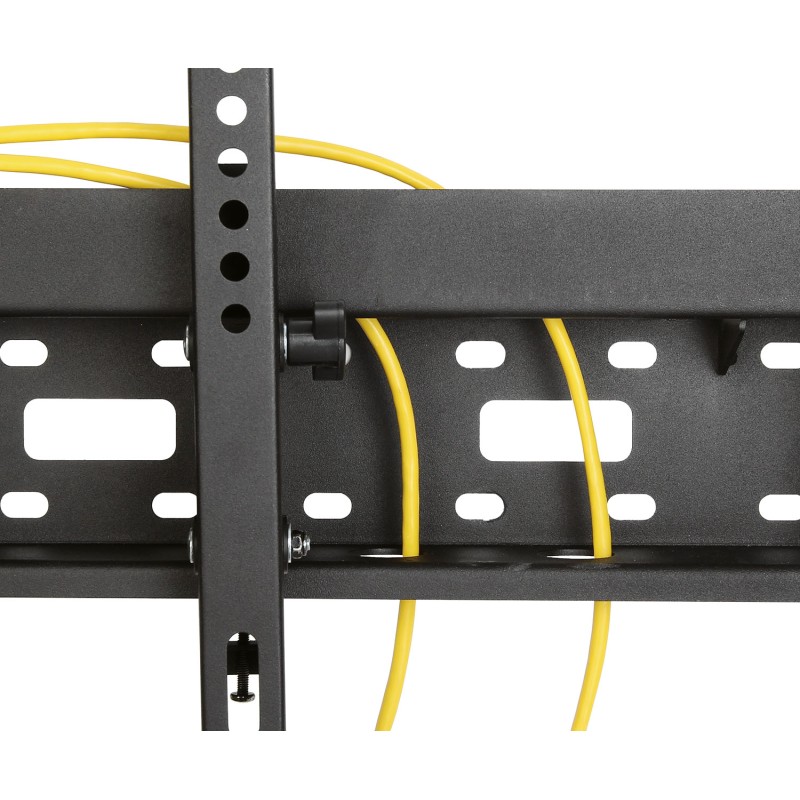

  • Open Architecture provides increased ventilation and easier access to ports and cables

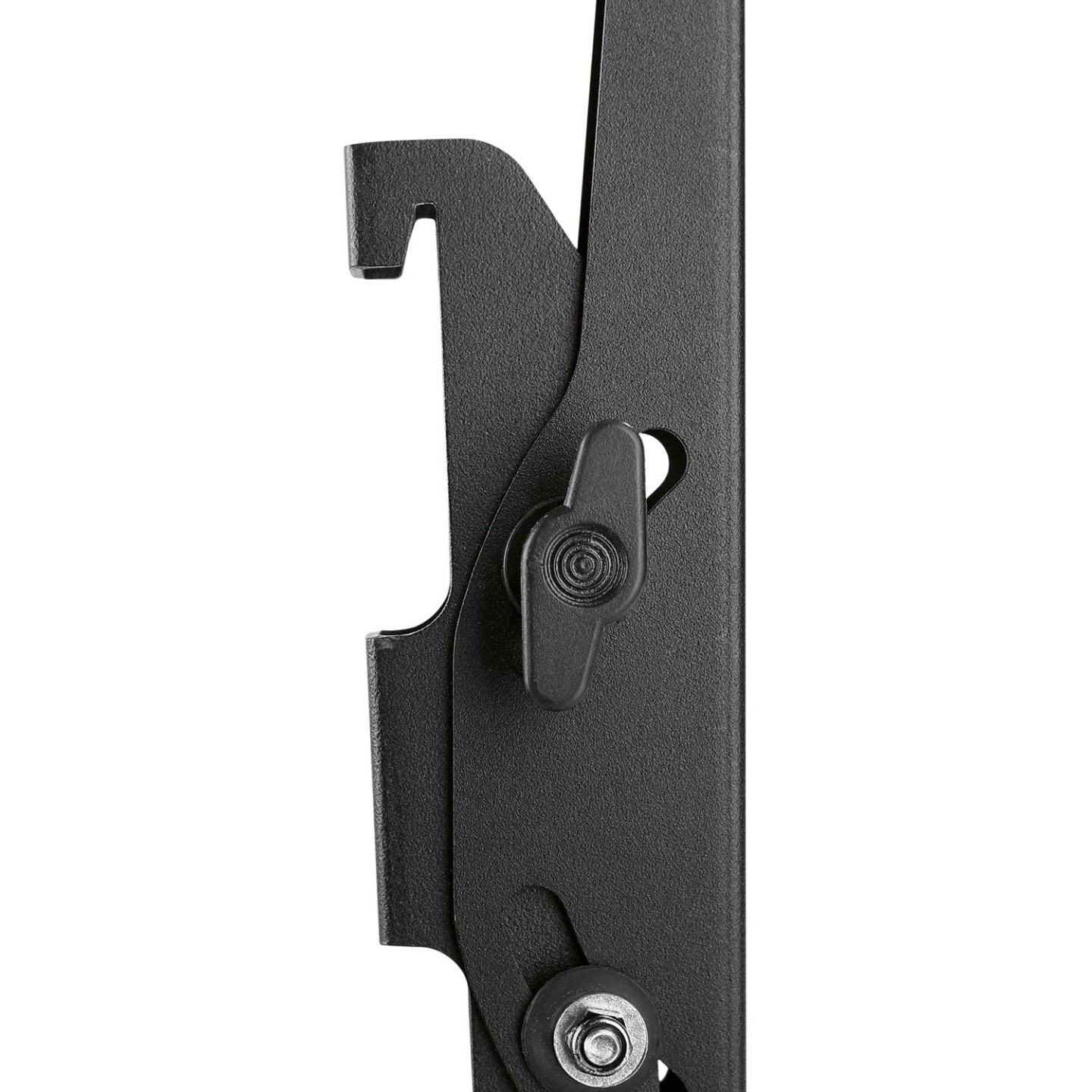

  • Easy access thumbscrews for tilt adjustment
  • Suitable for most 37" to 70" TVs
  • Maximum weight load 35kg
  • Maximum 600x400 VESA compatible
  • Wide range of fixings supplied
  • Max. VESA: 600 x 400
  • Max. weight load: 35kg
  • Screen size: 37" to 70"
  • Distance from wall: 89mm
  • Tilt range: +12 to -12°
  • Dimensions: 645 x 425 x 89mm
  • Weight: 2.75kg

In the Box

  • 1pc TV bracket
  • 4pcs M6 x 30mm
  • 4pcs M8 x 30mm
  • 4pcs M8 x 50mm
  • 4pcs Spacer large
  • 4pcs Spacer small
  • 4pcs Washer 8mm
  • 4pcs Wall screw
  • 4pcs Wall plug
  • 4pcs Washer
  • 1pc Magnetic spirit level (removable)
  • 1pc User guide
FunctionTilt
Max Vesa600x400
Max. Weight35kg
