Mercury CAT6 Outdoor Cable CU UTP 100m - 808.040UK - Cat6 Outdoor Cable
Cat6 oxygen-free copper twisted pair data cable with LDPE sheath, supplied in dispensing box and marked at 1 metre intervals; designed for high-speed Gigabit Ethernet.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Ethernet Cables - Length Range | Other |
|---|

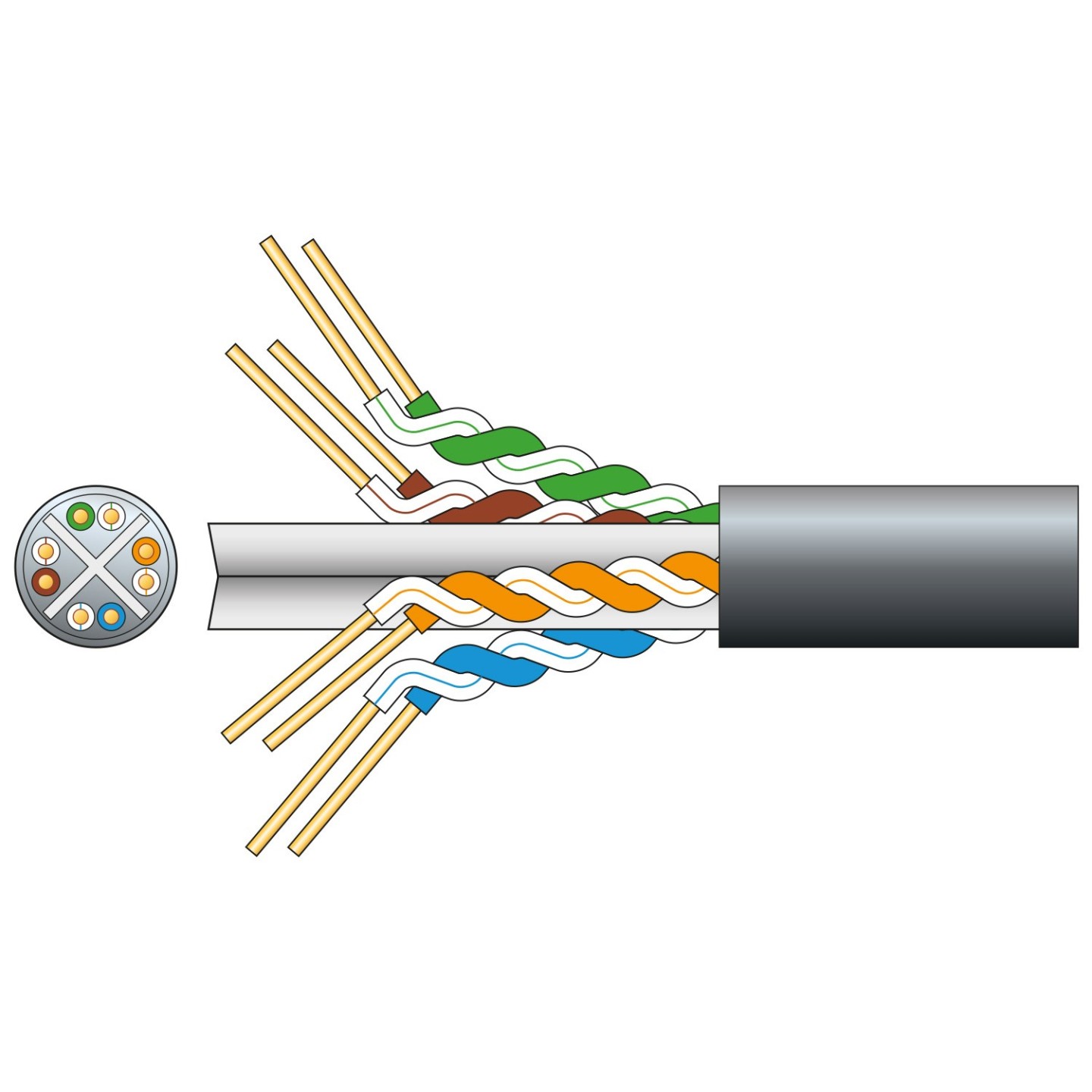

Cat6 oxygen free copper twisted pair data cable with LDPE sheath, supplied in dispensing box and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications in an outdoors environment.
- Oxygen free solid copper conductor
- LDPE sheath and UV resistant properties make this cable ideal for outdoor installations

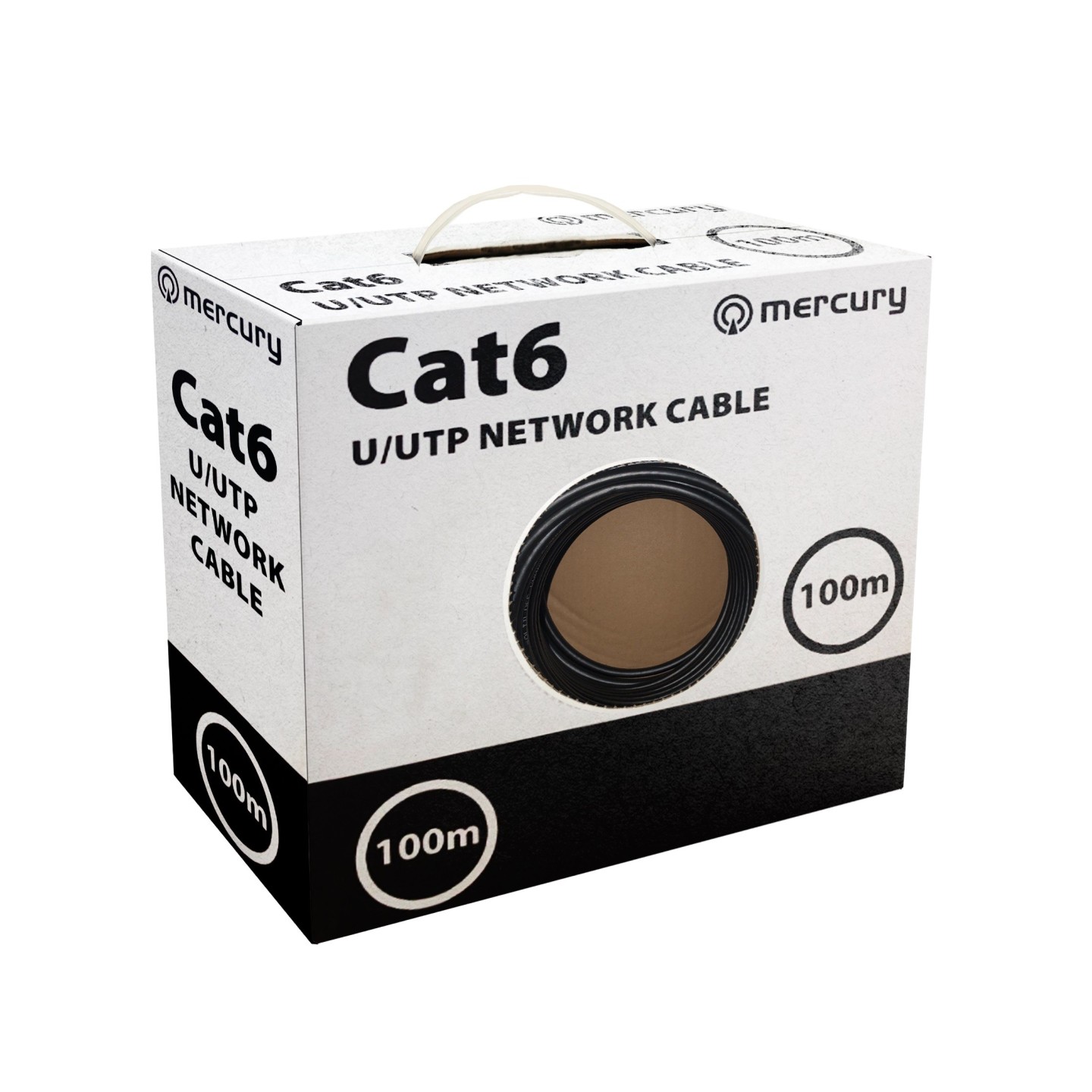

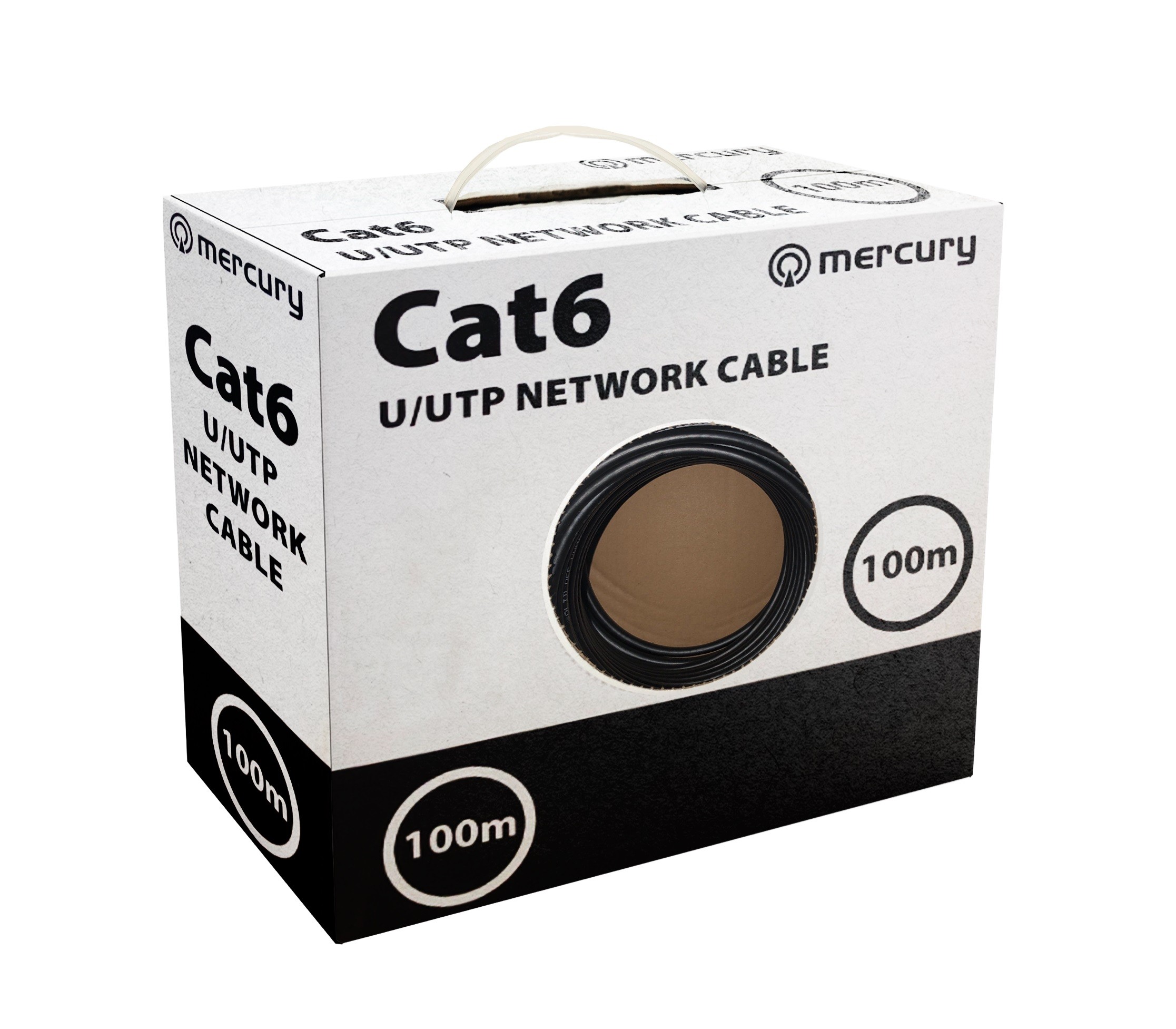

- Supplied in an easy-pull dispensing box and marked at 1m intervals
- Passes Cat6 fluke test 100m at 250MHz
- Complies to TIA/EIA-568 Cat6 standard
- Conductor: Solid OFC
- Strands: 8 x 0.53mmØ ±2%
- Cable diameter: 6.0±0.05mm
- Insulation: HDPE 0.93±0.05mm
- Sheath: LDPE 0.55±0.05mm thickness
- DC resistance @ 20°C: <9.38 ohms/100m
- Impedance (1 to 250MHz): 100±15 ohms
- Return loss >20.1dB @ 100MHz
- Attenuation >19.8dB @ 100MHz
- NEXT >44.3dB @ 100MHz
- Phase delay >537.60ns @ 100MHz
- PSNEXT >42.3dB @ 100MHz
- ELFEXT >27.8dB @ 100MHz
- PSELFEXT >24.8dB @ 100MHz
- Cable colour: Black
| Type | Cat6 |
| Cable Type | UTP |
| Conductor | Pure Copper |
| Environment | Outdoor |
| Length | 100m |
| Colour | Black |
