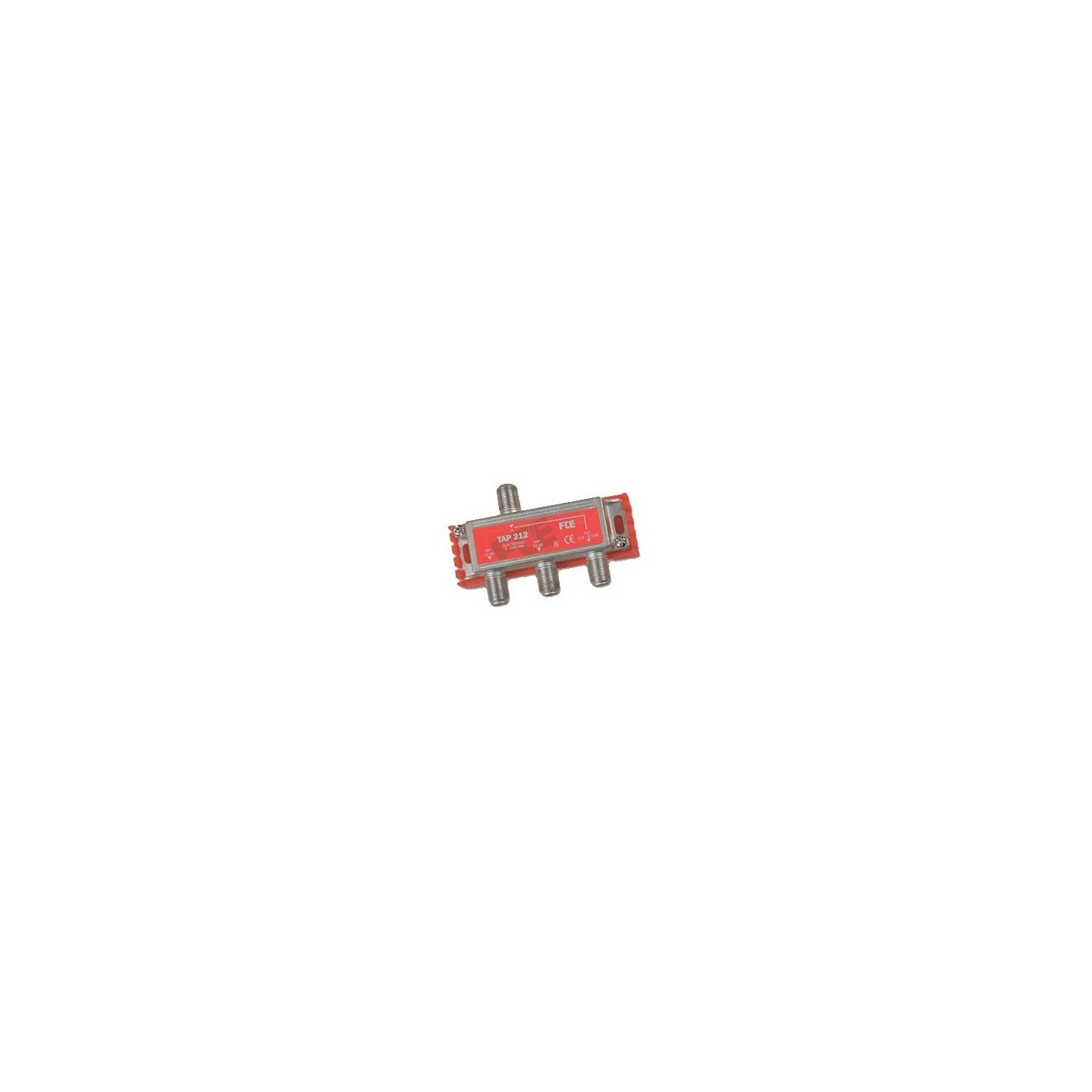

FTE Tap - TAP212 - 2-Way Tap 5-1000mhz
2-output TAP covering 5-1000MHz; supports return line variants 5-30 or 5-65MHz.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
These taps cover terrestrial band between 5 and 1000 MHz including any version of return line - 5 to 30 or 5 to 65 MHz - in all directions (IN-OUT, OUT-IN, IN-TAP and TAP-IN). They have two tap outputs and all connectors F type. The availability of 5 tap attenuation values let make a cascade perfectly compansated. All references have plastic wall support insertable and a ground connection.
- Covered Band (MHz) 5-1000
- Return band (MHz) 5-30 / 5-65
- Nr. of TAPS 2
- TAP attenuation (dB) Freq.(MHz) Typ Max 5-300 12,5 8,5 300-606 12,5 12,9 606-1000 12,5 13,2
- Distribution pass (dB) 5-300 1,8 2,0 300-606 1,8 2,0 606-1000 2,0 2,5
- Decoupl. between outputs (dB) 5-300 > 25 300-606 > 20 606-1000 > 20
- Return loss (dB) IN > 20 OUT > 20 TAP > 18
- Screening factor (dB) > 100
- Impedance (Ω) 75
- Current pass no
- Connectors F female
- Plastic support included
- Dimensions (mm) 10 pcs: 165 x 165 x 70 120 pcs: 330 x 330 x 210
| Type | Tap |
| Tap Outputs | 2 |
| Frequency | 5-1000Mhz |
| Series | TAP |
