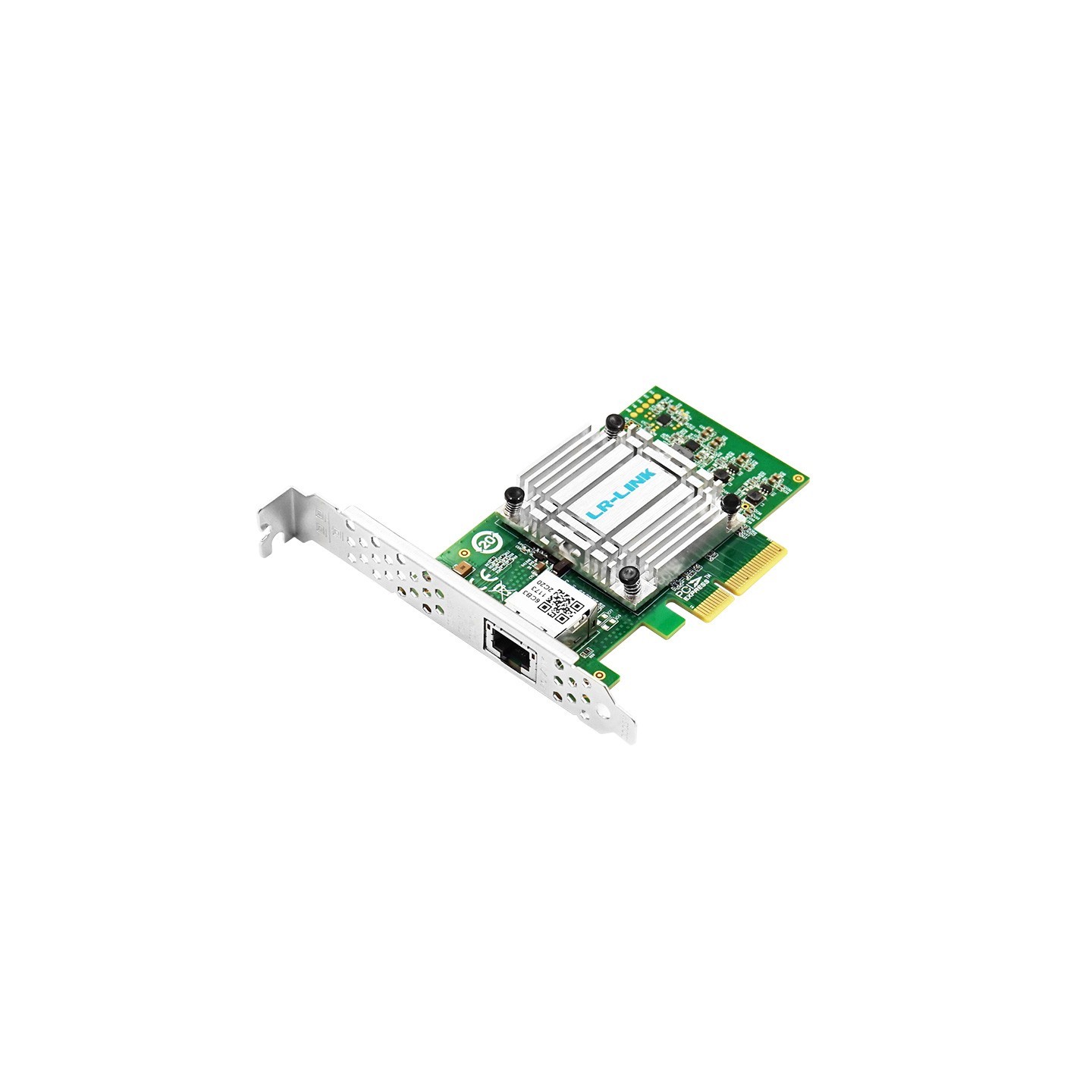

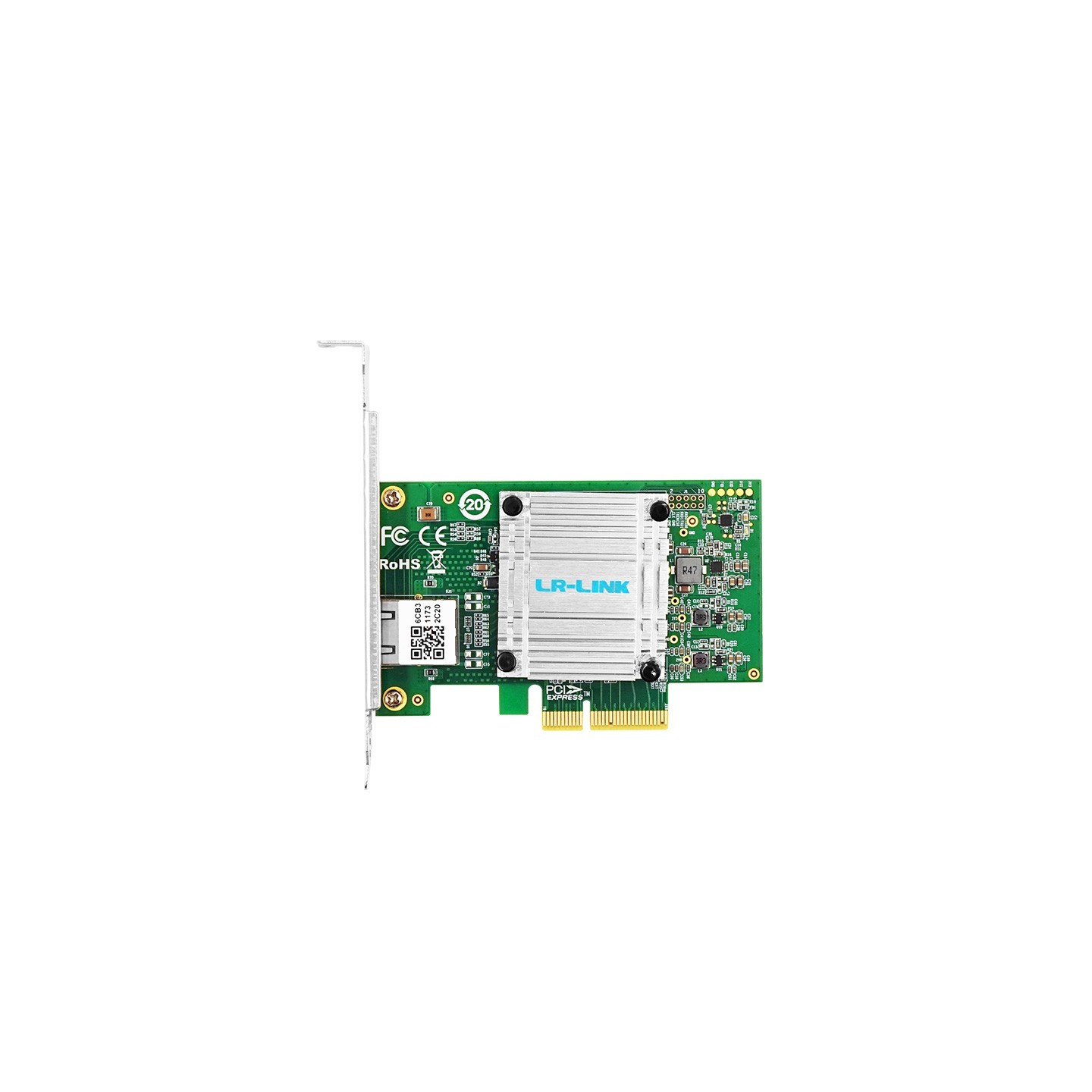

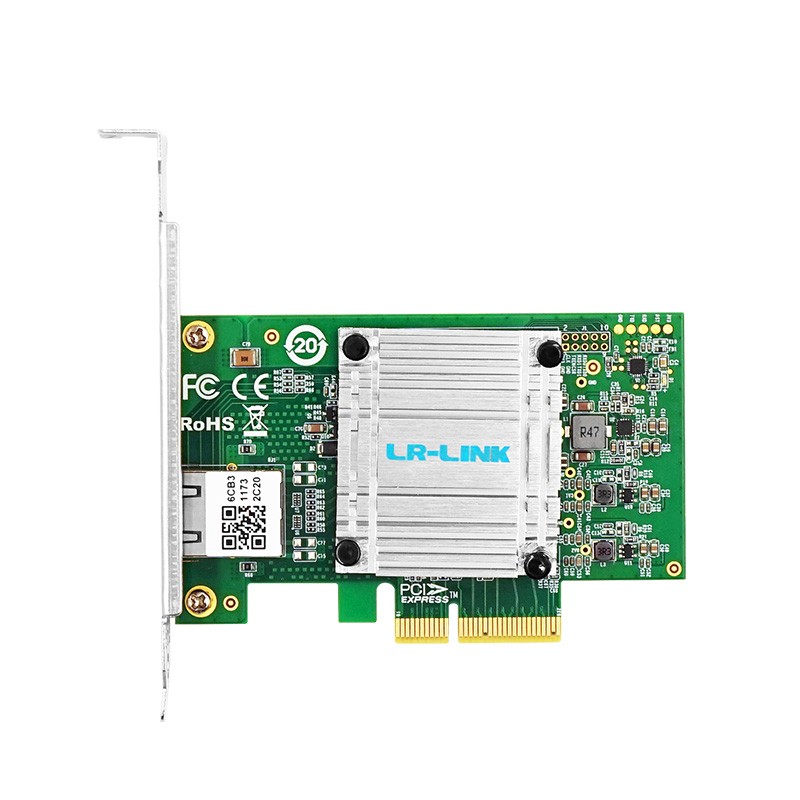

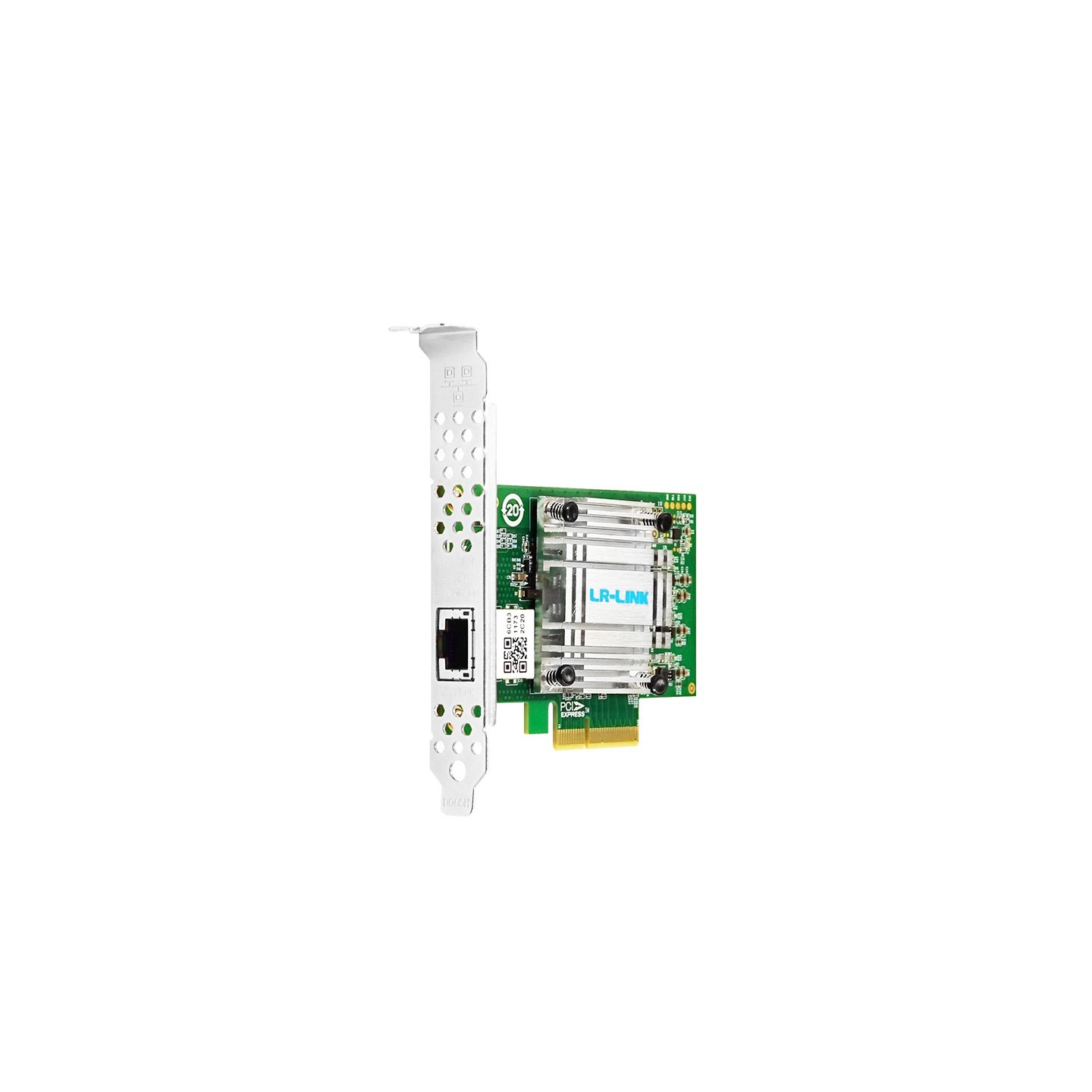

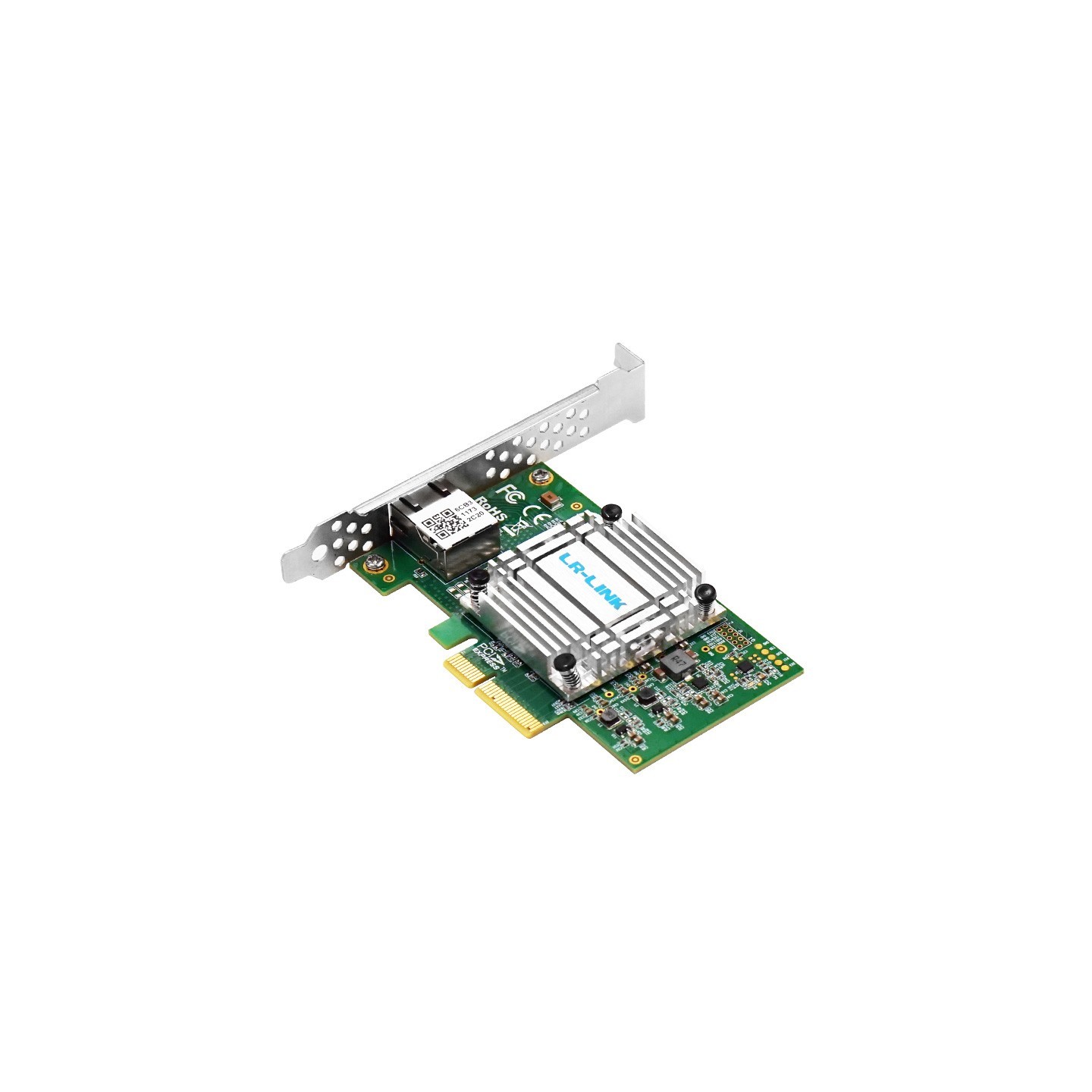

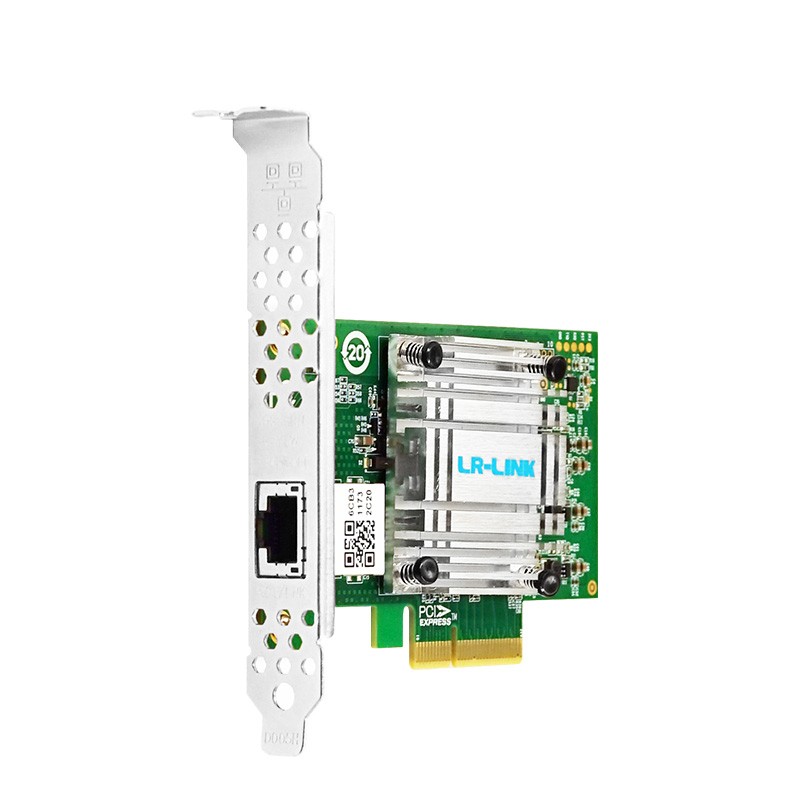

LR-Link Ethernet Network Adapter - LRES2051PT - 1x 10G Ethernet
PCIe x4 network card (x8/x16 compatible) with 1x 10GbE RJ45 port, based on Marvell AQC113.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
LR-Link LRES2051PT is a network card for PCI Express x4 slot (compatible with x8 and x16). It features 1 port of 10G Ethernet (RJ45) and is based on the Marvell AQC113 chipset. The utilized port allows you to conduct transmission using a regular Ethernet cable, rather than fiber optics. The device supports PXE, WoL, UEFI, Jumbo frames, MDI/MDI-X crossover, VLAN, and SR-IOV. The package includes both high and low-profile brackets.
- 1 10G Ethernet port
The network card is equipped with 1 port of 10G Ethernet supporting automatic speed negotiation (10 / 100 / 1000 / 2500 / 5000 / 10000 Mb/s). It's designed for use on a PCI Express x4 slot but is also compatible with x8 and x16. The package includes two brackets - low and high profile.
The device's design is based on the Marvell AQC113 chipset, widely used in various networking solutions.
- Advanced functions
The LRES2051PT supports PXE, WoL, UEFI, Jumbo frames, MDI/MDI-X crossover, VLAN, and SR-IOV. The card is compatible with many operating systems, including Windows, Windows Server, Ubuntu, RHEL/Centos, and many others.
The network card has been designed with servers in mind, but you can also use it in other solutions, including personal computers.
- Chipset Marvell AQC113
- Cable medium Copper
- Copper Cable Type
- CAT-6:50m（5G), 100m（2.5G), CAT-7:100m (10G)
- Bracket Height Low Profile & Full Height
- Min power consumption 1,2177 W
- Max power consumption 2,805 W
- Bus Type PCIe v4.0 (16 GT/s) x4, compatbile x8 and x16
- Data rate per port 10 Mb/s /100 Mb/s/1 Gb/s /2,5 Gb/s / 5 Gb/s /10 Gb/s
- Connector 1 RJ45 10G Ethernet
- System support
- Windows 10 /11
- Windows Server 2022
- RHEL/Centos7.3 /7.6 /7.9 /8.2 /8.3
- Deepin 15.11 /20 /20.6
- Ubuntu 16.04.3 /18.04.5
- ZTE New Fulcrum 3.2.2 /5.0.5
- Asianux Server v7.0
- NeoKylin 7.6
- Zhongke Fangde desktop operating system 4.0
- Zhongke Fangde server operating system
- Tongxin UOS 20
- Emind OS
- OpenKylin 0.7.5
- iKuai router
- Protocol Support
- IEEE 802.3an 10 Gbit/s Ethernet over unshielded twisted pair
- IEEE 802.3bz 2.5/5GBASE-T
- IEEE 802.3ab 1000BASE-T Gigabit Ethernet
- IEEE 802.3u 100BASE-TX Fast Ethernet
- IEEE 802.1Q VLANs
- IEEE 802.3x Full Duplex and flow contro
- IEEE 802.3az - Energy Efficient Ethernet (EEE)
| Interface | PCI |
| Ethernet Speed | 10GbE |
