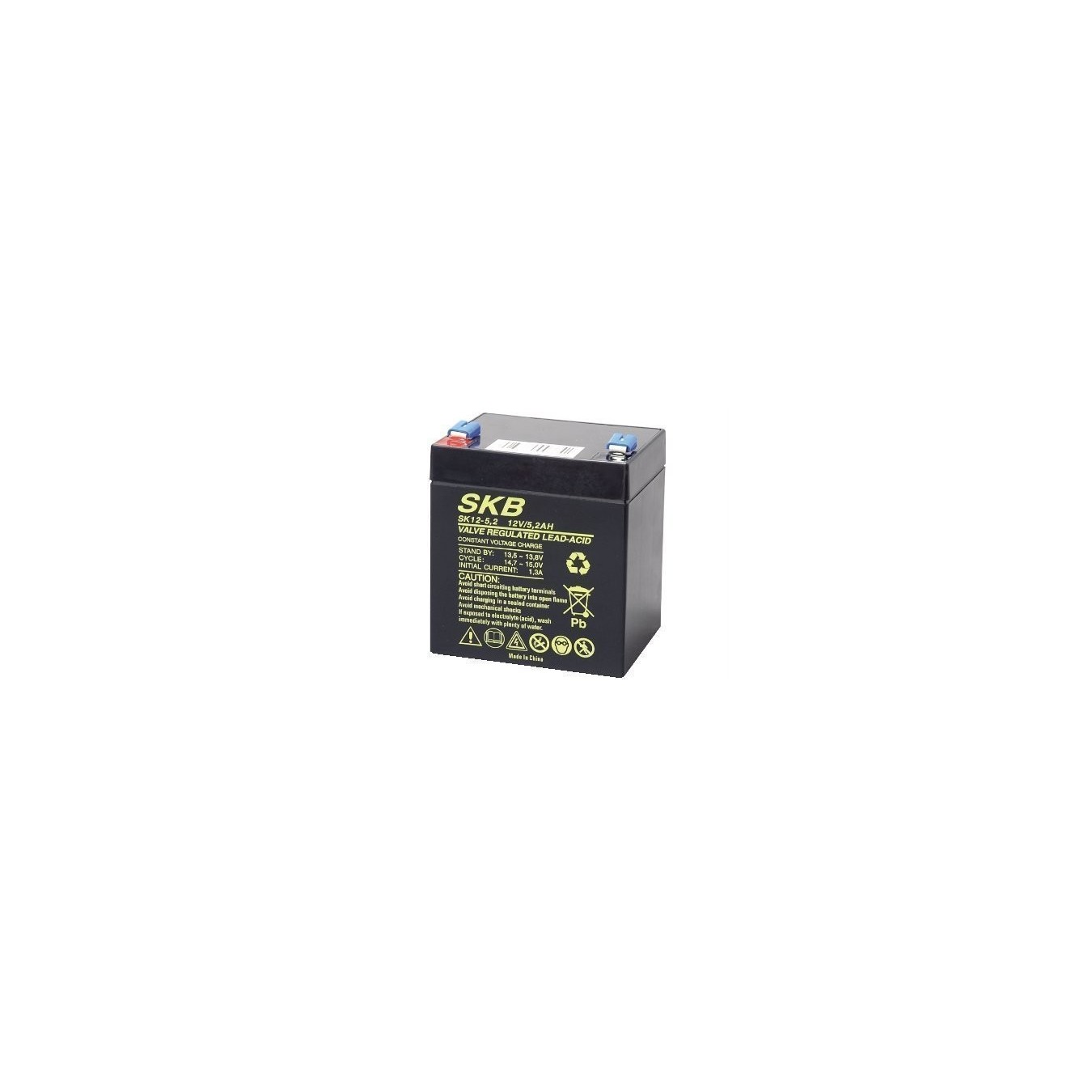

SKB Lead Acid Battery 12V 5.2Ah SK12-52 (Boxed)
SKB SK12-52 Lead-Acid Battery: 12V 5.2Ah, 6 cells, 108W (15min), 4.8mm Faston terminals. Dimensions 90x70x101mm, 1.55kg. Ideal for UPS/General use. EUROBAT 3-5yr Standard Commercial.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| UPS & Power Backup - Product Type | Replacement Battery |
|---|
The SKB Lead Acid Battery 12V 5.2Ah (model SK12-52) is a reliable VRLA (Valve Regulated Lead Acid) battery designed for general and UPS applications. With 6 cells delivering 12V DC and 5.2Ah capacity, it provides 108W power for 15 minutes, making it suitable for backup power in computers, networking equipment, and small UPS systems.
Featuring 4.8mm Faston terminals (layout 2) and compact dimensions of 90x70x101(107)mm, this 1.55kg battery fits standard UPS compartments. It supports buffer charging at 13.5-13.8Vdc and cyclic use at 14.4-15.0Vdc, with a standard charge current of 1.56A. Operating temperatures range from -20°C to +60°C for charging/storage and -10°C to +60°C for discharge.
- Number of cells: 6
- Voltage: 12 Vdc
- Capacity: 5.2 Ah
- Battery power (15min): 108 W
- Power/cell (15min): 18 W
- Terminals faston: 4.8 mm
- Layout of the terminals: 2
- Dimensions: LxPxH(HT) 90x70x101(107) mm
- Weight: 1.55 Kg
- Usage: General, UPS
- Buffer charging voltage: 13.5 - 13.8 Vdc
- Charging voltage for cyclic use: 14.4 - 15.0 Vdc
- Standard charging current: 1.56 A
- Max Discharge Current (5 sec.): 75 A
- Discharge temperature: -10 ~ +60 °C
- Charging temperature: -20 ~ +60 °C
- Storage temperature: -20 ~ +60 °C
- EUROBAT Classification: 3 - 5 years "Standard Commercial"
- Container: ABS - HB
| Number of cells | 6 |
| Voltage | 12 Vdc |
| Capacity | 5.2 Ah |
| Battery power (15min) | 108 W |
| Power/cell (15min) | 18 W |
| Terminals faston | 4.8 mm |
| Layout of the terminals | 2 |
| Dimensions | LxPxH(HT) 90x70x101(107) mm |
| Weight | 1.55 Kg |
| Usage | General,UPS |
| Buffer charging voltage | 13.5 - 13.8 Vdc |
| Charging voltage for cyclic use | 14.4 - 15.0 Vdc |
| Standard charging current | 1.56 A |
| Max Discharge Current (5 sec.) | 75 A |
| Discharge temperature | -10 ~ +60 °C |
| Charging temperature | -20 ~ +60 °C |
| Storage temperature | -20 ~ +60 °C |
| EUROBAT Classification | 3 - 5 years |
| Container | ABS - HB |
