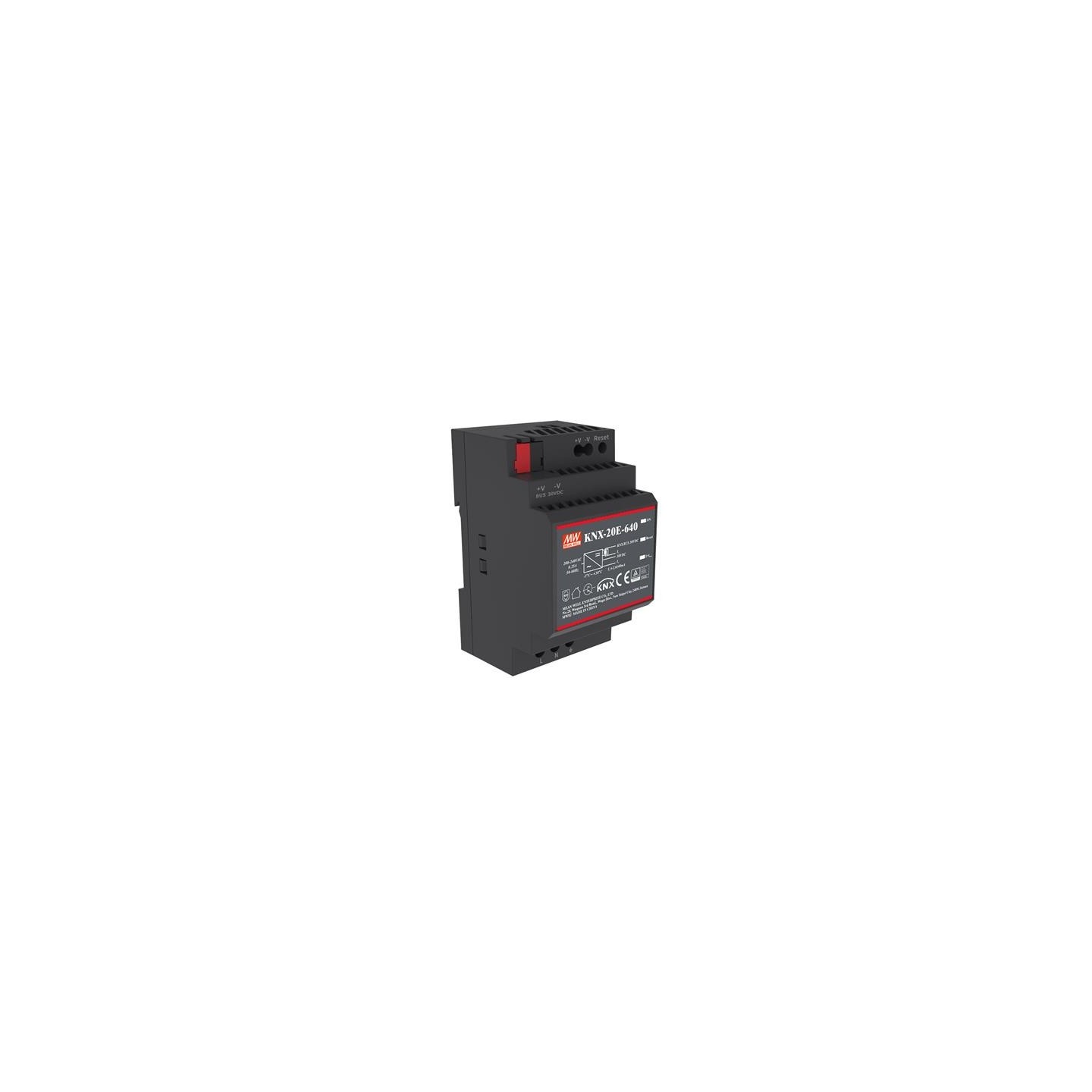

Meanwell KNX Power Supply - KNX-20E - KNX Power Supply 640mA
KNX switching power supply with integrated choke, DIN rail mounting, closed design with touch-protected terminals, universal input, overload current limiting.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
- KNX switching power supply with integrated choke
- can be mounted directly on the DIN rail
- closed design, touch-protected screw terminals
- Universal input
- Overload protection through current limiting, auto-recovery
- protected against short circuit, overload, overvoltage
- SELV
- Input voltage (AC): 180 - 264 V
- Input voltage (DC): 254 - 370 V
- Current: 640 mA
- Power: 19,2 W
- Efficiency: 86
- Inrush current: max. 40 A
- Connection: Scharub connection
- Length: 52,5 mm
- Width: 90 mm
- Height: 54,5 mm
