MINIX NGC NR660 Mini PC AMD Ryzen 5 6600H 16GB DDR5 512GB SSD WiFi 6E (Boxed)
Compact MINIX mini PC with AMD Ryzen 5 6600H, 16GB DDR5 RAM, 512GB SSD, WiFi 6E, dual 2.5G LAN, USB4, and Windows 11 Pro for office, content creation, and light gaming.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Barebone & Mini PC - System Type | Complete Mini PC |
|---|---|
| Barebone & Mini PC - Processor Family | AMD Ryzen 5 |
| Barebone & Mini PC - Graphics Chipset | AMD Radeon 600M Series |
| Barebone & Mini PC - Operating System | Windows 11 Pro |
| Barebone & Mini PC - Installed Storage | 512 GB |
| Barebone & Mini PC - Installed Memory (RAM) | 16 GB |
Powerful AMD Ryzen 5 6600H Performance
The MINIX NGC NR660 features the AMD Ryzen 5 6600H processor with 6 cores and 12 threads running at 3.3-4.5 GHz, paired with integrated AMD Radeon 660M graphics (6 cores, 1800 MHz). With a low 45W TDP and quiet 32dB operation, this mini PC delivers smooth performance for office tasks, content creation, light gaming, and multimedia applications without excessive heat or noise.
Fast DDR5 Memory & Expandable Storage
Equipped with 16GB DDR5-4800MHz RAM and a 512GB PCIe 3.0 NVMe SSD, the NGC NR660 ensures fast boot times and responsive multitasking. The system features dual DDR5 SO-DIMM slots (expandable to 64GB) and dual M.2 PCIe 4.0 x4 slots (expandable to 8TB total), making it ideal for users handling large files or planning future upgrades.
Versatile Connectivity & Dual 4K Display Support

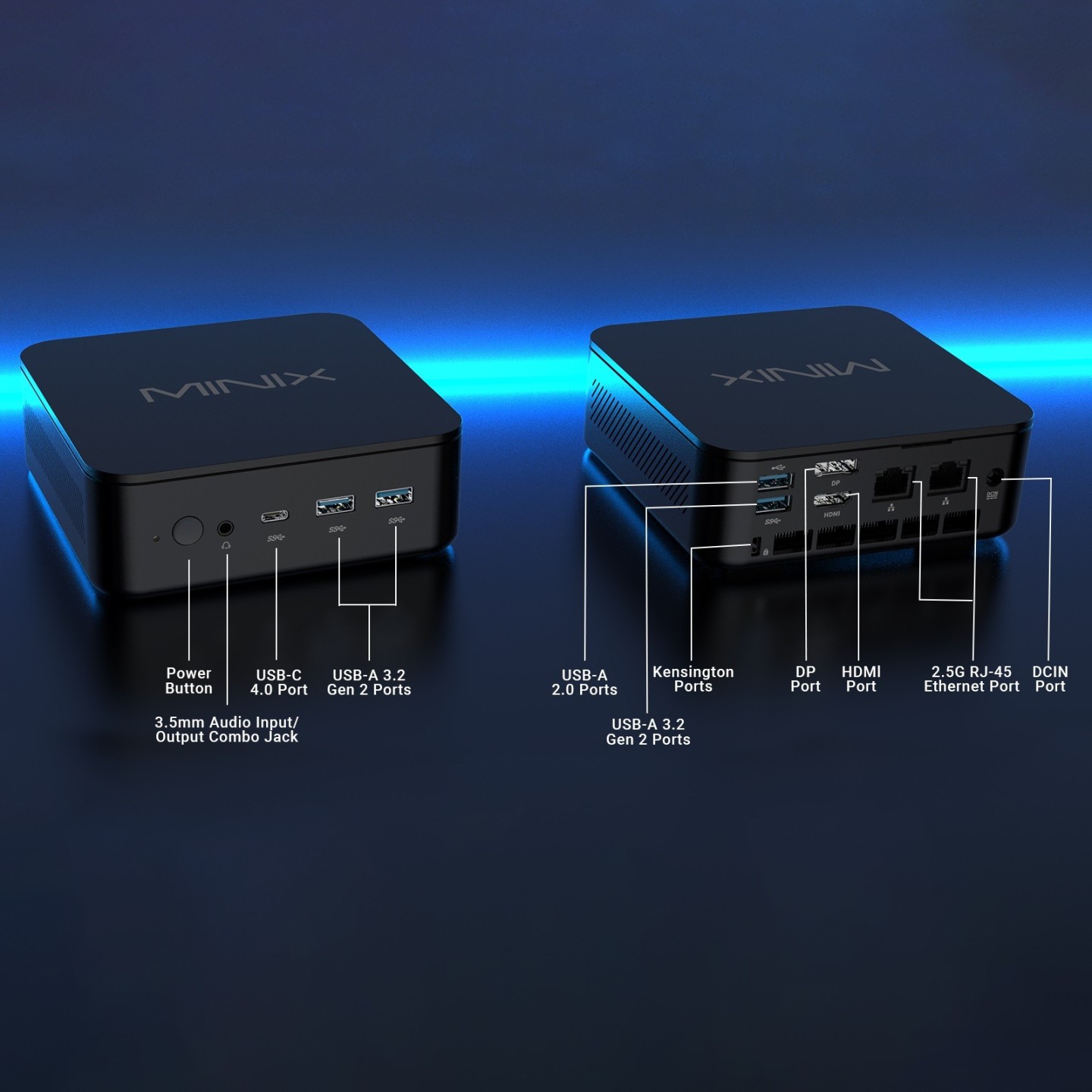

This compact mini PC offers comprehensive I/O connectivity including 1x USB4, 3x USB 3.2 Gen2, 1x USB 2.0, HDMI 2.0, DisplayPort 1.4, 3.5mm audio jack, and dual 2.5G LAN ports. WiFi 6E provides tri-band wireless connectivity (2.4GHz/5GHz/6GHz) with improved speed and stability. Both HDMI 2.0 and DisplayPort support dual 4K@60Hz displays simultaneously, while USB4 supports up to 8K output, enabling seamless multitasking and immersive entertainment.
- Dimensions: 130 x 127 x 49 mm (device only); weighs only 280g bare unit, ~460g with accessories
- Pre-installed Windows 11 Professional 64-bit with global CE/FCC/RoHS/PSE certifications
- VESA mount compatible for easy monitor mounting and space-saving setup
- Dual 2.5G Ethernet ports for stable, high-speed wired connections
- Supports external GPU connectivity via USB4 for enhanced graphics performance
| Processor | AMD Ryzen 5 6600H (6 cores, 12 threads, 3.3-4.5 GHz, 45W TDP, 6nm) |
| Graphics | AMD Radeon 660M (6 cores RDNA2, 1800 MHz) |
| Memory | 16GB DDR5-4800MHz (2x SO-DIMM, expandable to 64GB) |
| Storage | 512GB PCIe 3.0 NVMe SSD (M.2 2280, expandable to 8TB via dual M.2 PCIe 4.0 x4 slots) |
| Operating System | Windows 11 Professional 64-bit |
| Wireless Connectivity | WiFi 6E (802.11ax, tri-band 2.4GHz/5GHz/6GHz), Bluetooth 5.2 (RZ616) |
| Wired Connectivity | Dual 2.5G Ethernet (2.5GbE LAN ports) |
| Video Outputs | 1x HDMI 2.0, 1x DisplayPort 1.4, 1x USB4 (supports dual 4K@60Hz or 8K output) |
| USB Ports | 1x USB4, 3x USB 3.2 Gen2, 1x USB 2.0 |
| Audio | 3.5mm audio combo jack |
| Power | 19V 5A (95W) built-in DC power supply |
| Dimensions (Device) | 130 x 127 x 49 mm |
| Weight (Device) | 280 grams |
| Weight (with accessories) | ~460 grams |
| Noise Level | 32 dB (manufacturer specification) |
| Cooling | Active cooling with quiet fan |
| Display Support | Dual 4K@60Hz (HDMI 2.0 + DisplayPort), 8K via USB4 |
| VESA Mount | Compatible |
| Certifications | CE, FCC, RoHS, PSE |
| Included Accessories | 1x HDMI cable, power adapter, manual |
| Material | Plastic chassis with front LED indicator |
