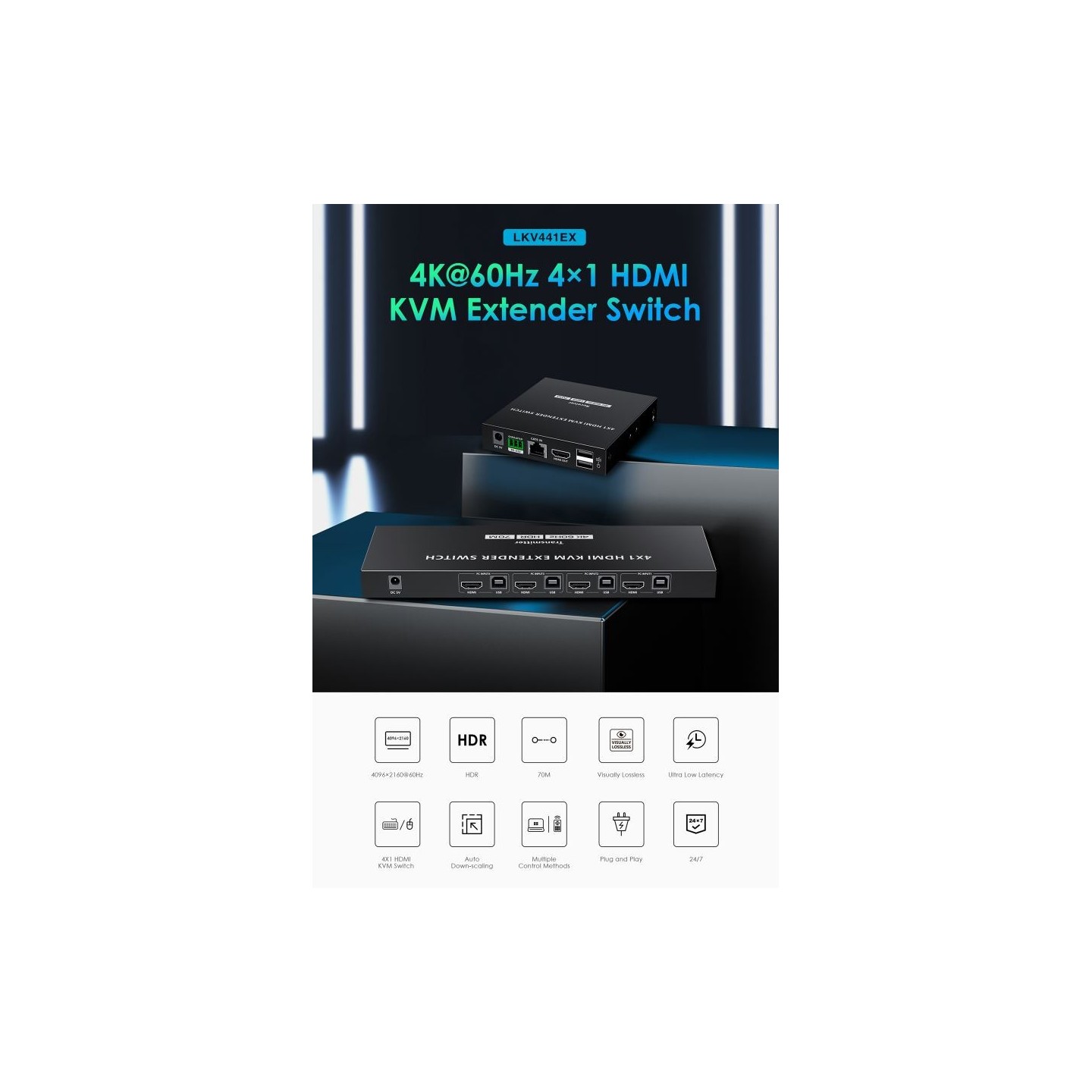

Lenkeng KVM HDMI Extender Switch 4-1 over Ethernet 4K60Hz - LKV441EX - KVM HDMI Extender Switch 4-1 over Ethernet 4K60Hz
4-in-1-out KVM HDMI extender switch over Ethernet supporting 4K60Hz HDMI signals.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Docks & Hubs - Video Outputs | HDMI |
|---|---|
| Docks & Hubs - Max Resolution | 4K60 (single) |

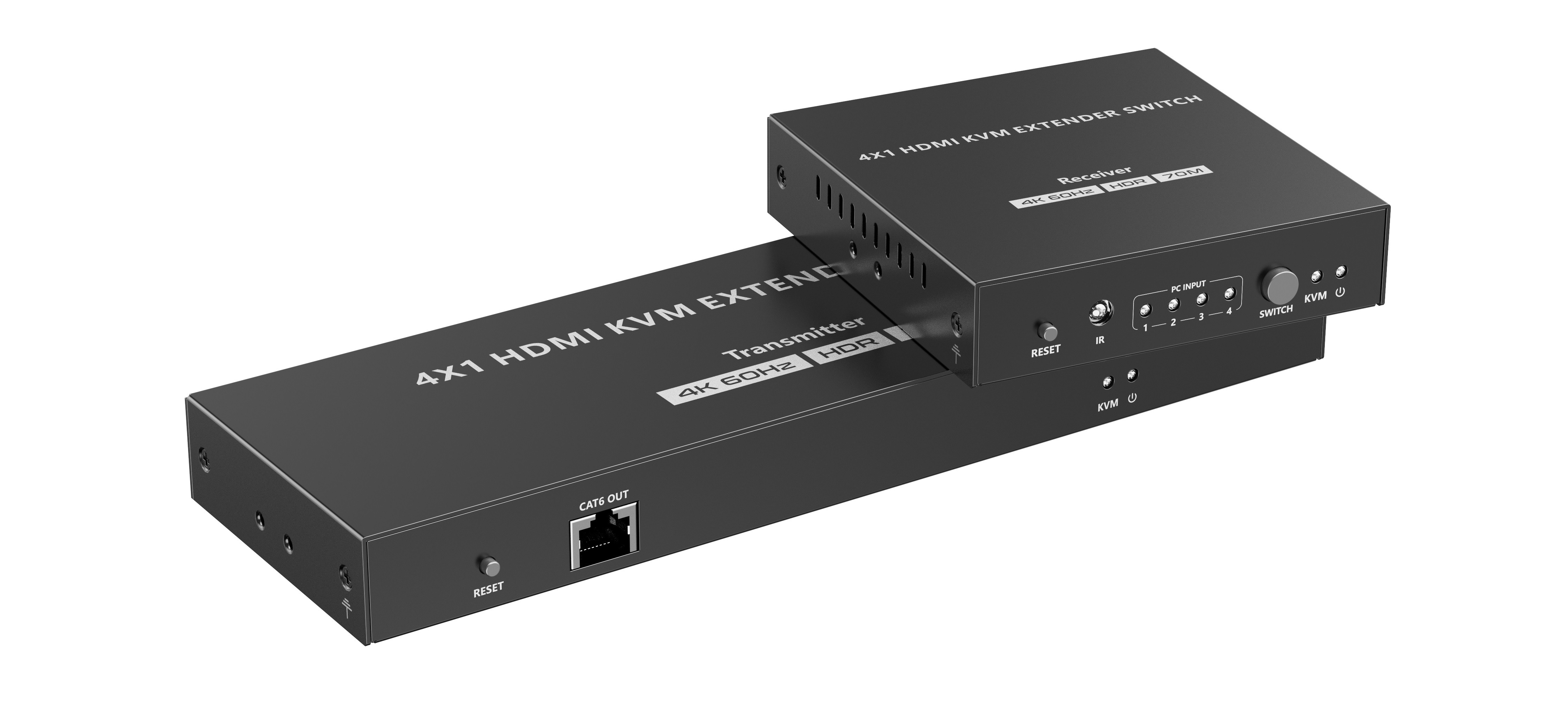

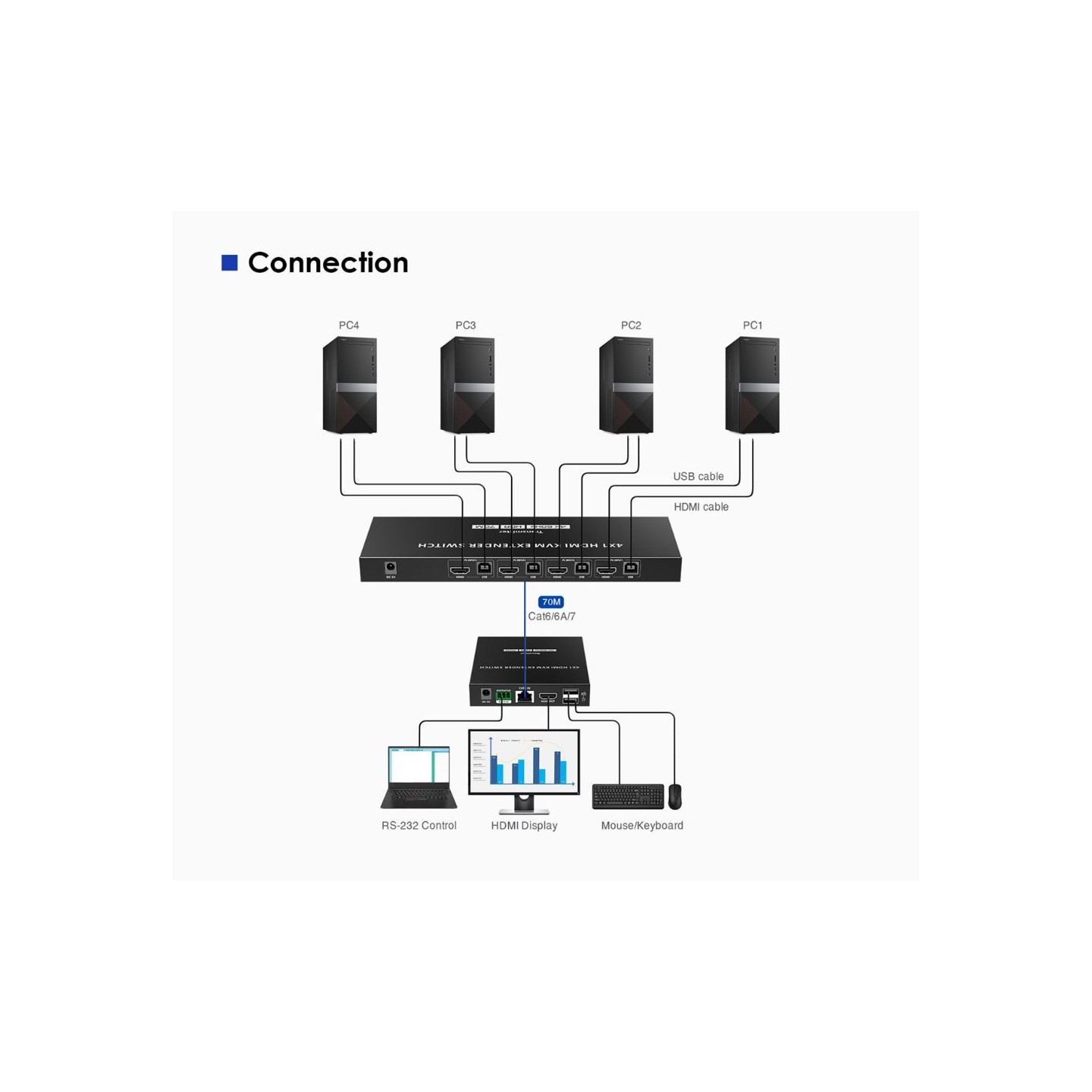

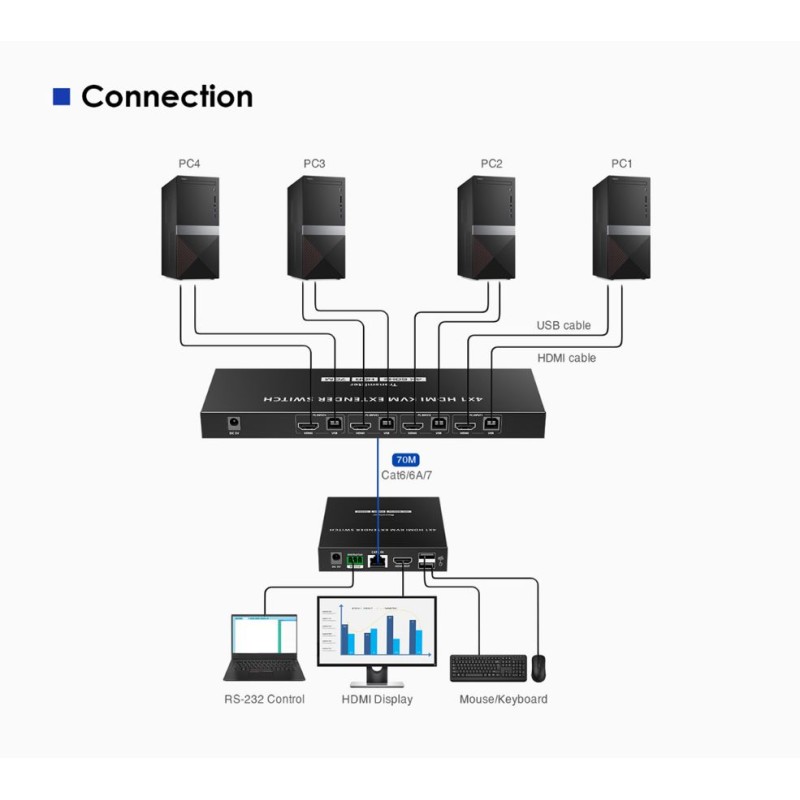

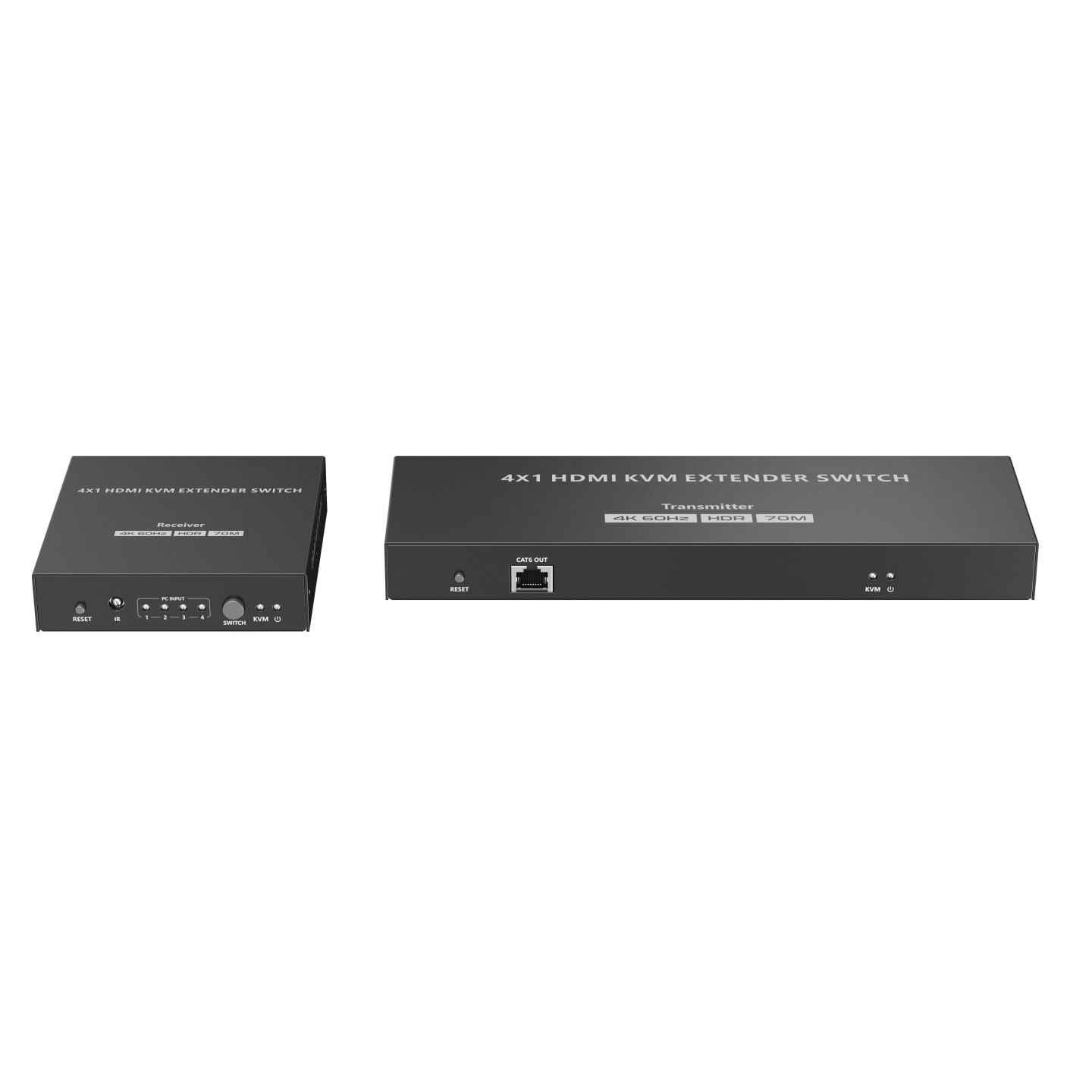

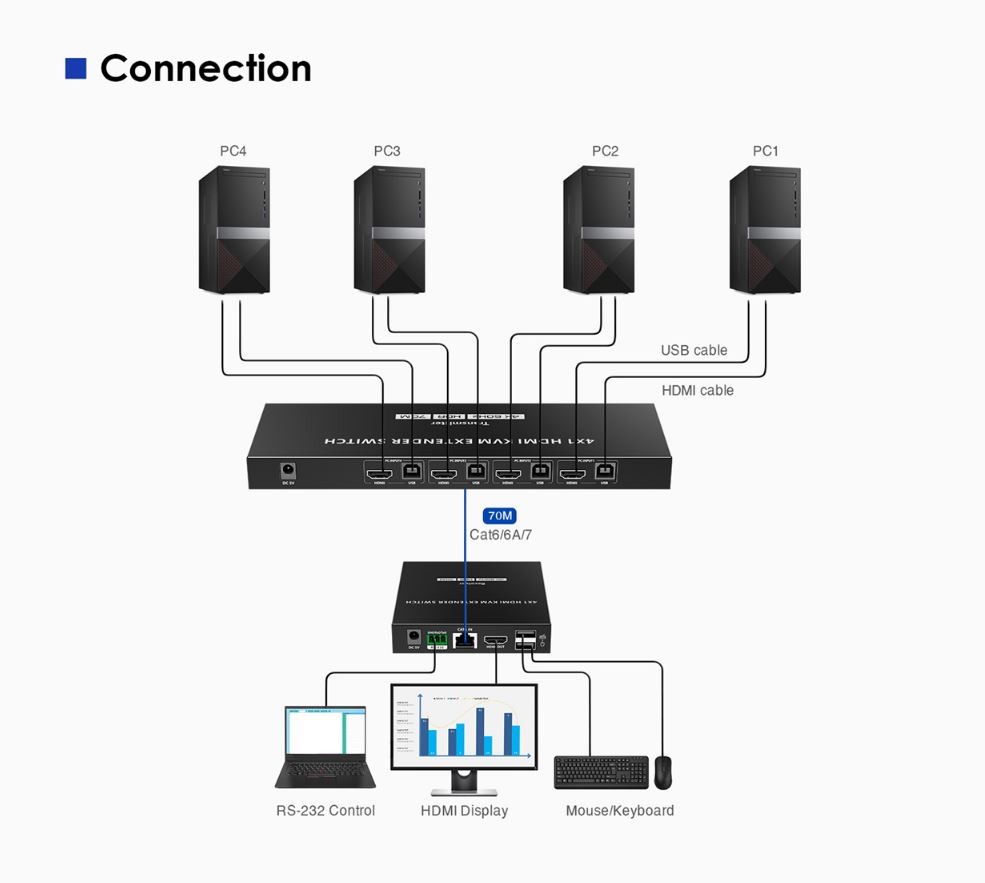

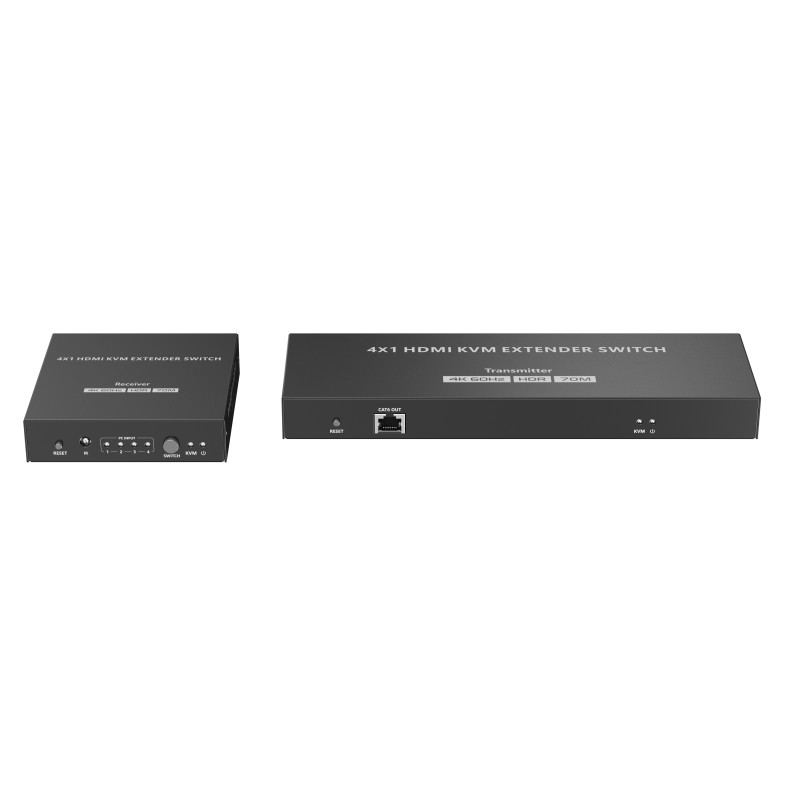

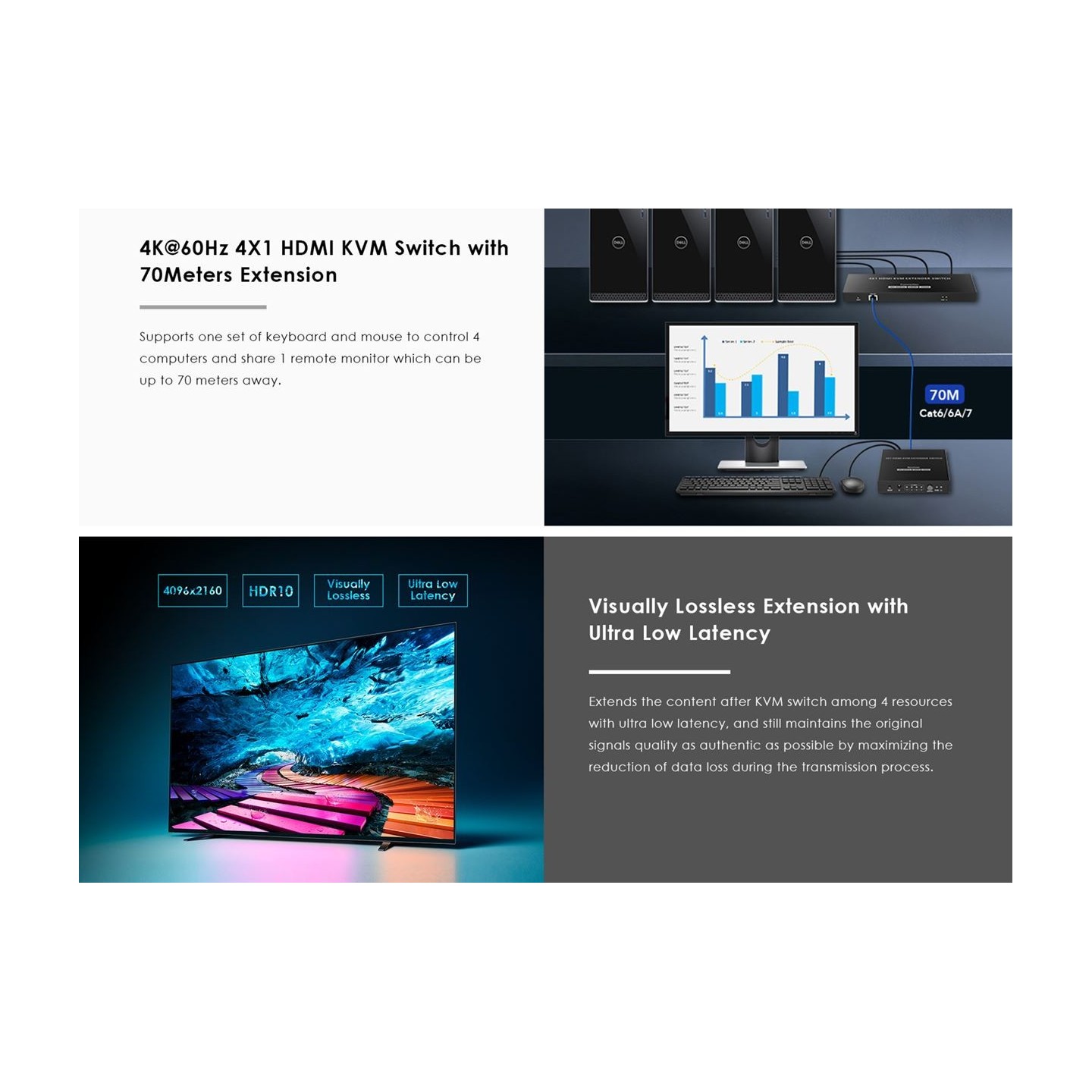

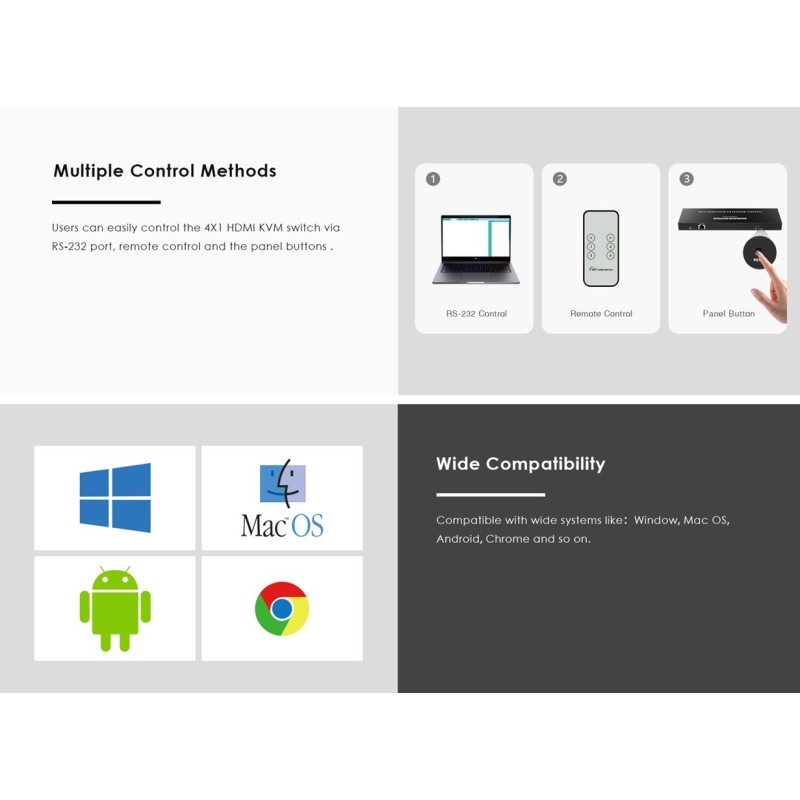

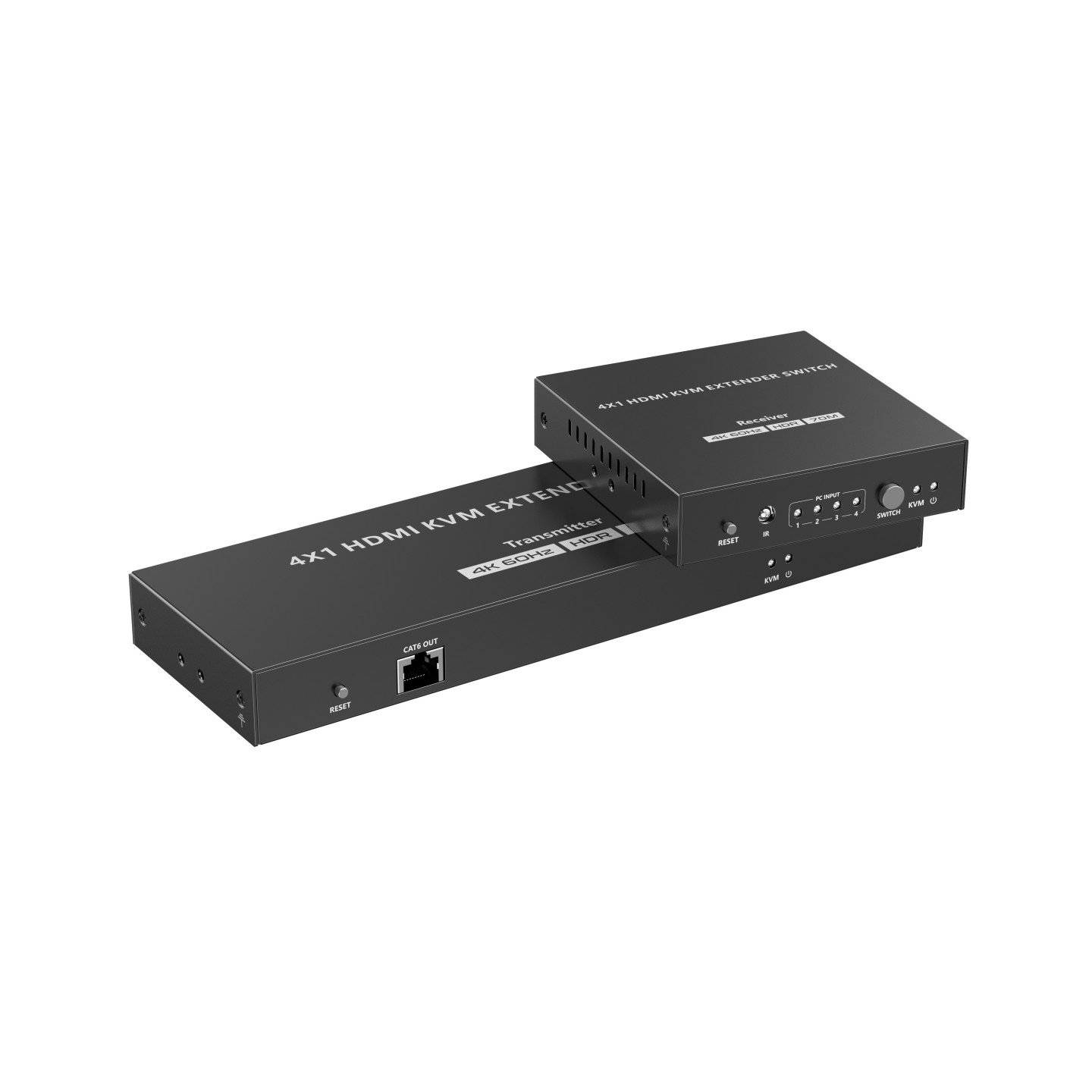

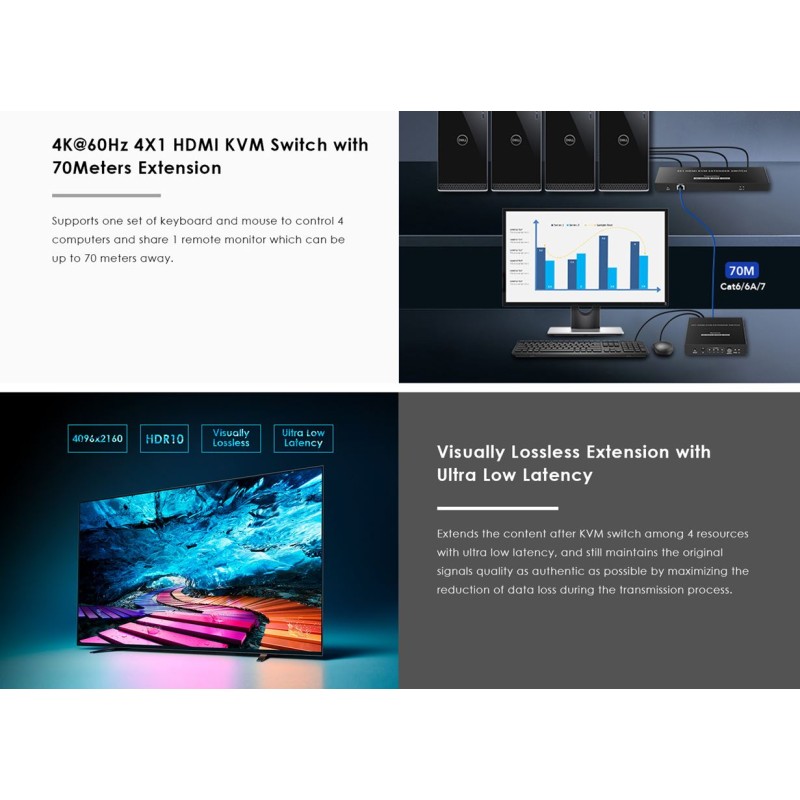

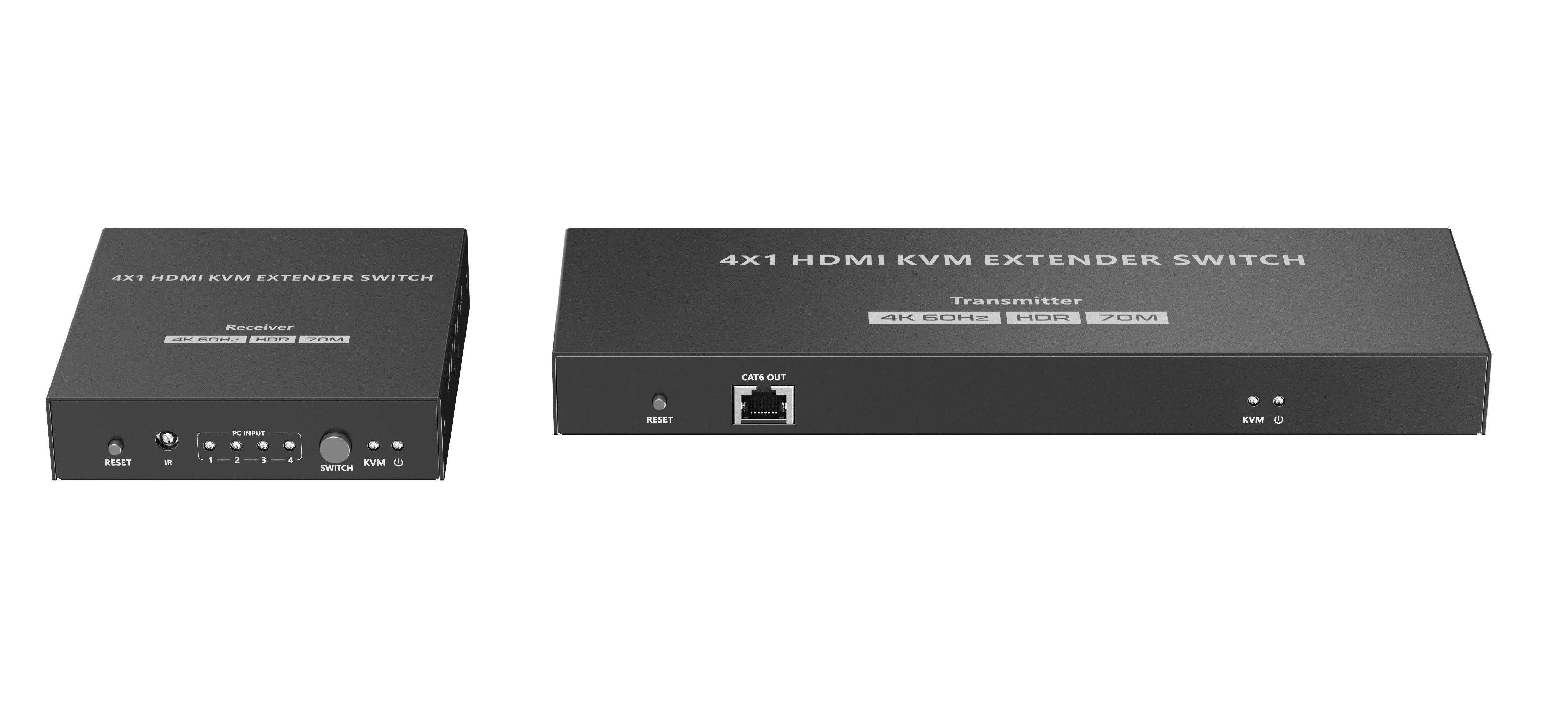

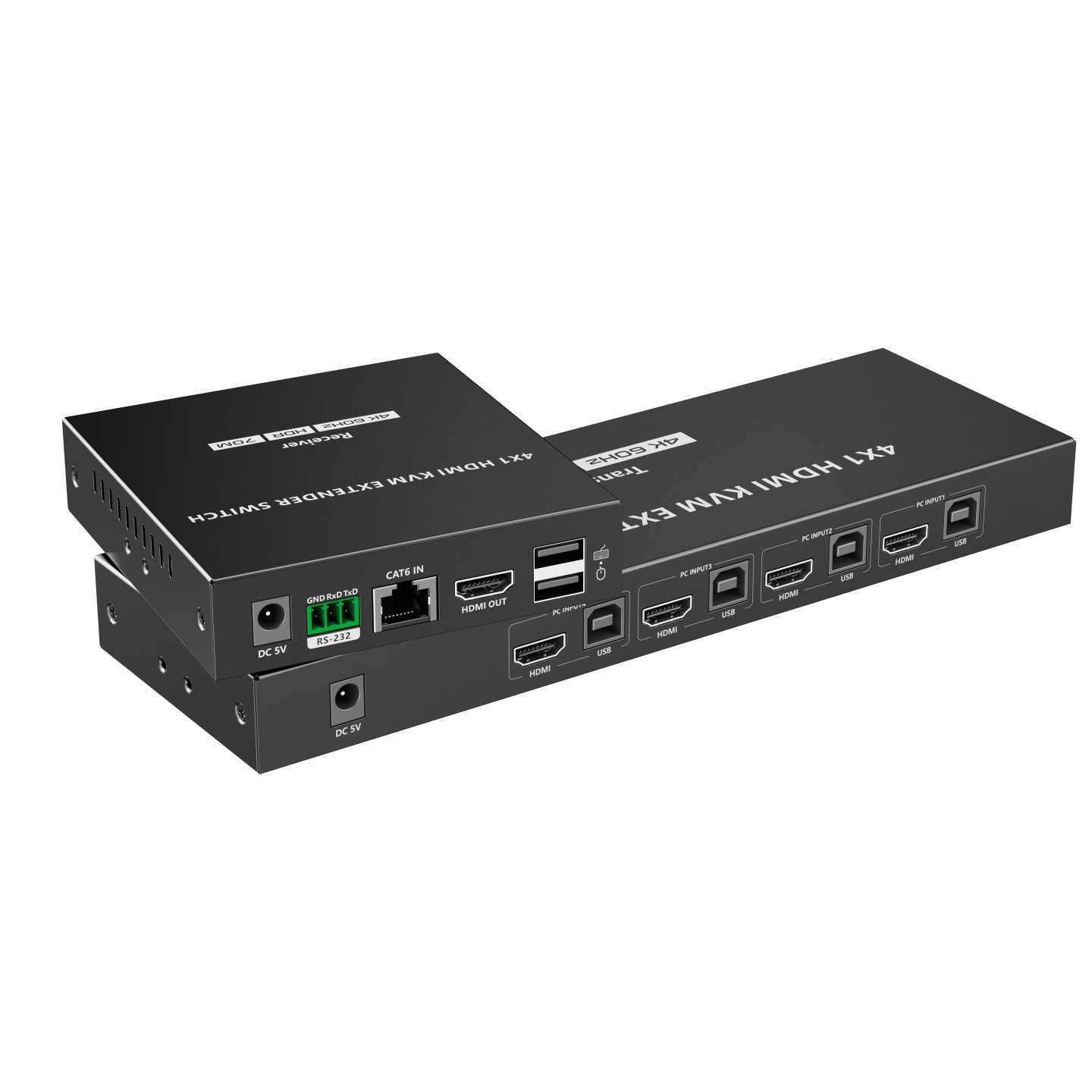

This is a 4-in-1-out ultra-high-definition KVM extender switch, comprises a transmitting end and a receiving end. It supports 4 HDMI signal inputs and 1 HDMI signal output, the 4K@60Hz HDMI signal can be extended to 70 meters through CAT6 or above network cable, the highest resolution is 4K@60Hz and is backward compatible, supports KVM control. A variety of control methods (IR remote control, button and RS-232) can easily switch the content of the 4 HDMI™ signal sources to the display. The product is widely used in security monitoring, education and training, exhibitions and broadcasting, command centers, etc.
- 4096x2160@60Hz
- HDR
- 70M
- Visually Lossless
- Ultra Low Latency
- 4x1 HDMI KVM Switch
- Auto Down-scaling
- Multiple Control Methods
- Plug and Play
- 24/7
- Voltage/Current DC 5V/1A
- Power consumption TX<4W ，RX<4W
- HDMI compliance HDMI 2.0 (HDR, YUV4:4:4)
- HDCP compliance HDCP 2.2, and HDCP1.4
- HDMI resolution 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 3840x2160@24/25/30/50/60Hz, 4096x2160@24/25Hz, 1280x960, 1280x800, 1280x768, 1680x1050, 1360x768, 1366x768, 1600x900, 1024x768, 800x600, 3440x1440, 2560x1600, 2560x1440, 1920x1200
- Supports audio formats LPCM7.1/DTS-HD/DTS-Audio/Dolby Digital plus/Dolby TrueHD 5.1/Dolby Digital/Dolby Atmos
- Transmission speed 18Gbps
- Video bandwidth 600MHz

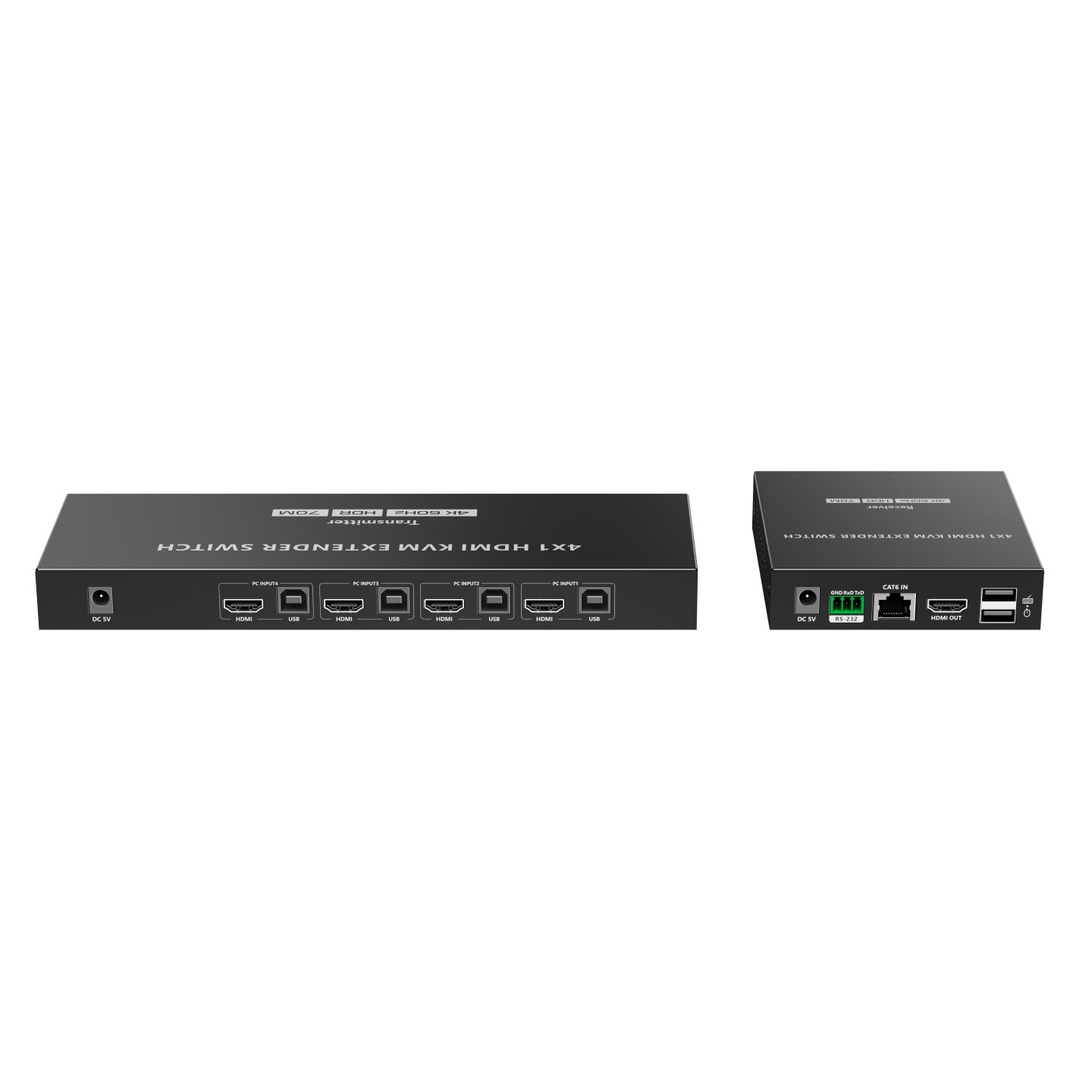

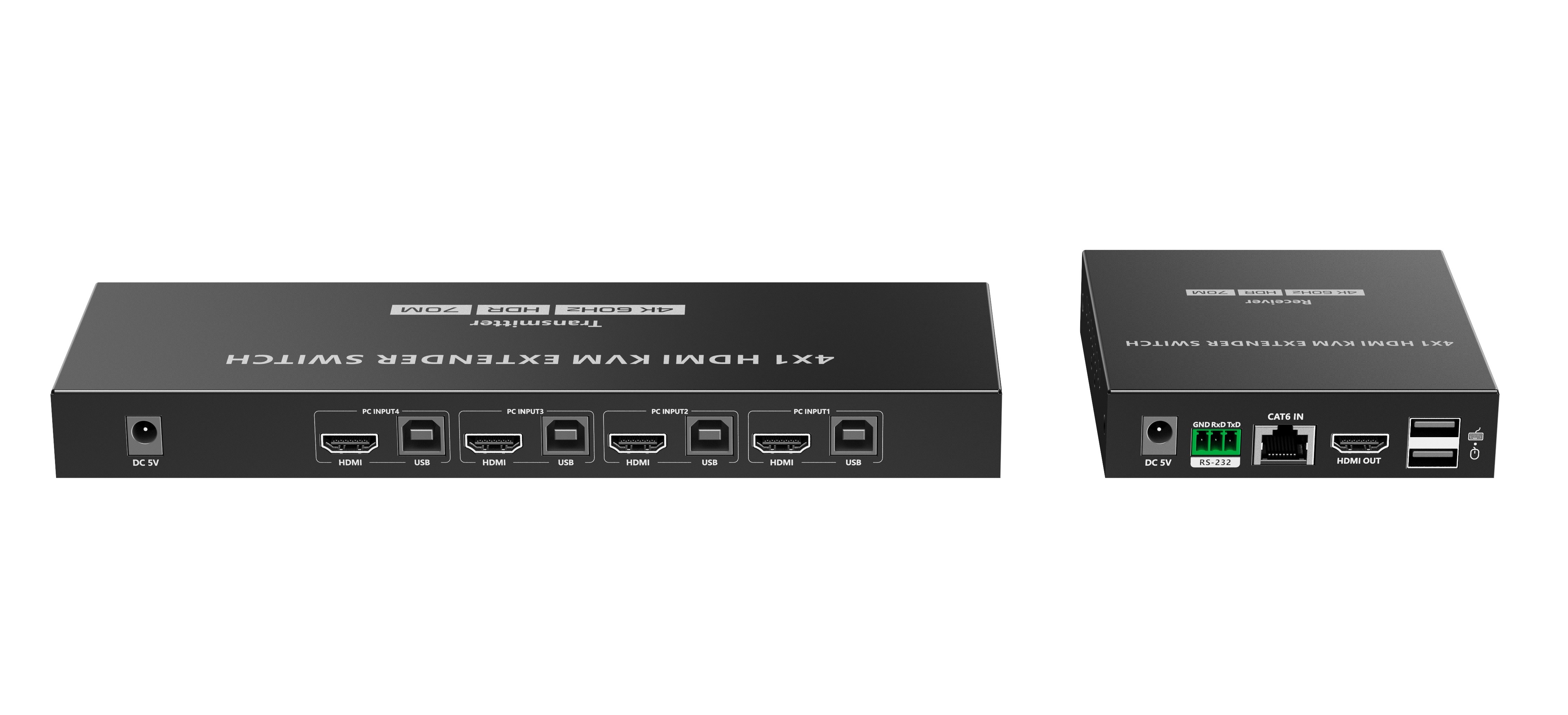

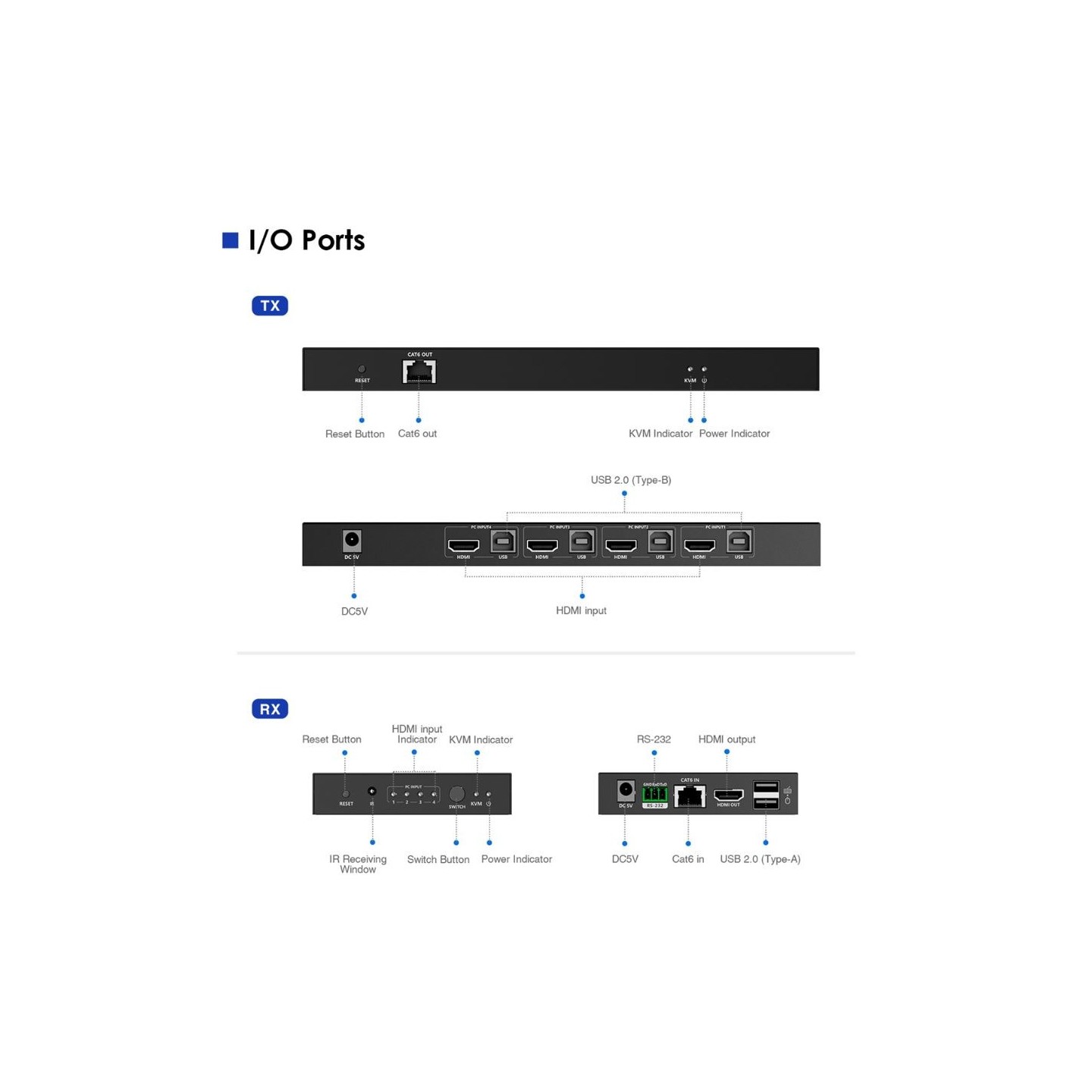

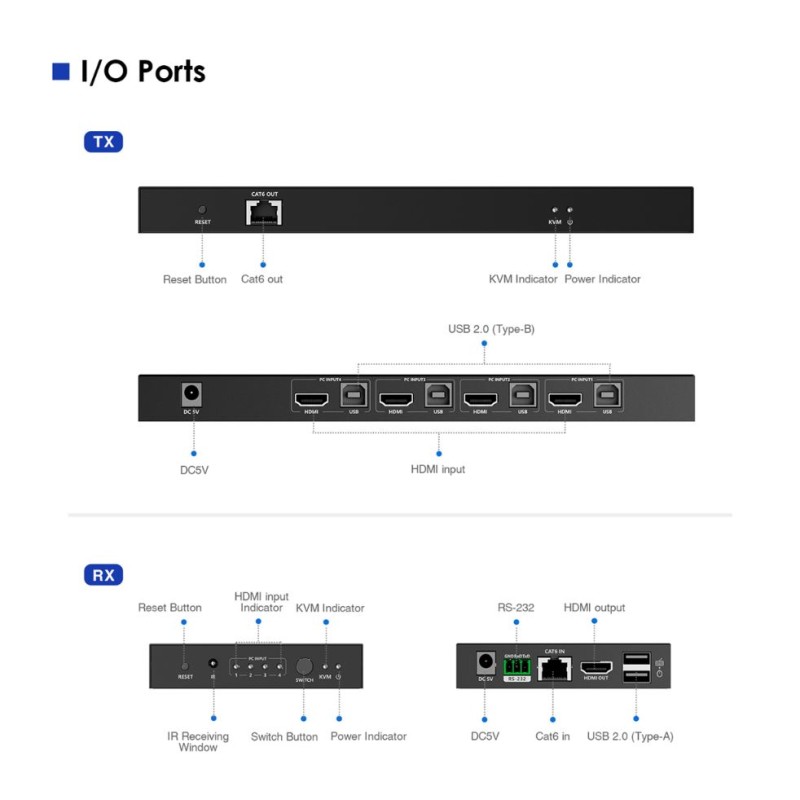

- HDMI port HDMI input x4
- RJ45 port RJ45 port x1
- RS-232 3 pin（GND/RxD/TxD）, baud rate 9600
- CAT6/6A/7 Transmission Distance ≤70m
- ≤40m: 4096x2160@24/25/30Hz,
- 3440x1440, 2560x1600, 2560x1440
- Electrostatic protection of the whole machine Electrostatic protection
- 1a Contact discharge level 2
- 1b Air discharge level 3 Implementation of the standard: IEC61000-4-2 lightning protection, surge protection
- Working temperature -20~60℃
- Storage temperature -30~70℃
- Humidity (no condensation) 0～90%RH
- Dimension TX：250(L) x 80(W) x 25(H)mm
- RX：106(L) x103(W) x25(H)mm
- Material Iron
- Color Black
- Weight TX: 542g ，RX: 298g
| Connectivity | HDMI |
| Type | KVM |
| Transmission | Single CAT6 |
| Ports | 4 port |
| Resolution | 4K60Hz |
| Distance | 70m |
