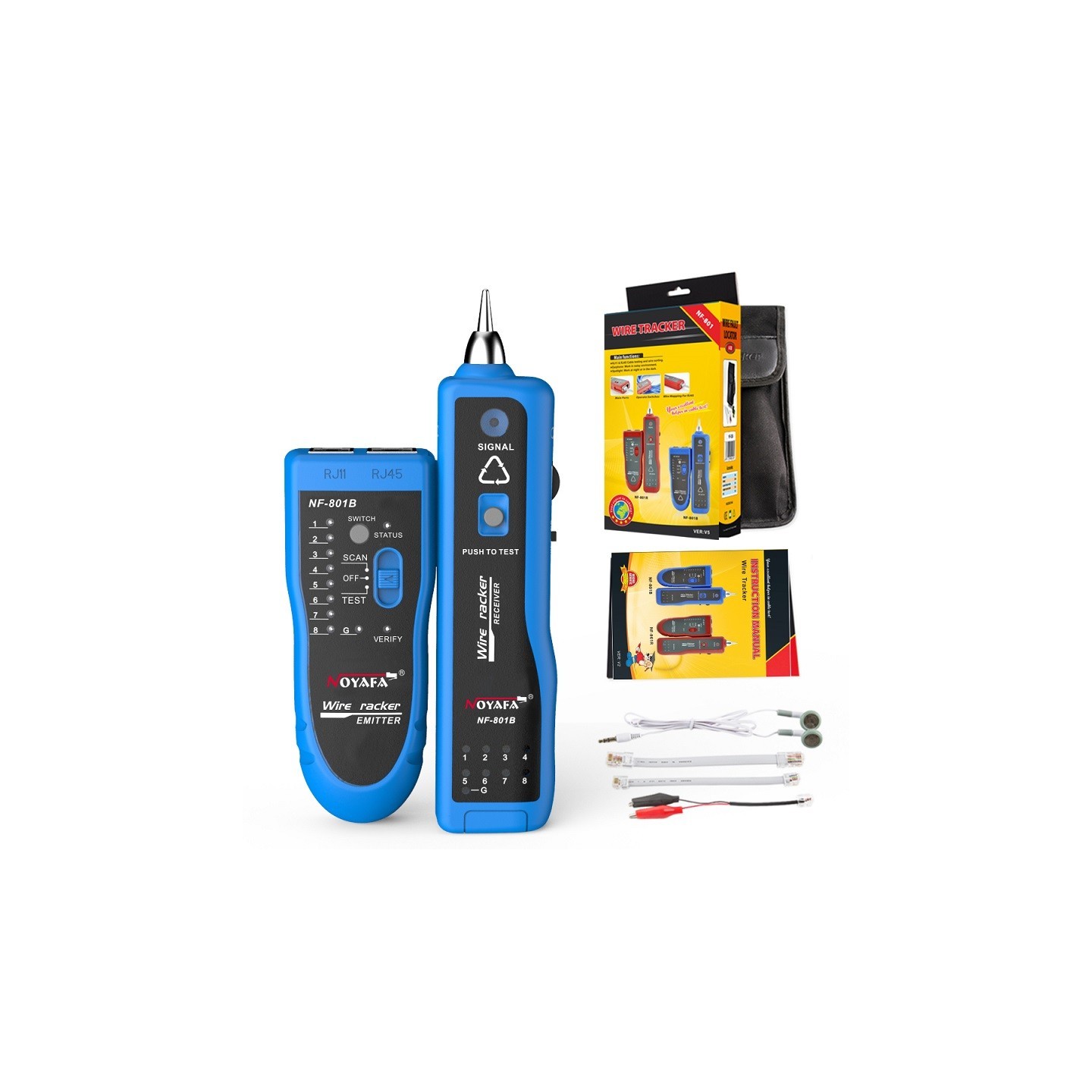

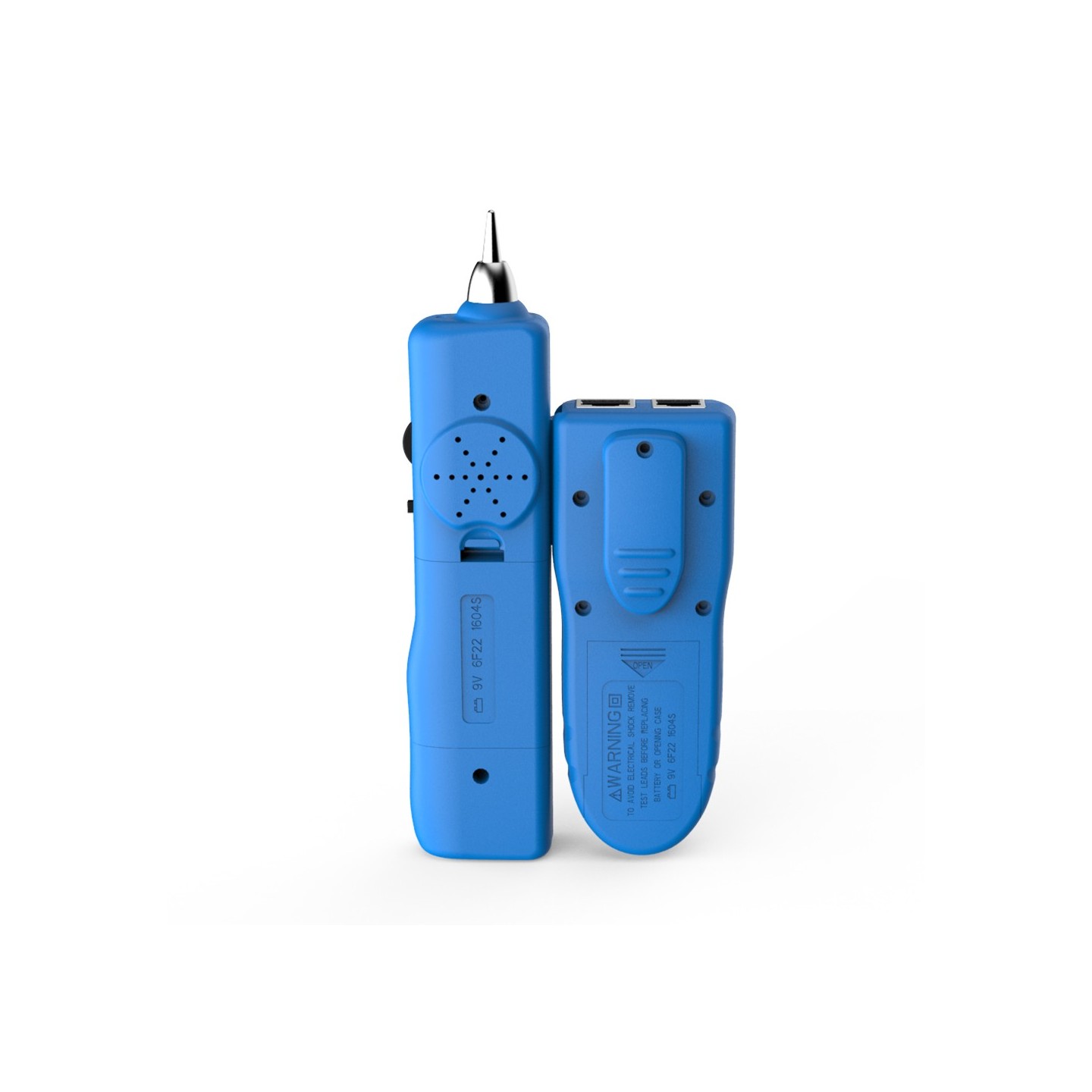

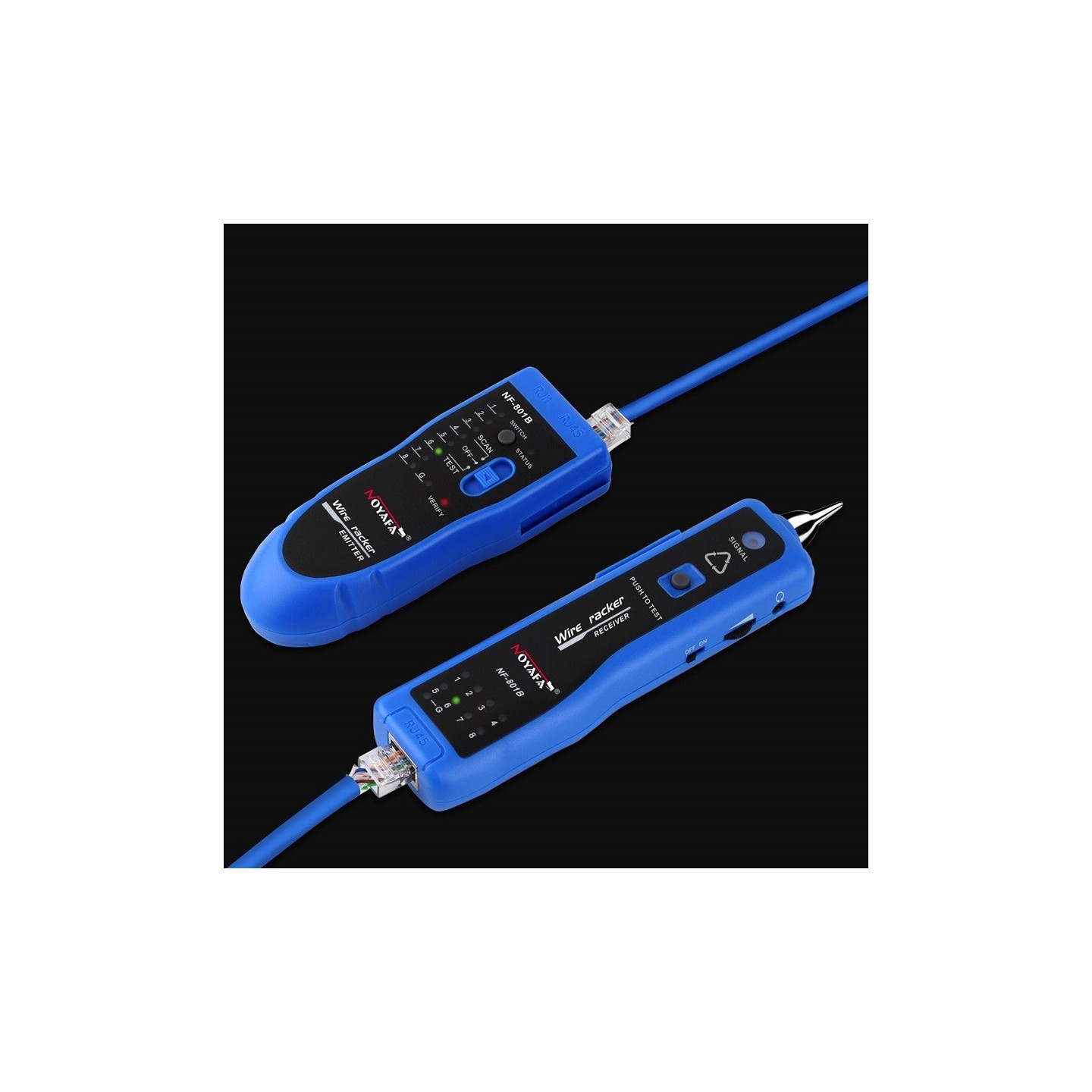

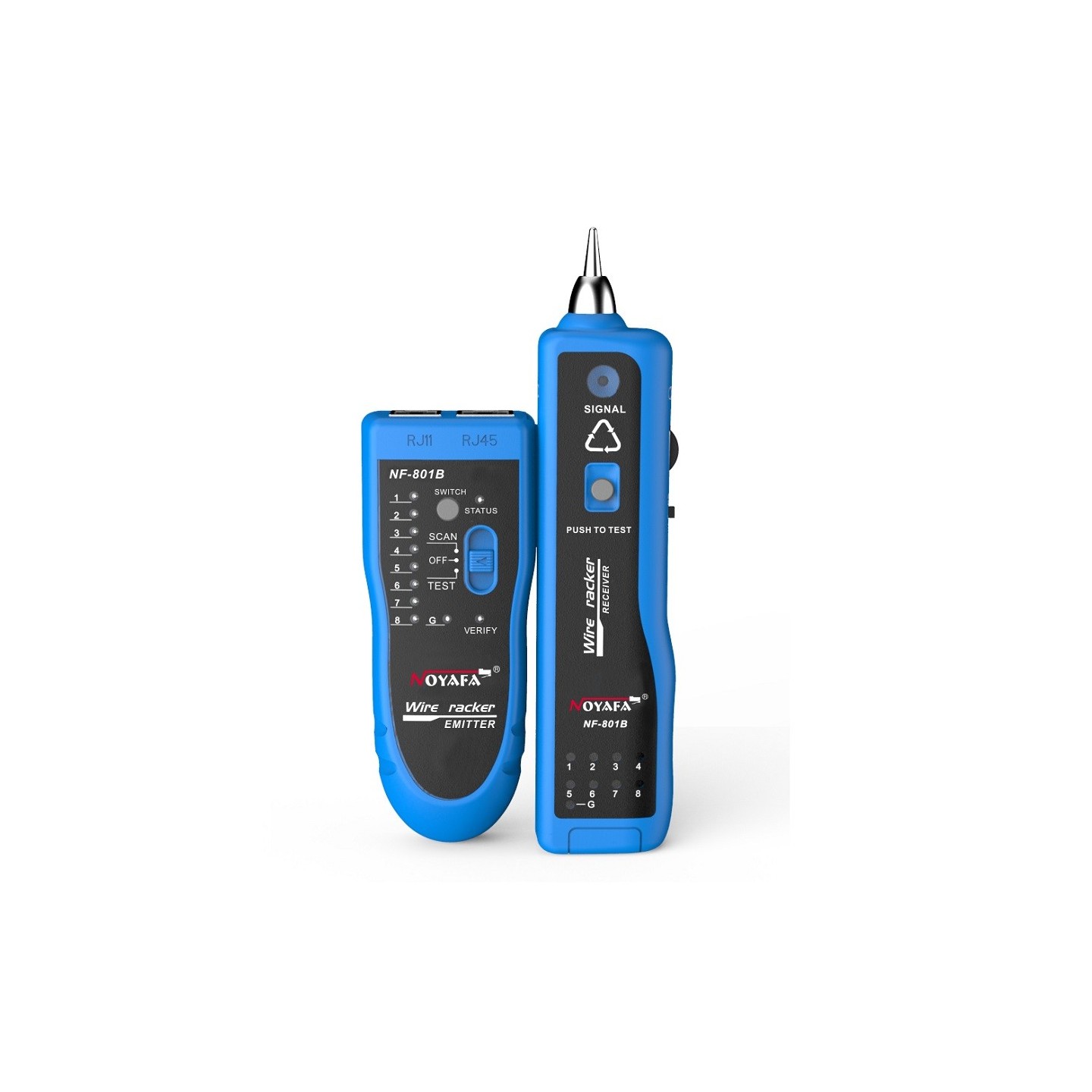

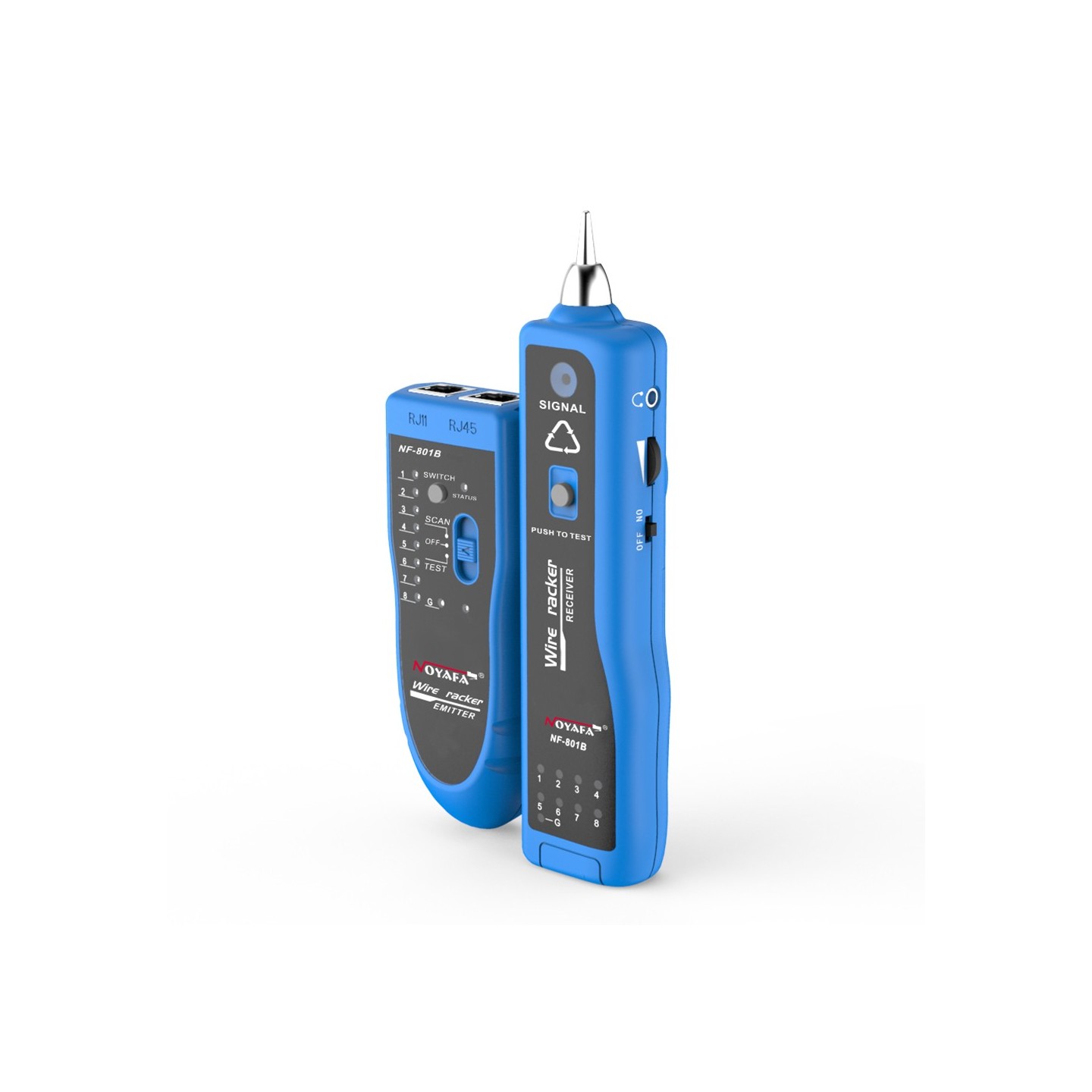

Noyafa Wire Tracker for Cable Tracing, Identification & Fault Detection NF-801
Quickly trace and identify needed cables among lots of unknown cables
Check continuity for Lan cables
Track the cables, and diagnose the breakage
Visible indication: pin-to-pin cable map for indivi...
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
- Quickly trace and identify needed cables among lots of unknown cables
- Check continuity for Lan cables
- Track the cables, and diagnose the breakage
- Visible indication: pin-to-pin cable map for individual cable (not by pairs)
- Low Voltage alarm function
- Earphone for using in noisy environment
- LED light assists use in dark scenario

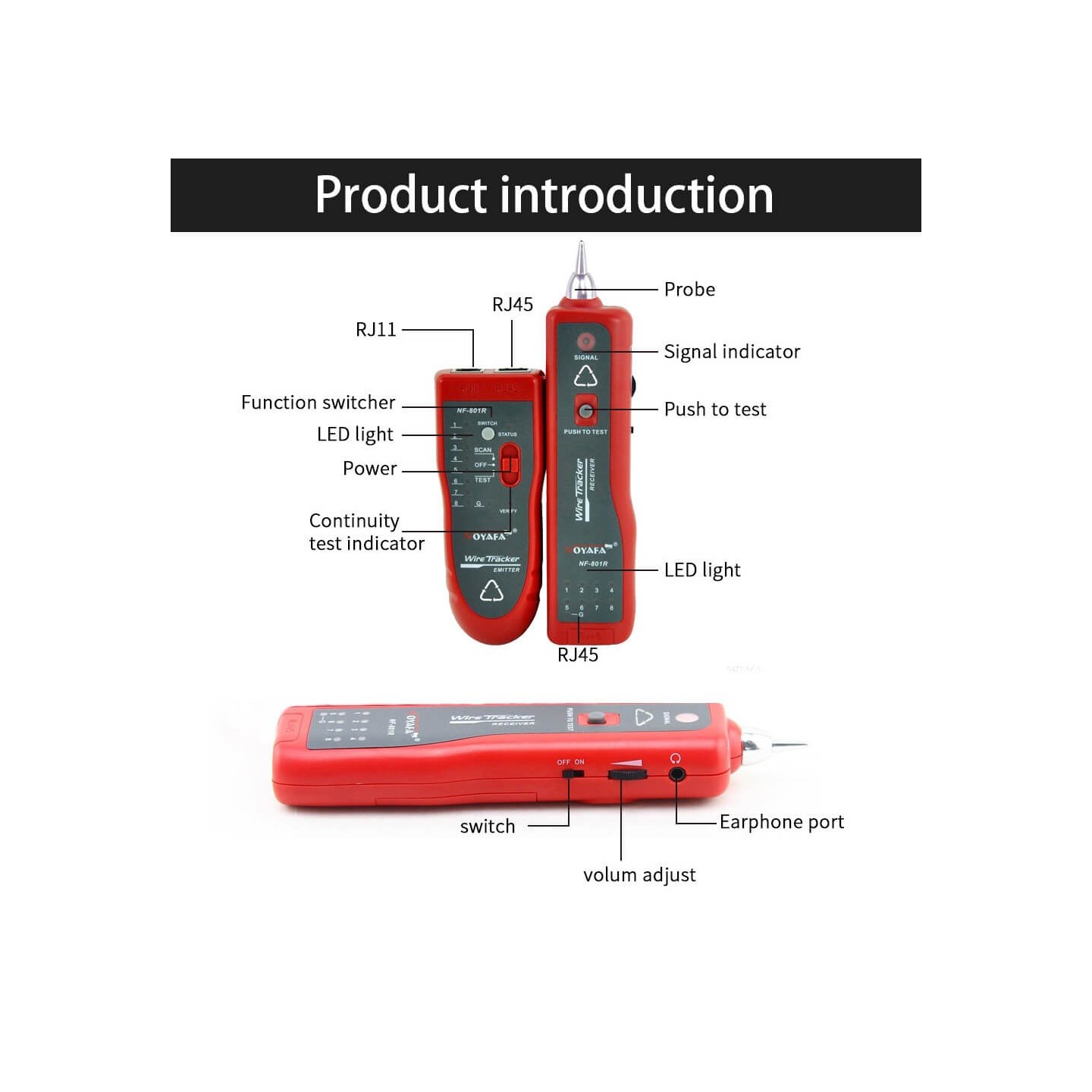

NF-801 Transmitter specifications
- Tone frequency 200Hz
- Max. distance of transmission Up to 2 kilometers
- Max. working current 10mA
- Volume Regulate Function Audio volume level control
- Tone mode 2 Tones, adjustable
- Compatible connectors RJ11, RJ45
- Max. signal voltage 8Vp-p
- LED lights display Wiremap, tone, tracing
- Voltage protection DC 48V
- Battery Type DC9.0V（NEDA 1604/6F22) x 1pc
- Dimensions (LxWxD) 15 x 3.7 x 2cm
NF-801 Receiver specifications
- Frequency 200kHz
- Max. working current 30mA
- Earphone jack 1
- Battery Type DC9.0V（NEDA 1604/6F22) x1pc
- Dimensions (LxWxD) 12.2 x 4.5 x 2.3cm
