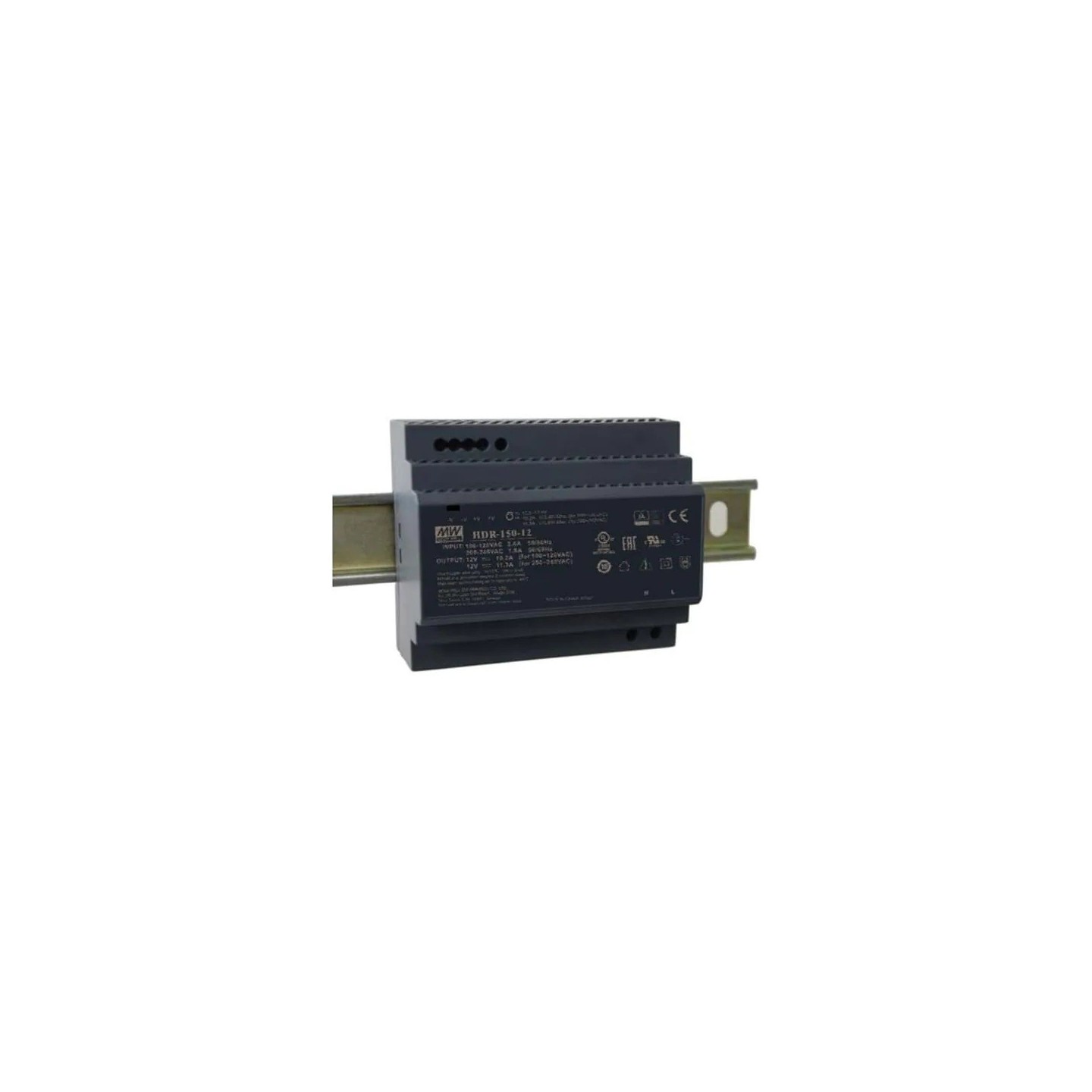

Meanwell Ultra Slim DIN Rail Power Supply - HDR-150-12 - 12V 150W
Ultra-slim Meanwell DIN-rail power supply with 12V output, 150W, plastic case, full input range, Class II isolation, no-load <0.3W, DC output adjustable.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
- Plastic case, step shape
- 1∅, full range input
- Compact size, 1SU~6SU width (DIN EN43880)
- Isolation class II
- DC output voltage adjustable
- No load power consumption <0.3W
- Assemble on industrial rail TS-35 / 7.5 or 15
- Suitable for building automation and control of household appliance
Description : AC-DC Ultra slim DIN rail power supply; Input range 85-264VAC; Output 12VDC at 11.3A
Application : IT AV EN/UL/IEC 62368-1
Technology : AC/DC
Power Format : DIN rail
Output Power : 150W
Output Voltage : 12V
Output Current : 11.3A
Input Voltage : 85 - 264V / Universal Input 110/230V
IP Rating : No IP assigned
Width : 105mm
Height : 90mm
Depth :54.5mm
Dimming Technology : No Dimming
| Type | Din-Rail |
| Voltage | 12V |
| Ampers | 11.3A |
| Current | 11.3A |
