Vogels Projector Ceiling Lift System - PPL2100 - 81.5 cm
Vogels PPL2100 projector ceiling lift hides large projectors in false ceilings; silent, two positions; 15.5 cm min ceiling height; 81.5 cm drop; max 30 kg.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Projector Mounts - Type | Ceiling |
|---|---|
| Projector Mounts - Drop Length | 400-1000 mm |

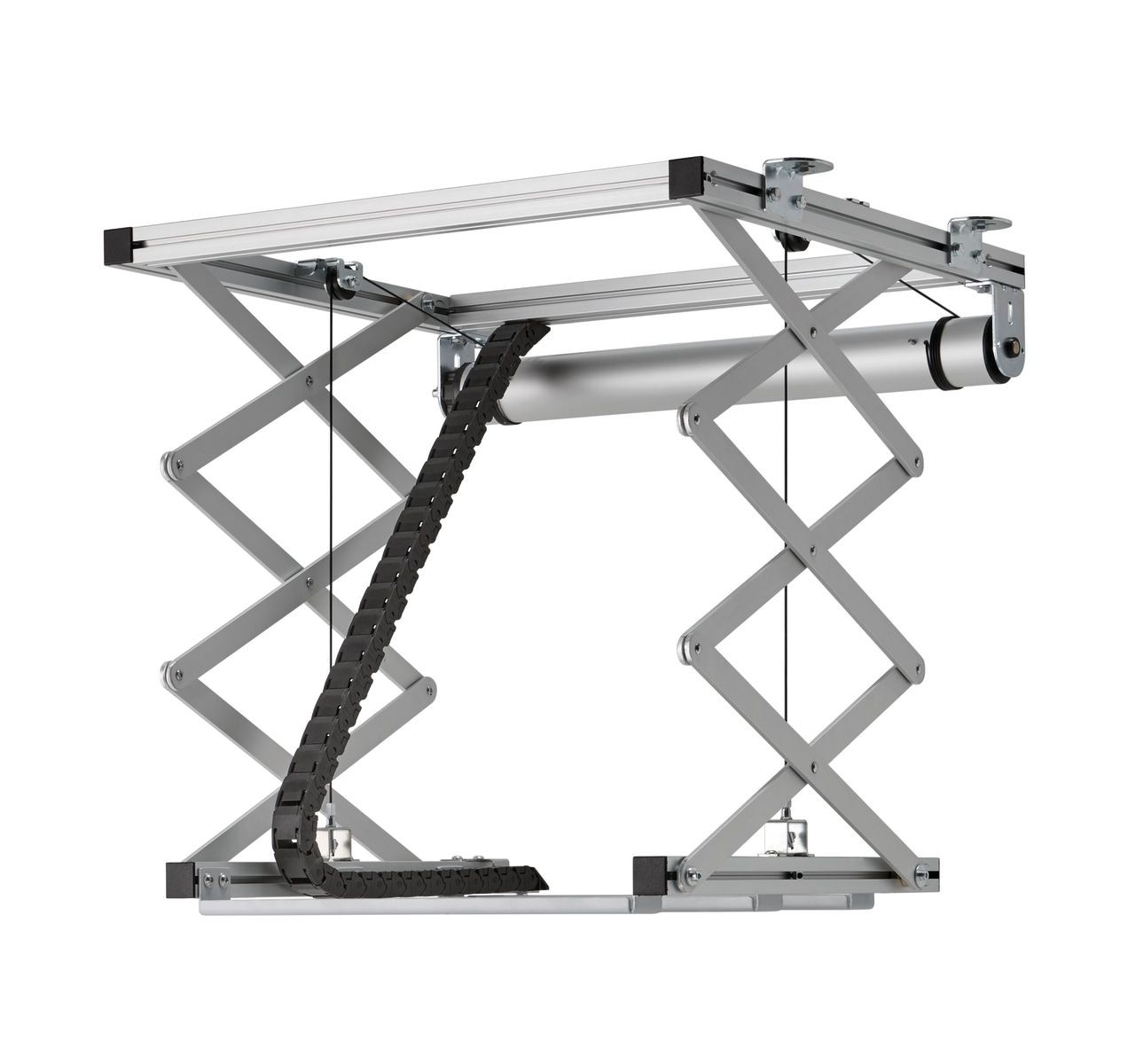

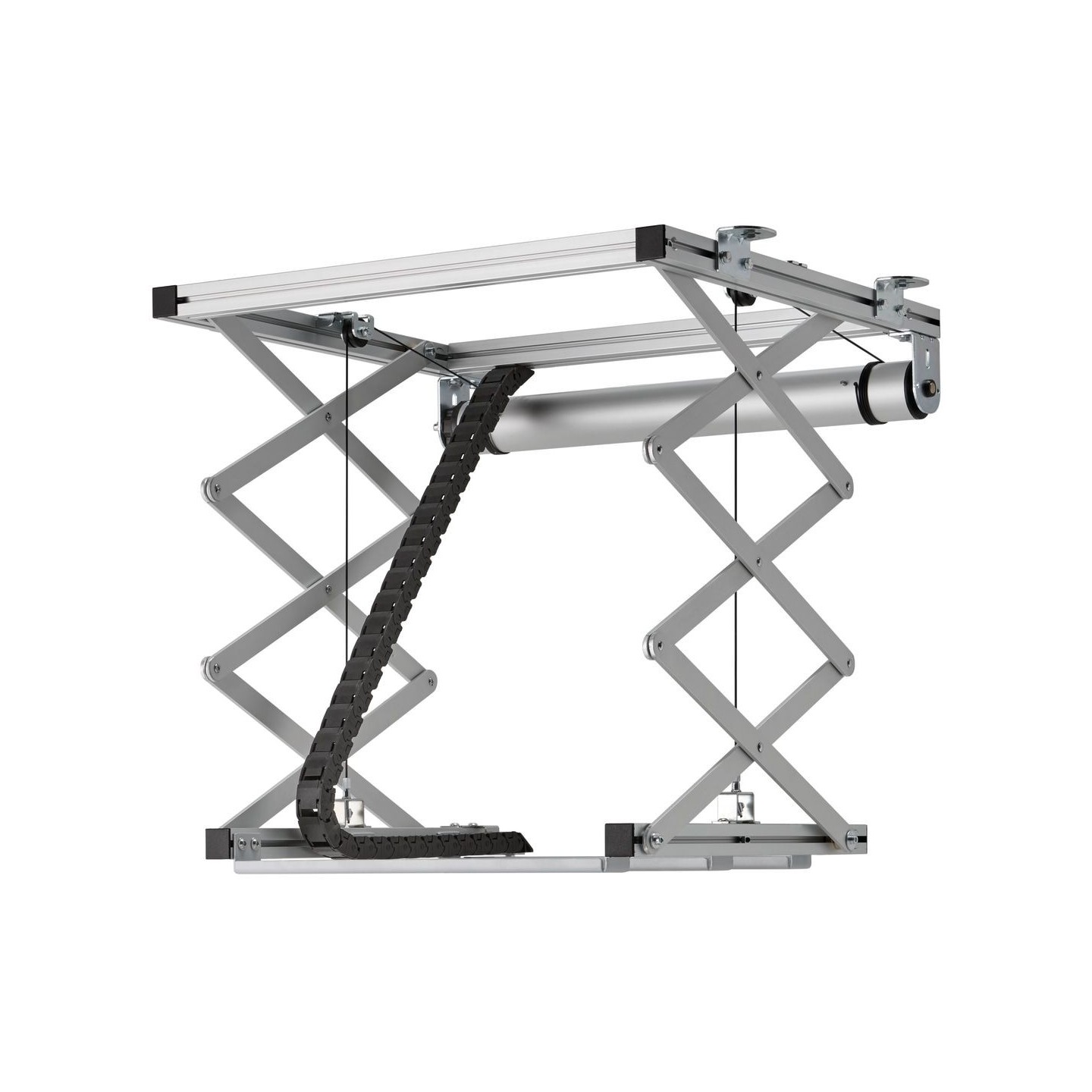

- The PPL 2100 projector lift system is the perfect solution for the integration of a large and heavy projector into a ceiling where an aesthetical solution is required. Not only is the projector neatly hidden, it is also theft delaying. The lifts runs silently and offers two adjustable positions: top and show
- This lift has been developed to be installed inside a false ceiling where very few space is available. Inside the false ceiling only a minimum height of 15,5 cm is required to install lift and projector. The motor allows a drop of 81,5 cm
- The maximum weight capacity of the projector lift is 30 kg
- The PPL 2100 is supplied with extendable side brackets in order to position the ceiling tile exactly in the ceiling tile grid. The lift is equipped with two safety screws that prevent the lift to extent further to the preset end stop
- This lift is also available as a 120 V, 60 Hz version
SPECIFICATIONS:
- Power supply 220-230 V, 50 Hz
- Maximum consumption 184 W
- Dimensions lift closed 575 x 155 x 554 mm (WxHxD)
- Dimensions lift opened 575 x 970 x 554 mm (WxHxD)
- Maximum projector dimensions 570 x 600 mm (WxD)
- Maximum size fixing points of the projector 380 x 400 mm (WxD)
- Maximum weight 30 kg
- Cable management system
- Universal projector adapter Included
- Up/down wall switch
Optional Accessories
- PPA901 Ceiling TIle Holder
- PPA904 Low Voltage Contact Box
- PPA902 Wireless Remote Control
