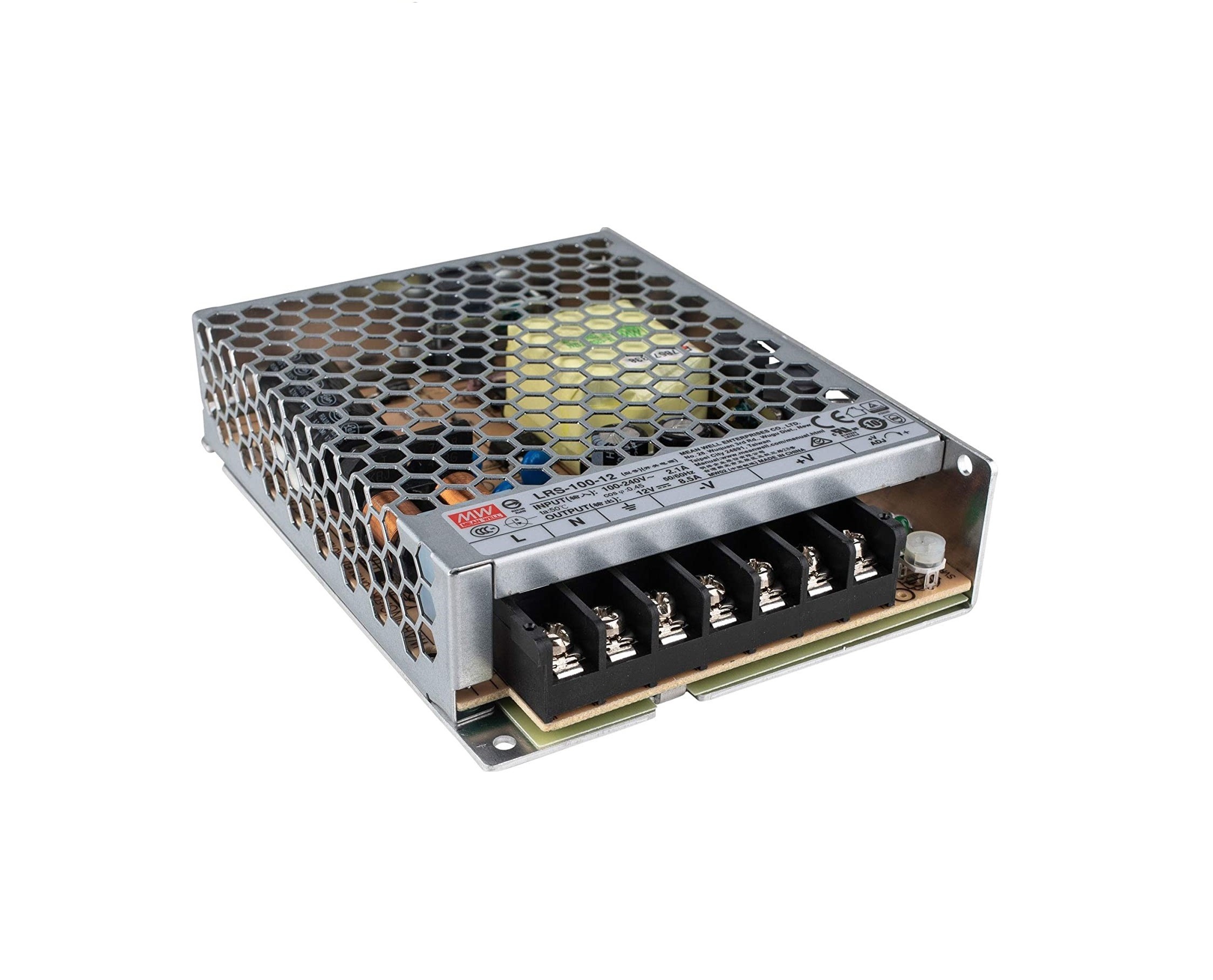

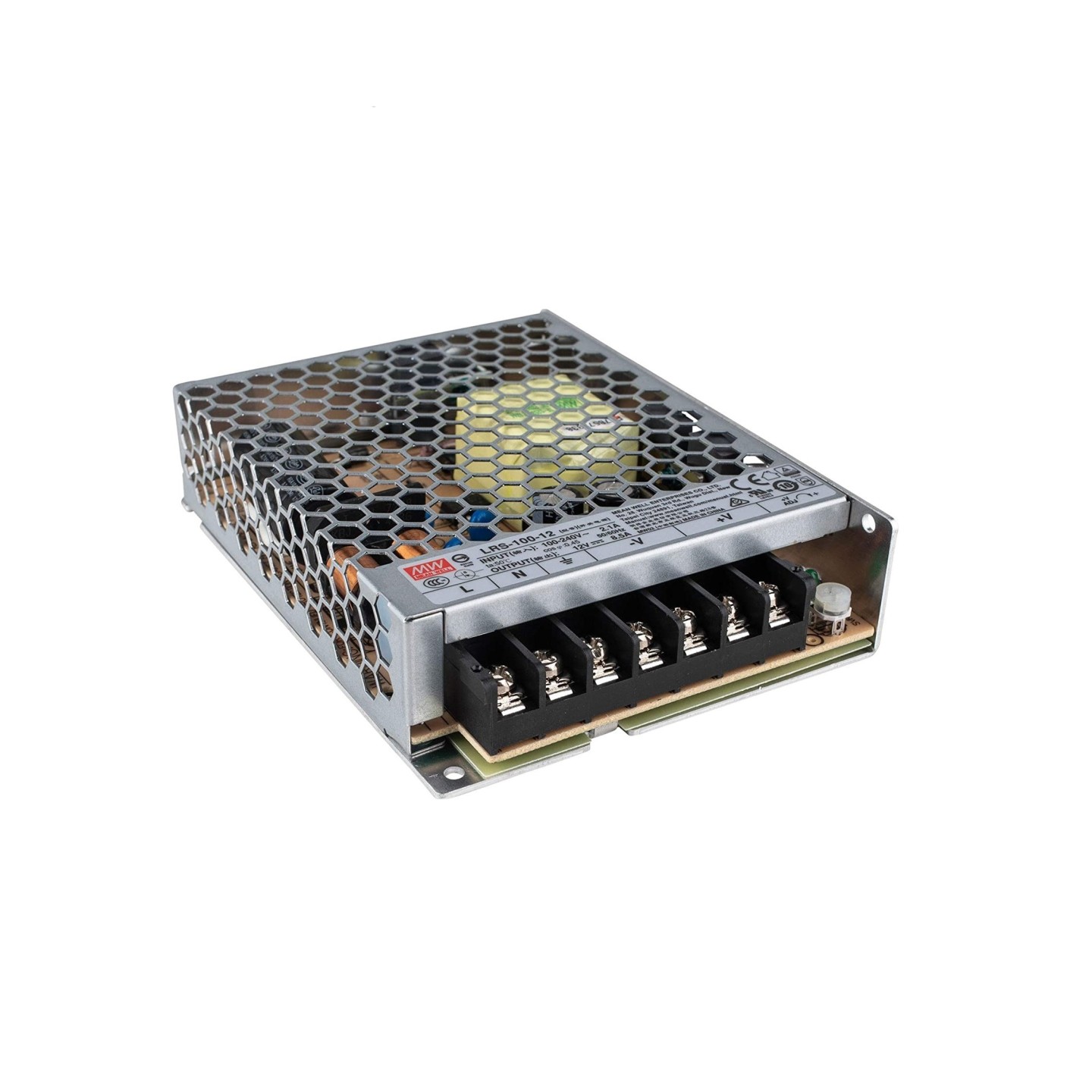

Meanwell Enclosed Power Supply - LRS-100-12 - 12V 100W (8.5A)
Non-PFC, ultra-compact enclosed 12V 100W Mean Well power supply; 8.5A; 300VAC surge; no-load 0.2–0.75W; 5G vibration; 70°C operation; altitude up to 5000 m.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
- Non-PFC, most economical models
- Ultra compact and 1U low profile
- 300VAC input surge
- No load power consumption: 0.2W~0.75W
- 5G vibration, 70℃ operation
- Operating altitude up to 5000 meters
- Complete safety certificates: IEC/EN60335-1(PD3), IEC/EN61558-1, -2-16; IEC/EN/UL62368-1 and GB4943
- Description : AC-DC Single output enclosed power supply; Universal AC input; Output 12Vdc at 8.5A; Up to 5G vibration; 1U low profile
- Application : Household EN 60335 / IT AV EN/UL/IEC 62368-1
- Technology : AC/DC
- Power Format : Box Type - Enclosed
- Output Power : 100W
- Output Voltage : 12V
- Output Current : 8,5A
- Input Voltage : 85 - 264V / Universal Input 110/230V
- IP Rating : No IP assigned
- Width : 97mm
- Height : 30mm
- Depth :129mm
- Dimming Technology : No Dimming
| Type | Bare |
| Voltage | 12V |
| Ampers | 8,5A |
| Current | 8.5A |
