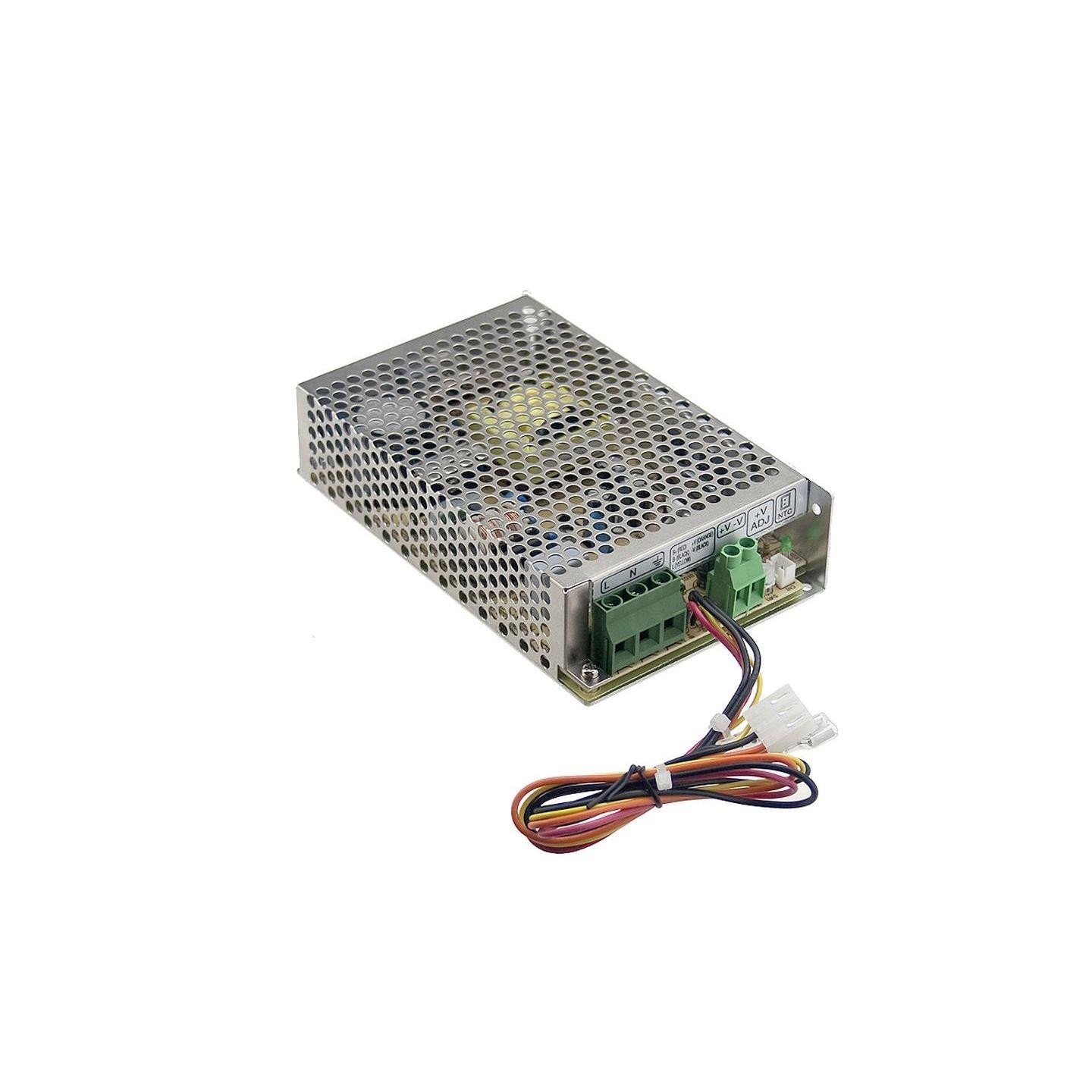

Meanwell Enclosed Power Supply with UPS 12V 75W (6.5A) - SCP-75 - Enclosed Power Supply with UPS 12V 75W (6.5A)
UPS-enabled 12V 75W enclosed power supply with universal input, protections, free-air cooling, and power-on LED indicator.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Power Supplies - Type | 12V DC Adaptor |
|---|
- Universal AC input/Full range
- Short circuit, over load, over voltage, battery polarity (by fuse) protections
- Cooling by free air convection
- LED indicator for power on
- No load power consumption <0.75W
- 100% full load burn-in test
- UL / CUL / CB / CE Approval
- With UPS function (need external batteries) for AD/ADD series
- Suitable for security industry or battery backup systems
- Description : AC-DC Enclosed power supply; Output 13.8Vdc at 5.4A; battery charger output; battery temperature compensation
- Application : ITE EN/UL/IEC 60950
- Technology : AC/DC
- Power Format : Box Type - Enclosed
- Output Power : 75W
- Output Voltage : 13.8V
- Output Current : 5.6A
- Input Voltage : 85 - 264V / Universal Input 110/230V
- IP Rating : No IP assigned
- Width : 97mm
- Height : 38mm
- Depth :159mm
- Dimming Technology : No Dimming
| Type | Bare |
| Voltage | 12V |
| Ampers | 5.6A |
| Current | 5.6A |
