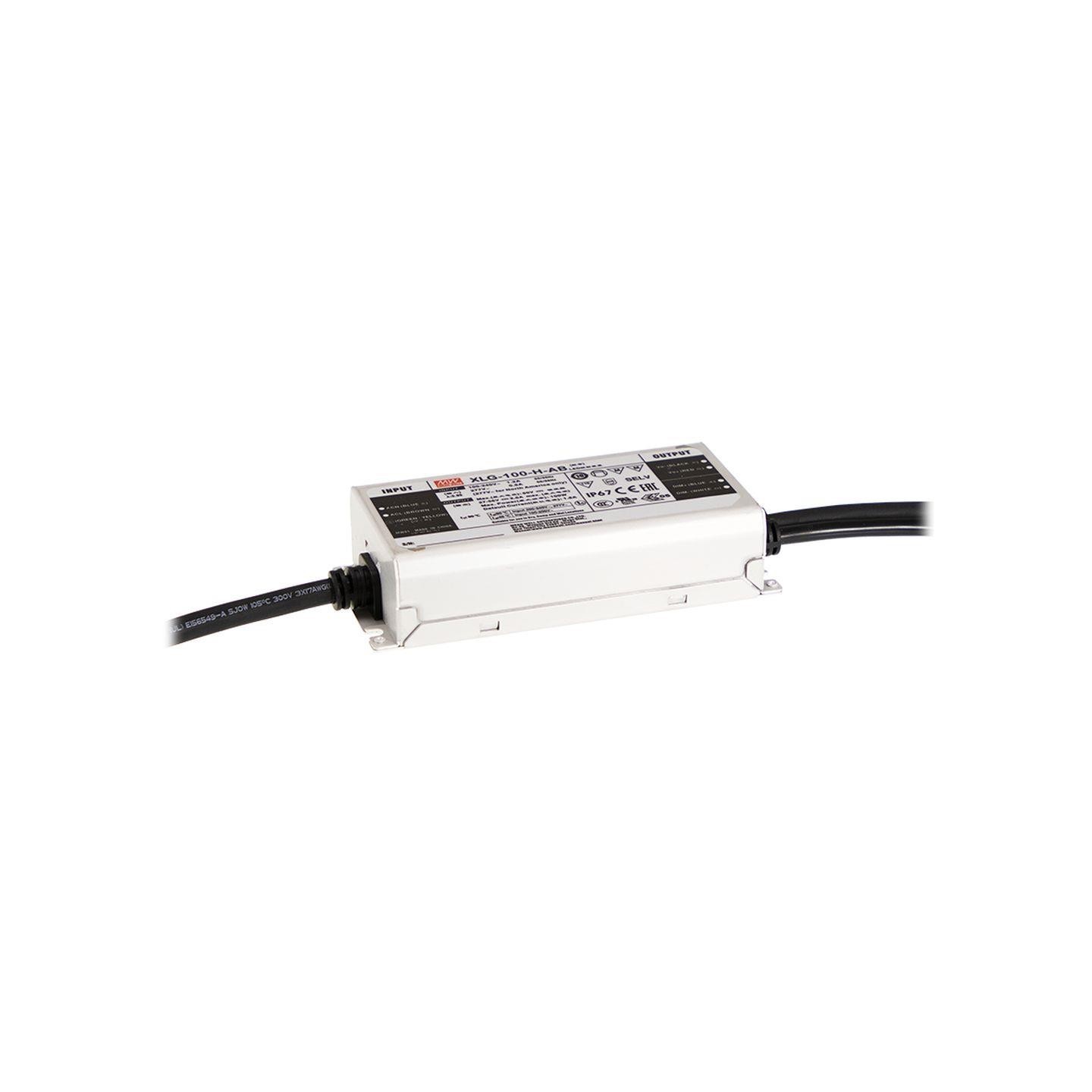

Meanwell LED Driver PSU - XLG-100-12 - Constant Voltage + Current LED Driver PSU 12V 96W
Operation Mode: Constant Power (CP). Output 8 A at 12 V; 96 W. Input 100-305 VAC / 142-431 VDC. Dimming: Without Dimming.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Other PC Accessories - Type | Other |
|---|---|
| Other PC Accessories - Lighting | None |
- Operation Mode: Constant Power (CP)
- Output Current-Channel 1: 8 A
- Output Voltage-Channel 1: 12 VDC
- Output Power: 96 W
- Input Voltage: 100 VAC to 305 VAC, 142 VDC to 431 VDC
- Dimming: Without Dimming
- Number of Outputs: 1 Output
- Mounting Style: Chassis Mount
- Length: 140 mm (5.512 in)
- Width: 63 mm (2.48 in)
- Height: 32 mm (1.26 in)
- Industry: Industrial
- Standard: PFC
- Series: XLG-100
- IP Rating: IP67
| Type | Compact |
| Voltage | 12V |
| Current | 8.0A |
