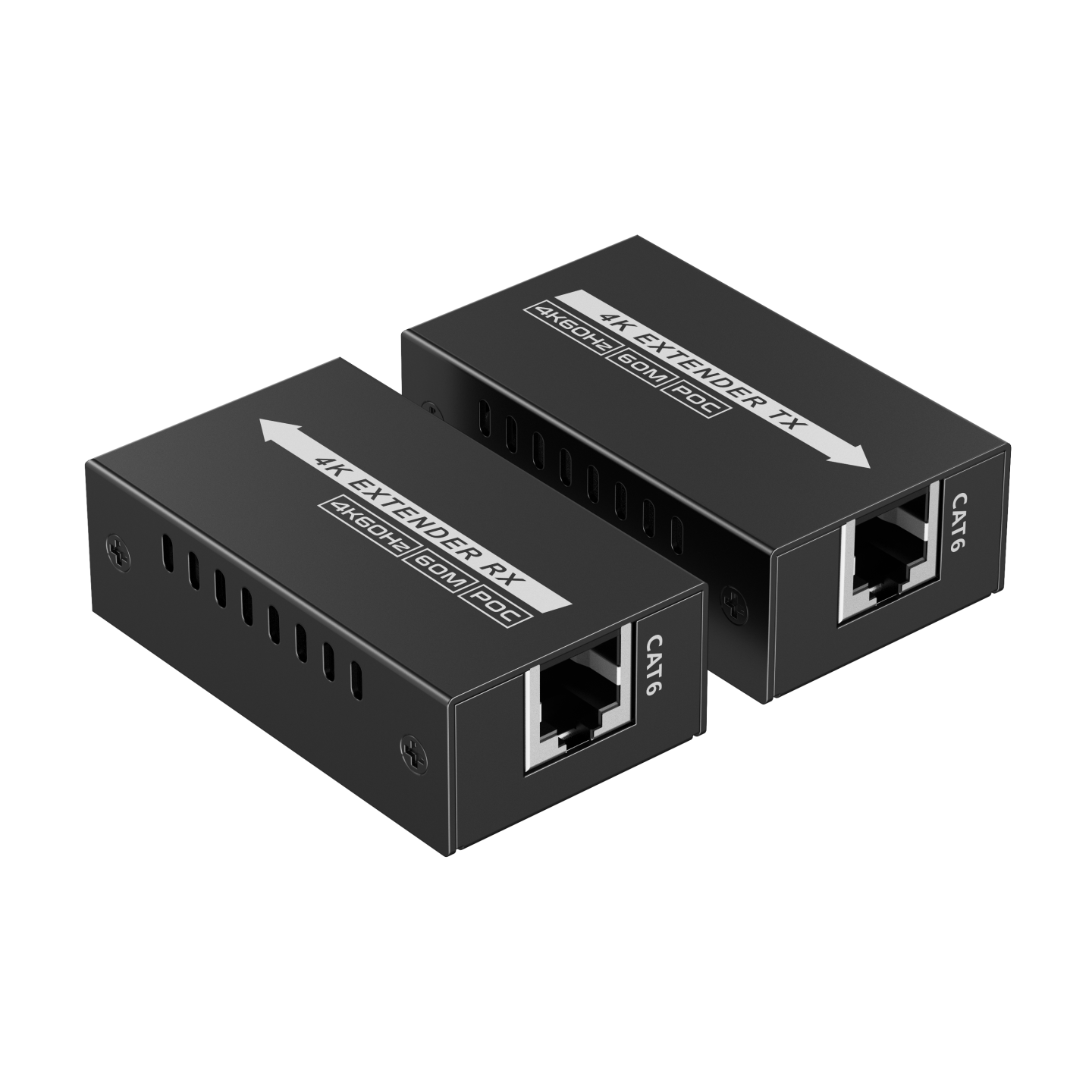

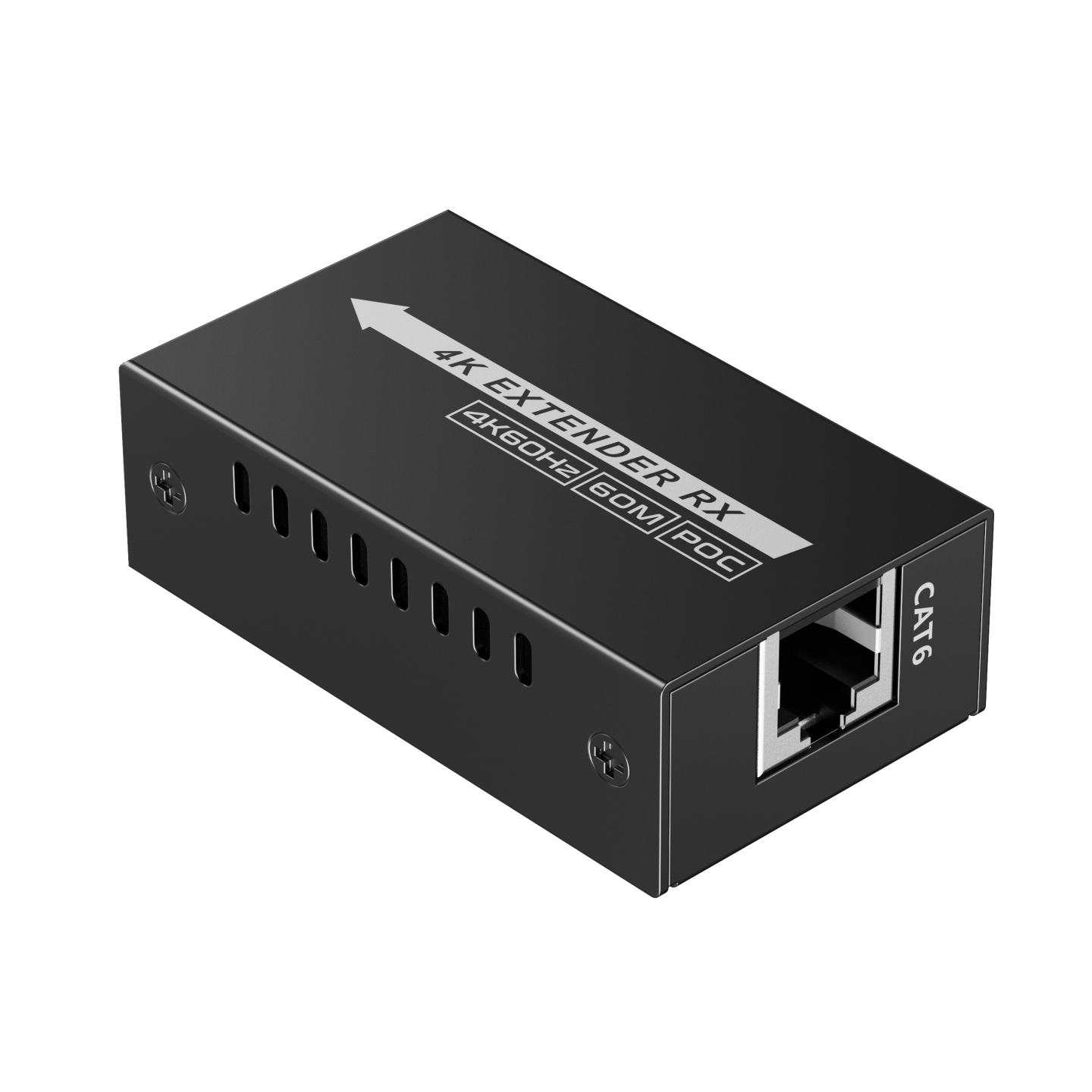

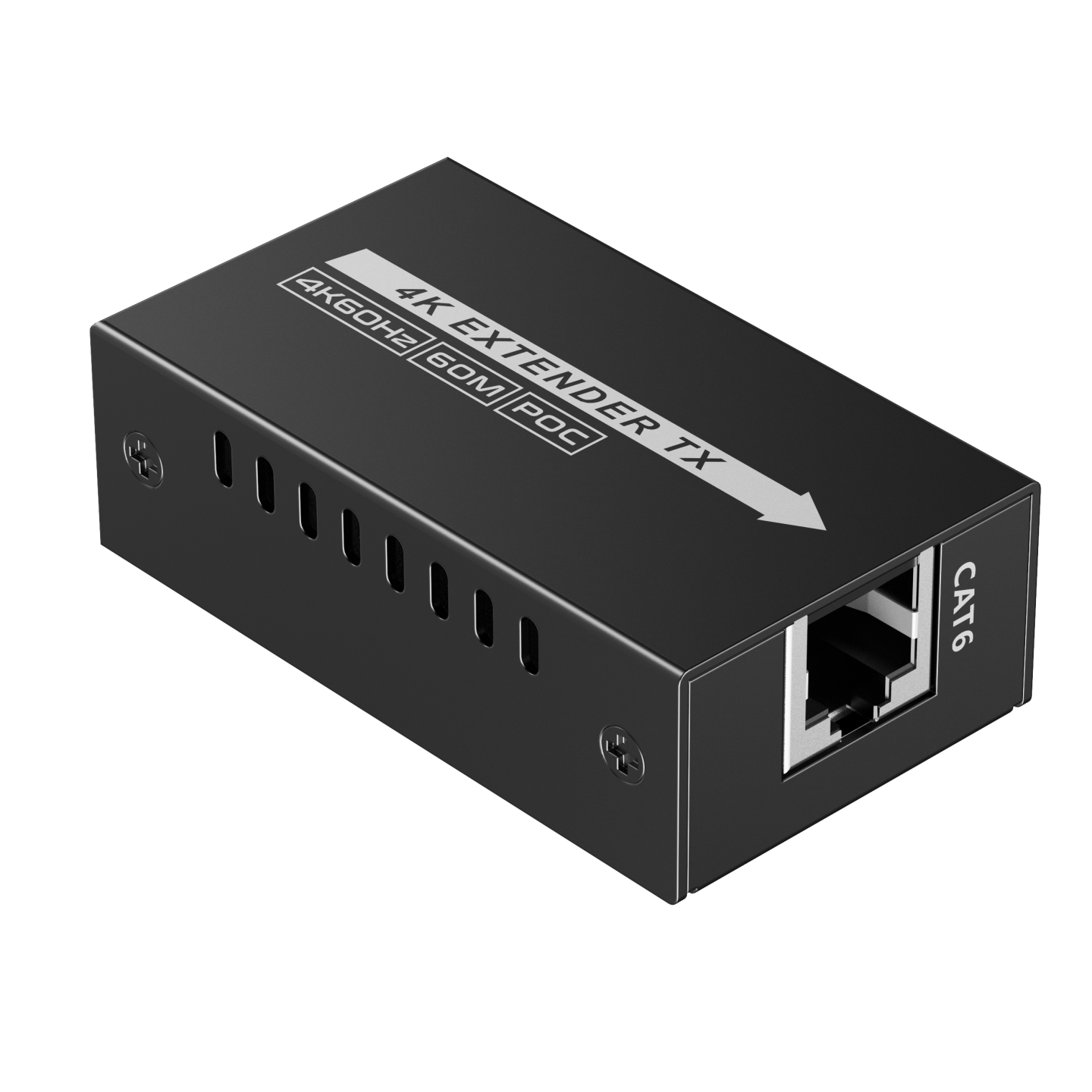

Lenkeng HDMI Extender over Ethernet 60m 4K POC - LKV410P - HDMI Extender over Ethernet 60m 4K POC
HDMI point-to-point extender kit with zero-latency transmission; extends 4K60Hz up to 60m over CAT6/6A/7; PoC supported.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
- This is an HDMI point-to-point extender kit, it can realize zero-latency transmission
- The 4K@60Hz HDMI signal can be extended by 60m through CAT6/6A/7 network cable
- This kit is a reliable, ultra-high-definition video transmission solution, which is widely used in security monitoring, home theater, broadcasting, training and other fields
- HDMI Length ≤5m
- Maximum transfer rate 18Gbps
- Maximum transmission bandwidth 600MHz
- EDID passthrough Yes
- Compatibility HDMI 2.0（Deep color, 4K, HDR, YUV4: 4:4）
- HDCP 2.2
- Resolutions 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 3840x2160@24/25/30/50/60Hz, 4096x2160@24/25Hz, 1280x960, 1280x800, 1280x768, 1680x1050, 1920x1200, 1360x768, 1366x768, 1600x900, 1024x768, 800x600
- Transmission distance CAT6/6A/7≤60m
- Audio formats LPCM/DTS 5.1/Dolby Digital 5.1CH
- Power Supply DC5V/0.5A
- Power Consumption TX/RX:＜2W
- Working temperature -20℃~60℃
- Storage temperature -30℃~70℃
- Humidity 0~90%RH（No condensation）
- Housing Metal
- Weight TX：85g，RX：72g
- Color Black
- Dimensions 67.0(L)* 40.0(W)*23.0(H)mm
- Protection ESD protection
- 1a Contact discharge level 2 (±4KV)
- 1b Air discharge level 3 (±8KV)
- Implementation of the standard: IEC61000-4-2
- Lightning protection, Surge protection
| Type | HDMI |
| Transmission | Single CAT6 |
| Resolution | 4K60Hz |
| Distance | 60m |
| POC (Power over Cable) | Yes |
