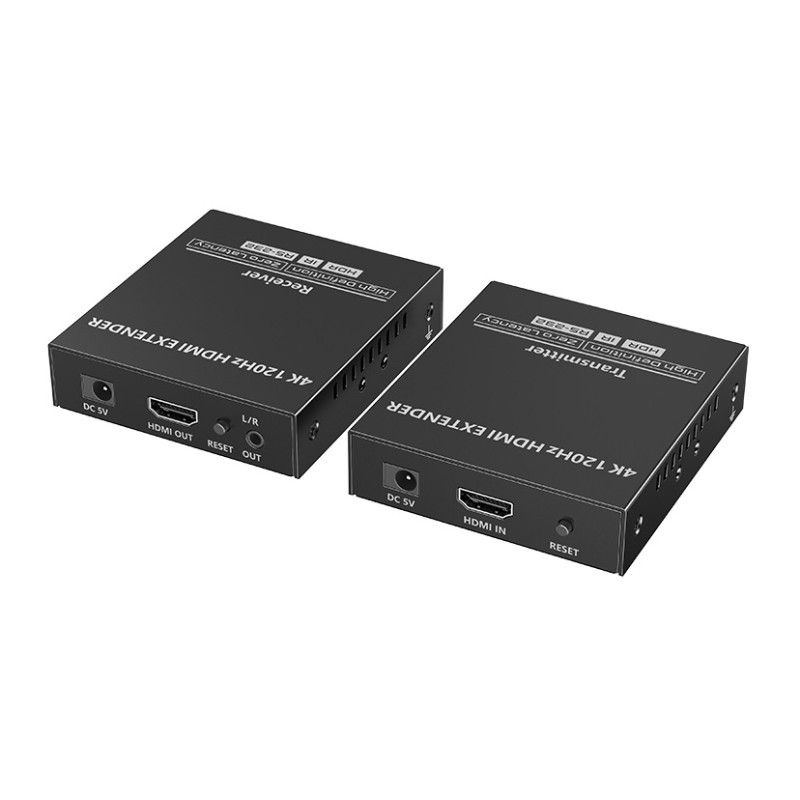

Lenkeng HDMI Extender over Ethernet 4K120Hz IR & RS232 - LKV610HH - HDMI Extender over Ethernet 4K120Hz IR & RS232
HDMI extender kit delivering 4K120Hz over CAT6/6A/7 with IR and RS232, up to 60m, zero-latency transmission.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

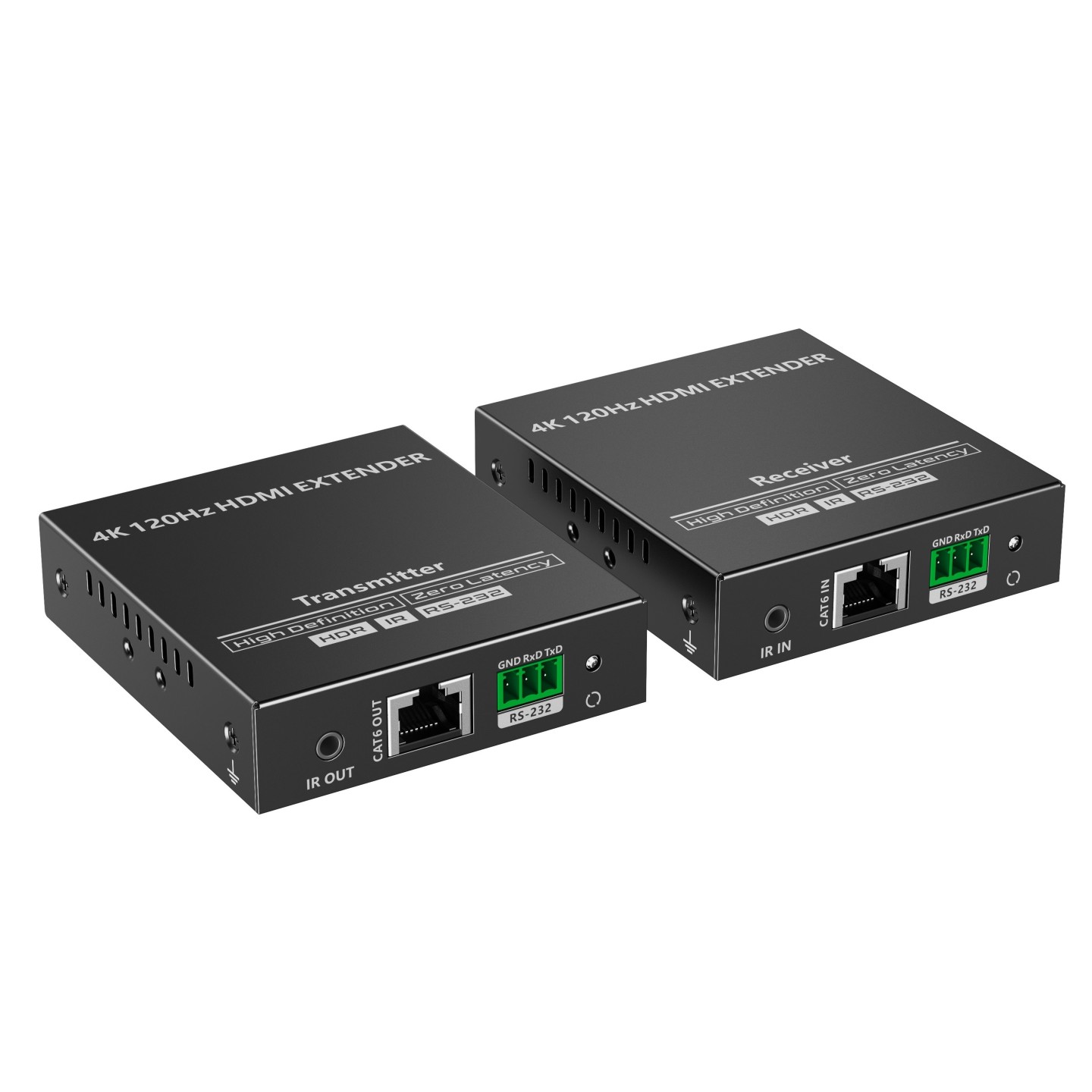

- Featuring an HDMI transmitter and an HDMI receiver, this product achieves zero latency transmission via CAT6/6A/7 network cable of UHD audio and video signals
- It supports 4K@60Hz video signal transmission up to 60 meters and 25 meters for 4K@120Hz
- A variety of applications can be achieved with this kit, such as education, training, conferences, etc

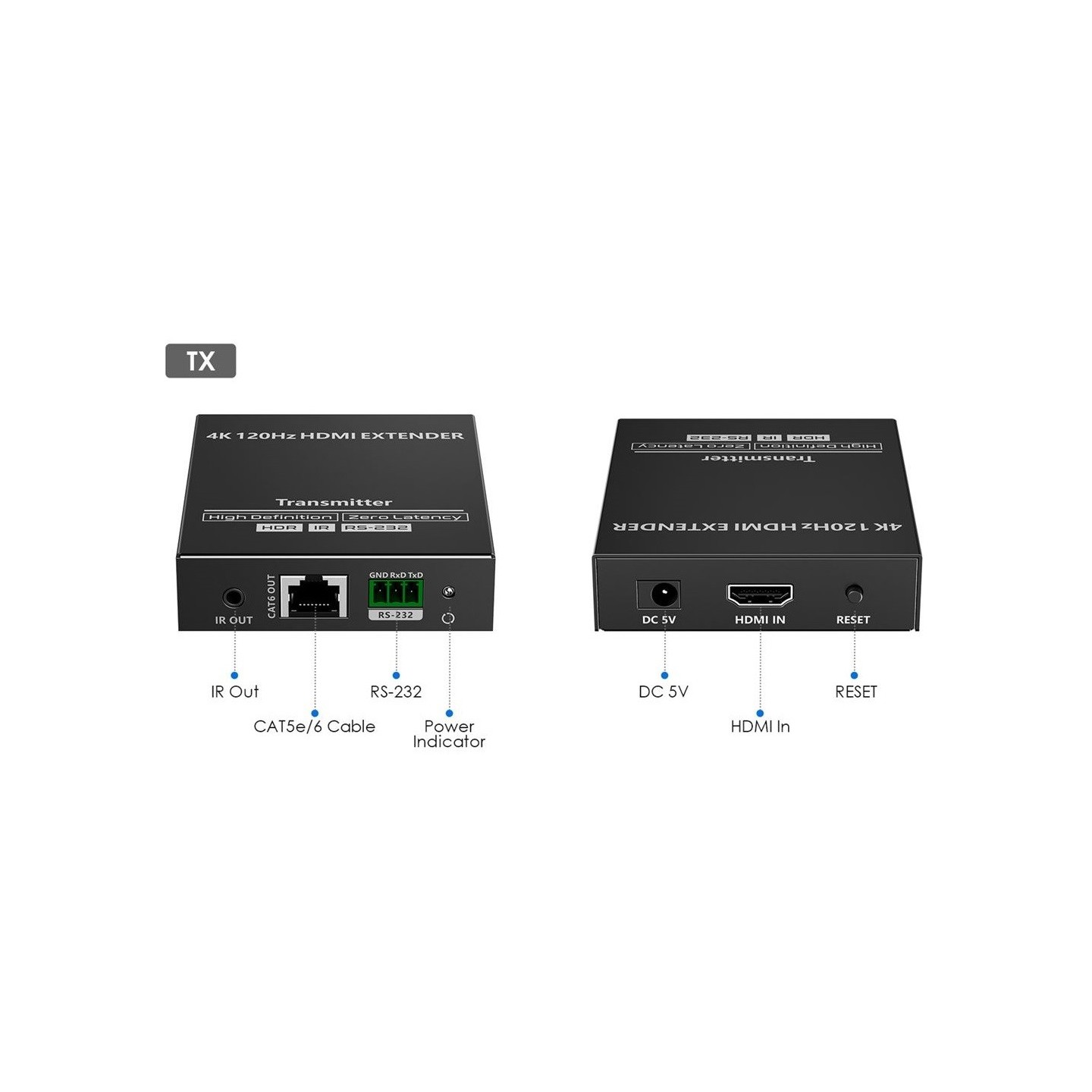

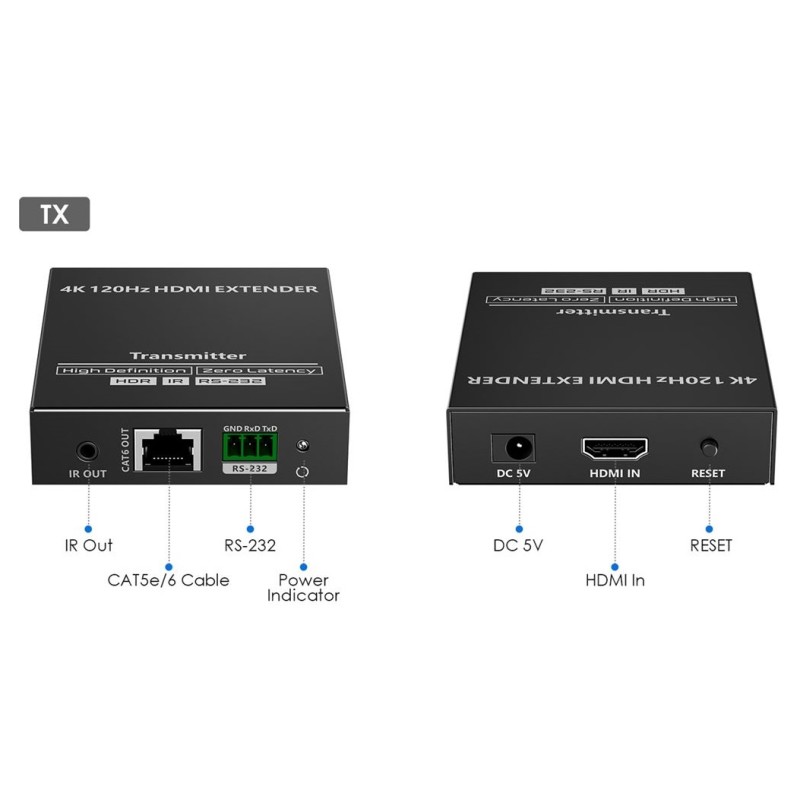

- Input interface 1x HDMI，1x RJ45

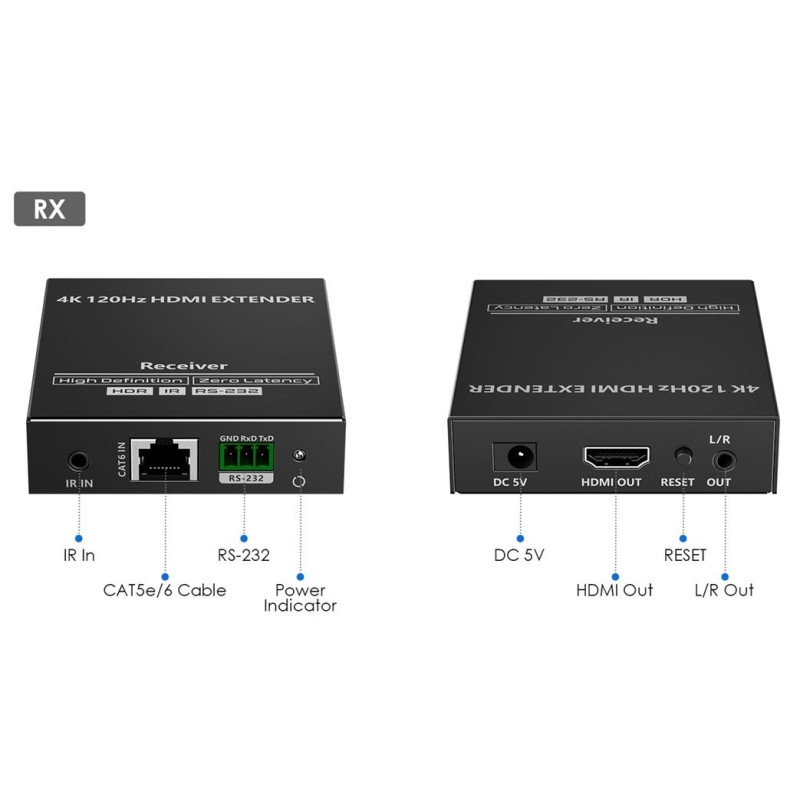

- Output interface 1x RJ45，1x HDMI
- HDMI Length ≤5m
- Maximum transfer rate 18Gbps
- Compatibility HDMI 2.0，HDCP 2.2, HDCP 1.4
- Resolutions 1280x720, 1280x960, 1366x768, 1440x900, 1680x1050, 1920x1080, 1920x1200, 720p@50/60Hz, 1080i@50/60Hz, 1080p@24/25/30/50/60/120Hz, 2560x1440@50/60/120/144Hz, 3840x2160@24/25/30/50/60/100/120Hz, 4096x2160@24/25/30/50/60Hz
- Connection types One-to-one connection
- Transmission distance CAT6/6A/7: 4K@60Hz≤60m
- 2560×1440@144Hz≤30m
- 4K@120Hz≤25m
- HDMI out PCM, DolbyDigital 5.1, DTS 5.1
- 3.5mm L/R output PCM
- IR receiving range ≤5m
- IR frequency 20kHz~60kHz
- RS-232 (GND/RxD/TxD) Support baud rate: 2400, 4800, 9600, 19200, 38400, 57600, 115200
- Power supply DC 5V/1A
- Power consumption TX ≤ 3W，RX ≤ 3W
- Working temperature -20℃~70℃
- Storage temperature -30℃~70℃
- Humidity 0~90%RH (no condensation)
- Housing lron
- Weight TX: 185g，RX: 185g
- Color Black
- Dimensions 85.0(L)*76.0(W)*20.6(H)mm
| Type | HDMI |
| Transmission | Single CAT6 |
| Resolution | 4K120Hz |
| Distance | 60m |
| IR | Yes |
