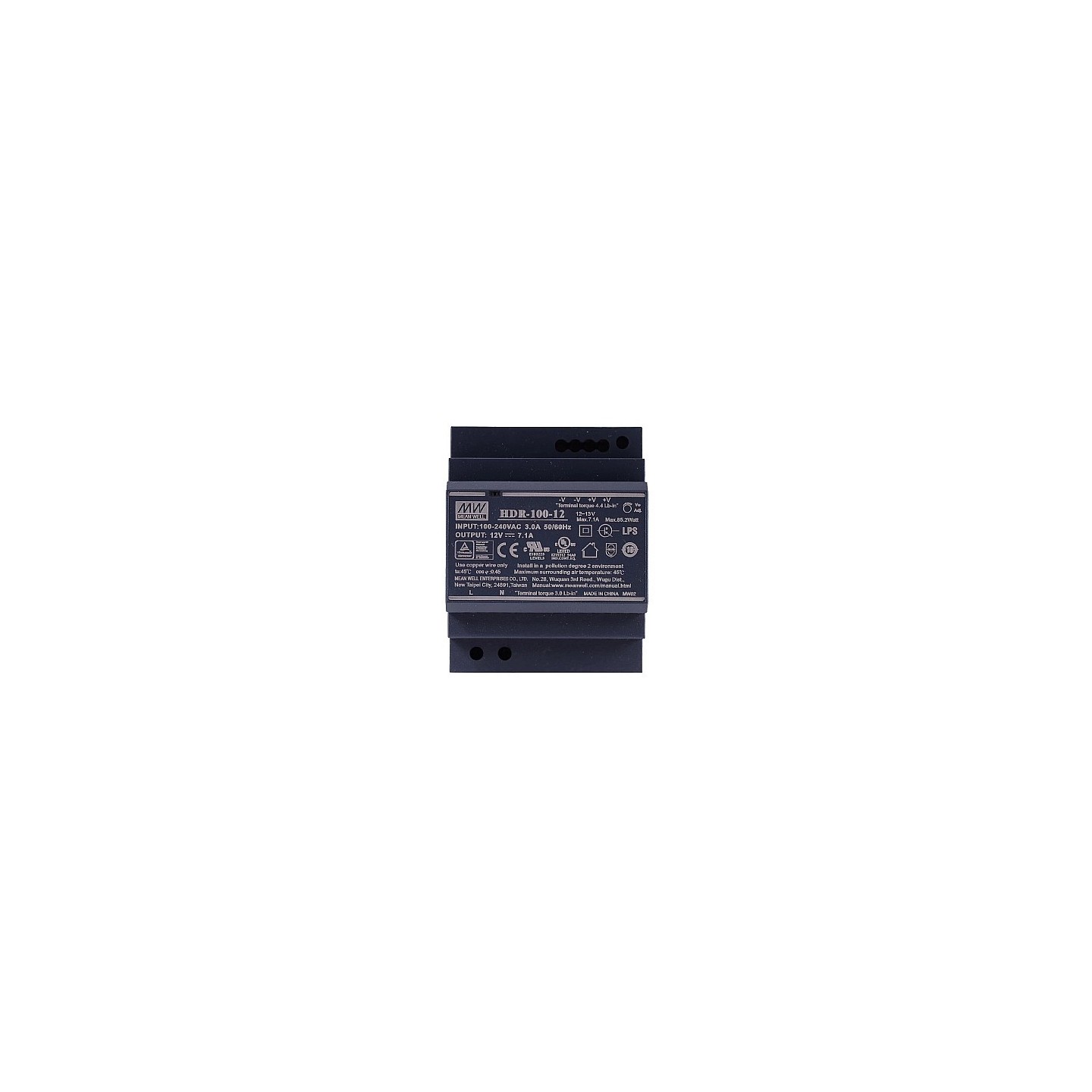

Meanwell DIN Rail PSU - HDR-100-12 - 12V 100W
12V DC 7.1A output; universal 85-264VAC input; 85.2W rated; ultra-slim 70mm wide; DIN rail TS-35/7.5 or 15 mountable; no-load <0.3W.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
- 12V DC 7.1A output
- AC input voltage range: 85 ~ 264VAC
- Rated power: 85.2W
- UItra slim design with 70mm(4SU) width
- Universal input 85~264VAC(277VAC operational)
- No load power consumption<0.3W
- Isolation class II
- Pass LPS (Limited power source)
- DC output voltage adjustable
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection (working temperature:-30~+70°C)
- DIN rail TS-35/7.5 or 15 mountable
- LED indicator for power on
- Over voltage category Ⅲ
- 3 years warranty
