Lenkeng HDMI Extender over Ethernet 70m 1080p - LKV372N - HDMI Extender over Ethernet 70m 1080p
Transmitter and receiver HDMI extender kit for 70 m over Cat6/6A/7 at 1080p; includes both units.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

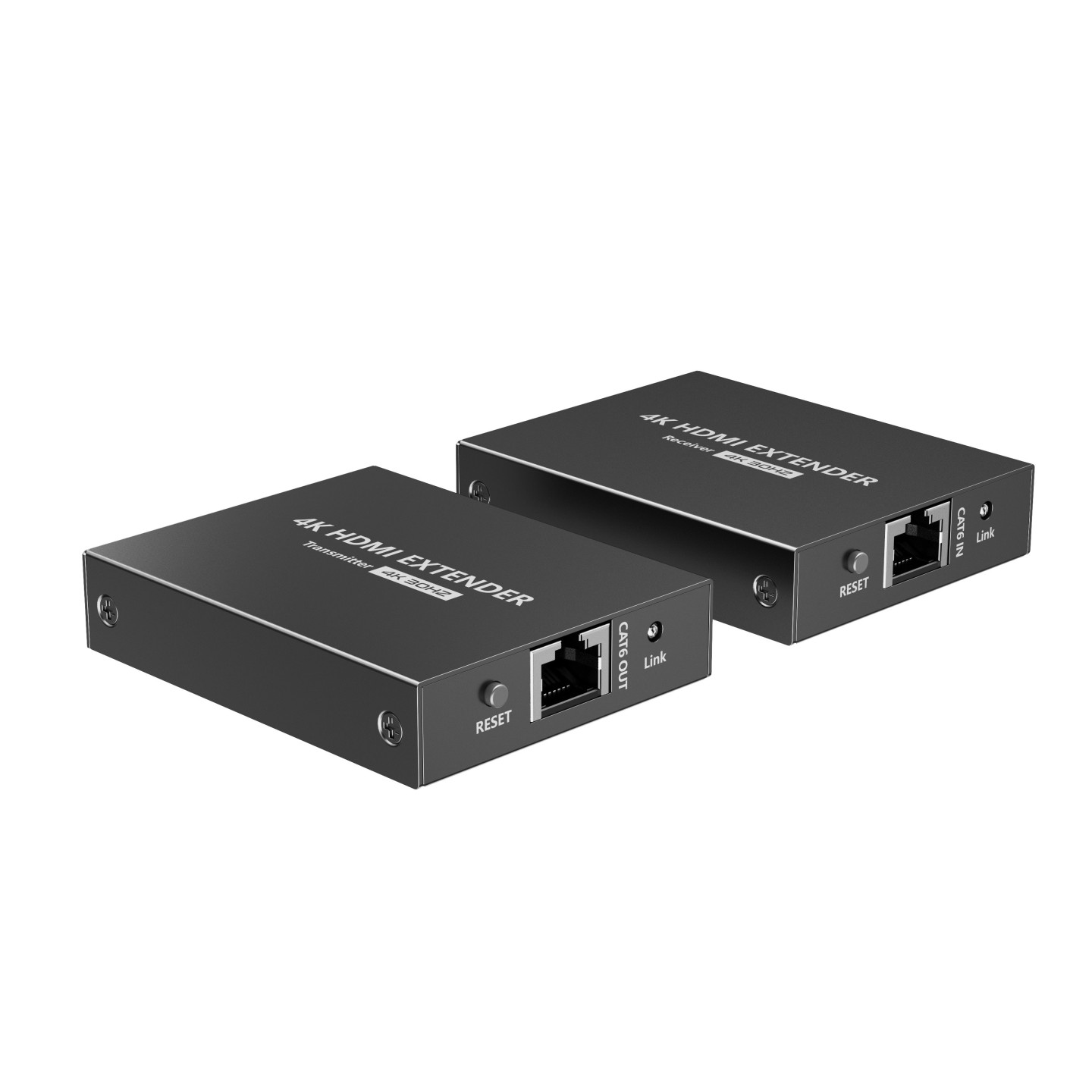

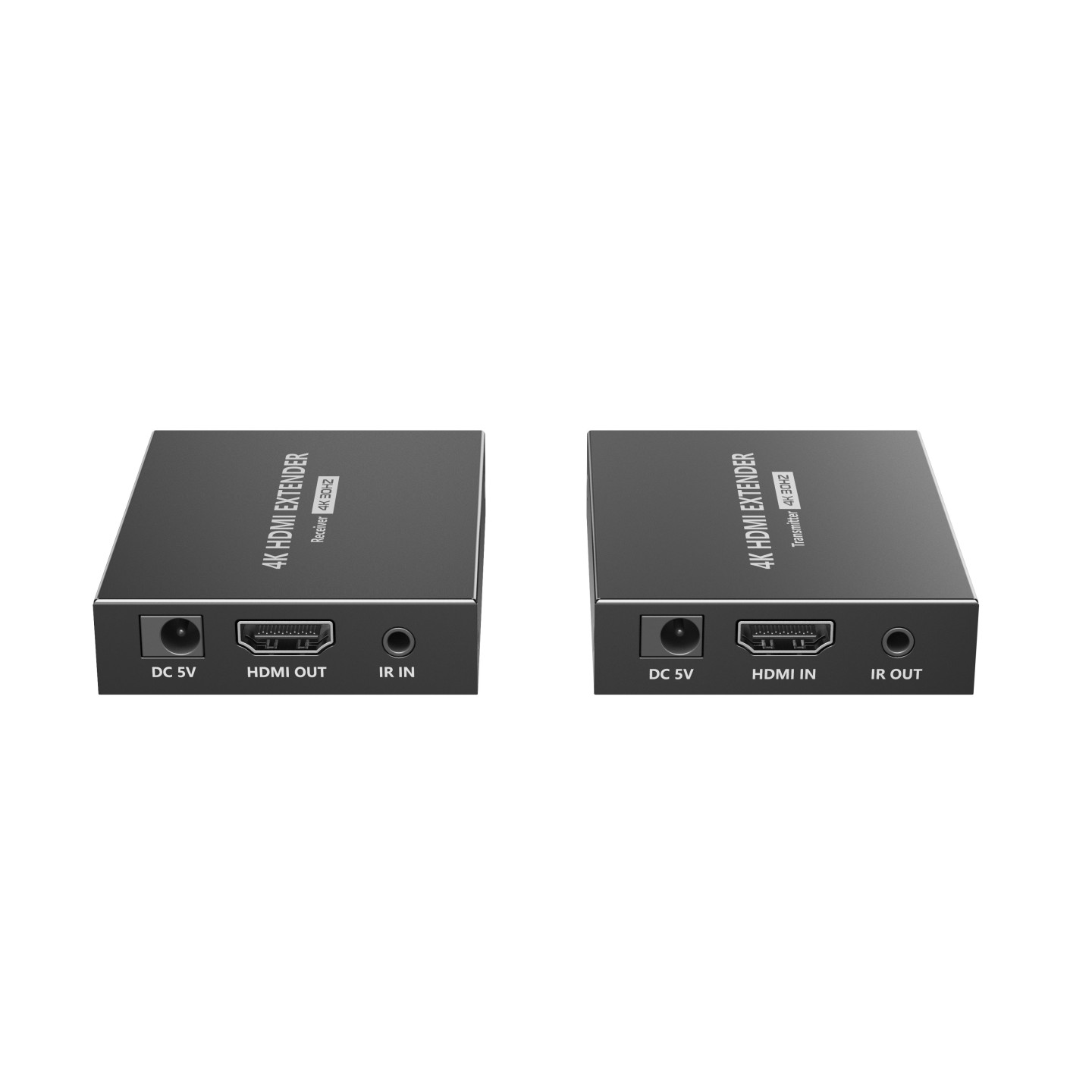

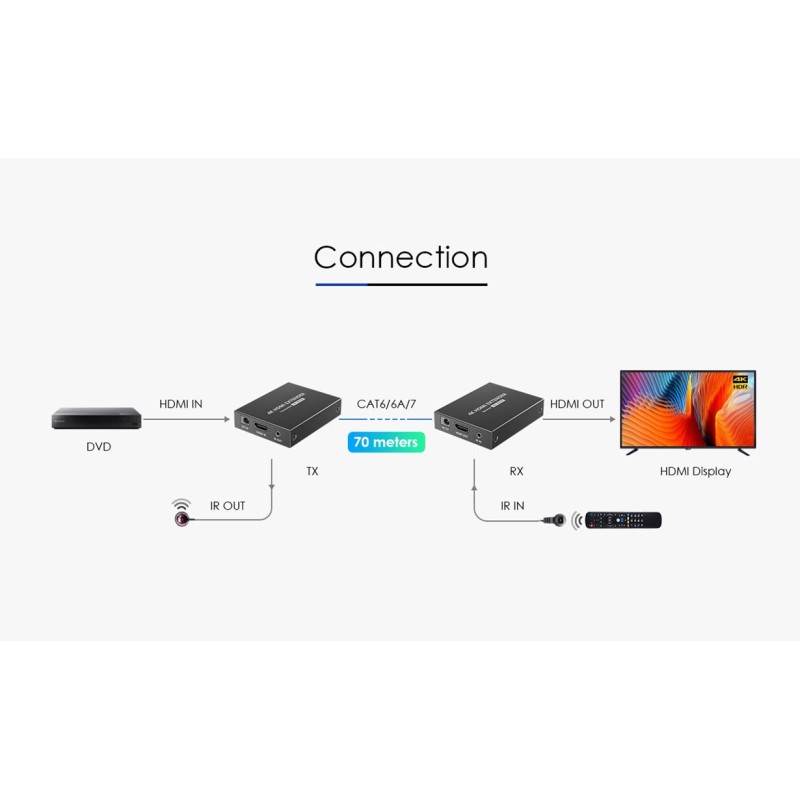

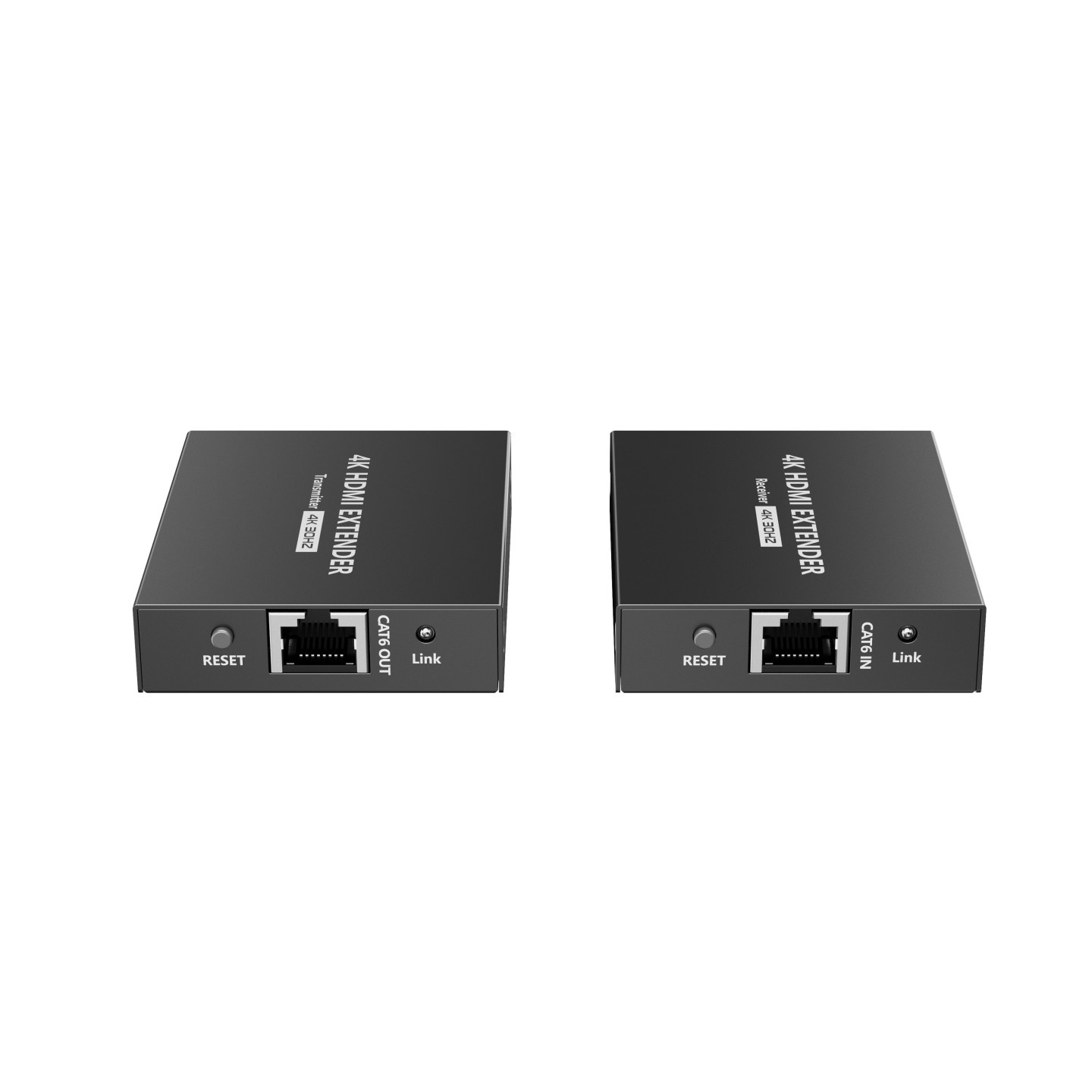

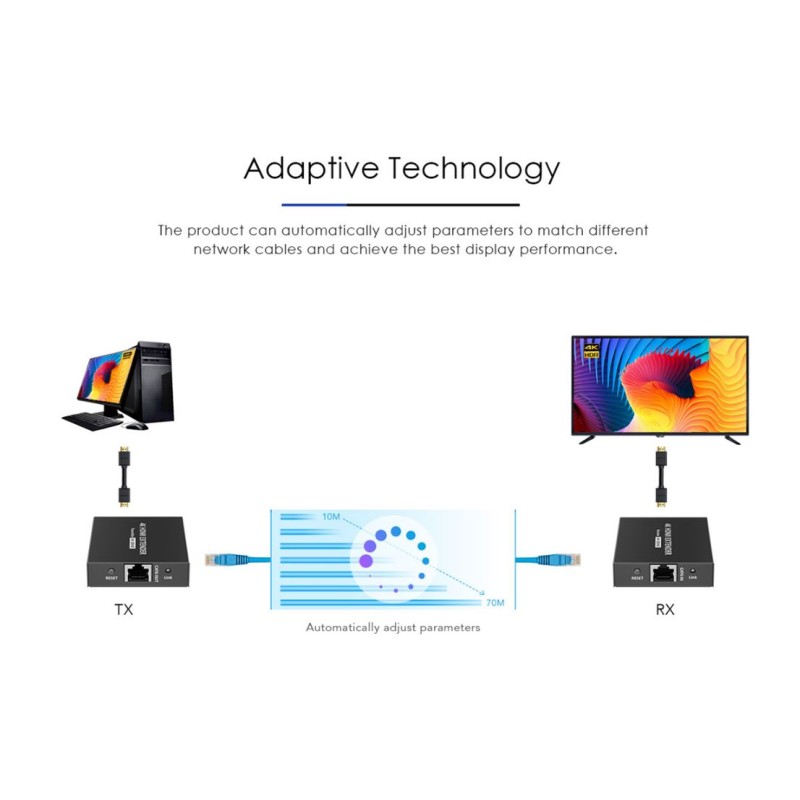

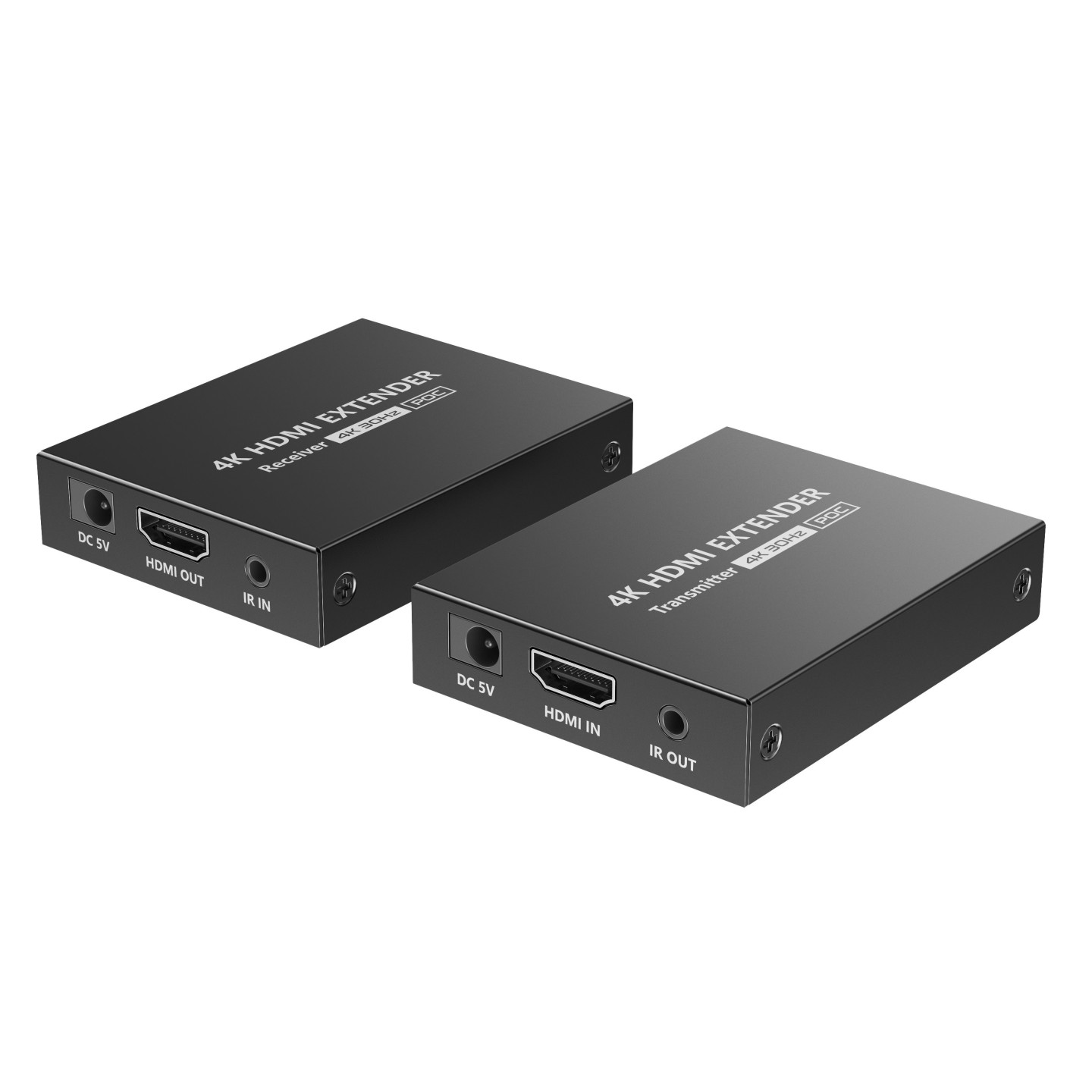

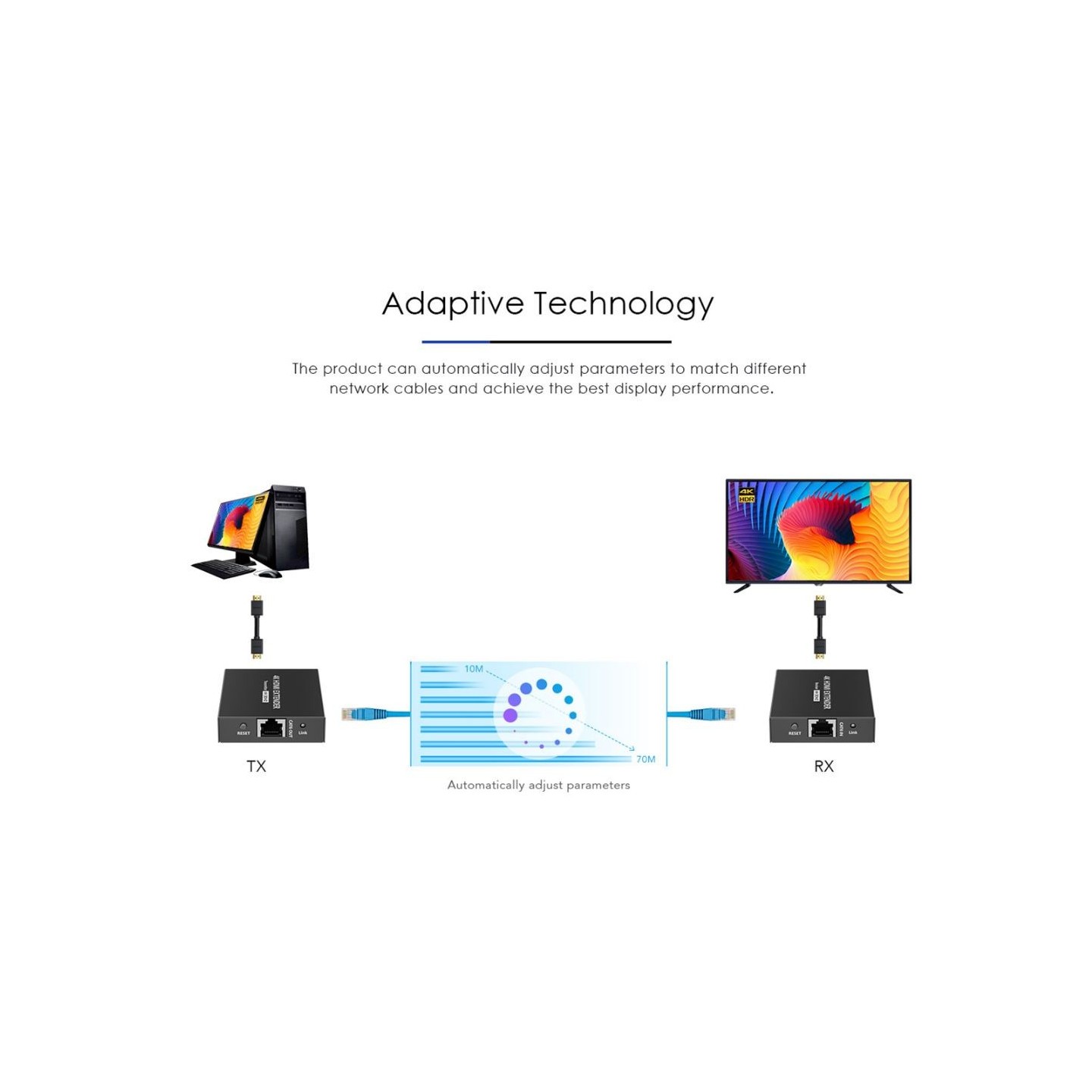

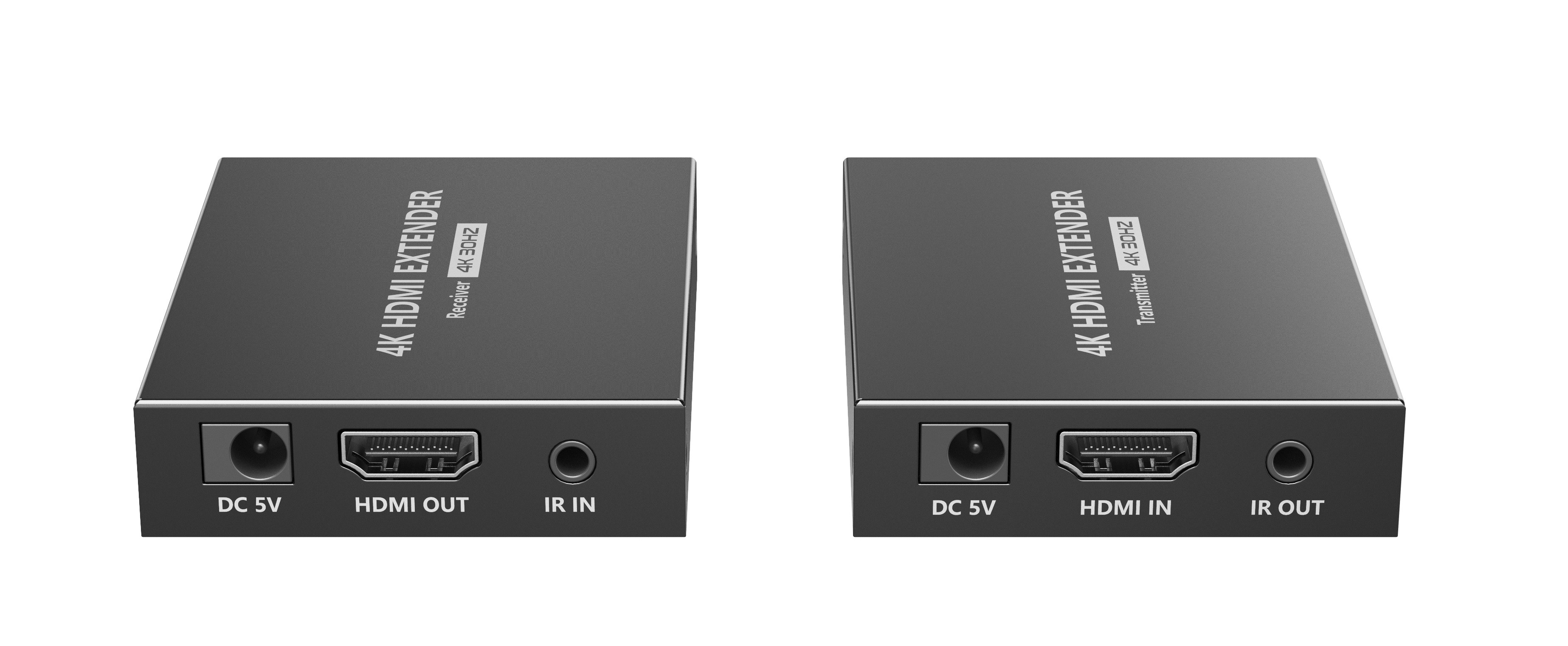

This HDMI Extender includes a transmitter unit and a receiver unit, allows the HDMI signal to be transmitted up to 70 meters at 1080p resolution using a Cat6/6A/7 network cable. It adopts a point-to-point connection configuration, supports IR pass-back. It is perfect for outdoor advertising, monitor system, home entertainment, conference, etc.

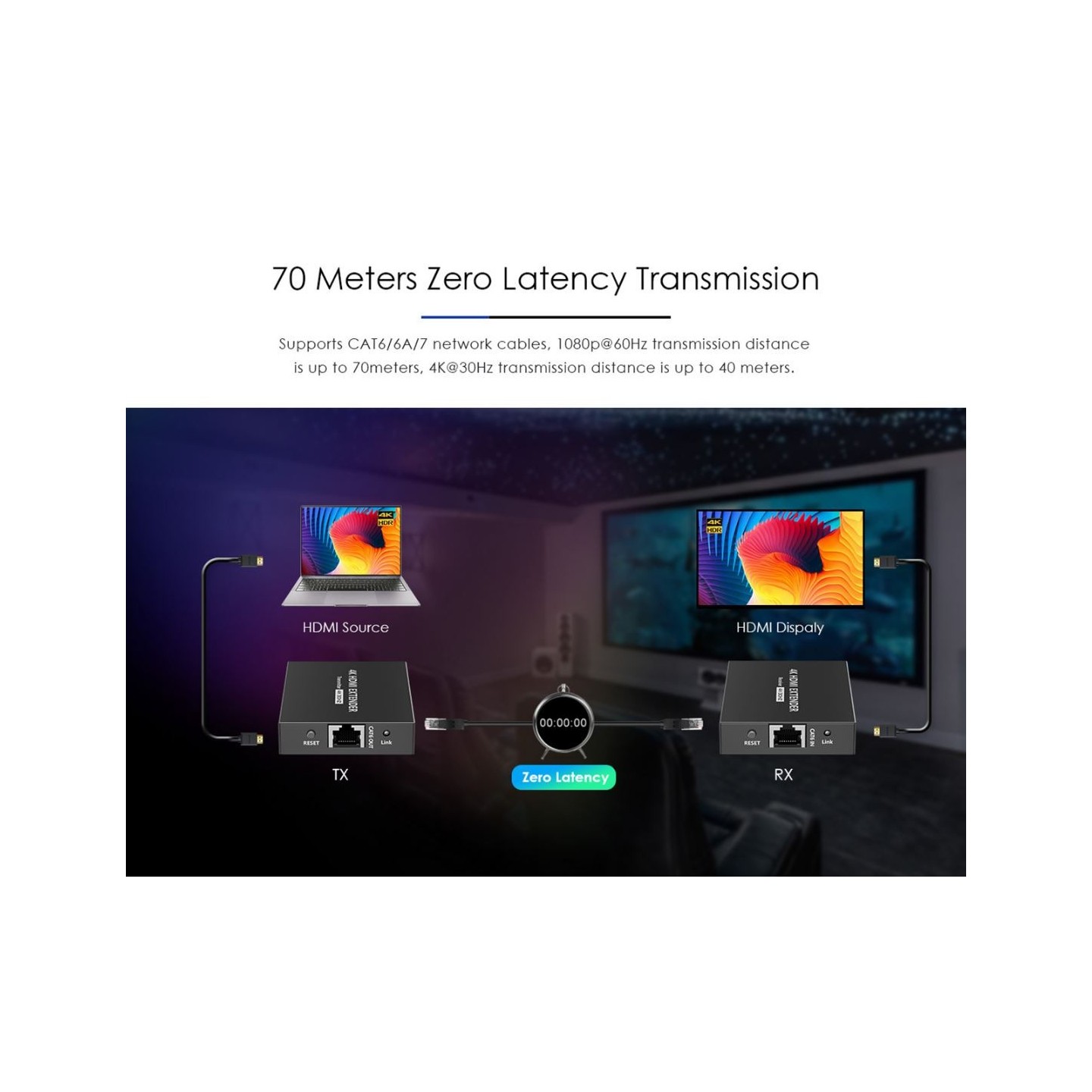

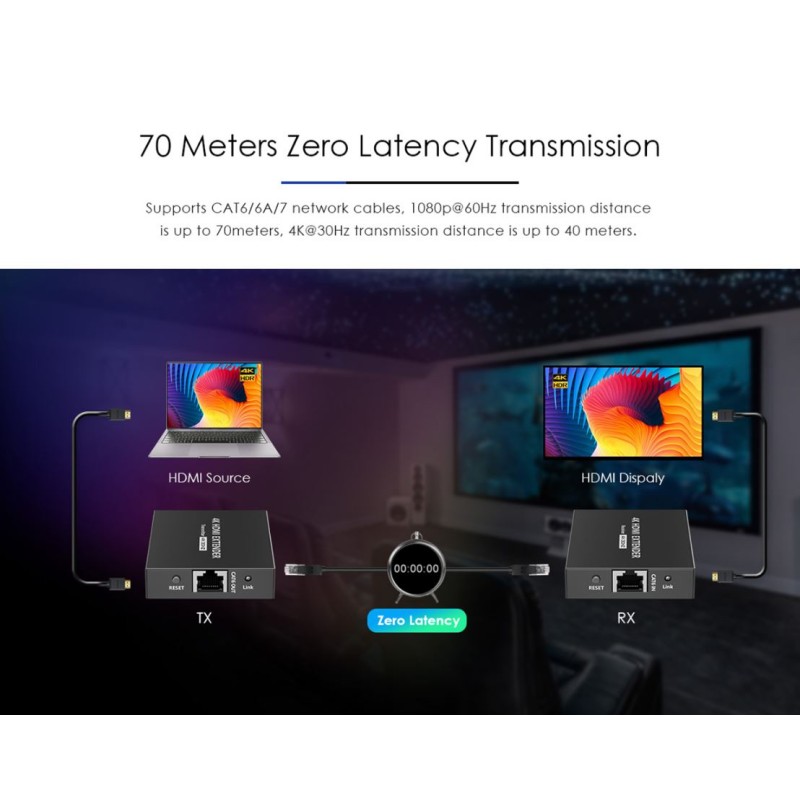

- 40 meters for 4K@30Hz signals
- 70 meters for 1080p@60Hz signals
- Voltage/Current DC5V/500mA
- Power consumption TX<1.5W； RX<1.5W
- HDMI compliance HDMI 1.4
- HDCP compliance HDCP 1.4
- HDMI resolution 800x600、1024x768、1280x720、 1280x960、1366x768、1440x900、 1680x1050、1920x1080、480i@60Hz、 480p@60Hz、576i@50Hz、 576p@50Hz、720p@50/60Hz、 1080i@50/60Hz、 1080p@24/25/30/50/60Hz、 3840x2160@24/25/30Hz
- Audio formats DTS、DTS-HD、PCM、LPCM
- HDR Support
- EDID through Support
- IR Pass-back Frequency Range：20~60KHz
- Input and output TMDS signal 0.7~1.2Vp-p(TMDS)
- Input and output DDC signal 5Vp-p(TTL)
- Cat6/6A/7 Transmission Distance 1080p@60Hz transmission 70 meters
- 4K@30Hz transmission 40 meters
- Electrostatic protection of the whole machine Implementation of the standard:
- IEC61000-4-2
- 1a Contact discharge level 2（±4KV）
- 1b Air discharge level 3 (±8KV)
- Working temperature -20~60℃
- Storage temperature -30~70℃
- Humidity (no condensation) 0～90%RH
- Dimension 75.0(L) x 60.0(W) x 16.5(H) mm
- Weight TX:127g RX:127g
- Color Black
| Type | HDMI |
| Transmission | Single CAT6 |
| Resolution | 4K30Hz |
| Distance | 70m |
| IR | Yes |
