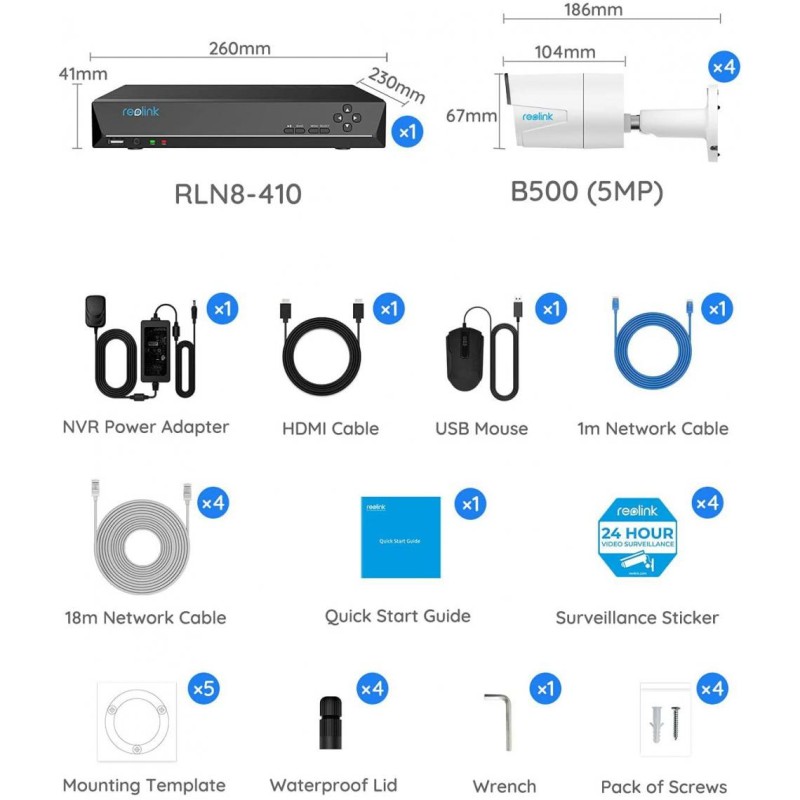

Reolink KIT - RLK8-410B4-5MP - 8xChNVR+4x5MP Bullet+2TB

Super HD 5MP High Resolution

• 5MP RLK8-410B4 with a pixel resolution of 2560x1920, that is, nearly 2.4X the resolution of 1080p Full HD, and even 1.3X the resolution of 1440p. It sees and records your home security more clearly, with more details

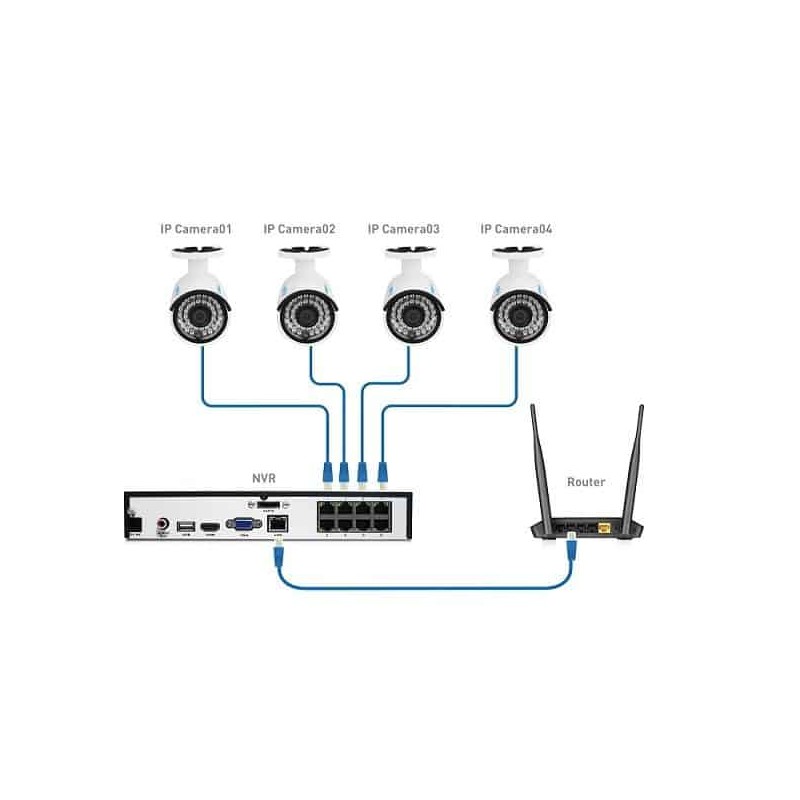

PoE — Easy Setup, Even for a Beginner

• A real plug and play security system! It features PoE (Power over Ethernet), with a single network cable connecting each IP camera to the NVR for both power supply and video signal transmission. Easy wiring – the wiring process can’t be simpler for DIY enthusiasts and beginners

24/7 Recording and Monitoring

• Pre-installed : 2TB
• Seagate HDD : Up to 8
• Cameras : Up to 4TB External HDD

High Quality Night Vision

• With plenty LED lights and improved infrared radiation for 24-hour vigilance, the 5MP cameras ensure a clear night vision, up to 30 m long distance (depending on the environment)

Video Playback — Recall Events and Moments
Replay significant evidence or funny video records.

• 4-channel simultaneous playback.
• Quick search for any event that happened at any time.
• Freely playback any event on days, hours and even minutes with the help of timer axis under the split screen

Work with Various Reolink IP Cameras

• This security camera system can be expanded up to 8-camera kit with Reolink IP cameras - bullet, dome or PTZ; 12MP, 8MP, 5MP, or 4MP – to cover every corner in your home, store or factory
• * The Reolink NVRs work with Reolink security cameras ONLY.

NVR

Video/Audio Input

• IP Video Input : PoE IP camera x 8
• Audio Input : Cameras with built-in mic

Video/Audio Output

• Video Output : VGA, HDMI
• Display Resolution :  HDMI: 3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768 /  VGA: 1920x1080, 1280x1024, 1280x720, 1024x768
• Audio output : 1-channel, RCA

Decoding

• Video Format : H.264, H.265
• Live View/Playback Resolution : 4096*3072/3840*2160/2560*1920/2560*1440/2048*1536/2304*1296/1080p/720p
• Synchronous Playback : Up to 4 channels

HDD

• SATA : 1 x SATA interface (1 x 2TB HDD included)
• External HDD : 1 eSATA interface for HDD
• Capacity : Up to 12TB (max. 6TB capacity for each HDD)

External Interface

• USB Interface : 2 x USB 2.0
• Network Interface :  1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface for LAN/WAN /  8, RJ-45 10/100 Mbps self-adaptive PoE Ethernet interface for IP camera

PoE

• Max. Power Per Port : 25W
• Supported Standard : IEEE 802.3af/at

Network

• Network Protocols : HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP
• Browsers Supported : Edge, Firefox, Chrome, Safari
• OS Supported : PC: Windows, Mac OS; smartphone: iOS, Android
• Max. User Access : 20 users (1 admin account & 19 user accounts); up to 12 simultaneous video streams (10 substreams & 2 mainstreams)

General

• Power Supply : DC 48V~53V
• Power Consumption : <10W (without HDD & PoE)
• Working Environment : Temperature: -10°C~+45°C / humidity: 10%~90%
• Dimensions : 260 x 41 x 230mm
• Weight : 1.4kg

Cameras

Note: The cameras of the kit cannot work without the NVR

Camera

• Image Sensor : 1/2.7" CMOS Sensor (B500);
• Effective Pixels : B500: 2560x1920(5.0 Megapixels);
• Lens : f=4.0 mm Fixed, F=2.0
• Angle of View : Horizontal: 80°, Vertical: 58°(B500)
• Day/Night Mode : Auto Switchover
• Min. Illumination : 0 Lux (With IR Illuminator)
• IR Distance : 30 Meters (LED: 18pcs/14mil/850nm)
• Backlight Compensation : Support
• Noise Reduction : 3D DNR

Video
Compression : H.264

• Resolution :  B500: Mainstream: 2560x1920, 2560x1440, 2048x1536, 2304x1296; Substream: 640x480
• Bitrate :  B500: Mainstream: 1024Kbps~8192Kbps; Substream: 64Kbps~512Kbps

Audio

• Interface : Built-in Microphone

Network

• Interface : One 10M/100Mbps RJ45

General

• Power Supply : DC12V & PoE (IEEE 802.3af 48V Active)
• Power Consumption : <10W(B500);
• Working Environment : -10°C~+55°C , Humidity: 10%~90%
• Ingress Protection : IP66
• Dimension : Φ67x186 mm
