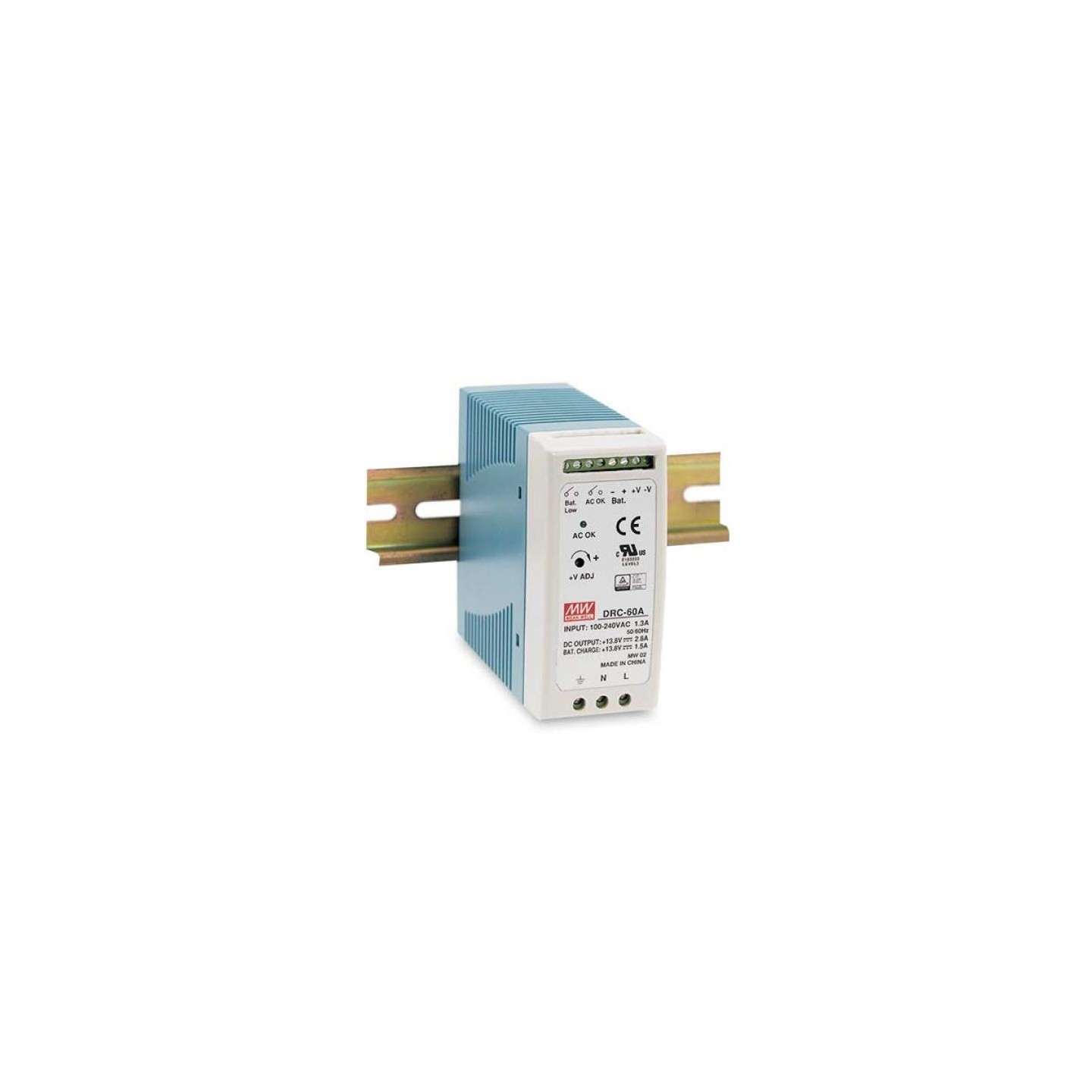

Meanwell DIN Rail Power Supply with UPS Function - DRC-60A - 12V 60W
DIN rail 12V 60W power supply with UPS function (external batteries required); ideal for security and backup systems; mounts on TS-35 rails.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Power Supplies - Type | 12V DC Adaptor |
|---|
- With UPS function (need external batteries)
- Suitable for security industry or battery backup systems
- Assemble on industrial rail TS-35 / 7.5 or 15
- Description : AC-DC DIN rail single output power supply with battery charger (UPS function); Output 13.8Vdc at 2.8A and 13.8Vdc at 1.5A
- Application : Battery Charging / ITE EN/UL/IEC 60950
- Net weight : 370g
- Technology : AC/DC
- Power Format : DIN rail
- Output Power : 100W
- Output Voltage : 13.8V
- Output Current : 4.3A
- Input Voltage : 90 - 264V / Universal Input 110/230V
- IP Rating : No IP assigned
- Width : 40mm
- Height : 90mm
- Depth :100mm
- Dimming Technology : No Dimming
| Type | Din-Rail |
| Voltage | 12V |
| Ampers | 4.3A |
| Current | 4.3A |
