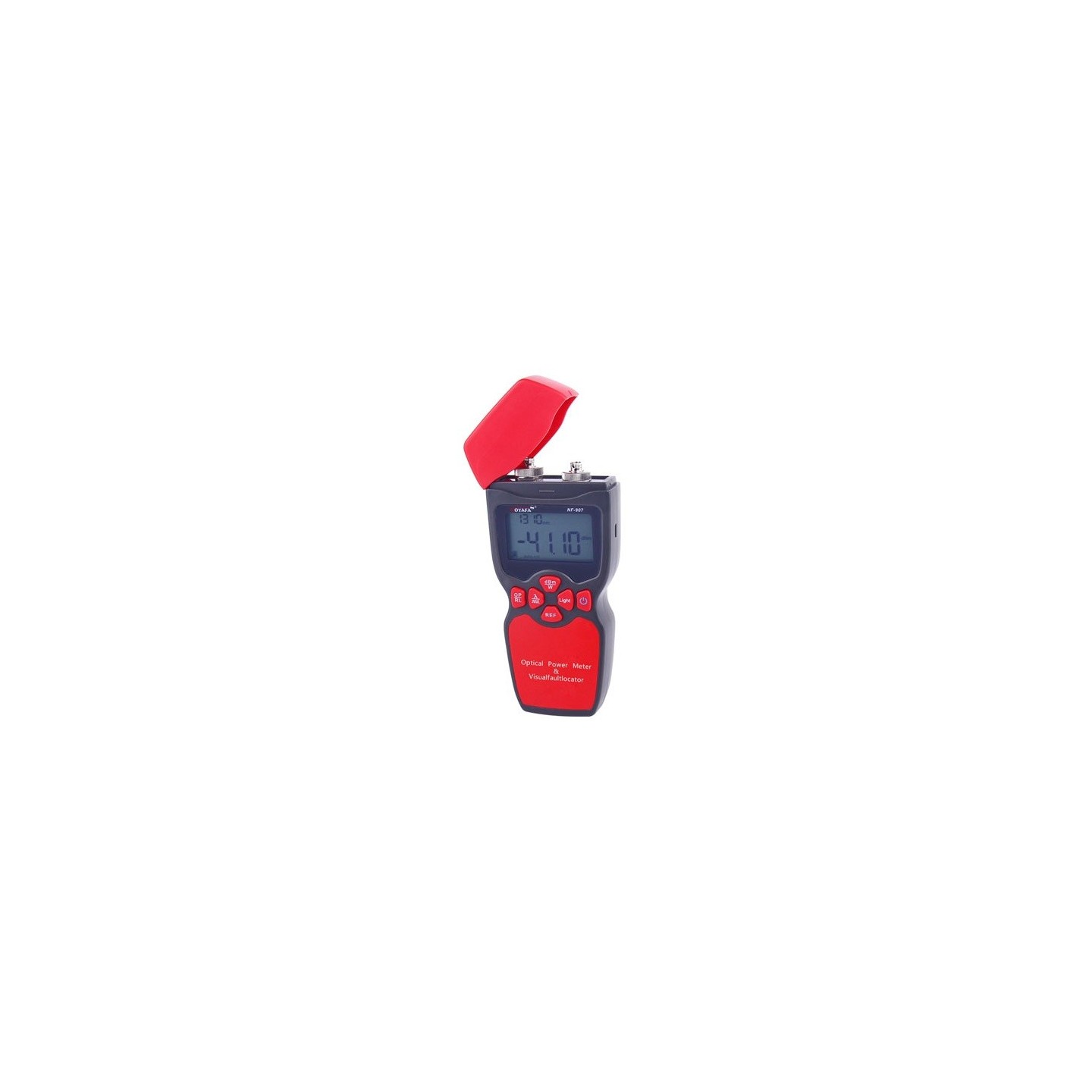

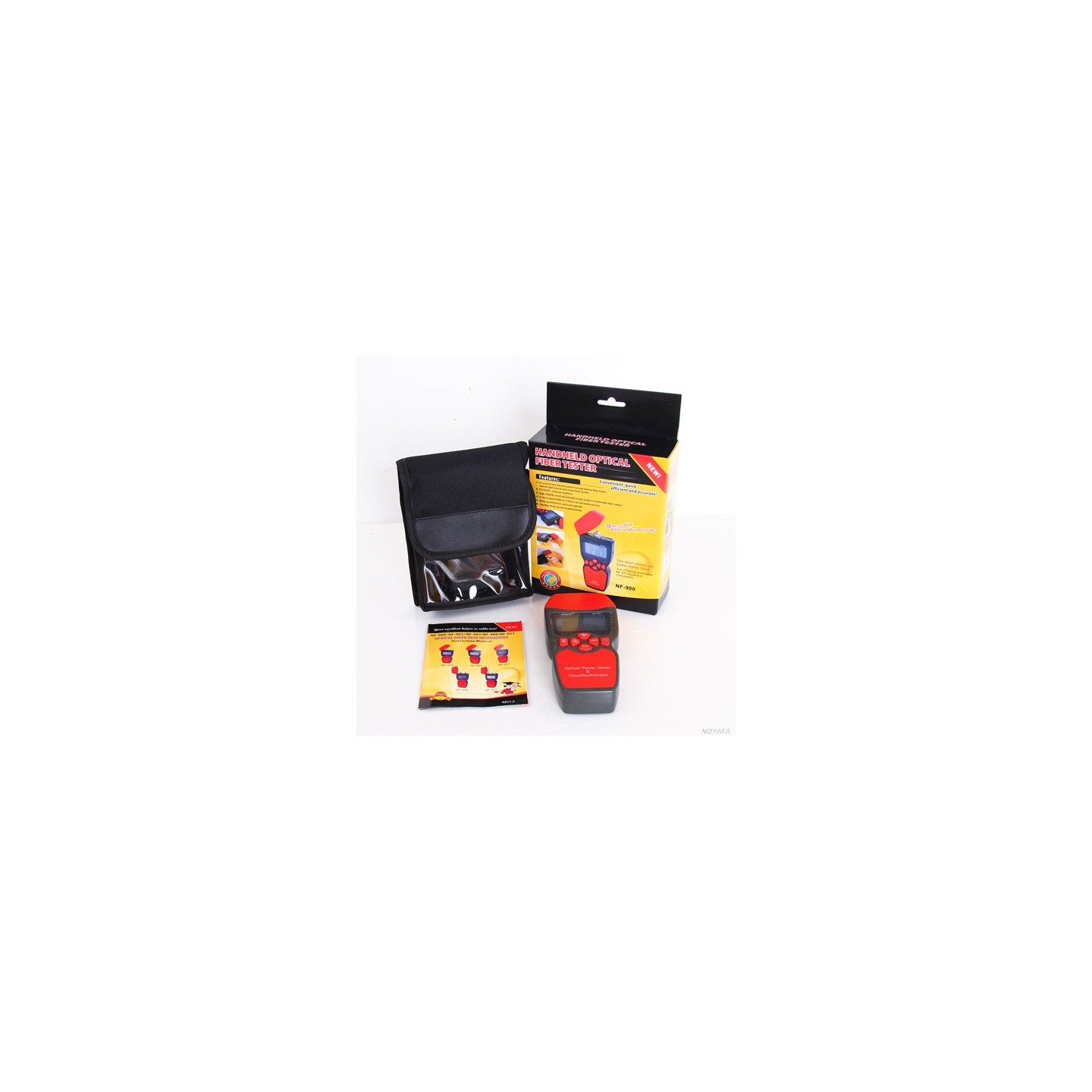

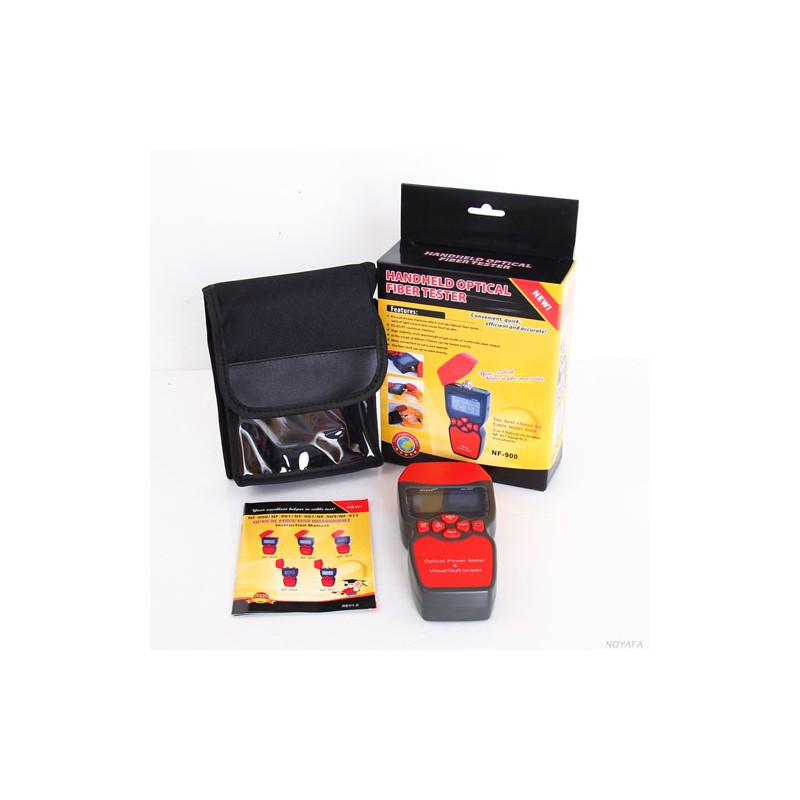

Noyafa Fiber Optic Multimeter - NF-907C - Wide Wavelength Support, High Resolution & Universal Connector
Compact 2-in-1 fiber optic multimeter for absolute power measurements and fiber testing with wide wavelength support, high resolution, and universal connector.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
The 2-in-1 optical multimeter NF-907 is a compact and an easy-to-use testing instrument for optical fiber networks,which can be used for absolute optical power measurements as well as for optical fiber winding or breakage.
It has features of ingenious appearance, wide range of power measurement, high accuracy with high performance-to-price ratio.
Optical Power Meter Module
- Detector Type：IngaAs
- Measurement Range(dBm)：-50~+26
- Calibrated wavelengths(nm):850, 1300, 1310, 1490, 1550, 1625nm
- Resolution (dB):0.01dBm
- Identification Frequency Range：10Hz~60KHz

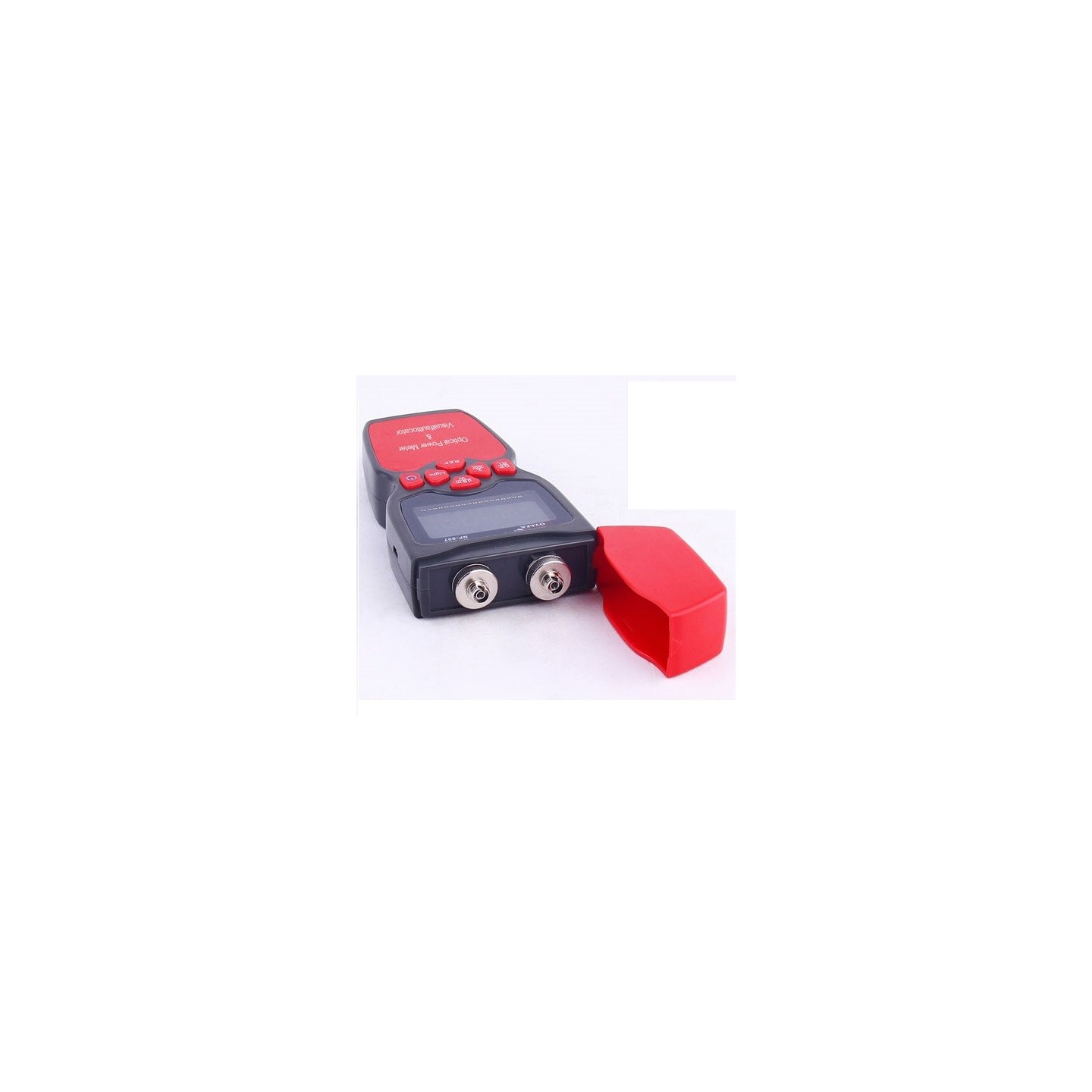

- Optical Connector：FC(SC,ST,LC connector can be optional)
Visual fault locator
- Emmiting Energy：20mw
- Standard wavelenth:650±10nm
- Operation Mode:Pulsed (2Hz) and CW
- Connector: 2.5mm Universal connector
General Specifications of Multi Meter

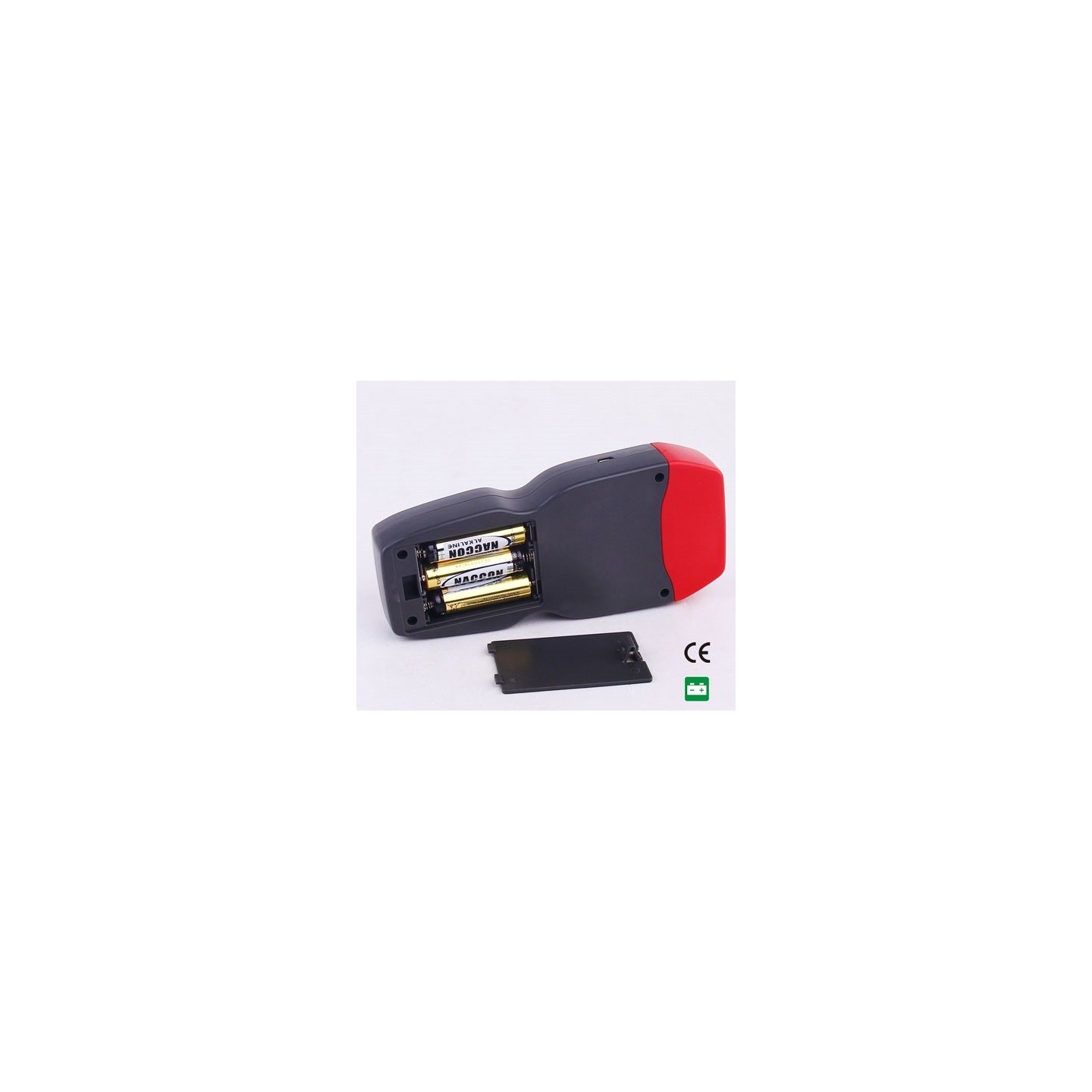

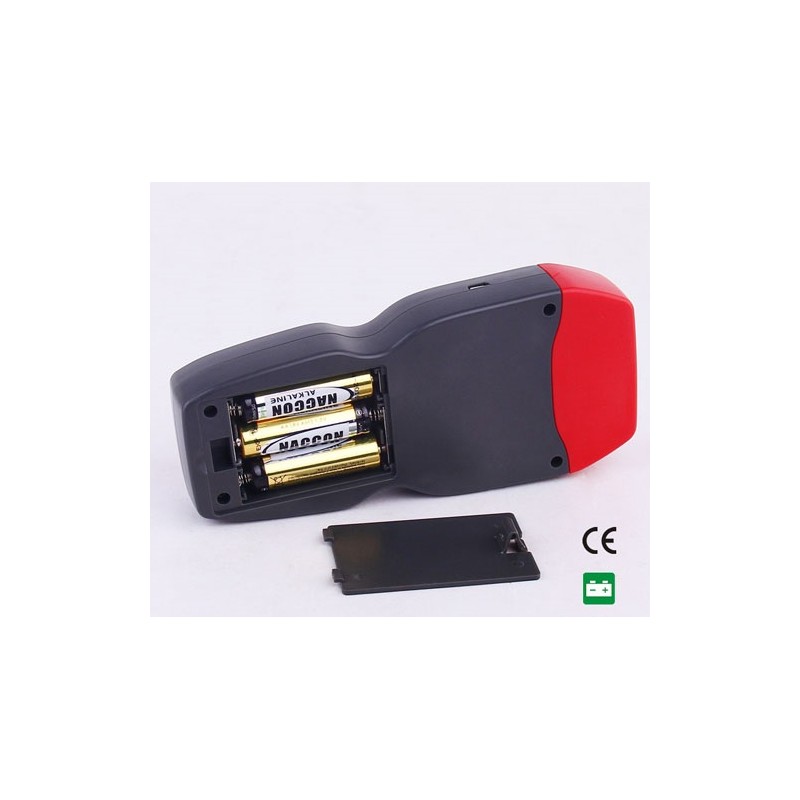

- Power Supply:1.5V*3pcs
- Auto-off time:15mins
- Operating Temperature(°C):-10~+60
- Dimension(mm):160x75x32mm
- Weight (g):400g
