HDMI point-to-point extender kit with PoC, 4K60Hz over CAT6 up to 50m, IR, loop-through, and zero-latency transmission.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

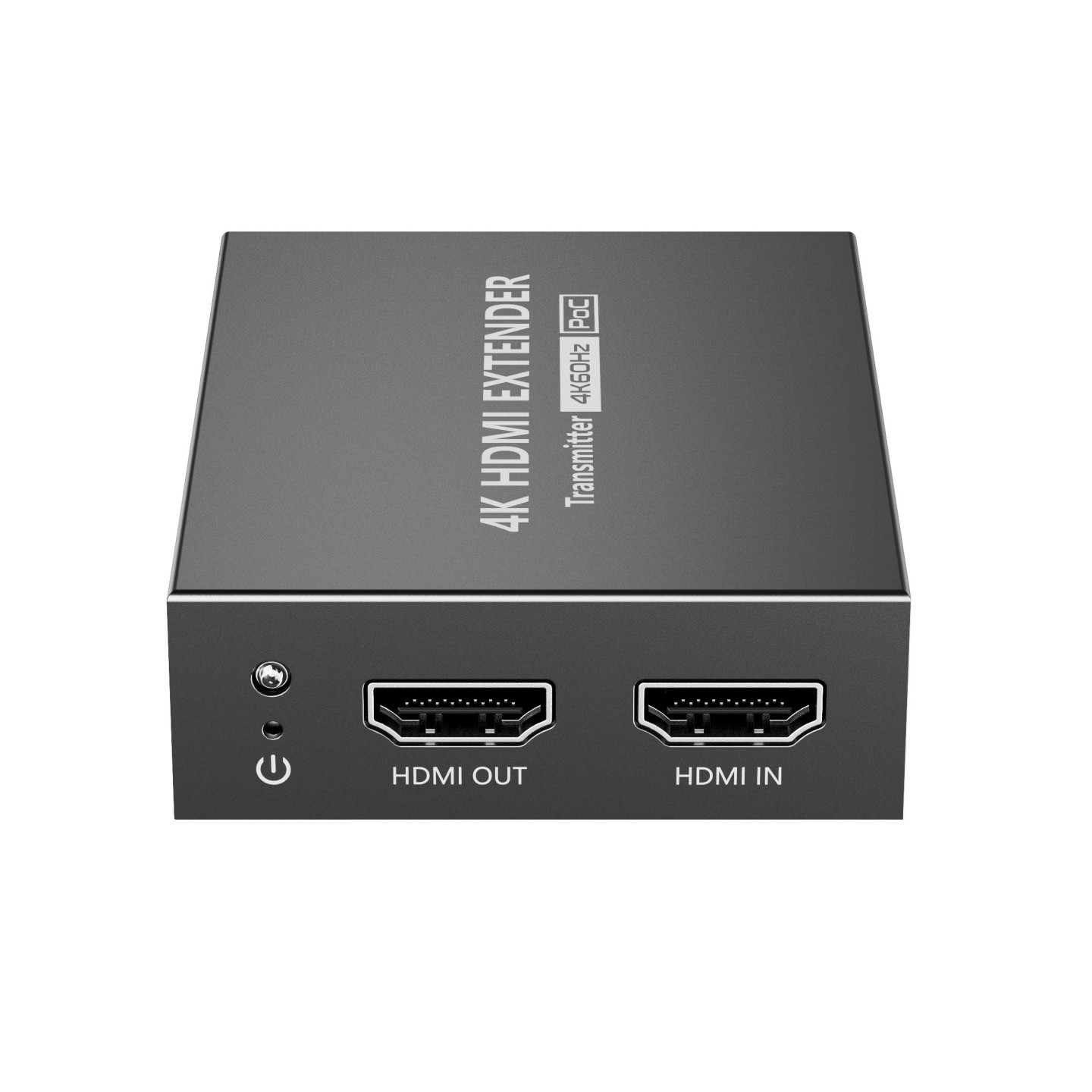

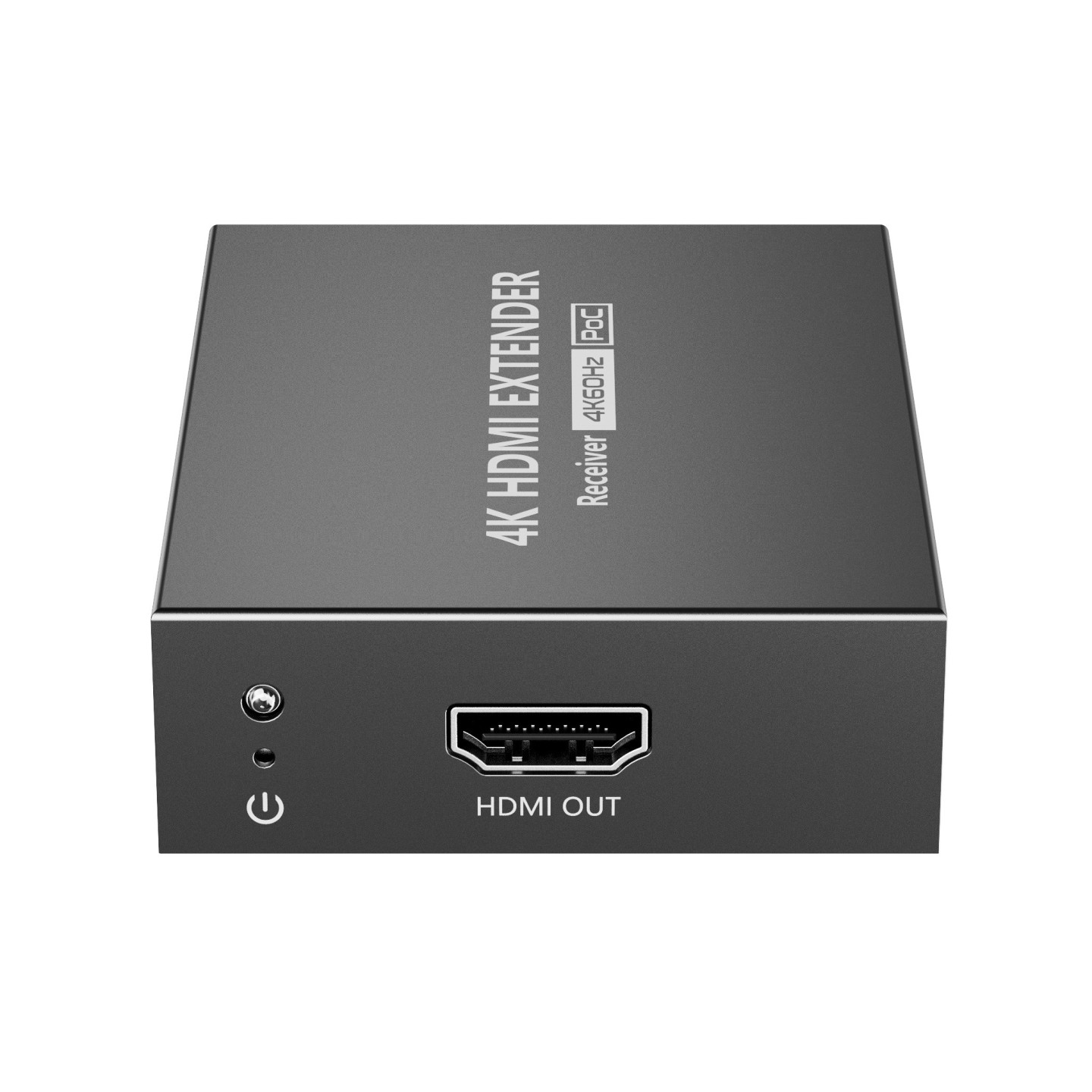

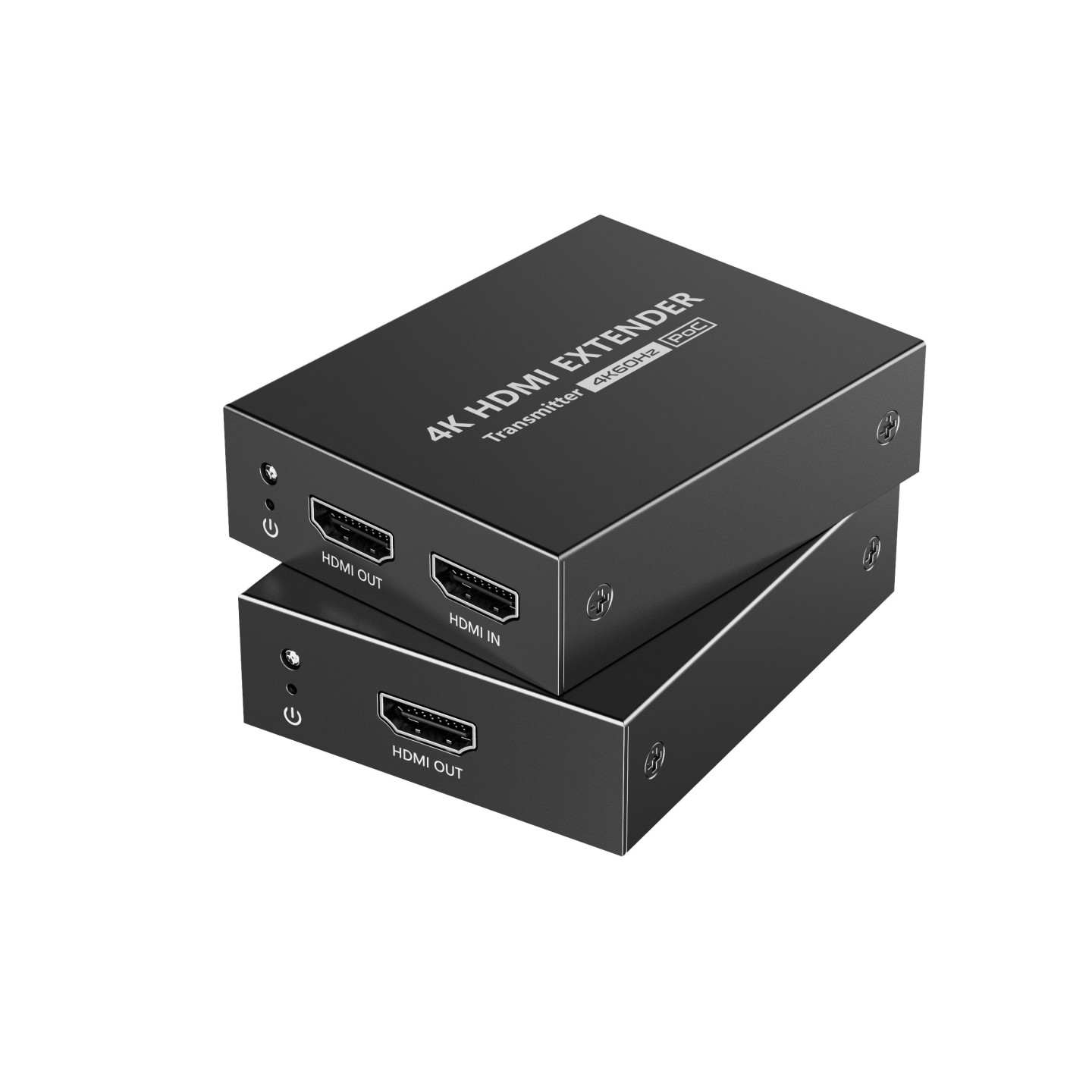

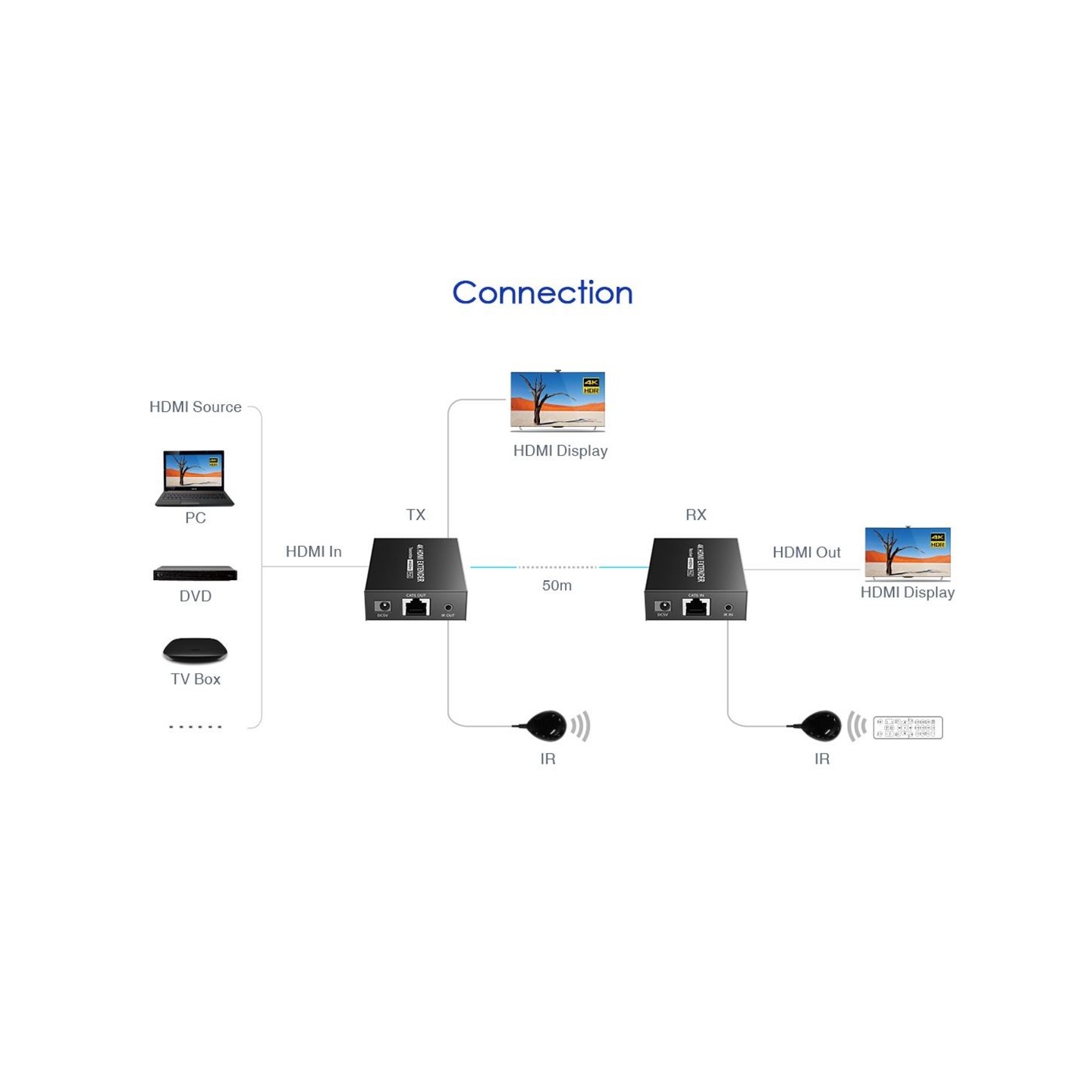

- This is an HDMI point-to-point extender kit, it can realize zero-latency transmission

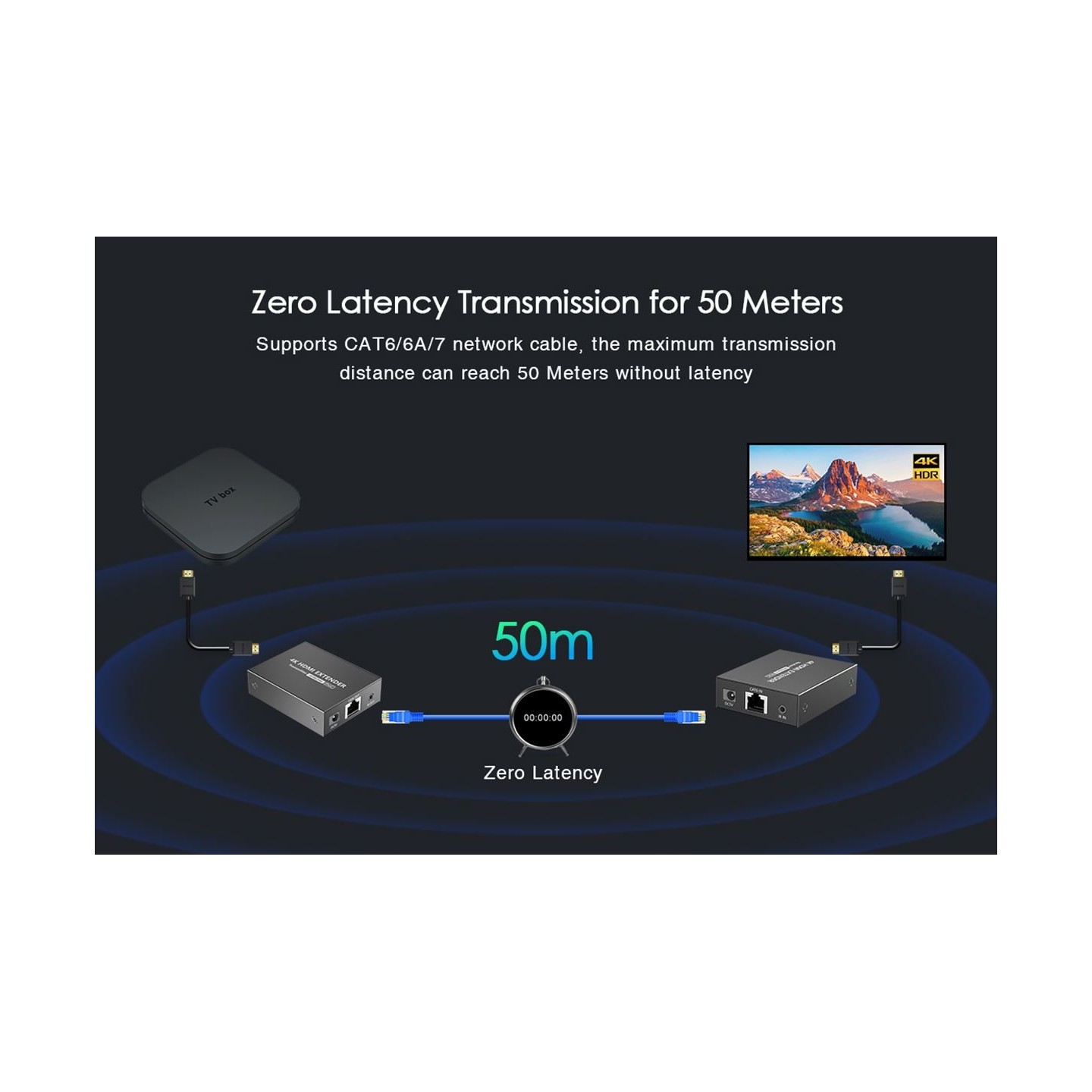

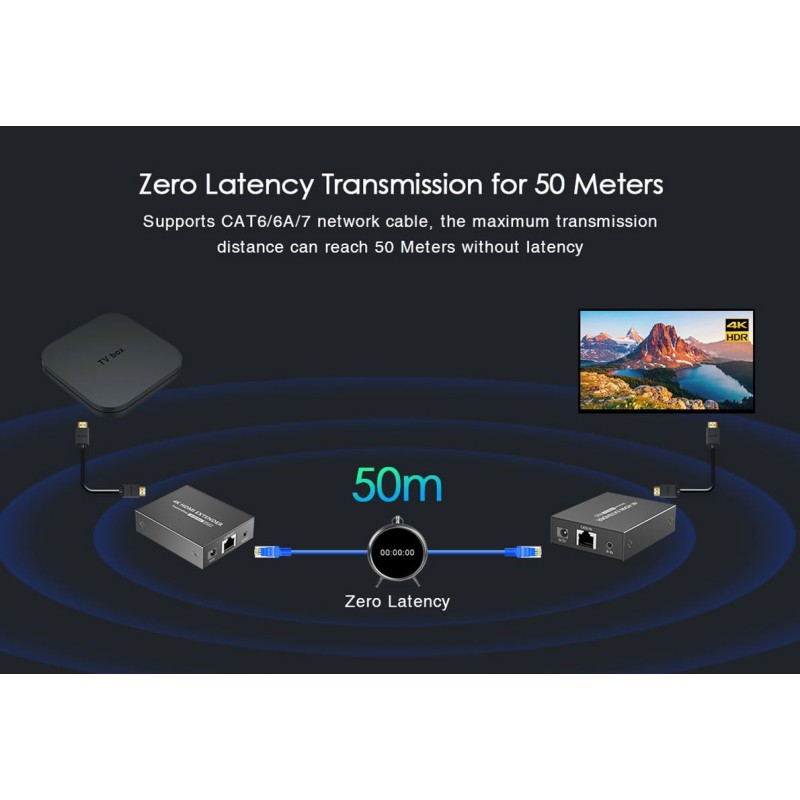

- The 4K@60Hz HDMI signal can be extended by 50m through CAT6/6A/7 network cable
- It supports HDMI loop out, IR passthrough, etc
- HDMI Length ≤5m
- Maximum transfer rate 18Gbps
- Maximum transmission bandwidth 600MHz

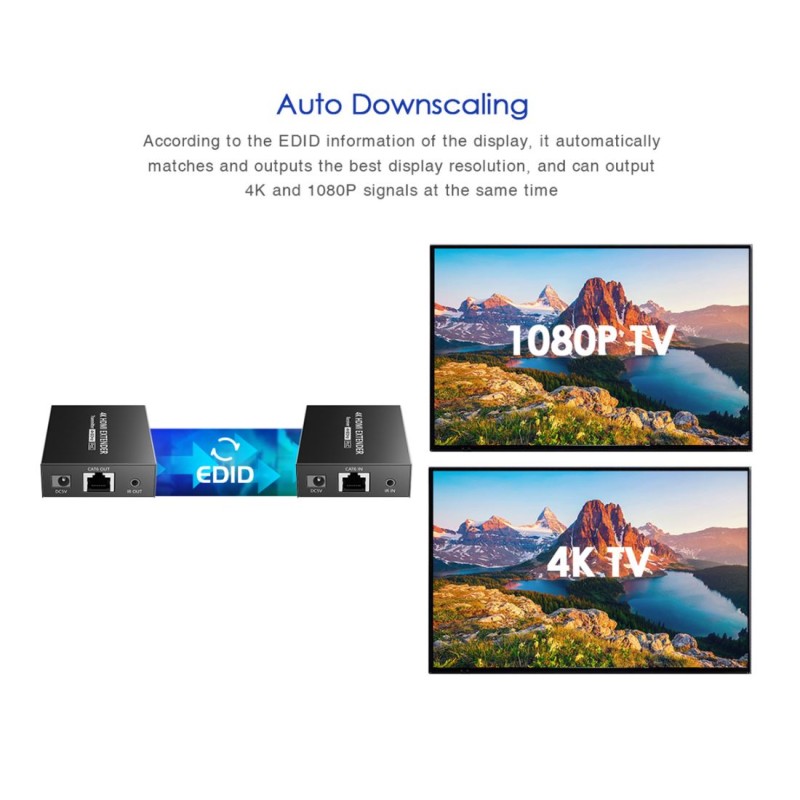

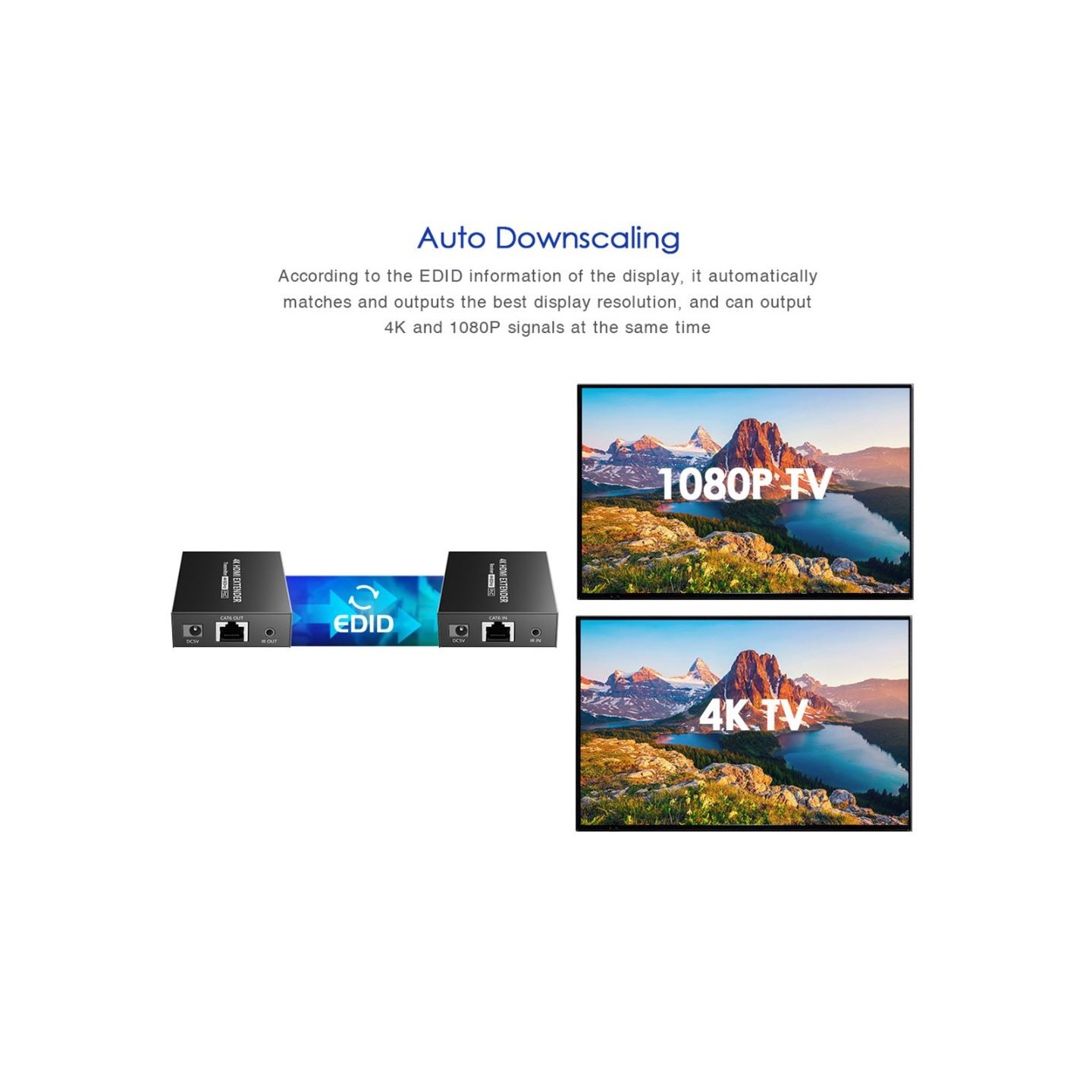

- EDID passthrough Yes
- Compatibility HDMI 2.0（Deep color, 4K, HDR, YUV4:4:4）
- HDCP 2.2, HDCP1.4

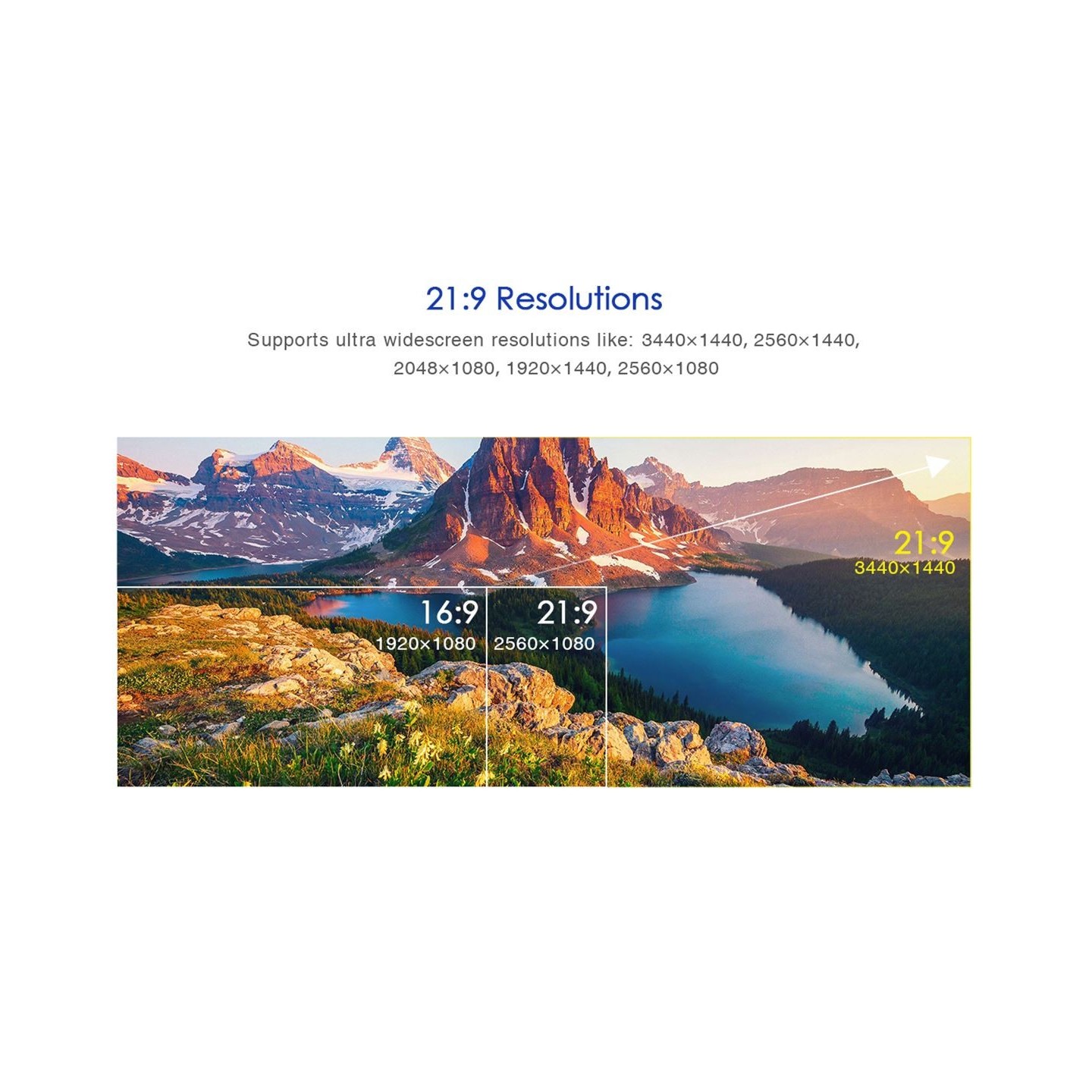

- Resolutions 480i@60Hz、480p@60Hz、576i@50Hz、576p@50Hz、 720p@50/60Hz、1080i@50/60Hz、1080p@50/60Hz、 3840x2160@24/25/30/50/60Hz、3440x1440、2560x1440、 2560x1080、2048x1080、1920x1440、1920x1080、 1280x960、1280x800、1280x768、1680x1050、 1360x768、1366x768、1600x900、1024x768、800x600
- Transmission distance 4K transmission distance 50m
- 1080p transmission distance 70m
- Audio formats LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1CH/Dolby Atmos

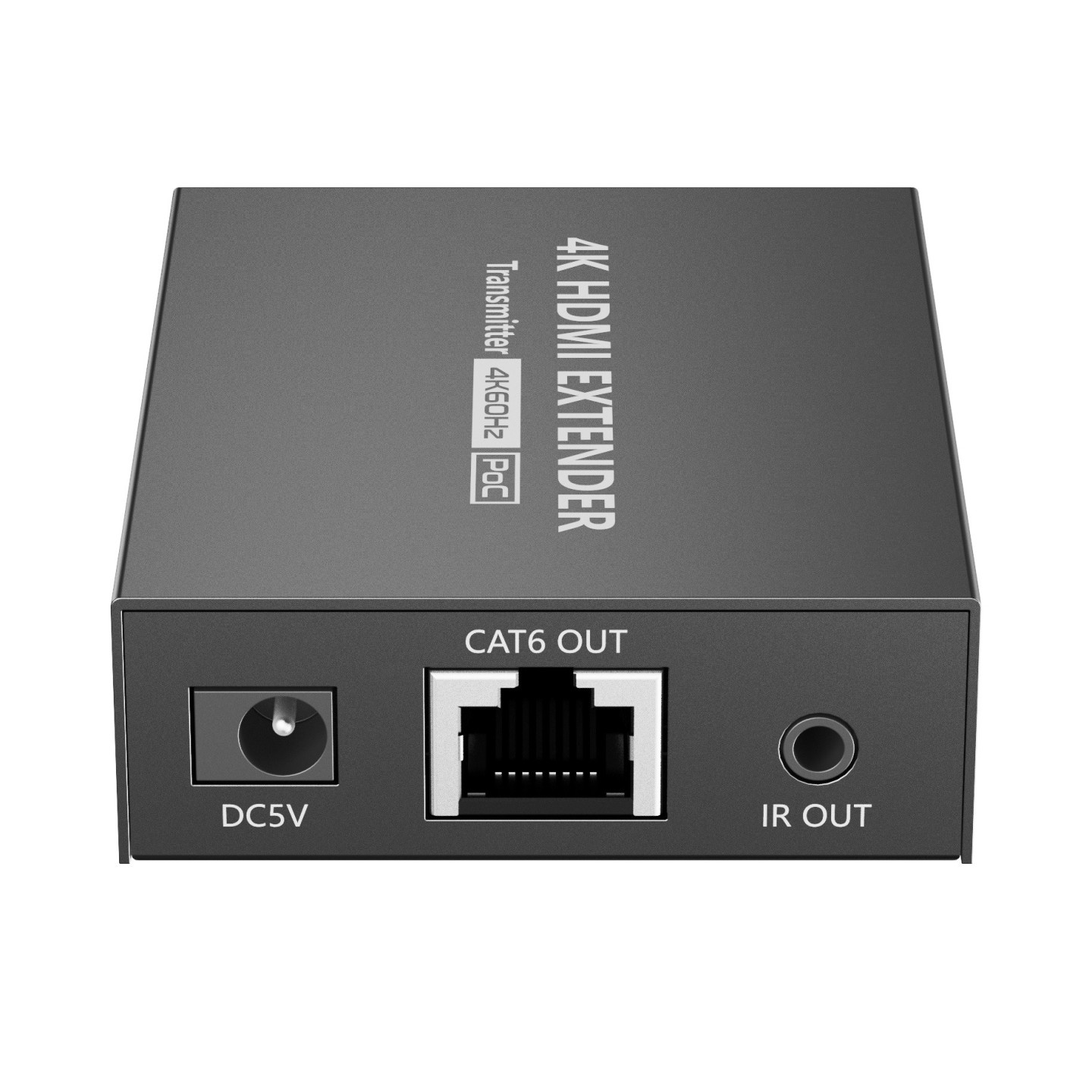

- IR interface 1x 3.5mm IR OUT Female

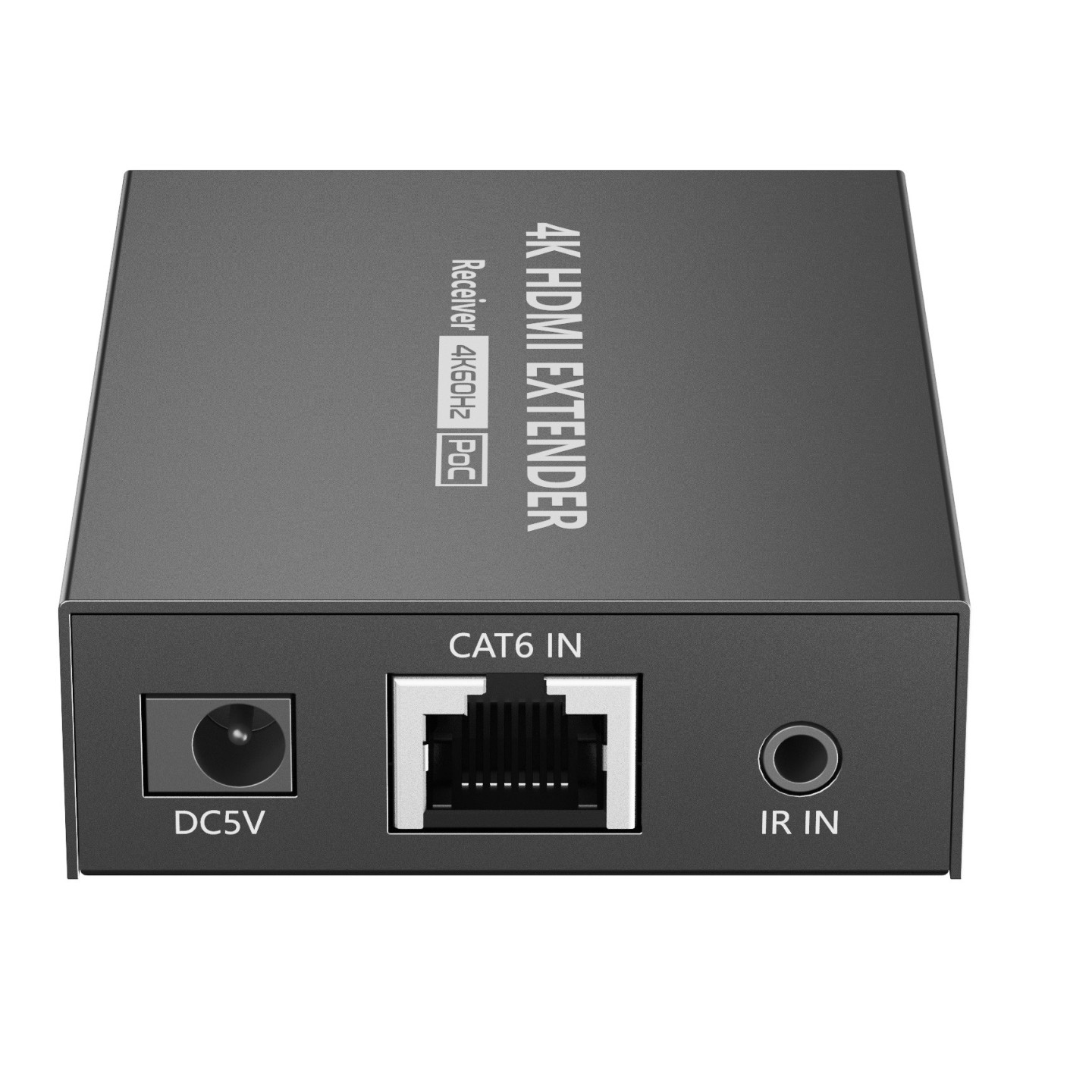

- 1x 3.5mm IR IN Female
- Receiving range ≤5m
- Infrared frequency 20KHz~60KHz
- Power Supply TX: DC5V/2A

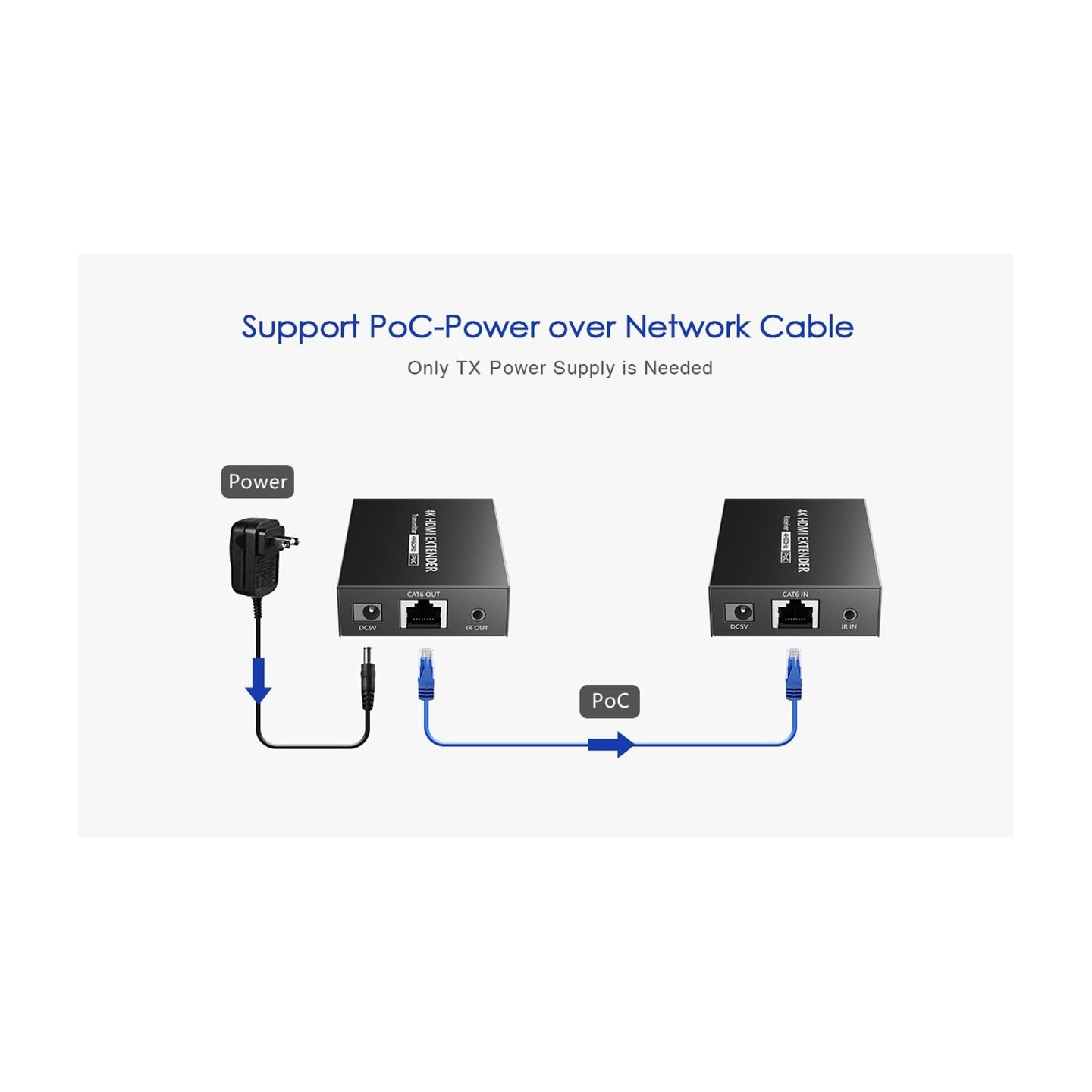

- RX: PoC（Powered by TX）
- Power Consumption TX+RX＜5.5W
- Working temperature -20℃~60℃
- Storage temperature -30℃~70℃
- Humidity 0~90%RH（No condensation）
- Housing Metal
- Weight TX : 130g
- RX：130g
- Color Black
- Dimensions 75.0(L)*60.0(W)*21.0(H)mm
- Protection ESD protection
- 1a Contact discharge level 2 (±4KV)
- 1b Air discharge level 3 (±8KV)
- Implementation of the standard: IEC61000-4-2
- Lightning protection, Surge protection
| Type | HDMI |
| Transmission | Single CAT6 |
| Resolution | 4K60Hz |
| Distance | 50m |
| IR | Yes |
| Loop through | Yes |
| POC (Power over Cable) | Yes |
