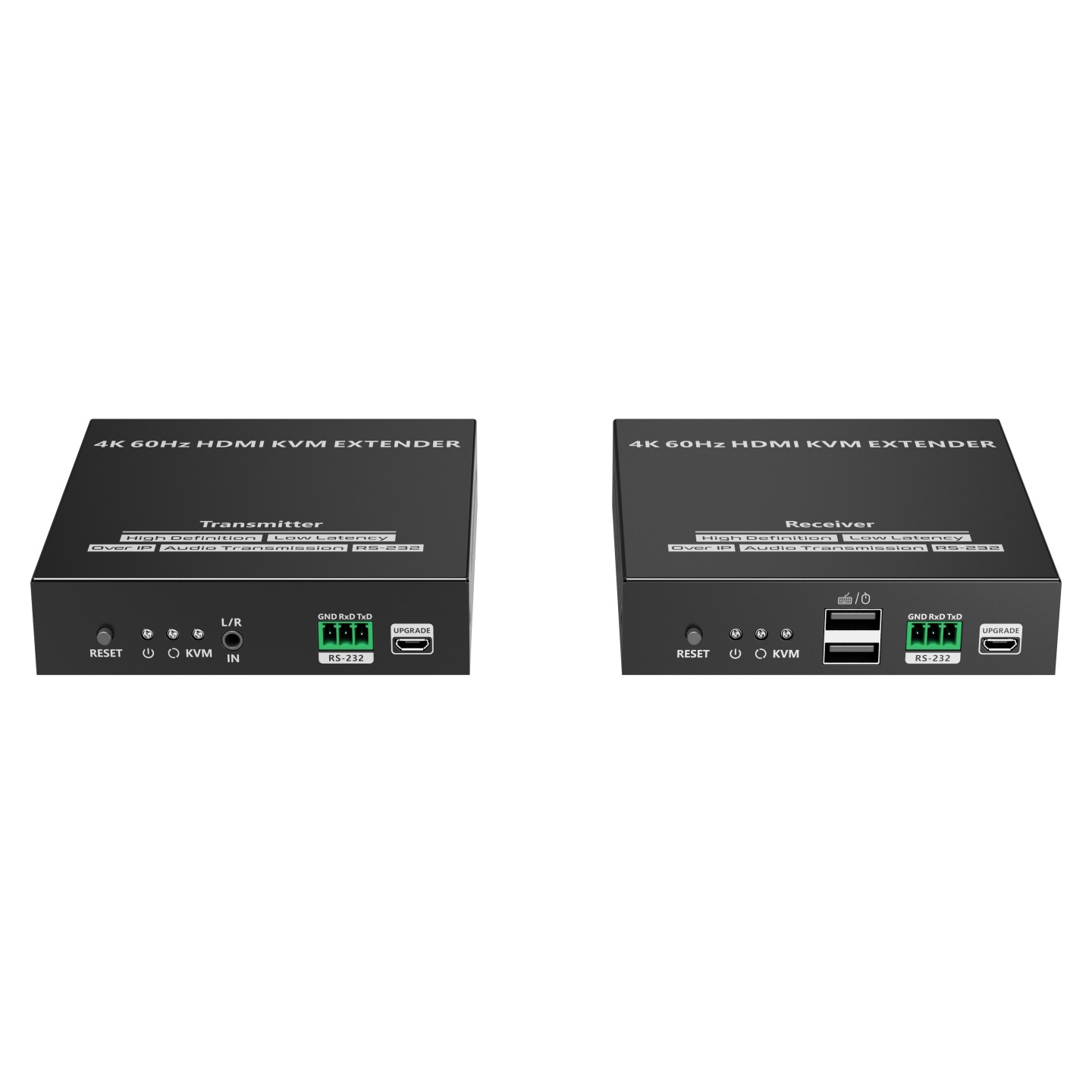

Lenkeng KVM HDMI Extender over IP 4K60Hz 120m - LKV582KVM - Lenkeng KVM HDMI Extender over IP 4K60Hz 120m
4K60Hz HDMI KVM extender kit over IP (transmitter and receiver) delivering high-definition, low-latency transmission.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

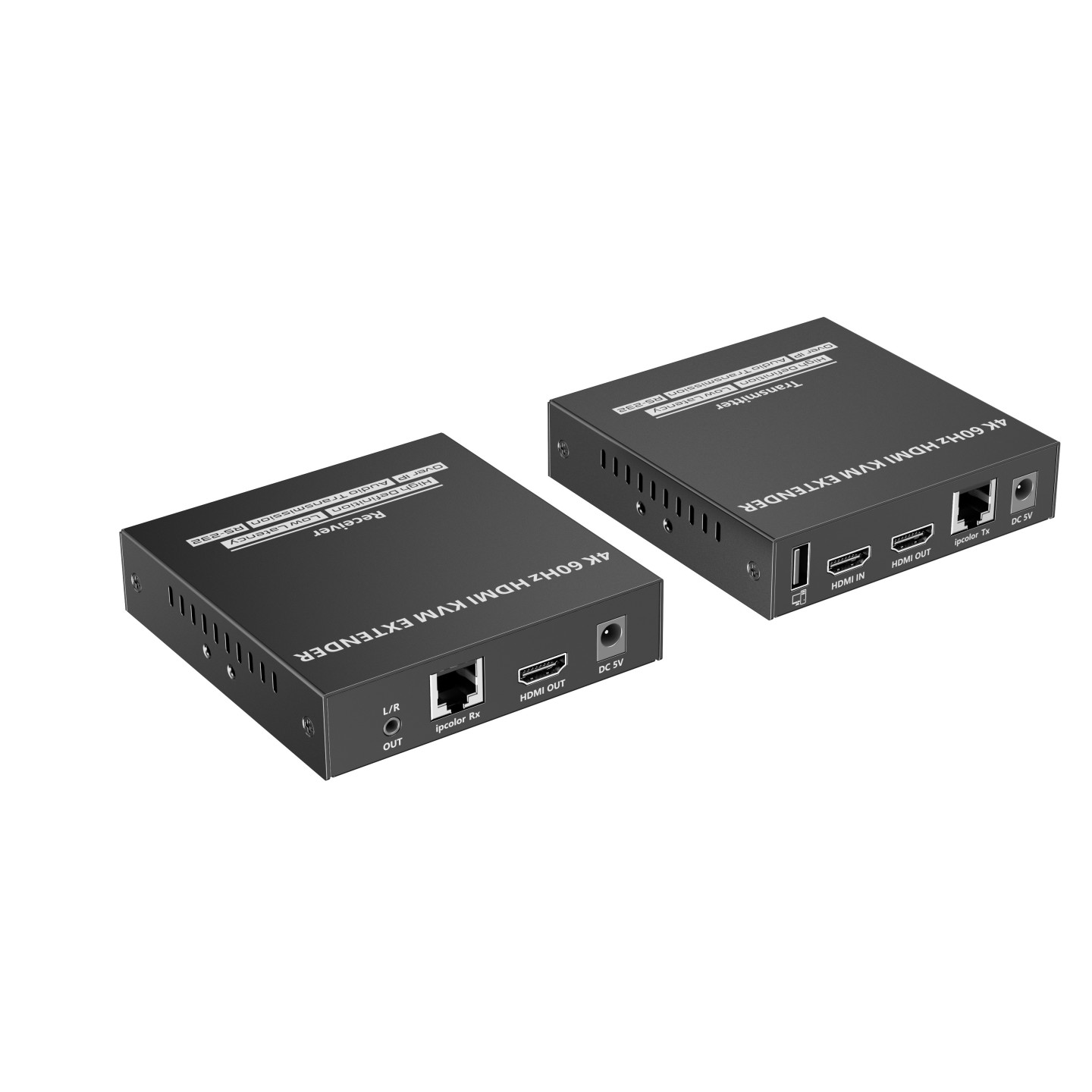

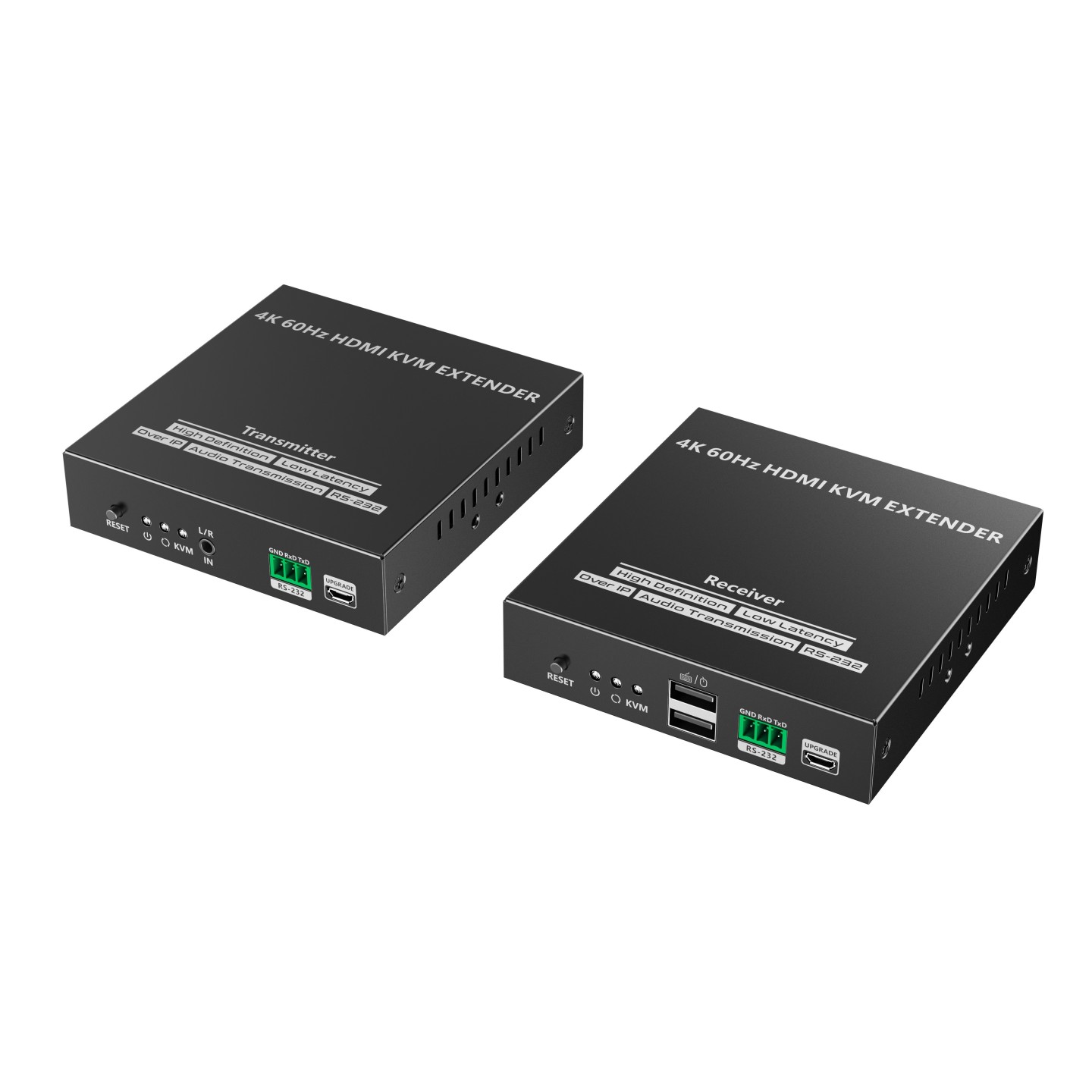

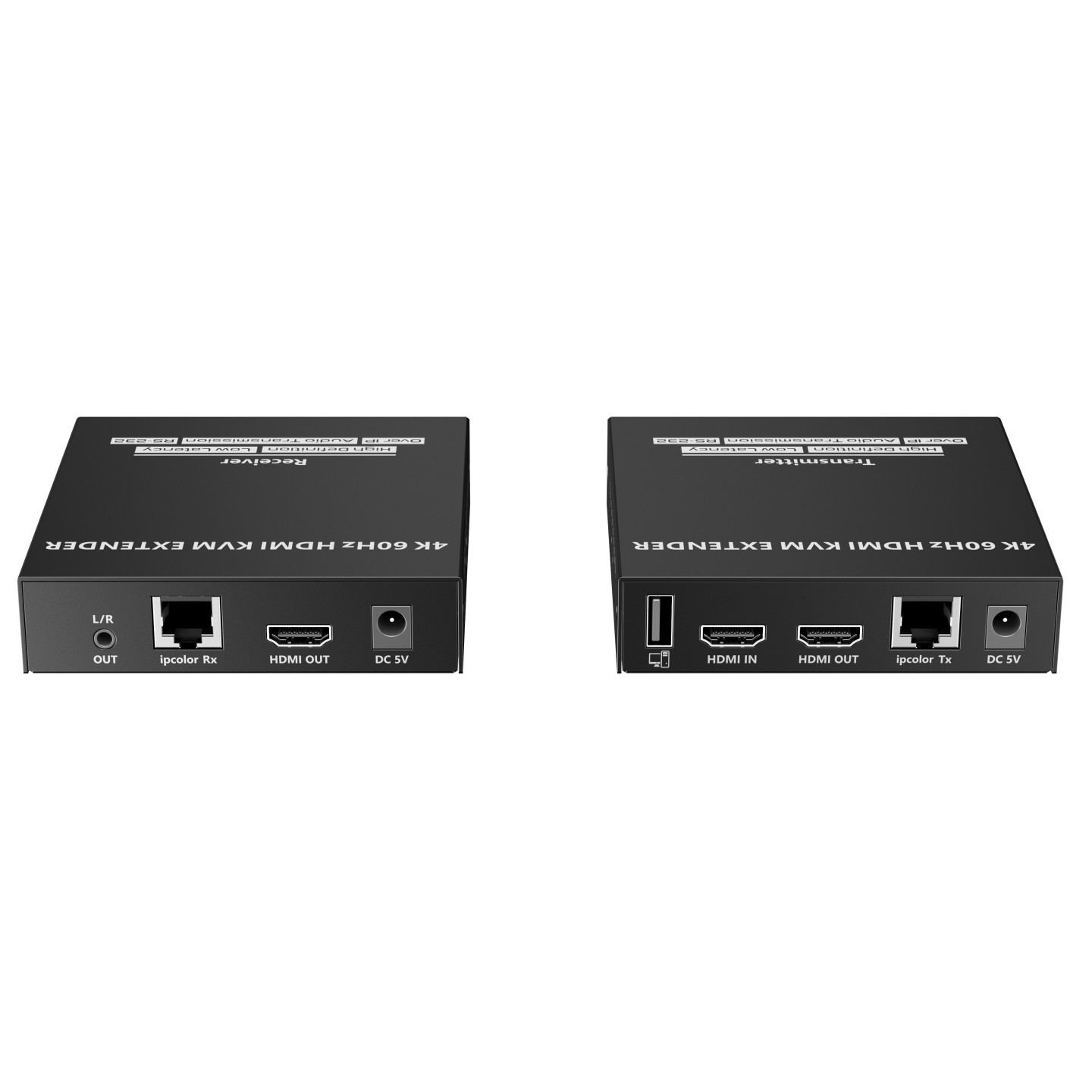

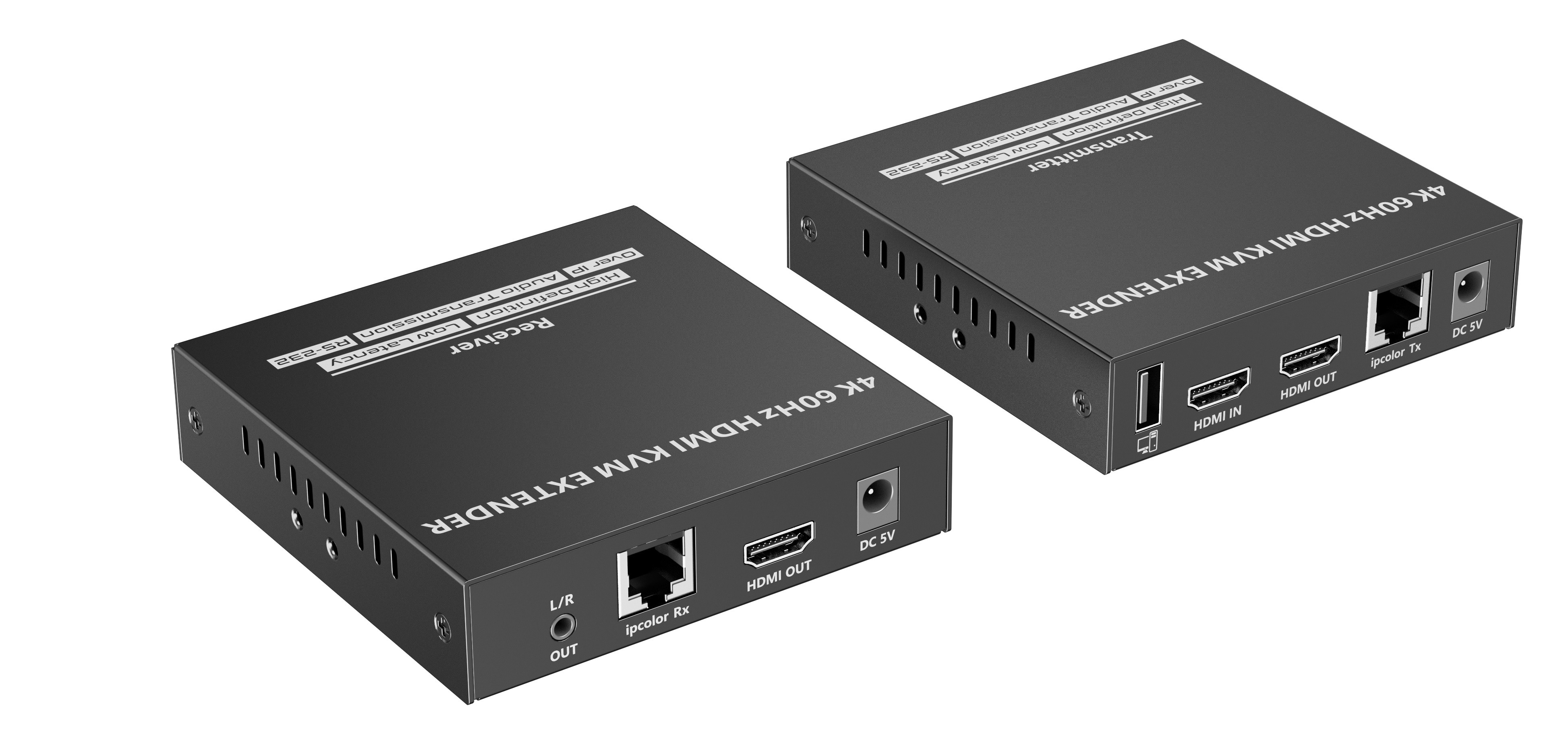

- This product is a 4K@60Hz HDMI KVM extender kit consisting of a transmitter and a receiver, using ipcolor STREAM technology for highdefinition, low-latency transmission

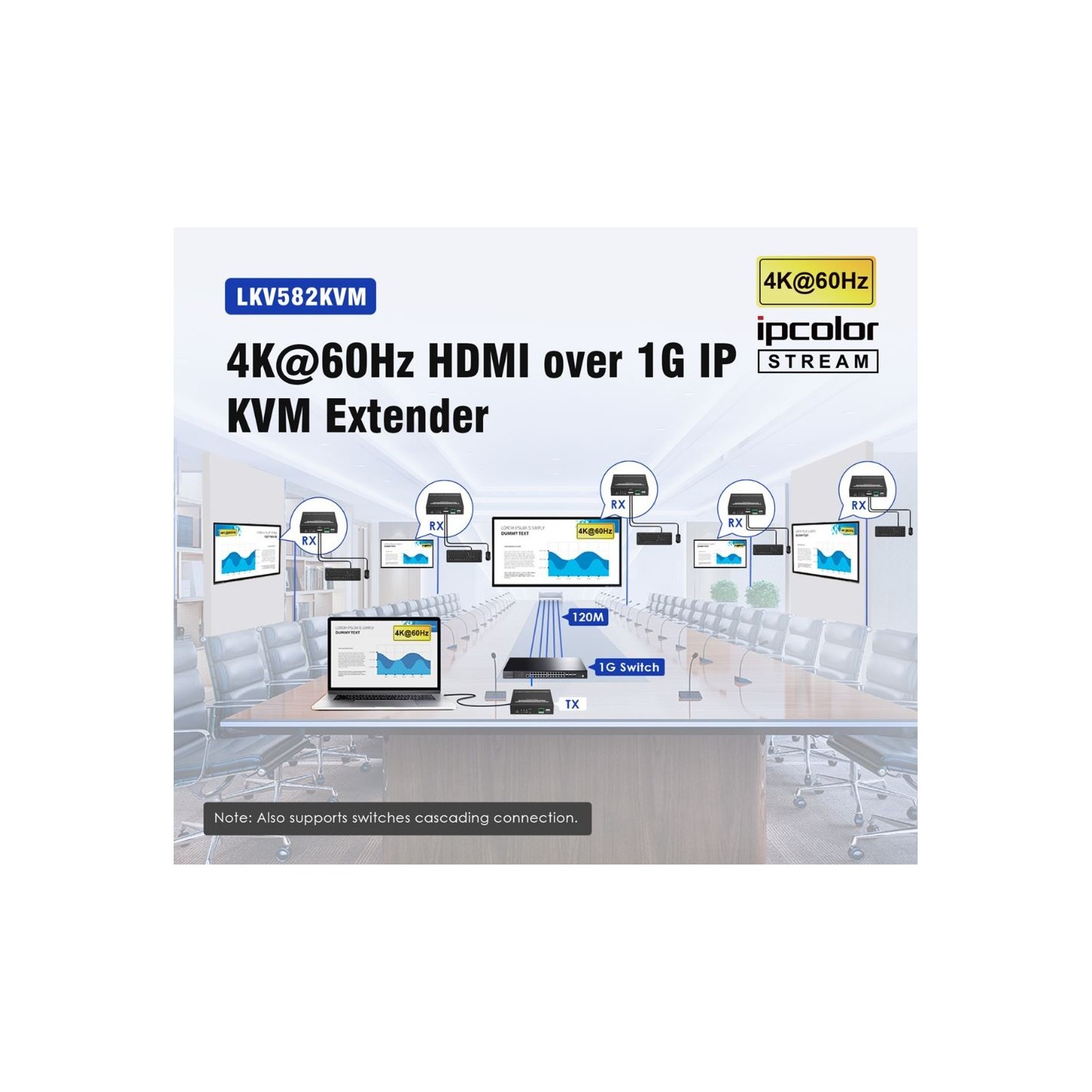

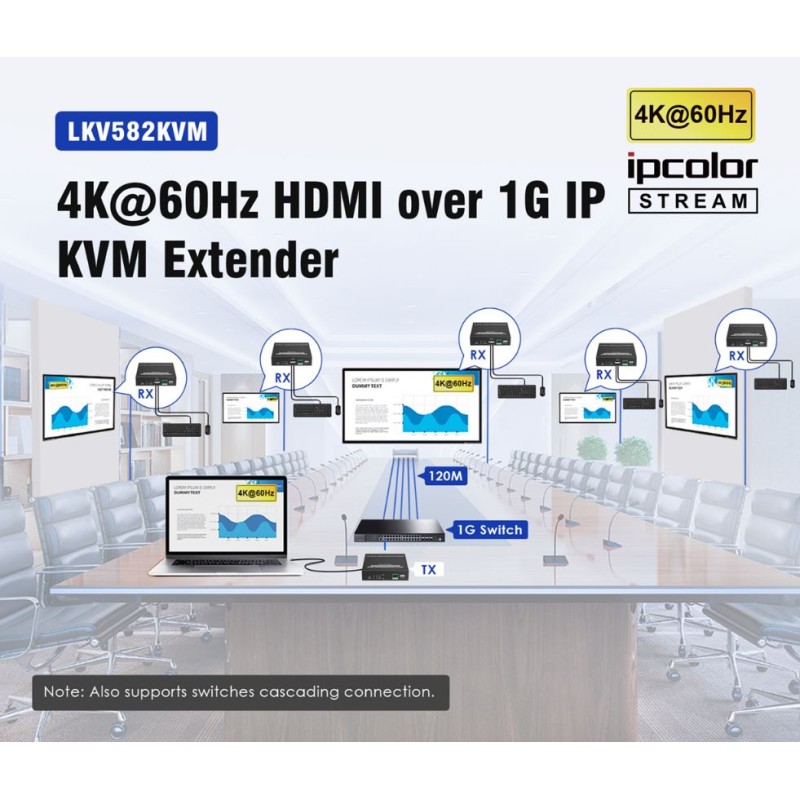

- The 4K@60Hz HDMI signal can be extended up to 120m via category 6 and above network cables, supporting one-to-one connection, one-to-many connection via gigabit switch, or switch cascading

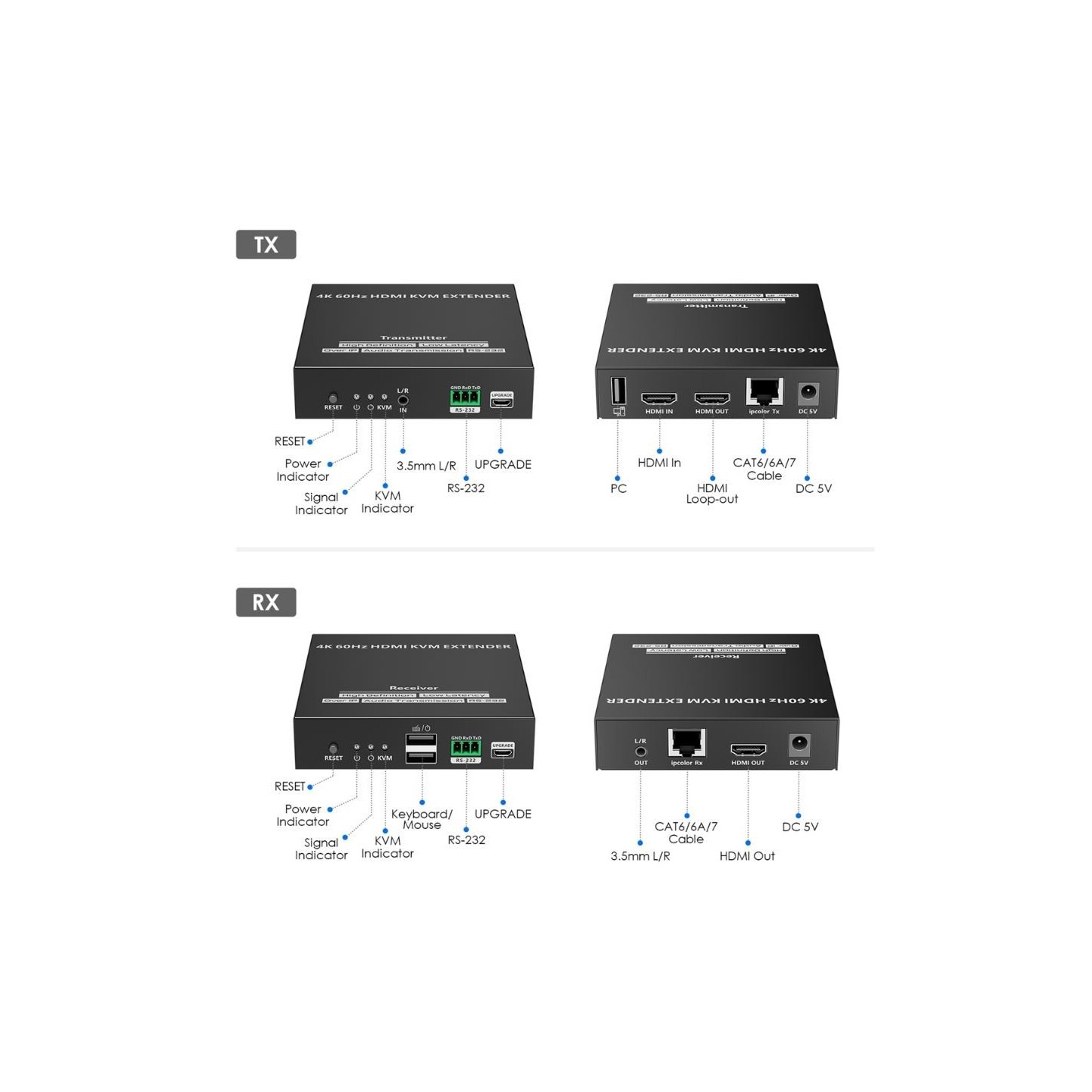

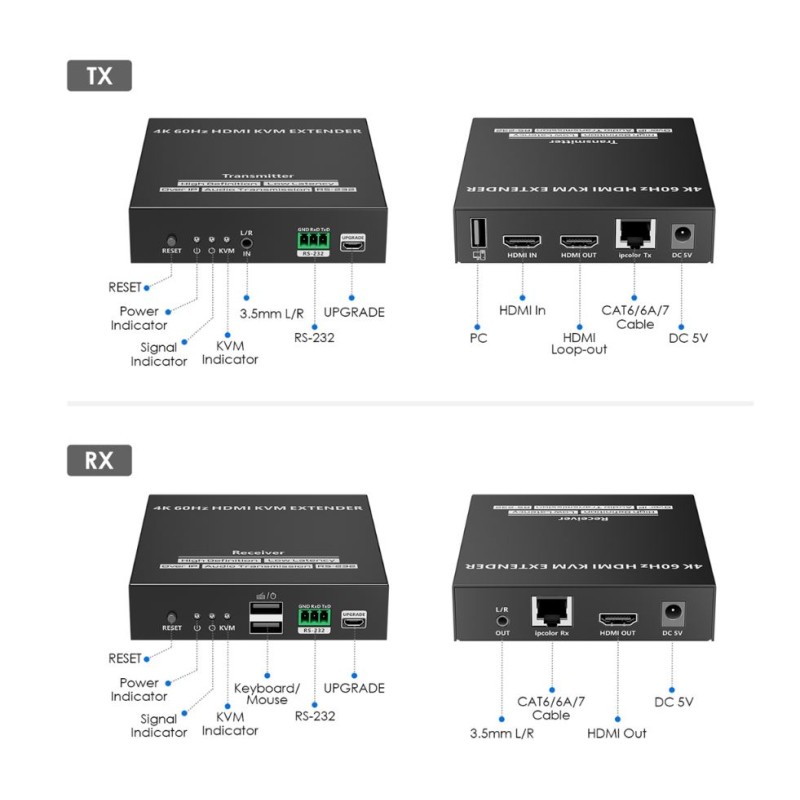

- It also supports HDMI™ loop out, KVM, and RS-232 passthrough, and can be widely used in meetings, home entertainment, educational presentations, and other fields
- HDMI length ≤ 5m
- Maximum transfer rate 18Gbps
- Compatibility HDMI 2.0
- HDCP 1.4/HDCP 2.2
- Resolutions 3840x2160@24/30/50/60Hz, 1080p@50/60Hz, 720p@50/60Hz, 1920x1200@60Hz, 2560x1440@60Hz, 2560x1600@60Hz
- Connection types One-to-one connection
- One-to-many connection
- Switch cascading
- Transmission distance Cat6/6A/7≤120m
- Transmission latency 80~140ms
- HDMI output LPCM 2.0
- 3. 5mm L/R output PCM
- RS-232 (GND/RXD/TXD) Default baud rate: 115200
- Supported: 2400, 4800, 9600, 19200, 38400, 57600, 115200
- Power Supply DC 5V/2A
- Power Consumption TX ≤ 5.5W，RX ≤ 4W
- Working temperature - 20℃~60℃
- Storage temperature - 30℃~70℃
- Humidity 0~90%RH (no condensation）
- Housing lron
- Weight TX: 315g，RX: 307g
- Color Black
- Dimensions 106.0(L)*103.0(W)*20.6(H)mm
- Protection ESD protection
- 1a Contact discharge level 2 (±4KV)
- 1b Air discharge level 3 (±8KV)
- Implementation of the standard: IEC61000-4-2
| Type | HDMI |
| Transmission | Over IP |
| Resolution | 4K60Hz |
| Distance | 120m |
| Loop through | Yes |
