Lenkeng KVM HDMI Extender over Ethernet - LKV372KVM-P - 4K30Hz 70m
HDMI KVM extender kit with transmitter and receiver, up to 70 m at 1080p via Cat6/6A/7 cable.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Docks & Hubs - Video Outputs | HDMI |
|---|---|
| Docks & Hubs - Max Resolution | 4K30 |
| Docks & Hubs - Ethernet | 1GbE |

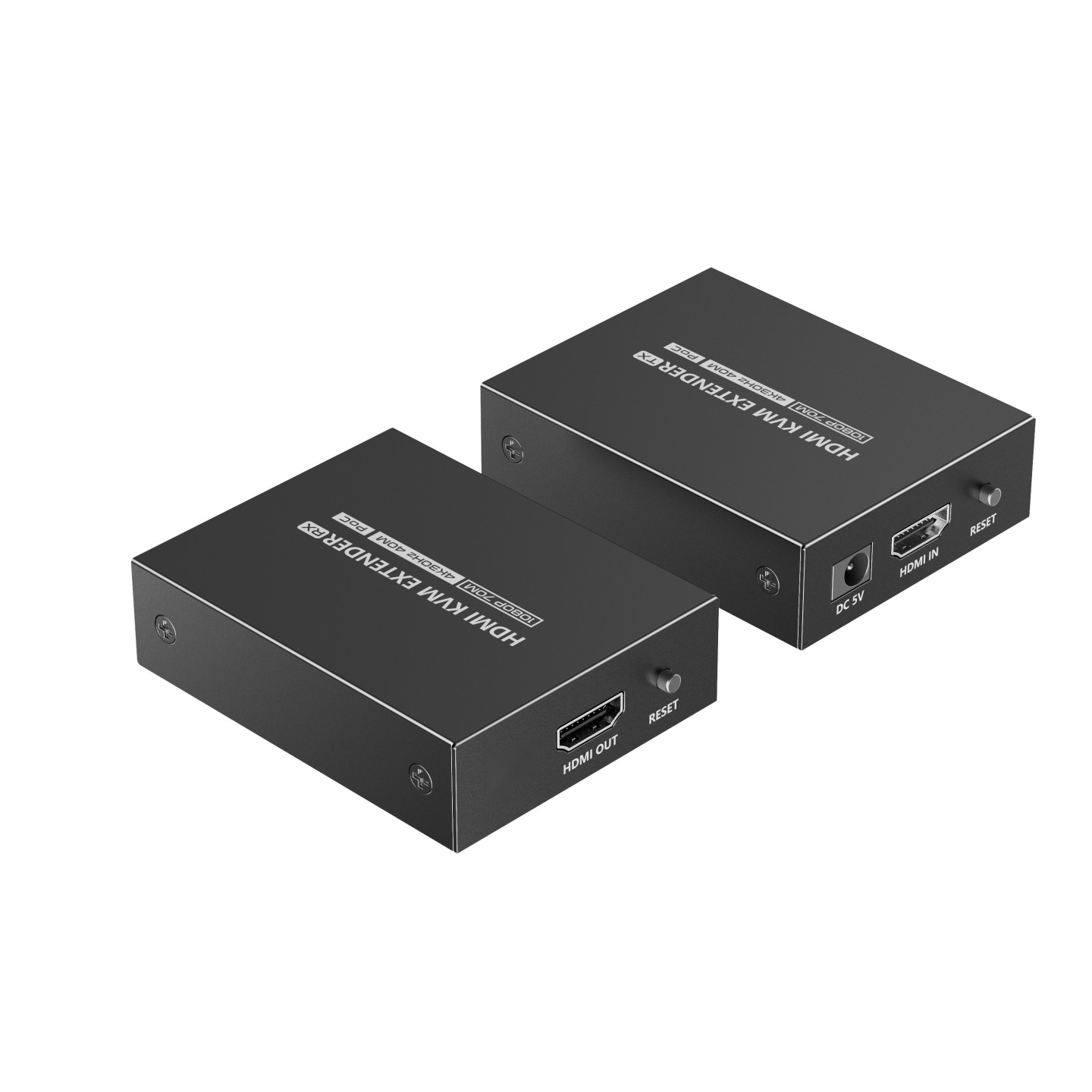

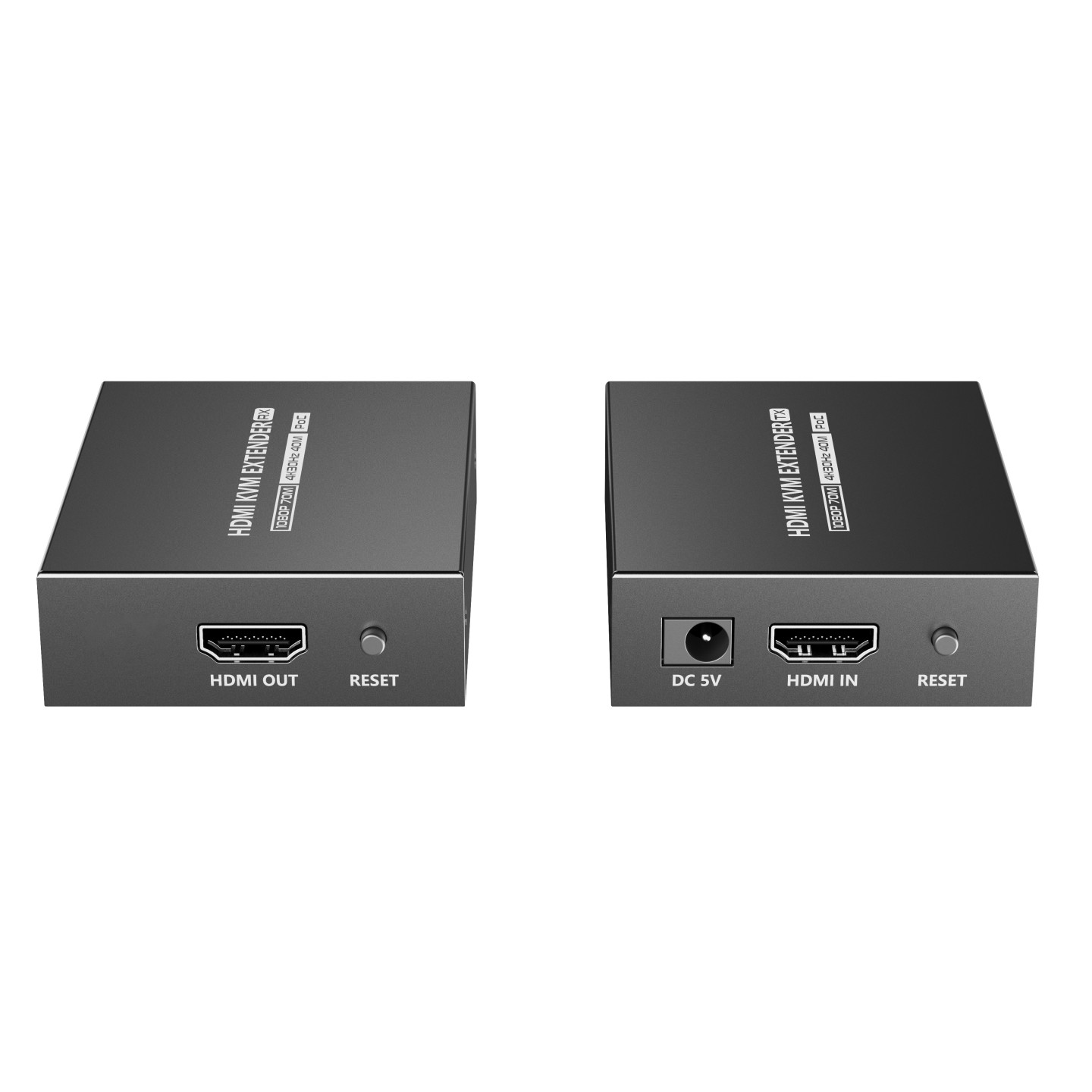

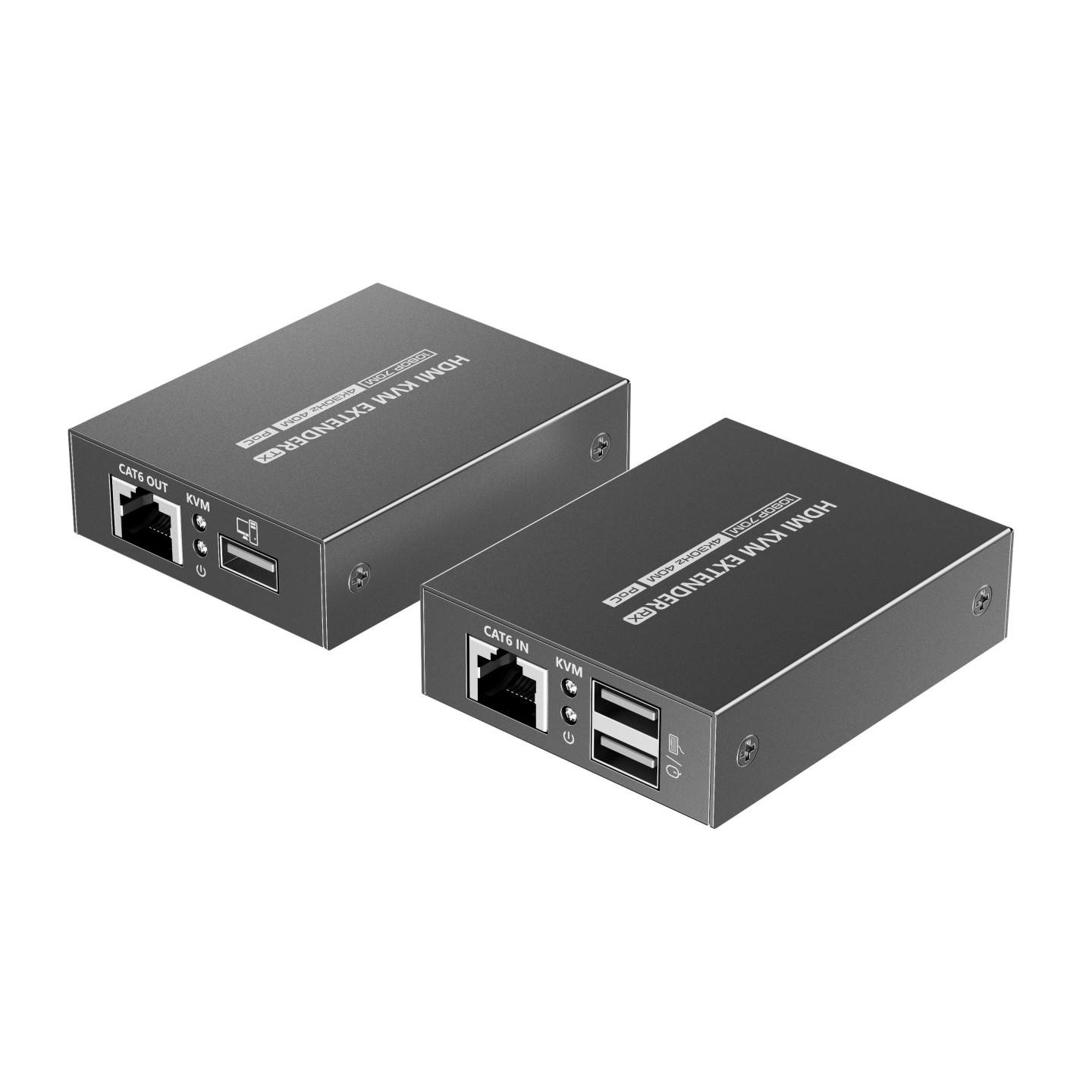

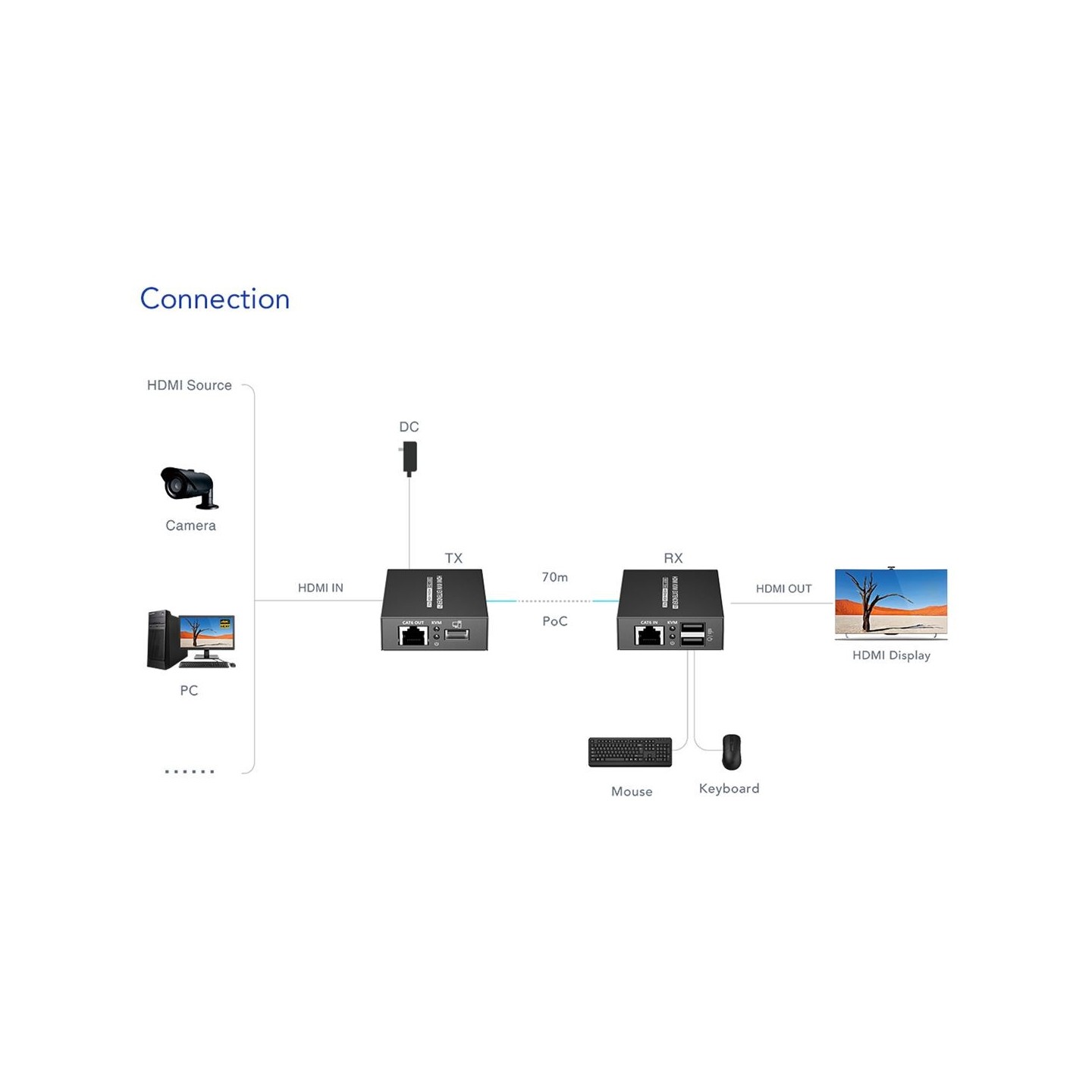

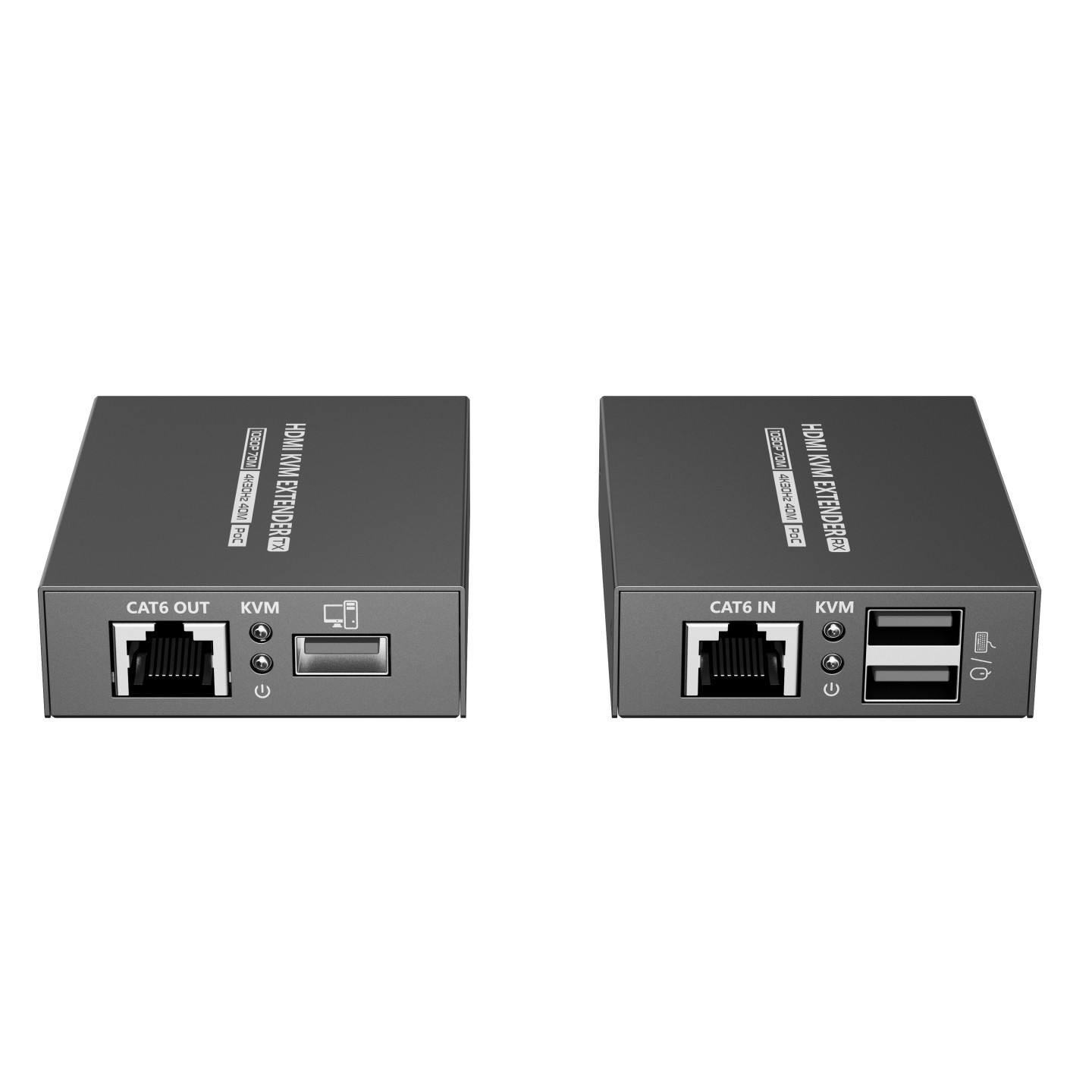

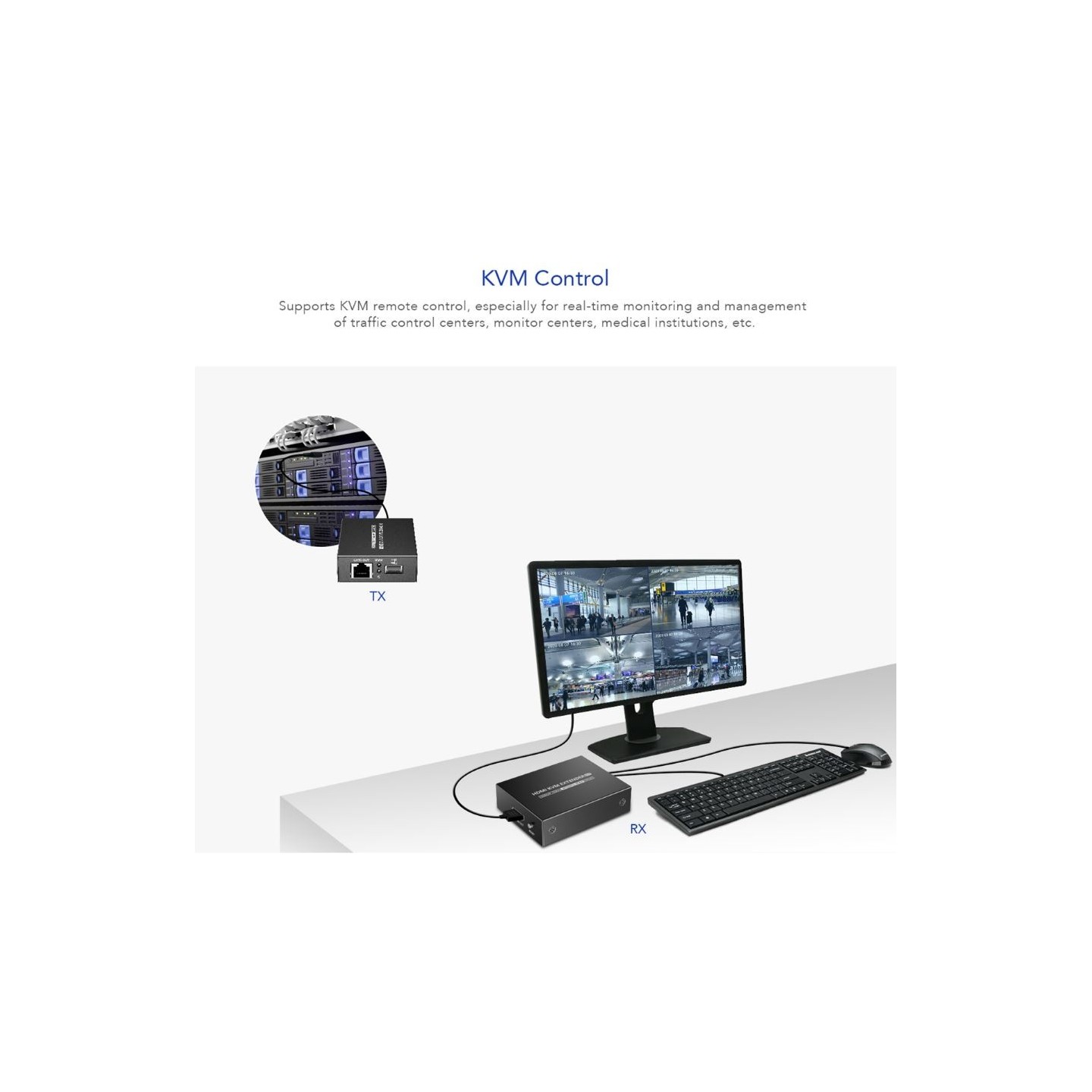

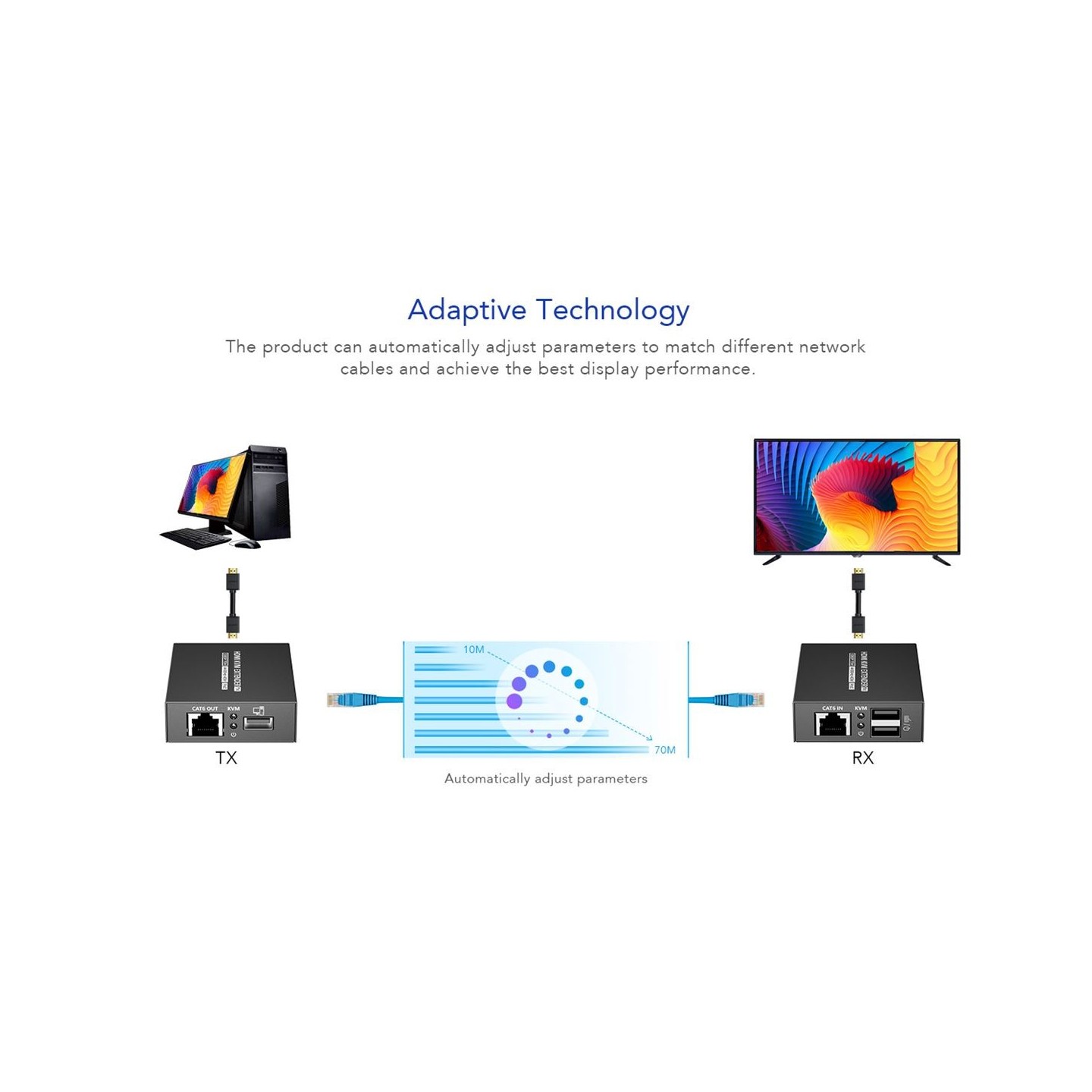

This HDMI KVM Extender includes a transmitter and a receiver, allows the HDMI signal to be transmitted up to 70 meters at 1080p resolution using a Cat6/6A/7 network cable. It adopts a point-to-point connection configuration, supports KVM. It is perfect for outdoor advertising, monitor system, home entertainment, conference, etc.
- Zero Latency
- 1080P@60Hz 70M
- HDR
- PoC
- Uncompressed
- 24/7

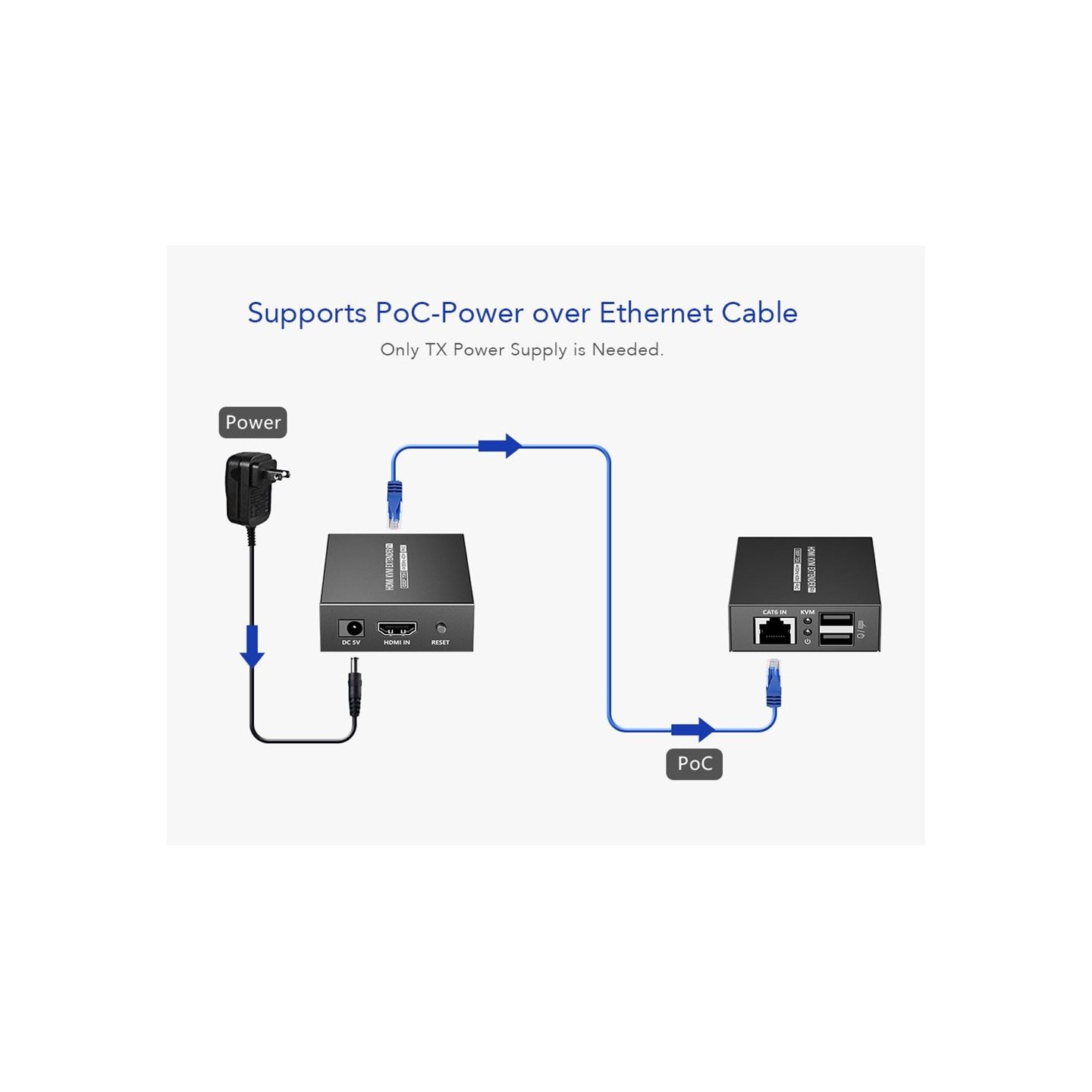

- Voltage/Current DC5V/2A (only TX power supply is needed)
- Power consumption TX+RX＜10W
- HDMI compliance HDMI 1.4
- HDCP compliance HDCP 1.4
- HDMI resolution 800x600, 1024x768, 1280x720, 1280x960, 1366x768, 1440x900, 1680x1050, 1920x1080, 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@24/25/30/50/60Hz, 3840x2160@24/25/30Hz
- Audio formats DTS, DTS-HD, PCM, LPCM
- HDR Supported
- Input and output TMDS signal 0.7~1.2Vp-p(TMDS)
- Input and output DDC signal 5Vp-p(TTL)

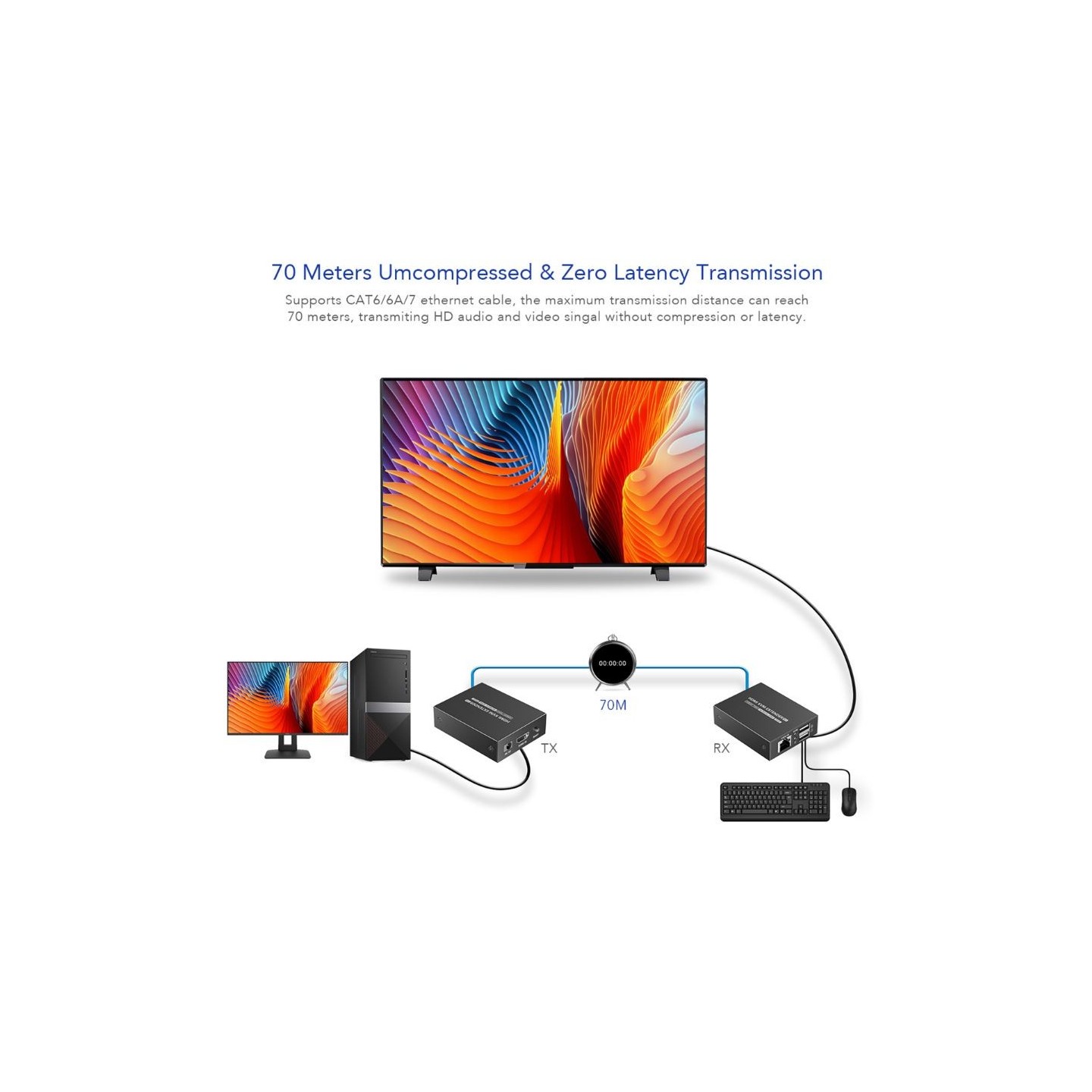

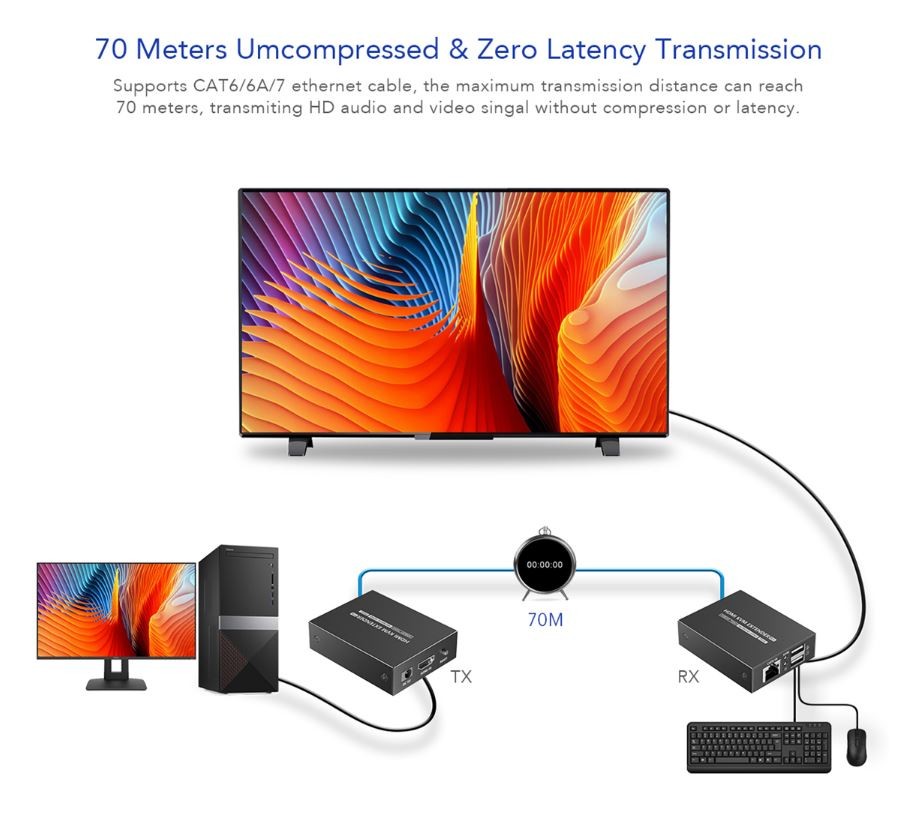

- Cat6/6A/7 1080p@60Hz transmission 70 meters
- 4K@30Hz transmission 40 meters
- ESD Implementation of the standard:
- IEC61000-4-2
- 1a Contact discharge level 2（±4KV）
- 1b Air discharge level 3 (±8KV)
- Working temperature -20~60℃
- Storage temperature -30~70℃
- Humidity (no condensation) 0～90%RH
- Dimension 75.0(L) x 60.0(W) x 20(H) mm
- Weight TX: 123g RX: 123g
- Color Black
| Connectivity | HDMI |
| Type | KVM |
| Transmission | Single CAT6 |
| Resolution | 4K30Hz |
| Distance | 70m |
| POC (Power over Cable) | Yes |
