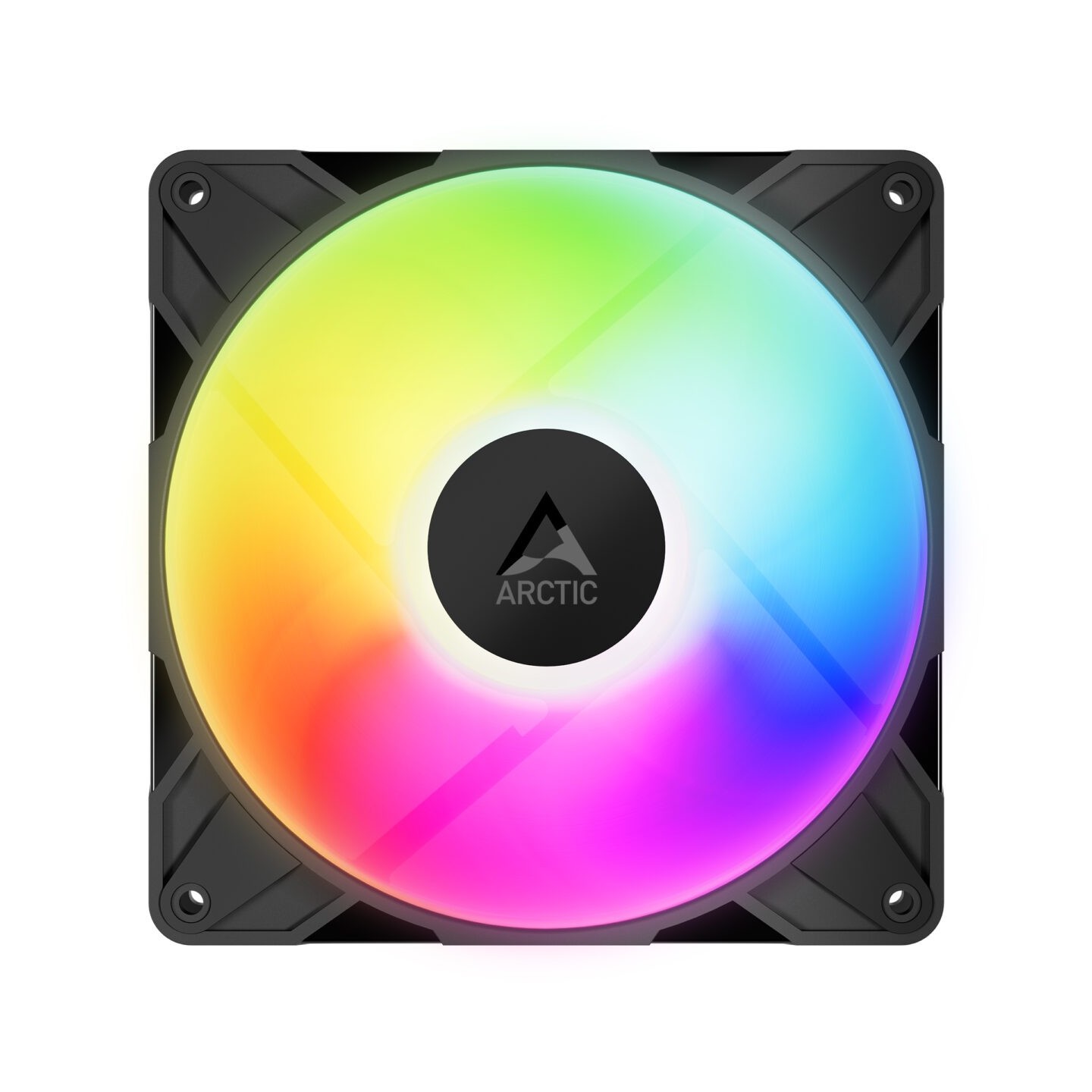

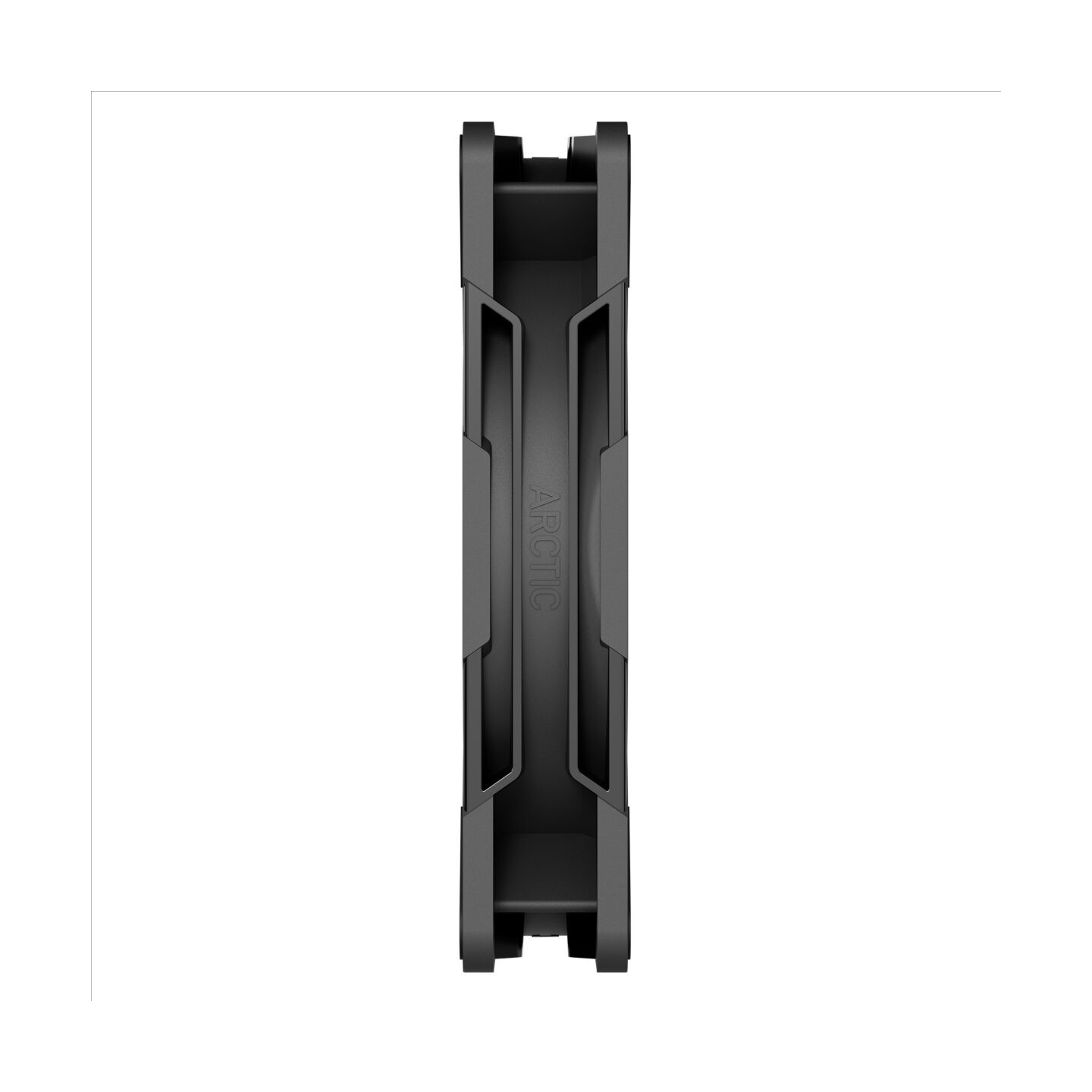

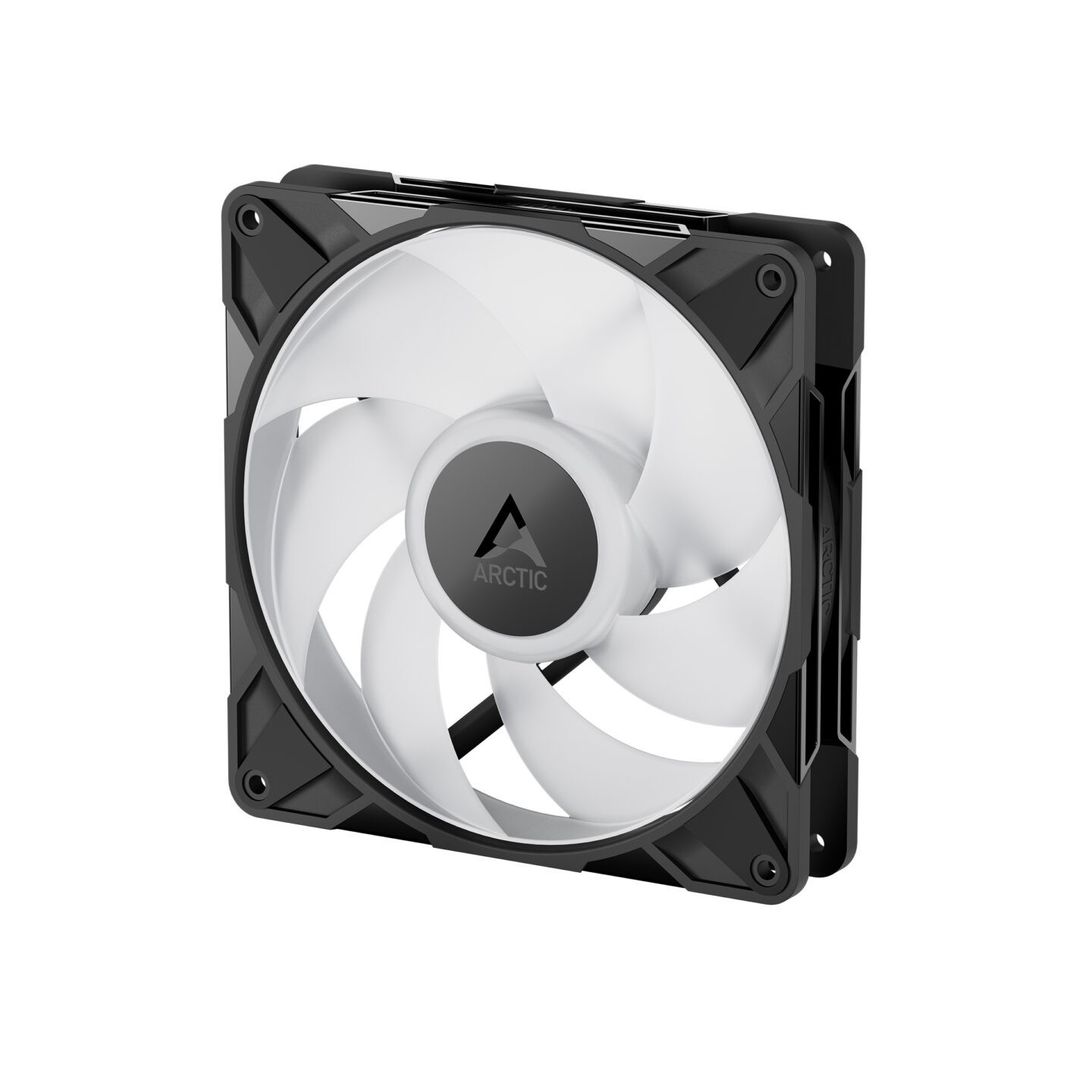

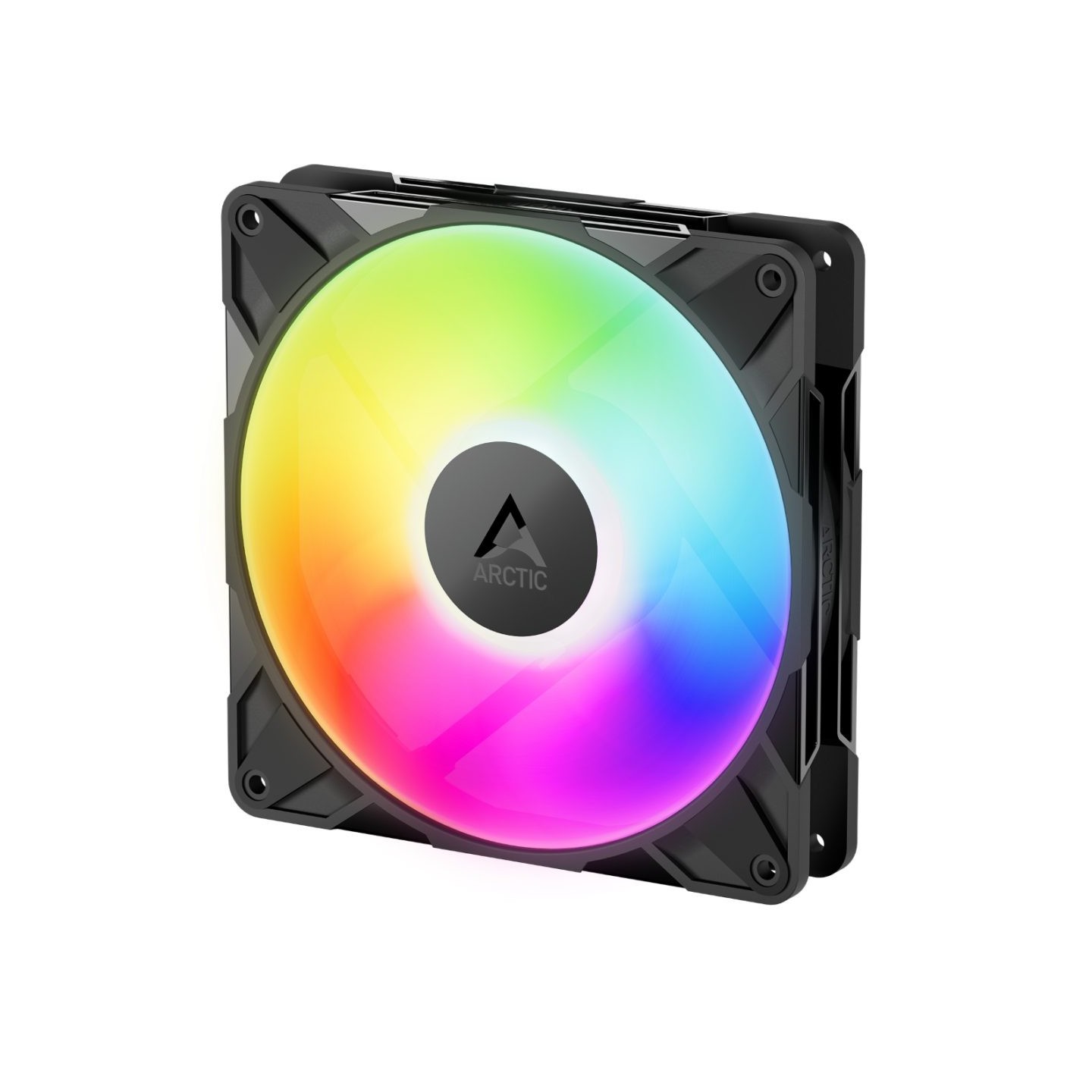

Arctic P14 Pro Reverse A-RGB 140mm 2650 RPM PWM Reverse Blade Case Fan (Boxed)
Reverse airflow 140mm PWM case fan with A-RGB lighting. High static pressure (5.1 mmH2O), 400-2650 RPM, 98 CFM airflow. Ideal for rear intake, radiators, mesh panels. FDB bearing, daisy-chain, 6-year warranty.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Cooling (CPU & Case) - Device Type | Case Fan |
|---|---|
| Cooling (CPU & Case) - Fan Size | 140 mm |
| Cooling (CPU & Case) - Lightning | RGB |
| Cooling (CPU & Case) - Connector | 4-Pin PWM |
| Cooling (CPU & Case) - Color | Black |
| Cooling (CPU & Case) - Special Features | Daisy-Chain Low Noise Reverse Blade |
The ARCTIC P14 Pro Reverse A-RGB is a premium 140mm PWM case fan engineered for reverse airflow, drawing air from the back side. This design is perfect for glass-fronted PC cases where traditional fans would disrupt aesthetics, while delivering high static pressure for radiators, perforated panels, and mesh filters.
Featuring a **Fluid Dynamic Bearing (FDB)** with optimized shaft design for minimal noise and vibration, it spins from 400 to 2650 RPM (0 RPM below 5% PWM). Delivers 98 CFM airflow and 5.1 mmH2O static pressure at just 25 dB(A) max. Includes 12x A-RGB Gen2 LEDs, SOTA microcontroller for smooth operation, and PST daisy-chain for easy syncing of multiple fans.
- High static pressure for restricted environments
- Reverse blade design for clean intake visuals
- 4-pin PWM + 3-pin A-RGB connectors with splitter
- 6-year warranty and RoHS compliant
- Net weight: 253g; Boxed: 145x145x35mm, 302g
| Fan Speed | 400–2650 rpm (PWM controlled), 0 rpm below 5% PWM |
| Airflow | 98 cfm | 166.5 m³/h |
| Static Pressure | 5.1 mmH2O |
| Fan Bearing | Fluid Dynamic Bearing |
| Typical Voltage | 12 V DC |
| Start Up Voltage | 4 V |
| Current | 0.4 A |
| Cable Length | 400 mm + 80 mm Daisy-Chain Cable |
| Connector | 4-Pin Fan Plug + 4-Pin Socket, 3-Pin A-RGB Plug + 3-Pin Socket |
| LEDs | 12x A-RGB Gen2 LEDs |
| RGB Current / Voltage | 0.40 A | 5 V DC |
| Dimensions | 140 x 140 x 30 mm (LxWxH) |
| Net Weight | 253 g |
| Warranty | 6 Years |
