Keychron K0 Max K0M-H1 QMK Wireless Num Pad Low Profile Red Switch RGB (Boxed)
Keychron K0 Max is a low-profile wireless numpad with 27 keys, macro column, rotary encoder, QMK support, hot-swap Red linear switches, 1000Hz polling (2.4GHz), RGB, and Bluetooth 5.3 for up to 3 devices.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Keyboards - Special Features | Hot Swappable Low Profile Programmable Keys |
|---|---|
| Keyboards - Form Factor | Numpad |
| Keyboards - Key Layout | US |
| Keyboards - Switch Type | Low-Profile Mechanical |
| Keyboards - Connection | Bluetooth Wired (USB) Wireless RF (USB Dongle) |
| Keyboards - Backlighting | Per-Key RGB |

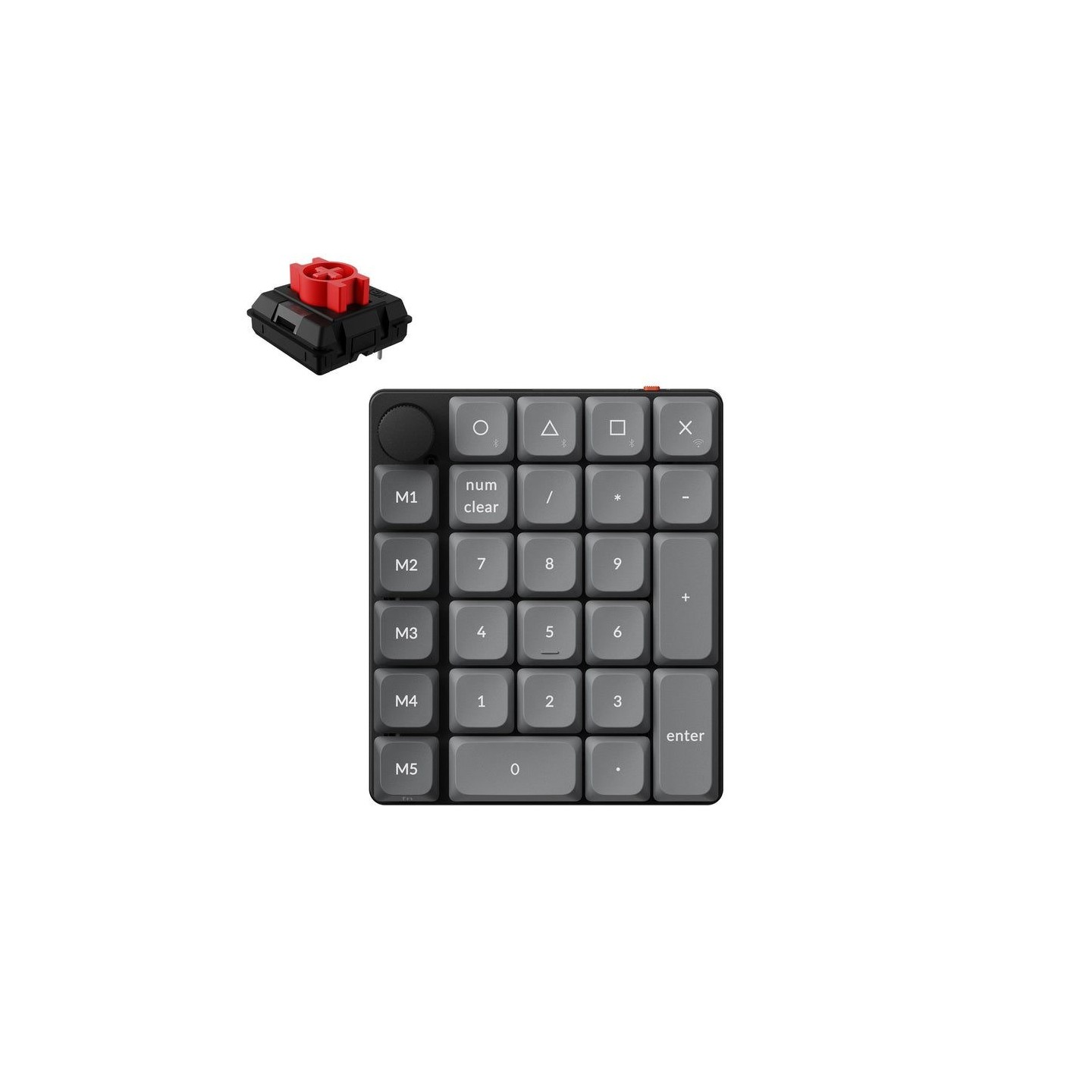

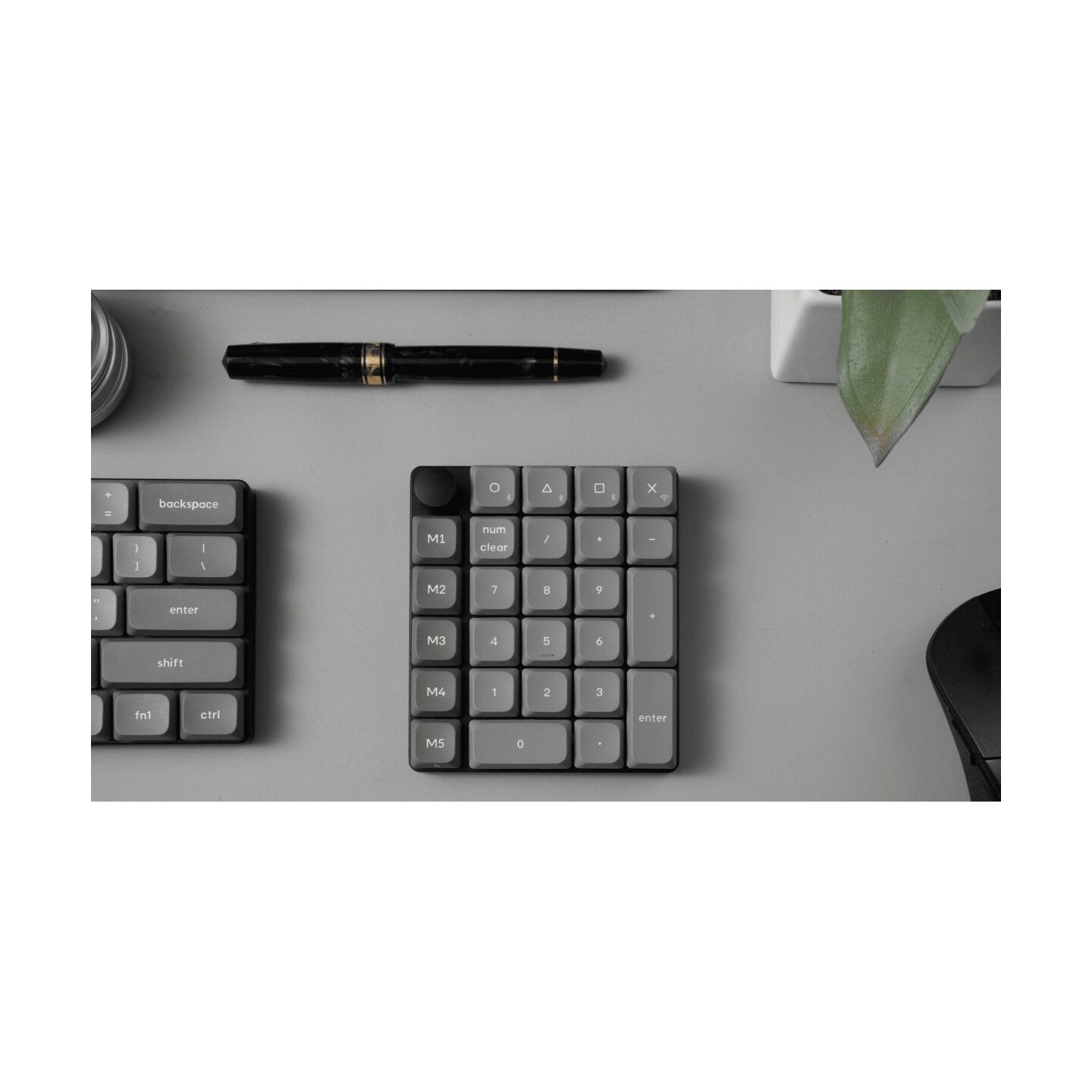

The Keychron K0 Max (K0M-H1) is an ultra-slim, customizable low-profile numeric keypad featuring 27 keys, a left-side macro column, and a multifunctional rotary encoder knob. It functions as a standalone numpad or expansive macro pad via QMK firmware, with easy customization through the Keychron Launcher app. Connect wirelessly via 2.4 GHz (1000Hz polling for low latency gaming) or Bluetooth 5.3 (125Hz, up to 3 devices), or use wired USB-C. Powered by a 750mAh battery offering ~50 hours with RGB on low brightness.

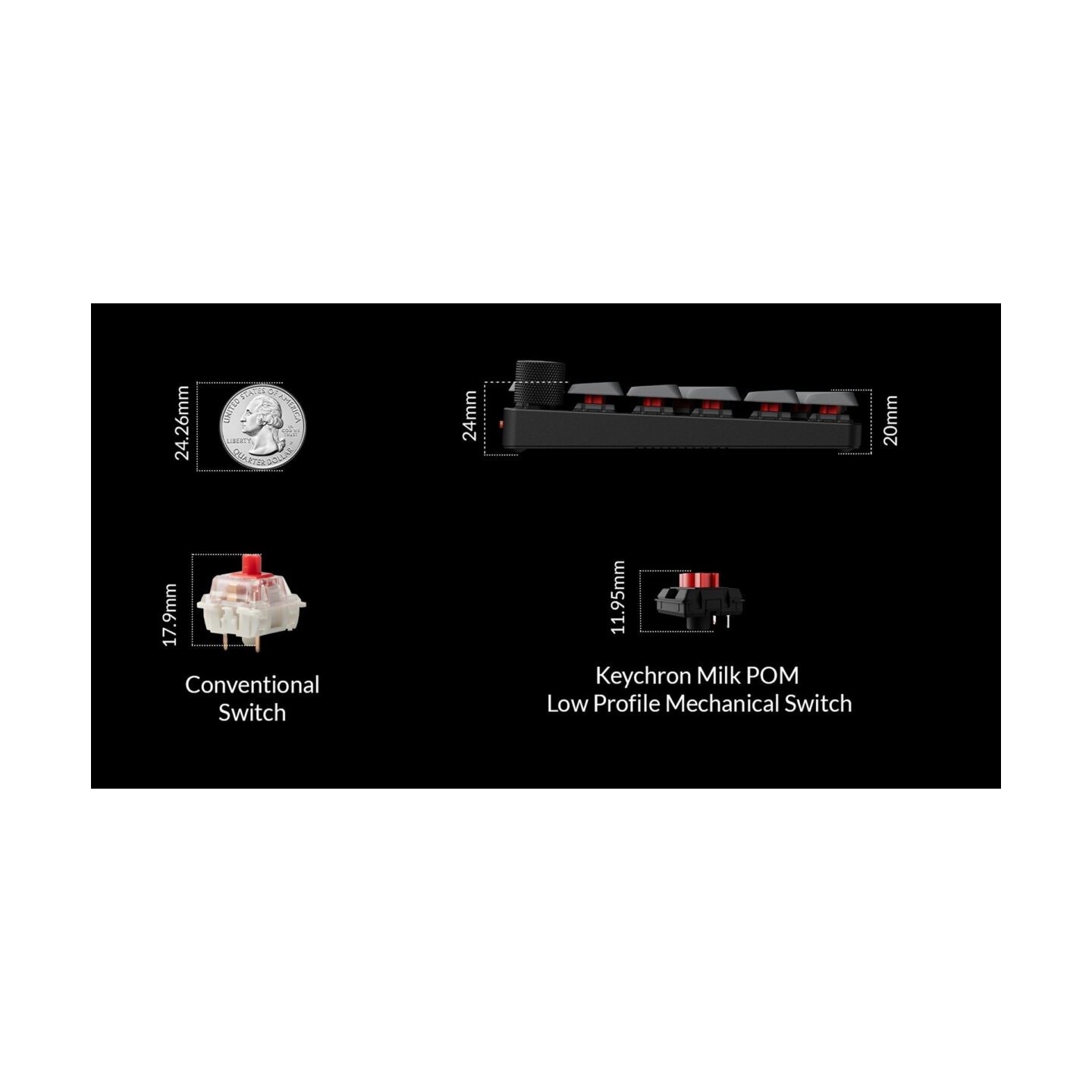

Equipped with premium Keychron Milk POM Red low-profile linear switches (pre-lubed for smooth feel), north-facing per-key RGB (22 effects), double-shot PBT keycaps, IXPE and latex acoustic foams for thocky sound, and hot-swappable PCB compatible with low-profile switches. The ABS+aluminum frame ensures durability and portability in a remarkably thin design—33% slimmer than standard mechanical switches.
- ✅ 2.4GHz dongle + Bluetooth 5.3 + USB-C wired connectivity
- ✅ QMK programmable macros, layers, and shortcuts
- ✅ Hot-swappable low-profile mechanical switches
- ✅ North-facing RGB backlighting
- ✅ Includes keycap/switch puller, screwdriver, USB-C cable, dongle extender
| Number of Keys | 27 (Numpad) |
| Switches | Keychron Milk POM Red (Low-Profile Linear) |
| Switch Face | North-facing |
| Frame Material | ABS + Aluminum |
| Keycap Material | Low-profile Double-Shot PBT |
| Polling Rate | 1000Hz (2.4GHz/Wired), 125Hz (Bluetooth) |
| Connection | 2.4 GHz / Bluetooth 5.3 / USB-C |
| Bluetooth Devices | Up to 3 |
| Backlighting | Per-Key RGB (22 effects) |
| Battery | 750 mAh (50 hours RGB low brightness) |
| MCU | ARM Cortex-M3 1MB Flash |
| Hot-Swappable | Yes (Low-profile switches) |
| Firmware | QMK |
| Acoustic Foams | IXPE + Latex |
