Keychron K1 Max K1M-H1 80% TKL ANSI Black Red Switch RGB Hot-Swap (Boxed)
Ultra-slim wireless mechanical keyboard with 80% TKL layout, low-profile Gateron red switches, RGB backlighting, hot-swappable design, and triple connectivity (2.4GHz, Bluetooth 5.1, USB-C wired).
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Keyboards - Device Type | Gaming Keyboard Office Keyboard |
|---|---|
| Keyboards - Special Features | Hot Swappable Low Profile Programmable Keys Silent Keys |
| Keyboards - Form Factor | Tenkeyless (TKL / 80%) |
| Keyboards - Key Layout | US |
| Keyboards - Switch Type | Low-Profile Mechanical |
| Keyboards - Connection | Bluetooth Wired (USB) Wireless RF (USB Dongle) |
| Keyboards - Backlighting | Per-Key RGB |

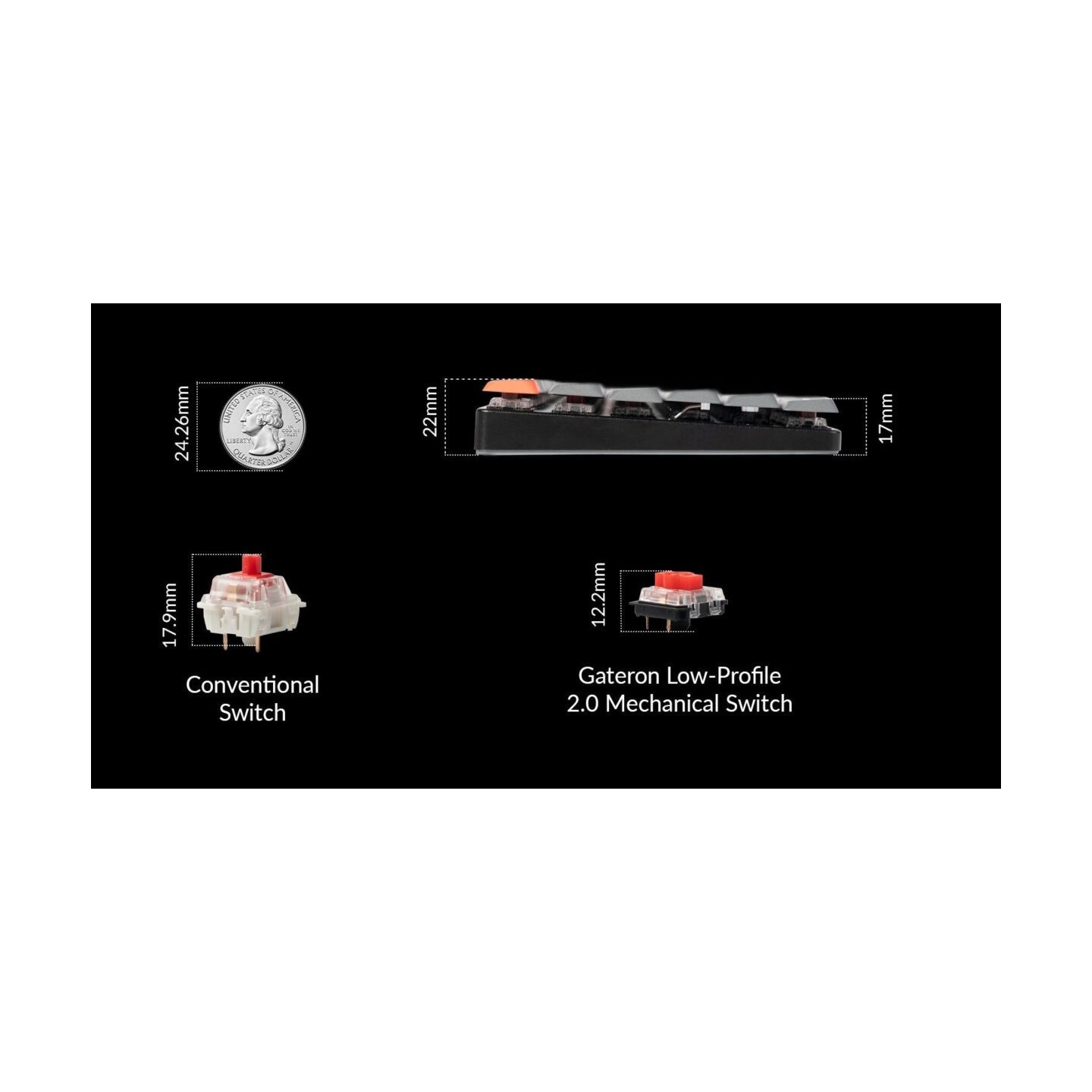

The Keychron K1 Max is an ultra-slim wireless mechanical keyboard featuring a TKL 80% layout with low-profile Gateron red mechanical switches. This innovative keyboard is 31% slimmer than conventional mechanical keyboards while maintaining distinguished tactile response. It supports three connectivity modes: 2.4GHz wireless with 1000Hz polling rate for gaming, Bluetooth 5.1 for connecting up to three devices simultaneously, and USB Type-C wired connection for reliable performance.
Powered by QMK/VIA open-source firmware, the K1 Max offers extensive customization including key remapping, macros, and programmable shortcuts through the Keychron Launcher web app. The keyboard features double-shot PBT keycaps with LSA (Low-profile Spherical-Angled) profile, 22+ RGB backlight modes with adjustable hue and brightness, and advanced IXPE acoustic foam combined with latex foam for silent, comfortable typing. The aluminum and ABS frame houses a 2000mAh rechargeable battery providing up to 166 hours of wireless runtime with backlighting off.
Designed for both macOS and Windows users with system-specific keycap sets included, the K1 Max features north-facing switches, 12 dedicated multimedia keys, and three adjustable typing angles for ergonomic support. The hot-swappable design allows users to customize their typing experience by swapping Gateron low-profile MX switches without soldering.
- Ultra-slim low-profile design (31% thinner than standard mechanical keyboards)
- Triple connectivity: 2.4GHz (1000Hz polling), Bluetooth 5.1, USB-C wired
- Hot-swappable Gateron low-profile red mechanical switches
- QMK/VIA firmware with full key remapping and macro support
- 22+ RGB backlight modes with per-key customization
- 2000mAh battery with up to 166 hours wireless runtime
- Double-shot PBT keycaps with LSA profile
- IXPE acoustic foam for silent keystrokes
- Compatible with macOS, Windows, and Linux
- Includes Type-C cable, 2.4GHz receiver, switch puller, and keycap puller
| Layout | ANSI 80% TKL (Tenkeyless) |
| Number of Keys | 88 keys |
| Switch Type | Gateron Low-Profile Mechanical (Linear Red) |
| Switch Face Orientation | North-facing |
| Keycap Material | Double-shot PBT, LSA (Low-profile Spherical-Angled) profile |
| Keycap Compatibility | Windows and macOS custom keycap sets included |
| Frame Material | ABS + Aluminum |
| Backlighting | Per-Key RGB (22+ modes) with adjustable hue, saturation, brightness, and speed |
| Multimedia Keys | 12 dedicated multimedia keys |
| Connectivity | 2.4GHz wireless (USB dongle), Bluetooth 5.1, USB Type-C wired |
| Polling Rate (2.4GHz) | 1000Hz |
| Polling Rate (Wired) | 1000Hz |
| Polling Rate (Bluetooth) | 90Hz |
| Bluetooth Version | Bluetooth 5.1 |
| Bluetooth Device Pairing | Up to 3 devices simultaneously |
| N-Key Rollover (NKRO) | Yes (all modes: 2.4GHz, Bluetooth, Wired) |
| Firmware | QMK/VIA (open-source, fully programmable) |
| Customization | Key remapping, macros, shortcuts via Keychron Launcher web app |
| Battery Capacity | 2000mAh rechargeable Li-polymer |
| Wireless Runtime (Backlight Off) | Up to 166 hours |
| Wireless Runtime (RGB Lowest Brightness) | Up to 86 hours |
| Charging Port | USB Type-C |
| Acoustic Dampening | IXPE acoustic foam + resilient latex foam |

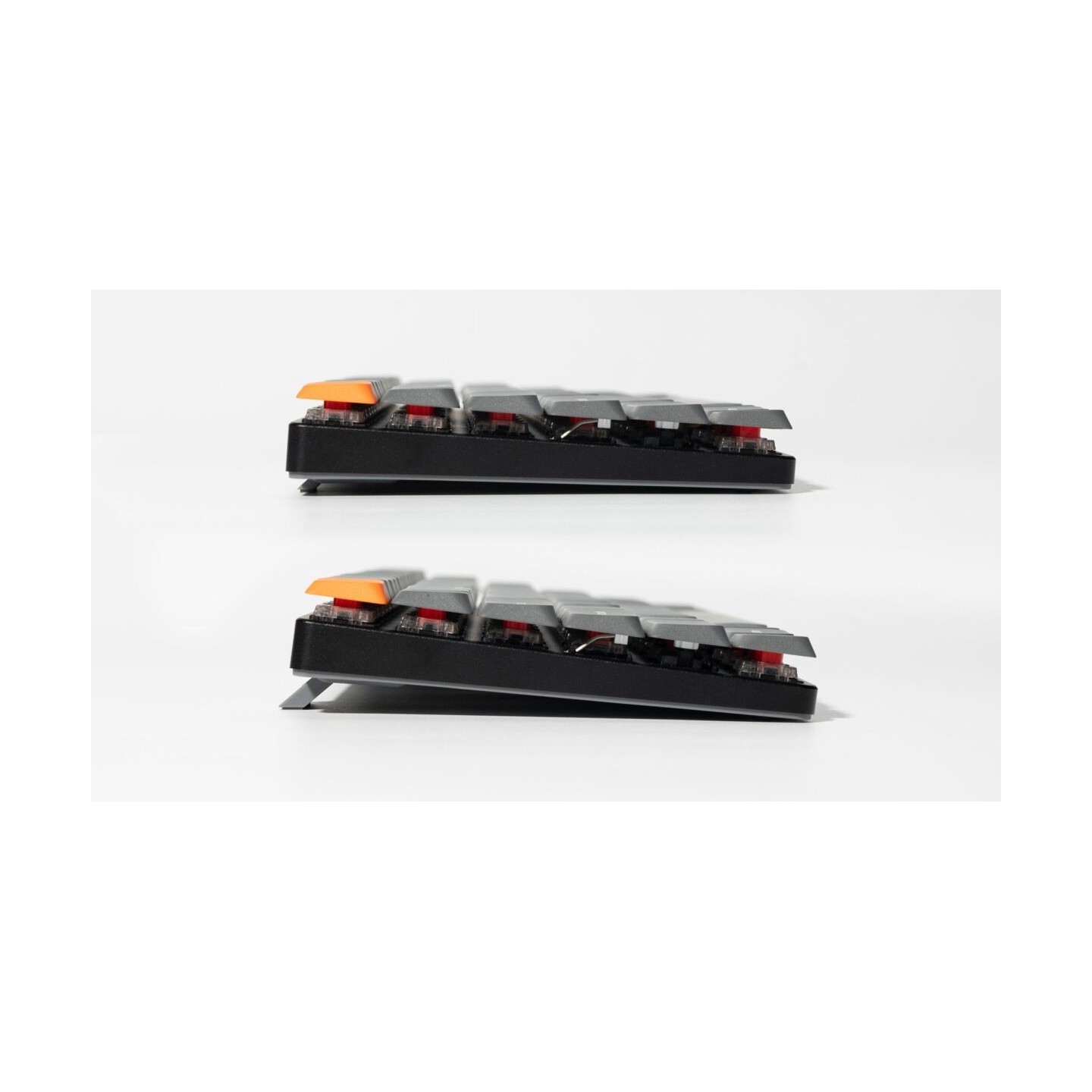

| Typing Angle Adjustment | 3 adjustable levels for ergonomic support |
| Stabilizers | Gold-plated PCB-mounted stabilizers (redesigned for reduced wobble) |

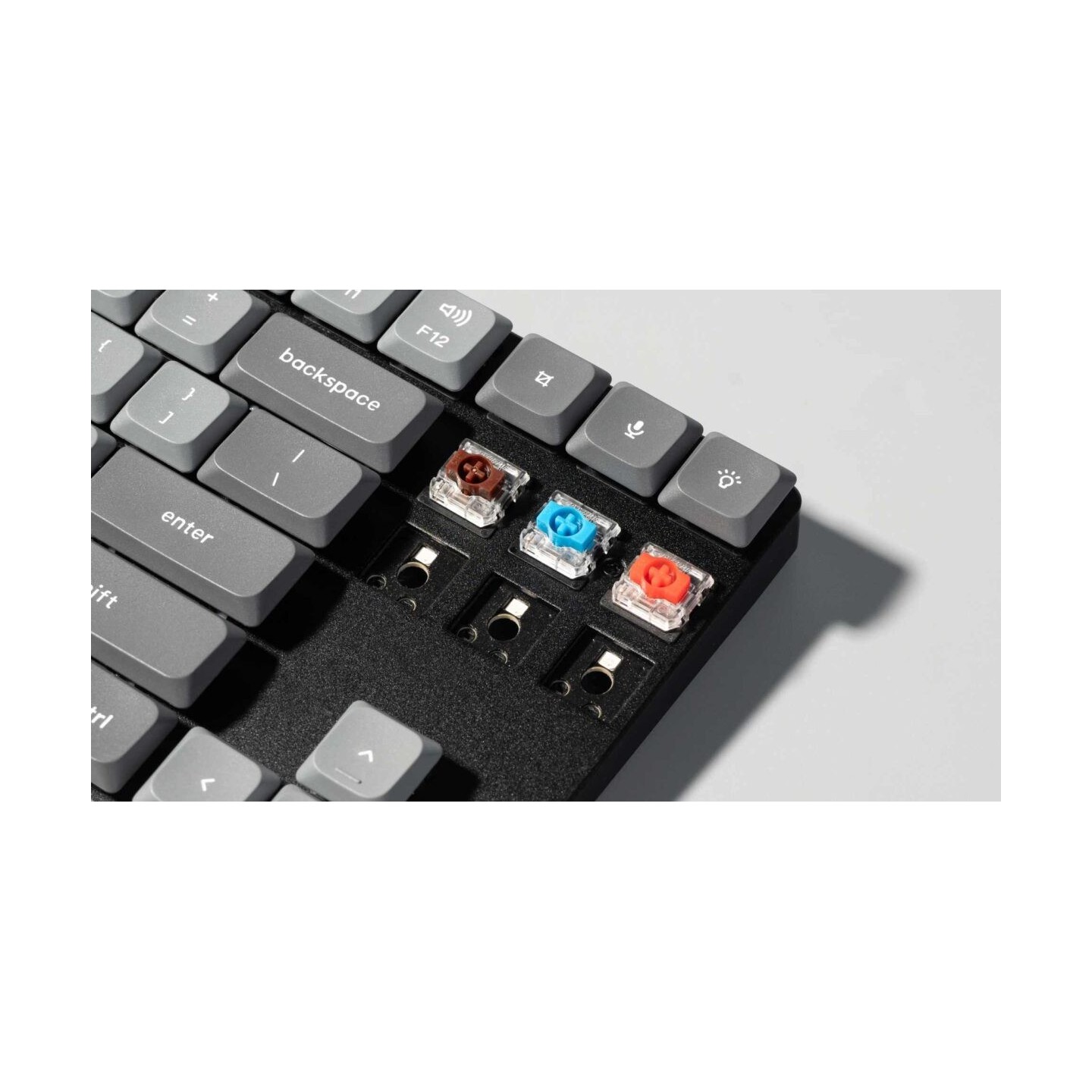

| Hot-Swappable | Yes (Gateron low-profile MX switches only; NOT compatible with optical switches) |
| MCU | ARM architecture with 256KB Flash memory |
| Compatible Operating Systems | macOS, Windows, Linux |
| Color | Black |
| Switch Color | Red (Linear) |
| Included Accessories | Type-A to Type-C cable, 2.4GHz USB receiver, switch puller, keycap puller |
| Model Number | K1M-H1 |
| EAN13 | 4895248866312 |
