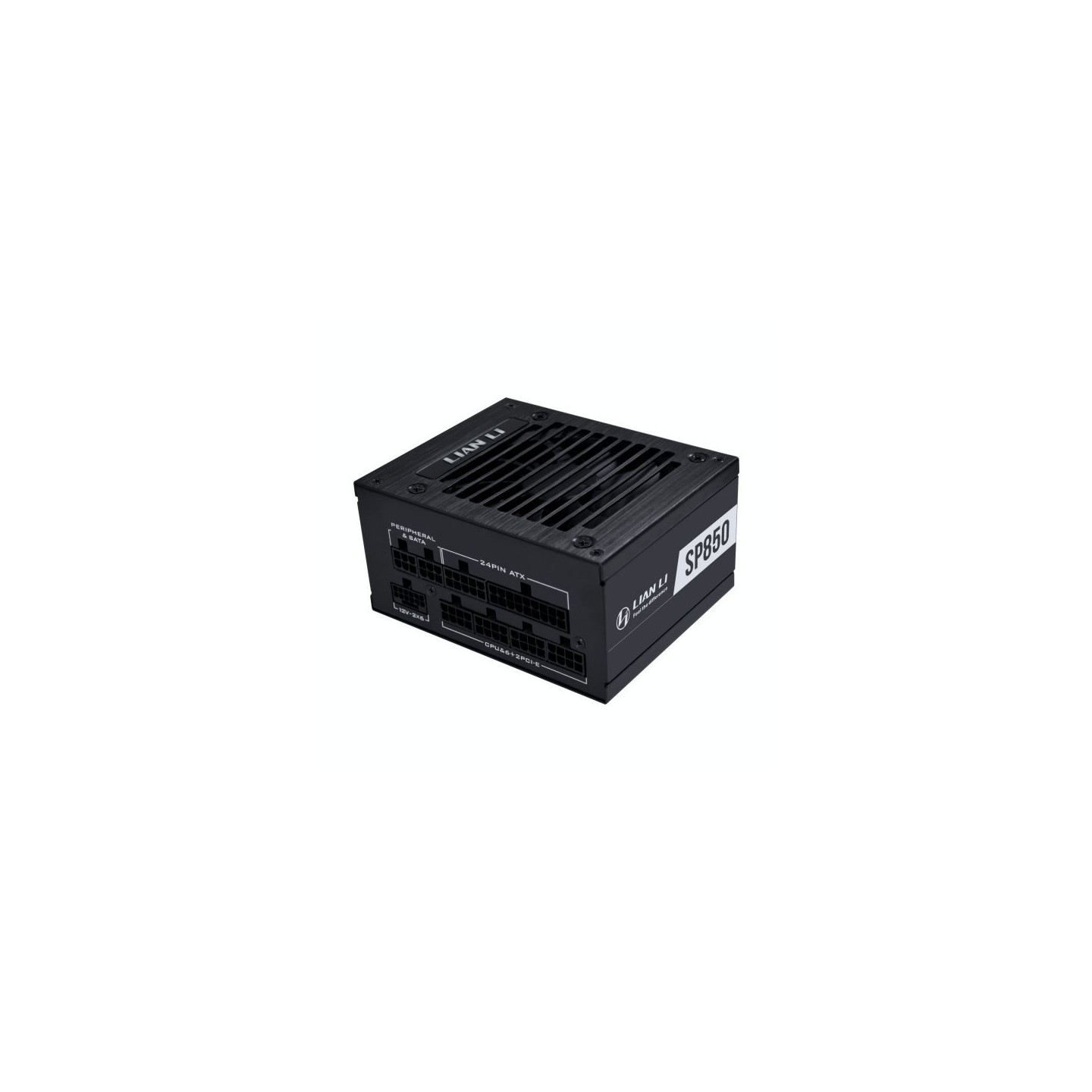

Lian Li SP850 V2 Gold Black 850W SFX PSU ATX 3.1 PCIe5 12V-2x6 (Boxed)
Lian Li SP850 V2: 850W SFX PSU, 80+ Gold, ATX 3.1 & PCIe 5 ready w/ native 12V-2x6. Compact 125x100x63.5mm, 92mm FDB fan, zero RPM mode, Japanese caps, fully modular, 10yr warranty.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 800 - 899 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Gold |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 1x 12V-2x6 |
| PSU (Power Supplies) - Length | Up to 140 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 2x 4+4pin EPS/ATX12V |
High-Performance SFX Power Supply

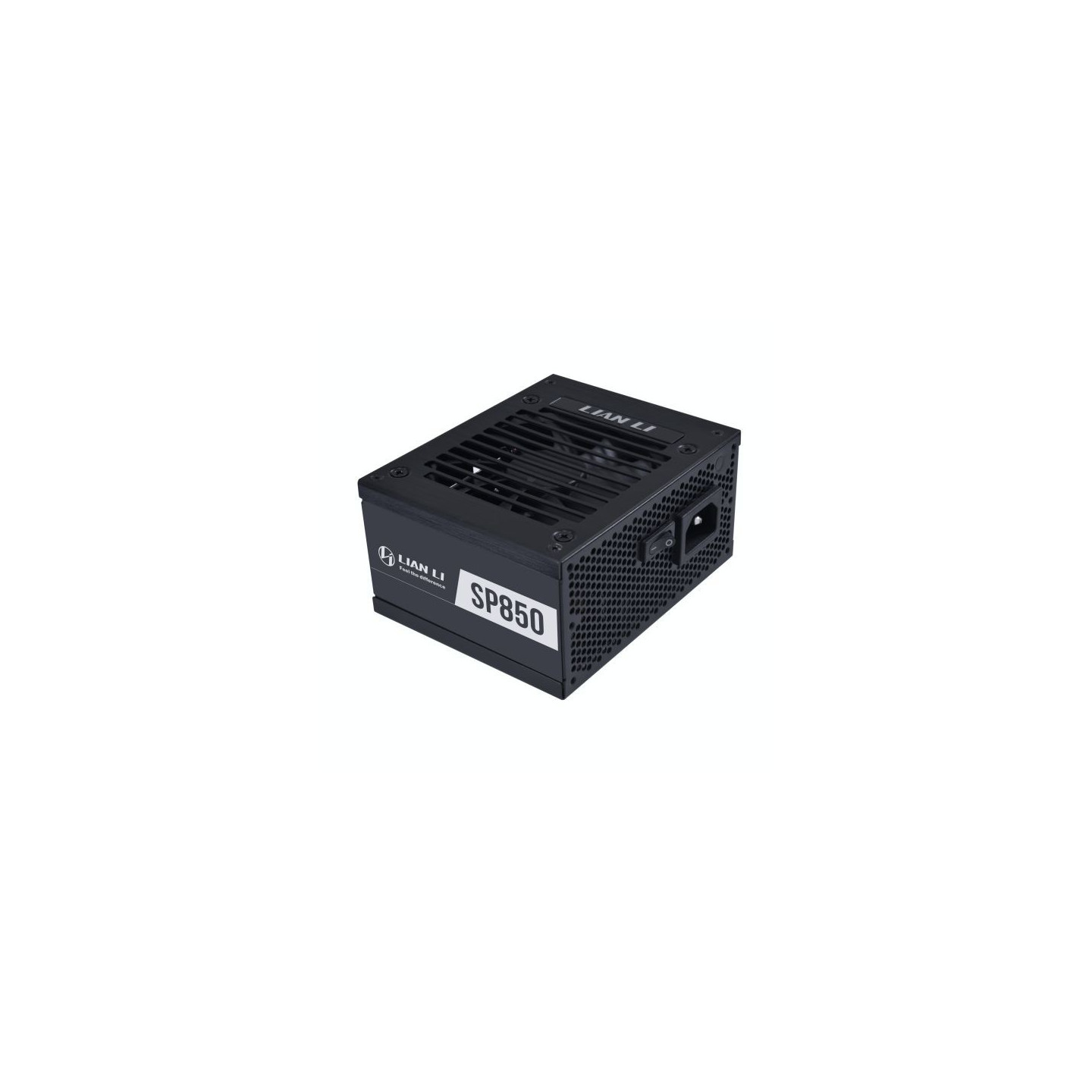

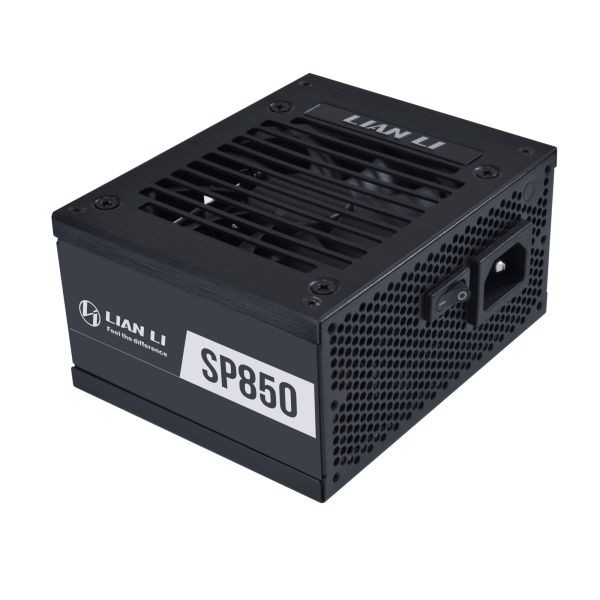

The Lian Li SP850 V2 is a premium 850W SFX PSU designed for compact SFF builds. It features ATX 3.1 compliance and a native 12V-2x6 connector for PCIe 5.0 GPUs, delivering stable power up to 840W on the 12V rail. With 80 PLUS Gold efficiency (>90% at 50% load), Japanese electrolytic capacitors, and full modularity, it ensures reliability and clean cable management.
Equipped with a 92mm FDB fan supporting zero RPM mode for silent operation under low loads, it maintains low noise even at full power (40dBA max). Comprehensive protections (OCP/OVP/OTP/OPP/SCP/UVP) and a 10-year warranty back its durability for high-end systems.
- ✅ Compact SFX form factor: 125 × 100 × 63.5 mm
- ✅ Fully modular with premium sleeved cables
- ✅ Native 12V-2x6 for next-gen GPUs
- ✅ 92mm FDB fan w/ fanless mode
- ✅ 10-year warranty & Japanese capacitors
| Model | SP850 V2 Gold Black |
| Form Factor | SFX |
| Dimensions (W x H x D) | 125 x 63.5 x 100 mm |
| Max DC Output | 850W |
| Combined +12V | 840W |
| Combined +3.3V & +5V | 100W |
| Efficiency Certification | 80 PLUS Gold |
| ATX Version | ATX 3.1 / PCIe 5.0 |
| Modularity | Fully Modular |

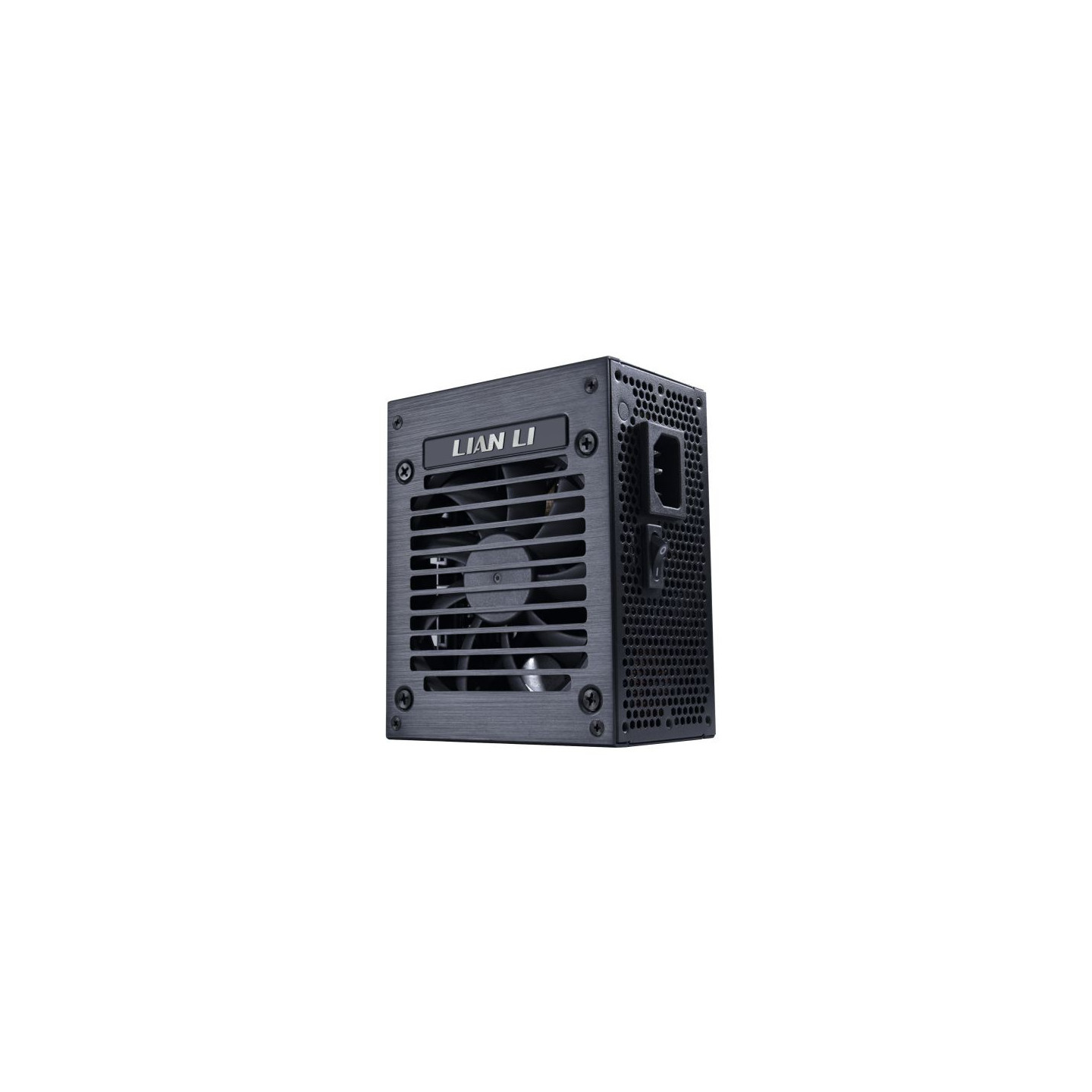

| Fan | 92mm FDB, 3000 RPM max, Fanless Mode (Zero RPM) |
| Noise Level | 40 dBA @ 25°C |

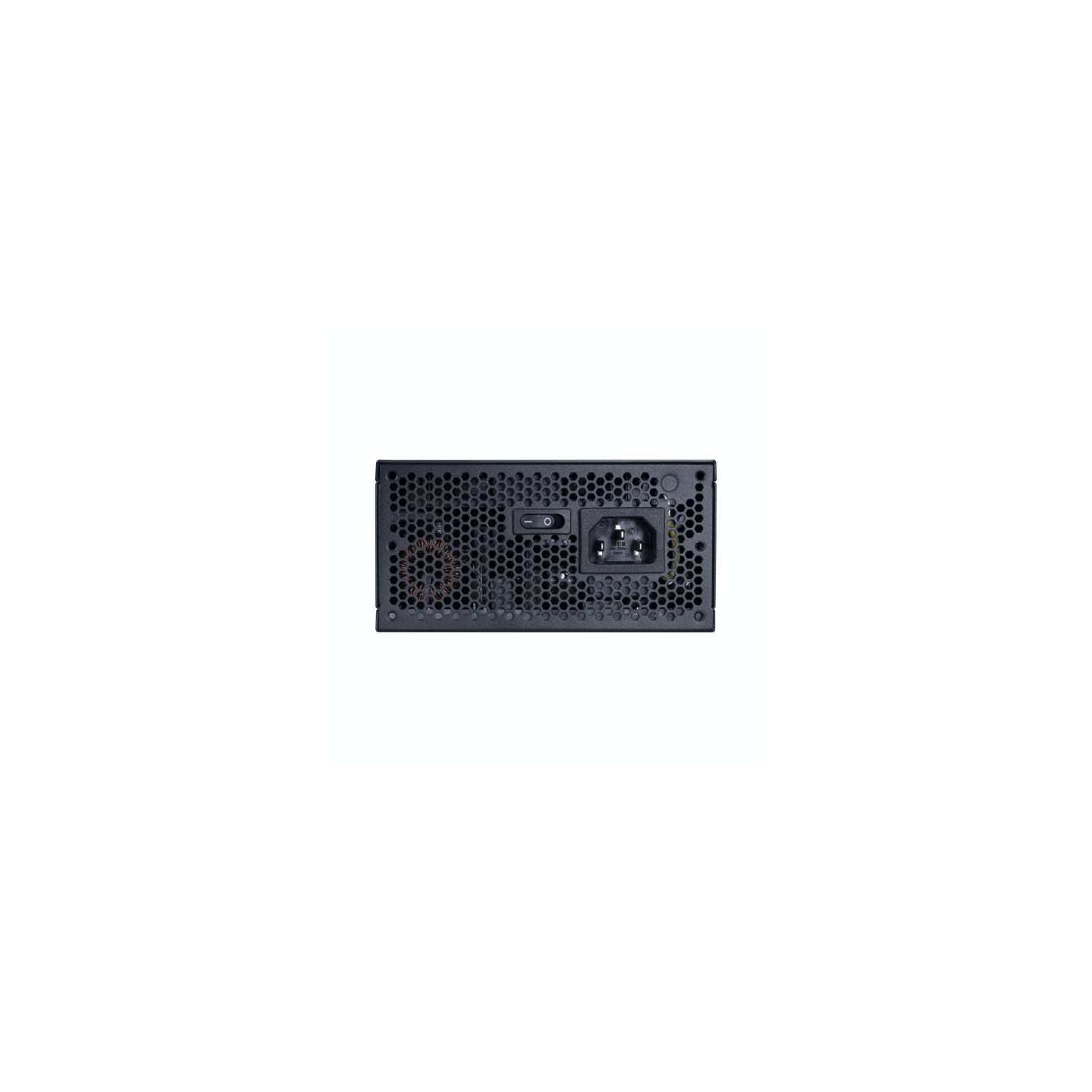

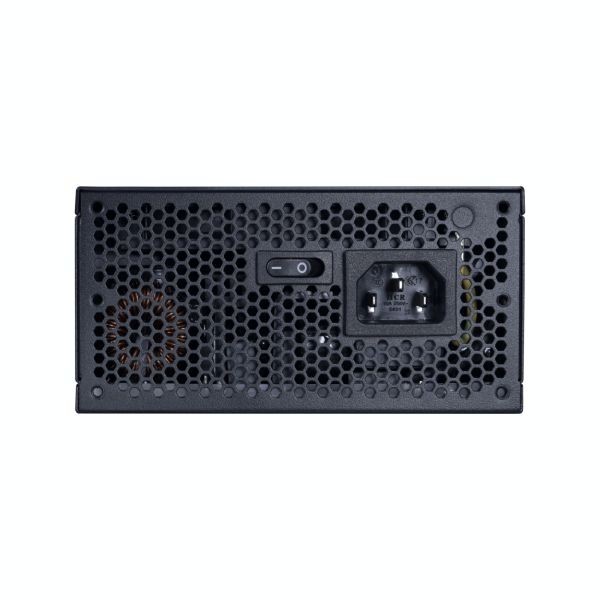

| Input Rating | 100-240Vac 50-60Hz 10-5A |
| PFC | Active PFC >0.90 @ full load 115Vac |
| Protections | OCP / OVP / OTP / OPP / SCP / UVP / SIP / NLP |
| Capacitors | Japanese Electrolytic |
| Warranty | 10 Years |

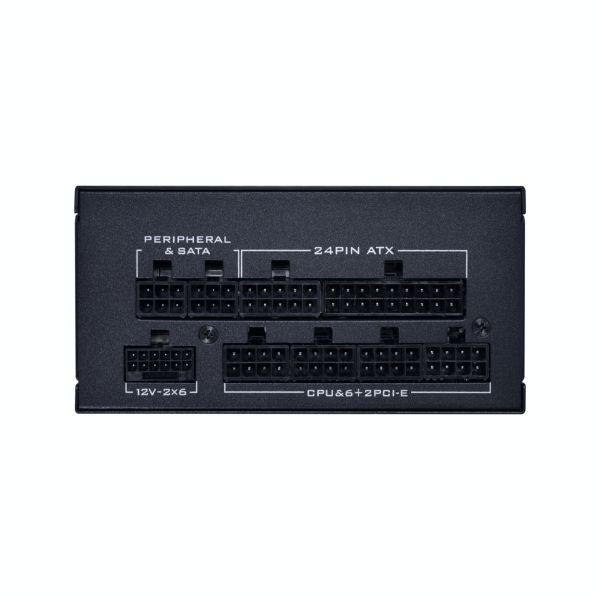

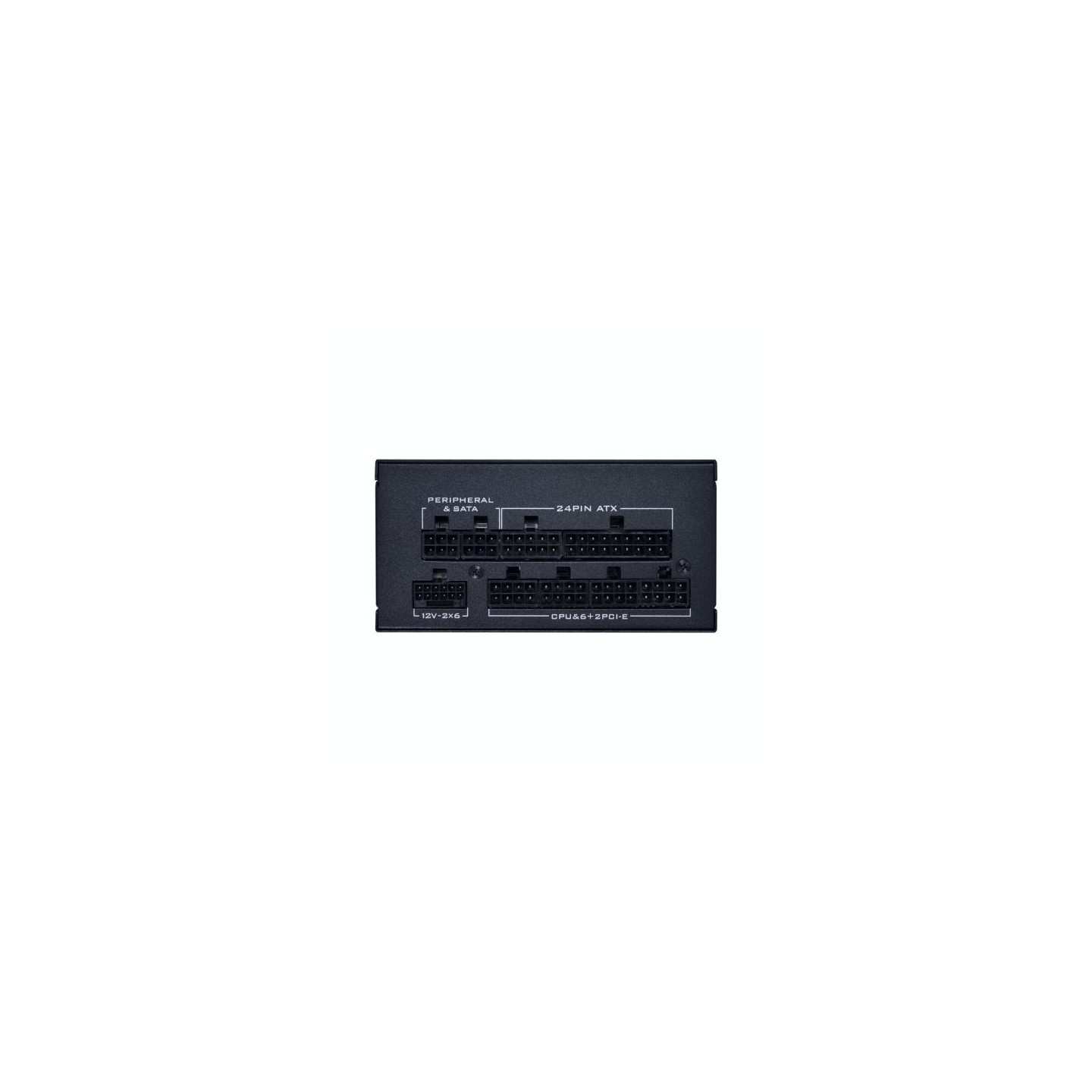

| PCIe Connectors | 1x 12V-2x6 (16-pin), additional 6+2 pin PCIe |
| EPS Connectors | 2x 4+4 pin |
| Working Temperature | 0-40°C |
