Keychron K10 Max K10M-H1 QMK Wireless Mechanical Keyboard Red Switch RGB 100% US ANSI (Boxed)
Wireless 100% mechanical keyboard with 2.4GHz, Bluetooth 5.1, and USB-C wired connectivity. Features 108 Keychron Super red linear switches, south-facing RGB backlighting, QMK/VIA programmability, hot-swappable design, and 4000mAh battery.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Keyboards - Device Type | Ergonomic Keyboard Gaming Keyboard Office Keyboard |
|---|---|
| Keyboards - Special Features | Hot Swappable Programmable Keys |
| Keyboards - Form Factor | Full Size (100% / 96%) |
| Keyboards - Key Layout | US |
| Keyboards - Switch Type | Mechanical - Linear |

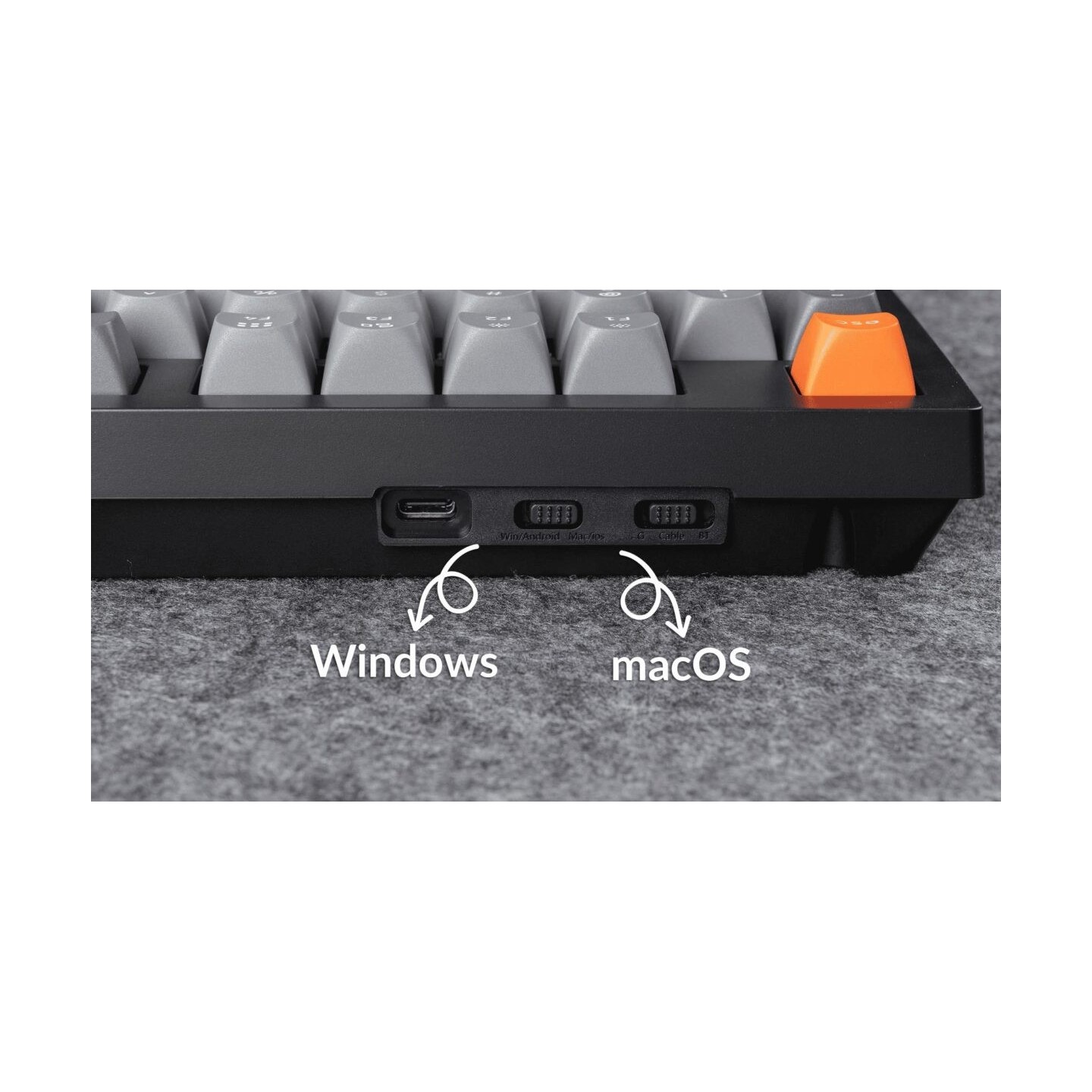

| Keyboards - Connection | Bluetooth Wired (USB) Wireless RF (USB Dongle) |
| Keyboards - Backlighting | South-facing RGB |

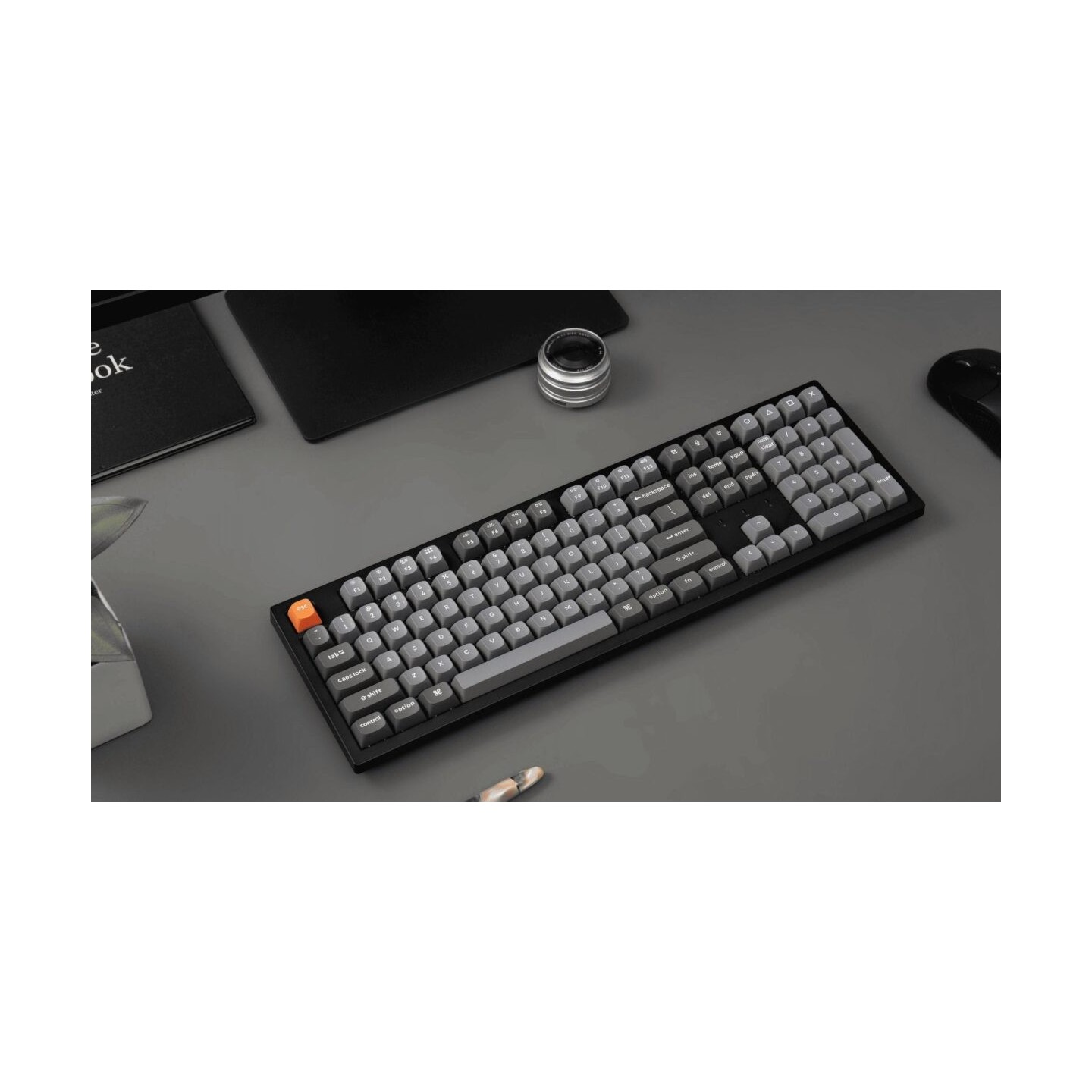

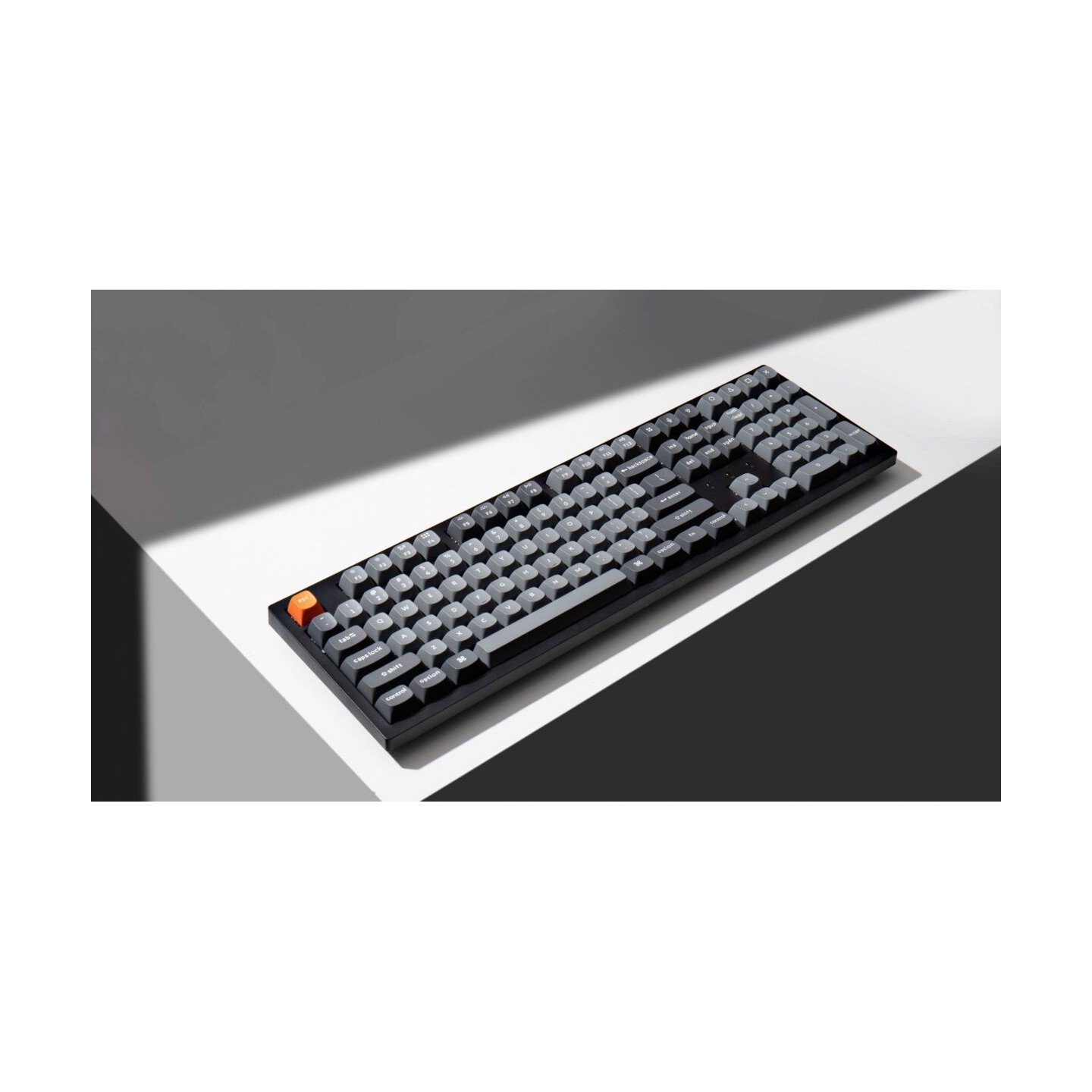

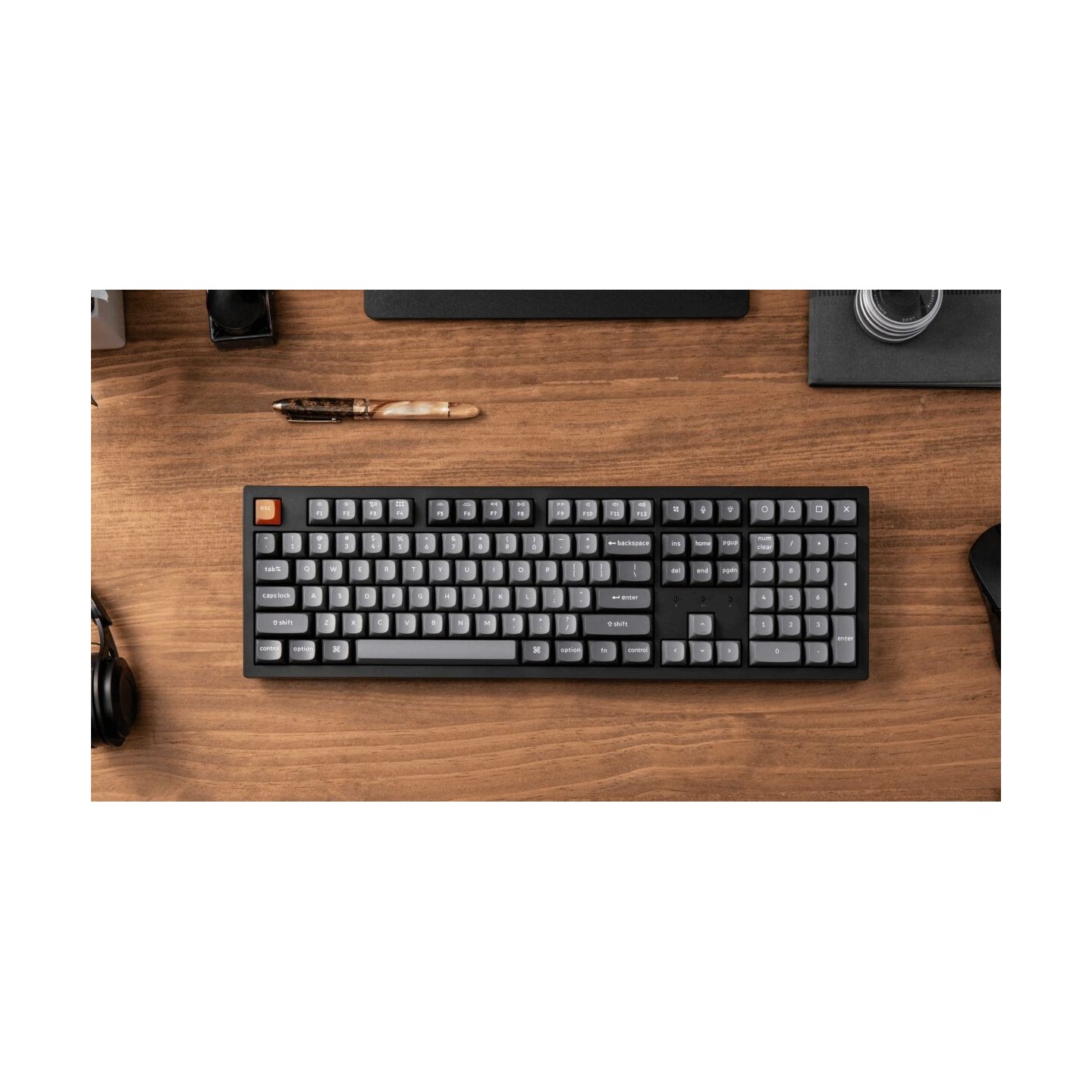

The Keychron K10 Max is a premium full-size wireless mechanical keyboard featuring a 100% ANSI layout with 108 keys. It delivers exceptional connectivity with 2.4GHz wireless (1000Hz polling rate), Bluetooth 5.1 (supporting up to 3 devices simultaneously), and USB-C wired modes. Powered by a 4000mAh rechargeable battery, it offers approximately 190 hours of wireless runtime with backlighting off and 100 hours with RGB at lowest brightness.

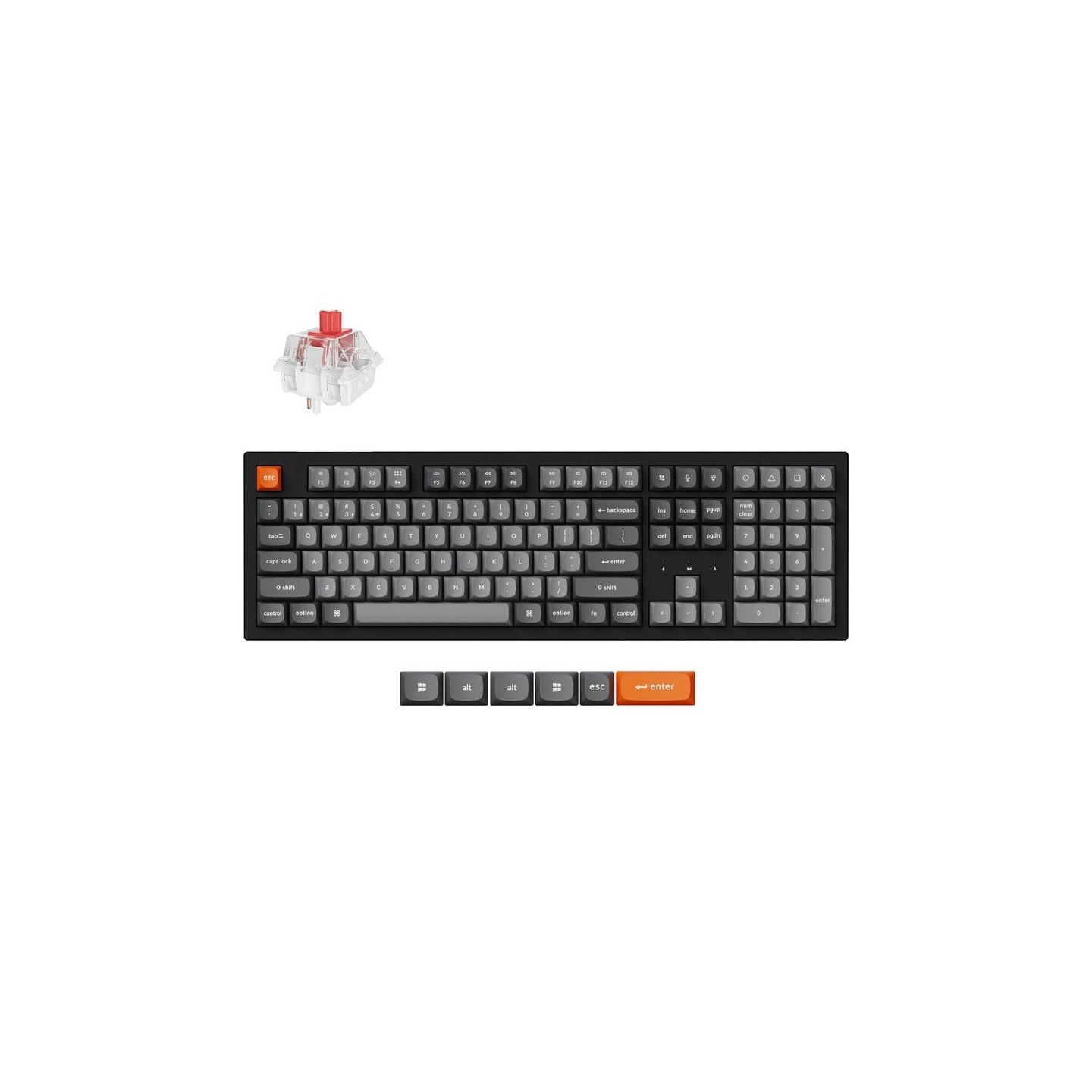

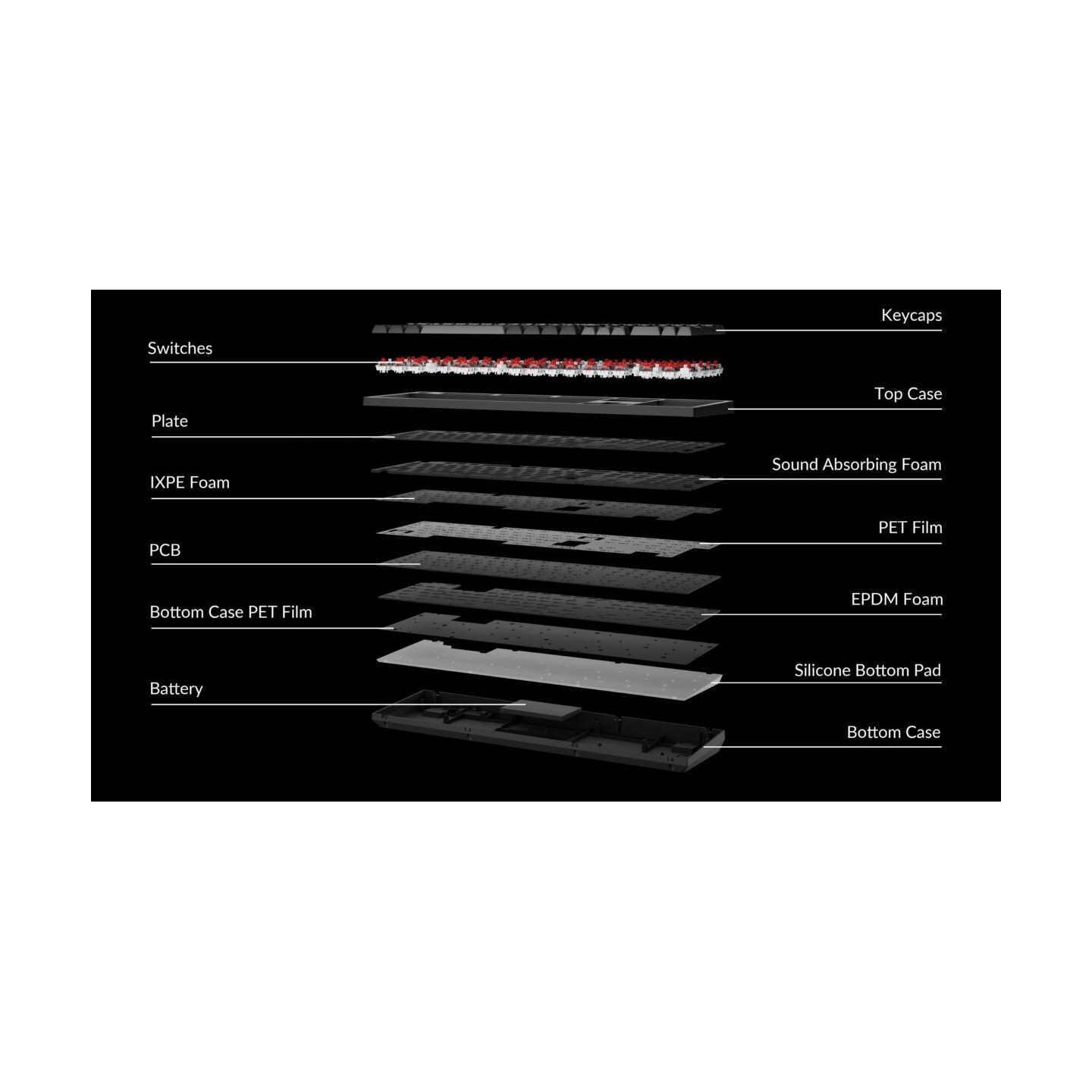

The keyboard features Keychron Super red linear mechanical switches with a lifespan of up to 50 million clicks, paired with double-shot PBT keycaps in the unique OSA profile (OEM with spherical angle). Advanced acoustic engineering includes IXPE foam, EPDM foam, and a steel plate for superior sound quality and typing comfort. South-facing RGB backlighting offers 22+ preset modes with full customization of hue, saturation, brightness, and effect speed. The keyboard is fully programmable via QMK firmware and the Keychron Launcher web app, allowing custom key remapping, macros, and shortcuts across macOS, Windows, and Linux.

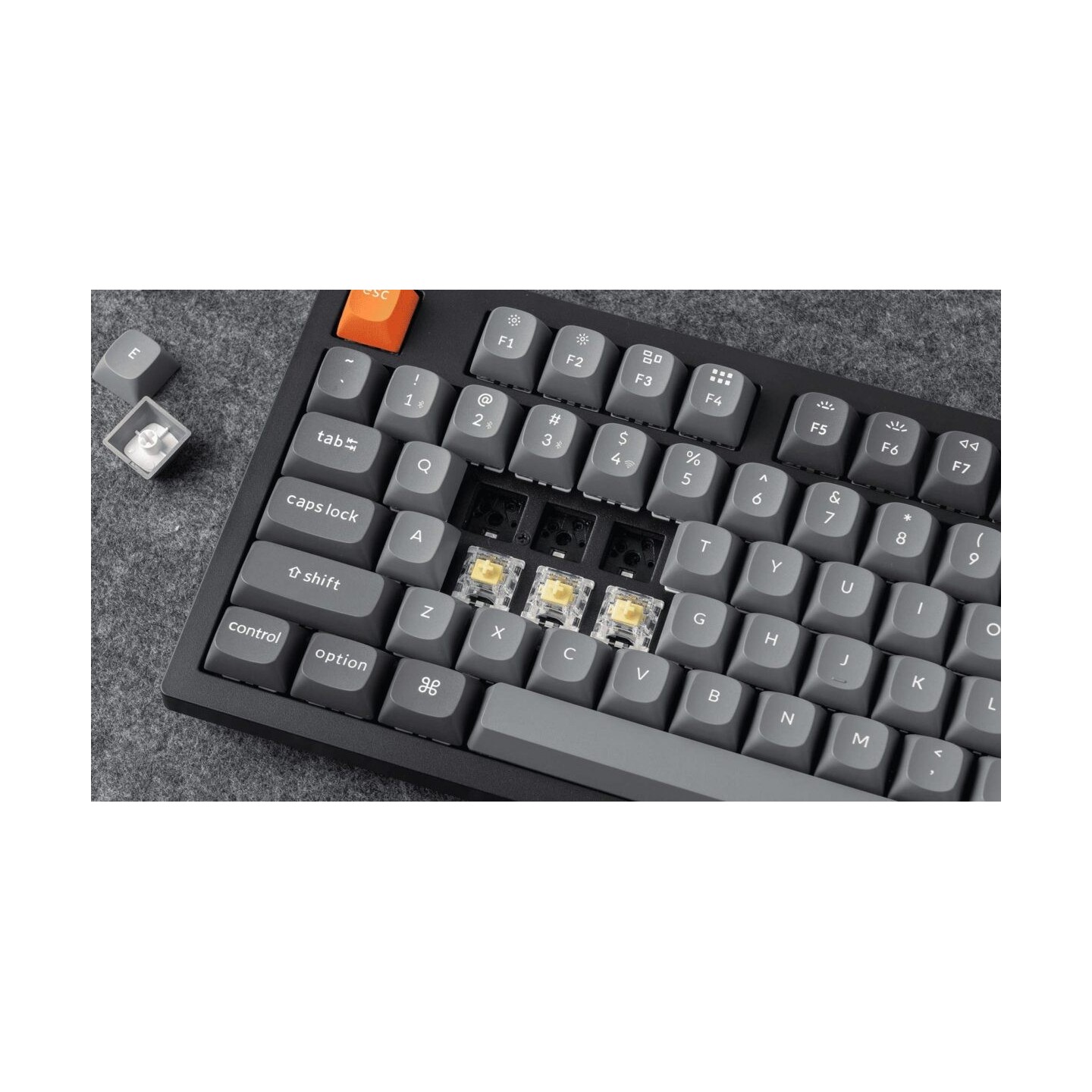

Additional features include hot-swappable MX-compatible switches, PCB-mounted stabilizers, adjustable typing angle with flip-out legs, and included keycap sets for both Windows and macOS. The package includes a USB-A to USB-C cable, 2.4GHz wireless dongle, USB adapter, keycap/switch puller, hex driver, and comprehensive documentation.
- 108 keys with Keychron Super red linear switches (50M click lifespan)
- Triple connectivity: 2.4GHz (1000Hz), Bluetooth 5.1, USB-C wired
- 4000mAh battery with 190-hour runtime (backlit off)

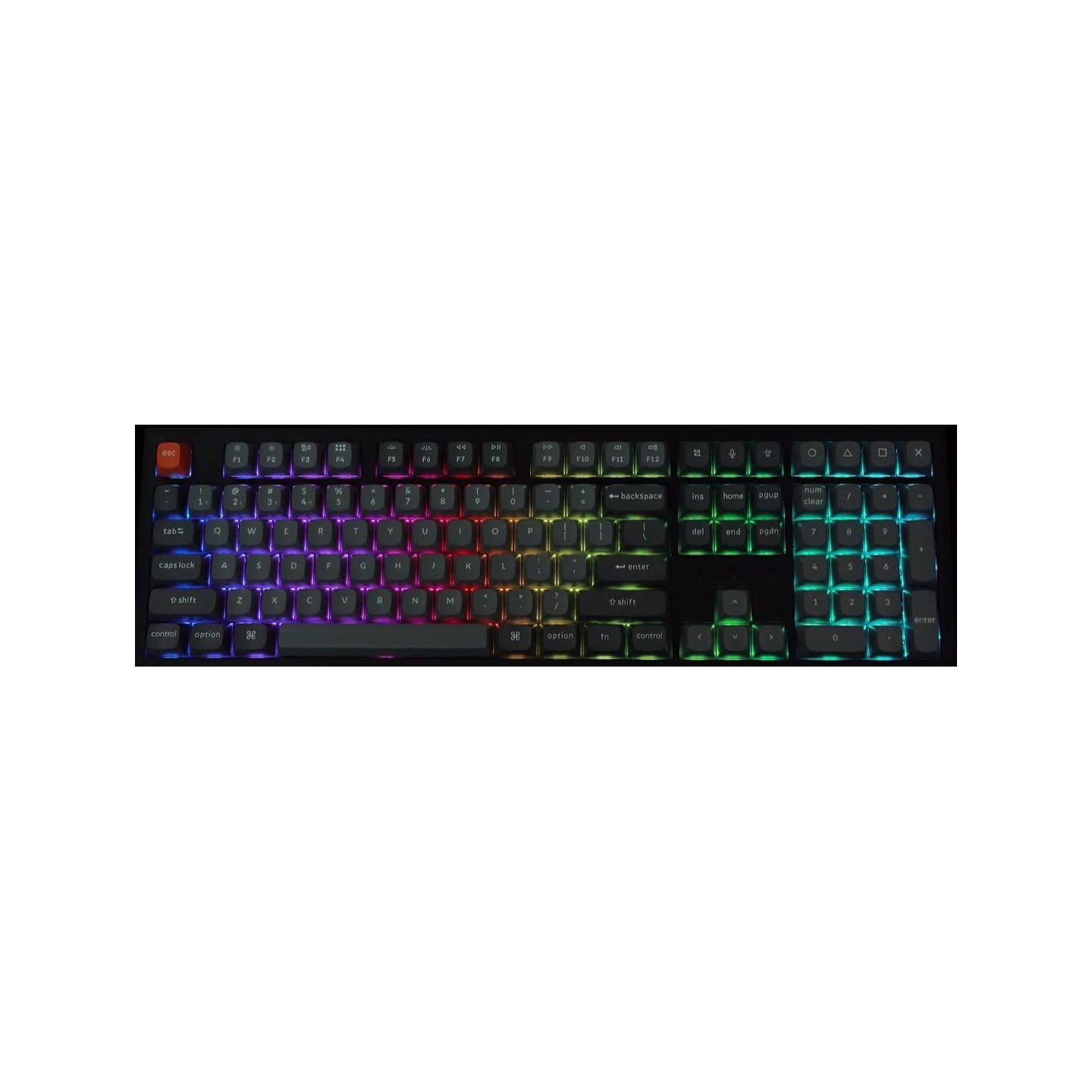

- South-facing RGB with 22+ preset modes
- QMK/VIA programmable with Keychron Launcher app
- Hot-swappable MX-compatible design
- Double-shot PBT keycaps with OSA profile
- Compatible with macOS, Windows, and Linux
| Number of Keys | 108 (100% layout) |
| Switch Type | Keychron Super mechanical (red linear) |
| Switch Lifespan | Up to 50 million clicks |
| Switch Face | South-facing |
| Keycap Material | Double-shot PBT |
| Keycap Profile | OSA (OEM with spherical angle) |
| Layout | ANSI (US) |
| Frame Material | ABS |

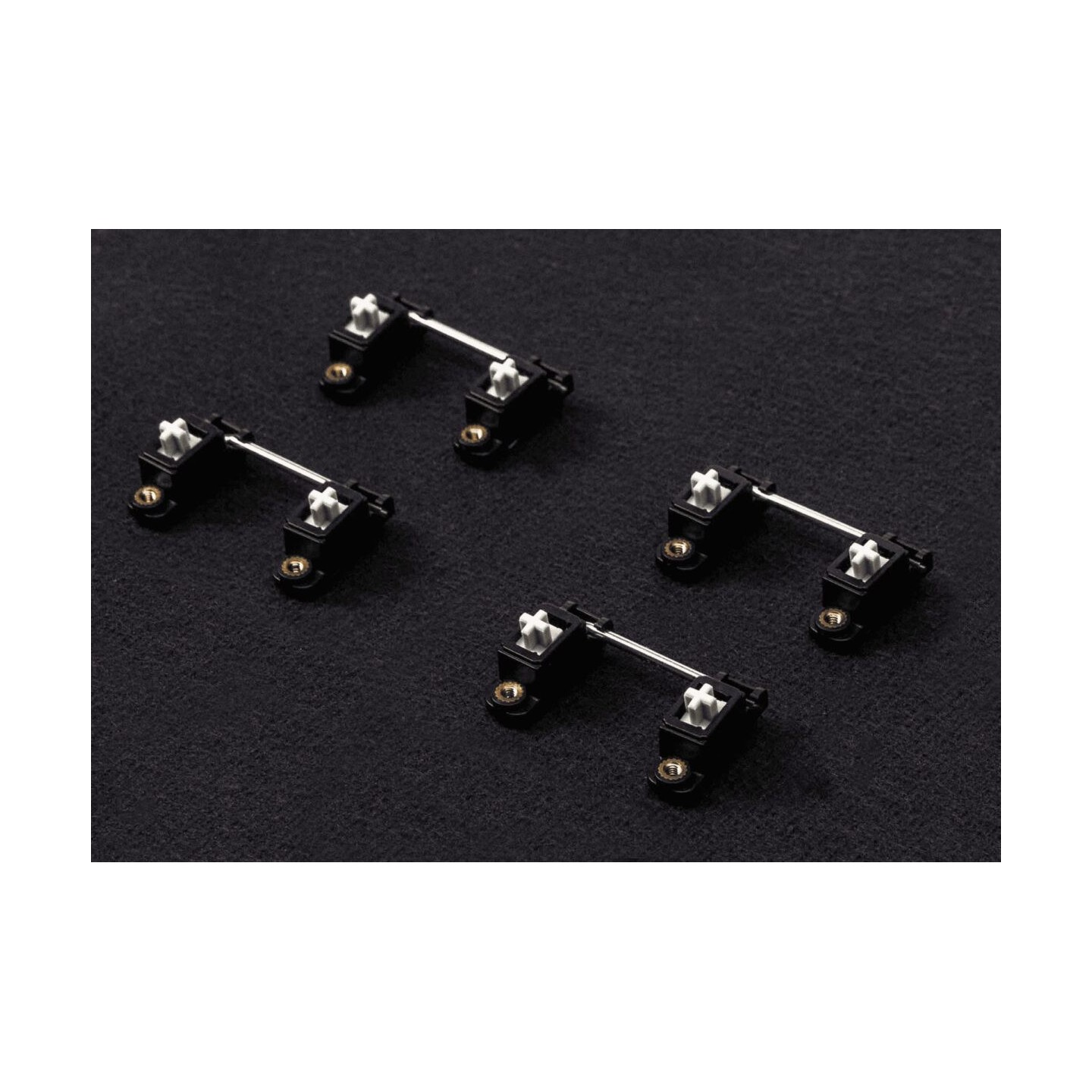

| Stabilizers | PCB-mounted screw stabilizers |
| Connectivity | 2.4GHz wireless, Bluetooth 5.1, USB-C wired |
| Polling Rate (2.4GHz) | 1000Hz |
| Polling Rate (Wired) | 1000Hz |
| Polling Rate (Bluetooth) | 90Hz |
| Bluetooth Version | 5.1 |
| Bluetooth Devices | Up to 3 simultaneous connections |
| N-Key Rollover (NKRO) | Yes (wireless and wired modes) |
| Battery Capacity | 4000mAh rechargeable li-polymer |
| Wireless Runtime (Backlit Off) | Approximately 190 hours |
| Wireless Runtime (RGB Lowest Brightness) | Approximately 100 hours |
| Backlighting | South-facing RGB with 22+ preset modes |
| RGB Customization | Hue, saturation, brightness, effect speed adjustable |
| Acoustic Foams | IXPE, PET, EPDM, sound-absorbing foam |
| Steel Plate | Yes |
| Programmability | QMK firmware, VIA, Keychron Launcher web app |
| Hot-Swappable | Yes (MX-compatible 3-pin and 5-pin switches) |

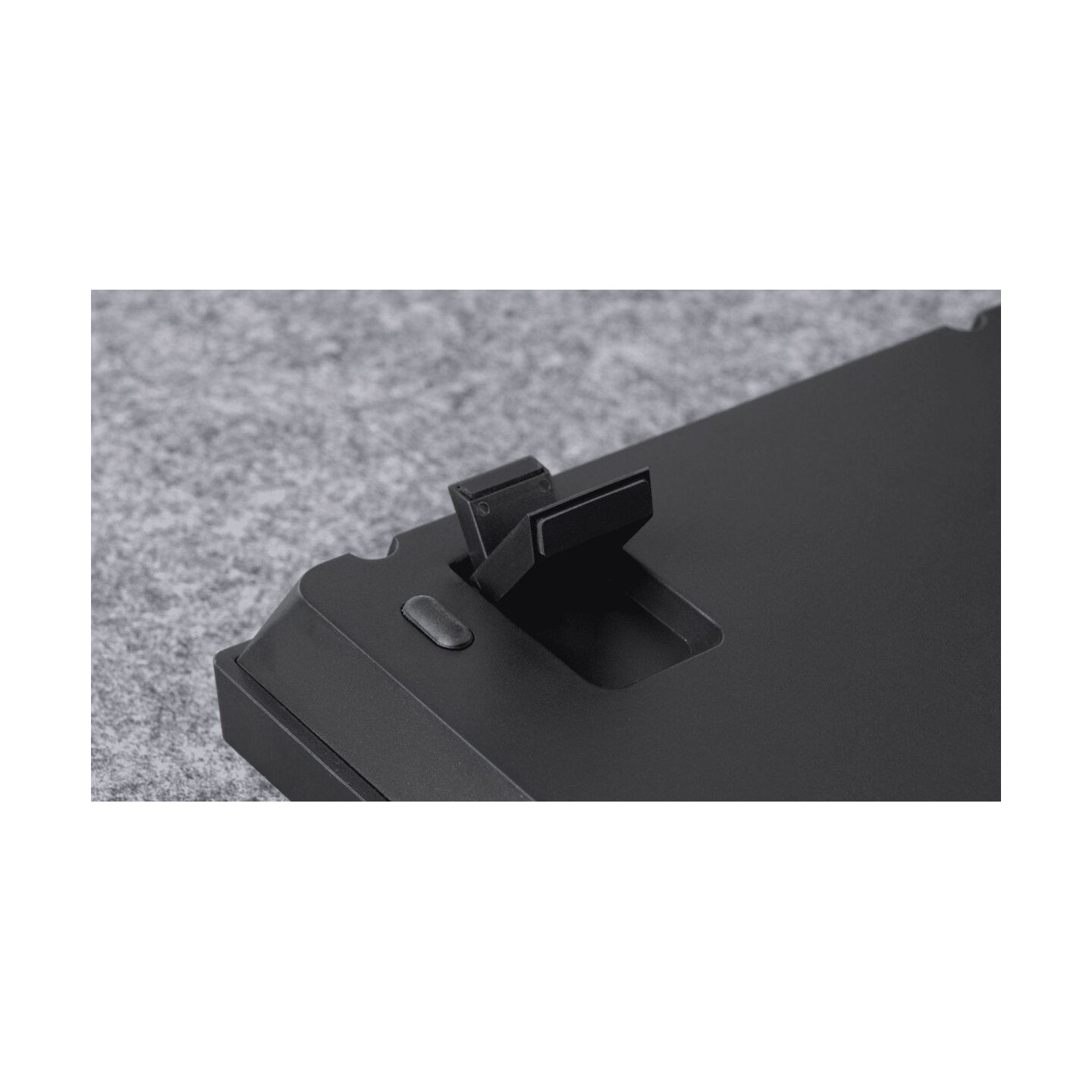

| Ergonomic Features | Adjustable typing angle with flip-out legs (3 levels) |
| Keyboard Dimensions | 445mm (W) x 137.92mm (D) x 40.30mm (H) |
| Keyboard Weight | 1.49kg |
| MCU | ARM architecture with 256KB Flash |
| Compatible Operating Systems | macOS, Windows, Linux |
| Included Keycaps | Windows and macOS keycap sets |
| Included Accessories | USB-A to USB-C cable, 2.4GHz wireless dongle, USB adapter, keycap/switch puller, hex driver, manual |
| Warranty | 1 year parts warranty |
