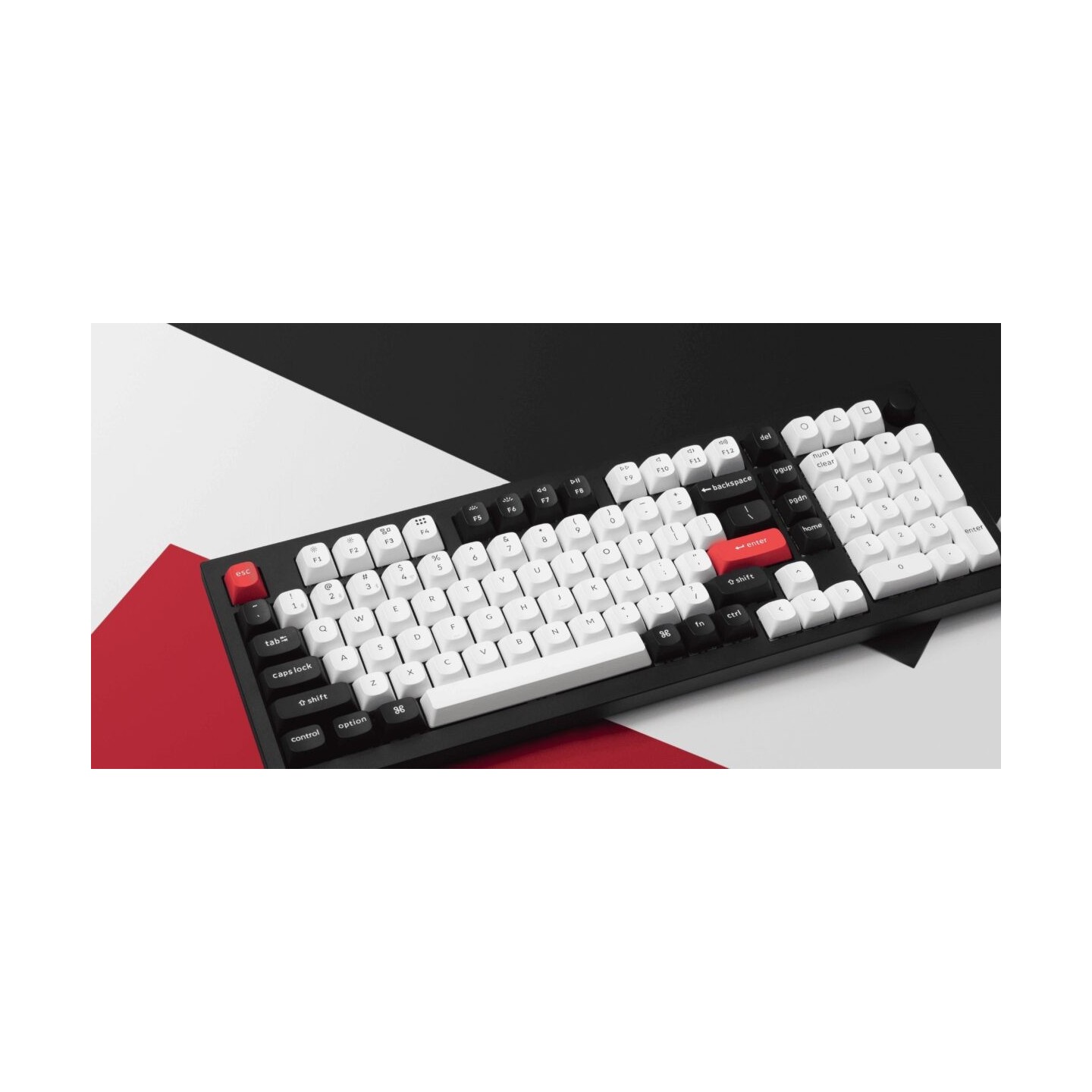

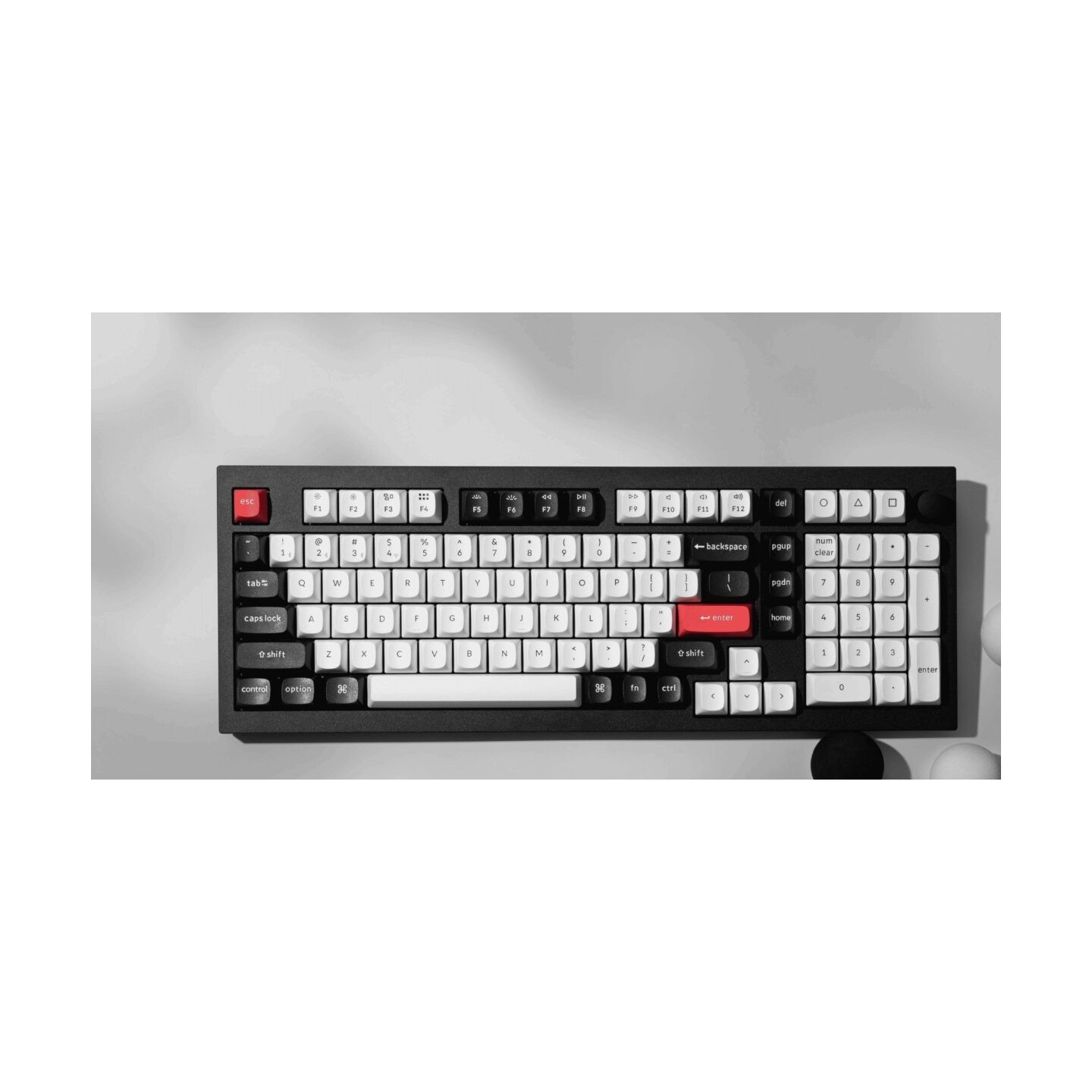

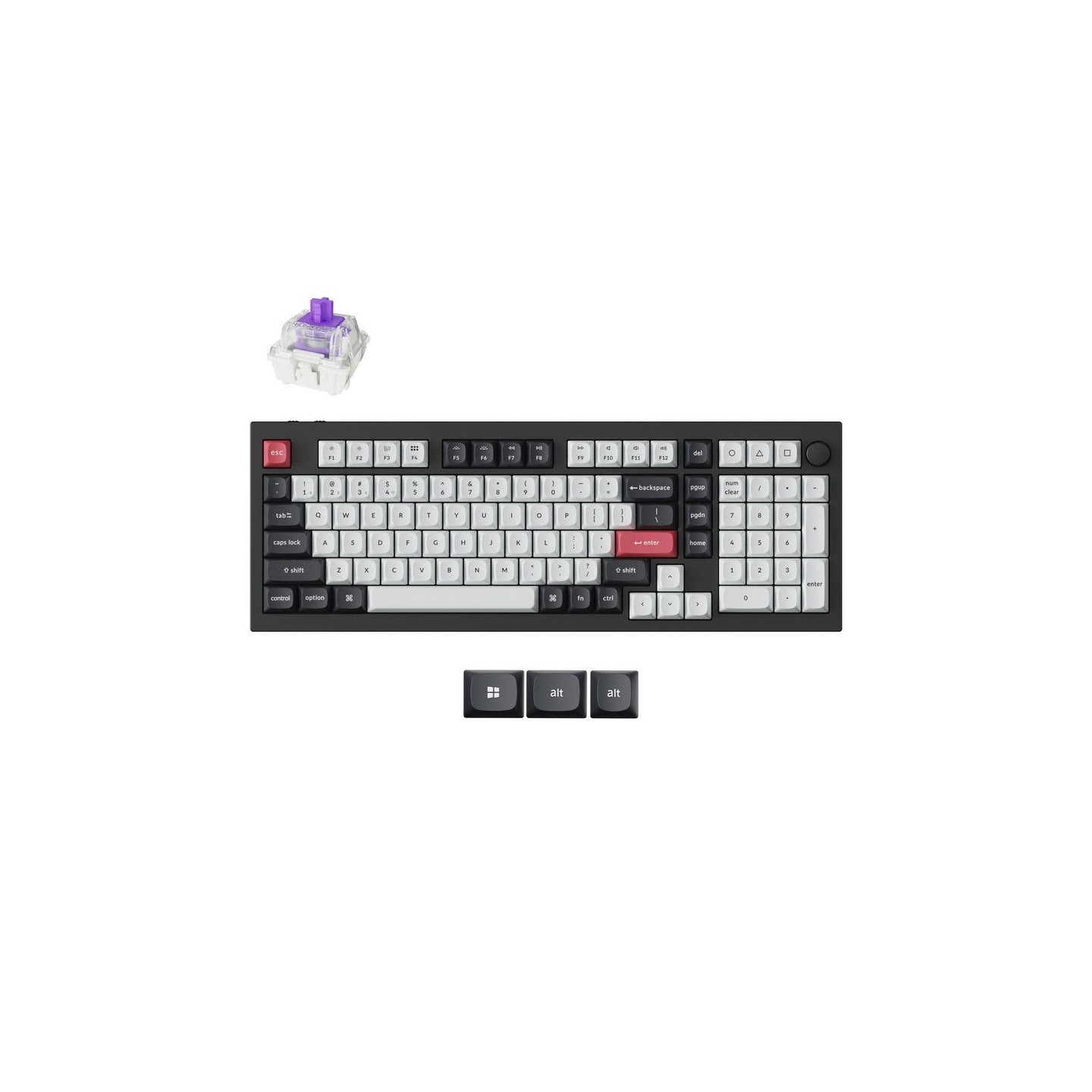

Keychron Q5 HE Q5H-M1 Wireless Hall Effect Keyboard Purple Switch 96% US (Boxed)
Wireless QMK 96% keyboard with Gateron Hall Effect Purple switches. Features adjustable actuation (0.2-3.8mm), rapid trigger, 1000Hz polling, RGB, hot-swap, aluminum body, Bluetooth/2.4GHz.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Keyboards - Device Type | Gaming Keyboard |
|---|---|
| Keyboards - Special Features | Hot Swappable Programmable Keys |
| Keyboards - Form Factor | Full Size (100% / 96%) |
| Keyboards - Key Layout | US |
| Keyboards - Switch Type | Hall-Effect Magnetic |
| Keyboards - Connection | Bluetooth Wireless RF (USB Dongle) |
| Keyboards - Backlighting | South-facing RGB |

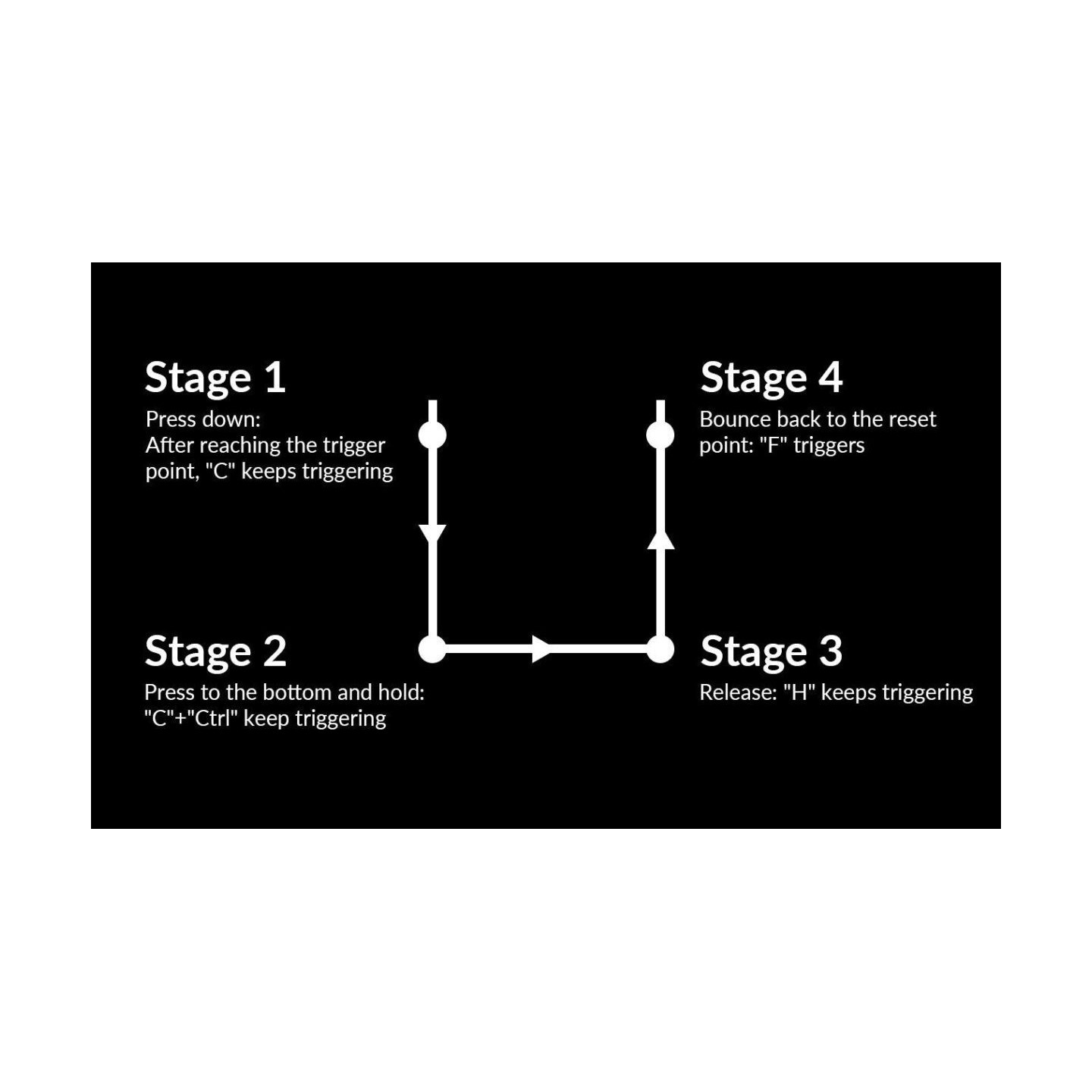

Keychron Q5 HE Q5H-M1 is a premium wireless QMK custom keyboard in 96% US layout, featuring Gateron Double-Rail Hall Effect Purple magnetic switches. These switches enable adjustable actuation points from 0.2-3.8mm with 0.1mm sensitivity, dynamic rapid trigger, and 4-in-1 keystroke actions for gaming advantage.

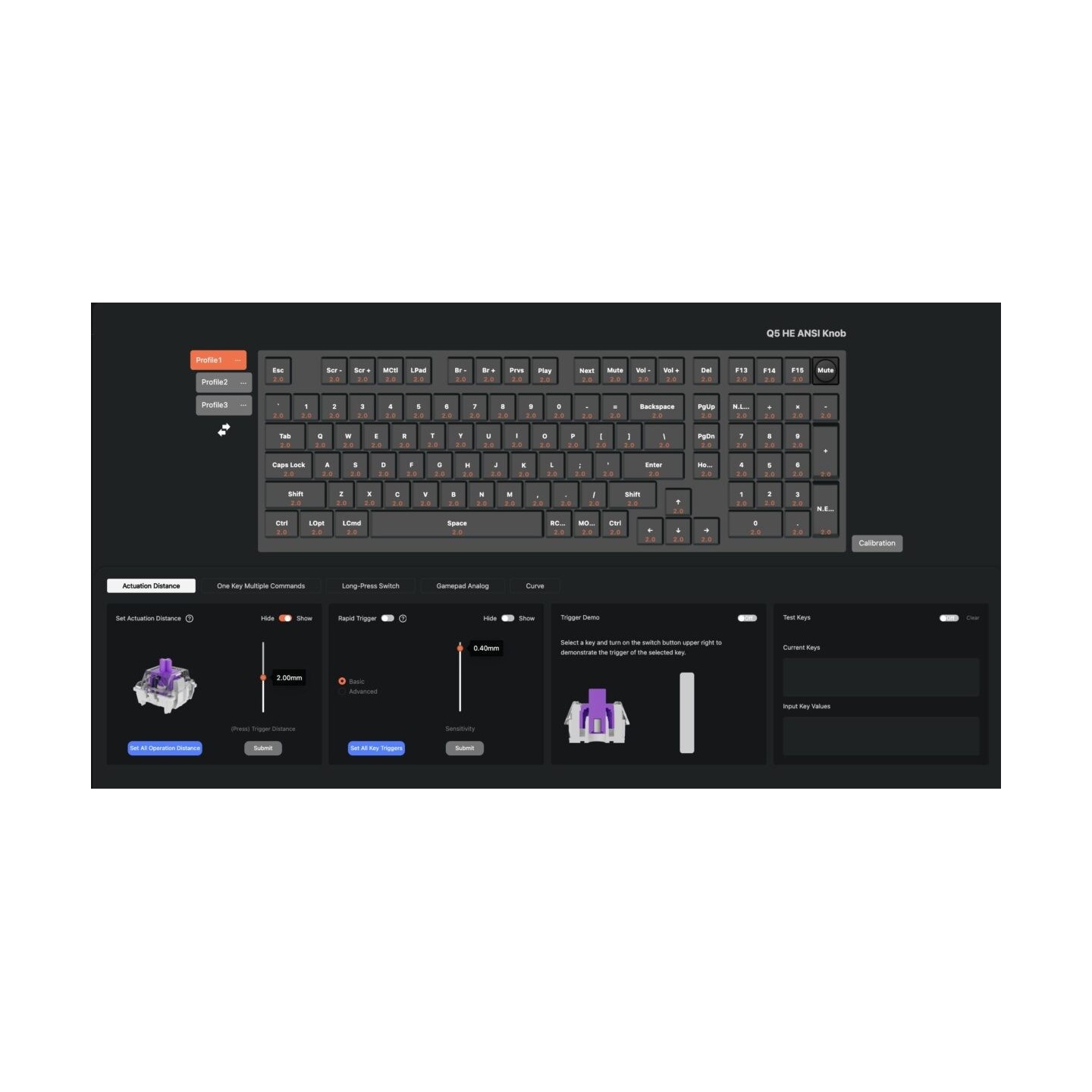

Connect via 2.4GHz (1000Hz polling), Bluetooth 5.2 (3 devices), or wired USB-C. Full aluminum body, double-gasket mount, OSA PBT double-shot keycaps, south-facing RGB, and QMK customization via Web Launcher app. Hot-swappable only with Keychron magnetic switches. Includes NKRO, 4000mAh battery.
- ✅ Hall Effect magnetic switches (Gateron Purple)
- ✅ Rapid Trigger & Adjustable Actuation
- ✅ Wireless 2.4GHz/Bluetooth/Wired
- ✅ South-facing RGB backlight
- ✅ Aluminum case & plate
- ✅ QMK/VIA programmable
- ✅ Hot-swappable (magnetic only)
- ✅ Double-gasket design
- ✅ PBT OSA profile keycaps
- ✅ Mac/Windows compatible
| Layout | 96% (Full Size) |
| Key Layout | US ANSI |

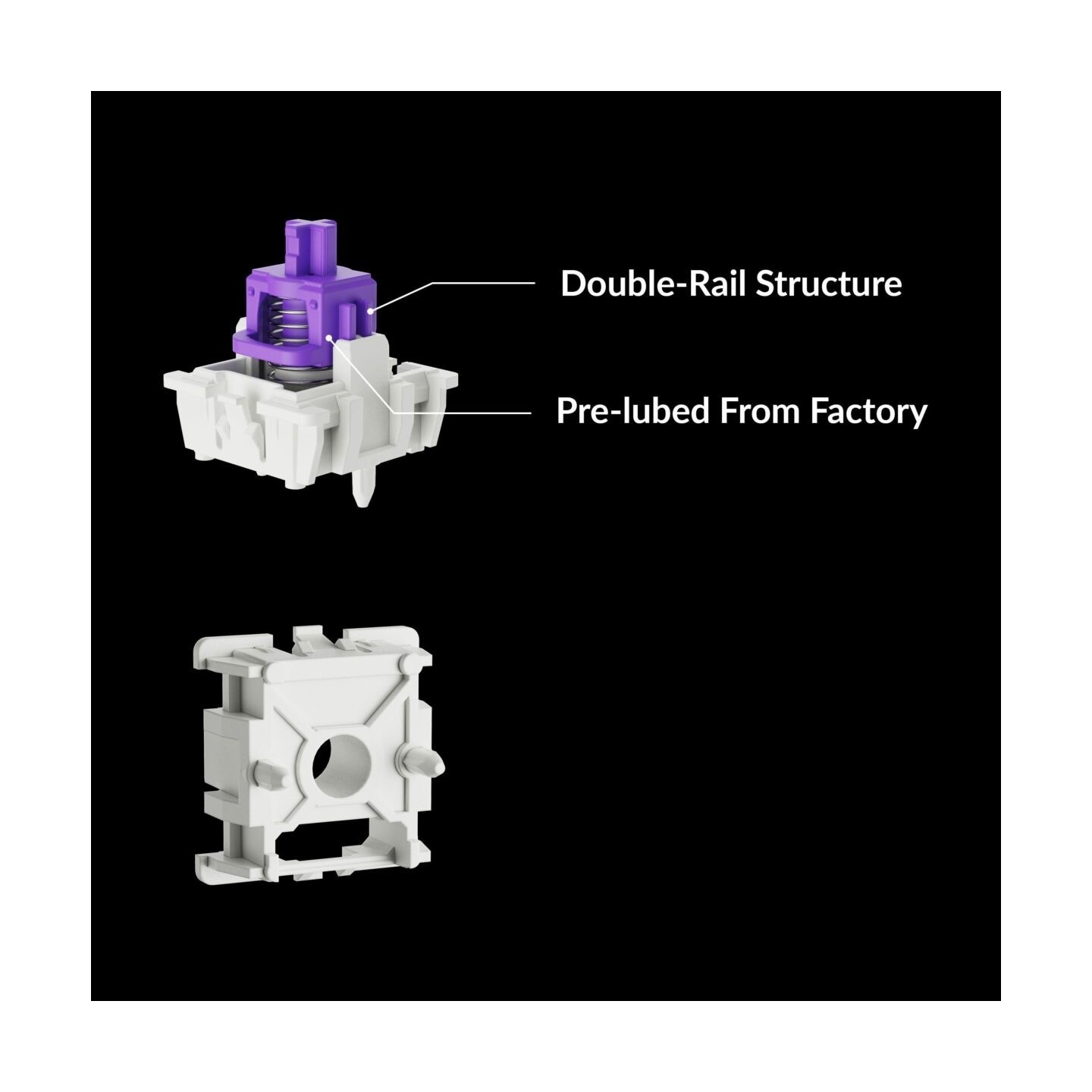

| Switch Type | Gateron Double-Rail Magnetic Purple (Hall Effect) |
| Actuation Range | 0.2 - 3.8 mm |
| Sensitivity | 0.1 mm |
| Polling Rate | 1000 Hz (Wired/2.4GHz), 90 Hz (Bluetooth) |
| Connectivity | 2.4GHz, Bluetooth 5.2, USB-C Wired |
| N-Key Rollover | Yes (wired & wireless) |
| Rapid Trigger | Yes |
| Dynamic Keystrokes | 4-in-1 action keys |

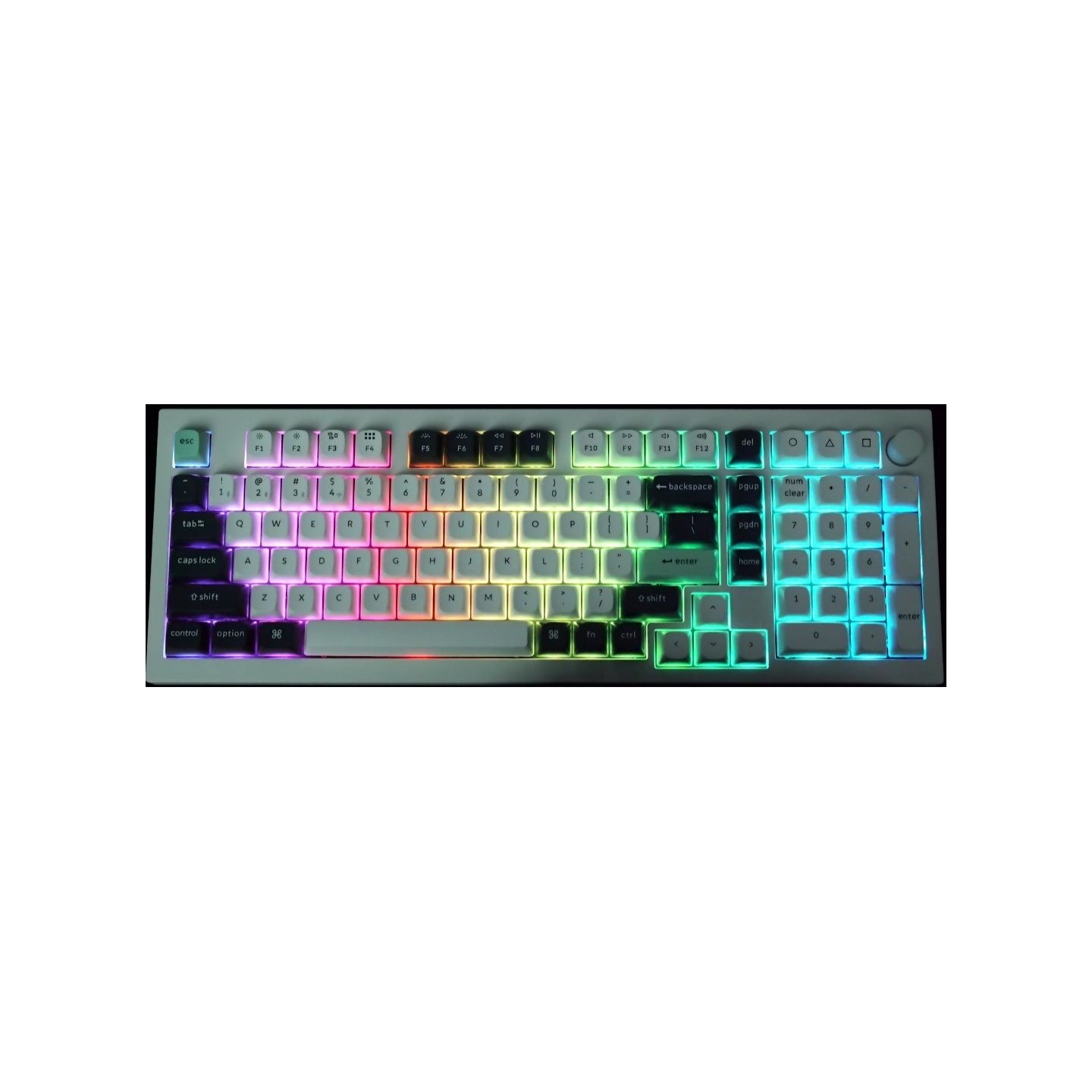

| Backlight | South-facing RGB |
| Keycaps | OSA Profile Double-shot PBT |
| Body Material | Aluminum 6063 |
| Plate Material | Aluminum |
| Battery | 4000 mAh |
| MCU | ARM Cortex-M4 32-bit STM32F402RC (256KB Flash) |
| Keyboard Weight | 2187 g ±10g (assembled) |
| Keyboard Dimensions | 408.05 x 144.8 x 31.8 mm (back height w/o keycaps) |

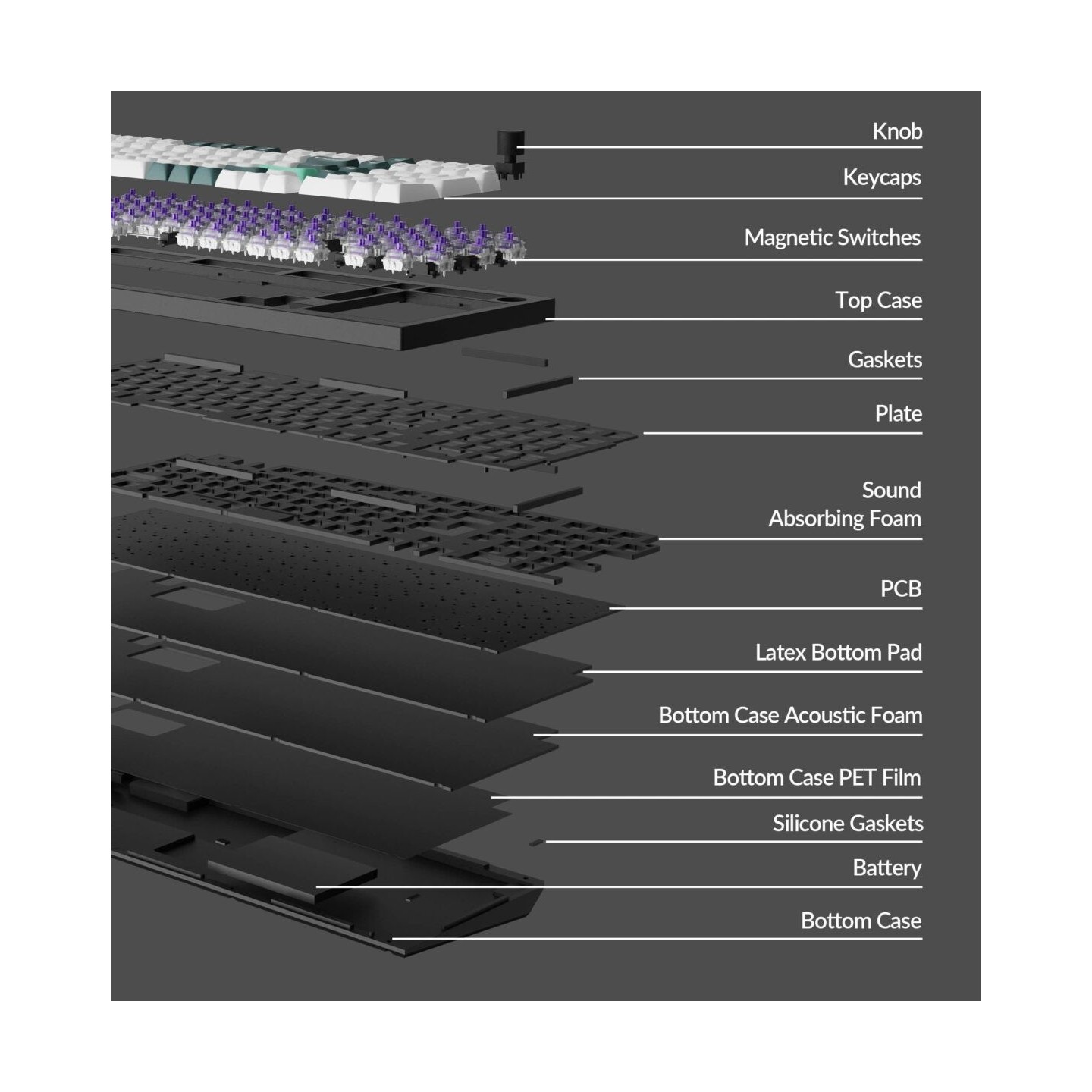

| Mount Style | Double-Gasket |
