Keychron Q4 HE QMK Wireless Hall Effect Keyboard 60% US - Q4H-C1 (Boxed)
Keychron Q4 HE is a premium 60% wireless QMK gaming keyboard with Gateron magnetic Hall Effect switches. Features adjustable actuation (0.2-3.8mm), Rapid Trigger, 1000Hz polling, 2.4GHz/Bluetooth, per-key south-facing RGB, and aluminum gasket mount design.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Keyboards - Device Type | Gaming Keyboard |
|---|---|
| Keyboards - Special Features | Hot Swappable Programmable Keys |
| Keyboards - Form Factor | Compact (60% / 65% / 75%) |
| Keyboards - Key Layout | US |
| Keyboards - Switch Type | Hall-Effect Magnetic |
| Keyboards - Connection | Bluetooth Wireless RF (USB Dongle) |
| Keyboards - Backlighting | South-facing RGB |
Meet the Keychron Q4 HE: a fully wireless 60% QMK custom keyboard featuring advanced Gateron Double-Rail Magnetic Hall Effect switches. These switches deliver exceptional gaming performance with adjustable actuation points from 0.2 to 3.8 mm (0.1 mm sensitivity), Dynamic Rapid Trigger for instant key repeat, and 4-in-1 dynamic keystrokes per key based on press depth. Perfect for competitive gaming with lightning-fast 1000 Hz polling in wired and 2.4 GHz modes.
Built with a premium all-aluminum body, double gasket mount, multiple sound-dampening foams, and OSA profile double-shot PBT keycaps for superior typing feel and durability. Connect via 2.4 GHz dongle (1000 Hz), Bluetooth 5.1 (up to 3 devices), or USB-C. Customize everything through the Web Keychron Launcher app: remap keys, set actuation, create macros, and configure Analog Mode for controller-like precision in racing or simulation games. Includes Windows/macOS layout switch and extra keycaps.
Hot-swappable with Keychron-compatible magnetic switches. Powered by 4000 mAh battery for extended use. South-facing per-key RGB backlighting.
- 1x Fully Assembled Keyboard with Gateron Magnetic Switches
- 1x Type-C Cable + Adapters
- 1x 2.4 GHz Receiver
- 1x Keycap/Switch Puller, Screwdriver, Hex Key
- 4x Gaskets
| Layout | 60% US ANSI |

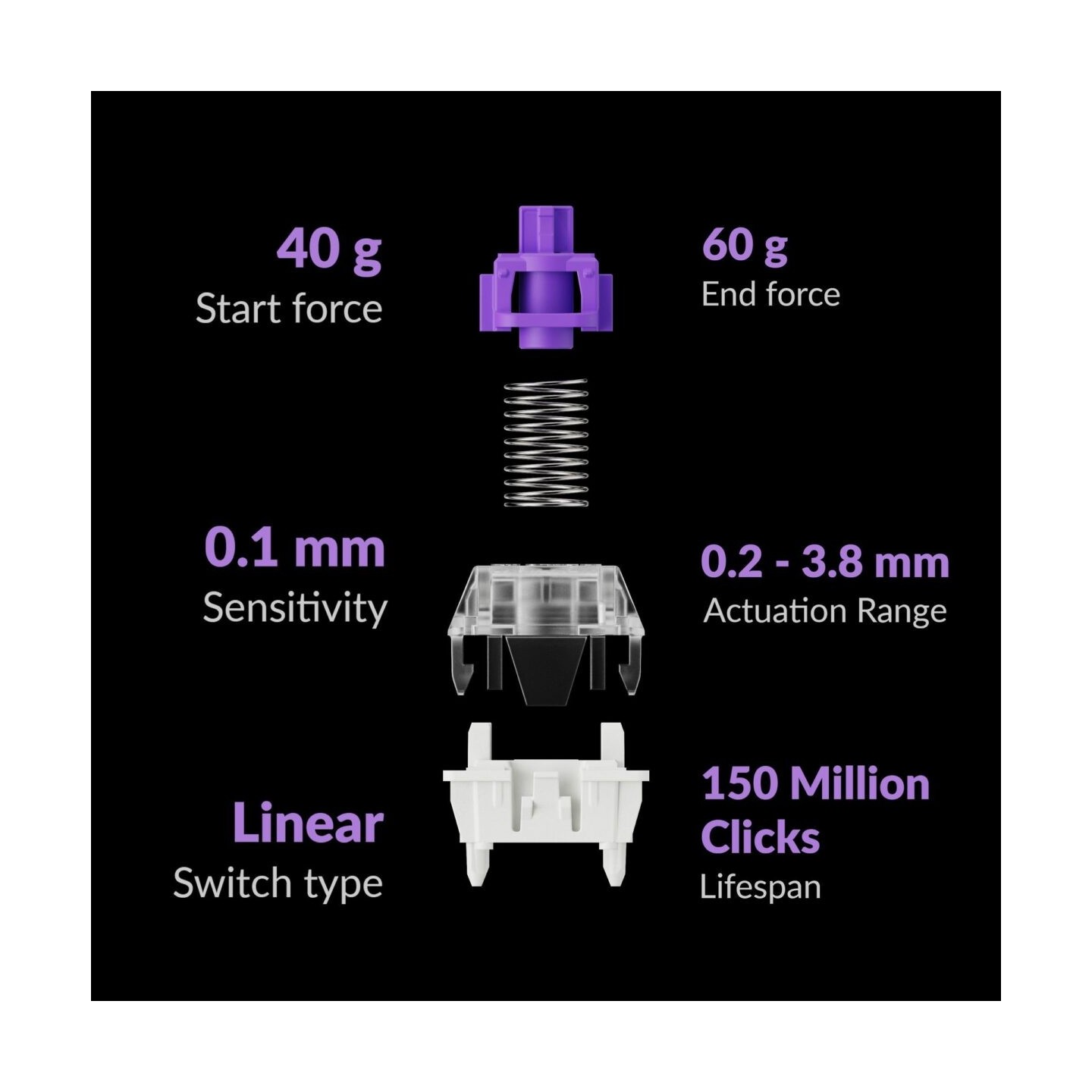

| Switches | Gateron Double-Rail Magnetic Hall Effect (Purple/Nebula) |
| Actuation Range | 0.2 - 3.8 mm (0.1 mm sensitivity) |
| Polling Rate | 1000 Hz (Wired/2.4 GHz), 90 Hz (Bluetooth) |
| Connectivity | 2.4 GHz, Bluetooth 5.1, USB-C |
| Battery | 4000 mAh |

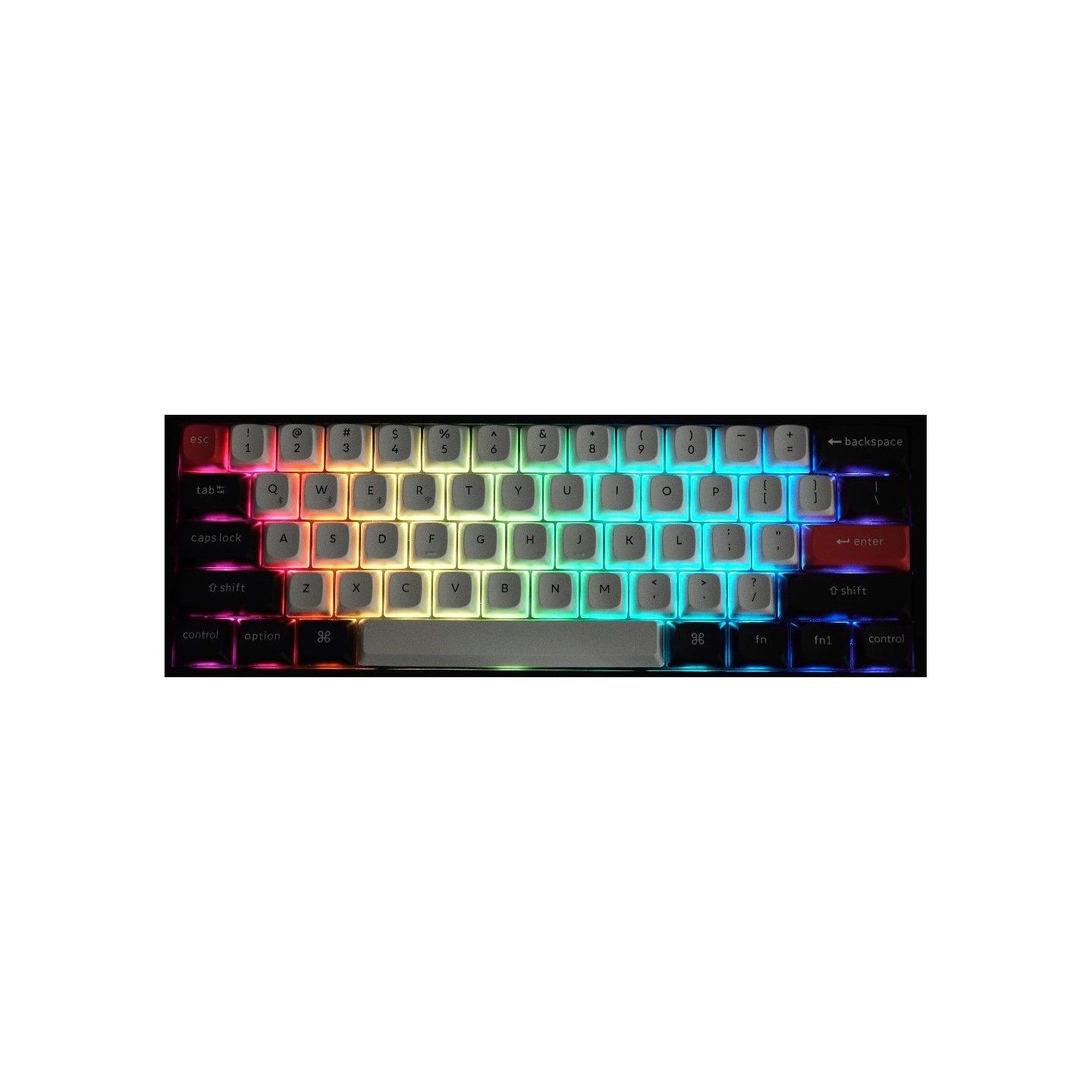

| Backlighting | South-facing Per-Key RGB |
| Keycaps | OSA Double-shot PBT |
| Body Material | Aluminum |
| Mount | Double Gasket Mount |
| N-Key Rollover | Yes (wired & wireless) |
| Hot Swappable | Yes (magnetic Hall Effect) |
| Weight (assembled) | 1415 g ±10 g |
| Dimensions (keyboard) | 121 x 303.7 x 23.71 mm |
| MCU | ARM Cortex-M4 32-bit STM32F402RC |
