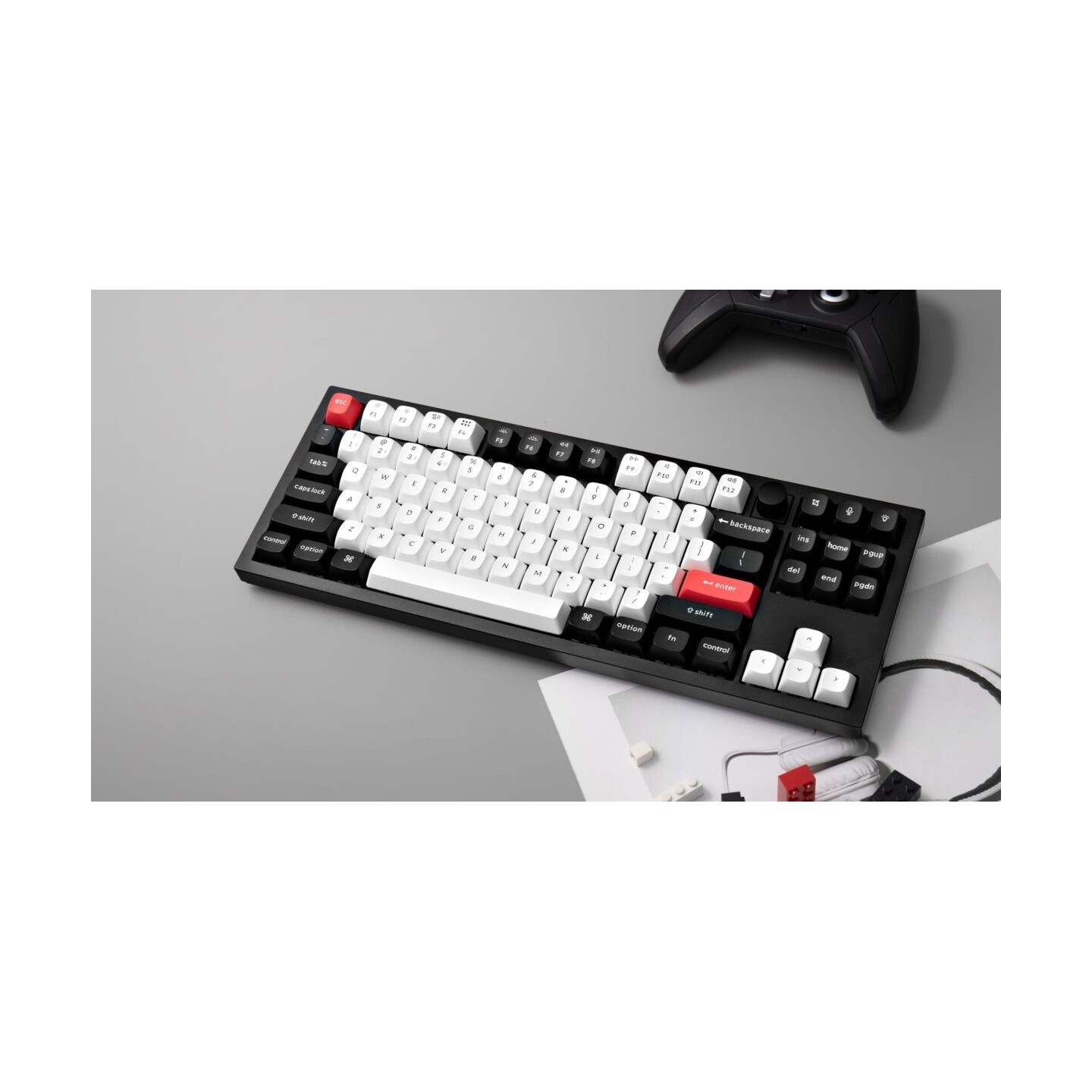

Keychron Q3 HE Q3H-M1 Wireless Hall Effect Keyboard Purple 80% US (Boxed)
Keychron Q3 HE Q3H-M1: Wireless QMK 80% TKL keyboard with Gateron 2.0 Purple Hall Effect magnetic switches. Features adjustable actuation (0.2-3.8mm), rapid trigger, 1000Hz polling, RGB, aluminum body.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Keyboards - Device Type | Gaming Keyboard |
|---|---|
| Keyboards - Special Features | Hot Swappable Programmable Keys |
| Keyboards - Form Factor | Tenkeyless (TKL / 80%) |
| Keyboards - Key Layout | US |
| Keyboards - Switch Type | Hall-Effect Magnetic |
| Keyboards - Connection | Bluetooth Wireless RF (USB Dongle) |
| Keyboards - Backlighting | South-facing RGB |

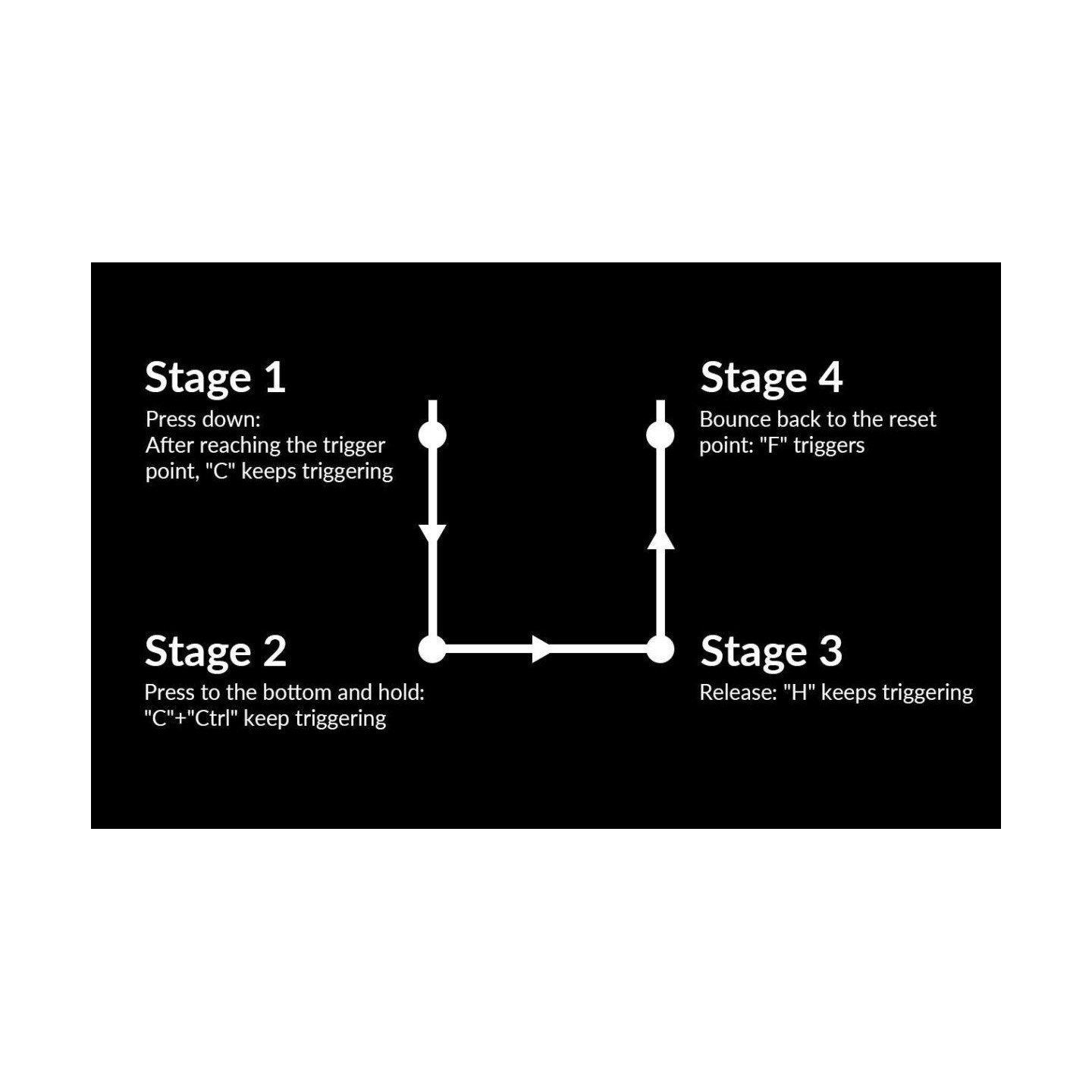

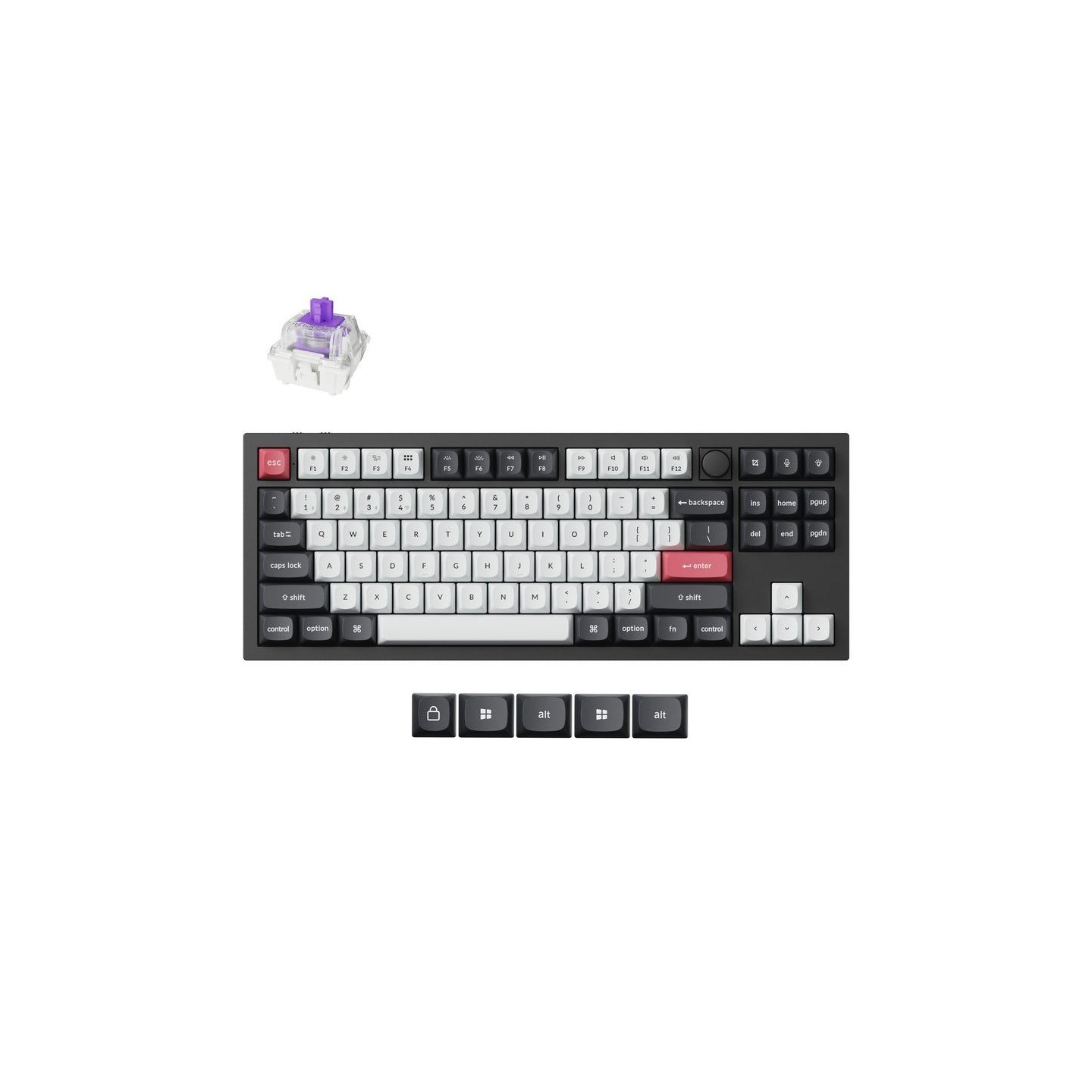

Keychron Q3 HE Q3H-M1 is a premium wireless QMK custom keyboard in 80% TKL layout, featuring Gateron 2.0 Purple Hall Effect magnetic switches. These switches enable adjustable actuation points from 0.2 to 3.8mm with 0.1mm sensitivity, rapid trigger, and dynamic keystrokes supporting 4 actions per key based on press depth.

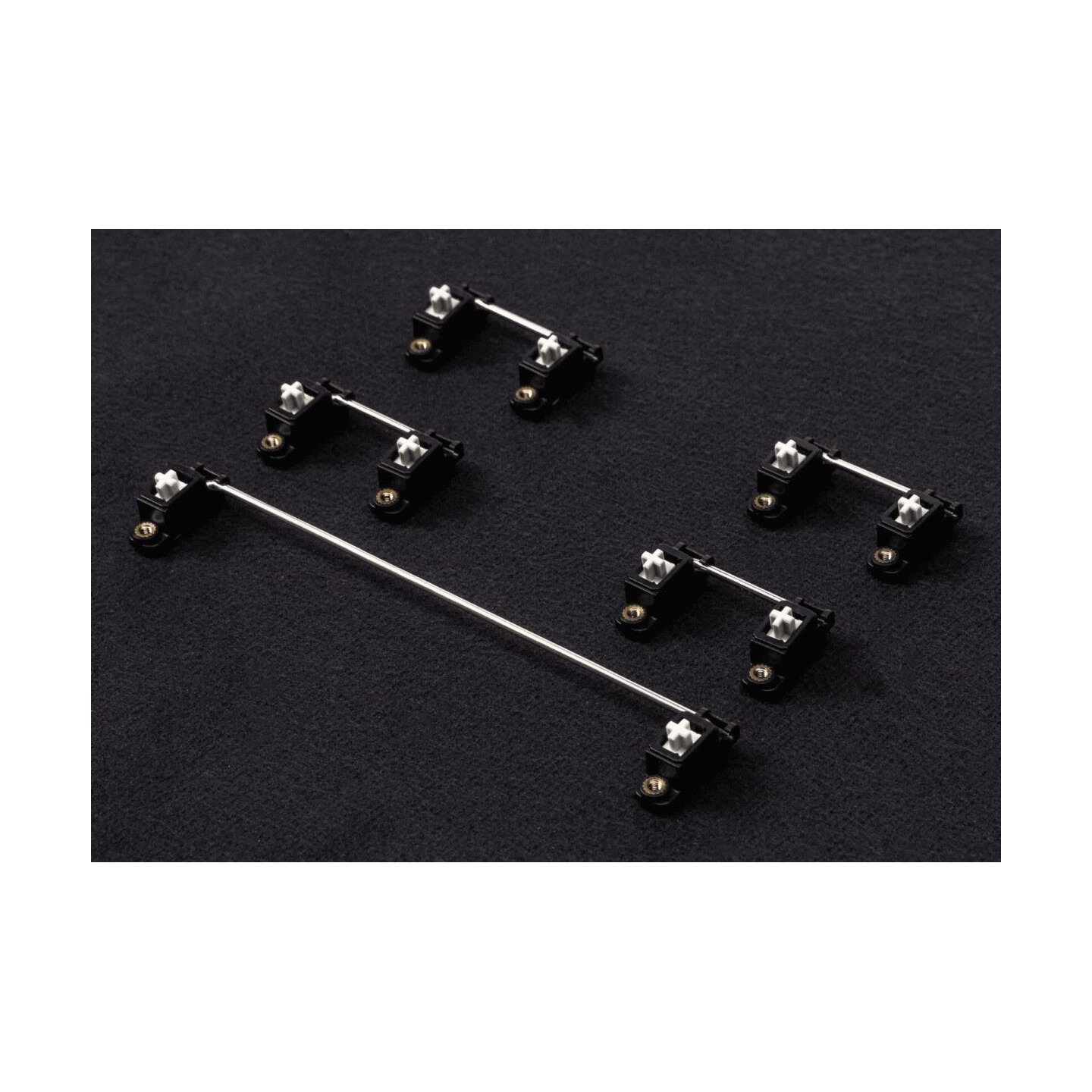

Built with a full aluminum 6063 body, double-gasket design for superior acoustics, south-facing RGB lighting, and hot-swappable magnetic switches (Keychron compatible only). Connect via 2.4GHz (1000Hz polling), Bluetooth 5.2 (3 devices), or wired USB-C. Includes OSA profile double-shot PBT keycaps, screw-in stabilizers, and Web Keychron Launcher for full customization.
Ideal for gaming and typing with NKRO, 4000mAh battery, and Mac/Windows toggle. Weight: 1775g, dimensions: 365 x 137 x 22.6-35.8mm.[1][6]
- Hall Effect switches: Rapid trigger & adjustable actuation
- Connectivity: 2.4GHz, Bluetooth 5.2, USB-C
- Polling: 1000Hz (wired/2.4G), 90Hz (BT)

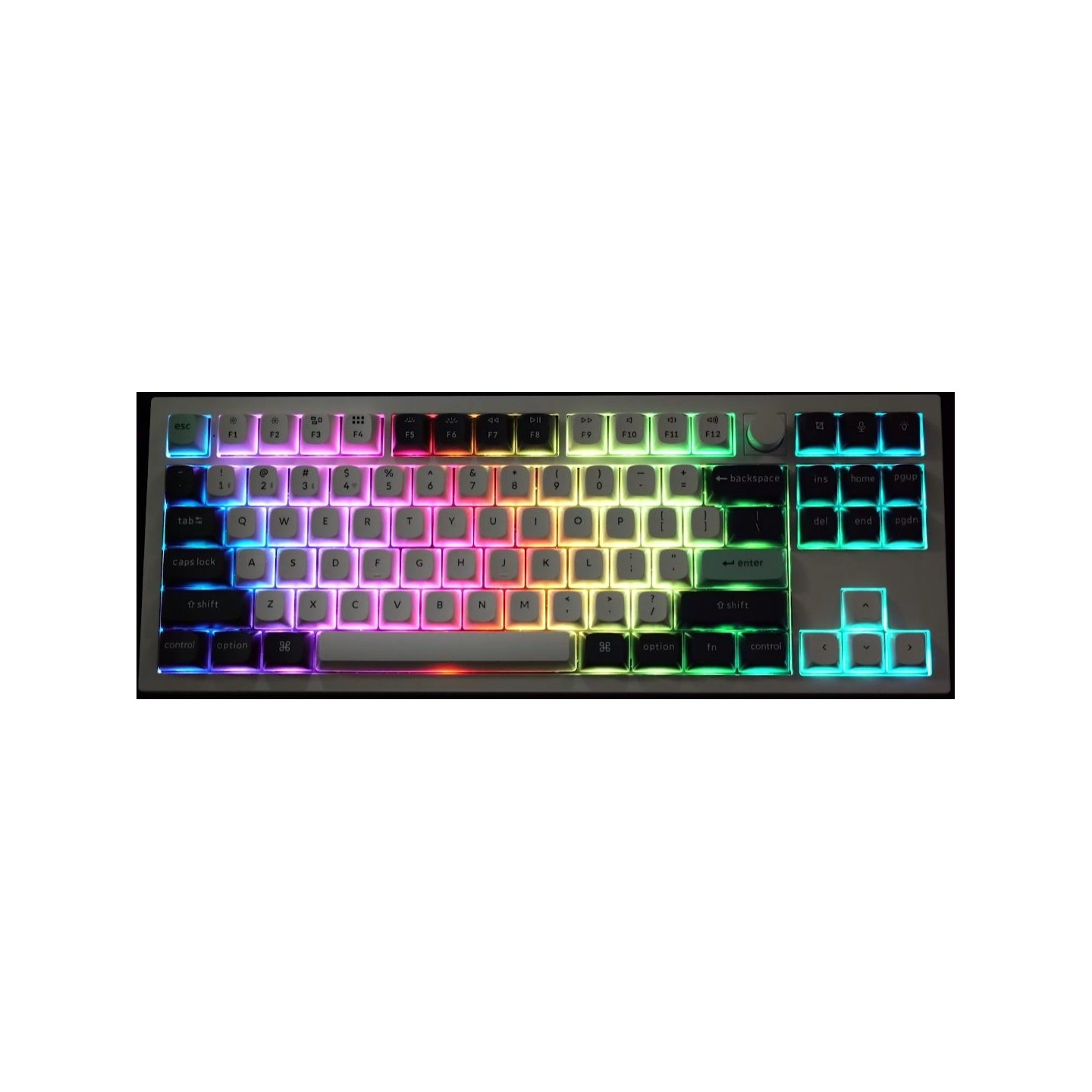

- RGB: South-facing per-key
- Hot-swappable magnetic switches

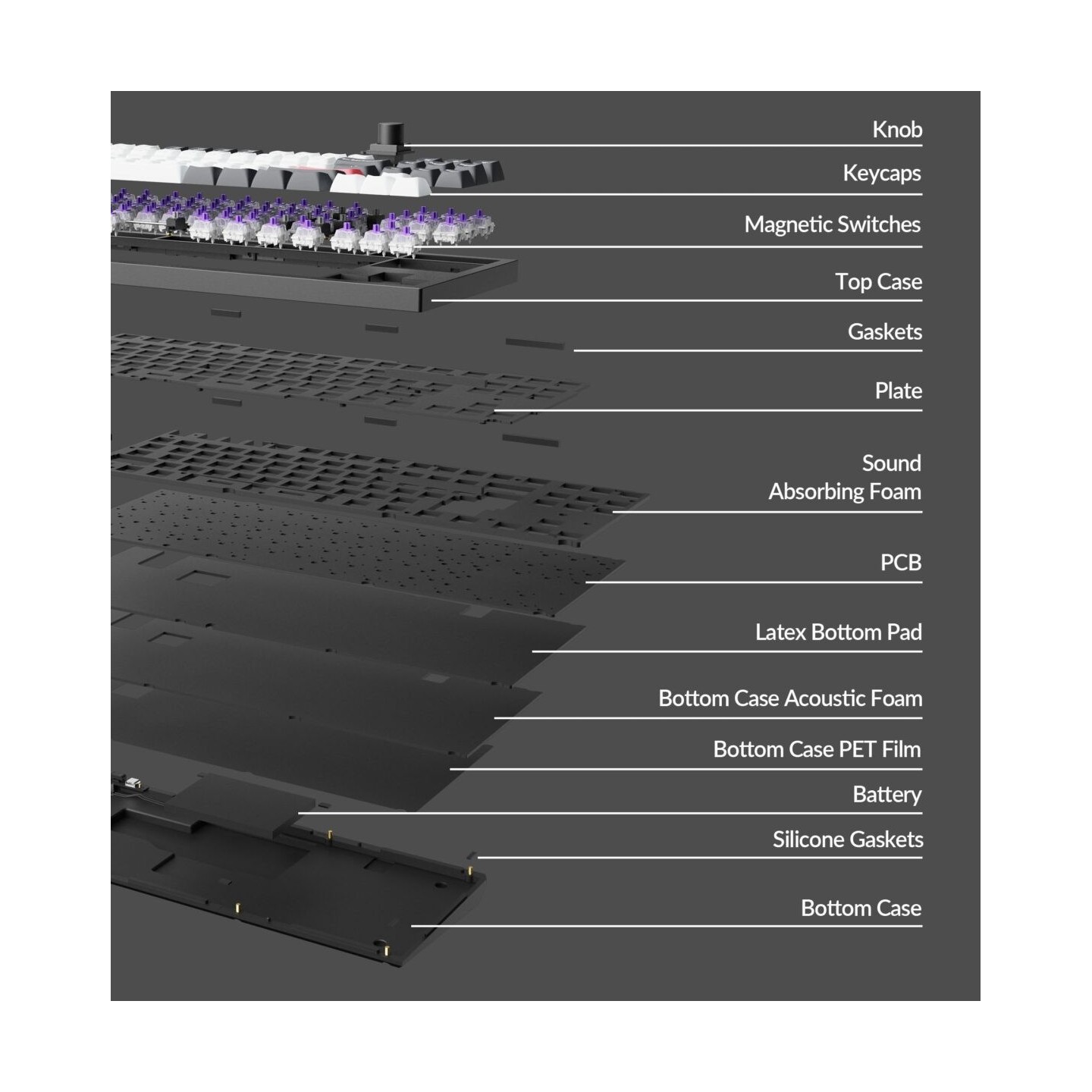

- Double-gasket mount & acoustic foams
- Aluminum frame & plate
- 4000mAh battery
- Includes: Keycaps, switches, cable, tools, 2.4G receiver
| Layout | 80% TKL (Tenkeyless) |

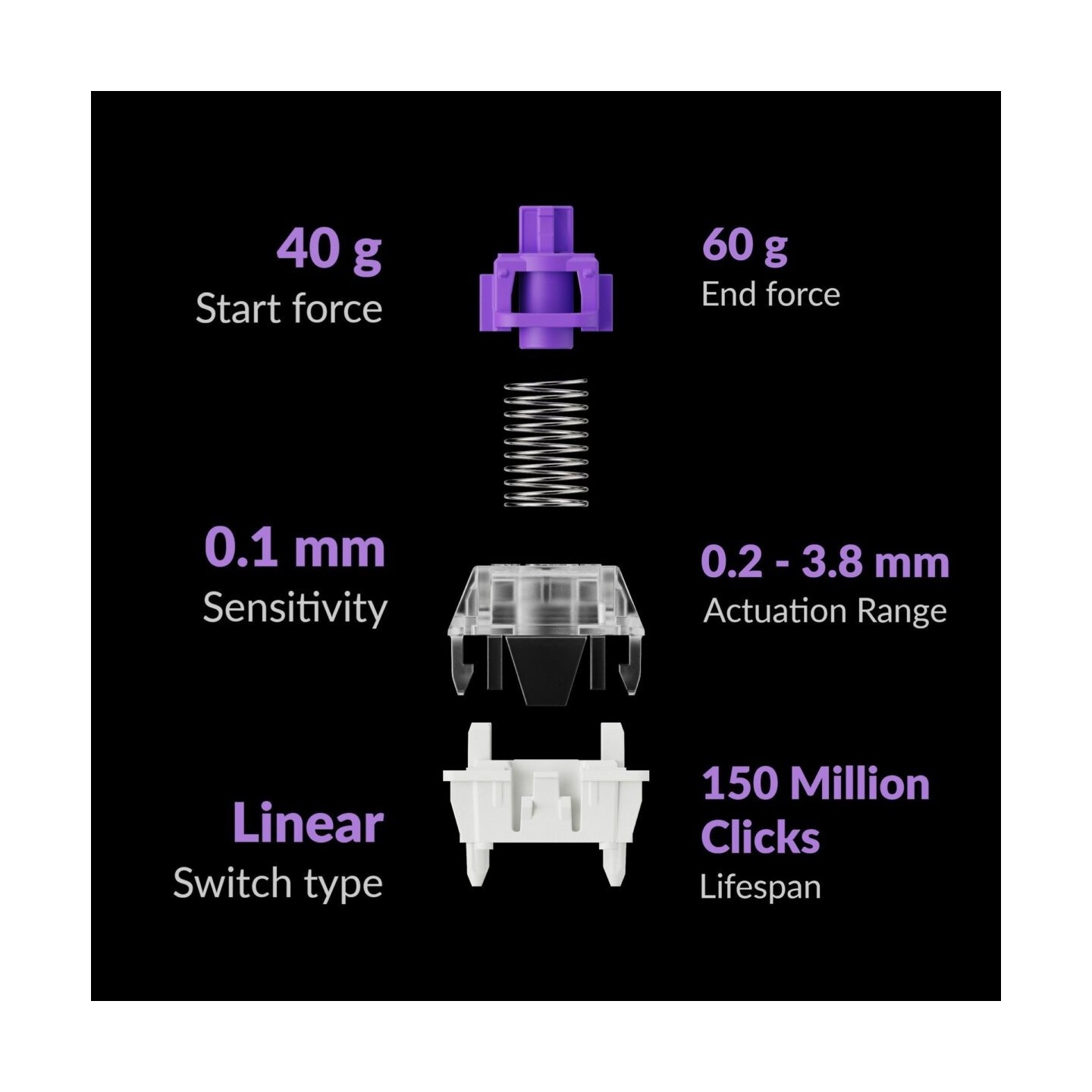

| Switch Type | Gateron 2.0 Purple Hall Effect Magnetic |
| Actuation Range | 0.2 - 3.8 mm |
| Sensitivity | 0.1 mm |
| Polling Rate | 1000 Hz (Wired & 2.4 GHz) / 90 Hz (Bluetooth) |
| N-Key Rollover | Yes (wired & wireless) |
| Rapid Trigger | Yes |
| Dynamic Keystrokes | 4-in-1 action keys |
| Connectivity | USB-C Wired, 2.4 GHz, Bluetooth 5.2 (3 devices) |
| Battery | 4000 mAh |
| Keycaps | OSA Profile Double-shot PBT |
| Backlighting | South-facing RGB |
| Body Material | Aluminum 6063 |
| Plate Material | Aluminum |
| Mount | Double-Gasket |
| MCU | ARM Cortex-M4 32-bit STM32F402 (256KB Flash) |
| Dimensions (Keyboard) | 365 x 137 x 22.6-35.8 mm |
| Weight (Keyboard) | 1775 g ±10 g |
