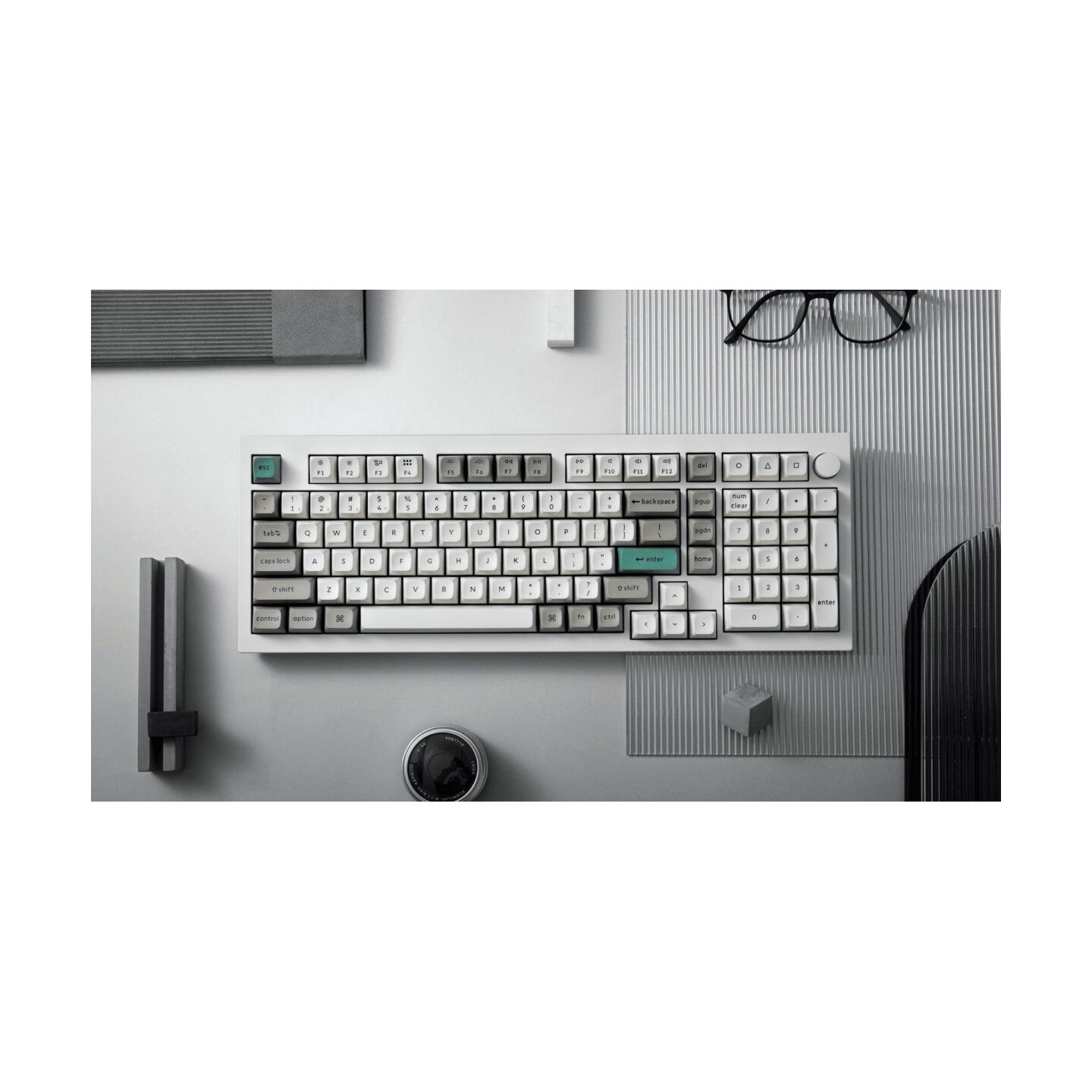

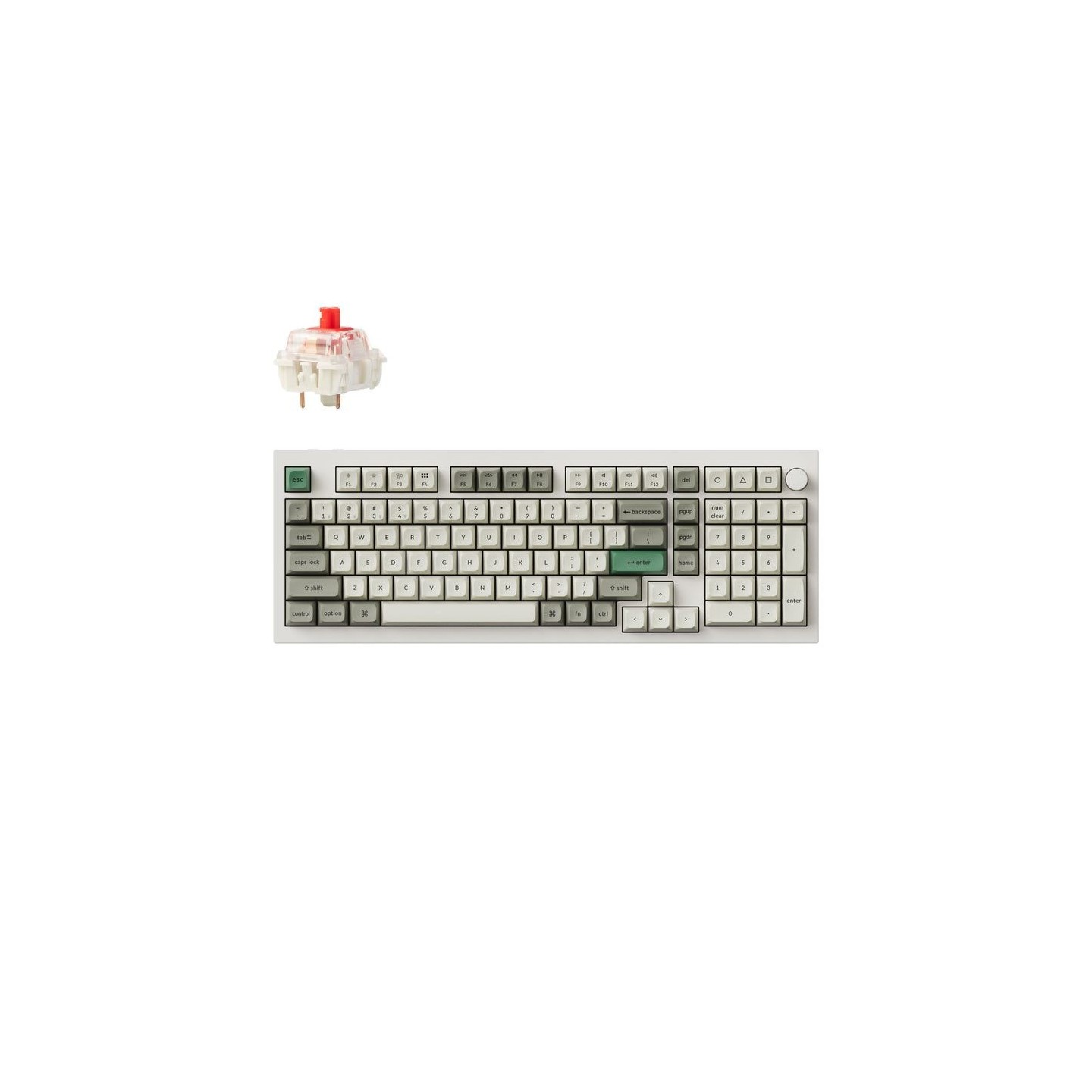

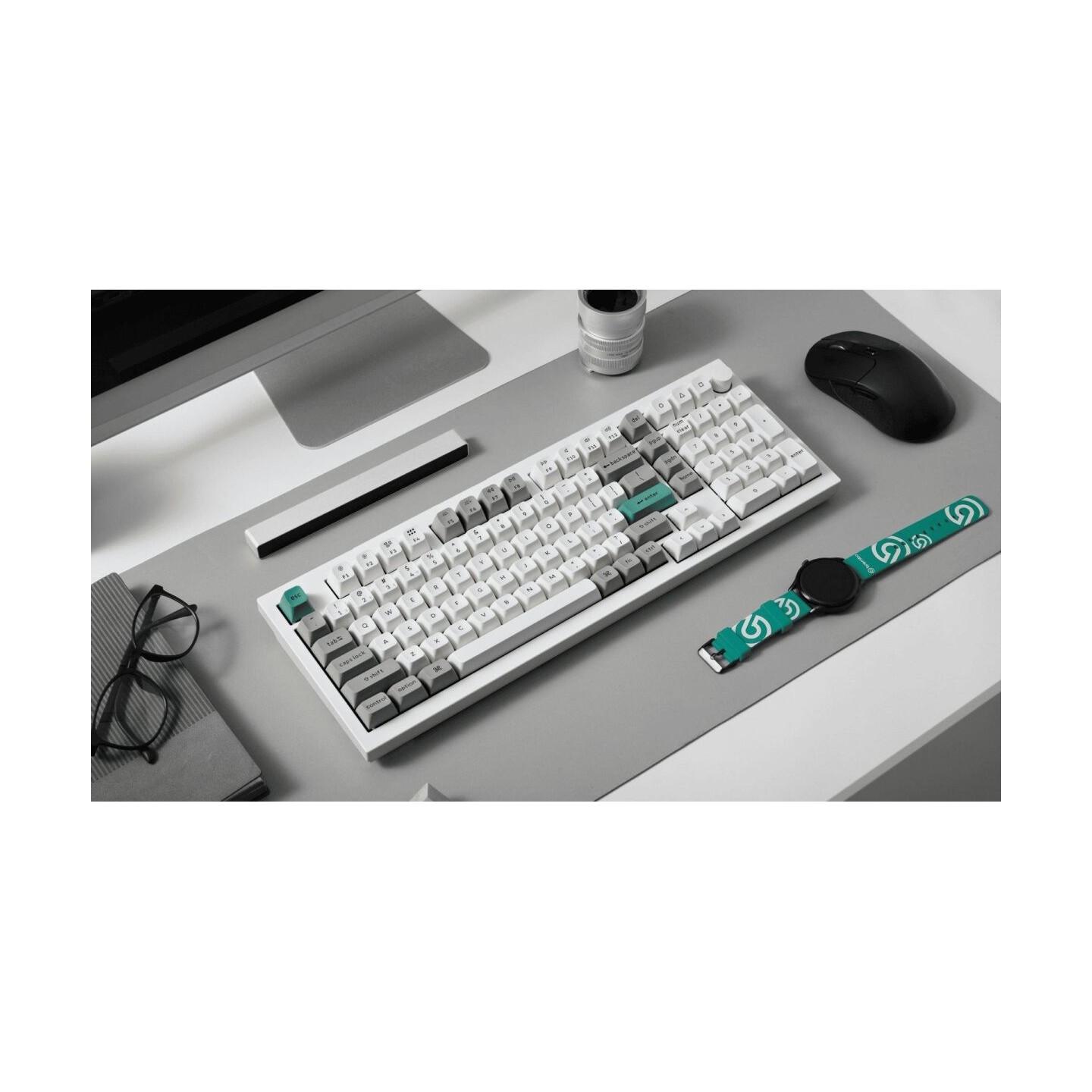

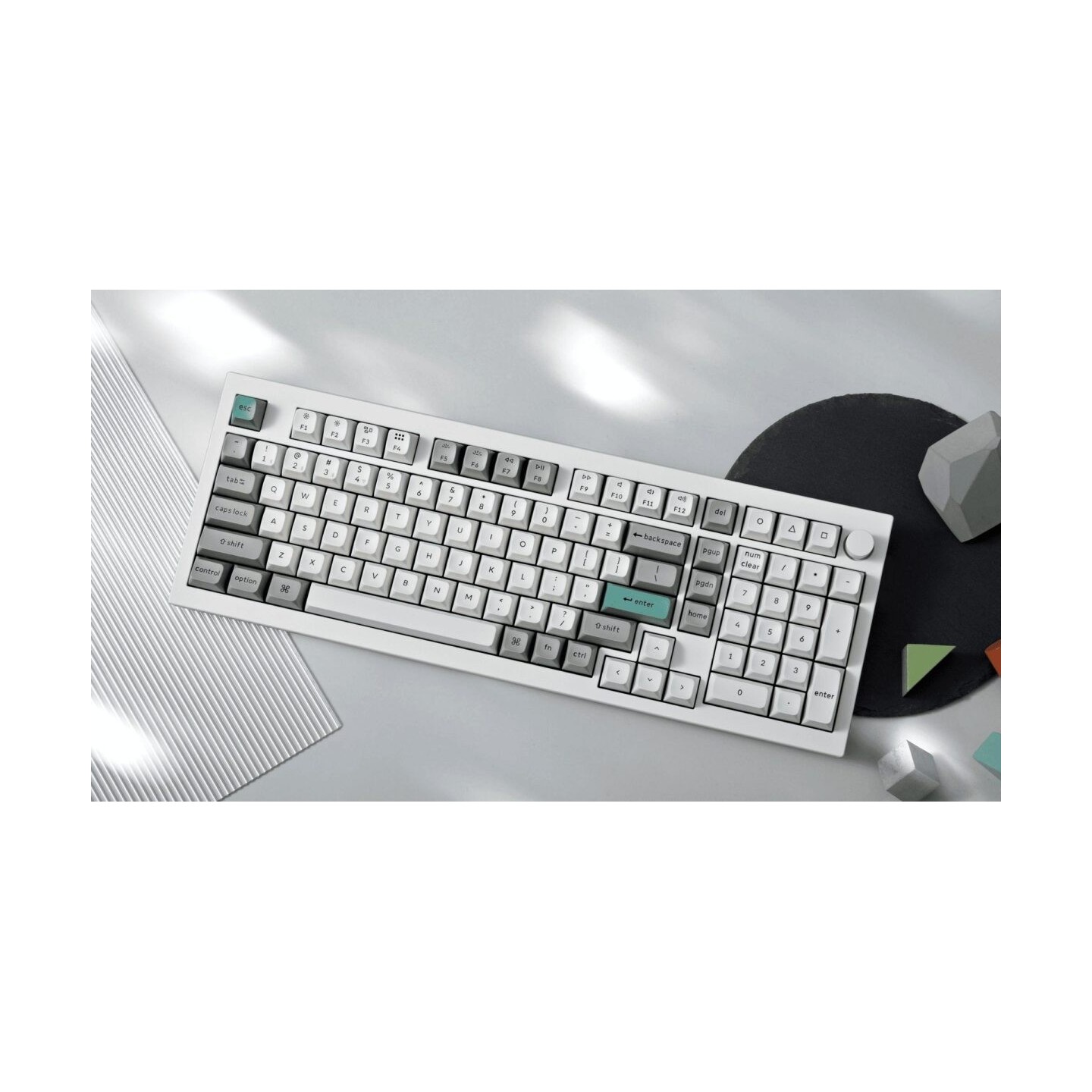

Keychron Q5 Max Q5M-P1 Wireless Mechanical Keyboard White-Red Switch 96% US (Boxed)
Keychron Q5 Max: full metal wireless QMK/VIA mechanical keyboard with 2.4GHz 1000Hz, Bluetooth 5.1, Gateron Jupiter Red switches, south-facing RGB, PBT OSA keycaps, hot-swappable, 96% US layout, white case.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Keyboards - Device Type | Gaming Keyboard Office Keyboard |
|---|---|
| Keyboards - Special Features | Hot Swappable Programmable Keys |
| Keyboards - Form Factor | Full Size (100% / 96%) |
| Keyboards - Key Layout | US |
| Keyboards - Switch Type | Mechanical - Linear |
| Keyboards - Connection | Bluetooth Wired (USB) Wireless RF (USB Dongle) |
| Keyboards - Backlighting | South-facing RGB |
Meet the Keychron Q5 Max, a fully metal wireless custom mechanical keyboard upgraded with 2.4 GHz connectivity at 1000 Hz polling rate for low-latency gaming and typing. It features Bluetooth 5.1 for connecting to three devices, QMK/VIA programmability, and a powerful ARM Cortex-M4 MCU with 256KB Flash for endless customization.

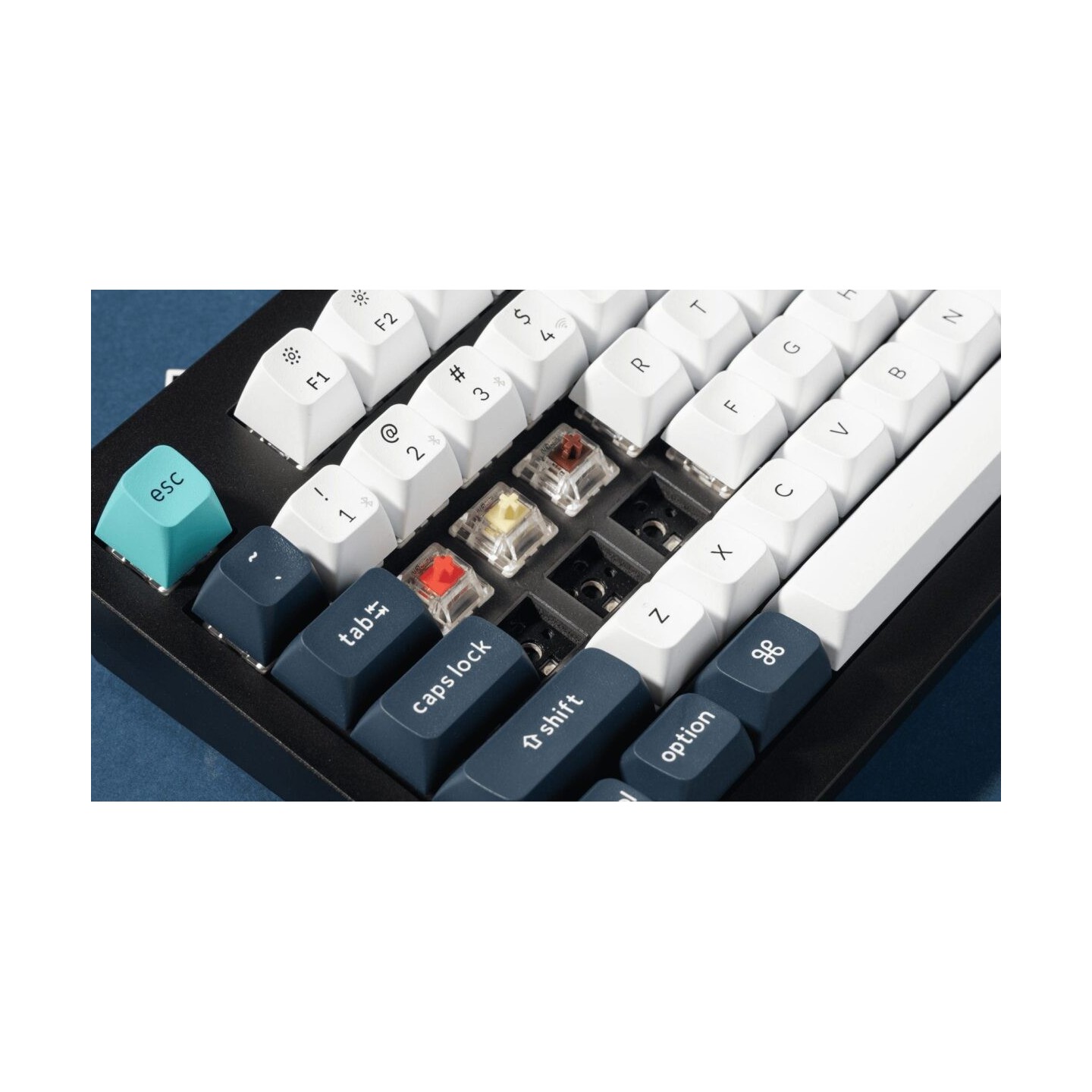

Crafted with premium PBT Double Shot OSA-profile keycaps (non-shine-through), Gateron Jupiter Red linear switches (pre-lubed, 80M lifespan), double gasket mounting, multiple acoustic foams (IXPE, PET, Latex), and screw-in stabilizers for exceptional sound and feel. The aluminum CNC body includes south-facing RGB lighting with 22 effects, hot-swappable PCB for 3/5-pin MX switches, and Mac/Windows layout switching.
- ∘ 96% compact layout (84 keys + 13 Fn)
- ∘ Wireless: 2.4GHz dongle (1000Hz), Bluetooth (90Hz), USB-C wired
- ∘ Battery: ~4000mAh (180hrs no backlight)
- ∘ Full accessories: foams, gaskets, tools, cables
- ∘ N-Key Rollover, multi-OS compatible
| Layout | 96% / 1800 (US ANSI) |
| Switches | Gateron Jupiter Red (Linear, pre-lubed, 80M cycles) |
| Keycaps | PBT Double Shot OSA Profile (non-shine-through) |
| Connectivity | 2.4 GHz (1000 Hz), Bluetooth 5.1 (90 Hz), USB-C Wired (1000 Hz) |
| Polling Rate | 1000 Hz (2.4GHz/Wired) / 90 Hz (BT) |
| MCU | ARM Cortex-M4 32-bit STM32F402 (256KB Flash) |
| Backlight | South-facing RGB, 22 effects |
| Hot-swappable | Yes (3/5 pin MX) |
| Battery Capacity | 4000 mAh |
| Battery Life | 180 hours (backlight off) / 100 hours (backlight on) |
| Dimensions (Keyboard) | 390.4 x 145 x 33.4 mm (L x W x H, no keycaps) |
| Weight (Keyboard) | 2.31 kg (fully assembled, ±10g) |
| N-Key Rollover | Yes (wired & wireless) |
| Mounting Style | Double Gasket |
| Compatibility | Mac / Windows / iOS / Android |
