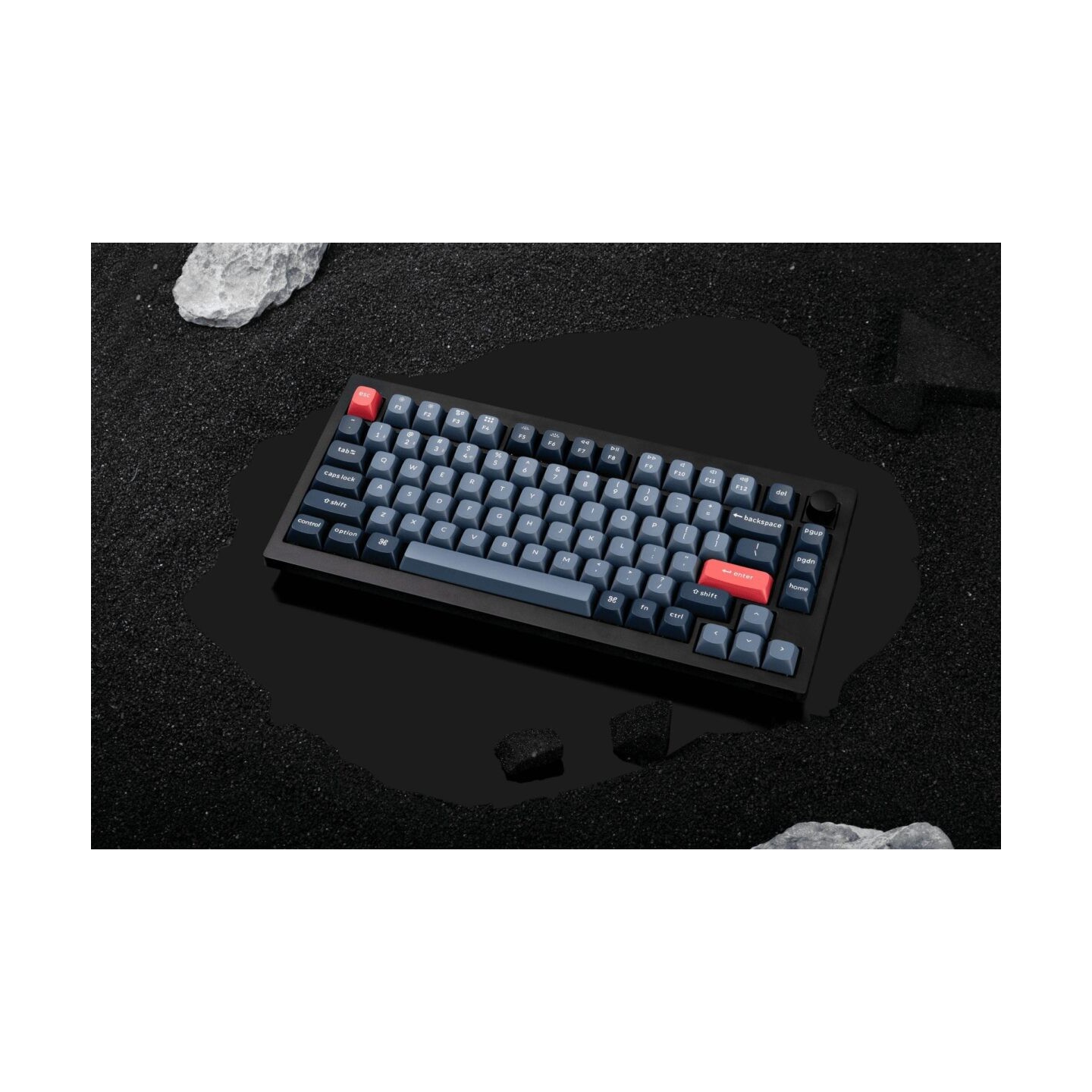

Keychron V1 Max V1M-D3 QMK/VIA Wireless Mechanical Keyboard 75% Brown Switch RGB (Boxed)
Fully customizable Keychron V1 Max 75% wireless mechanical keyboard with QMK/VIA support, 2.4GHz RF and Bluetooth 5.1, gasket mount design, Gateron Jupiter Brown tactile switches, south-facing RGB LED, and hot-swappable construction.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Keyboards - Device Type | Gaming Keyboard |
|---|---|
| Keyboards - Special Features | Hot Swappable Programmable Keys |
| Keyboards - Form Factor | Compact (60% / 65% / 75%) |
| Keyboards - Key Layout | US |
| Keyboards - Switch Type | Mechanical - Tactile |
| Keyboards - Connection | Bluetooth Wired (USB) Wireless RF (USB Dongle) |
| Keyboards - Backlighting | South-facing RGB |

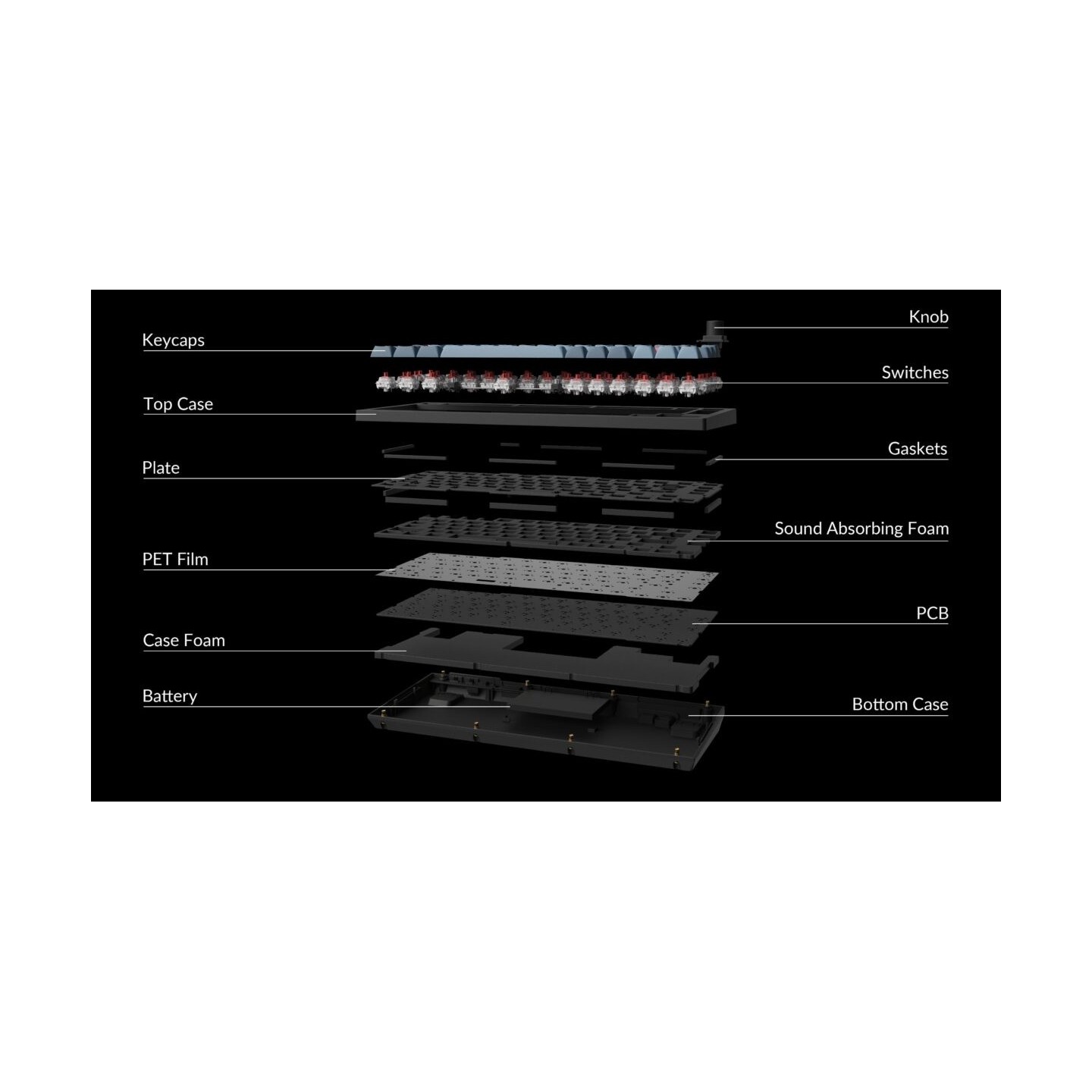

Keychron V1 Max is a fully customizable 75% compact mechanical keyboard delivering premium wireless connectivity and gaming performance. Featuring dual wireless modes—2.4GHz RF with 1000Hz polling rate for competitive gaming and Bluetooth 5.1 for seamless multitasking across three devices—the V1 Max combines versatility with precision. The gasket mount design with polycarbonate plate and sound-absorbing foam provides a softer, quieter typing experience with enhanced flexibility.
Built with Gateron Jupiter Brown tactile switches (80 million keystroke lifespan, 55g actuation force, 4mm travel), the keyboard delivers reliable tactile feedback for both productivity and gaming. The ARM architecture MCU with 256KB Flash enables extensive customization through open-source QMK firmware and the Keychron Launcher web application. Double-shot PBT keycaps with OSA profile resist oil and prevent legend fading, while south-facing RGB LED backlighting illuminates keys without interference from aftermarket keycaps. Hot-swappable sockets support both 3-pin and 5-pin mechanical switches, and screw-in PCB stabilizers minimize wobble on larger keys.
The 4000mAh rechargeable battery provides up to 190 hours of wireless use with backlighting off or 100 hours with RGB at lowest brightness. Designed with Mac users in mind while maintaining full Windows compatibility, the keyboard includes a system toggle and extra keycaps for both operating systems. USB Type-C connectivity supports both wired and wireless modes with 1000Hz polling rate.
- Dual wireless connectivity: 2.4GHz RF (1000Hz polling) and Bluetooth 5.1 (up to 3 devices)

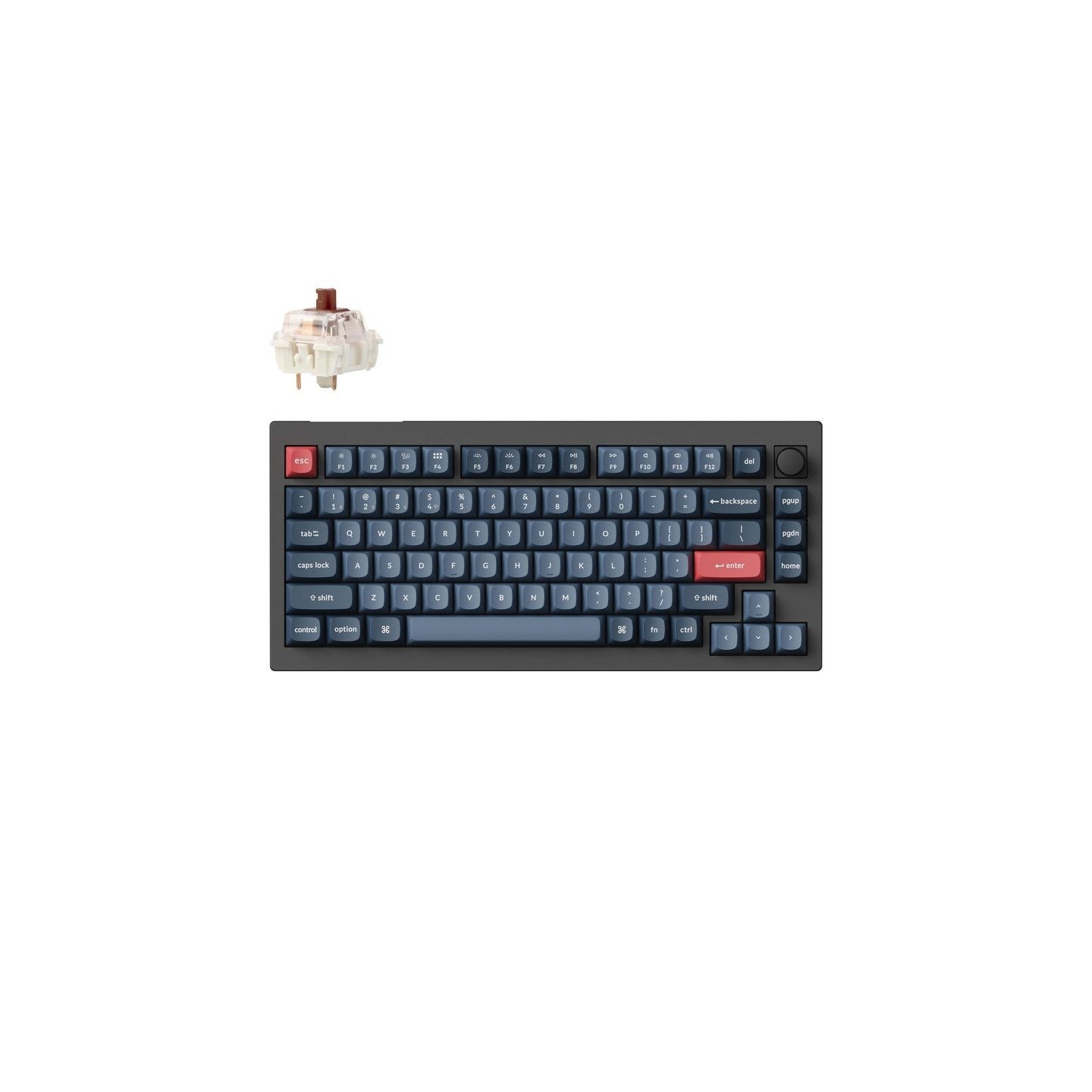

- Gateron Jupiter Brown switches: tactile, 55g actuation, 4mm travel, 80M keystroke lifespan
- Gasket mount design with PC plate and sound-absorbing foam
- Hot-swappable sockets supporting 3-pin and 5-pin mechanical switches
- QMK/VIA programmable with 256KB Flash MCU

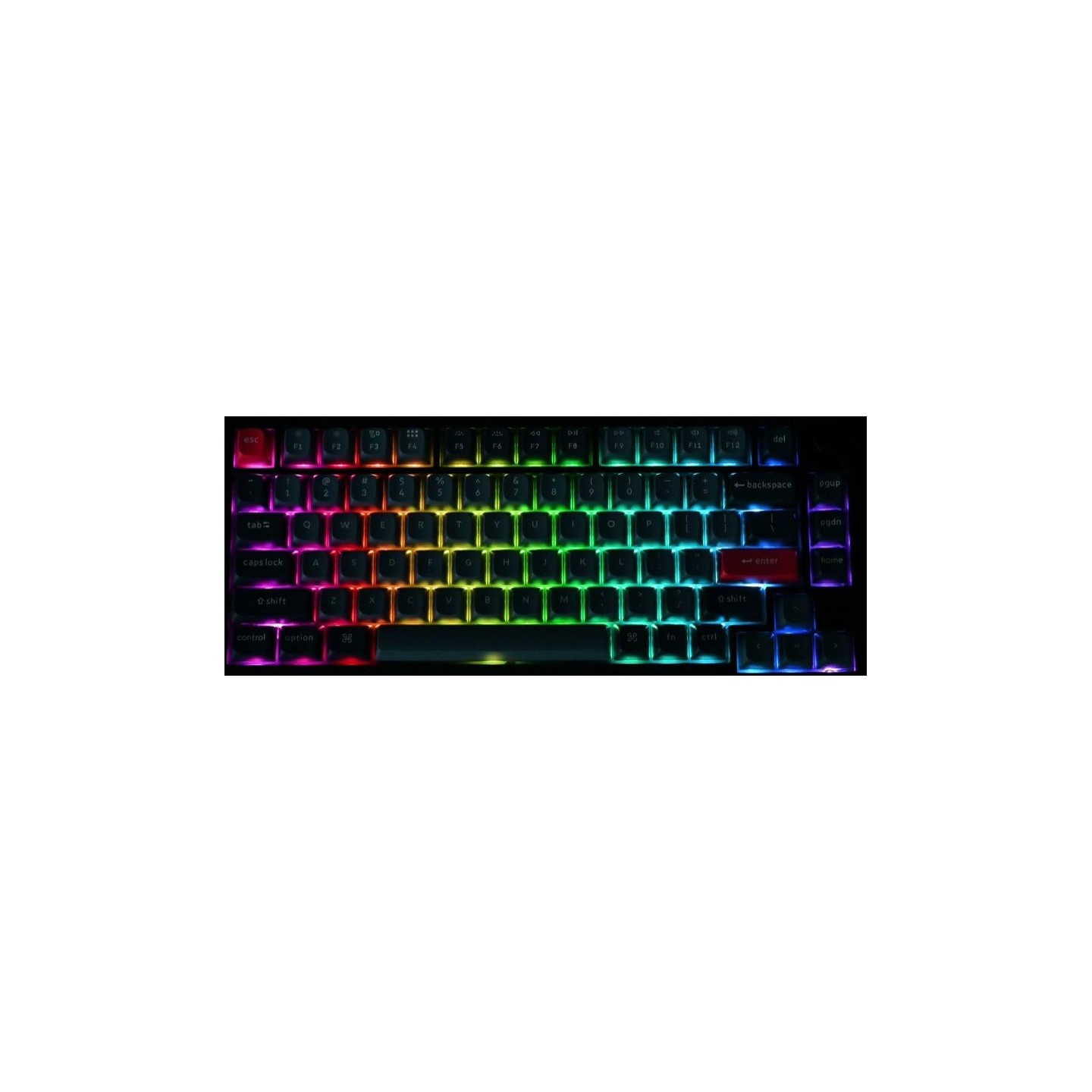

- South-facing RGB LED backlighting with per-key customization
- Double-shot PBT OSA profile keycaps (oil-resistant, fade-resistant)
- Screw-in PCB stabilizers with third-party compatibility
- 4000mAh battery: 190 hours (backlit off), 100 hours (RGB on, minimum brightness)
- Includes dual keycap sets for macOS and Windows layouts
| Model Number | V1M-D3 |
| Form Factor | 75% Compact |
| Layout | US ANSI |
| Keyboard Width | 148.7 mm |
| Switch Type | Gateron Jupiter Brown (Tactile) |
| Actuation Force | 55 g |
| Key Travel Distance | 4 mm |
| Switch Lifespan | 80 million keystrokes |
| Hot-Swappable | Yes (3-pin and 5-pin MX compatible) |
| Stabilizers | Screw-in PCB stabilizers (third-party compatible) |
| Keycaps | Double-shot PBT, OSA Profile (OEM height, SA shape) |
| Keycap Material | Polybutylene Terephthalate (PBT) |
| Mount Design | Gasket mount with polycarbonate plate |
| Mounting Plate | Polycarbonate (PC) |
| Sound Dampening | Sound-absorbing foam |
| MCU | ARM architecture with 256KB Flash |
| Firmware | QMK/VIA (open-source, fully programmable) |
| Polling Rate (Wireless 2.4GHz) | 1000 Hz |
| Polling Rate (Wired USB) | 1000 Hz |
| Wireless Connectivity (Primary) | 2.4GHz RF with USB dongle |
| Wireless Connectivity (Secondary) | Bluetooth 5.1 (up to 3 devices) |
| Bluetooth Version | 5.1 |
| Wired Connectivity | USB Type-C |
| N-Key Rollover | Yes (NKRO) - both wireless and wired modes |
| Backlighting | South-facing RGB LED (per-key) |
| LED Type | South-facing RGB LED |
| Battery Capacity | 4000 mAh rechargeable Li-polymer |
| Battery Life (Backlit Off) | Up to 190 hours |
| Battery Life (RGB On, Minimum Brightness) | Up to 100 hours |
| Charging Time | Approximately 5 hours |
| Charging Port | USB Type-C |
| Compatible Operating Systems | Windows, macOS, Linux |
| Included Keycap Sets | macOS and Windows layouts |
| System Toggle | Yes (macOS/Windows switching) |
| Included Accessories | Type-C to Type-C cable, Type-A to Type-C adapter, 2x 2.4GHz receivers (Type-A and Type-C), keycap puller, screwdriver, hex key |
| In the Box | Fully assembled keyboard, case, PCB, PC plate, sound-absorbing foam, 4 sets of stabilizers, 1 set of keycaps, 1 set of switches, cables, adapters, receivers, tools |
| EAN13 | 4895248861256 |
