Lian Li RB0650B 650W 80+ Bronze ATX 3.1 PCIe 5.1 12V-2x6 Non-Modular PSU (Retail)
Lian Li RB0650B 650W 80+ Bronze PSU with ATX 3.1, native PCIe Gen5 12V-2x6 (450W), 135mm HYB fan, integrated cable routing for clean builds, 85% efficiency, full protections. Compact 150mm depth.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 600 - 699 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Bronze |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Non-modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 1x 12V-2x6 1x 8/6 pins |
| PSU (Power Supplies) - Length | 141-160 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 2x 4+4pin EPS/ATX12V |
Lian Li RB Series RB0650B delivers reliable 650W power for everyday gaming and creator PCs. Certified 80 PLUS Bronze for up to 85% efficiency, reducing heat and energy costs. Fully ATX 3.1 compliant with native 12V-2x6 PCIe Gen 5.1 connector (up to 450W) for next-gen GPUs like RTX 40 series.

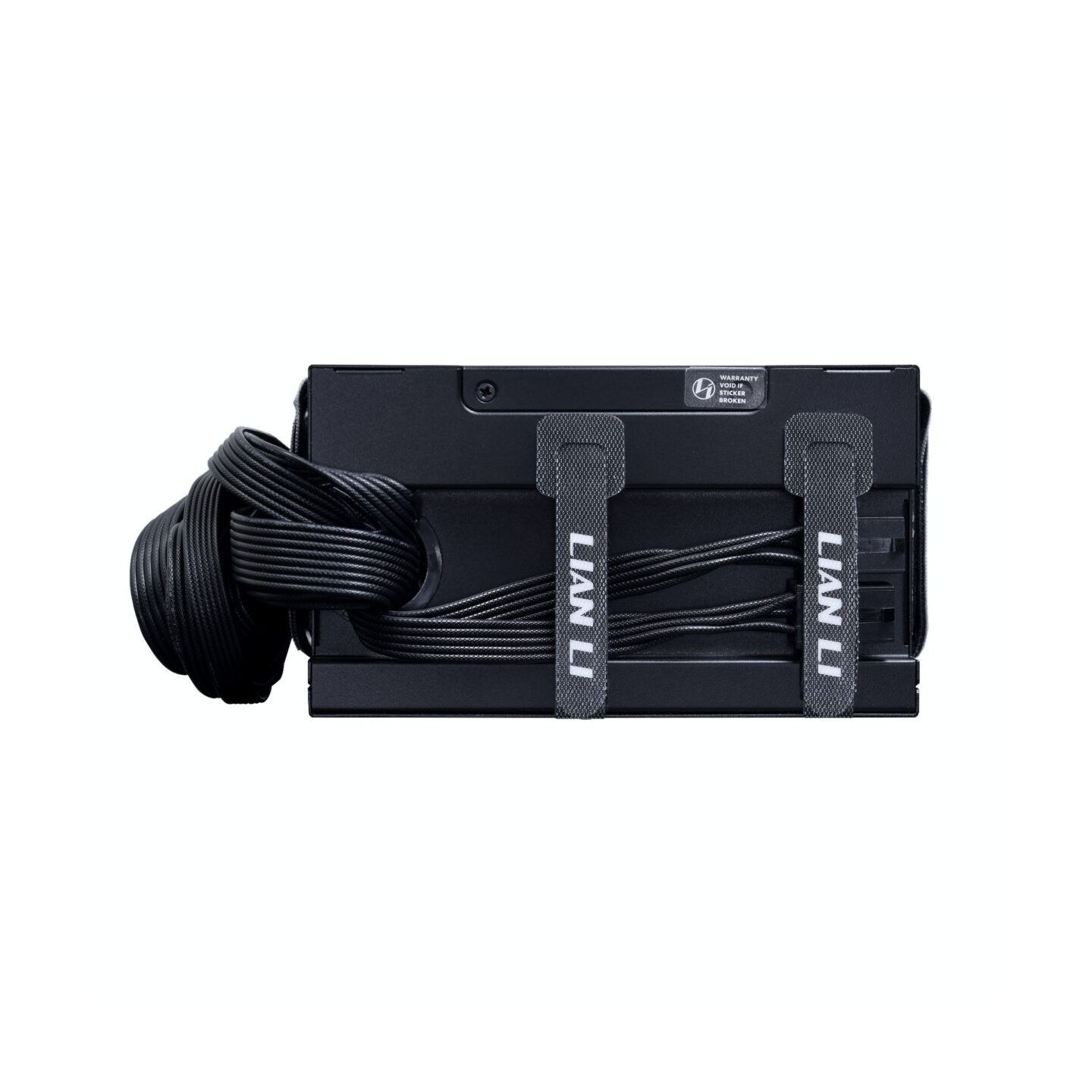

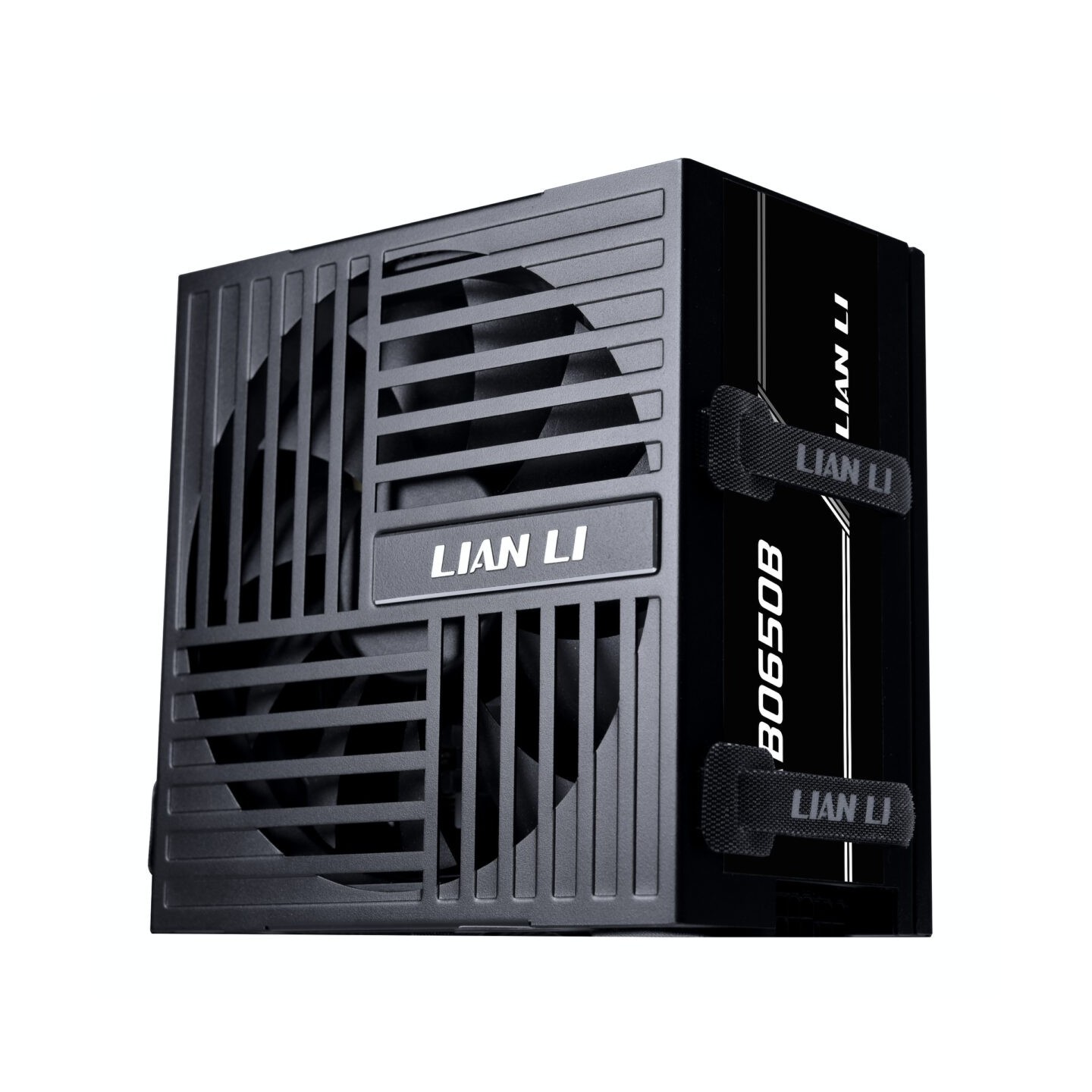

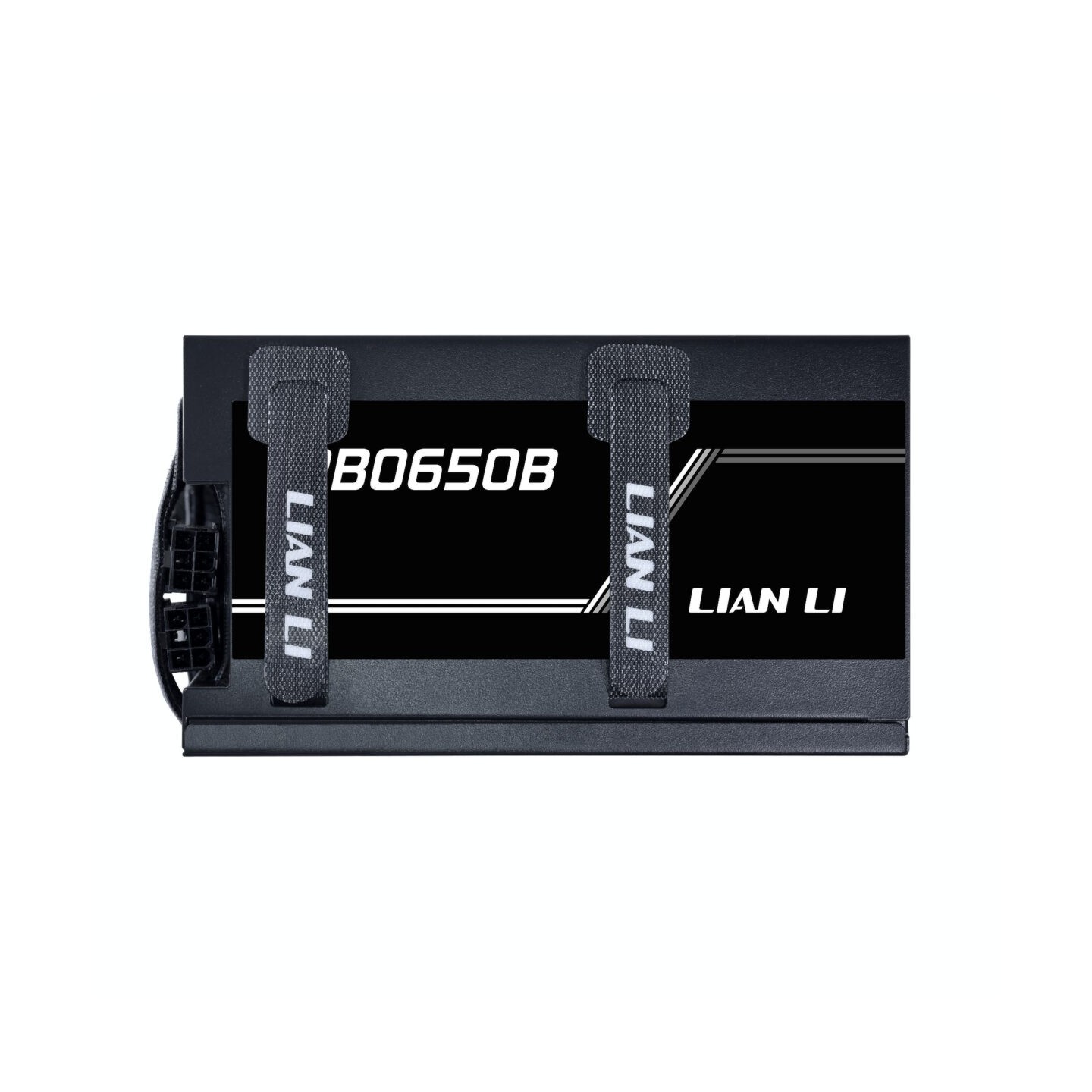

Features a 135mm HYB low-noise fan (1600 RPM max, 39.3 dBA) for superior cooling at lower speeds, single high-amperage +12V rail (649.2W), DC-to-DC design, and premium 105°C Japanese capacitors for stable output up to 40°C. Non-modular with integrated cable management: deep routing channels and Velcro straps on three sides keep builds tidy, improving airflow.

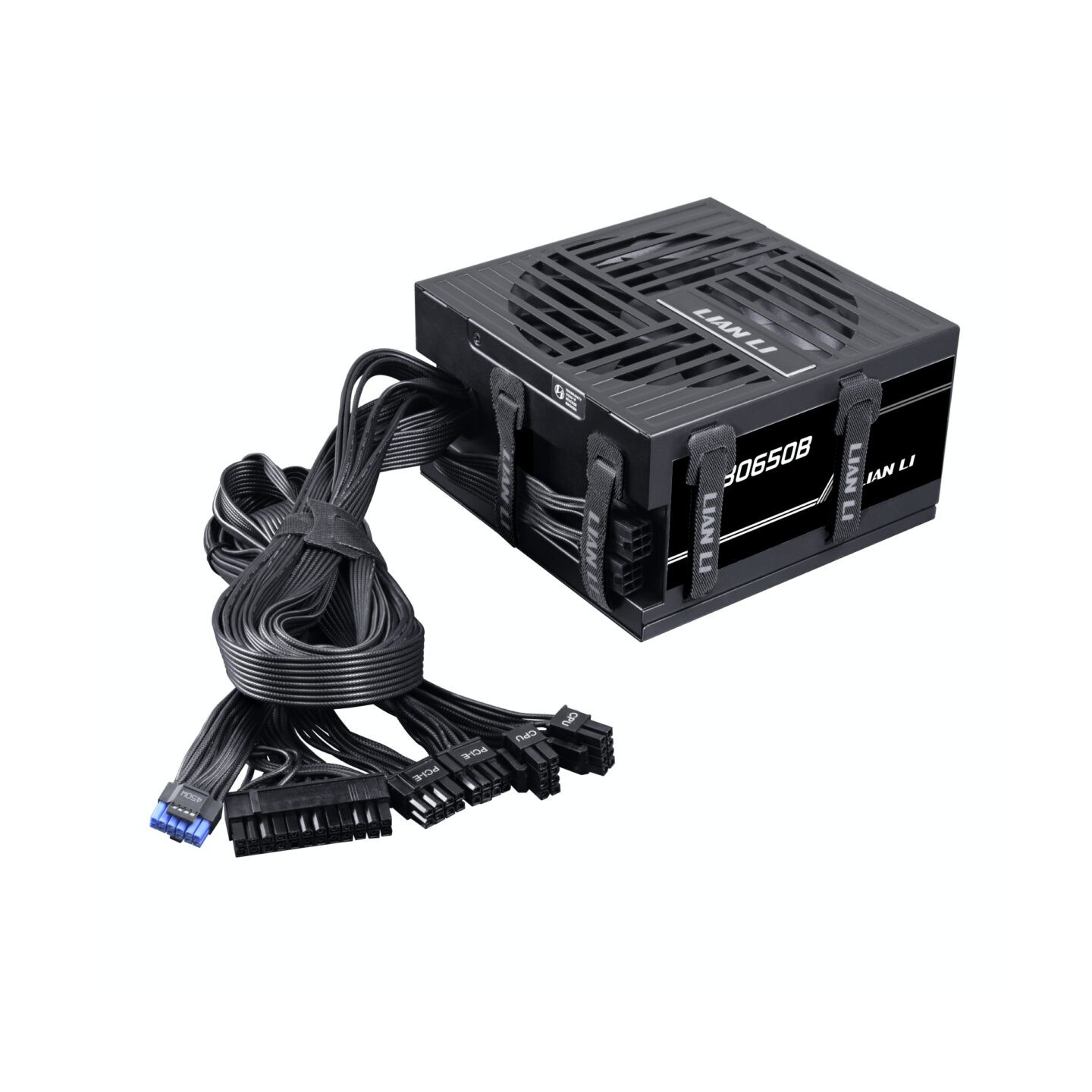

Connectors: 1x 20+4-pin MB, 2x 4+4-pin CPU, 1x 12V-2x6 PCIe, 1x 6+2-pin PCIe, multiple SATA/PERIF. Protections: OPP/OVP/SCP/OCP/UVP/OTP. Compact 150x150x86mm size fits most cases. 5-year warranty.
- ✅ 80+ Bronze, ATX 3.1 & PCIe 5.1 ready
- ✅ Quiet 135mm fan & cable management
- ✅ High-quality components for stability
- ✅ Active PFC, full protections
- ✅ 100,000 hrs MTBF

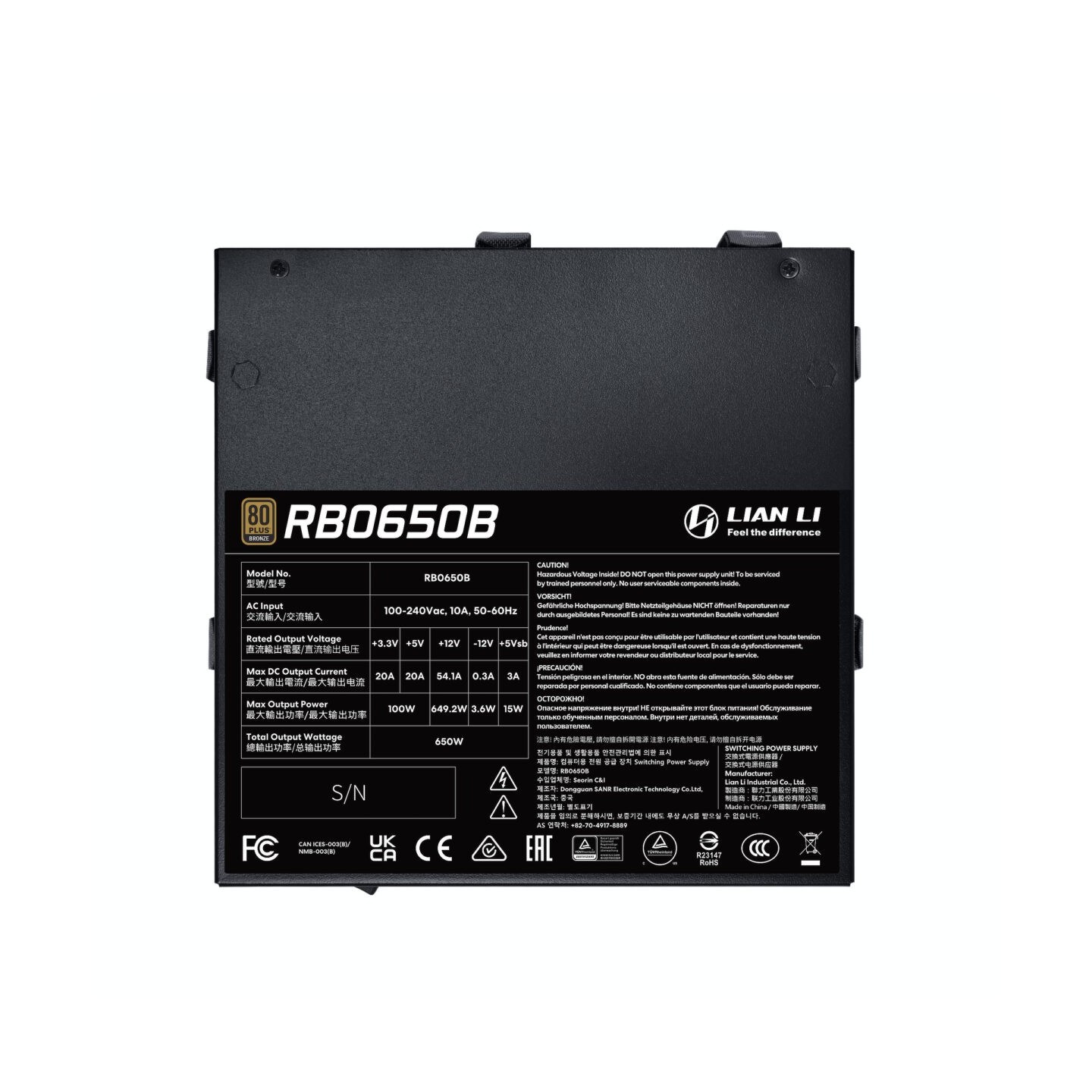

| Model | RB0650B |
| ATX12V Version | ATX 3.1 |
| Efficiency | 80 PLUS Bronze |
| DC Output Cable | Non-Modular |
| Dimensions | (D)150 mm x (W)86 mm x (H)150 mm |
| Color | Black |
| PFC | Active PFC, PF > 0.95 under full load @ 115Vac, 60Hz |

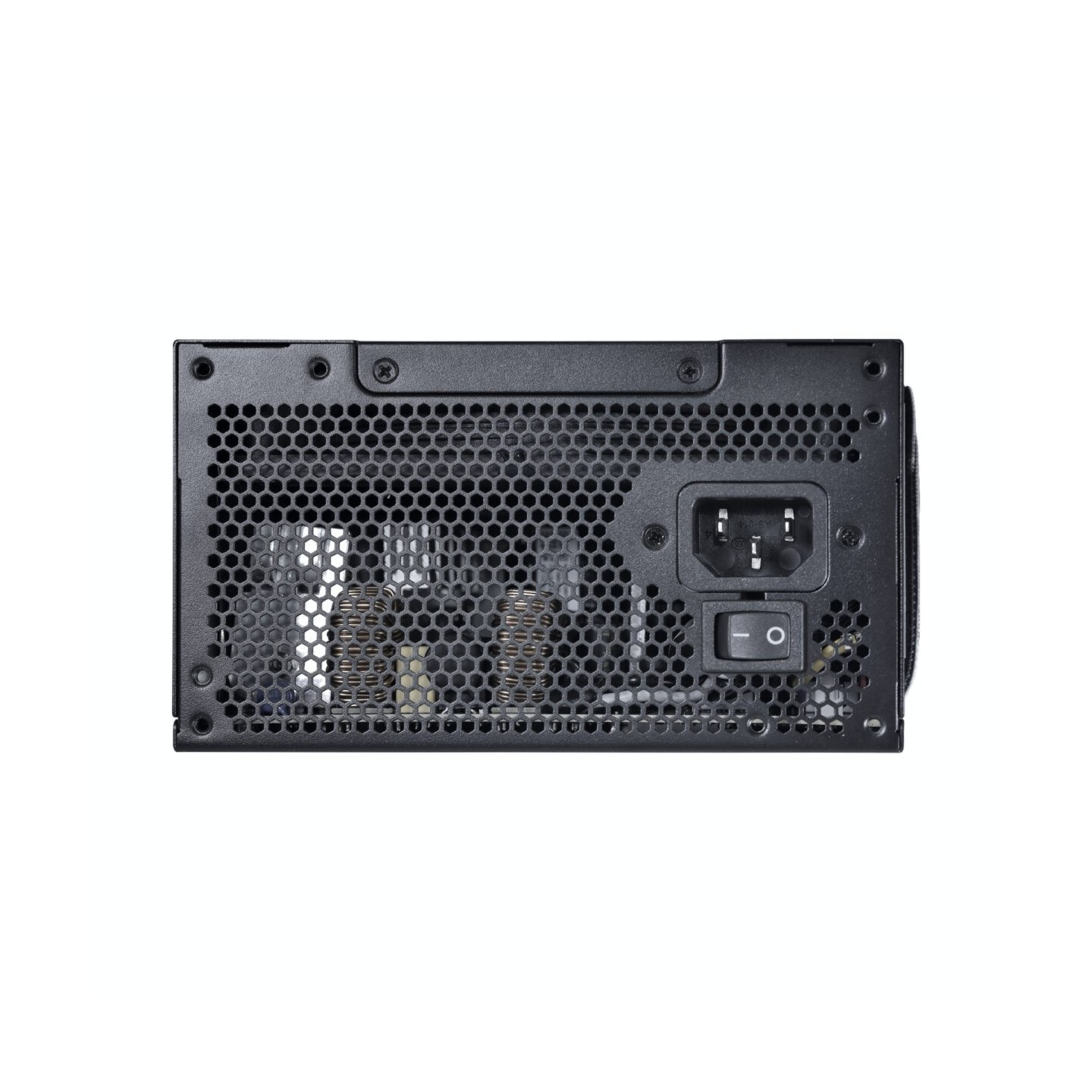

| Input Rating | 100-240Vac 10A, 50-60Hz |
| Max. DC Output | 650W |
| Combined +12V | 649.2W |
| Combined +3.3V & +5V | 100W |
| Fan Spec | 135mm HYB Fan |
| Fan RPM | 1600rpm |
| Noise Level | 39.3dBA |
| MTBF | 100,000 hrs minimum 25°C/75% Load |
| Protection | OPP, OVP, SCP, OCP, UVP, OTP |
| Safety Approval | CE/CB/cTUVus/TÜV/FCC/BSMI/CCC/KCC/SAA+RCM |
| Warranty | 5 Years |
| Main Power Connector | 1x 20+4-pin (600mm) |
| CPU Connectors | 2x 4+4-pin (650mm) |
| PCIe Connectors | 1x 12V-2x6 (12+4 pin), 1x 6+2-pin (650+150mm) |
