Keychron K5 V2 K5X-B1 QMK Wireless Mechanical Keyboard Red Switch RGB 100% US (Boxed)
Keychron K5 V2 QMK is a low-profile 100% wireless mechanical keyboard with Red linear switches, RGB backlighting, Bluetooth 5.2 (3 devices), and 1000Hz wired polling. Features QMK customization via web Launcher app, enhanced acoustic foams for quiet typing.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Keyboards - Device Type | Gaming Keyboard Office Keyboard |
|---|---|
| Keyboards - Special Features | Hot Swappable Low Profile Programmable Keys |
| Keyboards - Form Factor | Full Size (100% / 96%) |
| Keyboards - Key Layout | US |
| Keyboards - Switch Type | Low-Profile Mechanical Mechanical - Linear |
| Keyboards - Connection | Bluetooth Wired (USB) |
| Keyboards - Backlighting | Per-Key RGB South-facing RGB |
Keychron K5 QMK Version 2 is a fully-featured low-profile wireless mechanical keyboard with 100% ANSI/US layout. Upgraded with open-source QMK firmware and advanced acoustic foams (IXPE, EPDM, latex) for superior sound dampening, comfort, and switch support. The innovative Keychron Low-Profile 2.0 Red switches deliver smooth linear action with 45gf force and 1.3mm pre-travel.
Connect via stable Bluetooth 5.2 to up to 3 devices or use wired USB-C with 1000Hz polling rate for gaming responsiveness. Customize every key, macros, and RGB effects (22+ modes) through the browser-based Keychron Launcher—no downloads required. Compatible with Windows, macOS, Linux. North-facing RGB shines through ABS keycaps. Battery lasts up to 160hrs (backlight off) or 105hrs (RGB low).
Redesigned stabilizers reduce wobble on large keys. Hot-swappable (RGB version). Includes keycap puller and USB-C cable.
- 108 keys with 12 multimedia keys
- 2000mAh rechargeable battery
- NKRO support wired/wireless
- Low-power ARM MCU (256KB Flash)
- Frame: ABS + Aluminum
| Layout | 100% ANSI / 108 keys |
| Switches | Keychron Low-Profile 2.0 Red (Linear, 45gf, 1.3mm pre-travel) |
| Switch Face | North-facing |
| Keycaps | Shine-through ABS |
| Frame | ABS + Aluminum frame |
| Backlighting | RGB (22+ modes, customizable) |
| Connection | Bluetooth 5.2 (3 devices), USB-C wired |
| Polling Rate | 1000Hz (wired), 125Hz (wireless) |
| Battery | 2000 mAh Li-Po, up to 160hrs (off), 105hrs (RGB low) |
| N-Key Rollover | Yes (wired & wireless) |
| Firmware | QMK open-source |
| MCU | ARM Cortex-M3 32-bit (256KB Flash) |
| Hot-swappable | Yes (Keychron low-profile mechanical switches, RGB version) |

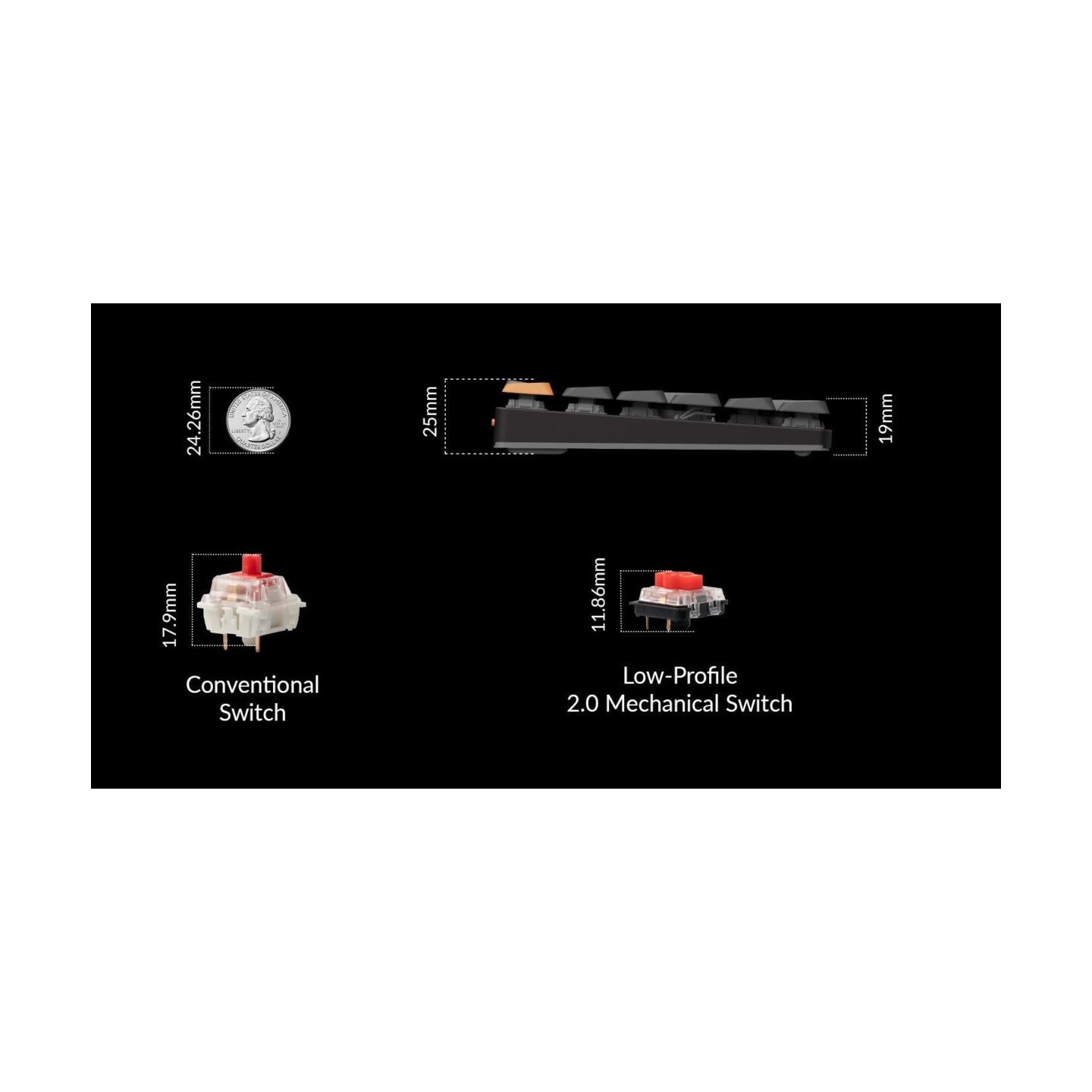

| Height (front) | 20.6 mm |
| Height (rear) | 25.2 mm |
| Multimedia Keys | 12 |
| Compatibility | macOS, Windows, Linux |
