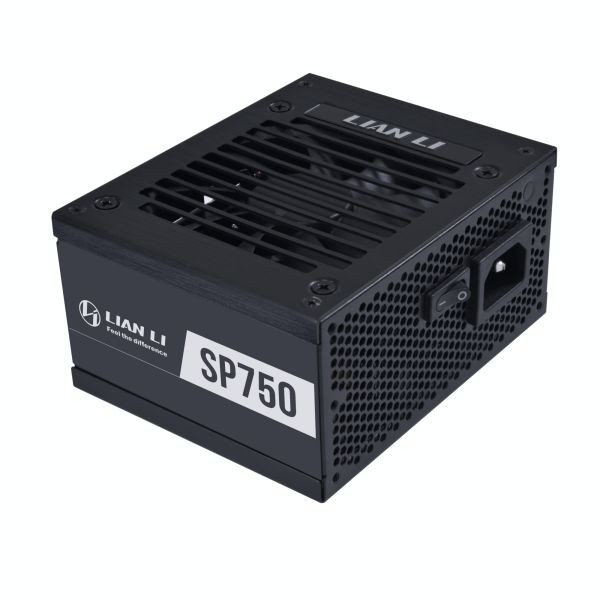

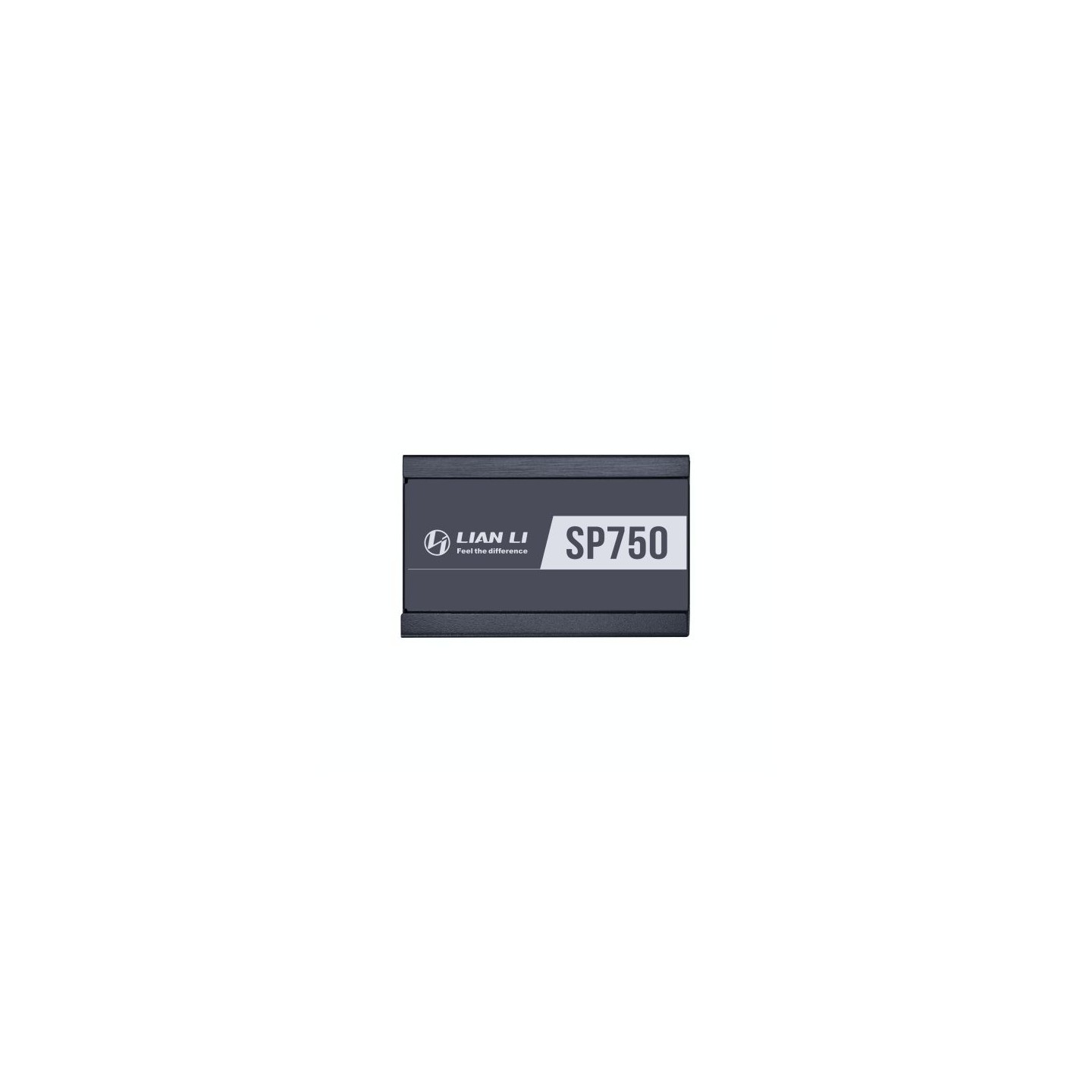

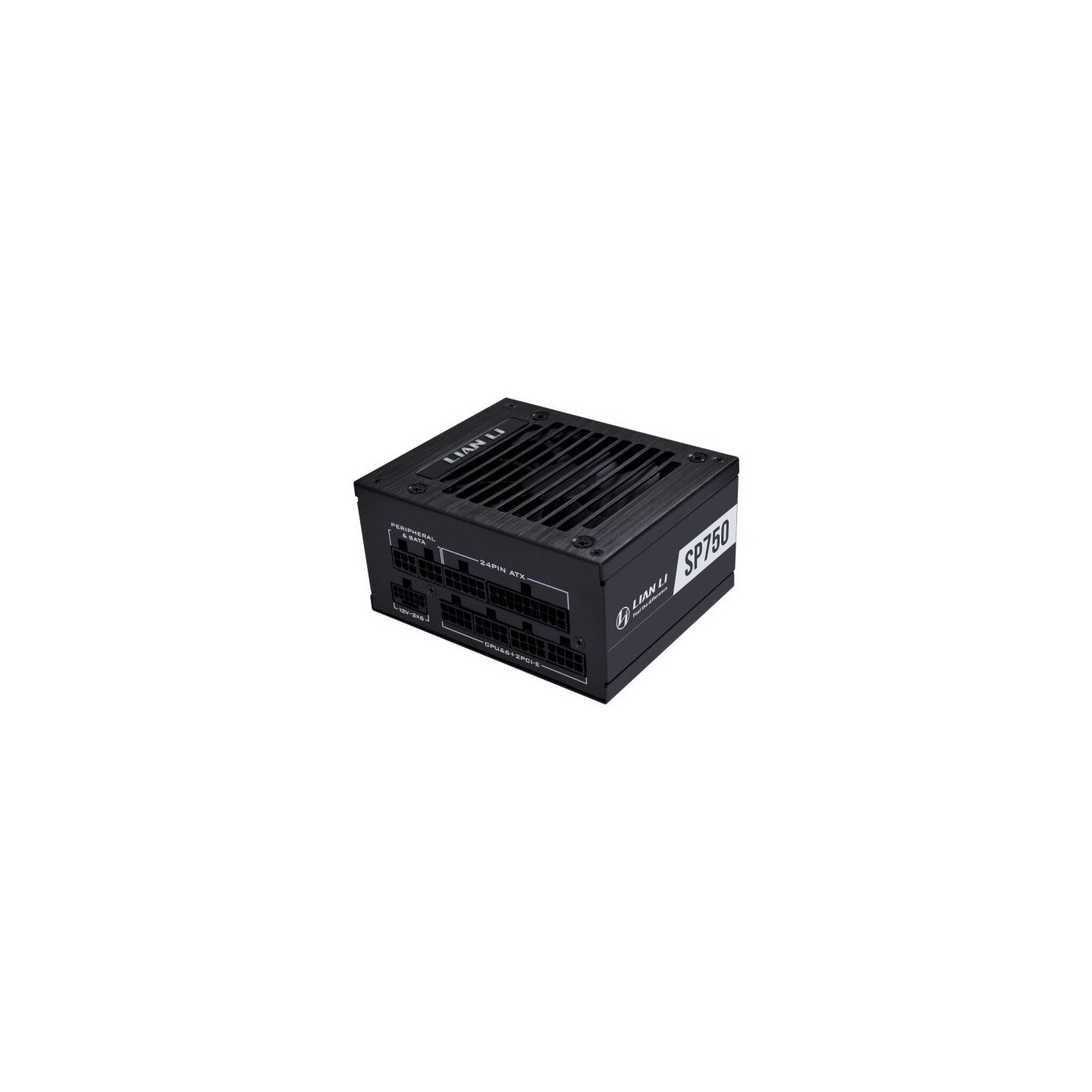

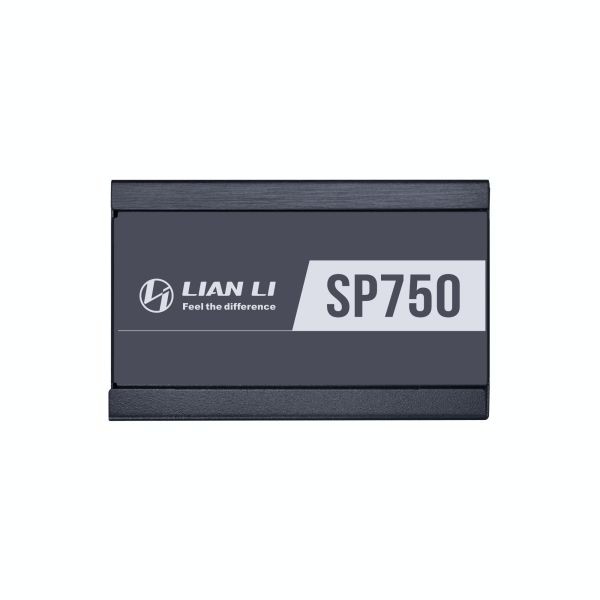

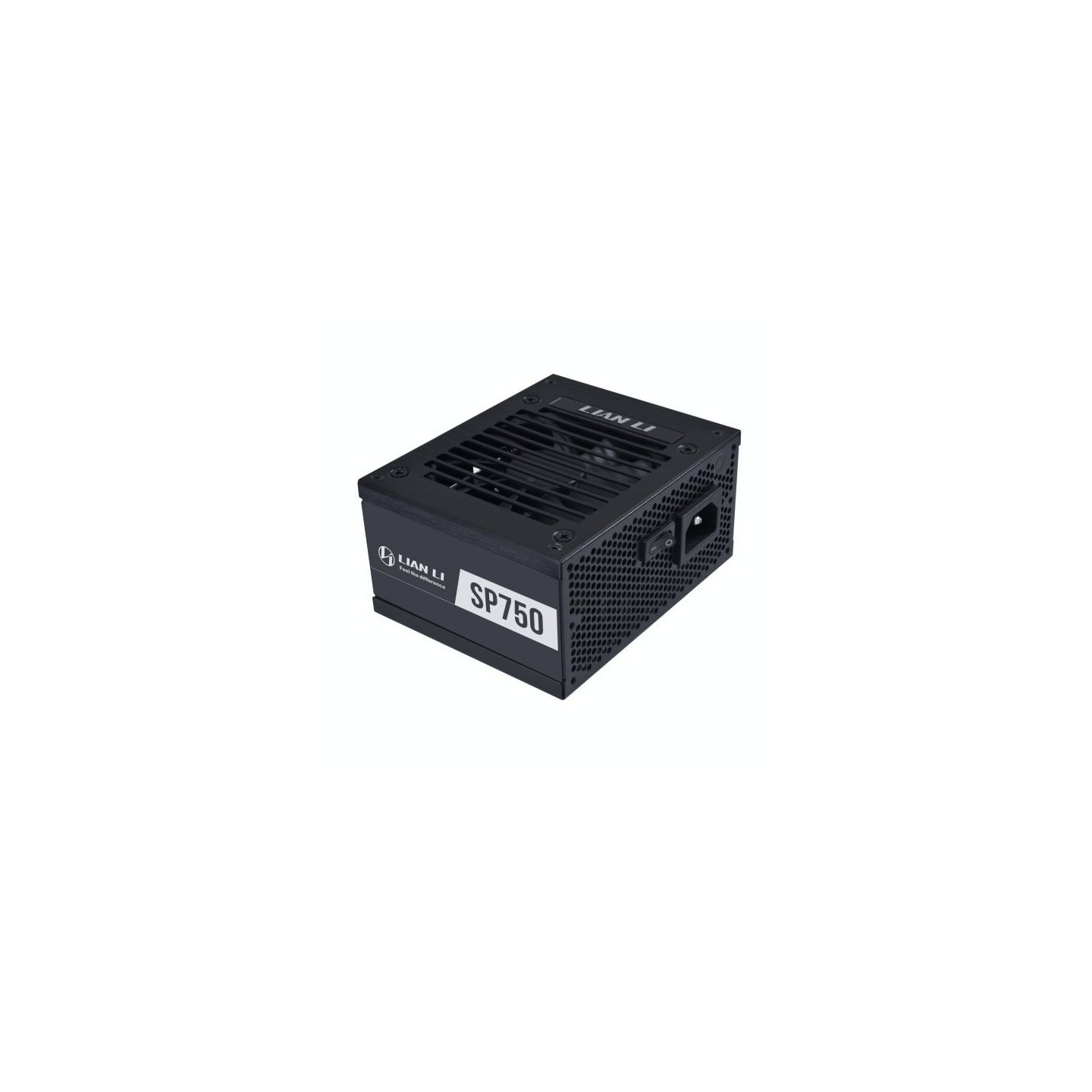

Lian Li SP750 V2 Gold Black 750W SFX PSU - 80+ Gold ATX 3.1 12V-2x6 (Boxed)
Lian Li SP750 V2 Gold is a compact 750W SFX PSU with 80+ Gold efficiency, ATX 3.1 support, native 12V-2x6 for PCIe 5.0 GPUs. Fully modular, low-noise 92mm FDB fan, Japanese capacitors, 10-year warranty for SFF builds.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 700 - 799 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Gold |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 1x 12V-2x6 2x 8/6 pins |
| PSU (Power Supplies) - Length | Up to 140 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 2x 4+4pin EPS/ATX12V |
PERFORMANCE SFX FORM FACTOR POWER SUPPLY
The SP750 V2 Gold is a sleek high-performance 750W PSU designed for small form factor PCs, supporting power-hungry components like PCIe 5.0 GPUs.
With compact dimensions of 125 × 100 × 63.5 mm, 80 PLUS Gold certification (90%+ efficiency at 50% load), and full ATX 3.1 compliance including a native 12V-2×6 connector, it delivers stable power in tight spaces. Features a 92mm FDB fan with Zero RPM mode for silent operation, premium Japanese electrolytic capacitors for durability, and fully modular braided cables for clean builds.
- 750W max output, single +12V rail (744W combined)

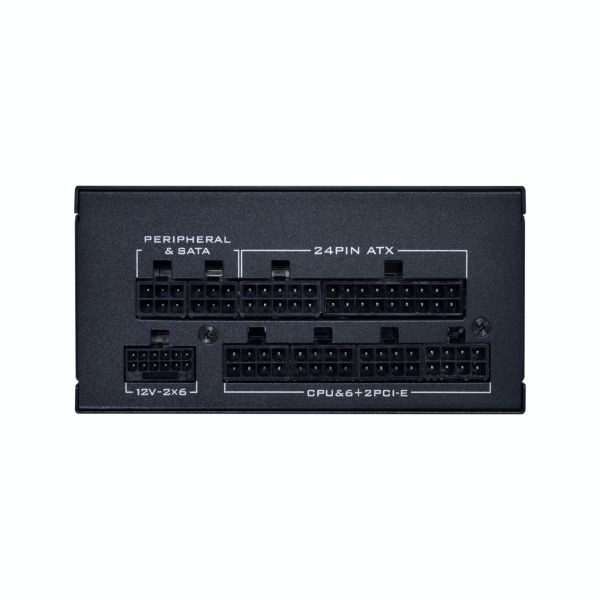

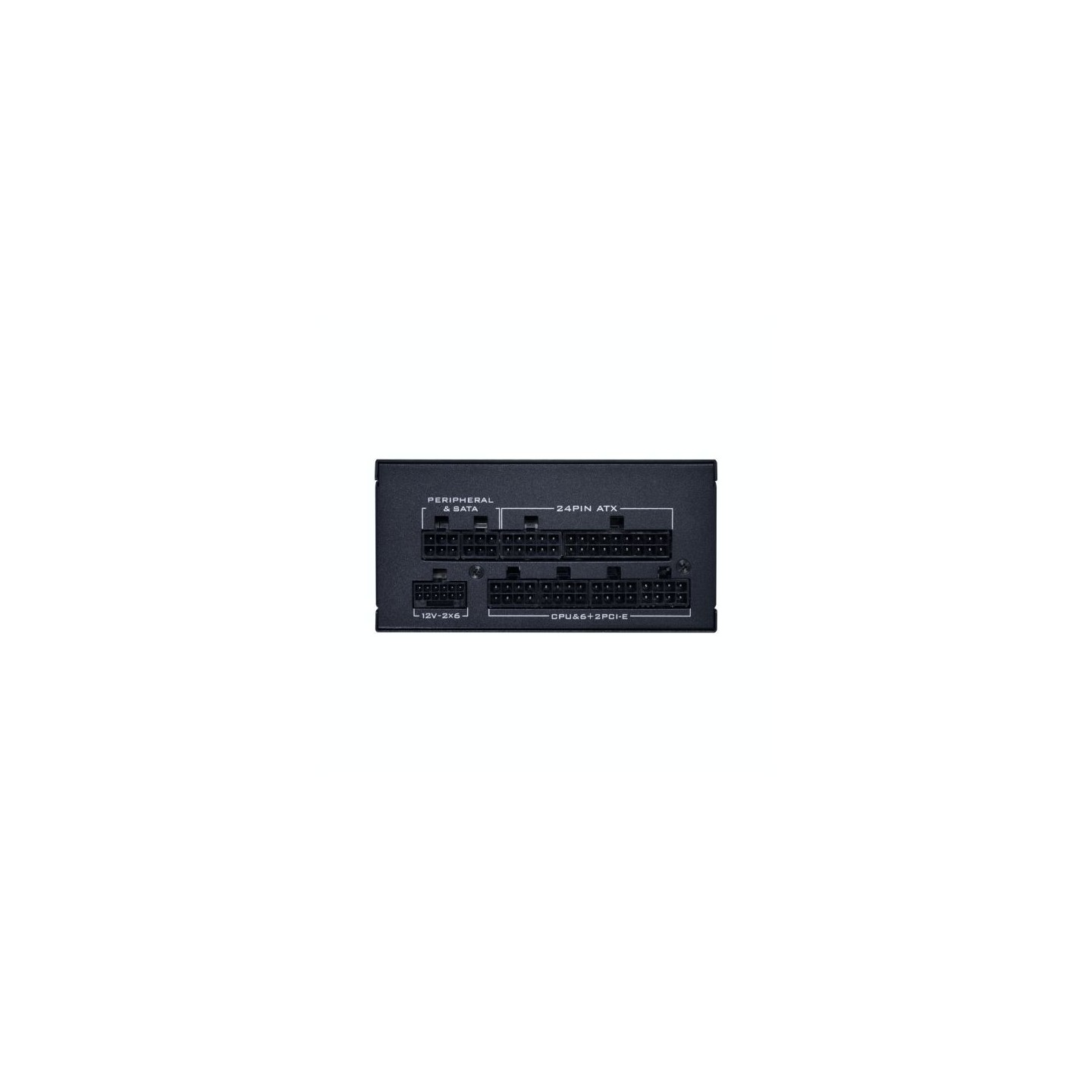

- Connectors: 1x 24-pin ATX, 2x 4+4-pin EPS, 1x 12V-2x6, 2-3x 6+2-pin PCIe, 7x SATA, 1x Molex
- Protections: OCP/OVP/OTP/OPP/SCP/UVP
- Active PFC, 100-240V input, 10-year warranty
- Low noise: 32.5dBA max, fanless under 40% load
| Power Output | 750W |
| Form Factor | SFX |
| Efficiency | 80 PLUS Gold |
| ATX Version | ATX 3.1 |
| Modularity | Fully Modular |
| Dimensions (WxHxD) | 125 x 63.5 x 100 mm |

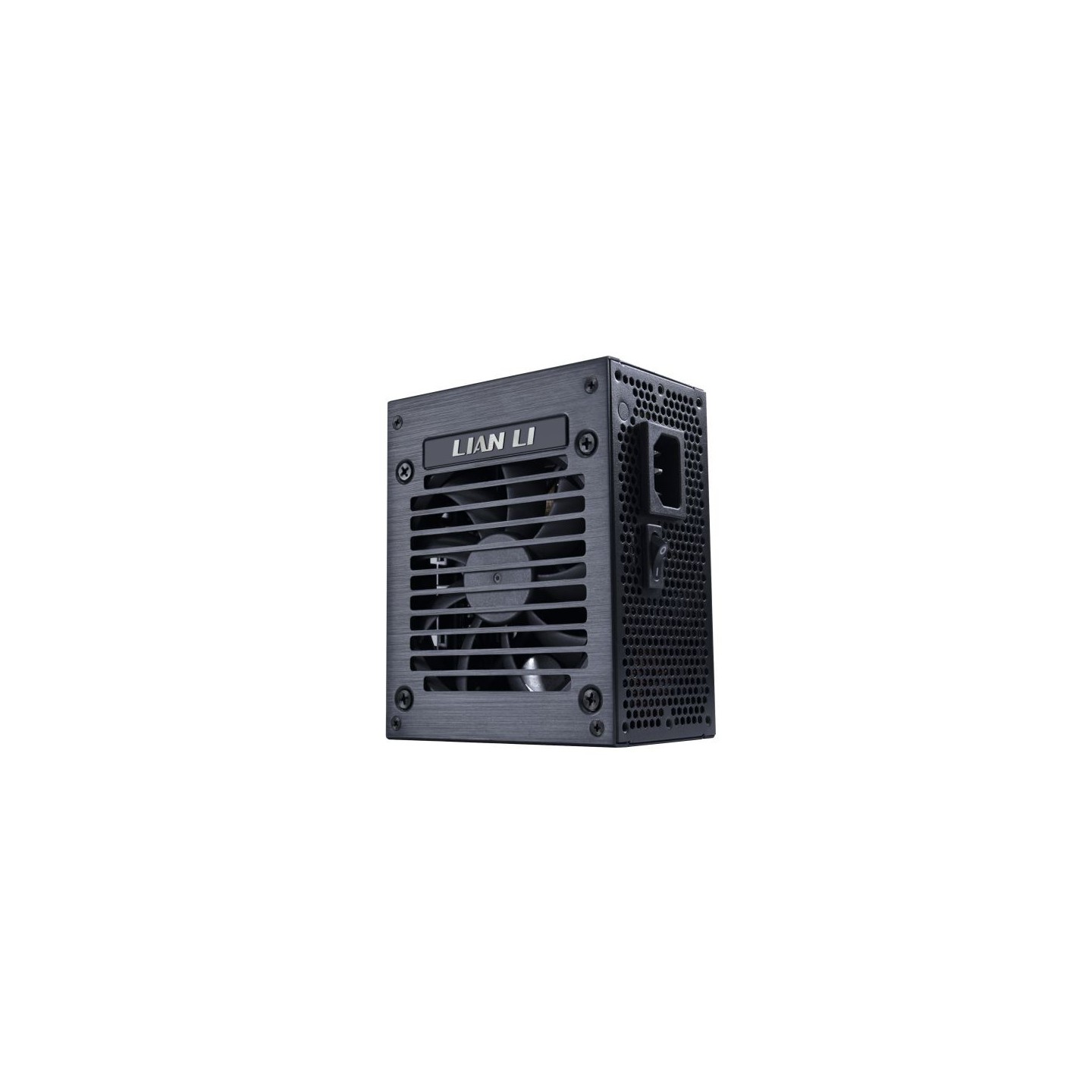

| Fan | 92mm FDB, 3000 RPM max, Zero RPM mode |
| Combined +12V | 744W |
| Combined +3.3V & +5V | 100W |

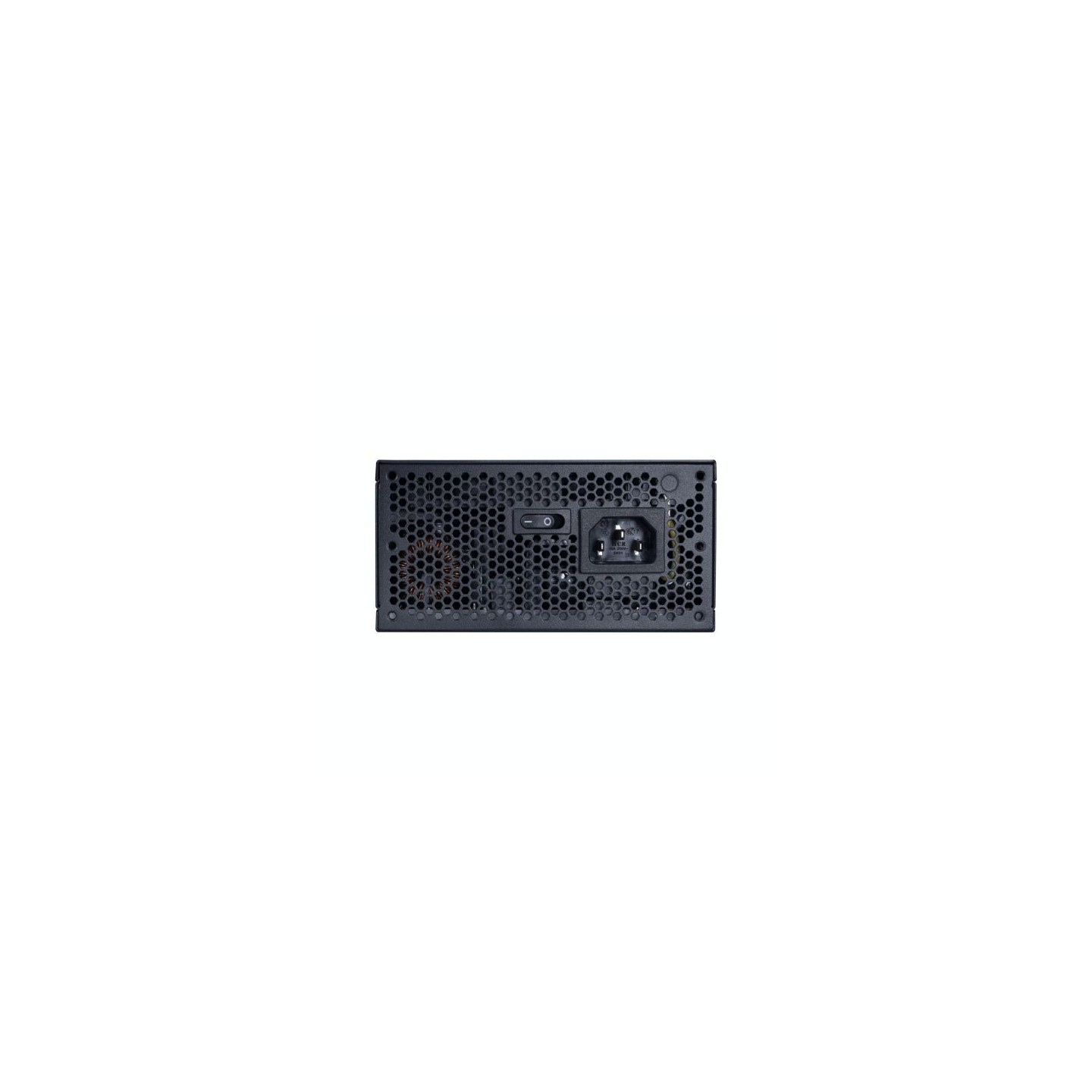

| Input Voltage | 100-240Vac 50-60Hz |
| PFC | Active PFC >0.90 |
| Protections | OCP/OVP/OTP/OPP/SCP/UVP/NLP/SIP |
| Noise Level | 32.5dBA @ 25°C |
| Warranty | 10 Years |
| Capacitors | Japanese Electrolytic |
| Connectors | 1x 24-pin ATX, 2x 4+4 EPS, 1x 12V-2x6, 2-3x 6+2 PCIe, 7x SATA, 1x Molex |
| MPN | SP750G.B |
| EAN | 4718466018328 |
