LIAN LI SP1000P 1000W 80+ Platinum SFX PSU - 12V-2x6 Japanese Caps (Boxed)
Compact SFX 1000W 80+ Platinum PSU (125x63.5x100mm) with SFX-to-ATX bracket. Fully modular, ATX 3.1/PCIe 5.1, 1x 12V-2x6 + 3x PCIe 6+2-pin, 92mm FDB fan (0RPM
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 1000 - 1199 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Platinum |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 1x 12V-2x6 4x 8/6 pins |
| PSU (Power Supplies) - Length | Up to 140 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 2x 4+4pin EPS/ATX12V |

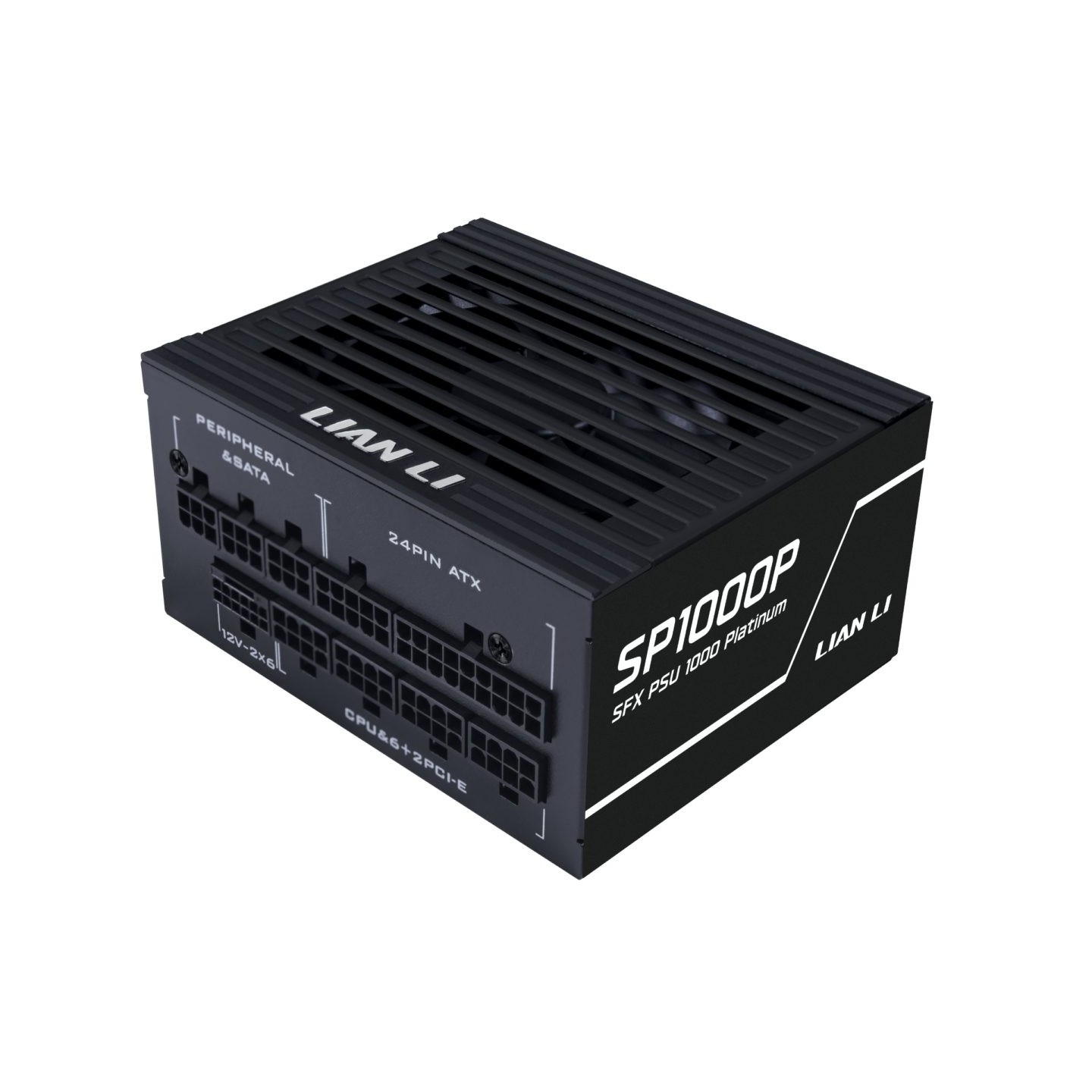

Compact SFX Design with Wide Compatibility

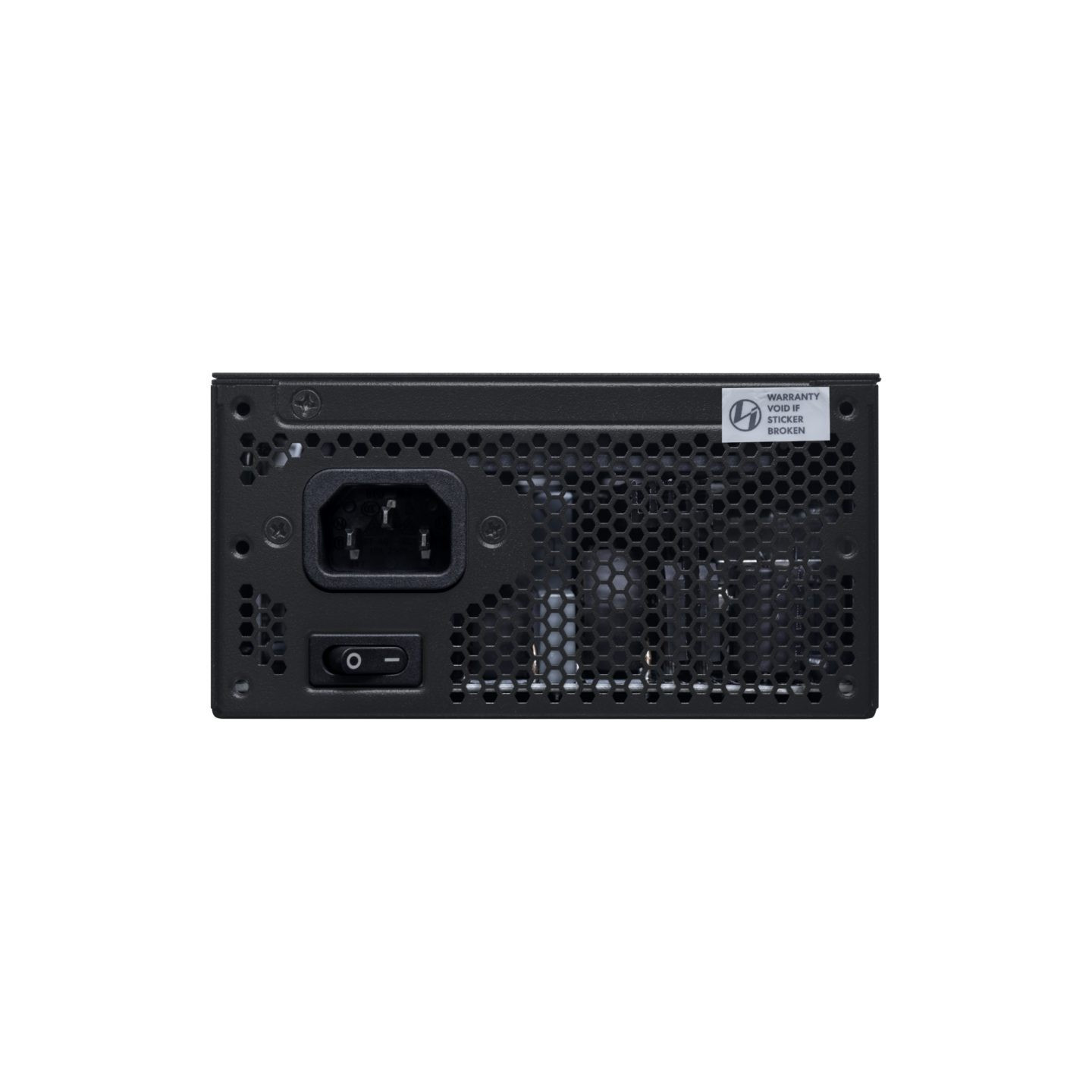

The LIAN LI SP1000P is a high-density 1000W SFX power supply measuring 125 x 63.5 x 100 mm, ideal for small form factor builds. Includes SFX-to-ATX bracket for mid/full-size cases. Features C14+C13 power cord with integrated on/off switch for easy control.
Platinum Efficiency & Reliability
Certified 80 PLUS Platinum (up to 92-93.8% efficiency at 50% load) and PPLP Platinum. Uses 100% Japanese Rubycon 105°C capacitors, full protections (OPP/OVP/UVP/SCP/OTP etc.), low ripple (<24mV on 12V). ATX 3.1 / PCIe 5.1 compliant with native 12V-2x6 connector.
Smart Cooling & Modularity

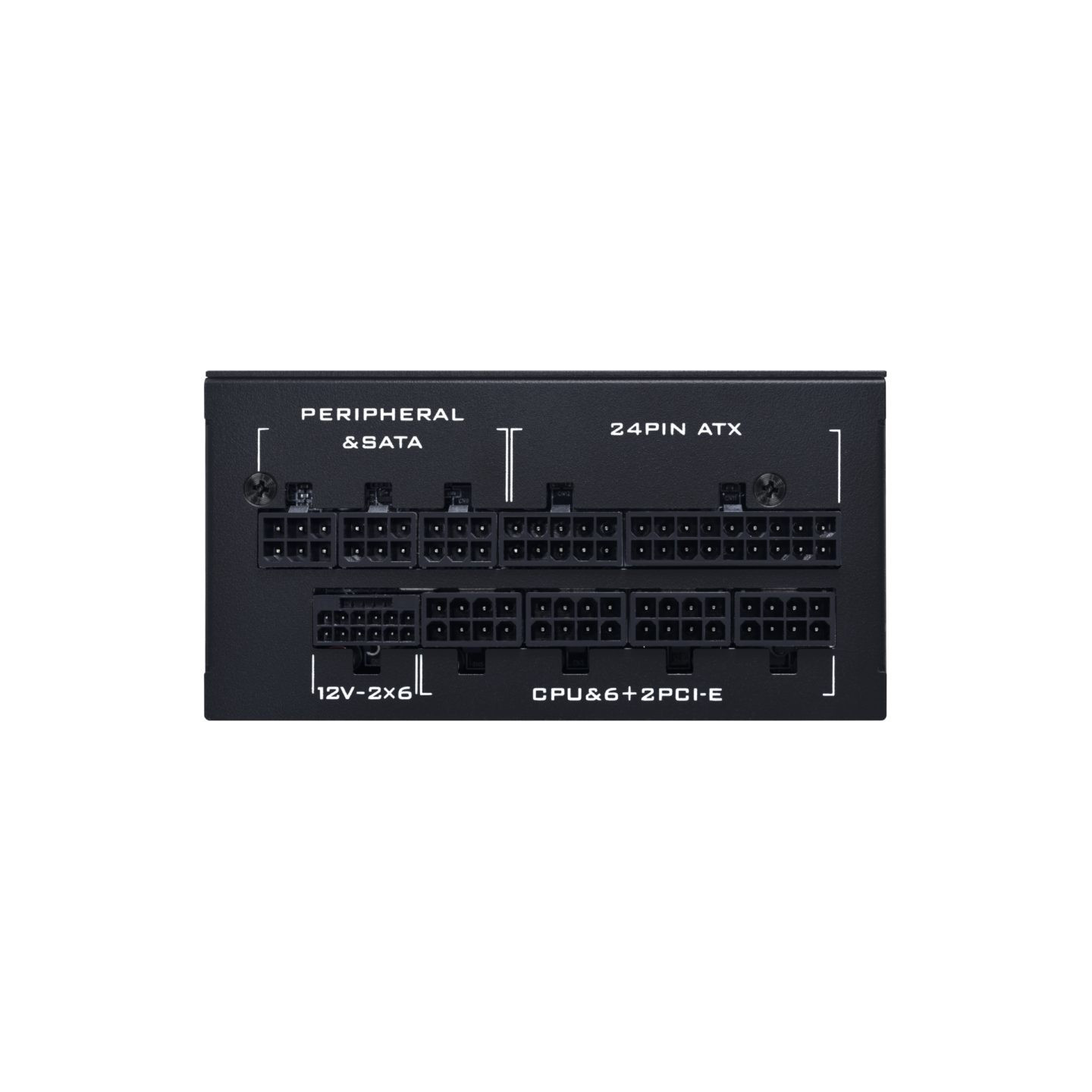

92mm Fluid Dynamic Bearing fan with 0 RPM mode below 40% load, max 2900 RPM, low noise (up to 45dBA). Fully modular braided cables for flexibility and clean builds. Connectors: 1x 12V-2x6, 3x 6+2-pin PCIe, 2x EPS 4+4-pin, 5x SATA, 2x Molex.

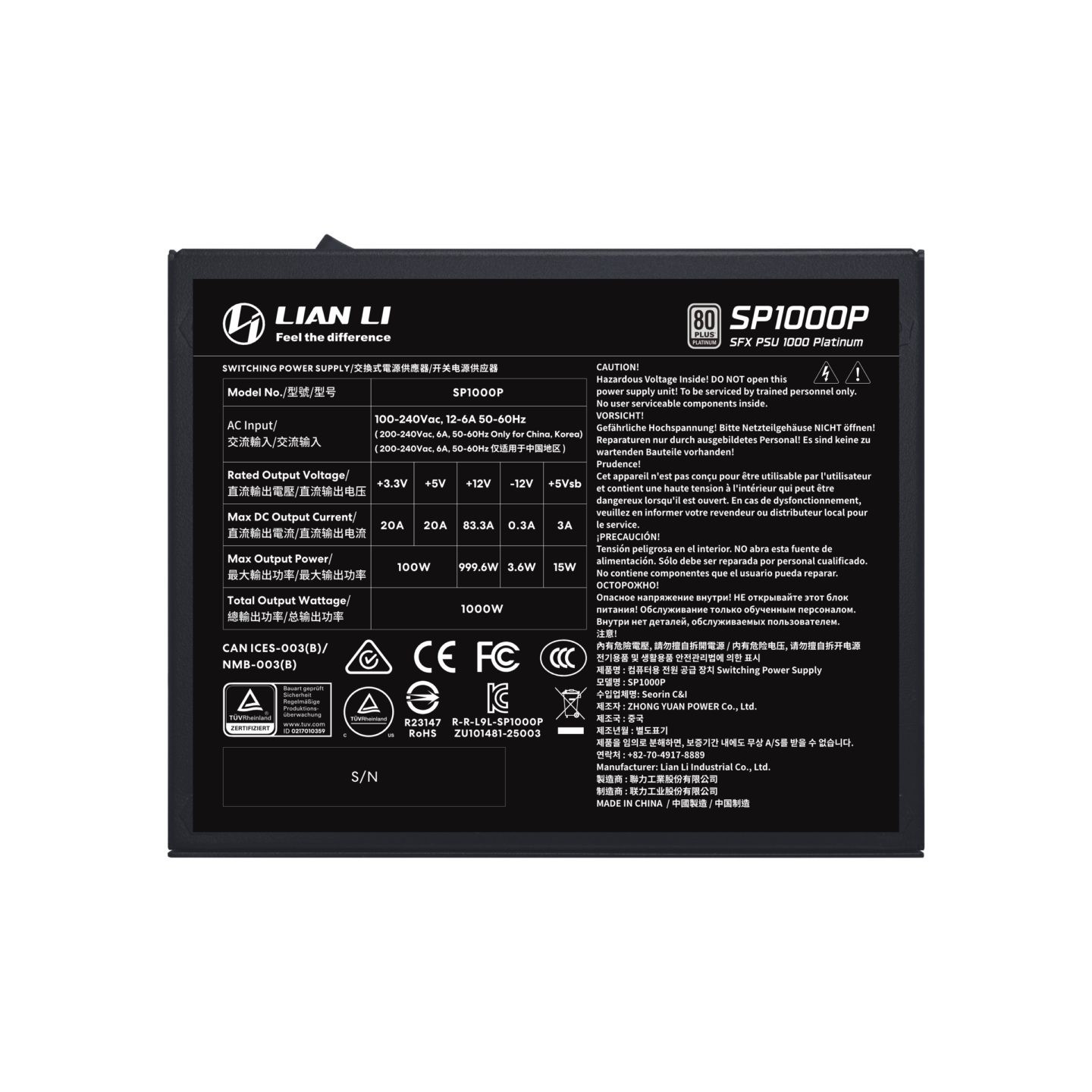

- ✅ 1000W total output, +12V single rail 83.3A (999.6W)
- ✅ Zero-RPM fan for silent operation
- ✅ 10 Years Warranty
- ✅ Black color, fully modular
| Form Factor | SFX |
| Total Power | 1000 W |
| 80 PLUS Certification | 80 PLUS Platinum |
| ATX Version | ATX 3.1 / PCIe 5.1 |
| Modularity | Fully Modular |
| Dimensions (WxHxD) | 125 x 63.5 x 100 mm |
| Fan | 92 mm Fluid Dynamic Bearing, 0-2900 RPM, Zero RPM <40% load |
| Main Capacitors | 100% Japanese Rubycon 105°C |
| 12V Rail | 83.3 A / 999.6 W |
| +3.3V / +5V Combined | 100 W |
| PCIe Connectors | 1x 12V-2x6 (12+4 pin), 3x 6+2-pin |
| EPS/ATX12V | 2x 4+4 pin |
| SATA | 5x |
| Molex (Peripheral) | 2x |
| Warranty | 10 Years |
| Operating Temperature | 0-40°C |
| Protections | OPP, OVP, UVP, SCP, OTP, SIP, NLP, UCP |
