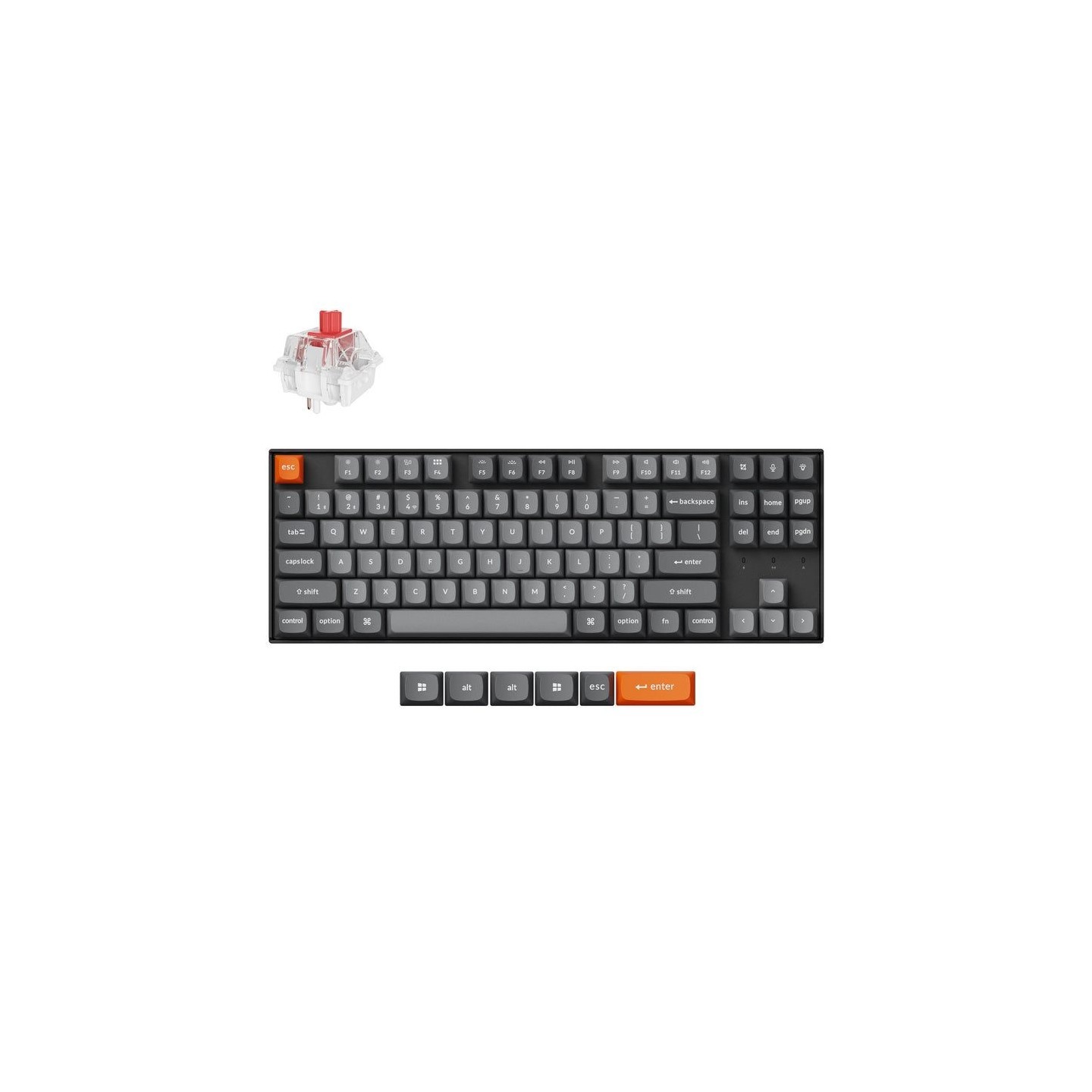

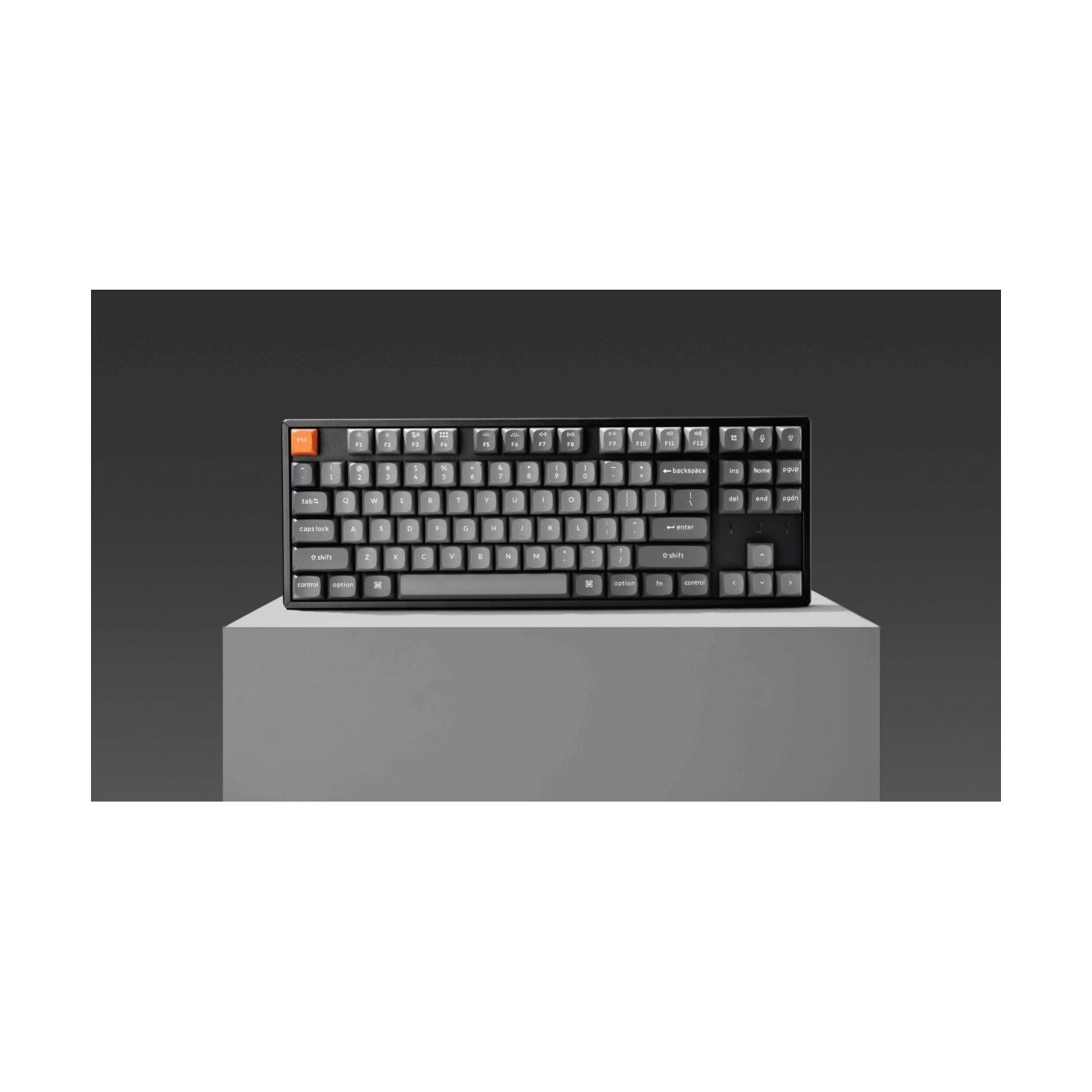

Keychron K8 Max K8M-B1 QMK Wireless Mechanical Keyboard 87-Key TKL RGB (Boxed)
Keychron K8 Max is a wireless mechanical keyboard with 80% TKL layout, supporting 2.4GHz (1000Hz polling), Bluetooth 5.1, and wired USB-C connections. Features Keychron Super switches, QMK programmability, south-facing RGB backlighting, and 4000mAh battery.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Keyboards - Device Type | Gaming Keyboard Office Keyboard |
|---|---|
| Keyboards - Special Features | Hot Swappable Programmable Keys |
| Keyboards - Form Factor | Tenkeyless (TKL / 80%) |
| Keyboards - Key Layout | US |
| Keyboards - Switch Type | Mechanical - Linear |
| Keyboards - Connection | Bluetooth Wired (USB) Wireless RF (USB Dongle) |
| Keyboards - Backlighting | Per-Key RGB South-facing RGB |
The Keychron K8 Max is a premium wireless mechanical keyboard featuring an 80% TKL (Tenkeyless) layout with 87 keys. It delivers exceptional performance across three connectivity modes: 2.4GHz wireless with a rapid 1000Hz polling rate for competitive gaming, Bluetooth 5.1 for seamless multitasking across up to three devices, and USB-C wired mode. The keyboard is powered by a robust ARM architecture MCU with 256KB Flash memory, enabling extensive customization through open-source QMK firmware and the Keychron Launcher web application.
Built for comfort and durability, the K8 Max features exclusive Keychron Super mechanical switches with a lifespan of up to 50 million clicks, double-shot PBT keycaps with OSA profile (OEM with spherical angle), and south-facing RGB backlighting with 22+ customizable effects. The keyboard incorporates multiple layers of acoustic foam (IXPE, PET, and EPDM) combined with a steel plate for superior sound quality and typing experience. Screw-in PCB stabilizers ensure smooth operation on larger keys, while three adjustable typing angles (3.4°, 7.7°, 10.7°) provide ergonomic support. The 4000mAh rechargeable battery delivers approximately 190 hours of wireless operation with backlighting off, or 100 hours with RGB at lowest brightness.
- 87-key TKL layout with ANSI US configuration
- Triple connectivity: 2.4GHz RF (1000Hz), Bluetooth 5.1 (90Hz), USB-C wired (1000Hz)
- Keychron Super mechanical switches with south-facing RGB
- QMK firmware and Keychron Launcher programmability
- Double-shot PBT keycaps with OSA profile
- 4000mAh battery with 190+ hours runtime
- Screw-in PCB stabilizers and steel plate construction
- Three adjustable typing angles for ergonomic support
| Model Number | K8M-B1 |
| Layout | 80% TKL (Tenkeyless) |
| Number of Keys | 87 keys |
| Key Layout | ANSI US |
| Switch Type | Keychron Super Mechanical |
| Switch Face | South-facing |
| Switch Lifespan | Up to 50 million clicks |
| Keycap Material | Double-shot PBT |
| Keycap Profile | OSA (OEM profile with spherical angle) |
| Frame Material | ABS / ABS+Aluminum |

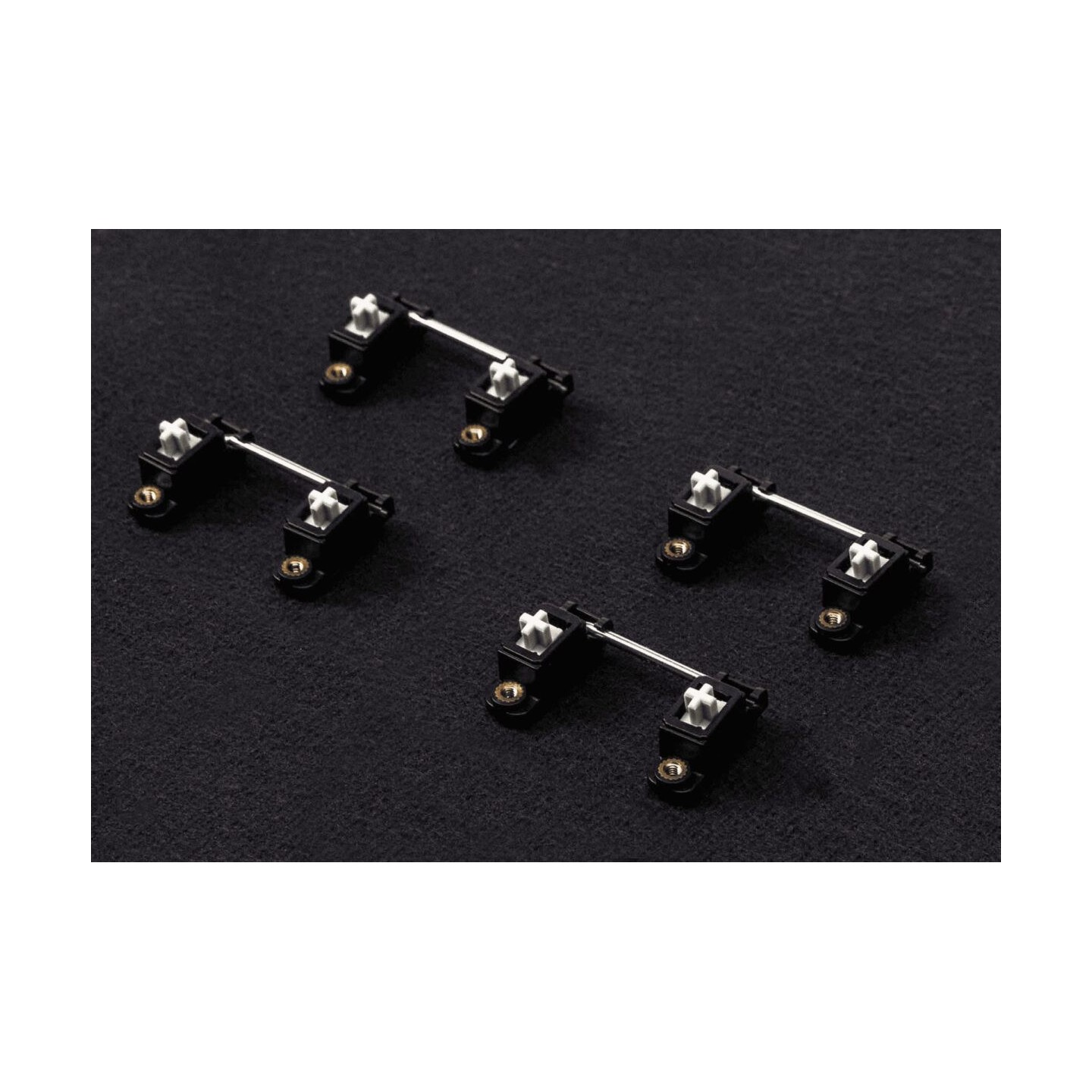

| Stabilizers | Screw-in PCB stabilizers |
| Polling Rate (2.4GHz) | 1000 Hz |
| Polling Rate (Wired) | 1000 Hz |
| Polling Rate (Bluetooth) | 90 Hz |
| N-Key Rollover | Yes (NKRO) for wireless and wired modes |
| Connectivity | 2.4GHz wireless, Bluetooth 5.1, USB Type-C wired |
| Bluetooth Version | 5.1 |
| Wireless Devices | Up to 3 devices via Bluetooth |
| Battery Capacity | 4000 mAh rechargeable Li-polymer |
| Battery Life (Backlit Off) | Approximately 190 hours |
| Battery Life (RGB On) | Approximately 100 hours (lowest brightness) |

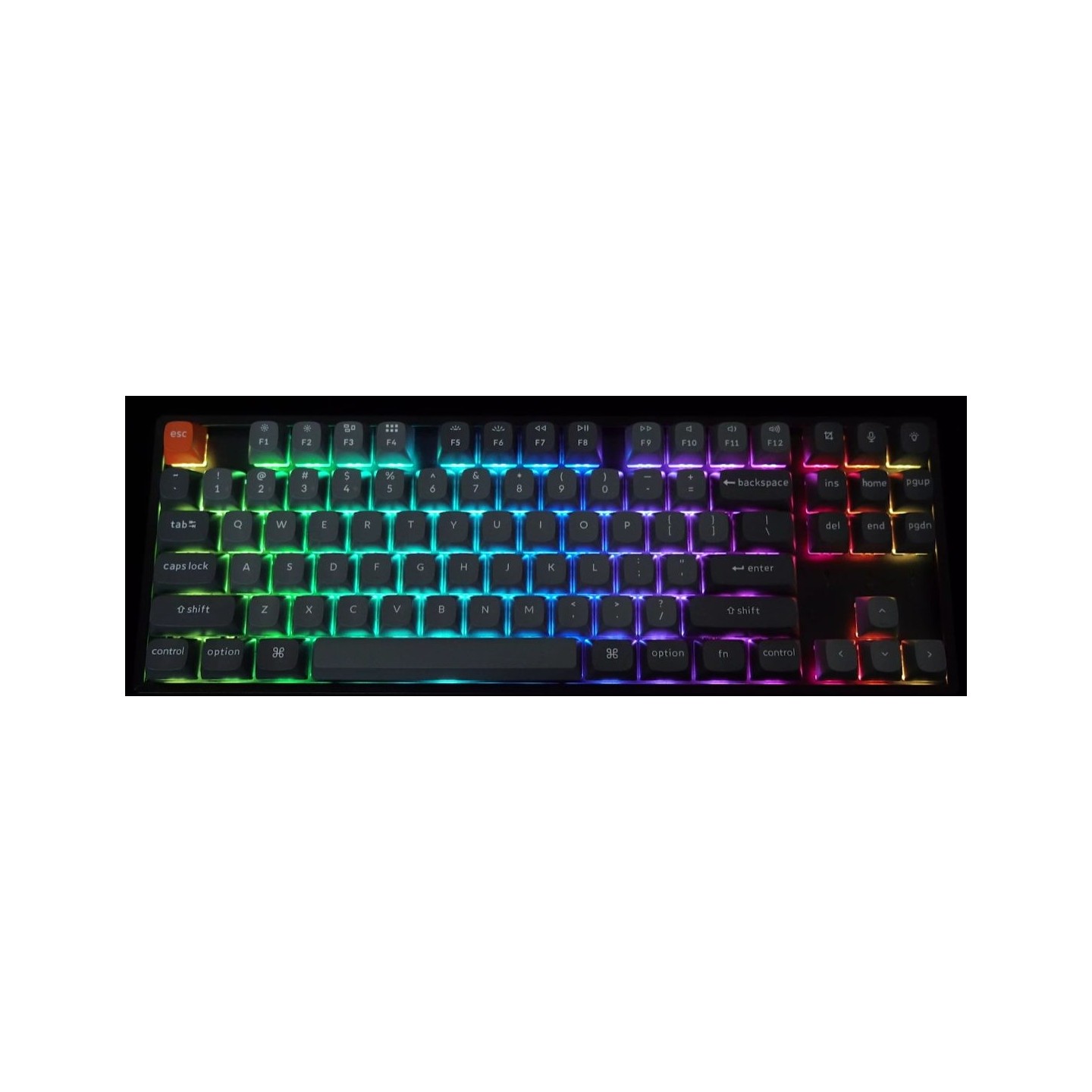

| Backlighting | South-facing RGB with 22+ customizable effects |
| Backlighting Types | 22 types of RGB backlight options plus endless possibilities |
| Programmability | QMK firmware and Keychron Launcher web app |
| MCU | ARM architecture with 256KB Flash memory |
| Multimedia Keys | 12 multimedia keys |

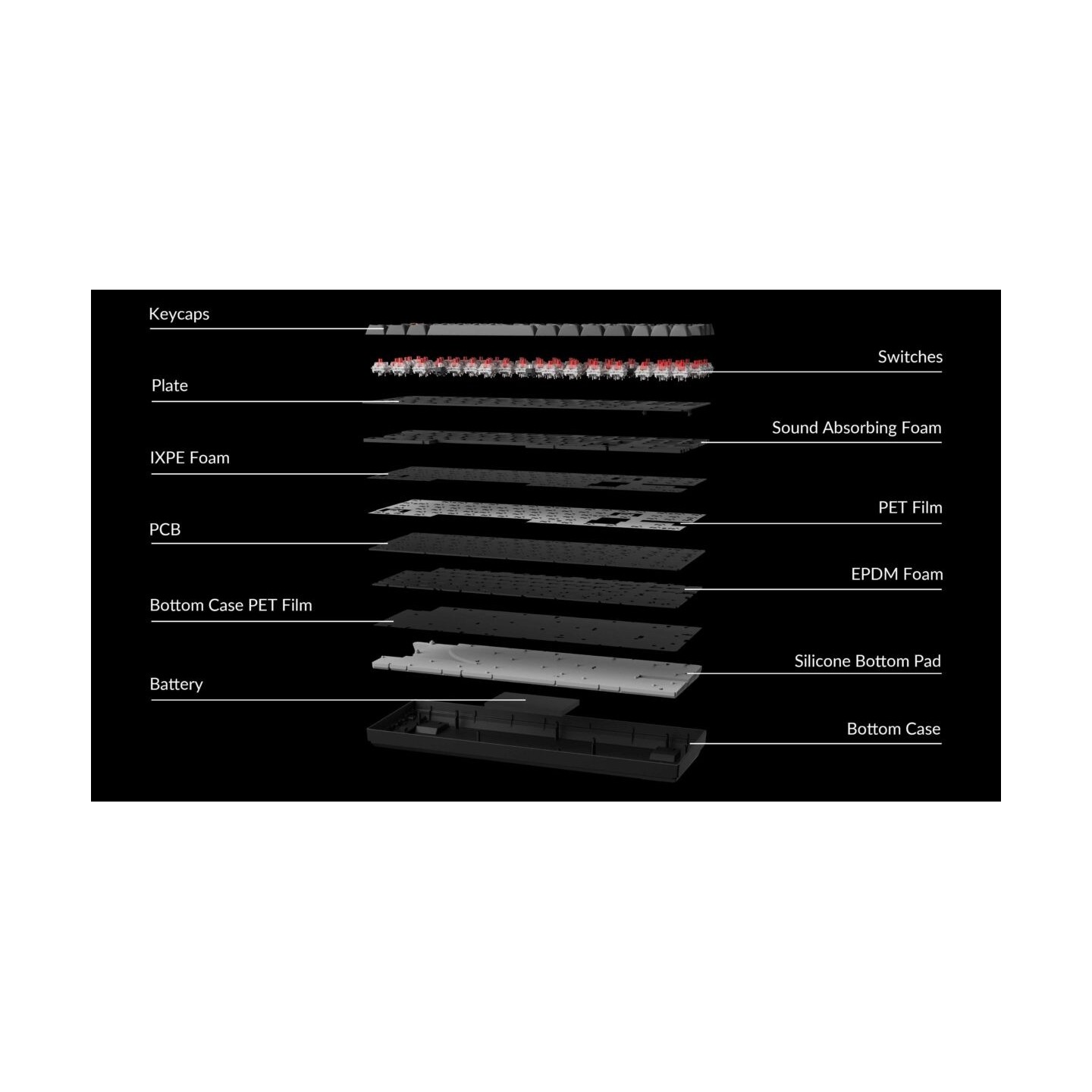

| Acoustic Foam | IXPE, PET, and EPDM foam layers |
| Plate Material | Steel plate |

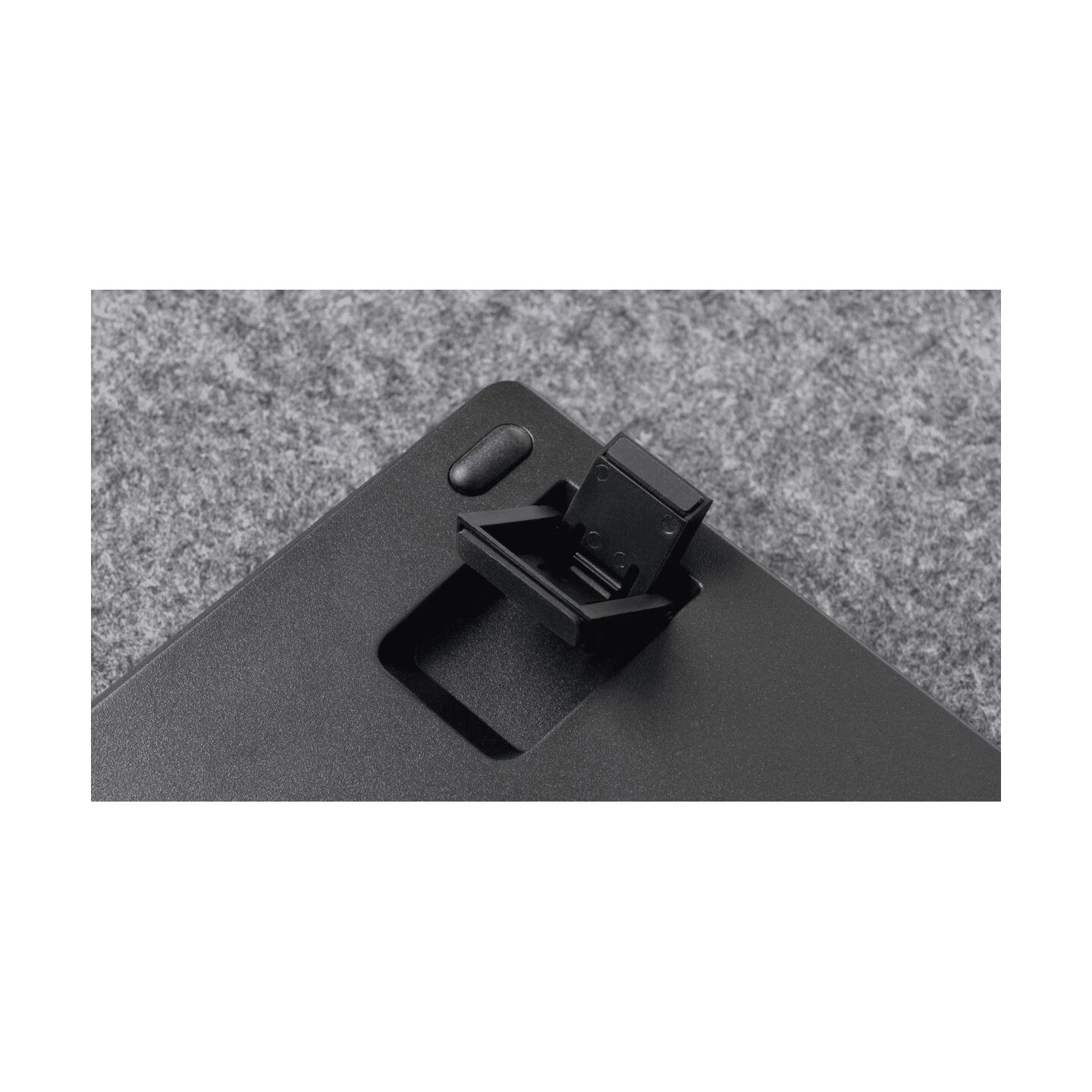

| Typing Angles | Three adjustable angles: 3.4°, 7.7°, 10.7° |

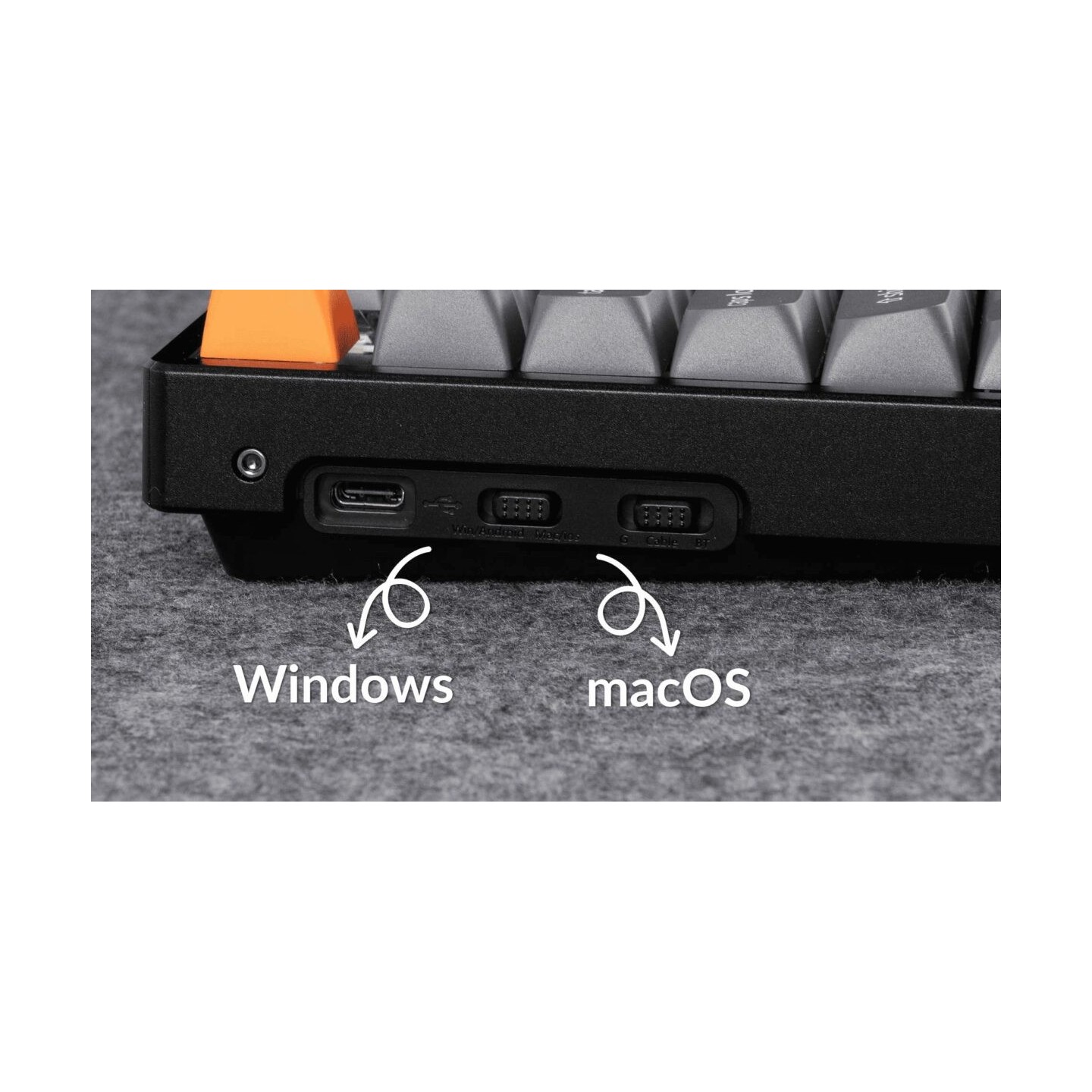

| Compatible Systems | macOS, Windows, Linux |
| Keyboard Dimensions | 354.21 x 124.18 mm (13.94 x 4.89 inches) |
| Keyboard Weight | 1158 g (2.55 lbs) - plastic frame version |
| Included Accessories | USB Type-C cable, 2.4GHz receiver with extension adapter, keycap puller, screwdriver, stabilizers, keycaps, switches |
