Keychron K5 Max K5M-H1 Red Switch Hot-Swap 100% US Mechanical Keyboard (Boxed)
Keychron K5 Max is an ultra-slim low-profile wireless mechanical keyboard with 100% US layout, hot-swappable Gateron Red switches, QMK/VIA support, 2.4GHz (1000Hz), Bluetooth 5.1, and RGB backlighting for work and gaming.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Keyboards - Device Type | Gaming Keyboard Office Keyboard |
|---|---|
| Keyboards - Special Features | Hot Swappable Low Profile Programmable Keys Silent Keys |
| Keyboards - Form Factor | Full Size (100% / 96%) |
| Keyboards - Key Layout | US |
| Keyboards - Switch Type | Low-Profile Mechanical Mechanical - Linear |
| Keyboards - Connection | Bluetooth Wired (USB) Wireless RF (USB Dongle) |
| Keyboards - Backlighting | Per-Key RGB |
The Keychron K5 Max blends classic full-size design with ultra-slim low-profile construction, featuring a 100% US ANSI layout and hot-swappable Gateron Red linear switches. It supports seamless connectivity via 2.4 GHz wireless (1000Hz polling), Bluetooth 5.1 (up to 3 devices), or wired USB-C, with QMK/VIA customization through the Keychron Launcher web app for remapping keys and macros.
Built with an ABS+aluminum frame, double-shot PBT keycaps, interior IXPE acoustic foam and latex foam for quiet, responsive typing, north-facing RGB lighting (22+ effects), and redesigned stabilizers for wobble-free large keys. Compatible with Mac/Windows layouts, NKRO support, and up to 110 hours battery life (backlight off).
- Hot-swappable low-profile Gateron MX 2.0 Red switches (linear)
- 2.4 GHz dongle, Bluetooth 5.1, wired USB-C
- Per-key RGB + white backlight option
- ARM Cortex-M4 MCU (256KB Flash)
- Includes keycap/switch pullers, USB-C cable, 2.4G receiver

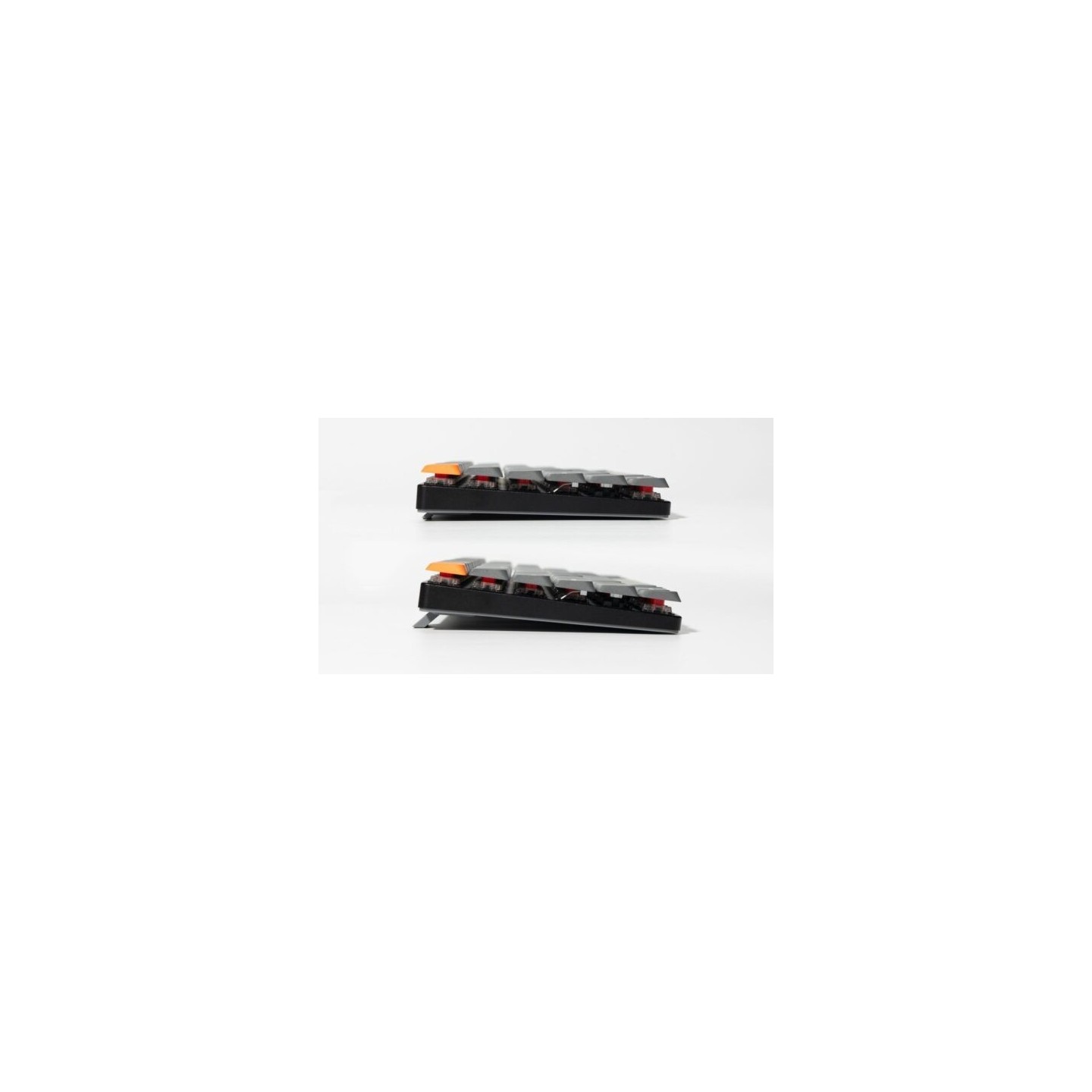

- 3-level adjustable typing angle
| Layout | 100% ANSI US |
| Switches | Gateron Low-Profile MX 2.0 Red (Linear) |
| Hot-Swappable | Yes (Gateron/Keychron low-profile mechanical only) |
| Connection | 2.4 GHz (dongle), Bluetooth 5.1, USB-C Wired |
| Polling Rate | 1000 Hz (2.4GHz/Wired), 90 Hz (Bluetooth) |
| Bluetooth Devices | 3 |
| Backlighting | Per-key RGB (22+ effects) |
| Keycaps | Low-profile Double-Shot PBT, LSA profile |
| Frame | ABS + Aluminum |
| Battery Life | Up to 110 hours (backlit off), 70 hours (RGB low) |
| N-Key Rollover | Yes (wired & wireless) |
| MCU | ARM Cortex-M4 32-bit STM32F402 (256KB Flash) |
| Switch Face | North-facing |
| Multimedia Keys | 12 |
| Dimensions (Keyboard) | 44.00 x 13.20 x 2.20 cm |
| Weight (Keyboard) | 1.20 kg |
