Keychron Q6 HE Q6H-M1 Wireless Hall Effect Keyboard Purple Switch 100% US (Boxed)
Keychron Q6 HE Q6H-M1 is a premium wireless QMK custom keyboard with Gateron Purple Hall Effect magnetic switches, 100% US layout, rapid trigger, adjustable actuation (0.2-3.8mm), 2.4GHz/Bluetooth, full aluminum body, south-facing RGB.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Keyboards - Device Type | Gaming Keyboard Office Keyboard |
|---|---|
| Keyboards - Special Features | Hot Swappable Programmable Keys |
| Keyboards - Form Factor | Full Size (100% / 96%) |
| Keyboards - Key Layout | US |
| Keyboards - Switch Type | Hall-Effect Magnetic |
| Keyboards - Connection | Bluetooth Wired (USB) Wireless RF (USB Dongle) |
| Keyboards - Backlighting | South-facing RGB |

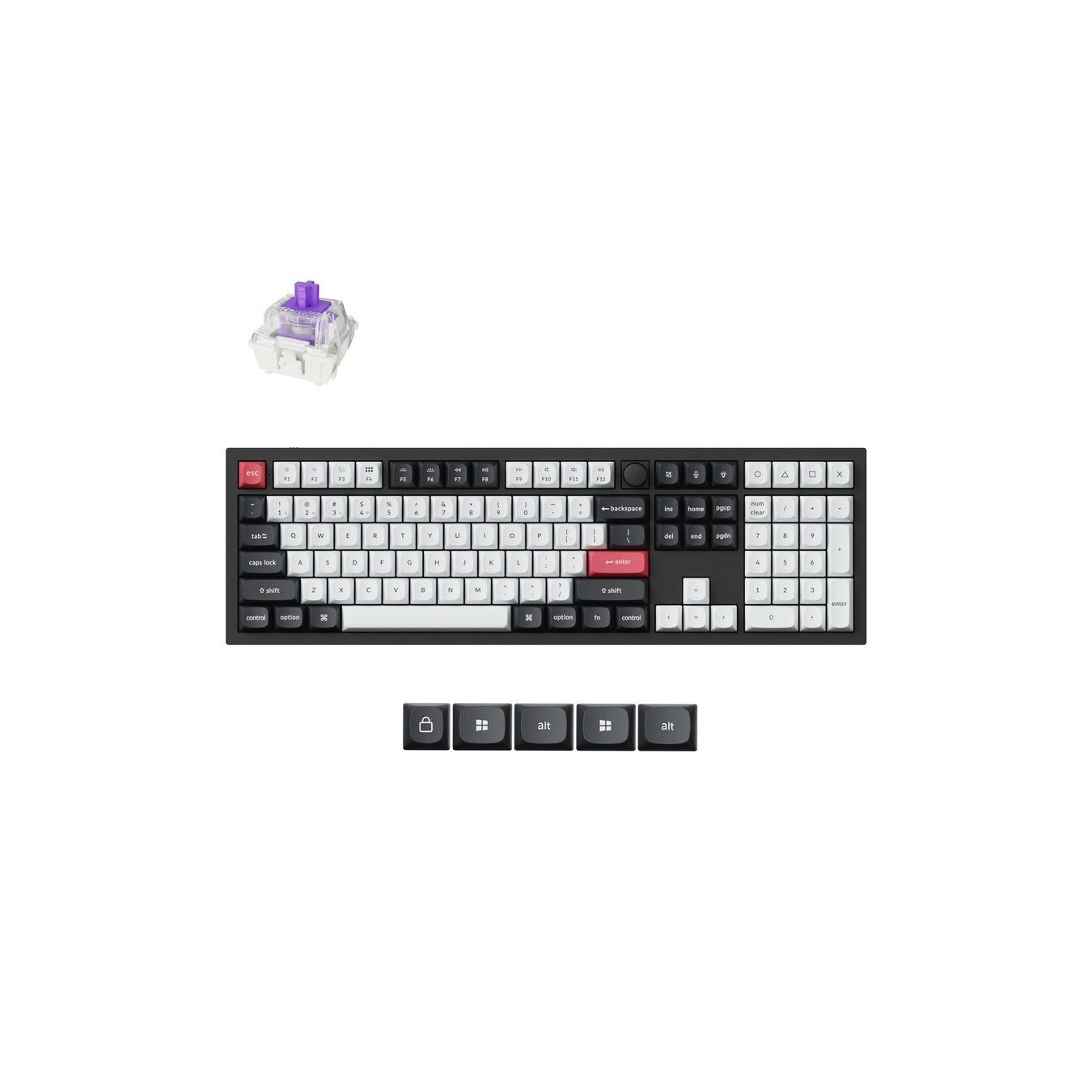

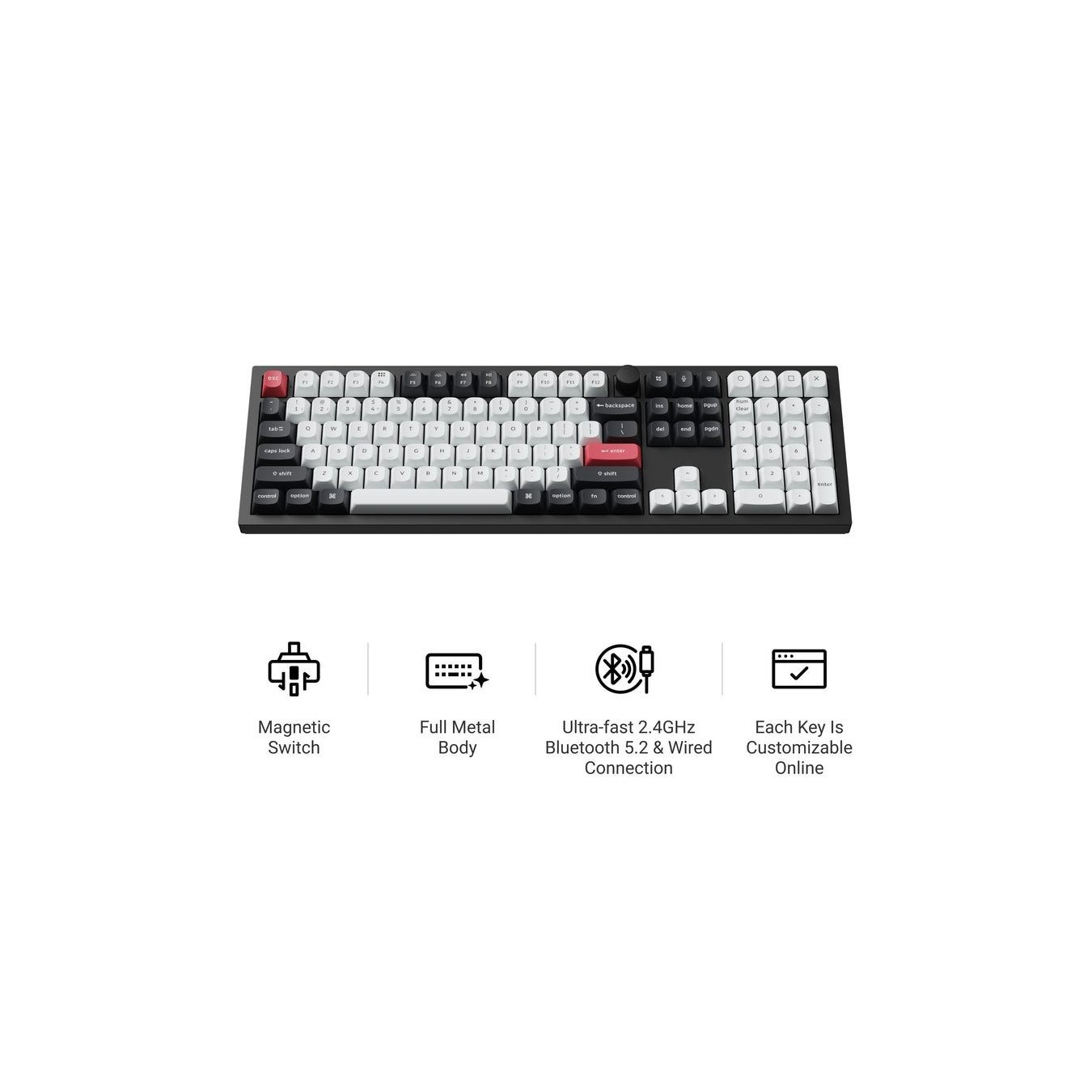

Keychron Q6 HE Q6H-M1
Meet the Keychron Q6 HE, a wireless QMK custom keyboard with 100% layout featuring Gateron double-rail Purple Hall Effect magnetic switches. These switches deliver faster response, dynamic rapid trigger, and adjustable actuation points from 0.2 to 3.8mm with 0.1mm sensitivity, perfect for gaming and customized typing.

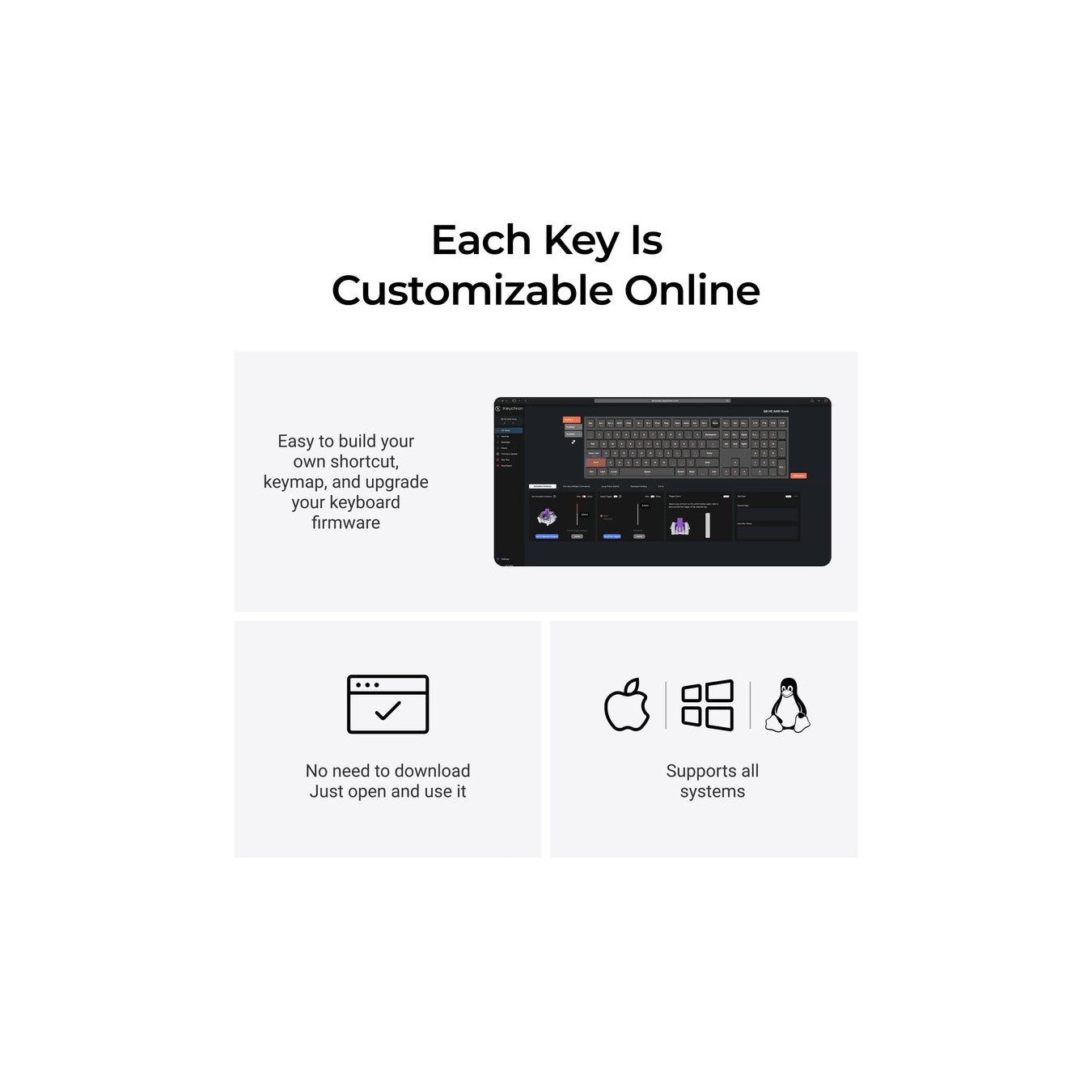

Equipped with 2.4GHz wireless (1000Hz polling), Bluetooth 5.2 for 3 devices, full aluminum 6063 body, double-gasket mount, OSA double-shot PBT keycaps, south-facing RGB, and hot-swappable magnetic switches (Keychron compatible only). QMK firmware via Web Keychron Launcher allows key remapping, macros, and multi-action keys.

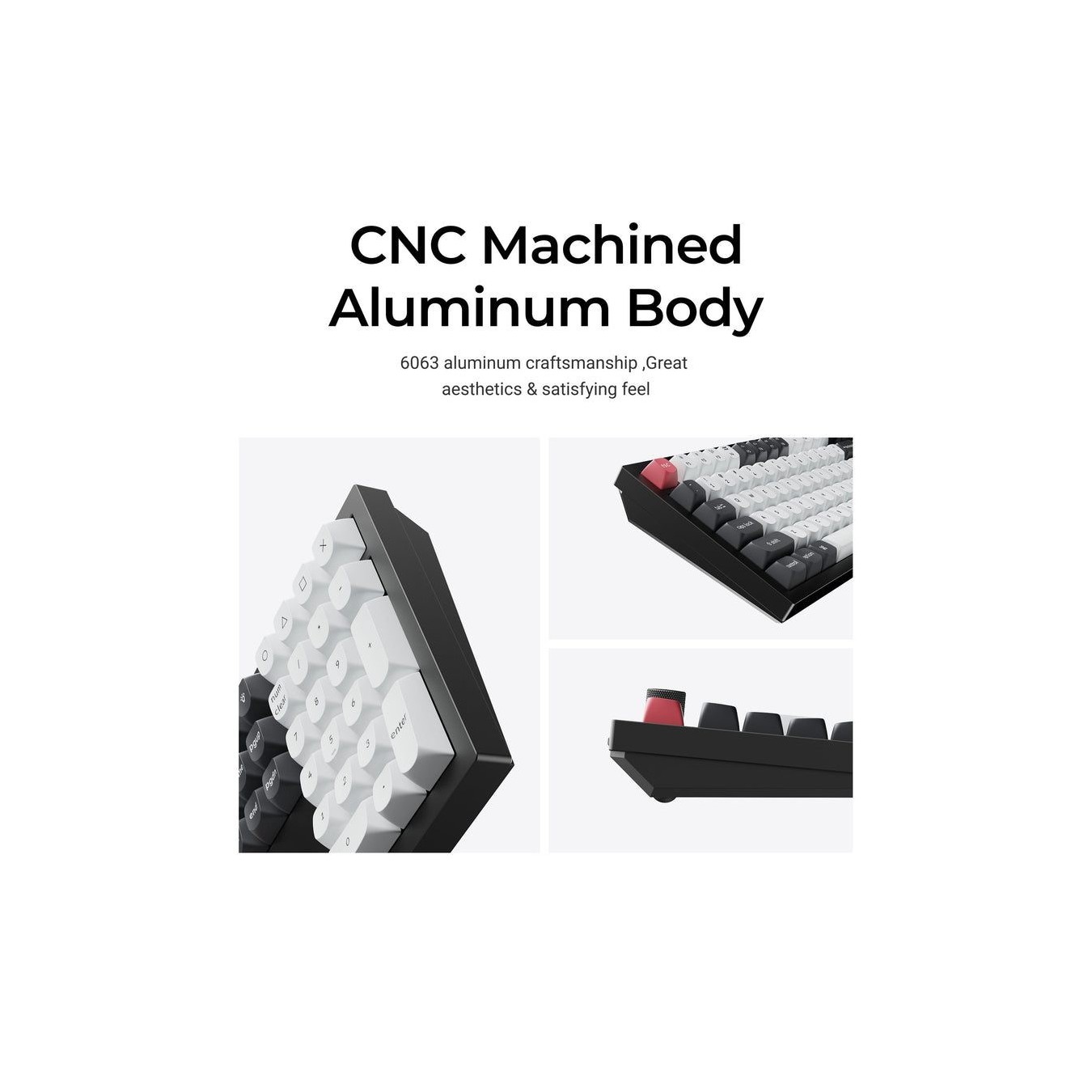

- Full metal construction: Aluminum case, plate, enhanced acoustics (foam, PET, latex)
- Connectivity: Wired USB-C, 2.4GHz dongle, Bluetooth
- Compatible with Mac/Windows (switch + keycaps included)
- Includes: Keyboard assembly, Type-C cable, 2.4G receiver, tools, keycaps, switches
- Dimensions: 446x137mm, Weight: 2.178kg assembled
| Layout | 100% (Full Size) |
| Key Count | 108 keys |
| Switch Type | Gateron Double-Rail Purple Magnetic Hall Effect |
| Actuation Points | 0.2 - 3.8 mm (0.1 mm sensitivity) |
| Rapid Trigger | Yes |
| Dynamic Keystrokes | 4-in-1 action keys |
| Polling Rate | 1000 Hz (Wired/2.4GHz), 90 Hz (Bluetooth) |
| N-Key Rollover | Yes (wired & wireless) |
| Connectivity | Wired USB-C, 2.4 GHz, Bluetooth 5.2 (3 devices) |
| Keycaps | OSA Profile Double-shot PBT (non-shine through) |
| Backlighting | South-facing RGB LED |
| Body Material | Aluminum 6063 |
| Mount | Double-Gasket |
| Hot-swappable | Yes (Keychron magnetic switches only) |
| Dimensions (keyboard) | 446.01 x 137 x 20.6-31.09 mm (front-back height w/o keycaps) |
| Weight (assembled) | 2178 g ±10 g |
| MCU | ARM Cortex-M4 32-bit STM32F402RC (256KB Flash) |
| Compatibility | Mac, Windows |
