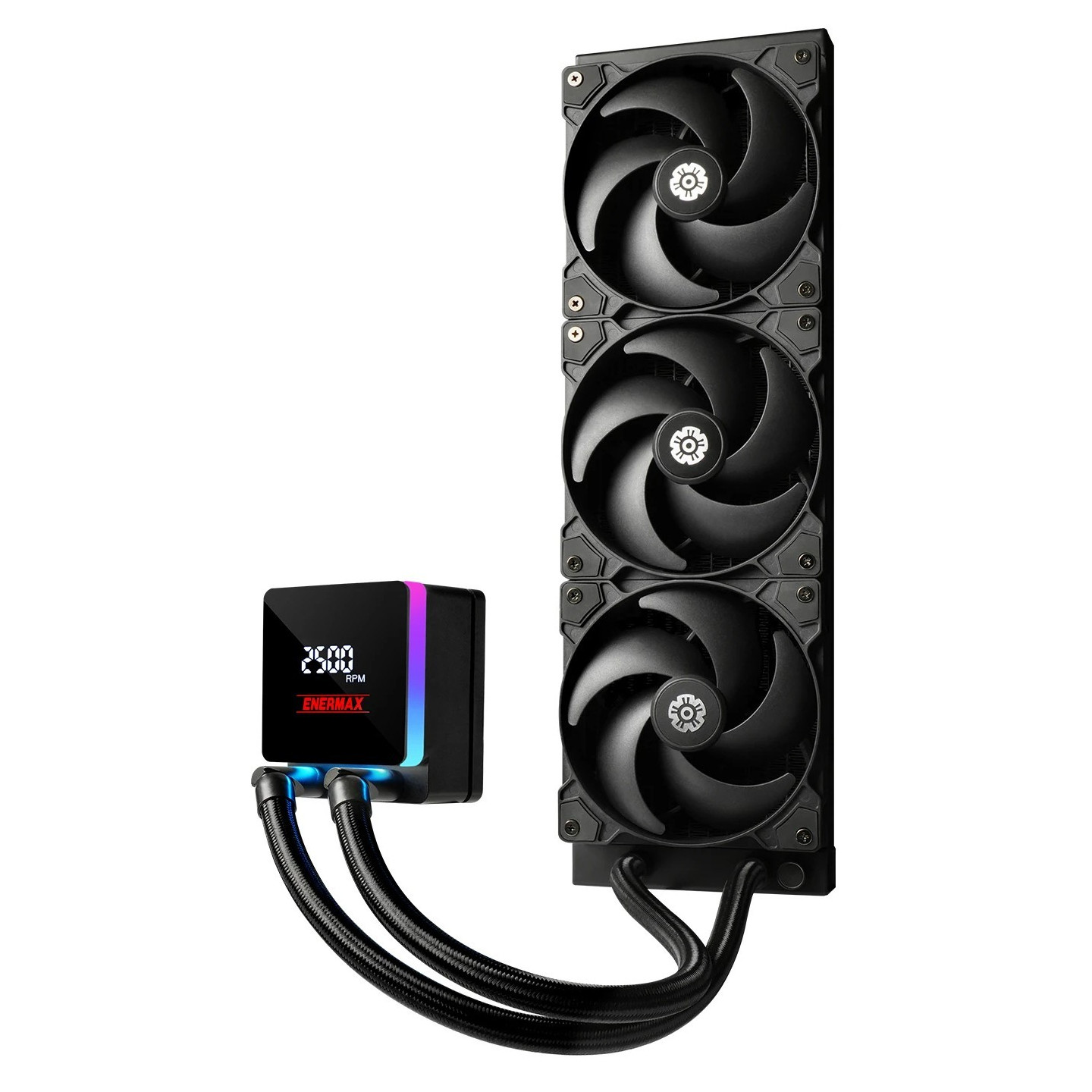

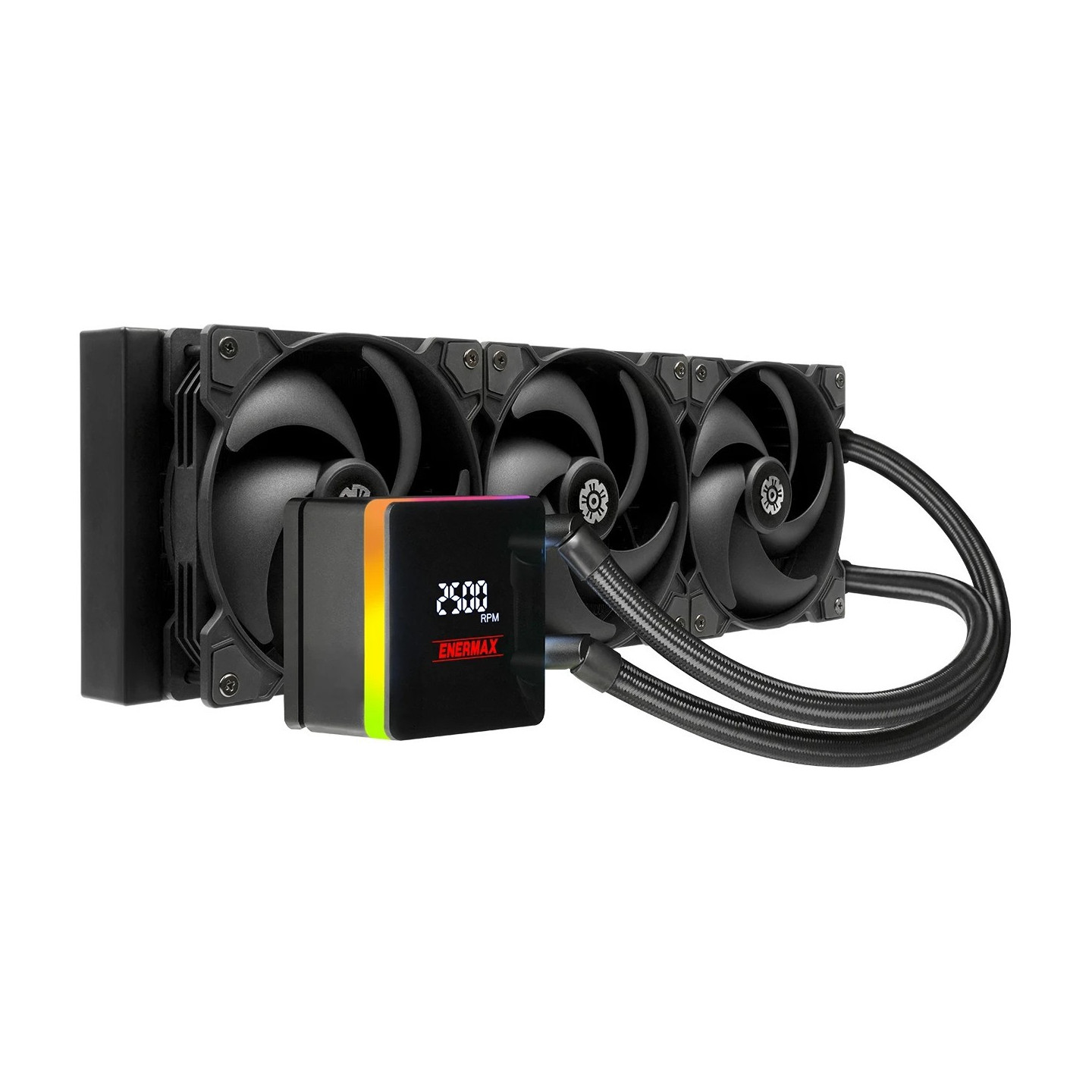

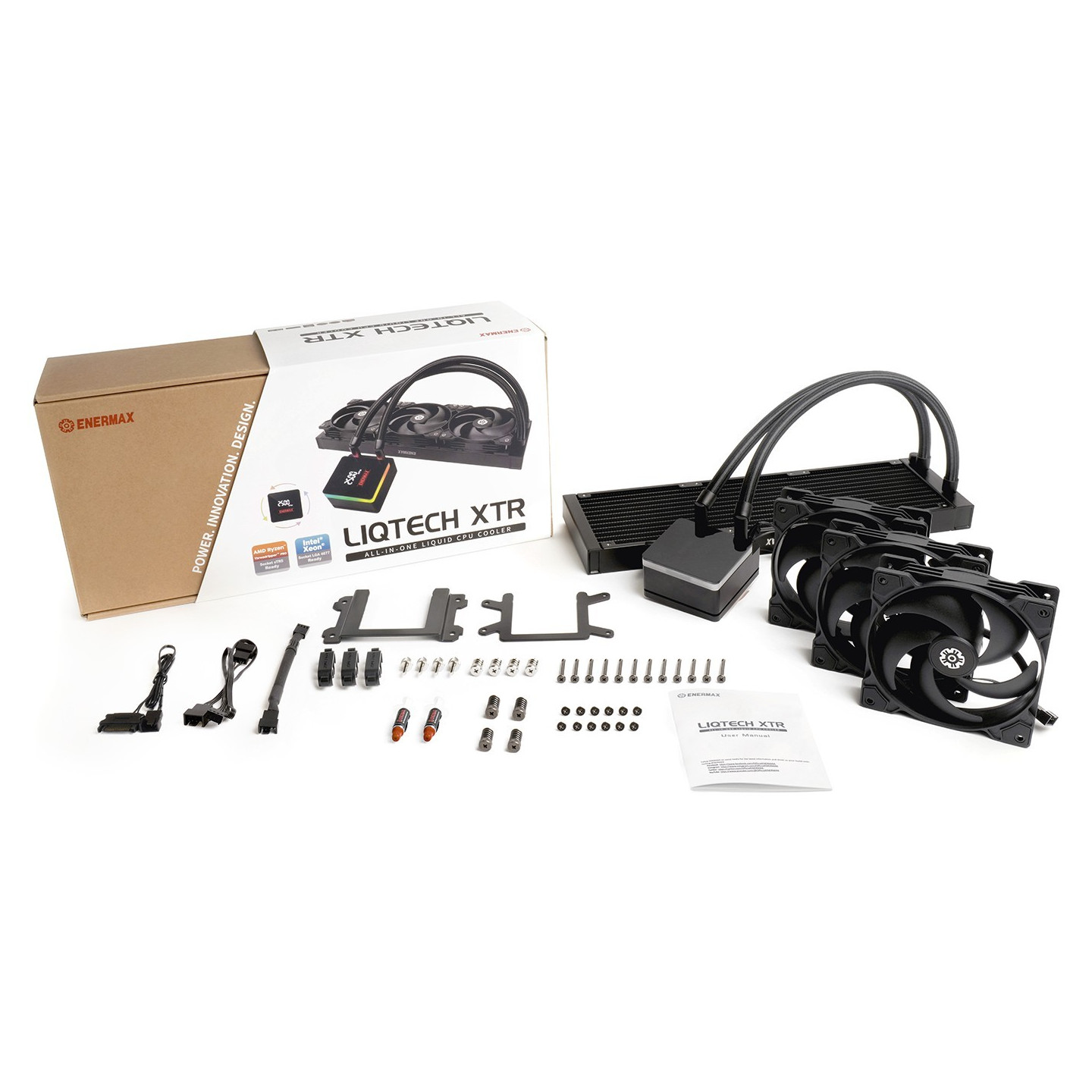

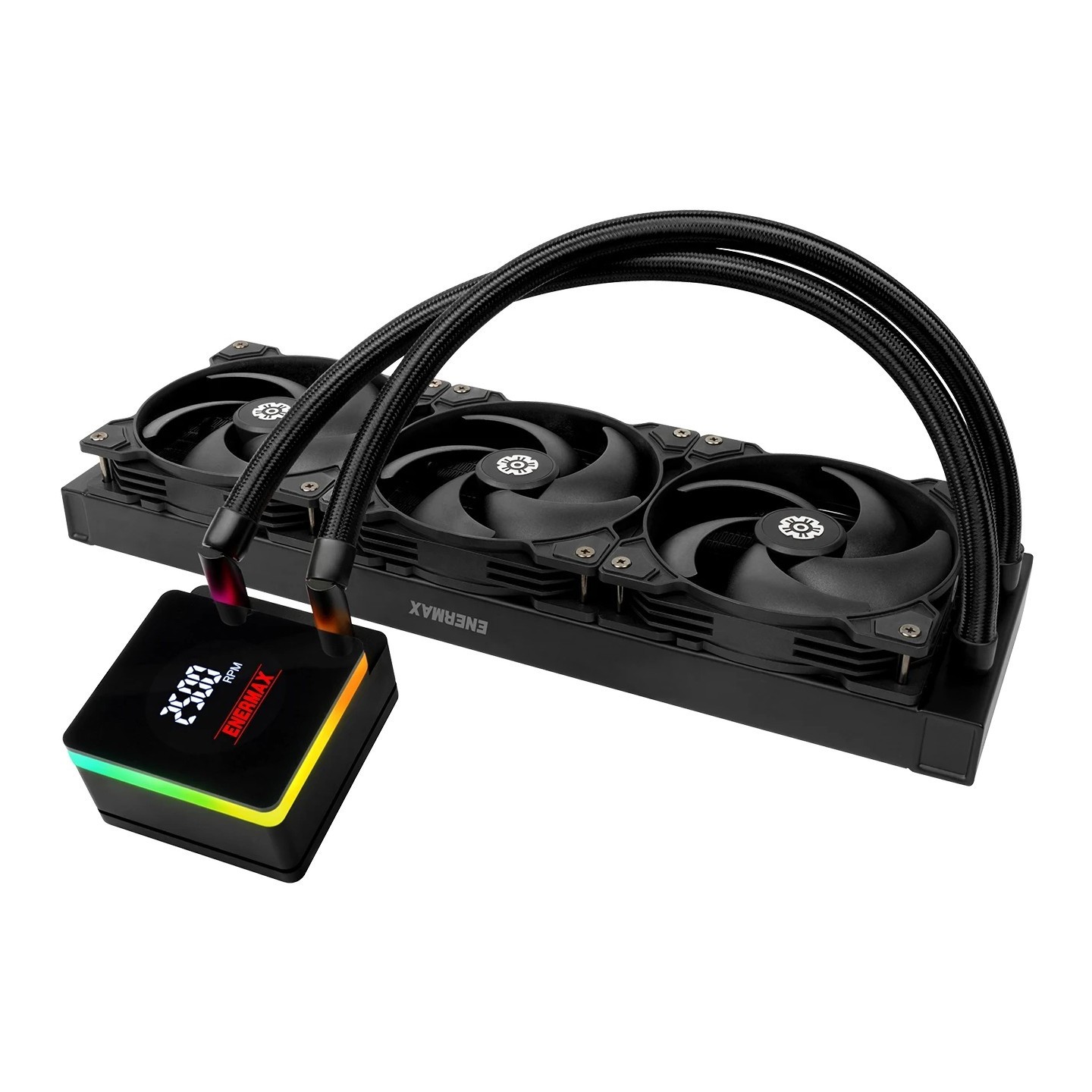

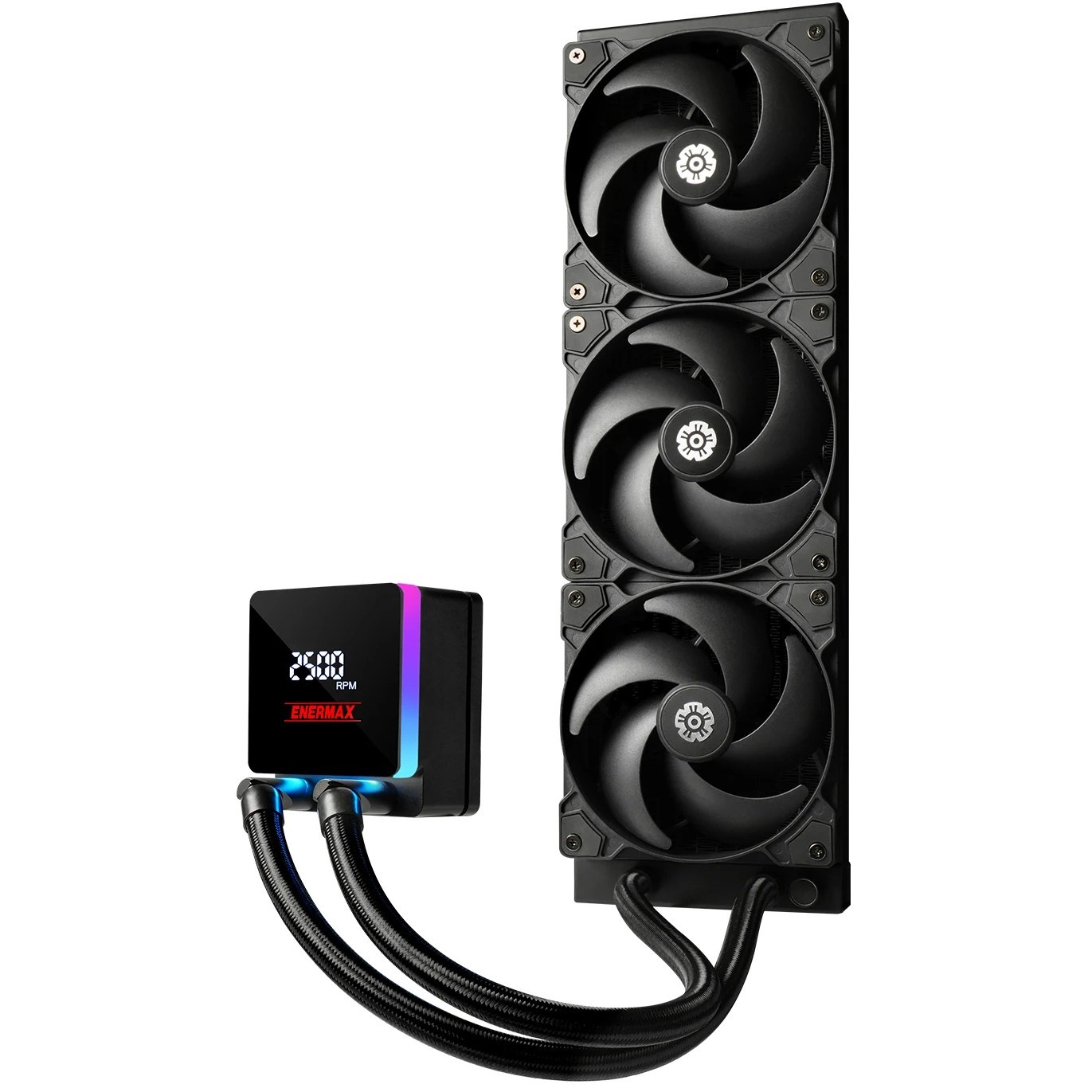

Enermax LIQTECH XTR 360mm CPU Liquid Cooler w/ Display (Boxed)
Enermax LIQTECH XTR 360mm AIO CPU cooler for workstations. EF1 pump 450L/h flow, 3x 120mm fans to 3000RPM, >550W TDP. Supports AMD sTR5/SP6/sWRX8/sTRX4/TR4/SP3, Intel LGA4677. Magnetic LCD display, ARGB.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Cooling (CPU & Case) - Device Type | CPU Liquid Cooler AIO |
|---|---|
| Cooling (CPU & Case) - Socket Support | AMD AM4 AMD SP3 AMD sTRX4 AMD sWRX8 AMD TR4 Intel LGA4677 |
| Cooling (CPU & Case) - Fan Size | 120 mm |
| Cooling (CPU & Case) - AIO Radiator Size | 360 mm |
| Cooling (CPU & Case) - Lightning | LCD Display RGB |
| Cooling (CPU & Case) - Connector | 3-Pin 4-Pin PWM USB 2.0 Header |
The Enermax LIQTECH XTR is a high-performance 360mm AIO liquid cooler designed specifically for workstation CPUs like AMD Ryzen Threadripper PRO and Intel Xeon W series. It delivers over 550W cooling capacity with an efficient EF1 pump providing 450L/h flow rate—7x better than standard AIOs—and patented Shunt-channel Technology (SCT) for superior heat dissipation. The enlarged cold plate ensures 100% IHS coverage for large workstation processors.
Equipped with three 120mm Silent Flow fans (700-3000 RPM, 87.9 CFM, 3.83 mmH2O, max 32 dBA) using dual-ball bearings, plus a magnetic rotatable real-time LCD display on the water block for monitoring CPU temp, fan RPM, or alerts. Features ARGB lighting, 45° rotary fittings for flexible tubing, and ENERMAX Tuner software support. Ideal for 3D rendering, AI, and heavy workloads.
- **Key Specs**: Radiator 394x120x27mm, fans 120x120x26.8mm, connectors 4-pin PWM + ARGB + USB 2.0
- **Sockets**: AMD sTR5/SP6/sWRX8/sTRX4/TR4/SP3, Intel LGA4677
- **Warranty**: Typically 5 years (check retailer)
- **MPN**: ELC-LTXTR360
| Recommended Placement | Processor |
| Type | Liquid Cooling |
| Fan Diameter | 12 cm |
| Manufacturer Part Number | ELC-LTXTR360 |
| AIO Radiator Size | 360 mm |
| Radiator Dimensions | 394 x 120 x 27 mm |
| Fan Dimensions | 120 x 120 x 26.8 mm (x3) |
| Fan Speed | 700-3000 RPM ±10% (radiator), 500-3000 RPM ±10% (pump) |
| Airflow | Max. 87.9 CFM |
| Static Pressure | Max. 3.83 mm-H2O |
| Noise Level | Max. 32 dBA |
| Pump Flow Rate | 450 L/h |
| Cooling Capacity | >550W TDP |
| Socket Support | AMD sTR5/SP6/sWRX8/sTRX4/TR4/SP3, Intel LGA4677 |
| Connectors | 4-Pin PWM, 3-Pin ARGB, USB 2.0 |
| Special Features | Magnetic LCD Display, SCT Technology, Dual-Ball Bearing Fans |
