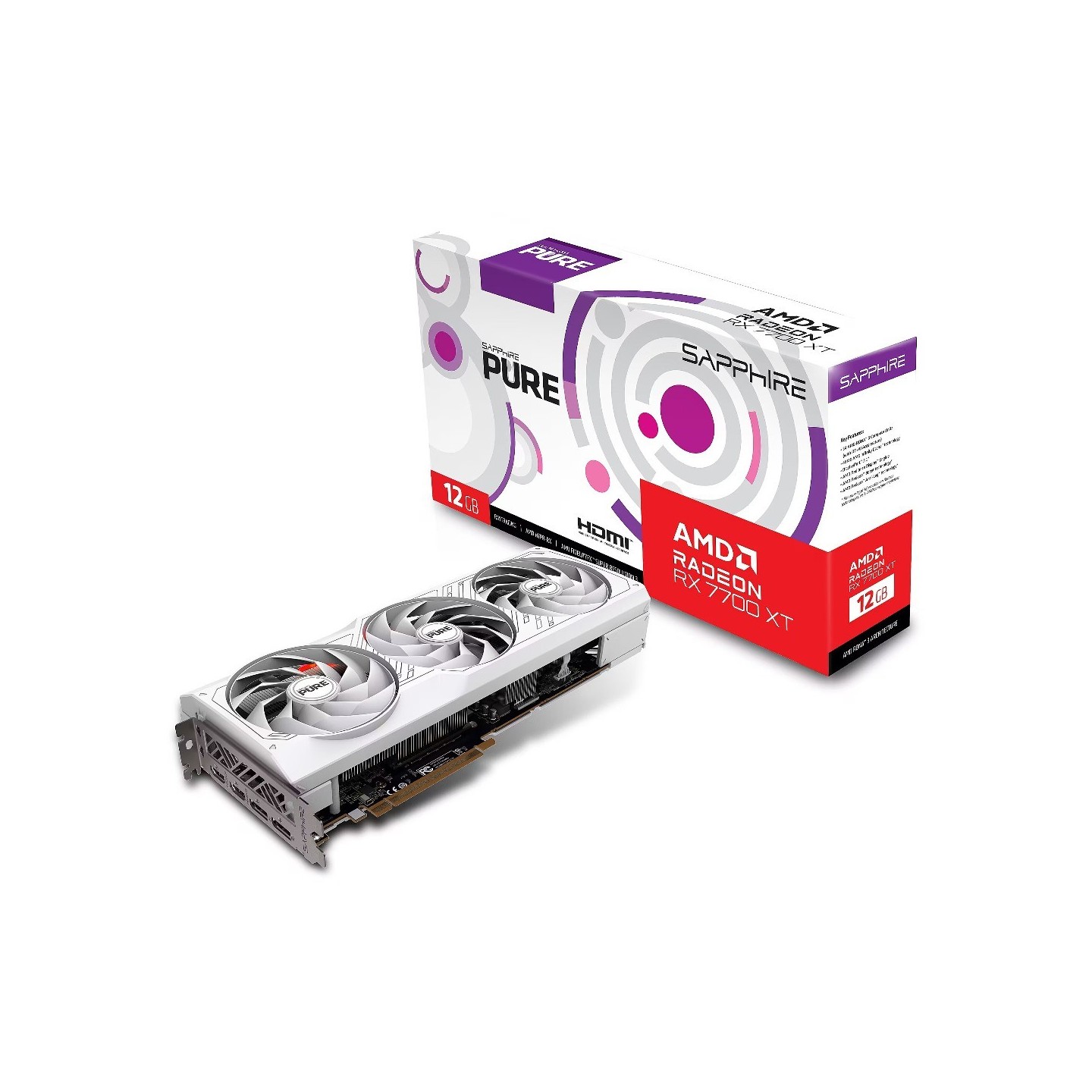

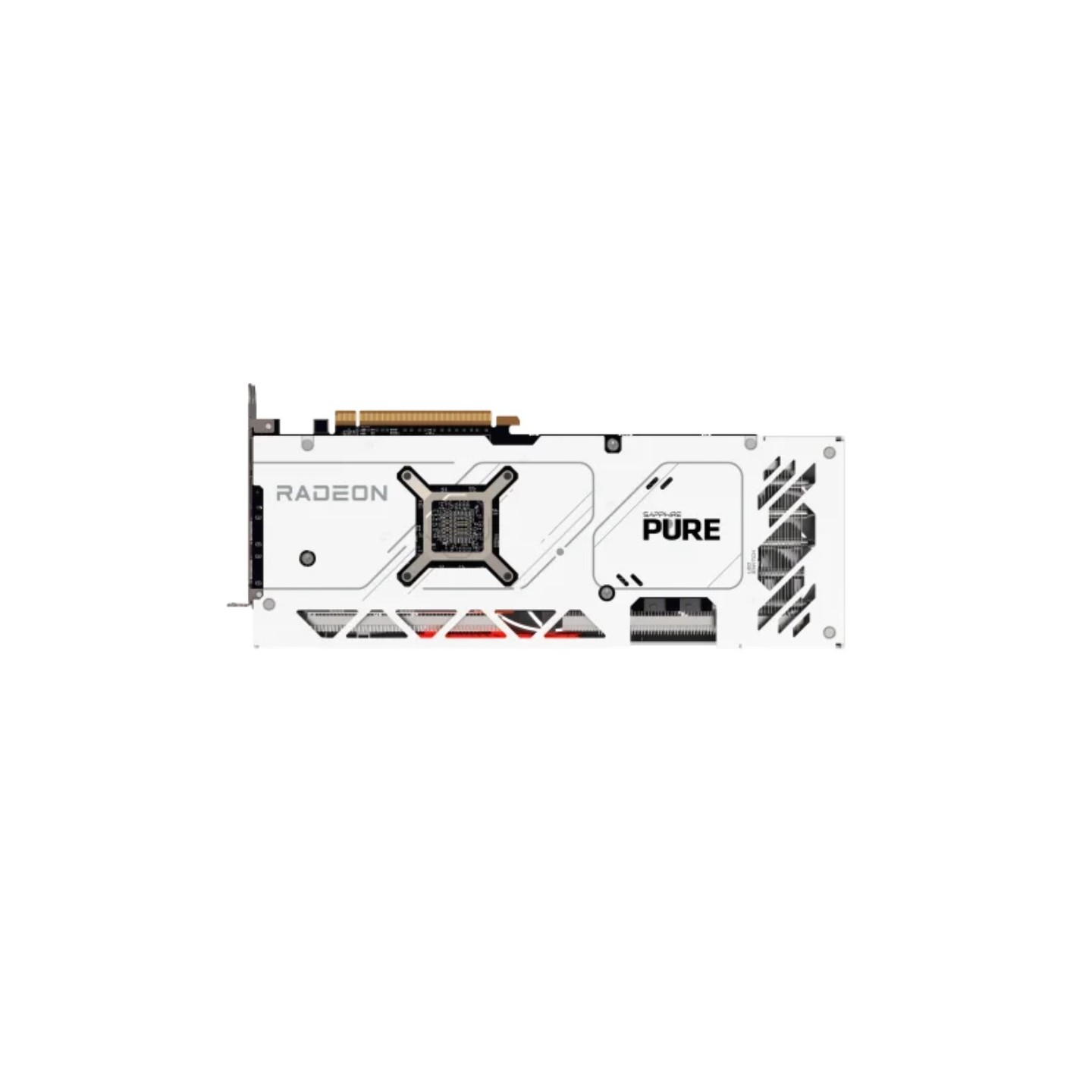

Sapphire PURE Radeon RX 7700 XT 12GB GDDR6 - Triple-Fan White Graphics Card (11335-03-20G)
Sapphire PURE Radeon RX 7700 XT 12GB GDDR6 white graphics card with triple-fan cooling, 2584 MHz boost clock, PCIe 4.0, and 240W power consumption for 1440p gaming.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| GPU (Graphics Cards) - Series | AMD Radeon RX |
|---|---|
| GPU (Graphics Cards) - PCIe Interface | PCIe 4.0 x16 |
| GPU (Graphics Cards) - Cooler Type | Triple Fan |
| GPU (Graphics Cards) - Color | White |
| GPU (Graphics Cards) - Backplate | Yes |
| GPU (Graphics Cards) - VRAM Capacity | 12 GB |
| GPU (Graphics Cards) - VRAM Type | GDDR6 |
| GPU (Graphics Cards) - Outputs | DisplayPort 2.1 HDMI 2.1 |
| GPU (Graphics Cards) - Power Connector | 2x8-pin |
| GPU (Graphics Cards) - Card Length | Extended (301-320 mm) |
The Sapphire PURE Radeon RX 7700 XT is a high-performance gaming graphics card featuring 12GB of GDDR6 memory on a 192-bit bus interface. Built on AMD's RDNA 3 architecture with a 5nm process, this card delivers exceptional 1440p gaming performance with 3,456 stream processors, 54 ray accelerators, and 108 AI accelerators. The card features a sophisticated triple-fan cooling solution with optimized composite heat pipes, intelligent fan control, and a metal backplate for durability and thermal management.
Connectivity options include 2x HDMI 2.1 and 2x DisplayPort 2.1 outputs, supporting the latest display standards. The card operates at a game clock of 2226 MHz and boost clock of 2584 MHz, with a total board power of 240W. It requires a minimum 700W power supply with two 8-pin PCIe power connectors and fits in a 2.5-slot form factor with dimensions of 320mm x 128.75mm x 52.57mm. The white color variant and Frostpunk 2 Edition branding make this an aesthetically distinctive choice for modern gaming builds.
This graphics card is optimized for 1440p gaming at maximum settings, delivering 75+ FPS in demanding titles like Dying Light 2 and Forza Horizon 5 with ray tracing enabled. The Sapphire PURE line emphasizes reliability with fuse protection, high-quality capacitors, and precise thermal control, making it suitable for both casual and enthusiast gamers seeking a balance of performance and value.
- 12GB GDDR6 memory with 192-bit interface and 18 Gbps effective speed
- 3,456 RDNA 3 stream processors with 54 ray accelerators and 108 AI accelerators
- Game clock 2226 MHz / Boost clock 2584 MHz
- Triple-fan cooling with metal backplate and composite heat pipes
- 2x HDMI 2.1 and 2x DisplayPort 2.1 connectivity
- PCIe 4.0 x16 interface with 240W total board power
- Requires 700W PSU minimum with 2x 8-pin power connectors
- Optimized for 1440p gaming at maximum settings
| GPU Architecture | AMD RDNA 3 |
| Manufacturing Process | 5nm EUV |
| Stream Processors | 3456 |
| Ray Accelerators | 54 |
| AI Accelerators | 108 |
| Render Output Units (ROPs) | 96 |
| Texture Mapping Units | 216 |
| Infinity Cache | 48 MB |
| Memory Capacity | 12 GB |
| Memory Type | GDDR6 |
| Memory Interface | 192-bit |
| Memory Speed | 18 Gbps |
| Memory Bandwidth | 432 GB/s |
| Effective Memory Bandwidth | 1995 GB/s |
| Game Clock | 2226 MHz |
| Boost Clock | 2584 MHz |
| Peak Pixel Fill-Rate | 244 GP/s |
| Peak Texture Fill-Rate | 550 GT/s |
| Peak FP32 Performance | 35.2 TFLOPs |
| Peak FP16 Vector Performance | 35.2 TFLOPs |
| Peak FP16 Matrix Performance | 70.3 TFLOPs |
| Peak INT8 Matrix Performance | 70.3 TOPs |
| Peak INT4 Matrix Performance | 141 TOPs |
| PCIe Interface | PCIe 4.0 x16 |
| HDMI Outputs | 2x HDMI 2.1 |
| DisplayPort Outputs | 2x DisplayPort 2.1 |
| Power Connectors | 2x 8-pin PCIe |
| Total Board Power (TBP) | 240 W |
| Recommended PSU | 700 W minimum |
| Card Length | 320 mm |
| Card Width | 128.75 mm |
| Card Height | 52.57 mm |
| Slot Width | 2.5 slots |
| Cooling Solution | Triple-Fan with Composite Heat Pipes |
| Backplate | Metal |
| Color | White |
| Manufacturer Part Number | 11335-03-20G |
| Recommended System RAM | 16 GB (minimum 8 GB) |
| Recommended Gaming Resolution | 1440p |
| FreeSync Support | Yes |
| BIOS Support | UEFI |
