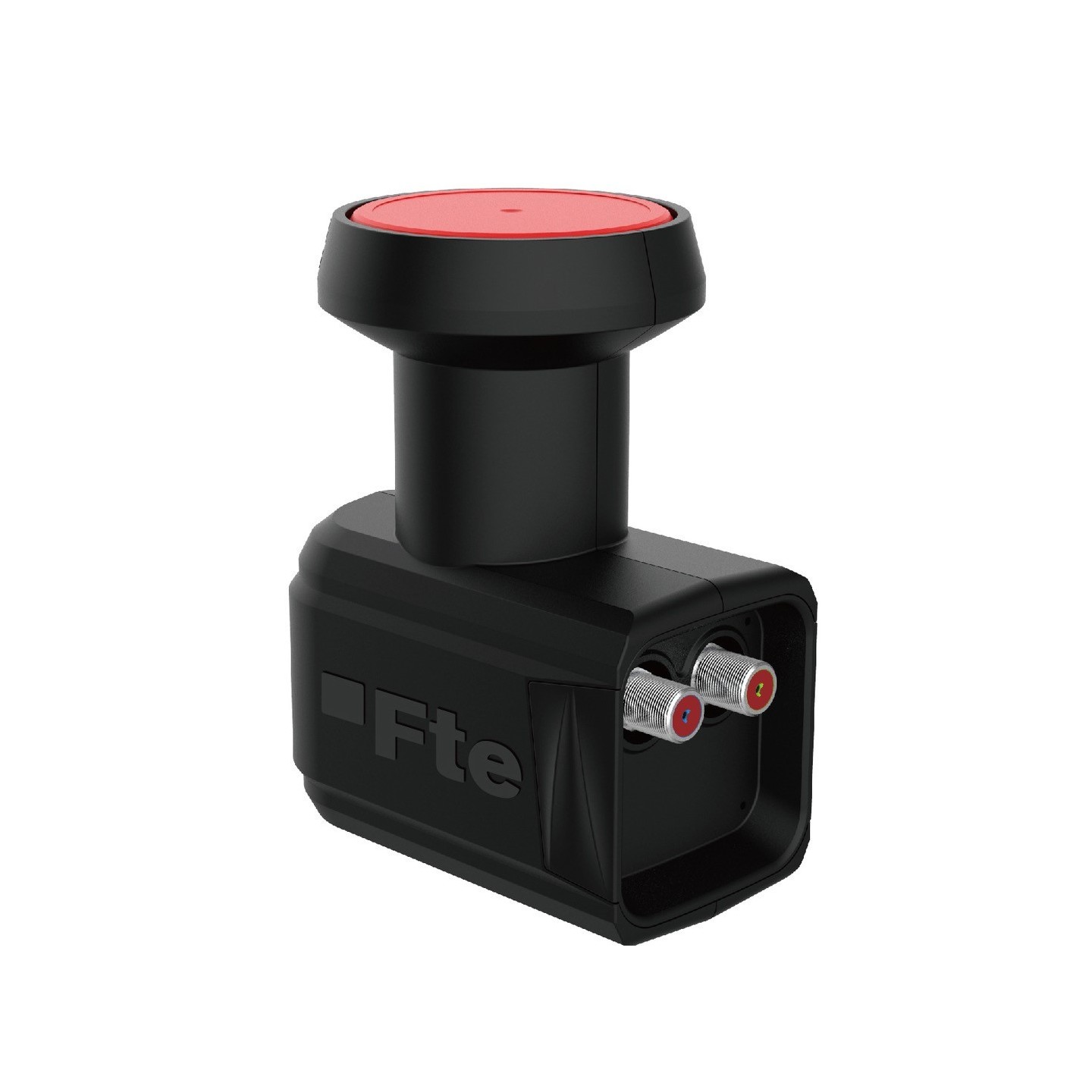

FTE eXcellento Black HQ Twin LNB - 0.1db
Twin LNB with 2 outputs. Input: Low 10.7–11.7 GHz; High 11.7–12.75 GHz. Output: Low 950–1950 MHz; High 1100–2150 MHz.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
- Input frequencies: Low Band: 10.7~11.7 GHz / High Band: 11.7~12.75 GHz
- Number of outputs: 2
- Output frequencies: Low Band: 950~1950 MHz / High Band: 1100~2150 MHz
- Local oscillators: Low Band: 9.75 GHz / High Band: 10.60 GHz
- Output impedance: 75 Ω
- Noise figure TYP: 0,1 dB
- Conversion gain: 55 - 65 dB
- Voltage supply: 11.5 / 19.0 VDC 0-22 KHz
- Current consumption: 130 ± 10 mA (Typical)
| LNB Type | Twin |
