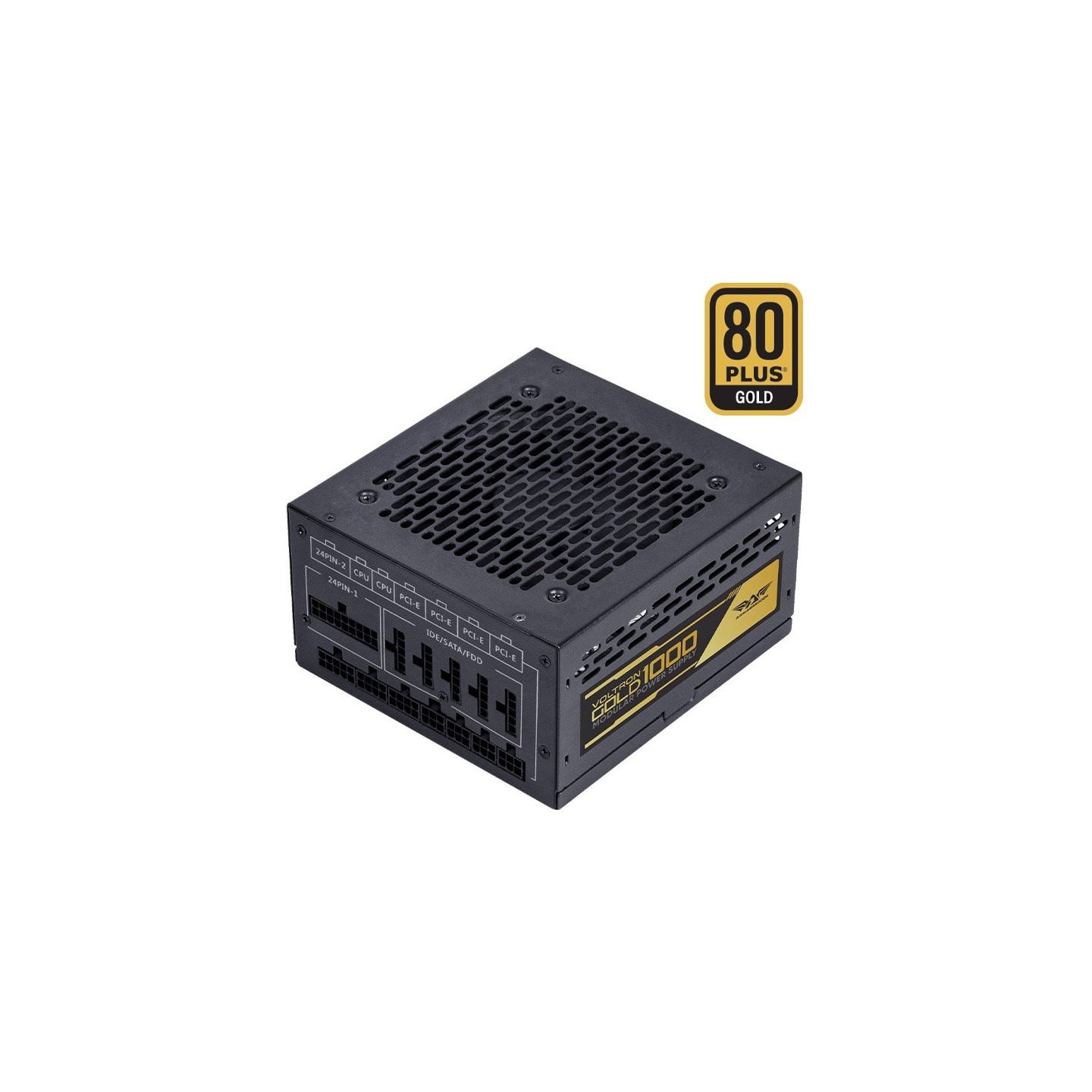

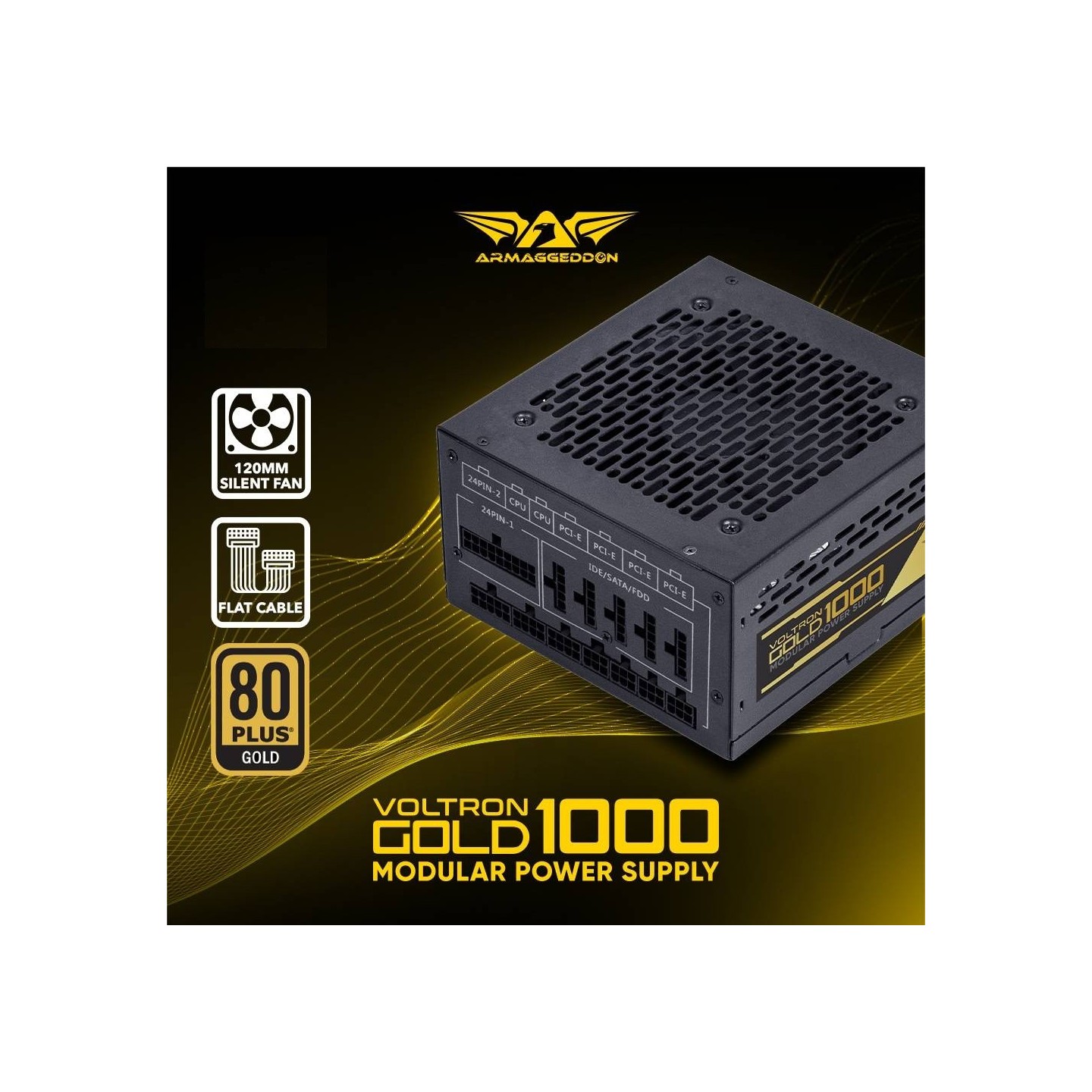

Armaggeddon Voltron Gold 1000 80+ Gold Fully Modular PSU (Boxed)
80+ Gold certified 1000W fully modular gaming PSU with 100% Taiwanese capacitors, full protections (OCP/OVP/UVP/SCP/OTP/OPP), LLC design, 120mm FDB fan, active PFC, tight regulation. ErP Lot 3 compliant, 10-year warranty.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 1000 - 1199 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Gold |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 3x 8/6 pins |
| PSU (Power Supplies) - Length | 141-160 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 1x 4+4pin EPS/ATX12V |

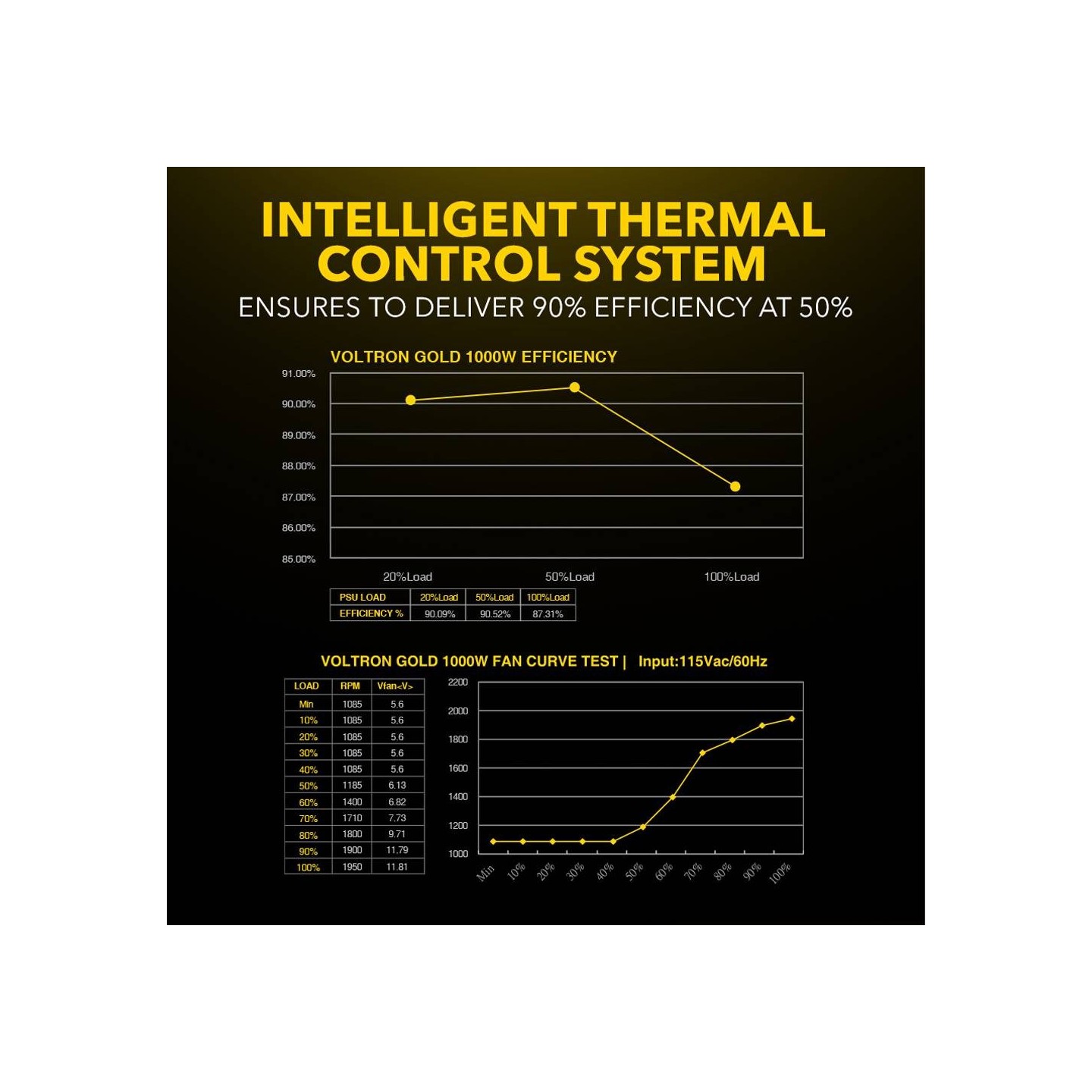

The Armaggeddon Voltron Gold 1000 is a premium fully modular 1000W power supply designed for high-end gaming rigs. It features 80+ Gold efficiency (up to 90.52% at 50% load), 100% Taiwanese capacitors for reliability, and LLC resonant converter for stable power delivery.

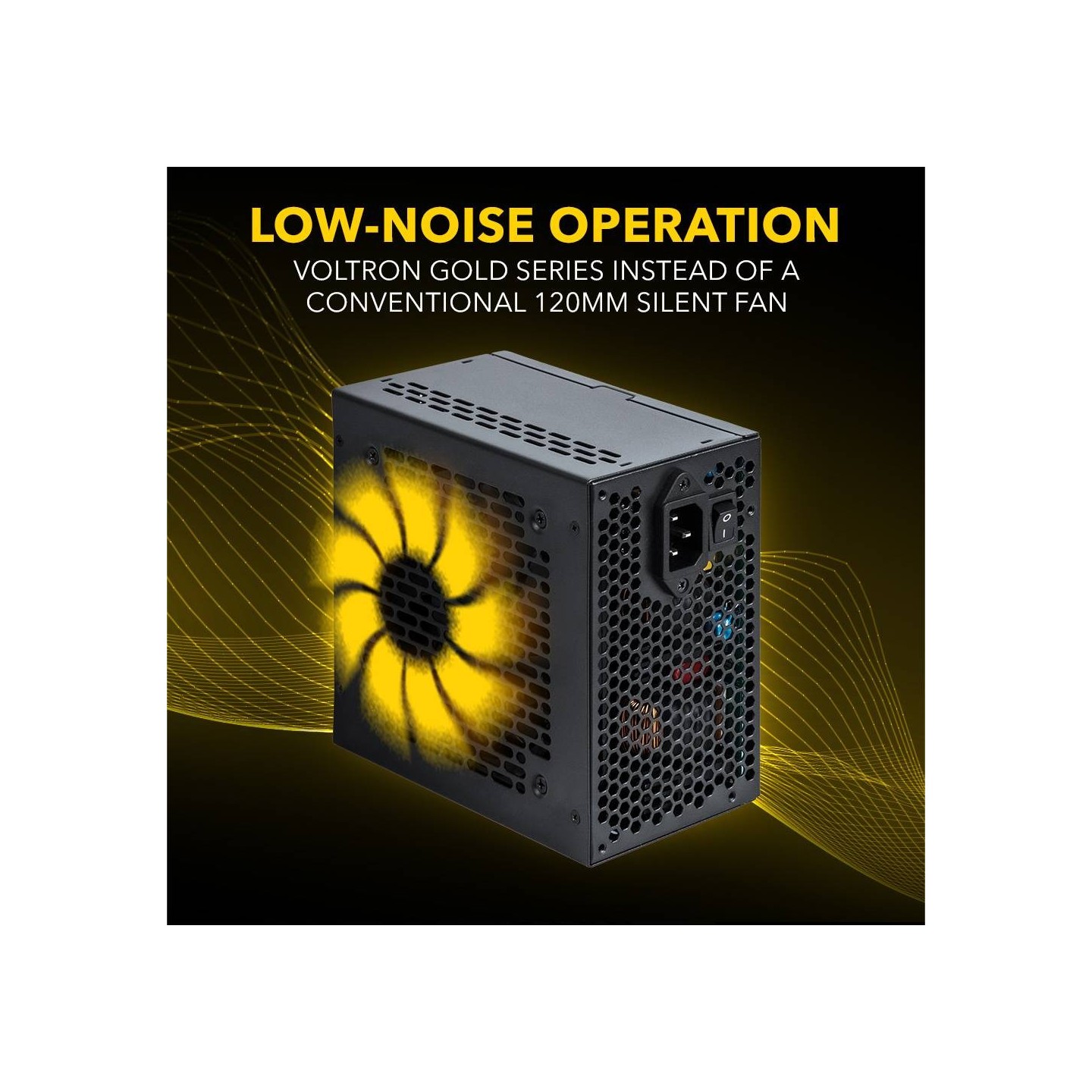

Equipped with intelligent thermal control and a silent 120mm dual-ball bearing (FDB) fan, it ensures quiet operation even under heavy loads. Full protections guard against over-current, over-voltage, under-voltage, short-circuit, over-temperature, and over-power. Supports universal input (100-240V) with active PFC.

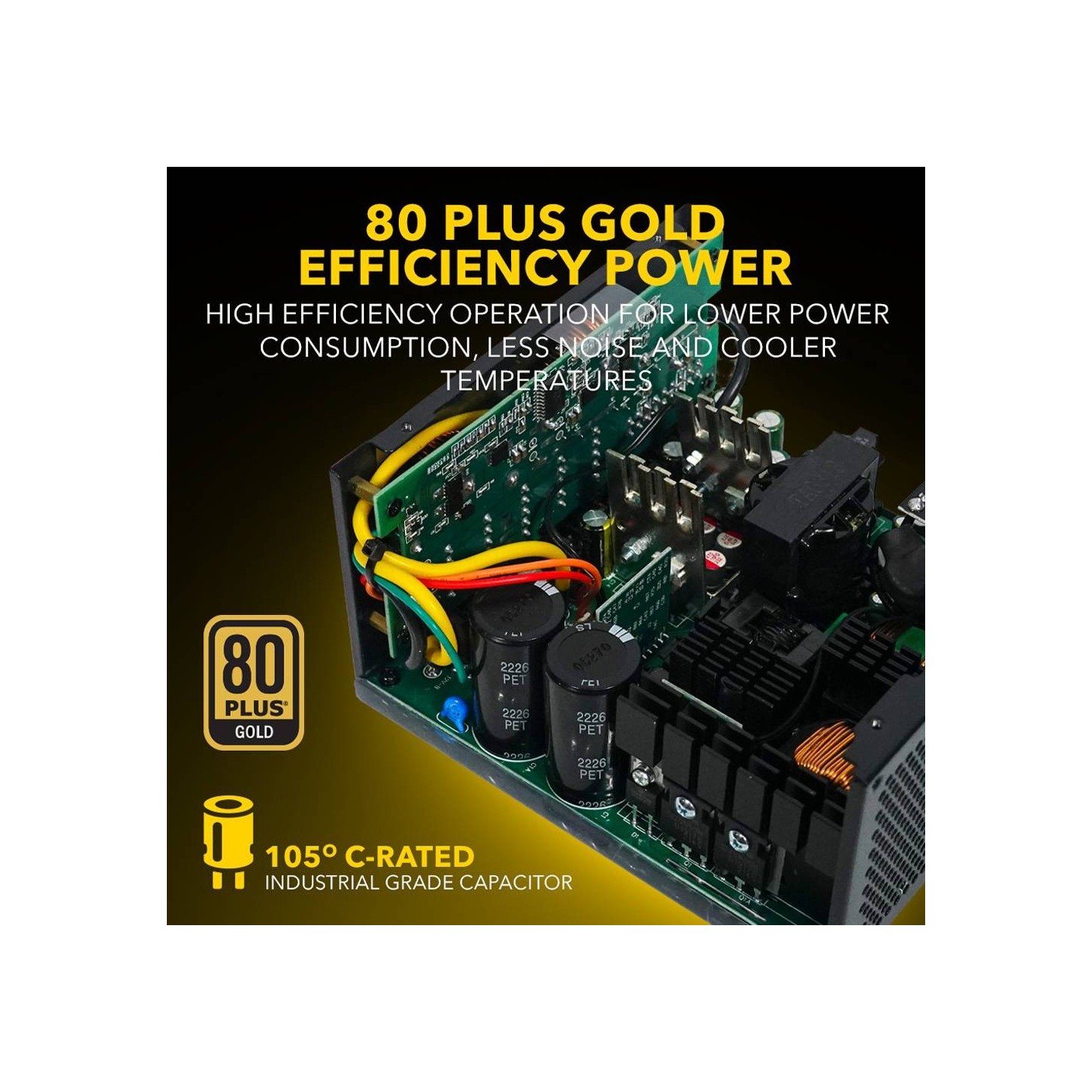

- 80 PLUS Gold certified (90% efficiency @ typical load)

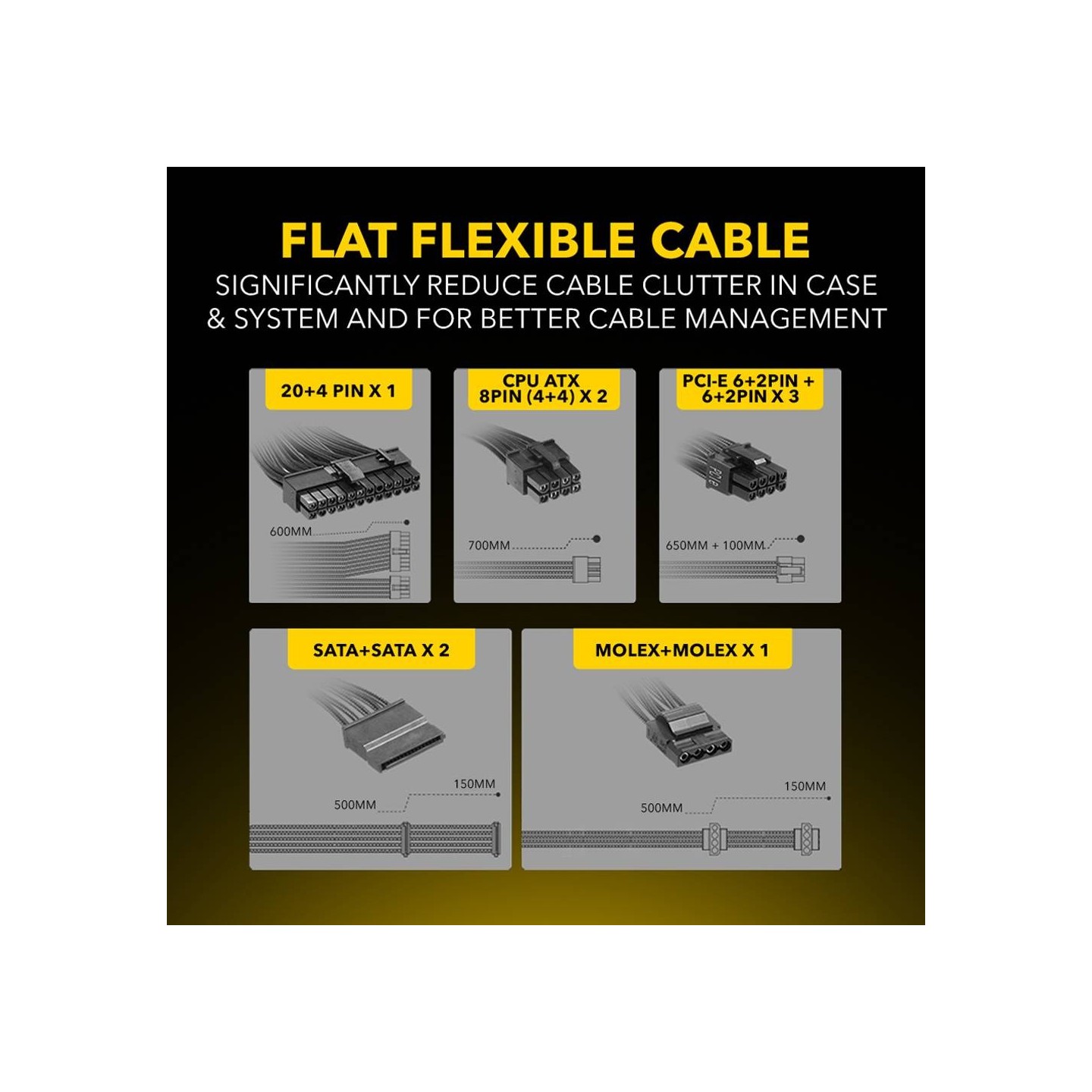

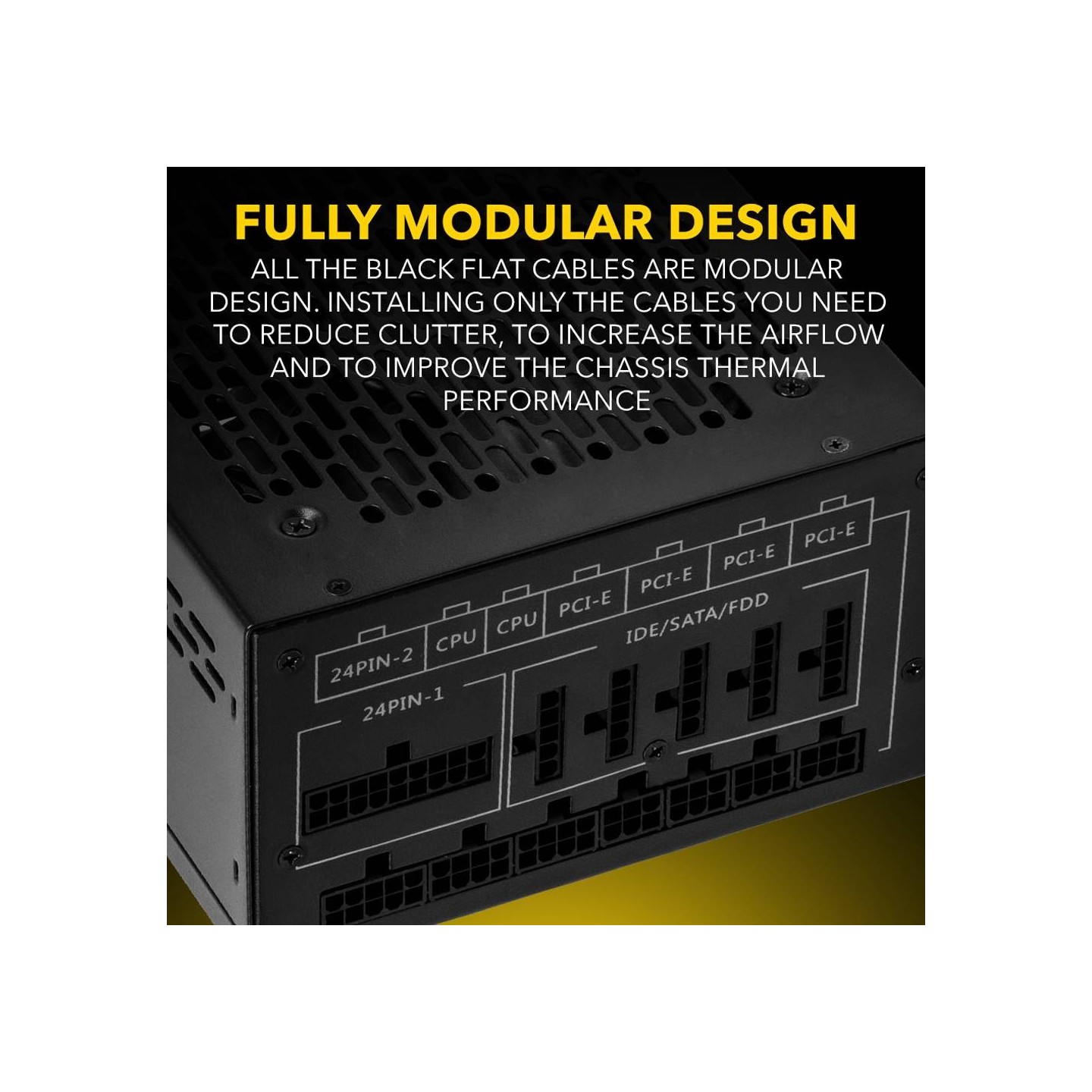

- Fully modular cables for clean builds
- PCIe: 3x 8/6-pin (GPU power)
- EPS: 1x 4+4pin (CPU)
- SATA: 2x, HDD (Molex): 1x

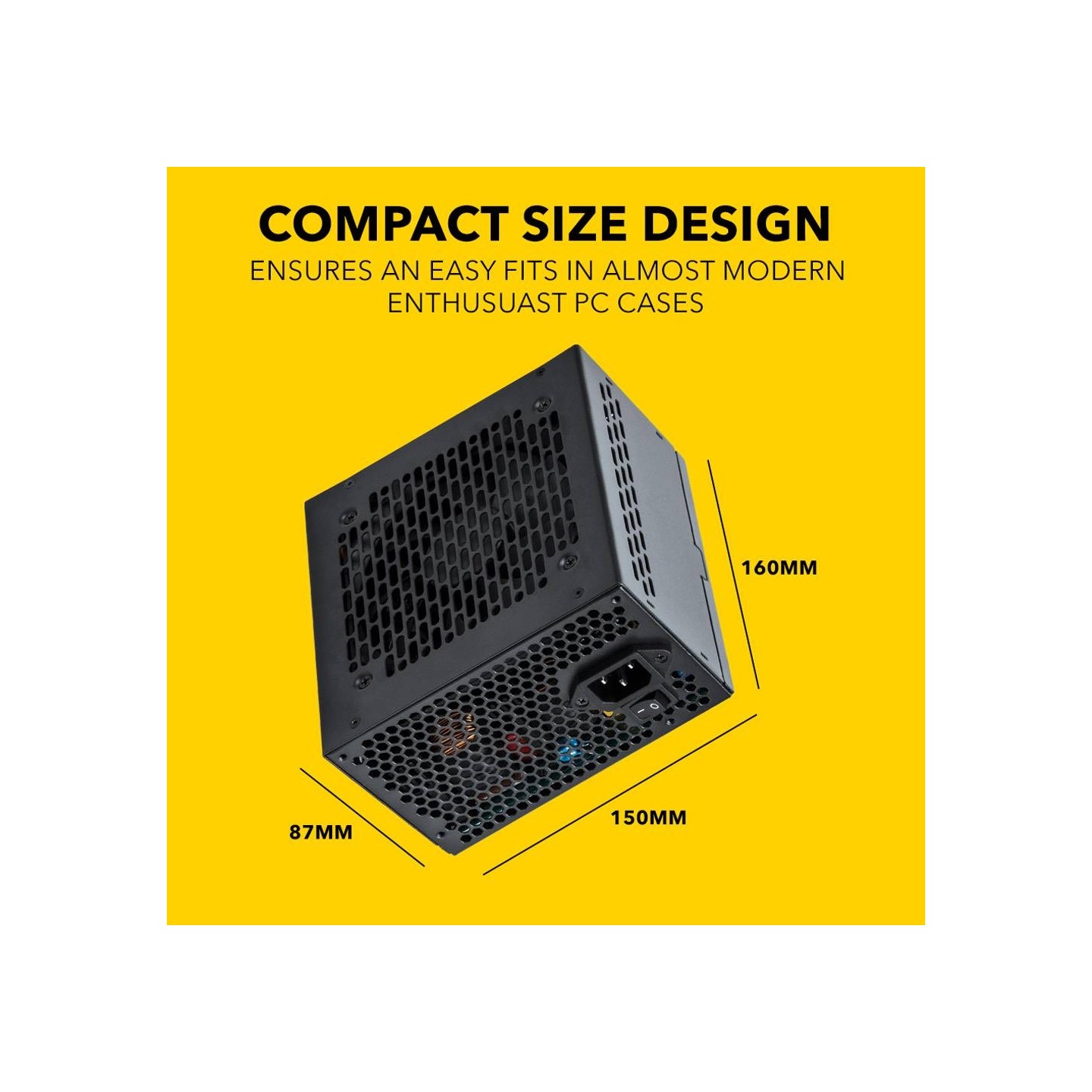

- Dimensions: 150 x 87 x 160mm
- 10-year warranty

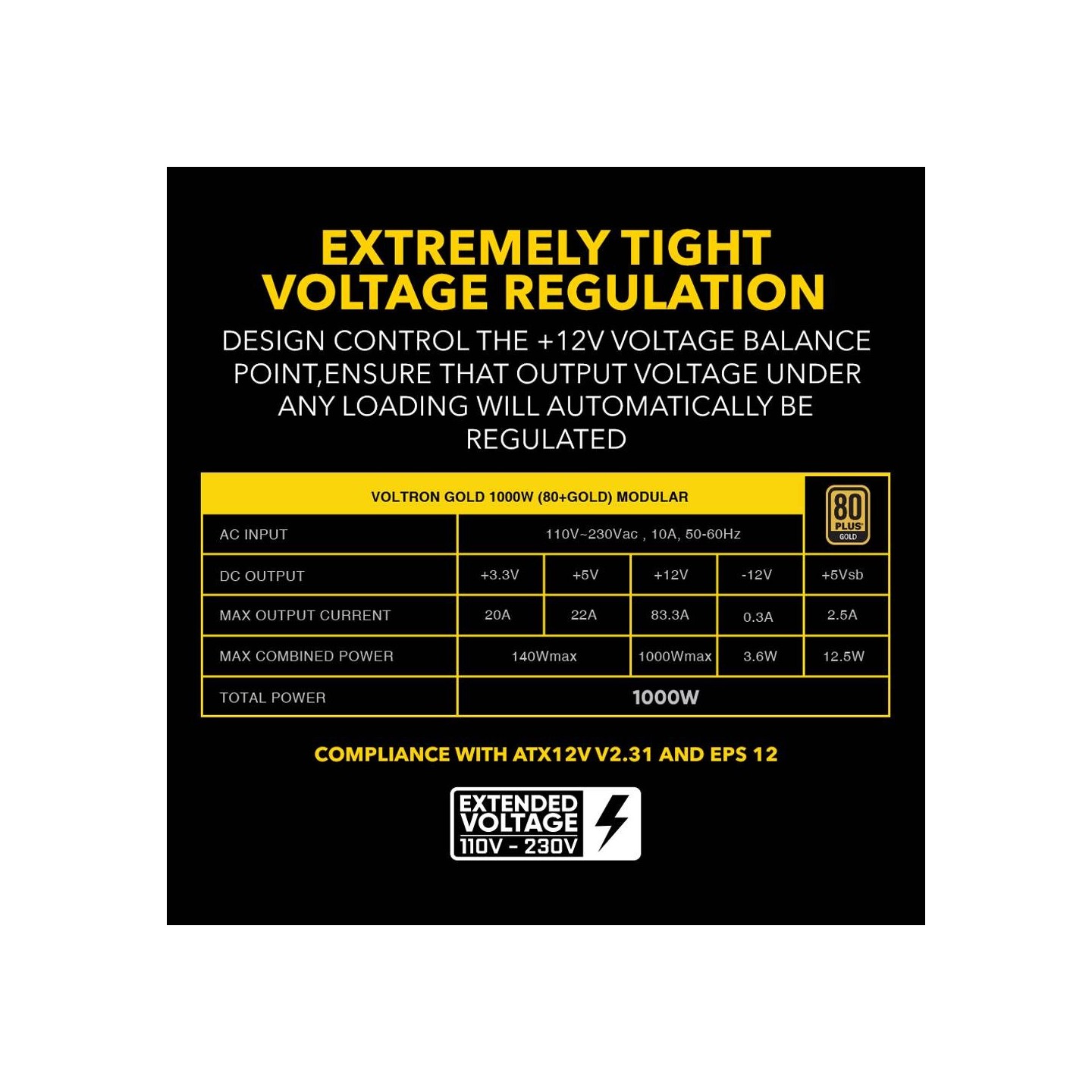

- ATX 12V v2.31 & EPS12V compliant

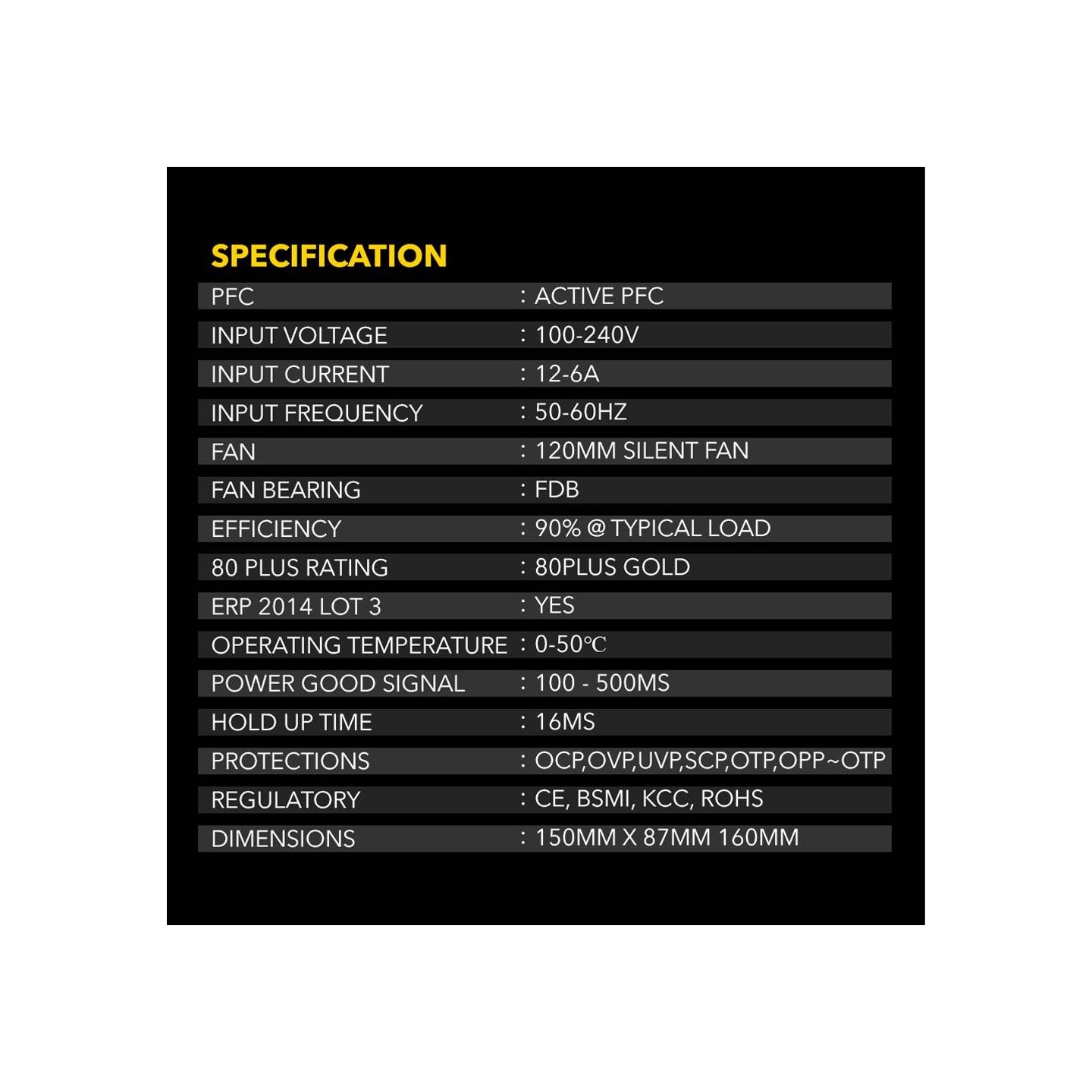

| Max Power | 1000W |
| Pure Power Rated | 1000W |
| Certification | 80PLUS Gold |
| PCI-E connector | 3x 8/6-pin |
| Sata Connector | 2 |
| Cooling | 120 mm FDB Fan |
| HDD Connector | 1x Molex |
| Modularity | Fully Modular |
| PFC | Active PFC |
| Input Voltage | 100 - 240V |
| Input Current | 12 - 6A |
| Input Frequency | 50 - 60Hz |
| Efficiency | 90% @ Typical Load |
| ErP 2014 Lot 3 | YES |
| Operating Temperature | 0 - 50°C |
| Hold Up Time | 16ms |

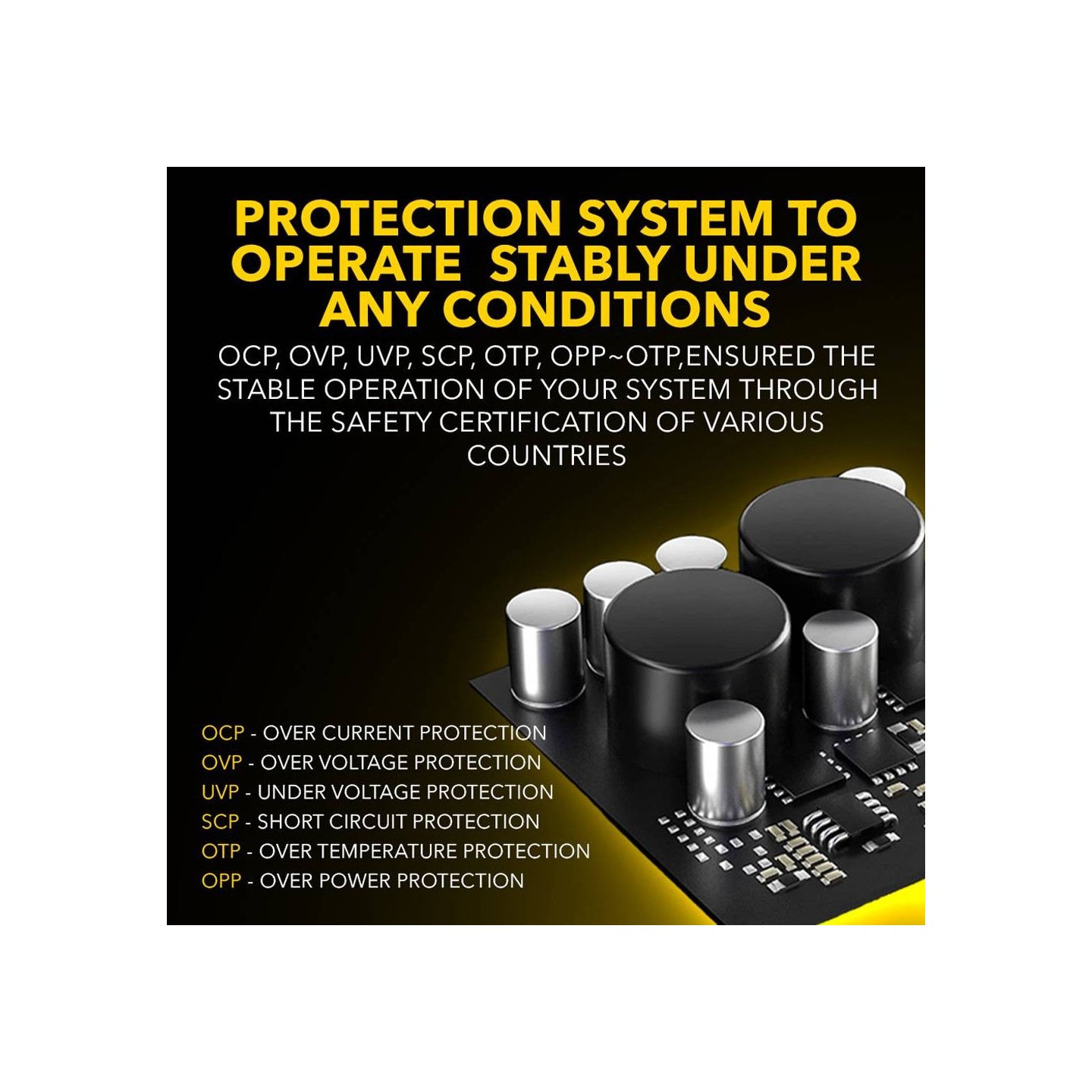

| Protections | OCP, OVP, UVP, SCP, OTP, OPP-OTP |
| Dimensions | 150 x 87 x 160mm |
| Warranty | 10 Years |
| EPS CPU Connectors | 1x 4+4pin |
