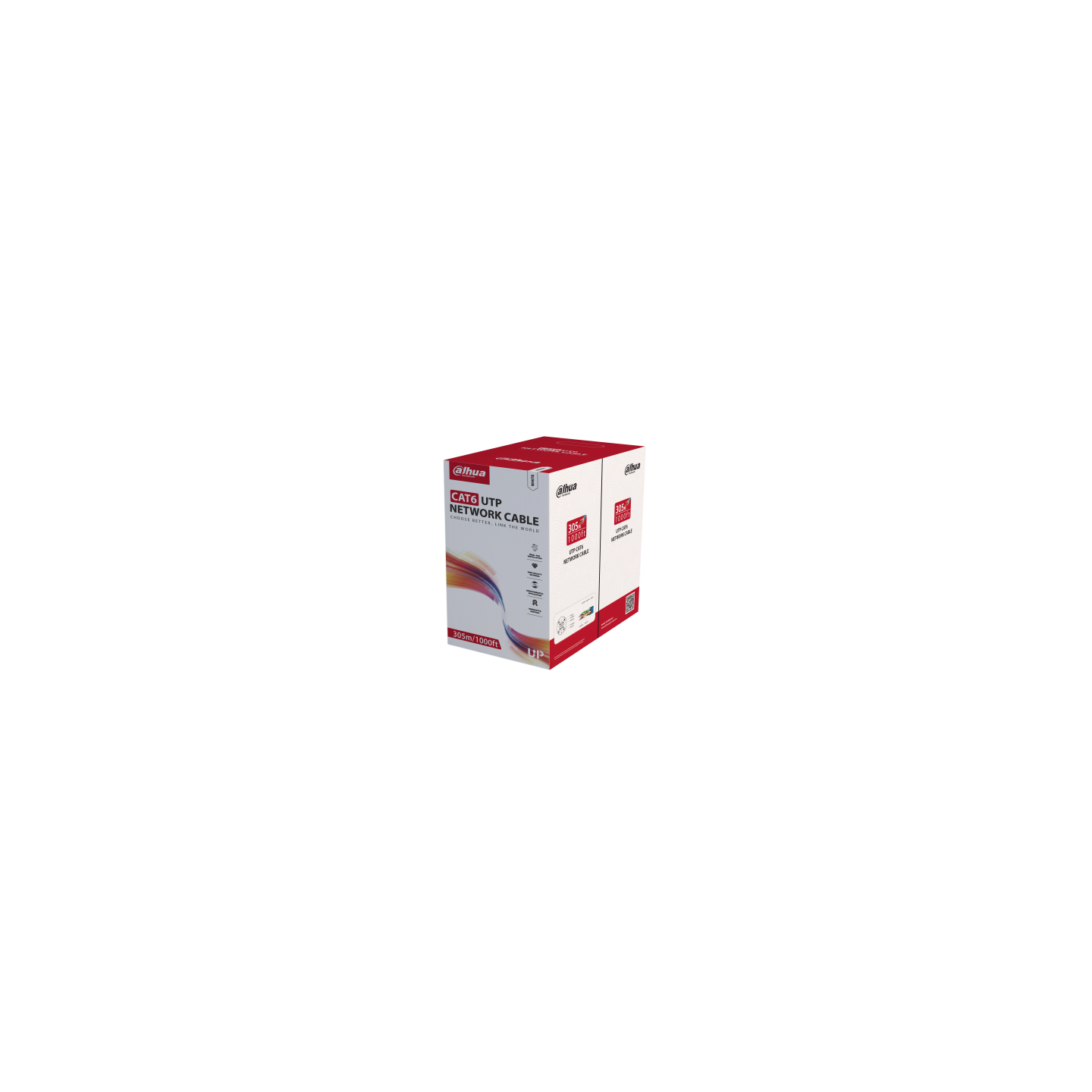

Dahua CAT6 OFC Cable 0.53mm 305m Blue - PFM920I-6UN-C - CAT6 OFC Cable 0.53mm 305m Blue
305m per carton U/UTP Cat6 cable; Power over Ethernet compatible; pure copper conductor; PVC sheath; CE CPR Eca flame retardant; 10-year warranty.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Ethernet Cables - Category | Cat6 |
|---|---|
| Ethernet Cables - Shielding | UTP |
| Ethernet Cables - Conductor | Solid Copper |
| Ethernet Cables - Length | Other |
| Ethernet Cables - PoE Compatible | Yes |
- 305m/carton U/UTP CAT6, power over Ethernet, compatible with one cable.
- High-purity oxygen-free copper conductor.
- Customized PVC outer sheath; CE CPR Eca flame retardant class certified
- 10-year warranty.
Conductor
- Material : Oxygen free copper (99.97% purity)
- Diameter : 0.53 mm ± 0.01 mm (0.0209" ± 0.0004")
- Wire Gauge : 24 AWG
Insulation
- Material : HDPE
- Min. Average Thickness : 0.21 mm (0.0083")
- Diameter : 0.95 mm ± 0.1 mm (0.0374" ± 0.0039")
- Color : 8 cores, Blue, white/blue; Orange, white/orange; Green, white/green; Brown, white/brown
Rip Cord
- Material : Polyester
- Specification : 500D
Separator
- Material : PE
- Specification : Translucent 4.5 mm × 0.4 mm (0.18" × 0.0157")
Sheath
- Material : PVC
- Min. Average Thickness : 0.5 mm (0.02")
- Diameter : 6.0 mm ± 0.30 mm (0.24" ± 0.0118")
- Color : White
Electrical
- Max. DC Resistance of a Single Conductor : 9.0 Ω @ 100 m (328.08 ft)
- Min. Insulation Resistance : 5000 MΩ·km
- Max. DC Resistance Unbalance : 2% (pair intra), 4% (pairs inter)
- Dielectric Strength : No breakdown with 1kV DC for 1 min
Transmission
- Characteristic Impedance : 100 Ω ± 15 Ω
- Near-end Crosstalk : ≥39.3 dB/100 m @ 250 MHz
- Max. Attenuation : 34.8 dB/100 m @ 250 MHz
- Return Loss : ≥17.3 dB/100 m @ 250 MHz
Mechanical
- Tensile Strength : Sheath ≥13.5 MPa, insulation ≥16 MPa
- Elongation at Break : Sheath ≥150%, insulation ≥300%
- Installation Bending Radius : >8 times of outer cable diameter
- Conductor Elongation at Break : ≥10%
Environmental
- Shrinkage of Insulation : ≤5%
- Color Migration Resistance of Insulation : No migration
- Sheath Tensile Strength and Elongation at Break after Aging : ≥12.5 MPa, ≥125%
- Low Temperature Bending Test : No cracking after the test
- Heat Shock Test : No cracking after the test
- Operation Temperature : –20 °C to +60 °C (–4 °F to +140 °F)
- Installation Temperature : 0 °C to +50 °C (32 °F to 122 °F)
- Storage Temperature and Humidity : –10 °C to +40 °C (14 °F to 104 °F), <60% (RH)
Security
- Vertical Fire Propagation Test : Comply with IEC 60332-1-2
Packaging
- Cable Length : 305.0 m ± 2 m (1,000.66 ft ± 6.56 ft)
- Packaging Method : 305 m (1,000 ft) a carton, one carton with 2 inner cartons
- Packaging Dimensions : 403 mm × 401 mm × 210 mm (15.87" × 15.79" × 8.27") (L × W × H)
- Transport Package Dimensions : 455 mm × 435 mm × 436 mm (17.91" × 17.13" × 17.17") (L × W × H)
- Net Weight : 11.0 kg ± 0.5 kg (24.25 lb ± 1.10 lb)
- Gross Weight : 12.0 kg ± 0.5 kg (26.46 lb ± 1.10 lb)
Compliance
- Executive Standards : Q/DXJ 067-2024, EN50575
- Certifications : CPR Eca
- Flame-retardant Standard : EN50575
| Type | Cat6 |
| Cable Type | UTP |
| Conductor | Pure Copper |
| Environment | Indoor |
| Length | 305m |
| Colour | Blue |
