MINIX NEO Z97 Mini PC - Intel N97, 12GB LPDDR5X, 512GB NVMe, Triple 4K (Boxed)
Compact Intel N97 mini PC with 12GB LPDDR5X RAM, 512GB NVMe SSD, triple 4K display support (2x HDMI 2.1 + DP 1.4), WiFi 6, dual Gigabit Ethernet, and Windows 11 Pro in 88×88×42mm form factor.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Barebone & Mini PC - System Type | Complete Mini PC |
|---|---|
| Barebone & Mini PC - Processor Family | Intel N-Series |
| Barebone & Mini PC - Graphics Chipset | Intel UHD Graphics |
| Barebone & Mini PC - Operating System | Windows 11 Pro |
| Barebone & Mini PC - Installed Storage | 512 GB |
| Barebone & Mini PC - Installed Memory (RAM) | 8 GB |

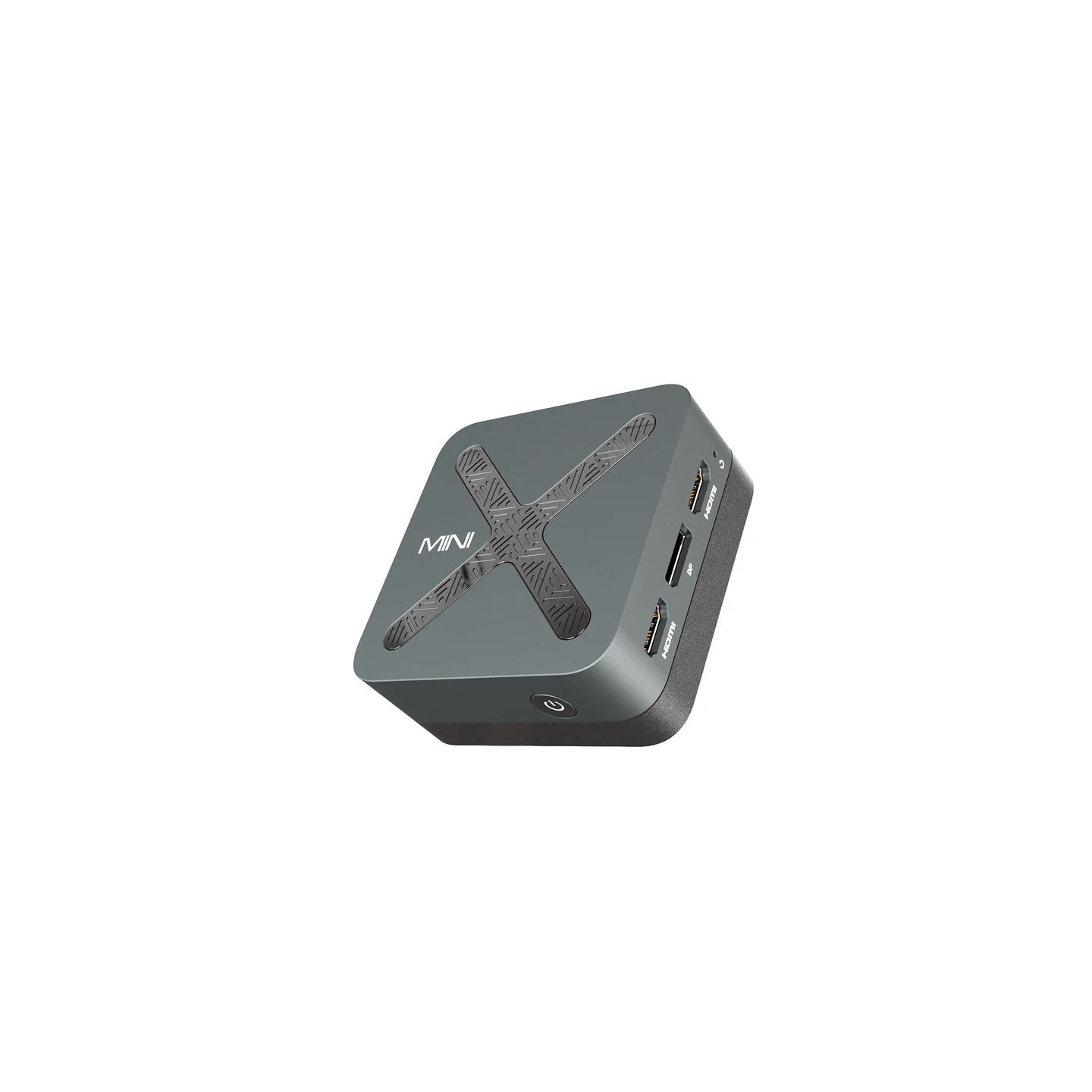

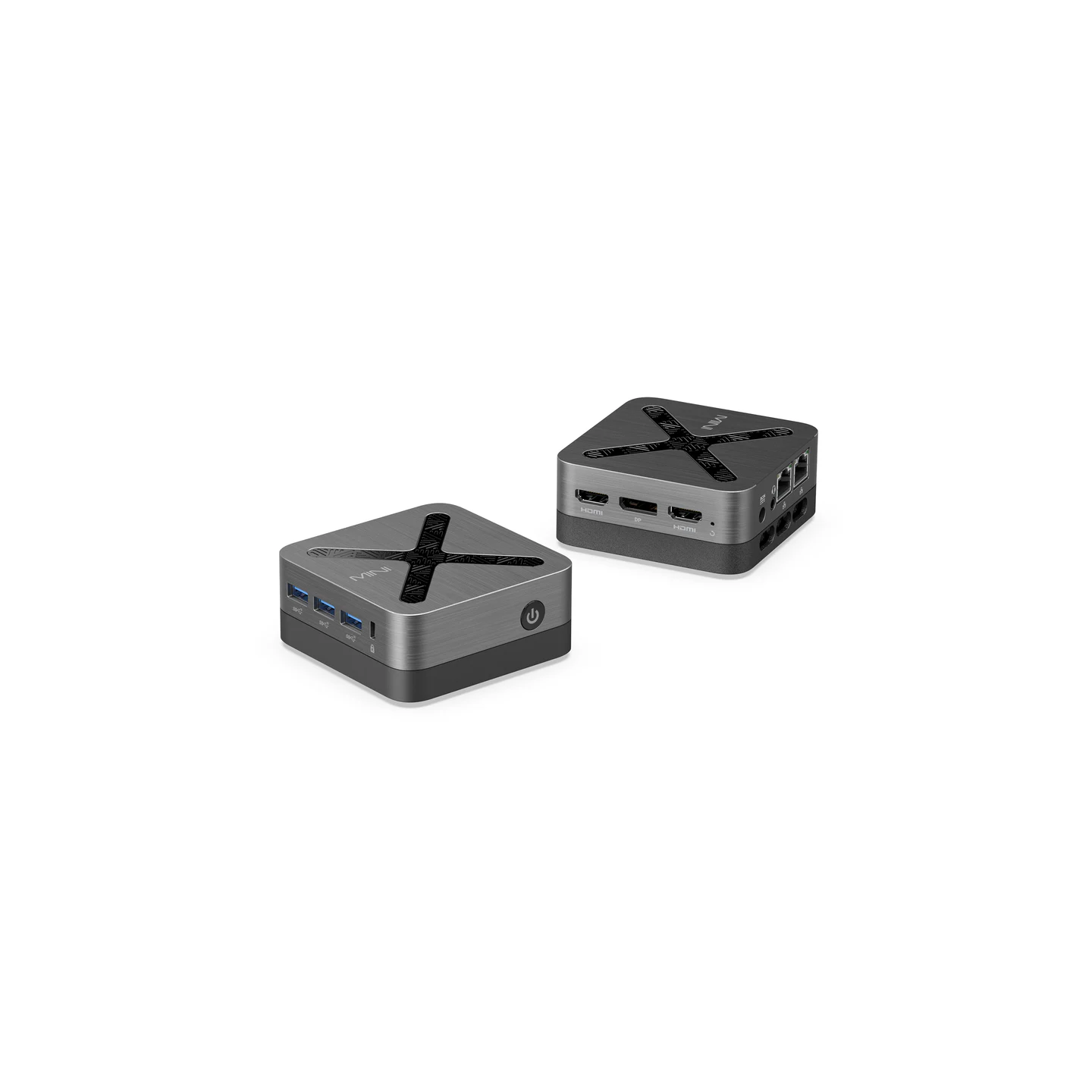

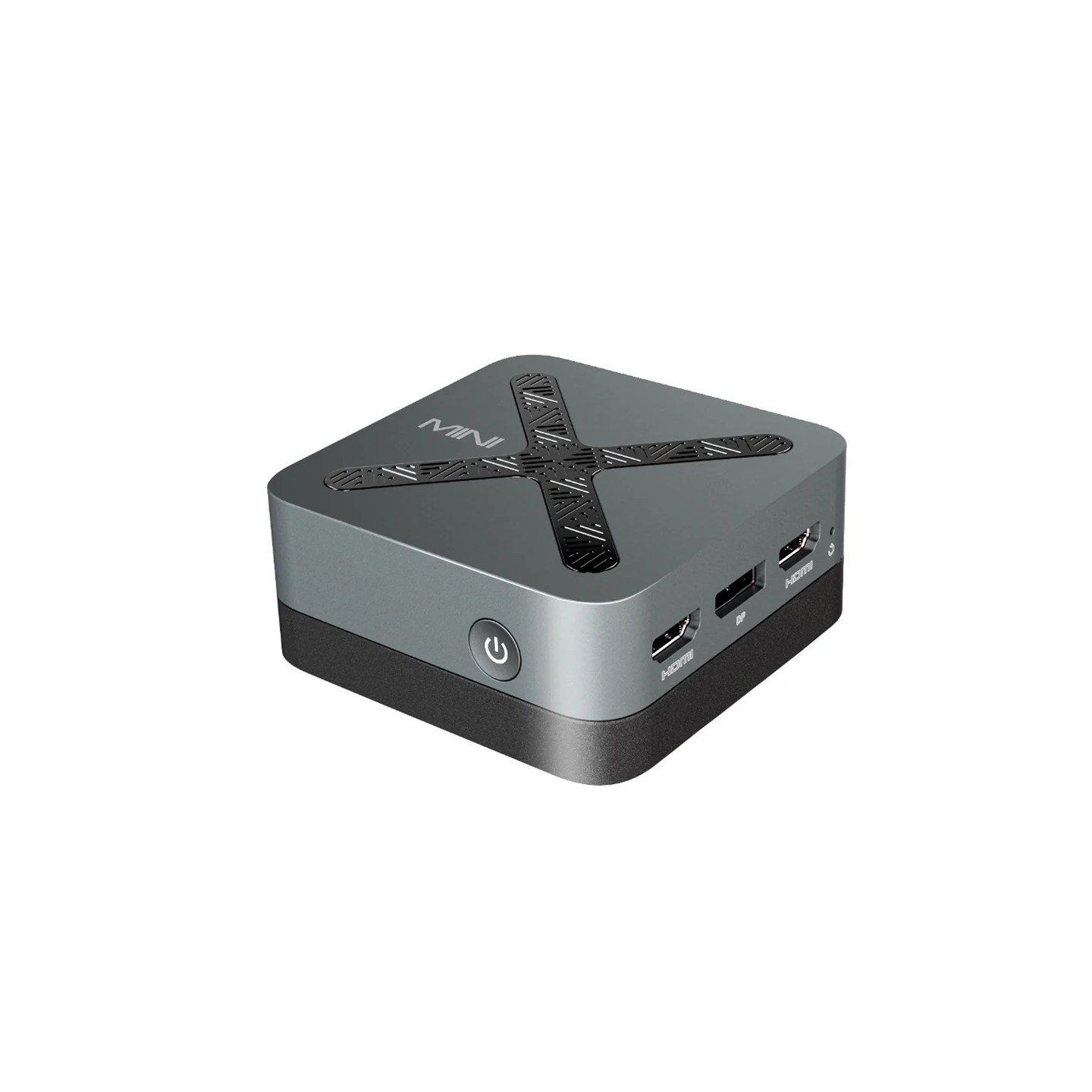

The MINIX NEO Z97 is a palm-sized mini PC powered by Intel's 12th generation N97 processor (10nm, quad-core, up to 3.6GHz, 12W TDP). This compact system delivers responsive performance for office productivity, multimedia playback, light gaming, and digital signage applications. With 12GB of onboard LPDDR5X-4800MHz RAM and 512GB M.2 NVMe SSD storage (expandable via additional M.2 slot), the Z97 provides ample capacity for daily computing tasks.

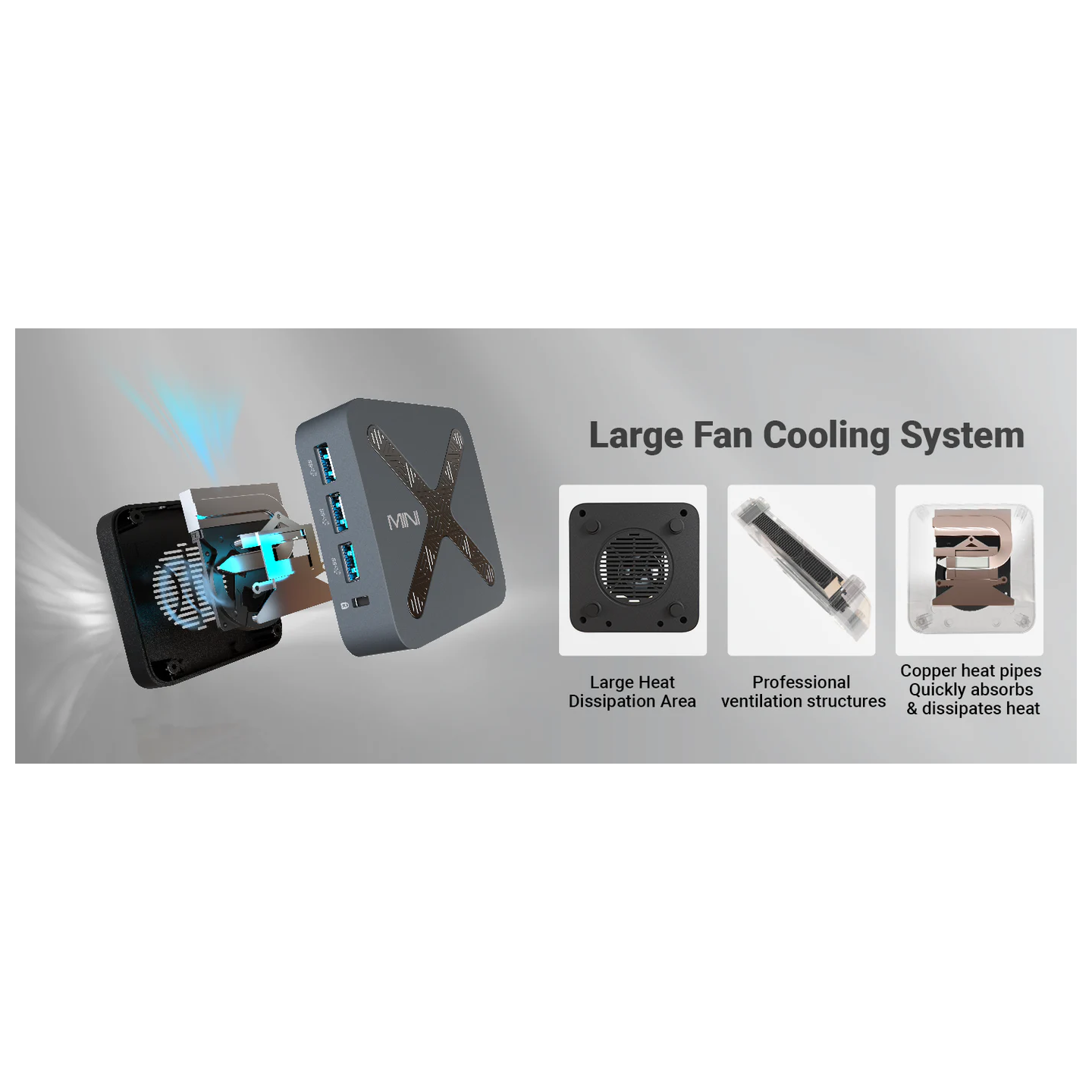

Connectivity is comprehensive with dual Gigabit Ethernet ports, WiFi 6 (802.11AX dual-band 2.4GHz/5GHz), and Bluetooth 5.2. The system features triple 4K display support via 2x HDMI 2.1 ports and 1x DisplayPort 1.4, all capable of 4K@60Hz output, making it ideal for multi-monitor setups, stock trading, design work, and video production. Pre-installed Windows 11 Pro 64-bit ensures immediate productivity. The ultra-compact 88×88×42mm aluminum chassis easily fits behind monitors or in tight spaces, while maintaining fanless or near-silent operation.
The Z97 includes comprehensive global certifications (FCC, CE, UKCA, RoHS, WEEE, PSE) and ships with a VESA mount, HDMI cable, power adapter, and user manual.
- Intel Processor N97 (6MB cache, up to 3.6 GHz, 12W TDP)
- Intel UHD Graphics with 24 execution units
- 12GB LPDDR5X-4800MHz onboard memory (soldered)
- 512GB M.2 2280 PCIe 3.0 x4 NVMe SSD + M.2 expansion slot
- 2x HDMI 2.1 TMDS (4K@60Hz) + 1x DisplayPort 1.4 (4K@60Hz)

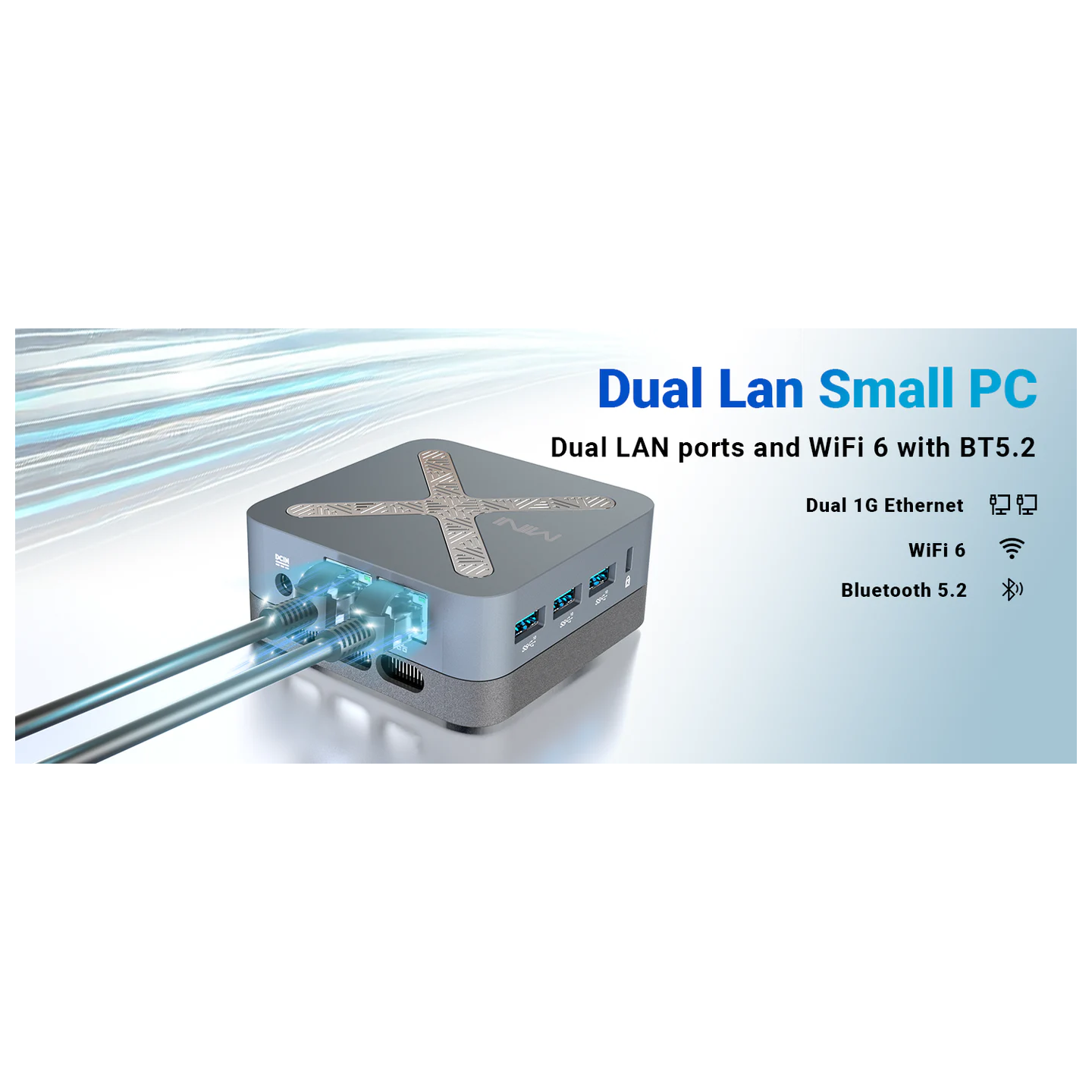

- 2x RJ-45 Gigabit Ethernet ports
- WiFi 6 (802.11AX) + Bluetooth 5.2
- 3x USB-A 3.2 Gen 1 ports
- 3.5mm audio output combo jack
- Windows 11 Pro 64-bit pre-installed

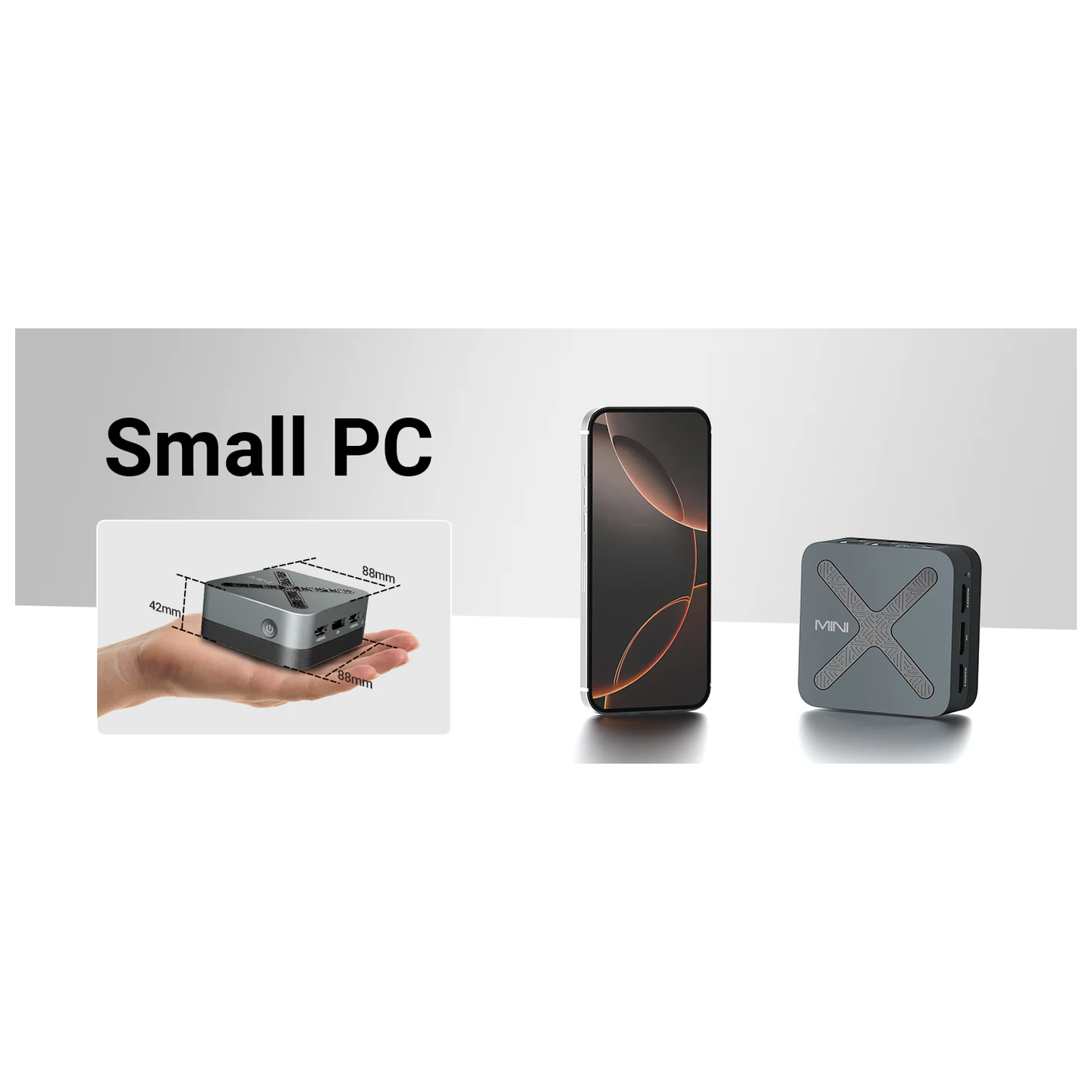

- Compact 88×88×42mm aluminum chassis
| Processor | Intel Processor N97 (12th Gen Alder Lake, 10nm, Quad-Core, 6MB Cache, up to 3.6 GHz, 12W TDP) |
| Graphics | Intel UHD Graphics (24 Execution Units, up to 1.2 GHz) |
| Memory | 12GB LPDDR5X-4800MHz (Onboard, Soldered) |
| Storage | 512GB M.2 2280 PCIe 3.0 x4 NVMe SSD |
| Storage Expansion | 1x M.2 2280 PCIe 3.0 x1 NVMe Slot (up to 4TB) |
| Video Output | 2x HDMI 2.1 TMDS (4K@60Hz) + 1x DisplayPort 1.4 (4K@60Hz) |
| Ethernet | 2x RJ-45 Gigabit Ethernet (1G) |
| Wireless | Intel 802.11AX WiFi 6 Dual Band (2.4GHz/5GHz) + Bluetooth 5.2 |
| USB Ports | 3x USB-A 3.2 Gen 1 |
| Audio | 3.5mm Audio Output Combo Jack |
| Power | 12V/3A DC Power Adapter (36W Max), DC 2.5/5.5mm Jack |
| Operating System | Windows 11 Pro 64-bit (Pre-installed) |
| Dimensions (Device) | 88 × 88 × 42 mm |
| Weight (Device) | 0.18 kg |
| Package Dimensions | 143 × 143 × 10 mm |
| Package Weight | 0.738 kg |
| Operating Temperature | 0°C to 15°C @ 5-80% RH |
| Storage Temperature | -20°C to 70°C |
| Relative Humidity | 10-95% RH @ 40°C/104°F (Non-Condensing) |
| Certifications | FCC, CE, UKCA, RoHS, WEEE, PSE |
| Included Accessories | VESA Mount, HDMI Cable, Power Adapter, User Manual |
| Chassis Material | Aluminum |
| Form Factor | Mini PC (Palm-sized Compact) |
