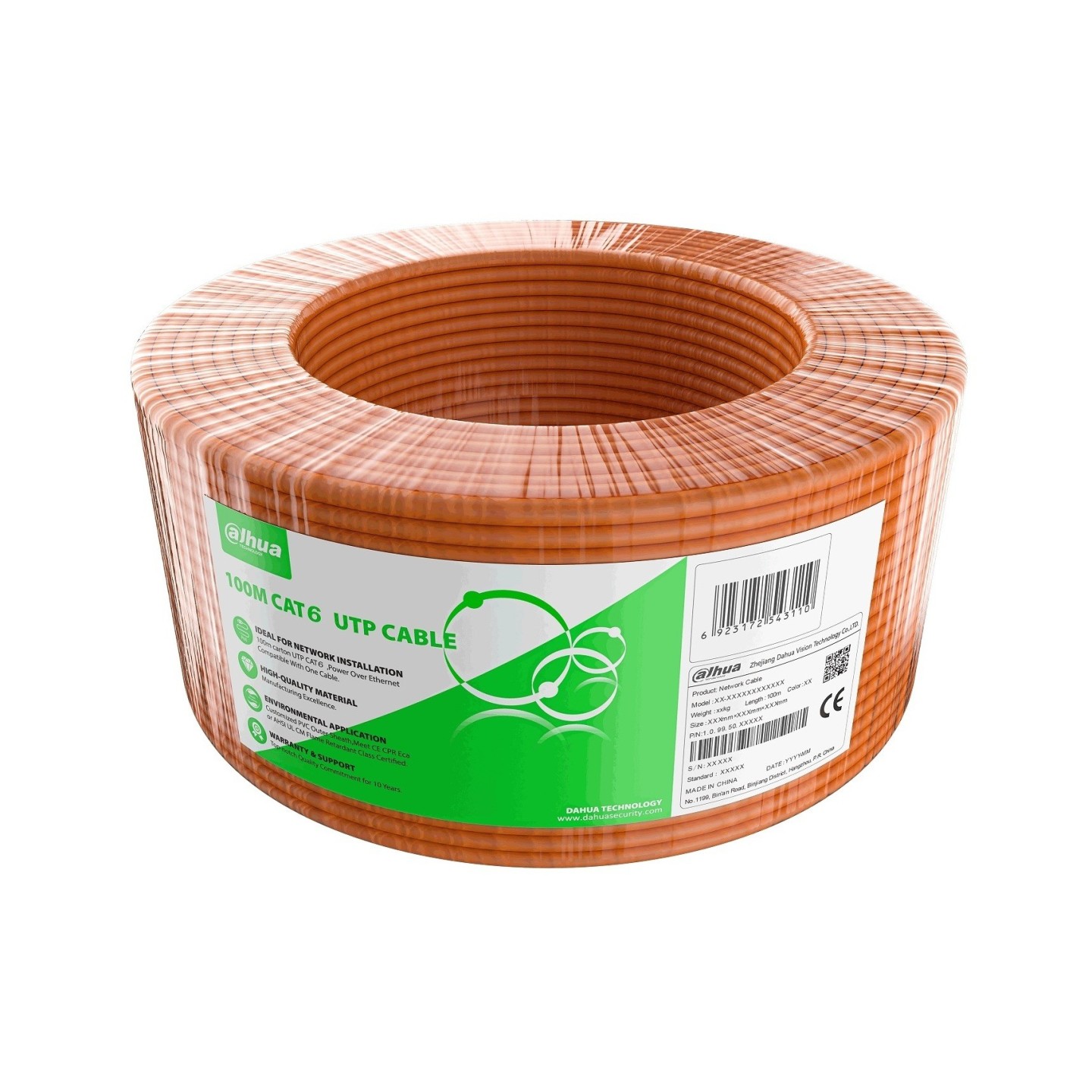

Dahua CAT6 Cable CCA - PFM922I-6UN-C-100 - 100m Orange

• 100m/carton UTP CAT6, power over Ethernet, compatible with one cable
• Customized PVC outer sheath; CE CPR Eca flame retardant class certified

Conductor

• Material : CCA (Copper content 22%–31%)
• Diameter : 0.57 mm ± 0.01 mm (0.0224"±0.0004")
• Wire Gauge : 23AWG

Insulation

• Material : HDPE
• Min. Average Thickness : 0.21 mm (0.0083")
• Diameter : 1.02 mm ± 0.1 mm (0.0402"±0.004")
• Color : Blue, white/blue; orange, white/orange; green, white/green; brown, white/brown

Separator

• Material : PE
• Specification : Translucent 4.5 mm × 0.4 mm (0.1772"±0.0157")

Rip Cord

• Material : Polyester
• Specification : 500D

Sheath

• Material : PVC
• Min. Average Thickness : 0.5 mm (0.0197")
• Diameter : 6.5 mm ± 0.3 mm (0.2559"±0.0118")
• Color : Orange

Electrical

• Max. DC Resistance of a Single Conductor : 11.5Ω/100 m
• Min. Insulation Resistance : 5000MΩ·km
• Max. DC Resistance Unbalance : 2% (pair intra), 4% (pairs inter)
• Dielectric Strength : No breakdown with 1kV DC for 1 min

Transmission

• Characteristic Impedance : 100Ω ± 15Ω
• Near End Cross Talk : ≥39.30 dB/100 m @250 MHz
• Max. Attenuation : 34.8 dB/100 m @250 MHz
• Return Loss : ≥17.3 dB/100 m @250 MHz

Mechanical

• Tensile Strength : Sheath≥13.5 MPa, insulation≥16 MPa
• Elongation at Break : Sheath≥150%, insulation≥300%
• Installation Bending Radius : >8 times of outer cable diameter
• Conductor Elongation at Break : ≥10%

Environmental

• Shrinkage of Insulation : ≤5%
• Color Migration Resistance of Insulation : No migration
• Sheath Tensile Strength and Elongation at Break after Aging : ≥12.5 MPa, ≥100%
• Low Temperature Bending Test : No cracking after the test
• Heat Shock Test : No cracking after the test
• Operation Temperature : –20°C to +60°C (–4°F to 140°F)
• Installation Temperature : 0°C to +50°C (32°F to 122°F)
• Storage Temperature and Humidity : –10°C to +40°C (14°F to 104°F), <60% (RH)

Security

• Vertical Fire Propagation Test : Comply with IEC 60332-1-2

Packaging

• Length : 100.0 m (328.08 ft) ±1 m (3.28 ft)
• Inner Carton Dimensions : 286 mm × 119 mm × 289 mm (11.26" × 4.69" × 11.38") (L × W × H)
• Net Weight : 3.2 kg ±0.3 kg (7.05 lb ±0.66 lb)
• Gross Weight : 3.5 kg ±0.3 kg (7.72 lb ±0.66 lb)
• Packaging Dimensions : 595 mm × 310 mm × 270 mm (23.43" × 12.20" × 10.62") (L × W × H)
• Packaging Method : 100 m/carton, 4 inner cartons in one package

Compliance

• Executive Standard : Q/DXJ 067-2019
• Certification : CPR Eca
