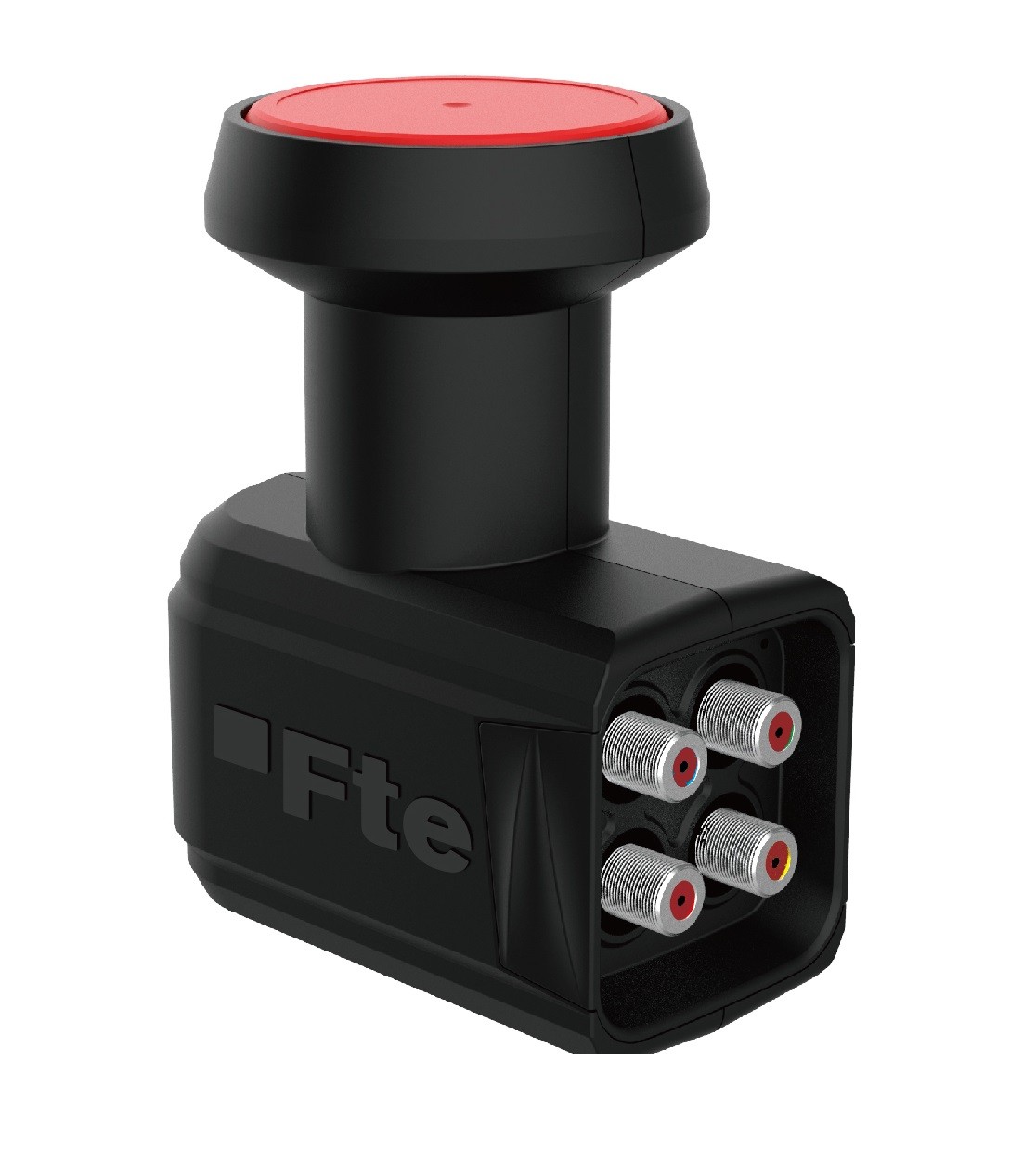

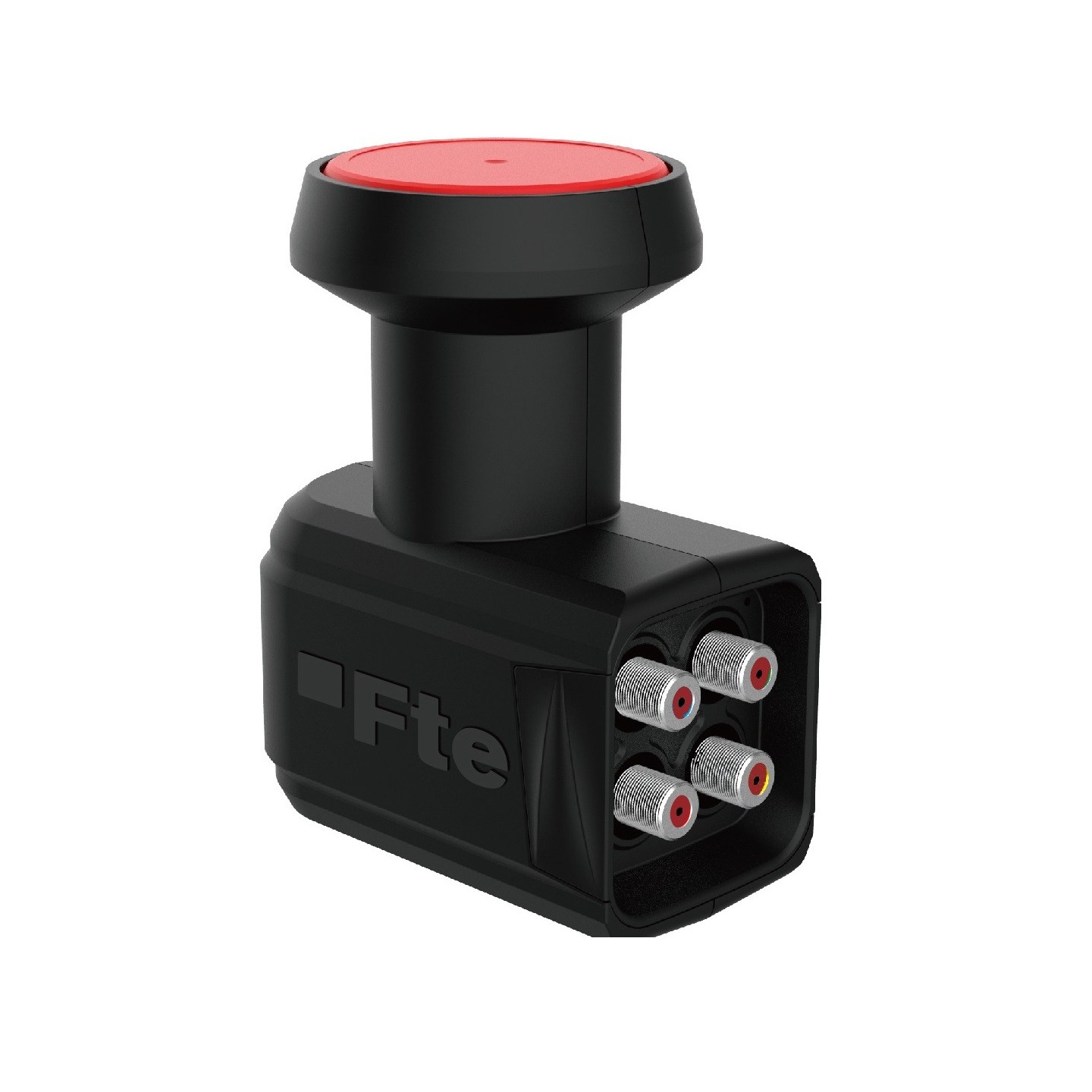

FTE eXcellento Black HQ Quad LNB - 0.1db
Quad LNB with 4 outputs; input bands 10.7–11.7 GHz and 11.7–12.75 GHz; IF outputs 950–1950 MHz and 1100–2150 MHz; LO 9.75/10.60 GHz; 75 Ω impedance.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
- Input frequencies: 10.7~11.7 GHz, 11.7~12.75 GHz
- Number of outputs: 4
- Output frequencies: 950~1950 MHz, 1100~2150 MHz
- Local oscillators: 9,75 / 10,60 GHz
- Output impedance: 75 Ω
- Noise figure TYP: 0,1 dB
- Conversion gain: 55 - 65 dB
- Voltage supply: 11.5 / 19.0 VDC 0-22 KHz
- Current consumption: 140 ± 10 mA (typical)
| LNB Type | Quad |
